Commercial Rang Hood Pro 1 à 3 m Package + Wood-Burning Turret + Dimmer

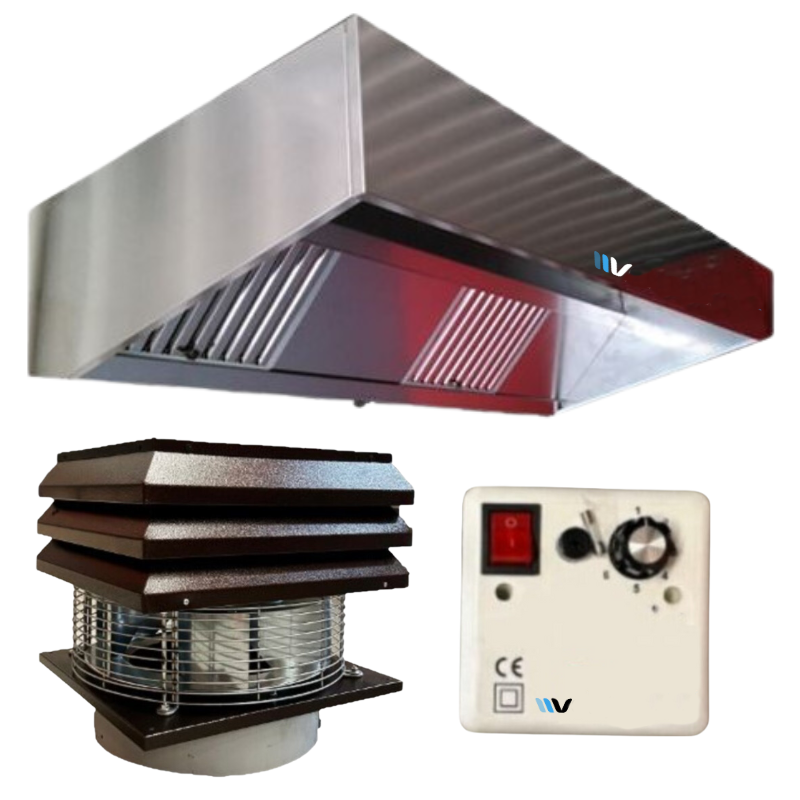

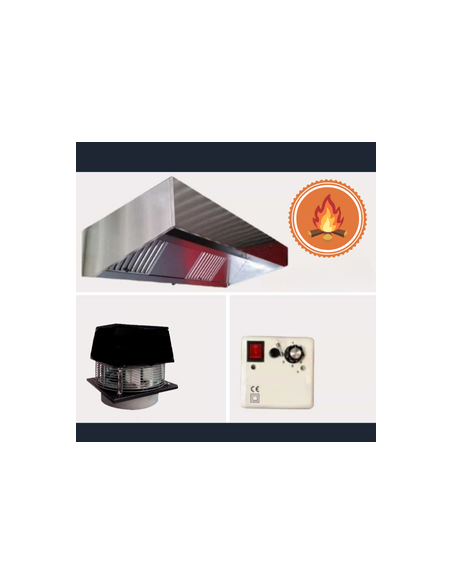

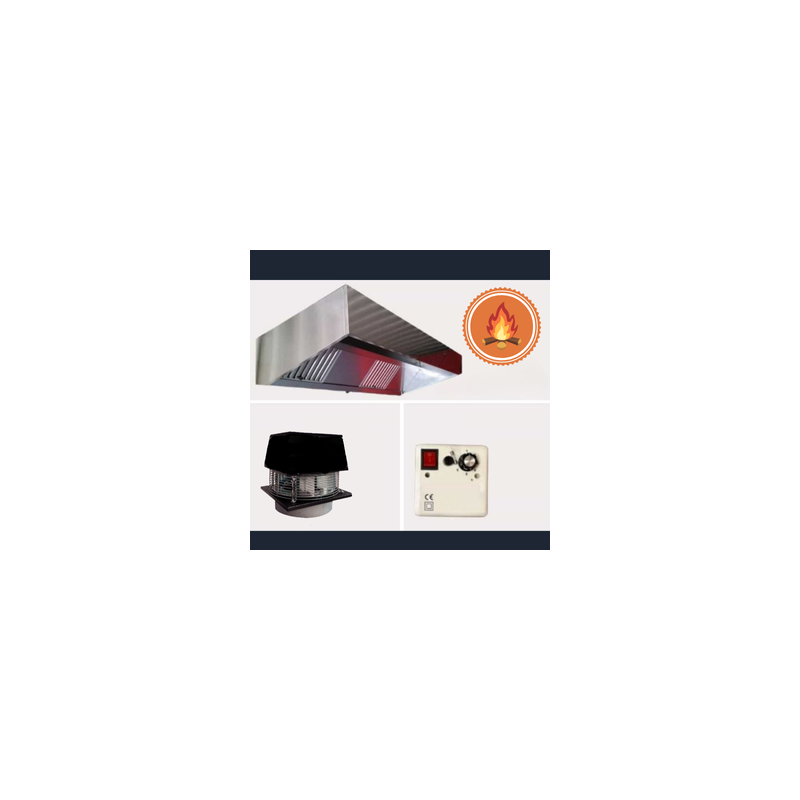

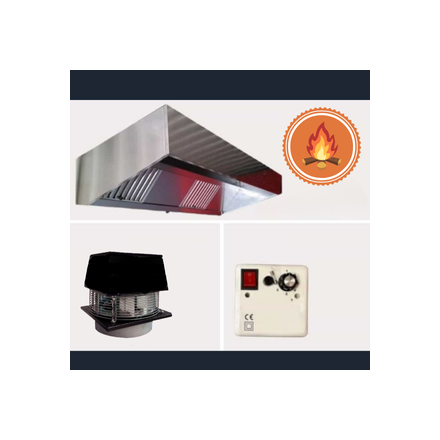

This commercial hood package with wood-burning roof fan combines a 1 to 3 metre stainless steel professional extraction hood, a roof extract fan specifically sized for wood or charcoal cooking, and a 230 V speed controller (220 V single-phase as per the original spec sheet). Enough to equip a grill cooking line without multiplying the number of hoods.
Technical specifications
| Specification |
Value |
| Hood length |
1 to 3 metres (1, 1.5, 2, 2.5 or 3 m) |
| Hood dimensions |

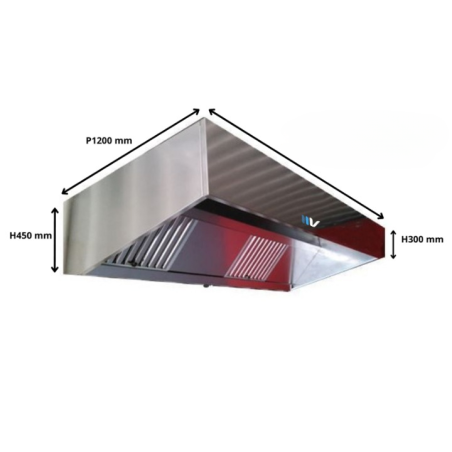

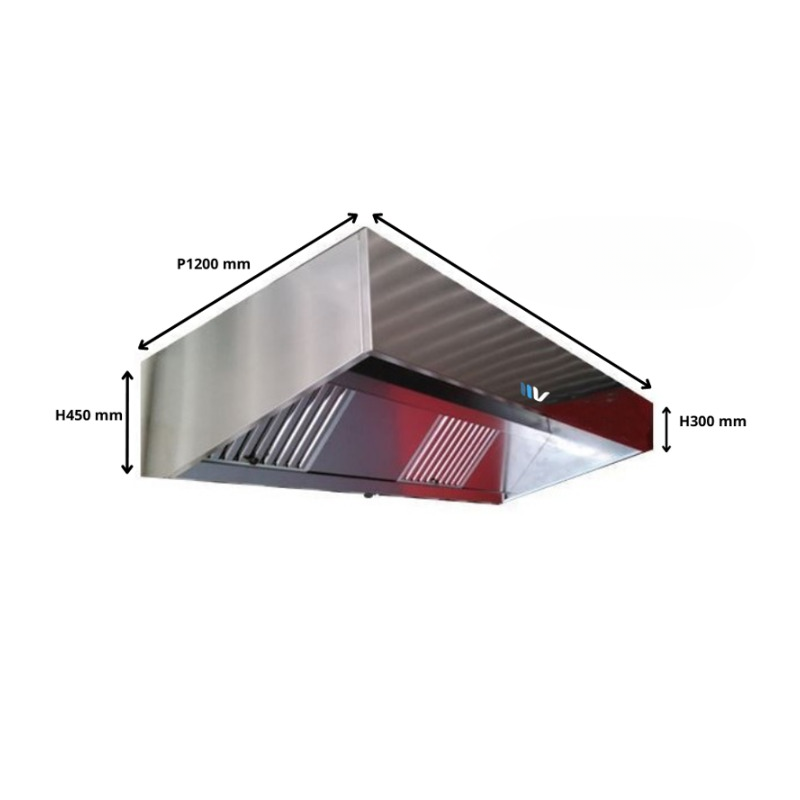

L 1000 to 3000 x D 1000 x H 450 mm, 300 mm front valance |
| Roof fan dimensions |
L 430 x W 430 x H 400 mm |
| Roof fan power |
200 W |
| Roof fan max airflow |
2500 m³/h |
| Roof fan discharge |
Horizontal |
| Roof fan outlet diameter |
D 250 mm minimum |
| Power supply |
230 V single-phase / 220 V single-phase |
| Speed controller |
Auto-transformer, 6 speeds |
| Warranty |
1 year |
| Package weight |
90 kg |
A roof fan built for wood-burning cooking

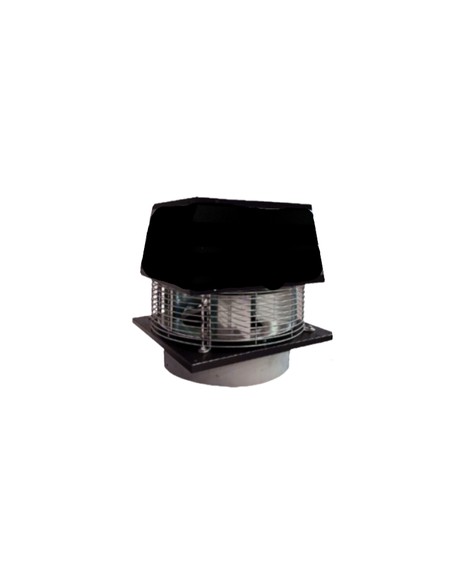

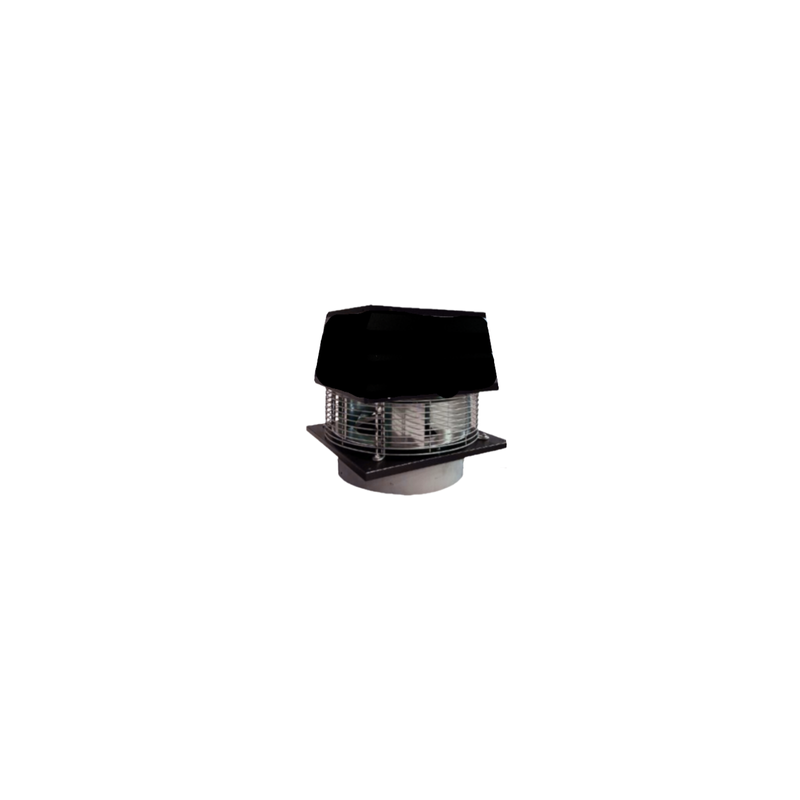

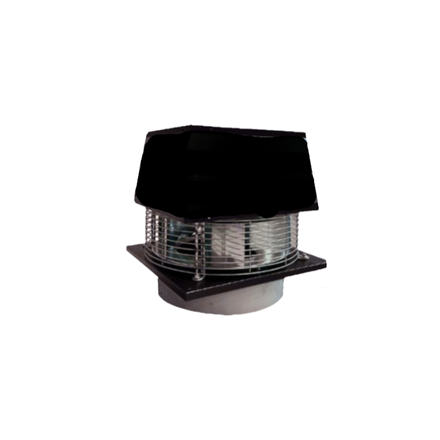

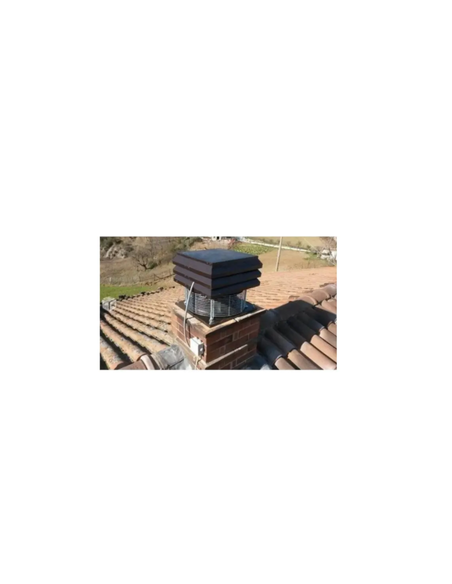

The roof extract fan in this package is specifically sized for wood or charcoal cooking, a demanding application that puts standard motors under strain with hot fumes and particles. Light, compact and quiet, it is installed on the roof and discharges air horizontally, away from the cooking line. Its structure withstands high temperatures without faltering, service after service.

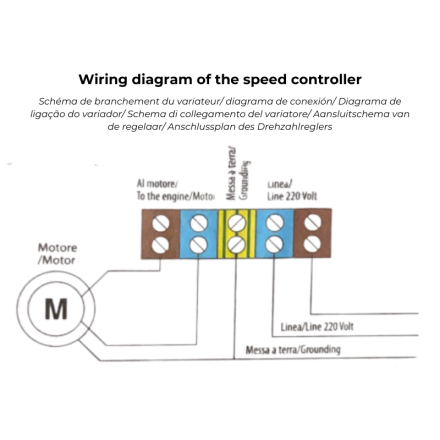

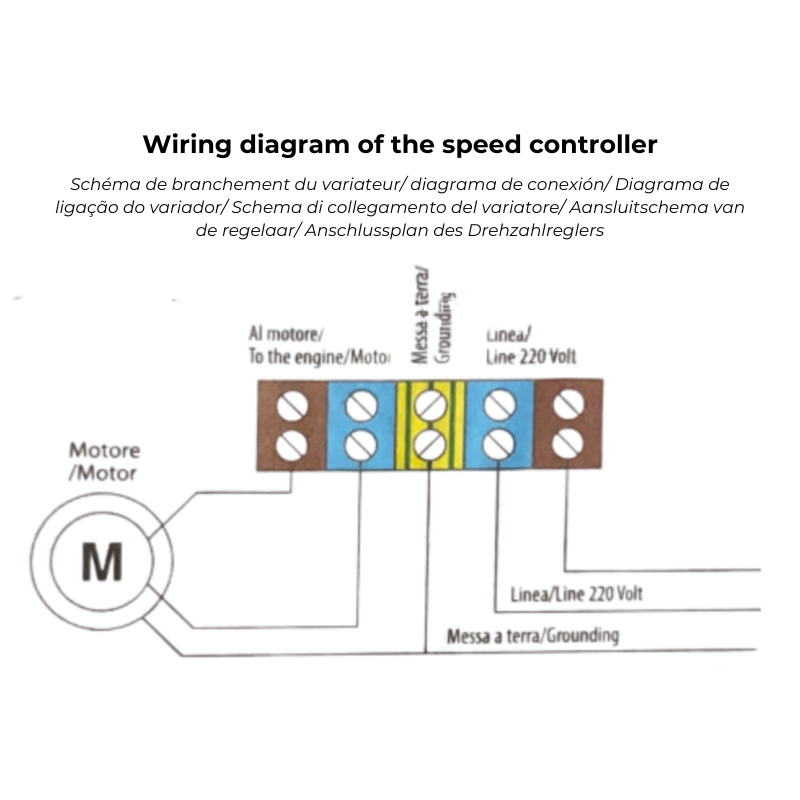

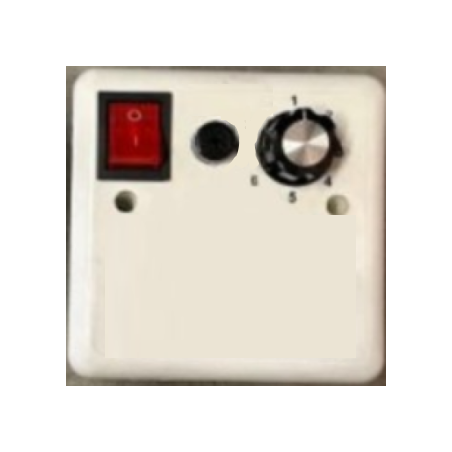

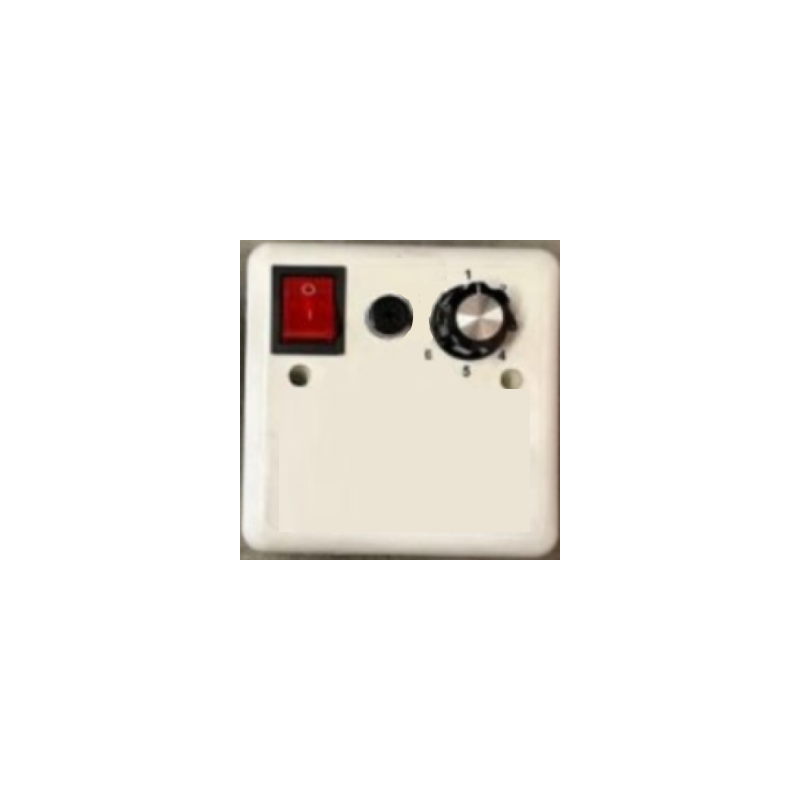

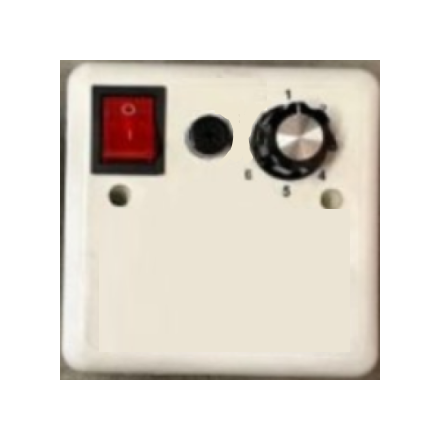

The 6-speed auto-transformer controller completes the set: start on position 6, then gradually adjust downward depending on cooking intensity. A valuable level of control when a wood fire heats up quickly.

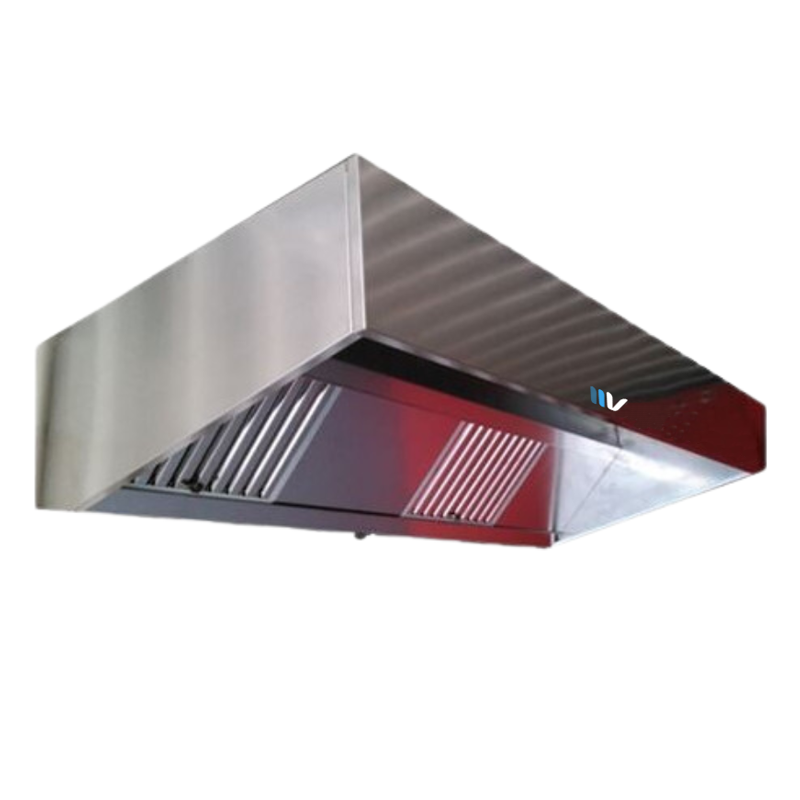

The hood, delivered flat-packed in a box, is assembled in about twenty minutes by two people. It comes with stainless steel baffle filters, stainless steel blanking plates and a drain plug. Extraction can be connected from the top or from the rear, as preferred.
Installation and ductwork
The duct network should be sized according to the chosen hood length: D 250 for a 1 or 1.5 m hood, D 315 for 2 m, D 355 for 2.5 and 3 m. The duct spigot is to be ordered as an accessory, as are the connecting ducts, which are not supplied with the package.

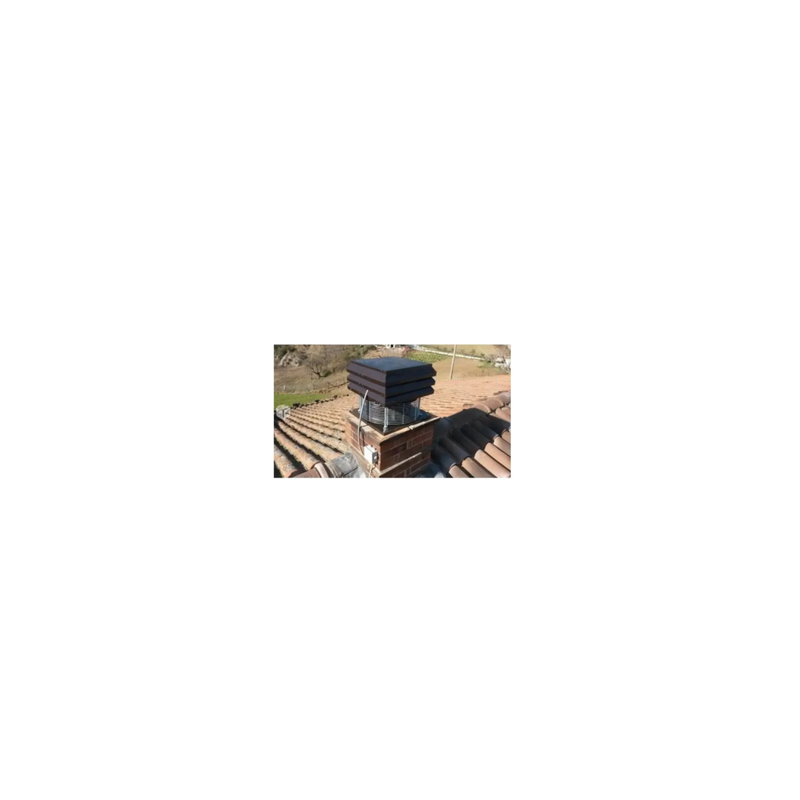

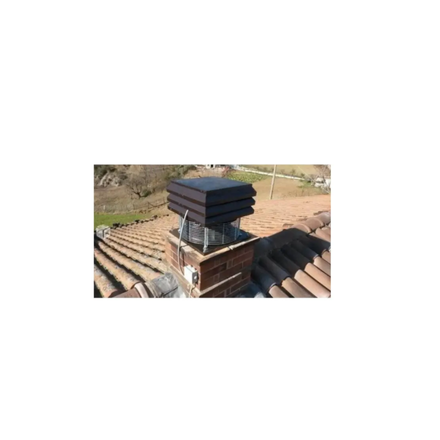

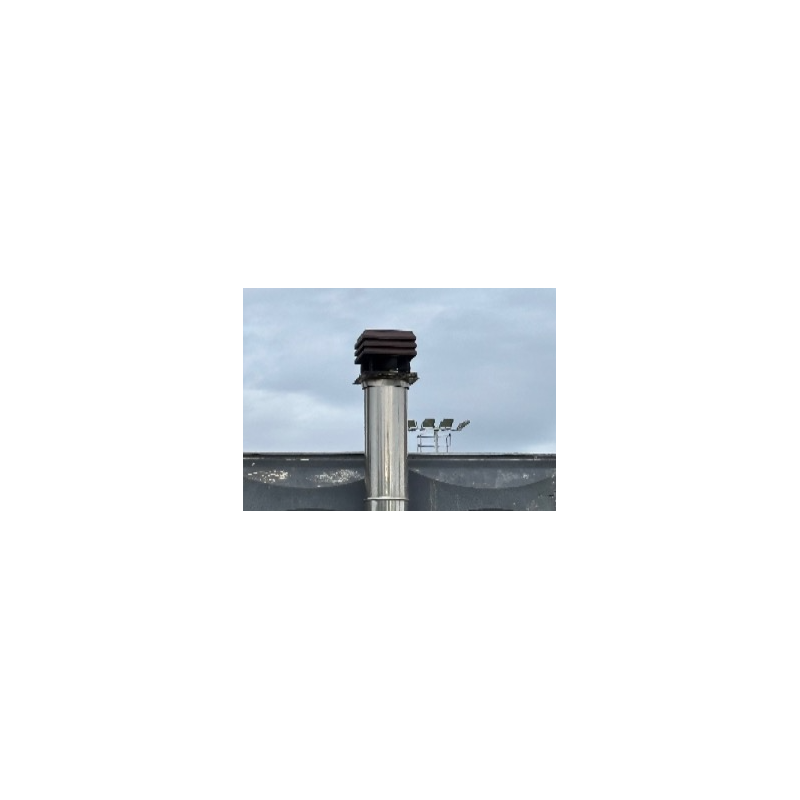

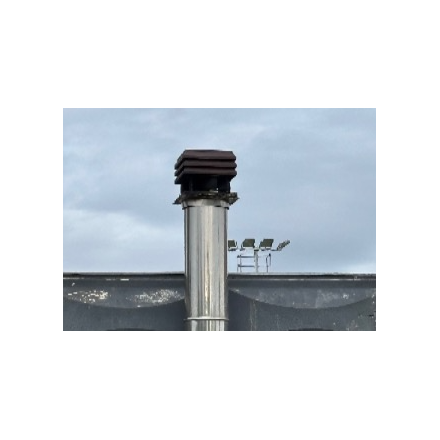

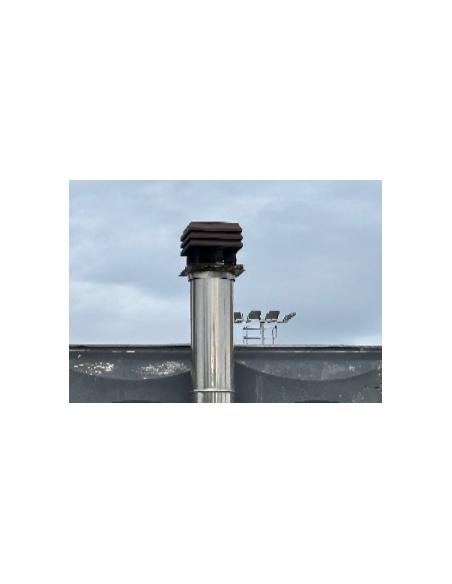

For wood or charcoal cooking use, the roof fan must be installed at least 3 metres above the hood.
Above 20 kW of cooking equipment, a 400°CF / 2h smoke extraction system becomes mandatory. This package is not suitable for F400/120 compliance (smoke extraction): it is therefore not appropriate for that scenario.
see the "accessories" tab.
Installation instructions at télécharger ici

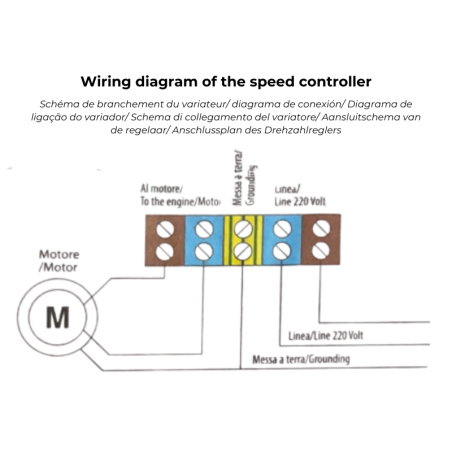

The 1-year warranty applies only if the electrical connection is carried out by a qualified electrician.
Points to check before ordering
- Hood length suited to your cooking line (1 to 3 m)
- Duct diameter matched to the chosen length (D 250, D 315 or D 355)
- Minimum 3 m distance between roof fan and hood respected for wood-burning use
- Total cooking power below the 20 kW threshold (otherwise, an F400/120 system is required)
- Qualified electrician arranged for the connection, a condition of the warranty
