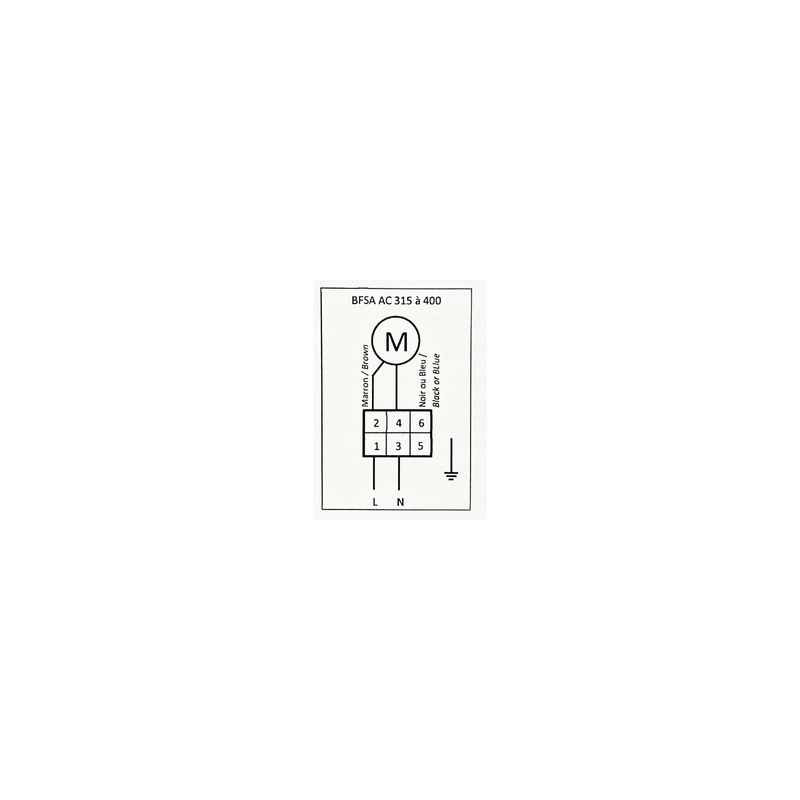

Extraction Chamber Diagram
Extra-flat enclosure for air injection, transfer, or extraction
Extra-flat VMC unit, 2700 m³/h, D355 mm, vue 2
Extra-flat VMC unit, 2700 m³/h, D355 mm, vue 3
Extra-thin cabinet, high performance
Extra-flat VMC unit, 2700 m³/h, D355 mm, vue 5
Extra-flat VMC unit, 2700 m³/h, D355 mm, vue 6

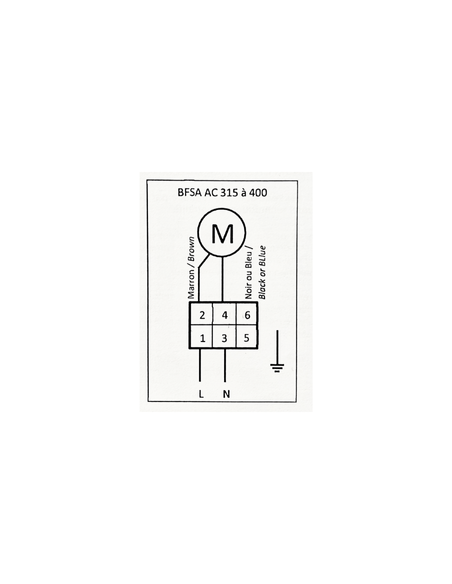

Extraction Chamber Diagram

The Extra-flat VMC unit, 2700 m³/h, D355 mm fits into the tightest false ceilings and lofts, to extract, supply or transfer air on a commercial or communal ventilation network without major building work.

  • Airflow: 2700 m³/h
  • Spigot diameter: D355 mm
  • Power supply: 230 V single-phase + Earth
  • Power rating: 300 W (2.7 A)
  • Manufactured: France, 1 year warranty
In stock
Quantity
618.00 704.00 Tax excluded
741,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

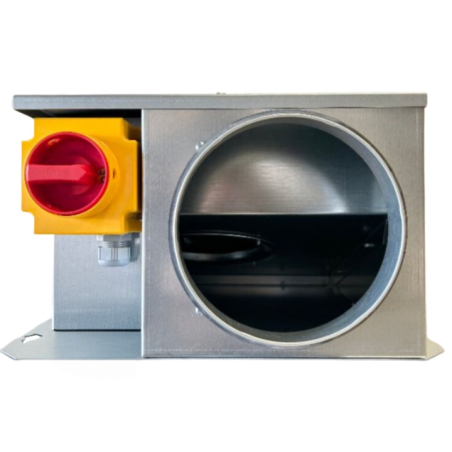

The Extra-flat VMC unit, 2700 m³/h, D355 mm is a motorised extraction fan box designed for professional mechanical ventilation systems in commercial and communal buildings, where available ceiling void height leaves no room to spare. It operates as an extract, supply or transfer fan.

An extraction fan box designed for restricted spaces

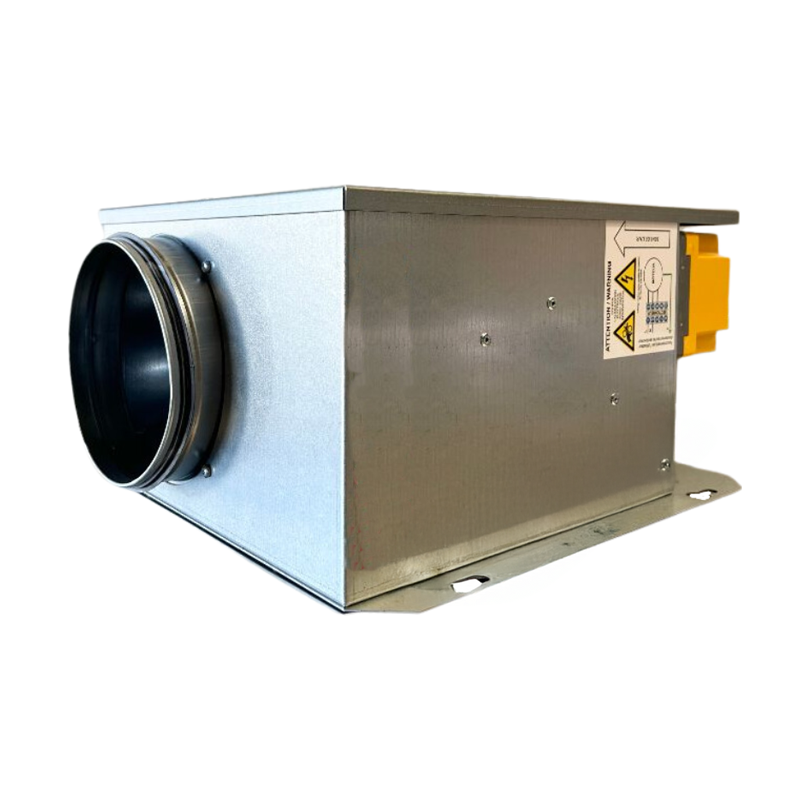

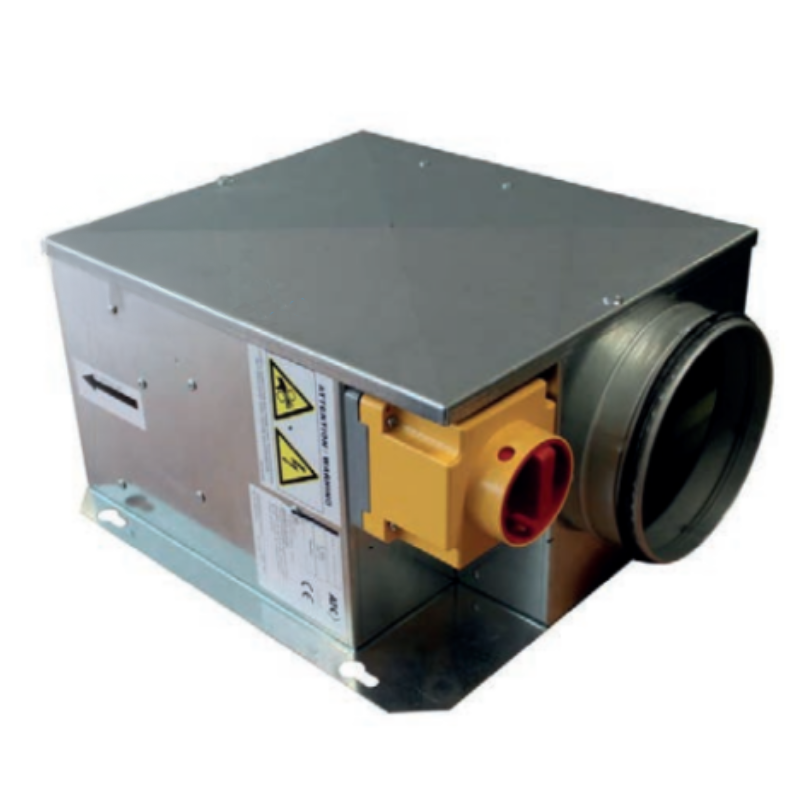

This BFSA extraction fan box has an extra-flat design that makes it easier to fit into a false ceiling or a loft with limited headroom, where a standard fan box simply wouldn't fit. The galvanised steel panels and the removable, screw-fixed cover allow easy access to the direct-drive fan motor unit for maintenance, without having to dismantle the whole installation.

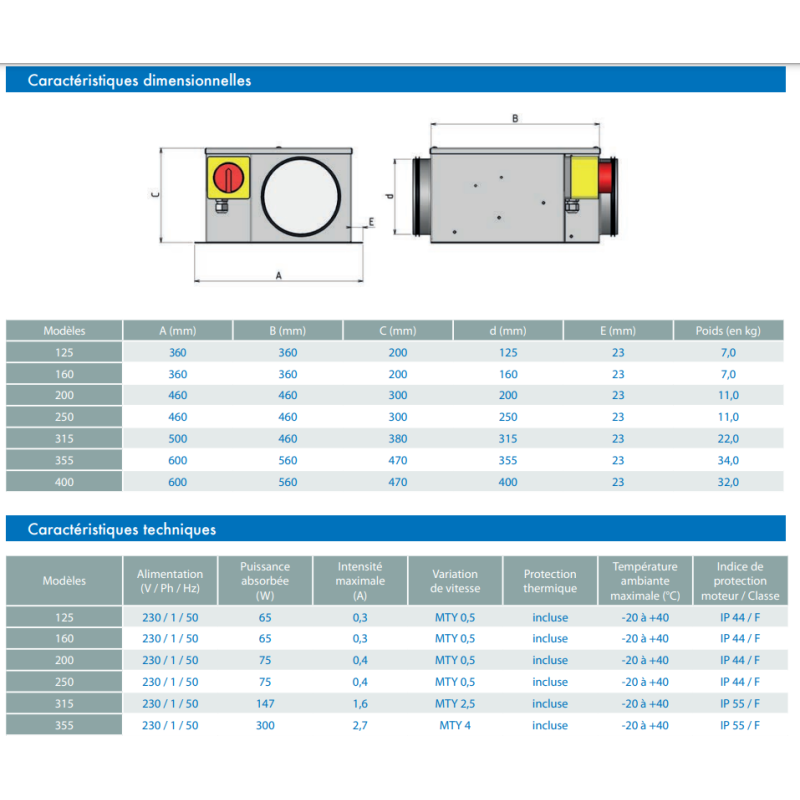

Technical specifications

Specification Value
Reference BFSA 355
Airflow 2700 m³/h
Inlet/outlet diameter D355 mm
Dimensions (L x D x H) 600 x 560 x 470 mm
Power supply 230 V single-phase + Earth, 50 Hz
Current 2.7 A
Power rating 300 W
Drive Motorised fan box, direct drive
Motor protection Built-in thermal protection
Manufacturing Made in France
Warranty 1 year

Use: extraction, supply or transfer

This BFSA fan box can be set according to the mounting orientation to operate as an extract fan, a supply fan, or to transfer air between two rooms. The impeller fitted to this D355 mm model is suitable for both indoor and outdoor installation, mounted horizontally. The circular spigots, fitted with lip seals, and the feet with fixing marks make it easy to connect to an existing ductwork network.

Installation and connection

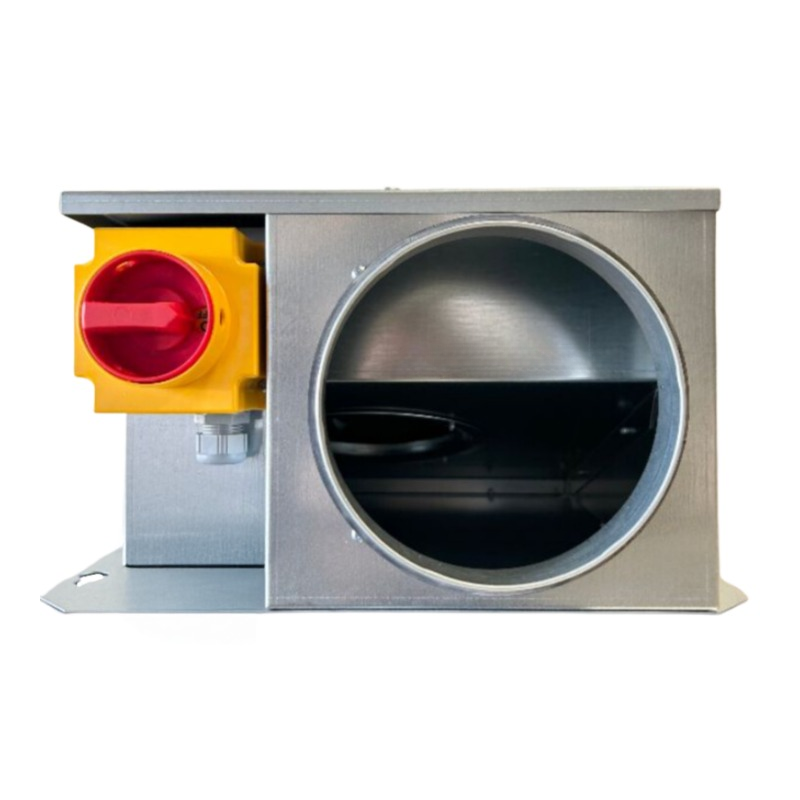

The local isolator switch is fitted and wired at the factory, and the unit is fitted with a cable gland to make the electrical connection easier. Electrical connections must always be carried out by a qualified electrician: this is a condition for the warranty to apply. This BFSA unit has been designed to integrate with existing networks such as Vim KMDT, Aldes VEC, Atlantic Critair or France Air Sirius.

Points to check before ordering

  • The D355 mm diameter must match your existing ductwork: as a guide, a Ø355 spigot is intended for an airflow in the region of 3500 m³/h depending on pressure losses, so check that your ductwork doesn't have too many bends or too great a length, which would reduce the actual airflow.
  • Check the available space in the false ceiling or loft: 600 x 560 x 470 mm, allowing for access to maintain the removable cover.
  • Confirm that the available power supply is indeed 230 V single-phase with earth.
  • Effective extraction requires a sufficient air inlet in the room: without this, actual airflow can drop and noise can increase.
  • If you're considering a fan speed controller, check its compatibility with the motor current (2.7 A) before pairing it.

Recommended with

Need a different airflow? Browse our range of extra-flat VMC extraction fan boxes, including the 1500 m³/h D315 mm and 800 m³/h D250 mm versions.

Product Details

Ventilsogood
caissonextraplat27355
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
0657968003880

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What duct diameter should be used with this BFSA VMC unit, 2700 m³/h?

This BFSA unit is fitted with D355 mm spigots, to be connected directly to ductwork of the same diameter to limit pressure losses. If your existing network is D315 or D400 mm, a transition connector will be needed: check your measurements before ordering.

Can this unit be installed for extraction, supply or transfer?

Yes, this extra-flat BFSA fan unit is versatile and can operate as an extract fan, a supply fan, or to transfer air between two rooms, depending on the mounting orientation chosen during installation.

Can this VMC unit be installed outdoors?

Yes, this BFSA unit is designed for horizontal mounting, suitable for both indoor installation (false ceiling, loft) and outdoor installation. Electrical connections must always be carried out by a qualified electrician for the warranty to apply.

Is this unit compatible with my existing VMC network (Aldes, Vim, Atlantic)?

This extra-flat BFSA D355 mm unit is designed to integrate with networks such as Vim KMDT, Aldes VEC, Atlantic Critair or France Air Sirius. However, check the dimensions of your existing installation before ordering, as ranges vary between manufacturers.

Do I need a fan speed controller with this unit?

A speed controller is not supplied with this BFSA unit. If you need to adjust the airflow to suit the room's requirements, choose a controller rated for a current of at least 2.7 A, compatible with a 230 V single-phase supply.
