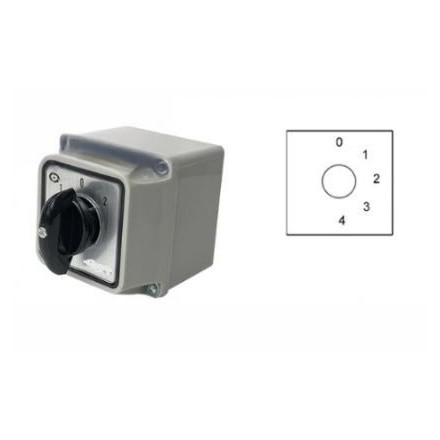

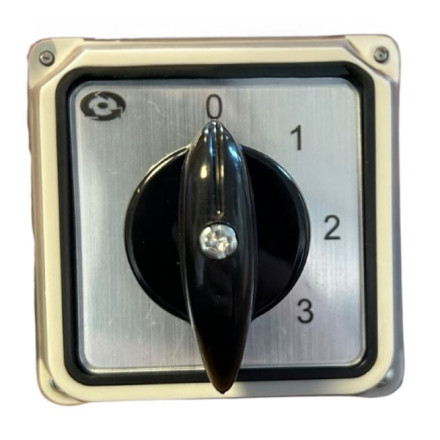

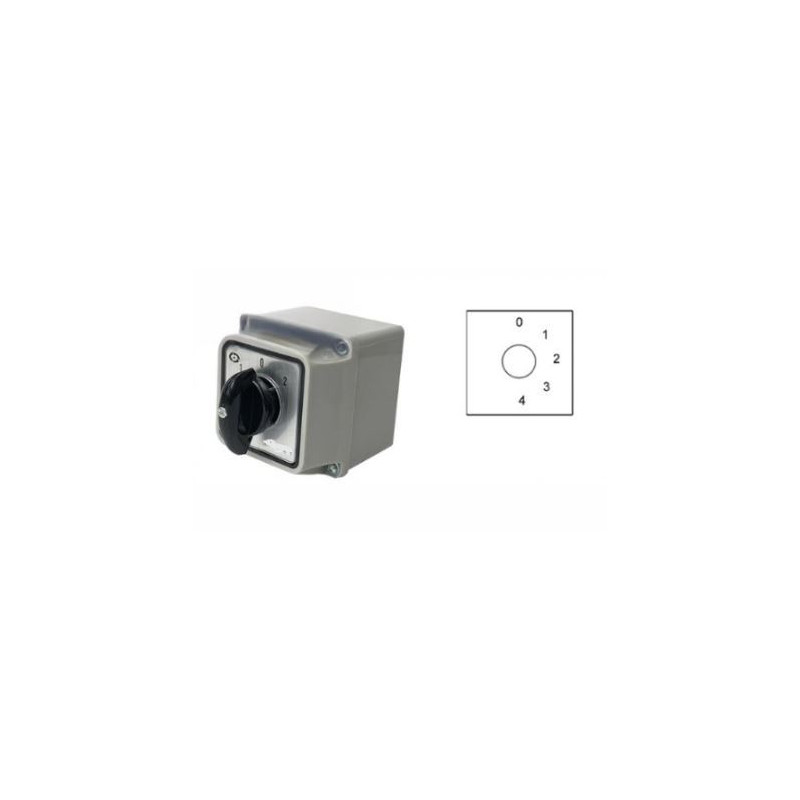

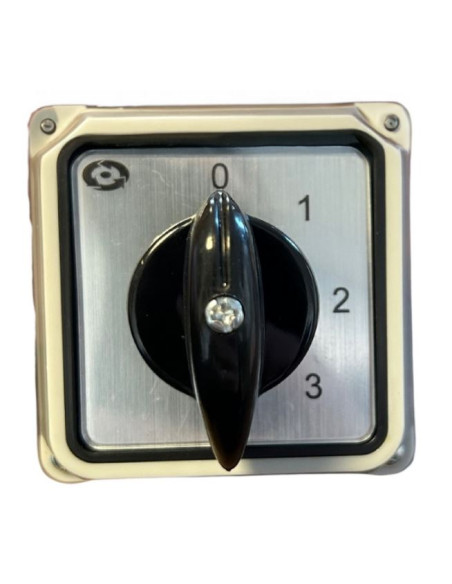

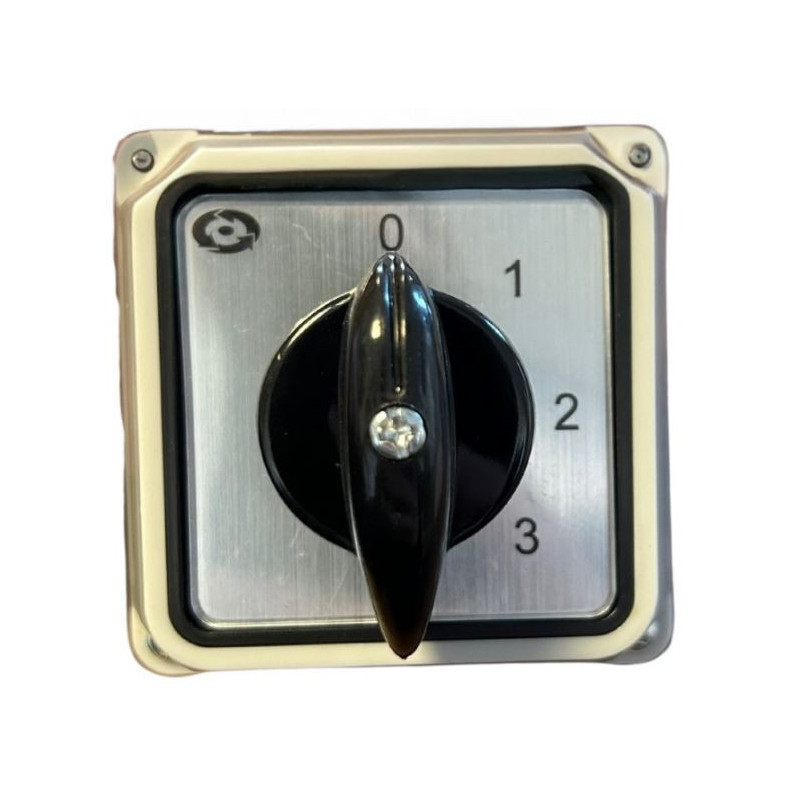

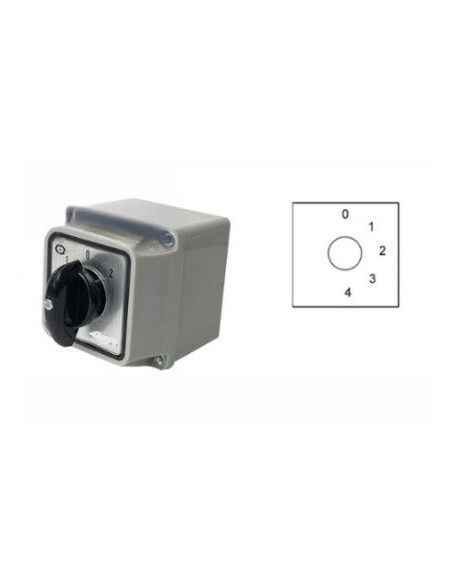

The 3-Speed VMC Button lets you select low, medium or high speed on a professional mechanical ventilation system motor fitted for this control, directly from a surface-mounted enclosure.

  • Function: 3-speed switch (low, medium, high)
  • Enclosure: PVC or ABS, IP65
  • Mounting: surface mounted
  • Thermal protection: not built in
  • Warranty: 1 year, subject to conditions
In stock
Quantity
27.00 Tax excluded
32,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The 3-Speed VMC Button is a switch that lets you choose between low, medium and high speed on a compatible ventilation motor, to adjust airflow in a professional mechanical ventilation system according to the needs of the premises. Handy for a plant room, commercial premises or a catering kitchen where airflow needs to vary depending on occupancy or activity.

Technical specifications of the 3-speed VMC switch

Specification Value
Function 3-speed switch (low, medium, high)
Enclosure PVC IP65 (surface mounted) or ABS IP65 with cable glands
Thermal protection Not built in
Manufacturing Europe
Weight 0.5 kg
Warranty 1 year, subject to conditions

Use and compatibility with your VMC motor

This button is designed to be fitted to a professional mechanical ventilation system whose motor offers several operating speeds (low, medium, high). It replaces an old control unit that has become unreliable, or can be fitted on a new installation. The IP65 rating of both enclosures allows installation in a plant room or damp location, provided the surface-mounted fitting method specified for each version is respected.

Points to check before ordering

  • Check that your VMC motor is designed to work with an external 3-speed control (low, medium, high) and not with a continuous electronic speed controller.
  • This switch does not include thermal protection against overheating or overcurrent: provide suitable upstream protection if your motor or electrical installation requires it.
  • Choose the enclosure version (simple surface-mounted PVC or ABS with cable glands) according to your cable entry method on site.
  • Electrical connection must be carried out by a qualified professional: this is a condition of the warranty.

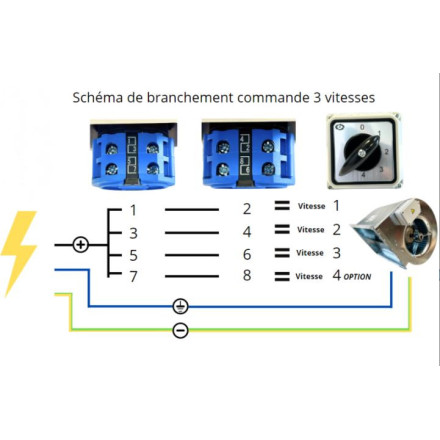

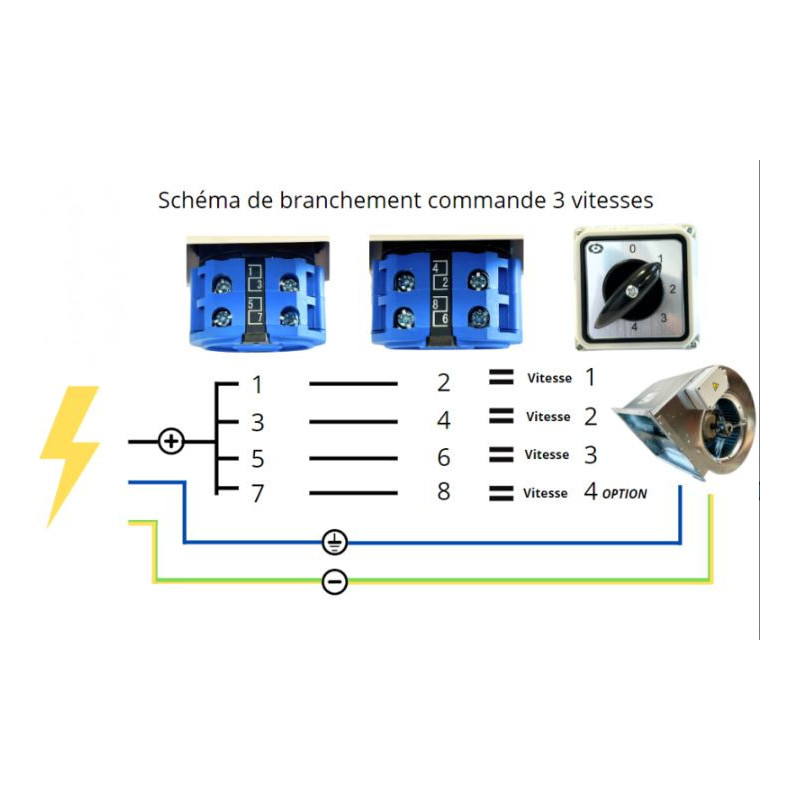

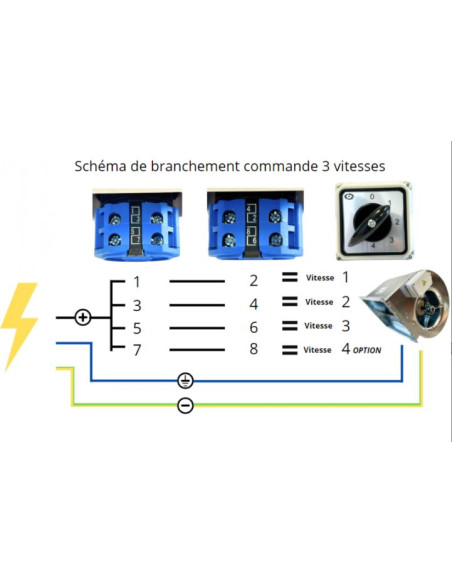

Installation and wiring

The enclosure is surface mounted, close to the motor or in an accessible plant room. Electrical connection must be carried out by a qualified professional, with suitable upstream thermal protection where required: this is a condition for the 1-year warranty to apply.

To go with it

Need a 2-speed control only? Also check our 2-Speed VMC Button.

Product Details

Ventilsogood
comm3V vmc
Products
Button / Switch
Manufacturing
Made in China
Warranty
1 year
Package weight
1 kg
0657968381964

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a 2-speed button and this 3-speed VMC button?

The 2-speed button only offers a choice between two speeds (low and high, for example), whereas this 3-speed VMC switch adds an intermediate step: low, medium and high speed. The choice depends on how many speeds are available on your VMC motor.

Is this 3-speed VMC button compatible with my motor?

It works with a VMC motor designed for an external 3-speed control (low, medium, high). Check your motor's documentation to confirm it has these 3 speed steps before ordering, as this product sheet does not cover a list of compatible brands.

Does the button include thermal protection?

No, this 3-speed VMC switch does not include thermal protection against overheating or overcurrent. If your installation requires it, provide suitable upstream thermal protection; this is also a condition for the 1-year warranty to apply.

Who should carry out the electrical connection of the 3-speed VMC button?

The connection must be carried out by a qualified professional. This is a condition for the 1-year warranty to apply, along with suitable upstream thermal protection where required.

Which enclosure version should I choose, PVC or ABS?

Both versions have an IP65 rating and are surface mounted. The ABS version includes cable glands for cable entry, useful if your installation requires this type of connection; the PVC version is suitable for a simple surface-mounted installation.
