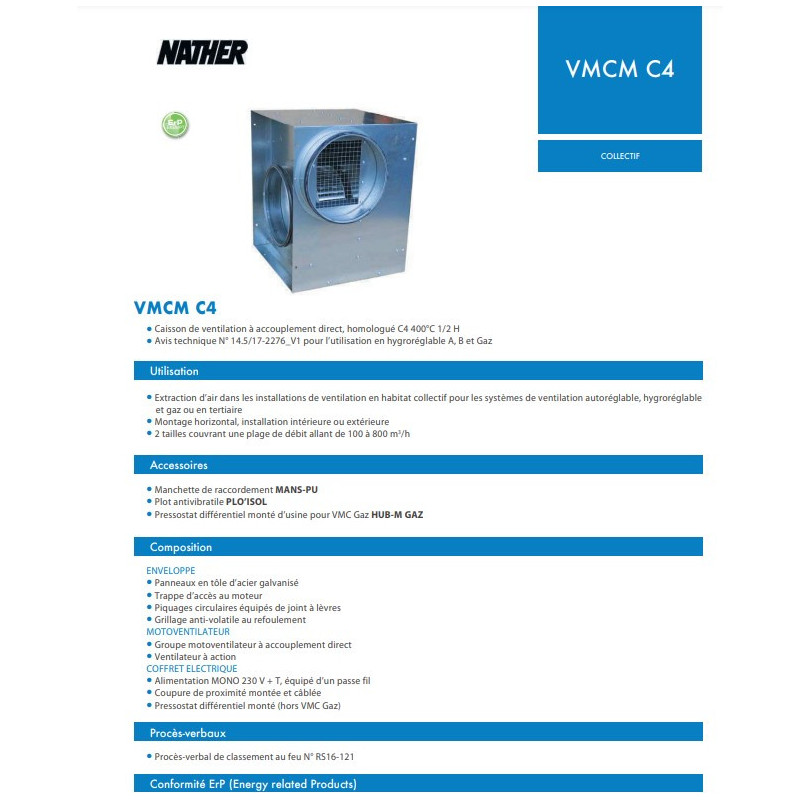

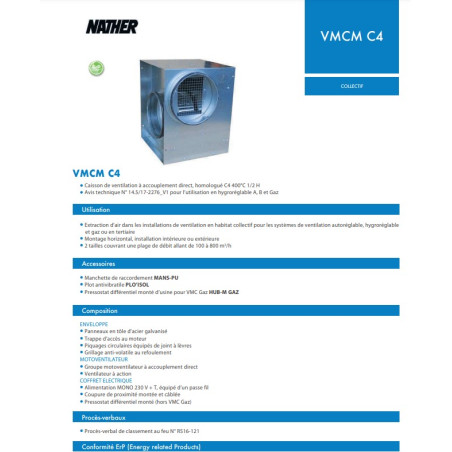

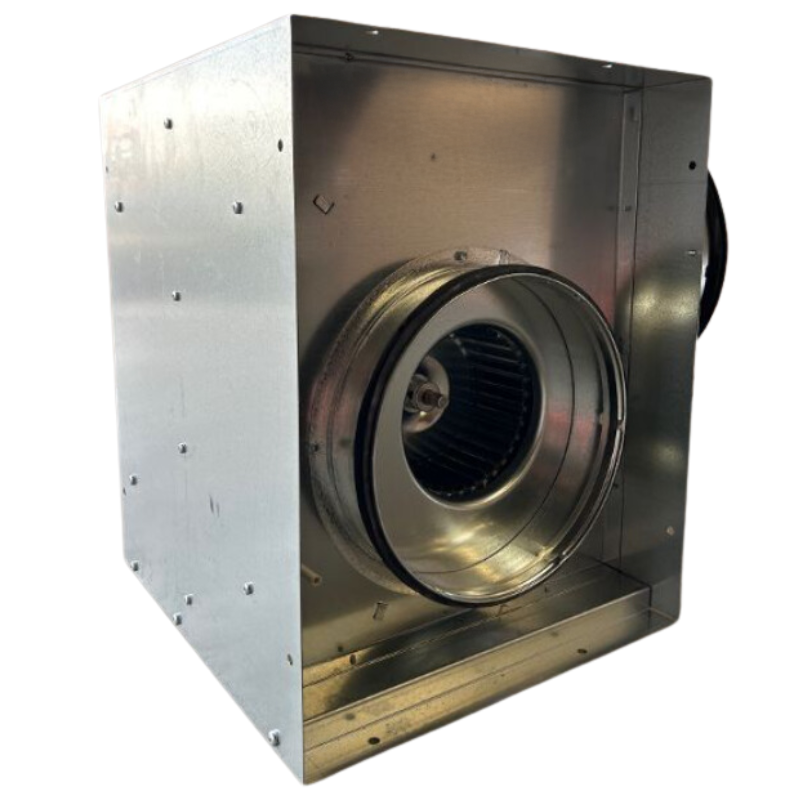

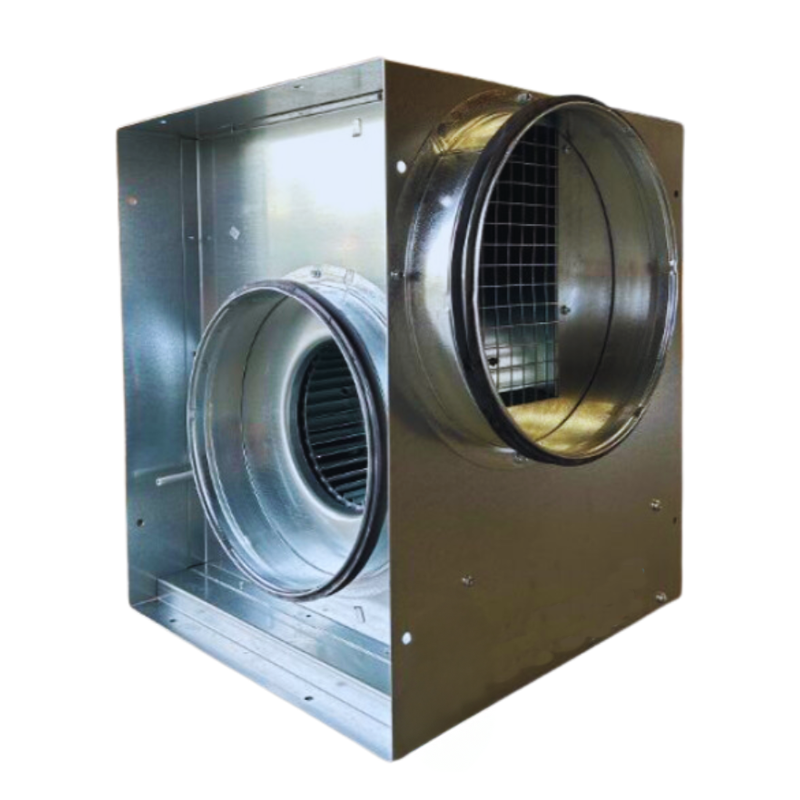

The Nather C4 400°/1/2H 900 m³/h Enclosure is a direct-drive motorised fan box designed for extract or supply air in communal and commercial mechanical ventilation systems. With a top of curve extraction volume of 900 m³/h, it covers the needs of a multi-occupancy residential building, a humidity-controlled system or a gas-ventilated installation.
C4 900 m3/h extraction fan box: which installations is it suited for?
This C4 extraction fan box is suited to ventilation systems in multi-occupancy residential buildings, whether humidity-controlled or connected to gas appliances, as well as commercial premises. The direct-drive fan unit operates at constant pressure, which limits electricity consumption over time. The optimal operating range is between 100 and 160 Pa.
Technical specifications
| Specification |
Value |
| Reference |
caissonC4900 |
| Brand |
Nather |
| Top of curve airflow |
900 m³/h |
| Power supply |
230V single-phase + earth |
| Standard |
Smoke extraction C4 (400°C/30 min) |
| Optimal operating range |
100 to 160 Pa |
| Recommended duct diameter |
250 mm |
| Spigots |
Circular 250 mm with lip seal |
| Enclosure material |
Galvanised steel |
| Manufactured in |
France |
| Warranty |
1 year |
| Weight |
25 kg |
Installation and connection

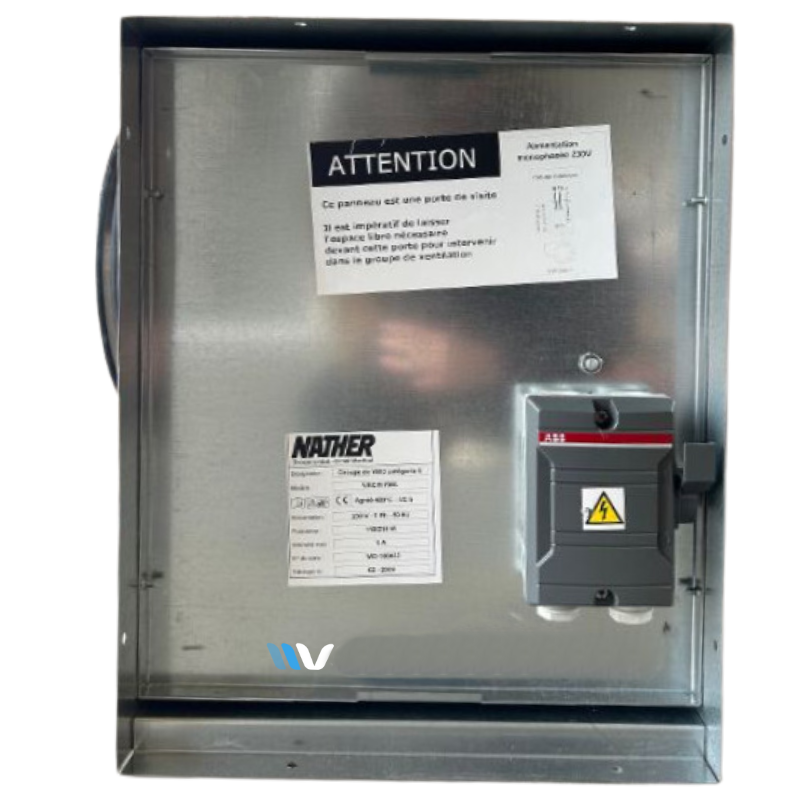

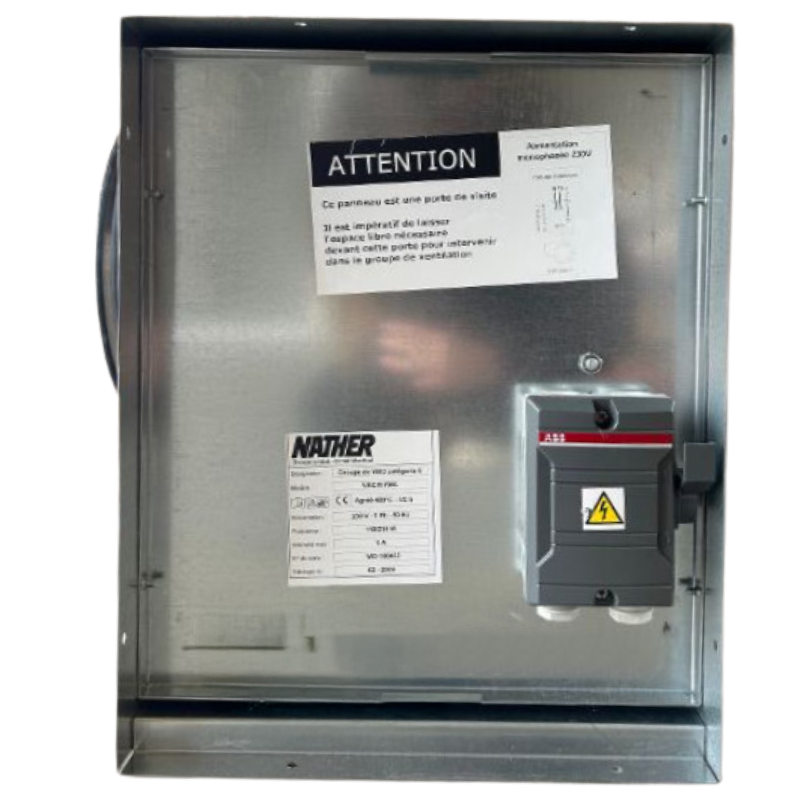

The fan box is fitted with a cable grommet and a local isolator, pre-mounted and pre-wired, making maintenance work easier without having to open the main electrical panel. An access hatch to the motor allows for routine servicing. A bird/vermin guard protects the discharge outlet against pests entering the ductwork. The electrical connection must be carried out by a qualified professional, a condition required to maintain the warranty.
Points to check before ordering
- The actual airflow required for your installation: as a guide, a 250 mm diameter is generally suited to an airflow in the region of 900 m³/h, but the ductwork (length, elbows, pressure losses) will affect the actual airflow achieved.
- The type of mechanical ventilation system in your installation (constant extract, humidity-controlled or gas): check compatibility with your configuration before purchasing.
- The safety standard required for your project: this fan box meets the C4 400°C/30 min standard, which should not be confused with an F400/120 classification (400°C/120 min), a different and more demanding requirement.

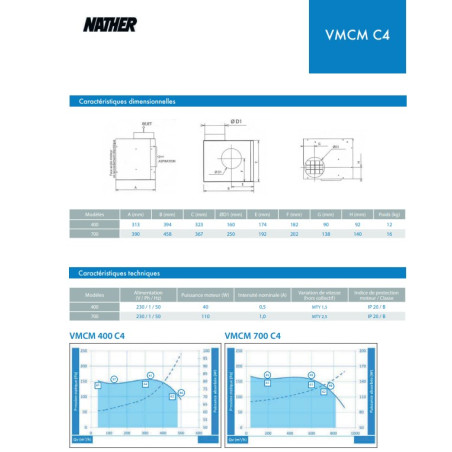

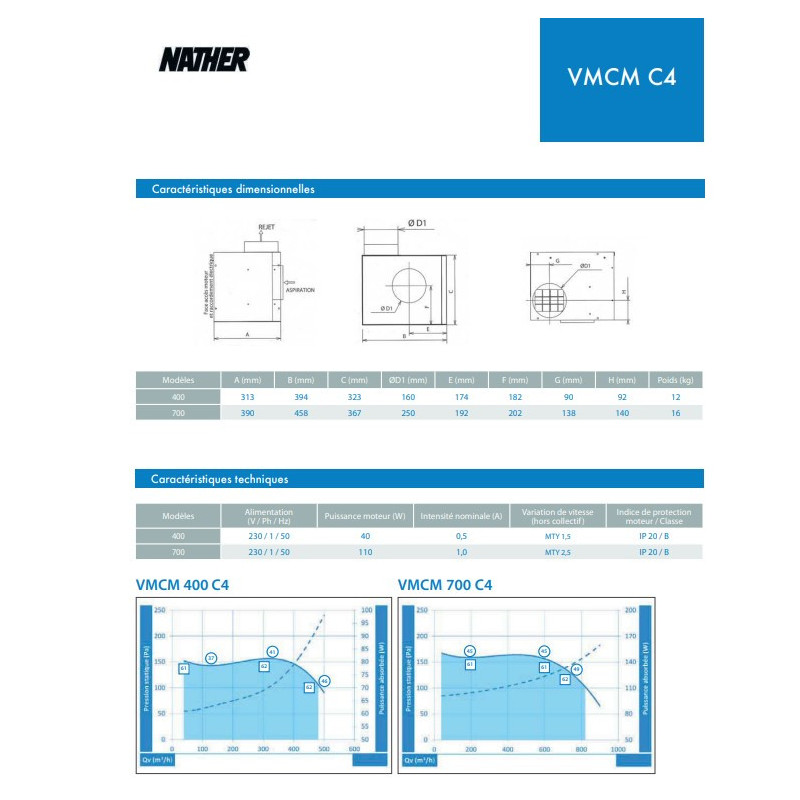

- The size of the fan box: precise dimensions are available in the product photos, check these before installation in a suspended ceiling or plant room.
- The power supply available on site: this model runs on 230V single-phase with earth.
To use alongside
Need a different airflow in the same range? Check out the Nather C4 500 m³/h fan box for smaller installations, or browse the full range of C4 motorised fan boxes to compare available airflows.
