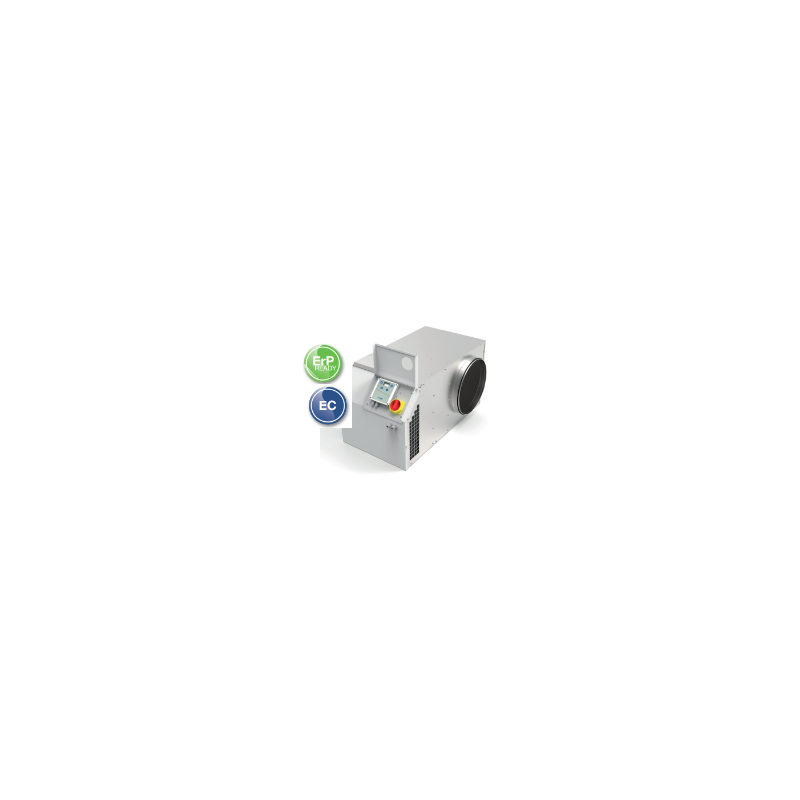

Cairox EC Regulo 45 C4 Air Handling Unit, 4,600 m³/h

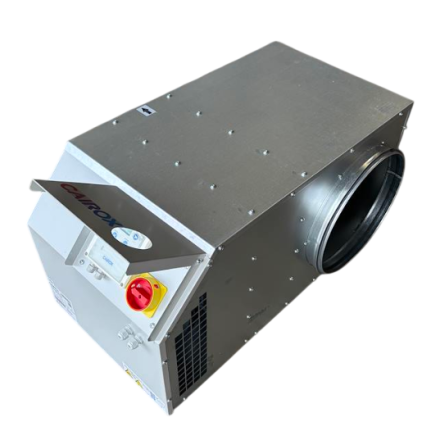

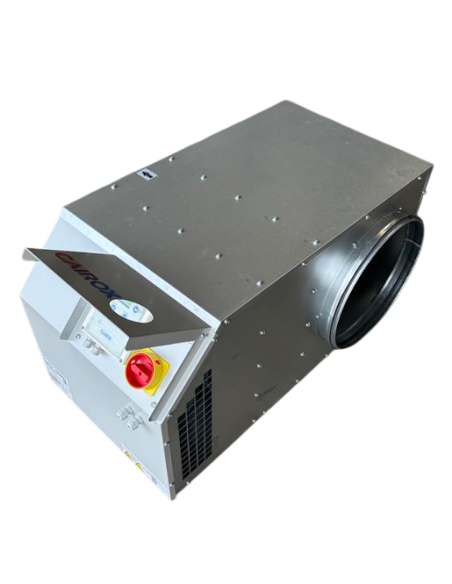

Cairox EC Regulo 45 C4 Air Handling Unit, 4,600 m³/h

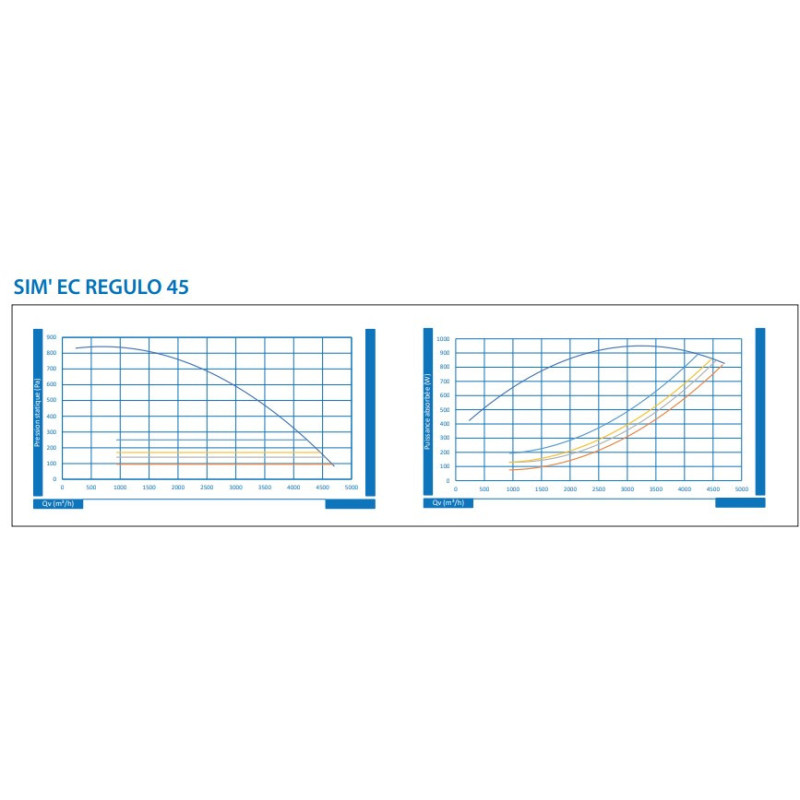

C4 Unit, 4,600 m³/h, for Extraction or Supply—Performance Curve

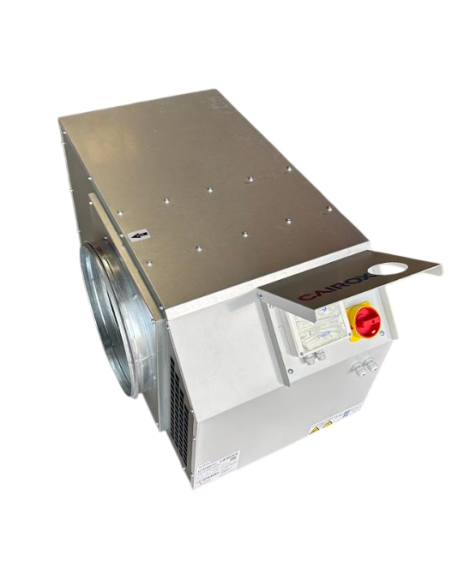

C4 400°/ 1/2H Enclosure, 4,600 m³/h
C4 400°/ 1/2H Enclosure, 4,600 m³/h
Cairox 45 curve

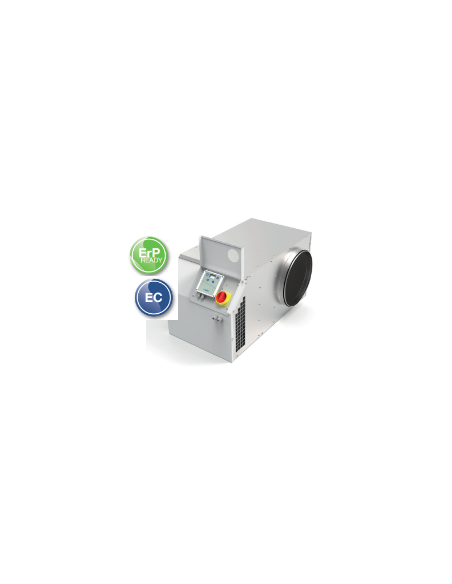

Cairox SIM 45 unit for mechanical ventilation in public buildings, equivalent to Aldès Easyvec, Vim Ecowatt, France air Simoun
Cairox EC Regulo 45 C4 Air Handling Unit, 4,600 m³/h
C4 Unit, 4,600 m³/h, for Extraction or Supply—Performance Curve
C4 400°/ 1/2H Enclosure, 4,600 m³/h
C4 400°/ 1/2H Enclosure, 4,600 m³/h
Cairox 45 curve
Cairox SIM 45 unit for mechanical ventilation in public buildings, equivalent to Aldès Easyvec, Vim Ecowatt, France air Simoun

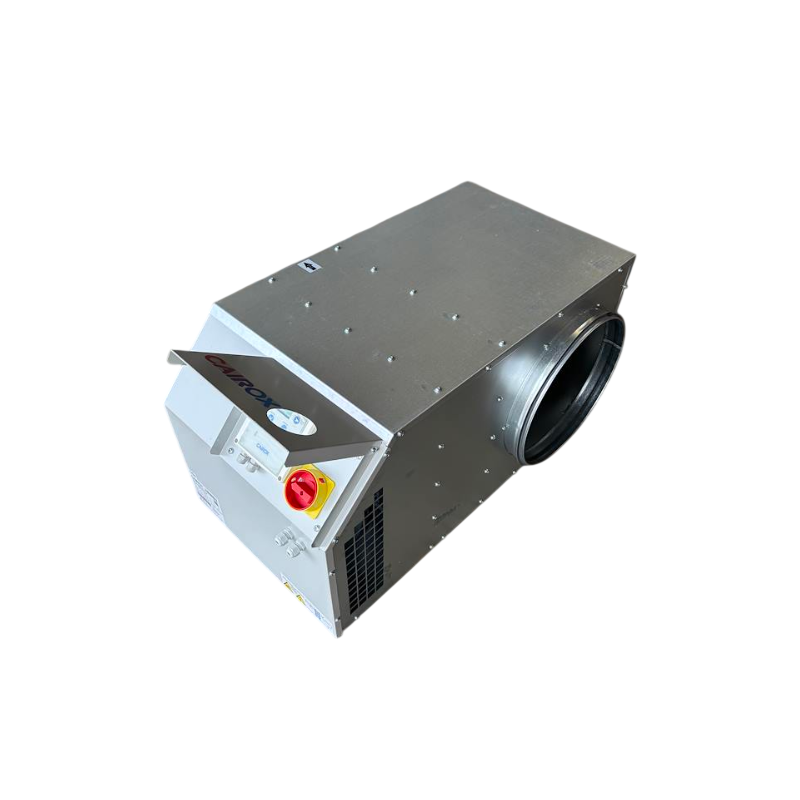

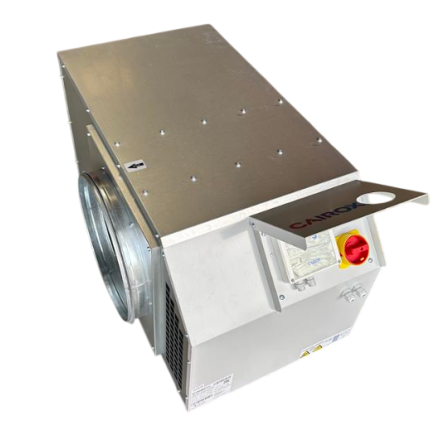

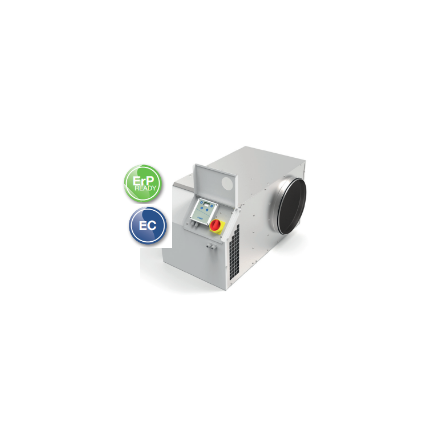

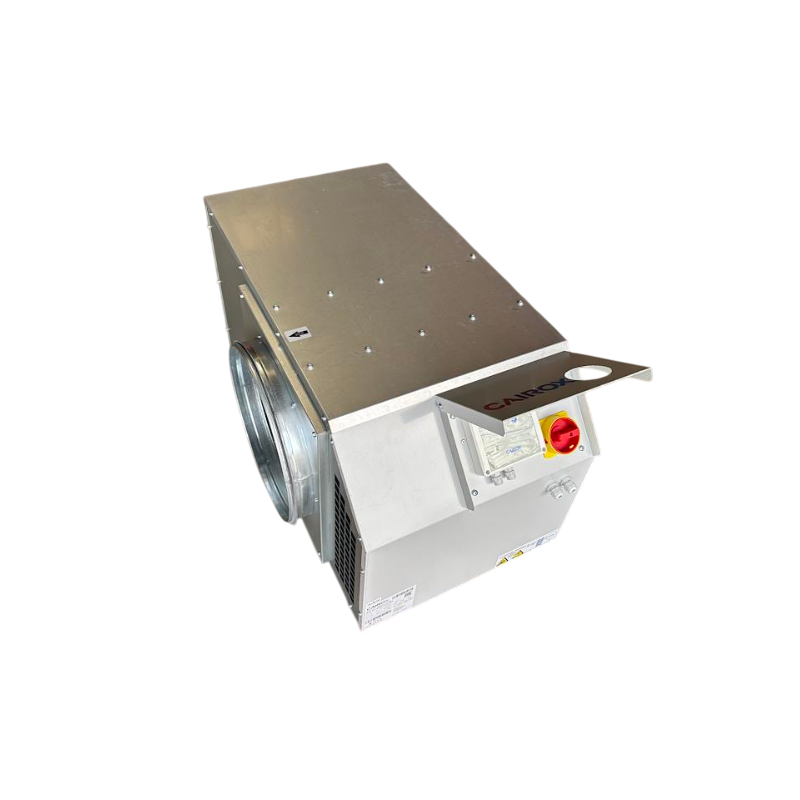

Cairox SIM 45 unit for mechanical ventilation in public buildings, equivalent to Aldès Easyvec, Vim Ecowatt, France air Simoun

- Low-energy, direct-drive ventilation unit:
- C4 400°/1/2H certified:
- Power supply: 220 V single-phase, 3400 W, 7.2 A, IP54:
- Maximum exhaust airflow: 4,600 m³/h

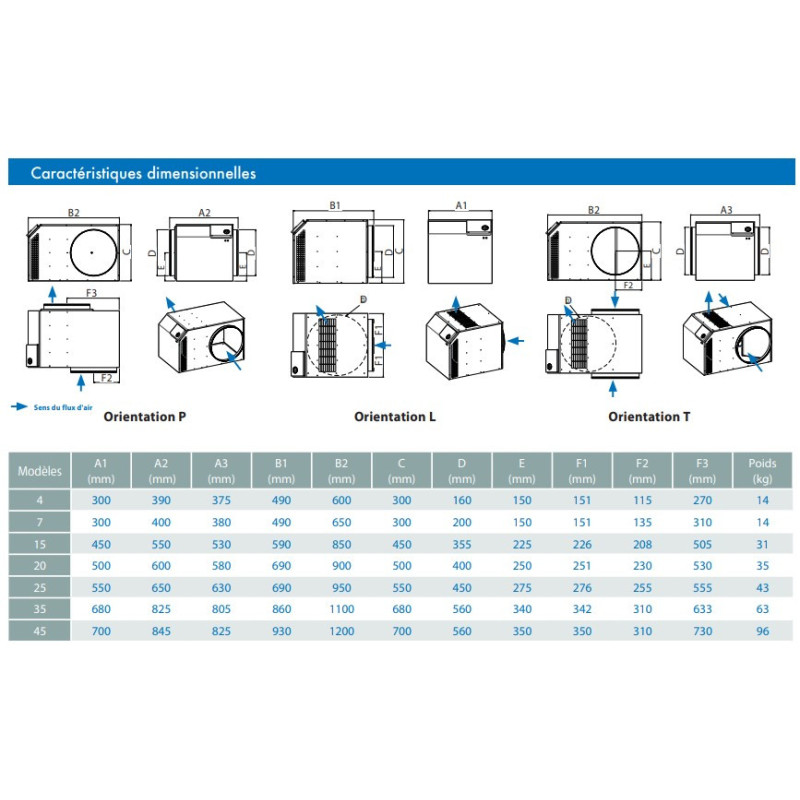

- Dimensions: ~ L 1,200 x W 700 x H 700 (without casing)
- Optimal operating range between 100 and 160 Pa
- Recommended outlet diameter: 560 mm (inlet 1 or 2 depending on model)

- Equipped with constant-pressure control
- Air exhaust for ventilation systems in multi-family housing, humidity-controlled and gas-fired systems, or commercial buildings
- Galvanized steel panels
- Motor access hatch
- Circular connections with lip seals
- Bird-proof grille at the discharge
- Direct-coupled motor-fan unit
- Reaction fan
- DC motor with electronic commutation, speed controller, and integrated thermal protection
- Mounted and wired proximity switch
- Airflow fault contact (excluding gas-powered mechanical ventilation systems)
- Constant-pressure operation (reduces energy consumption)

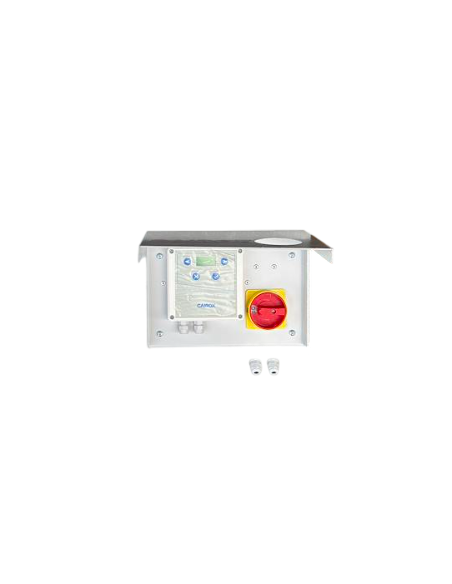

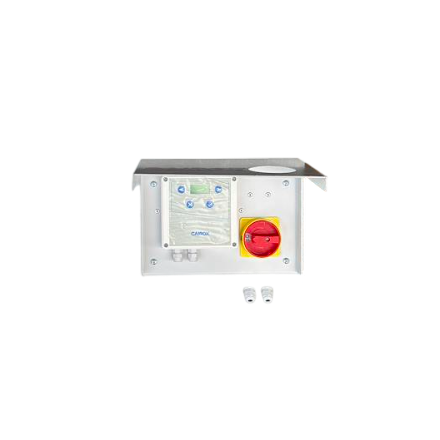

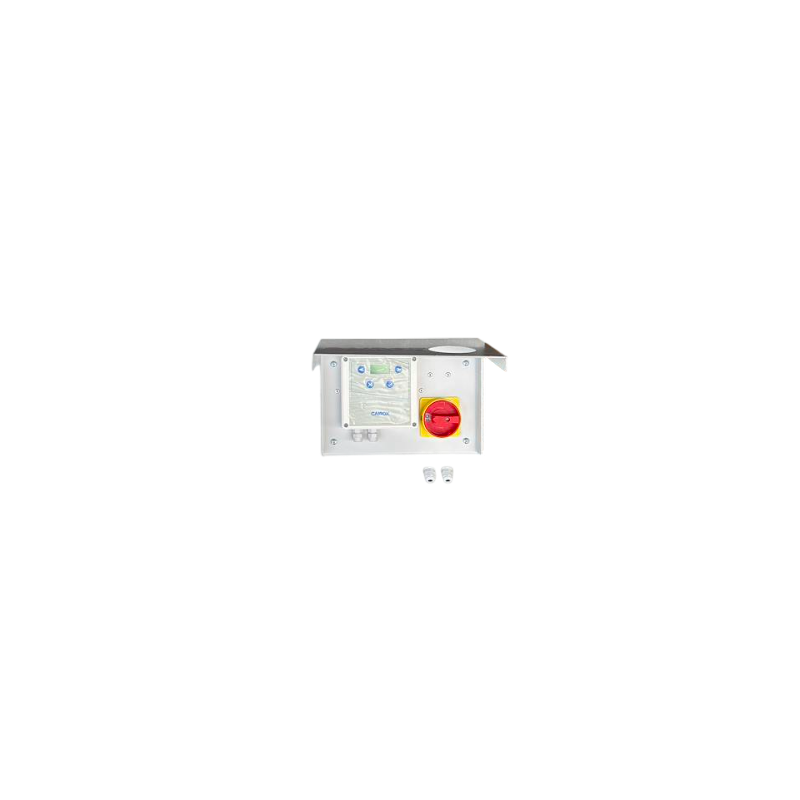

- Control and display on the control panel’s front panel, equipped with an LCD display
- MODBUS RTU communication protocol

Equivalent motorized VMC units: Cairox, Saftair, Vim, Atlantic, S&P, Ouest, France air, Alvene, Aldes cvec.

Guidance
In stock
Quantity
2,476.00 Tax excluded
2971,2 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


/h, 4,600 m³ Motorized Exhaust Unit—C4 F400/30 Standard Unit for Mechanical Ventilation Systems

Benefits ofthe C4 motorized unitfor mechanical ventilation systems:

  • • Powerful exhaust or supply air unit with an exhaust volume of 4,600 m³/h
  • • Low-energy, direct-drive ventilation unit
  • • Air extraction for ventilation systems in multi-family housing, humidity-controlled and gas-fired systems, or commercial buildings
  • • Unit equipped with a bird screen to prevent pests from entering ventilation ducts
  • • Motorized unit operating at constant pressure, which reduces energy consumption
  • • DC-powered motorized unit with electronic control, variable-speed drive, and built-in thermal protection

Product Details

CAIROX
caisson45C44600
Guidance
Manufacturing
Made in France
Warranty
1 year
Package weight
100 kg
Engine
Motorized cabinet
Standard
C4 Smoke Exhaust Standard
Food
230V Mono
Engine power
4,000 to 6,000 m³/h
0657968564336
