The Nather C4 500 m³ air handling unit/h safely extracts or supplies air for your central ventilation system: certified to C4 400°/1/2h, it withstands 400 °C for 30 minutes, making it ideal for use in multi-family housing or commercial buildings.

  • Maximum extraction flow rate: 500 m³/h
  • Power supply: 230 V single-phase + ground
  • Power: 40 W, current 0.5 A
  • Standard: C4 400°/1/2h (smoke extraction at 400°C for 30 min)
  • Manufactured in France, 1-year warranty
In stock
Quantity
499.00 539.00 Tax excluded
598,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Nather C4 500 m³/h unit is a direct-drive motorized ventilation unit designed for air extraction or supply in collective and commercial mechanical ventilation systems, with a peak flow rate of 500 m³/h. Its C4 certification allows it to be used in systems subject to this fire resistance requirement.

Technical Specifications of the C4 500 m³ Unit/h

Specification Value
Part Number C4500 box
Brand Nather
Maximum extraction flow rate 500 m³/h
Power supply 230 V single-phase + ground
Power 40 W
Current 0.5 A
Standard C4 400°/1/2h (smoke extraction at 400 °C for 30 min)
Connection diameter 160 mm, with lip seal
Dimensions L313 x W394 x H323 mm
Manufacturing France
Weight 13 kg (package weight: 14 kg)
Warranty 1 year

A unit designed for mechanical ventilation in multi-family and commercial buildings

This motorized unit is suitable for ventilation systems in multi-family housing—whether self-regulating, humidity-controlled, or connected to a gas furnace—as well as in commercial buildings. It features direct drive and low power consumption, which helps reduce electricity costs for systems that run continuously. The C4 400°/1/2h rating means that the motor can withstand a temperature of 400°C for 30 minutes: Please note that this C4 rating is not interchangeable with the F400/120 rating (400°C for 120 minutes), which is used on other lines of smoke exhaust units. Always verify the exact regulatory requirements for your project before choosing between these two standards.

Installation and Connection

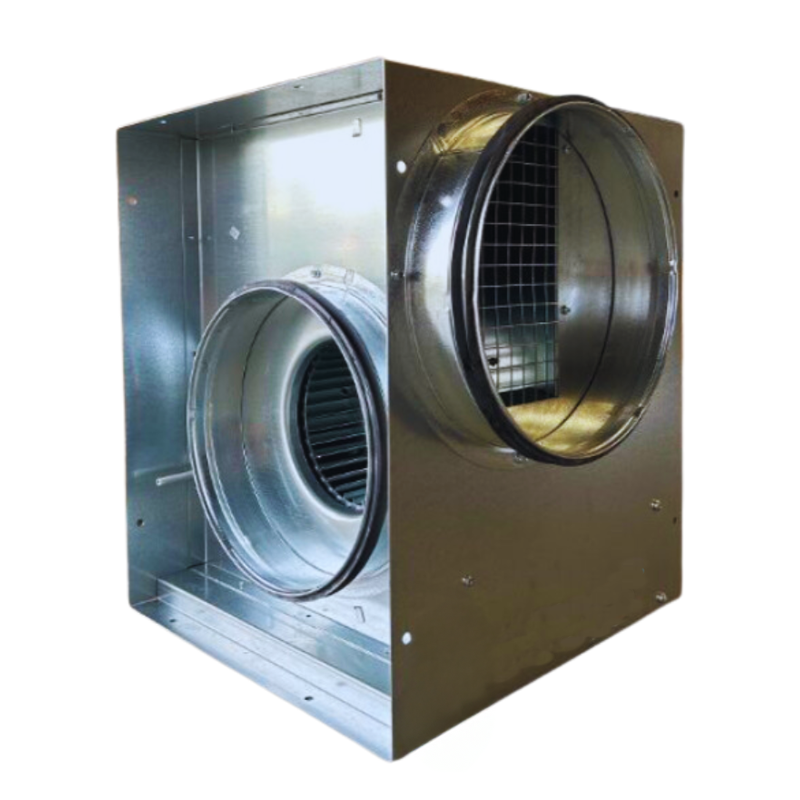

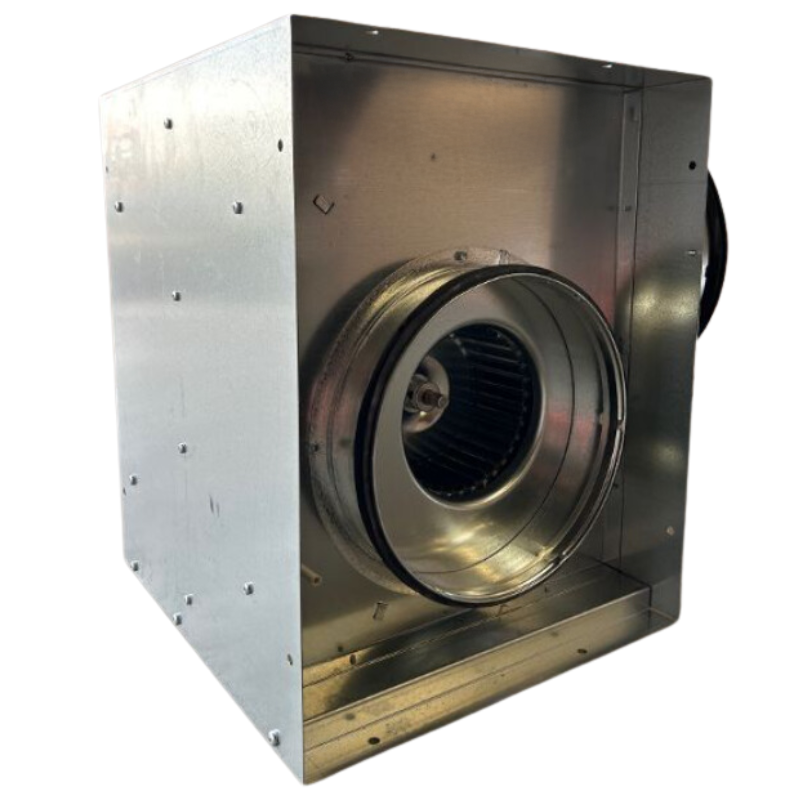

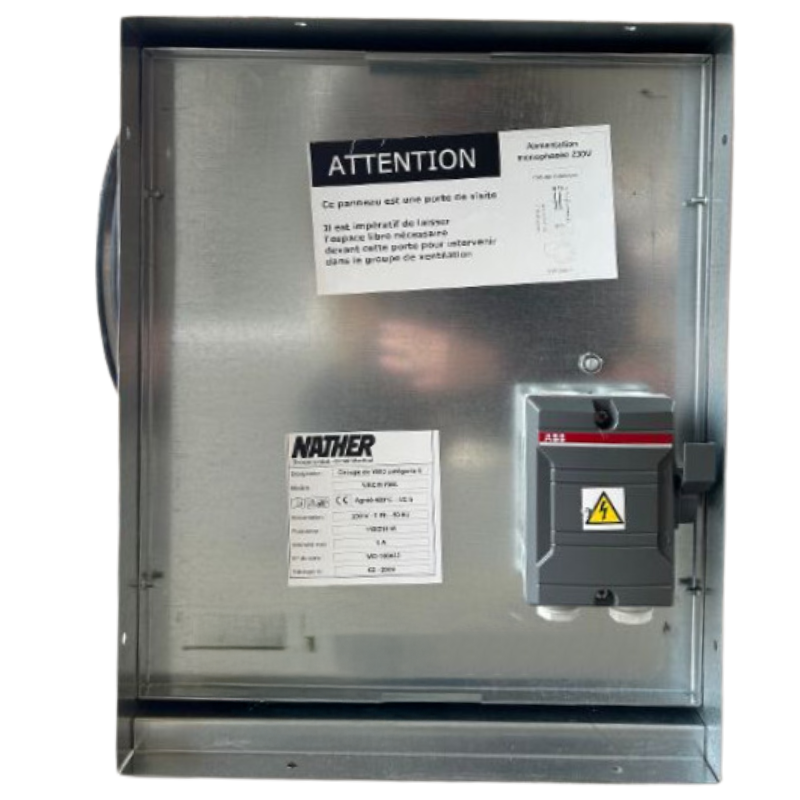

The unit comes with a proximity switch already installed and wired, a real time-saver for the professional performing the electrical connection. The galvanized steel panels and the motor access hatch facilitate routine maintenance. The 160 mm circular outlets with lip seals accommodate your ductwork, and the bird screen mounted on the discharge side prevents unwanted surprises on the roof. The electrical connection must be performed by a professional; this is a requirement for maintaining the warranty.

Points to check before ordering

  • Actual airflow required for your system: 500 m³/h is the peak airflow; the actual airflow depends on pressure drops (duct length, elbows, filters).
  • System diameter: The connection is 160 mm; compare this with your existing installation before ordering.
  • Operating pressure: Check this based on your system configuration, including elbows and duct length.
  • Type of CMV system served: self-regulating, humidity-controlled, or with a gas furnace; confirm compatibility with your system.
  • Standard required for your project: C4 400°/1/2h, or F400/120; these two classifications are not interchangeable.

To be used with

For higher airflow within the same Nather series, see the Nather C4 400°/1/2h 900 m³/h unit. Find the entire product family in our C4 400 1/2h motorized unit category.
