VMC Speed Control Potentiometer

1.5 A voltage regulator for turrets, small VMC motors, or professional food service systems
1.5 A voltage regulator for turrets, small VMC motors, or professional food service systems
1.5 A voltage regulator for turrets, small VMC motors, or professional food service systems
1.5 A voltage regulator for turrets, small VMC motors, or professional food service systems

Easily adjust the extraction power of your C4 self-regulating fan box with this compact VMC Speed Control Potentiometer, controlled by a 12 V DC signal.

  • Power supply: 12 V, DC signal control
  • Dimensions: 80 x 80 x 60 mm
  • Cut-off at full rotation of the dial
  • For self-regulating VMC fan boxes (non-continuous operation)
  • Not compatible with double-inlet centrifugal fans or equivalent
In stock
Quantity
79.00 Tax excluded
94,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

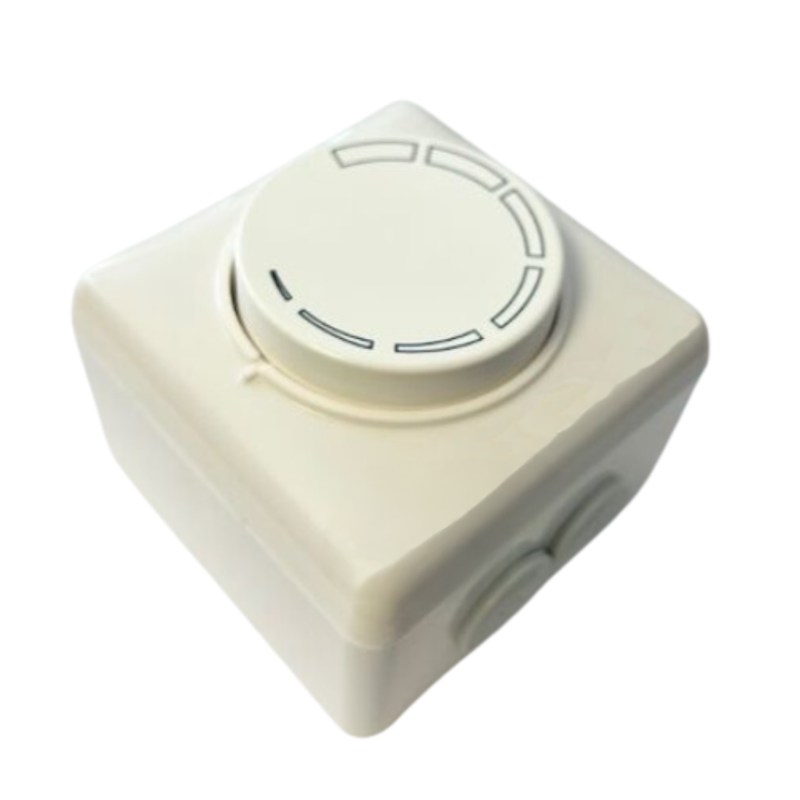

The VMC Speed Control Potentiometer is a small control unit that allows you to remotely adjust the extraction power of a C4 self-regulating fan box. Powered by a 12 V DC signal, it is fitted wherever you need to control airflow without running the fan box continuously.

Technical specifications

Specification Value
Reference potentiovmc
Brand Ouestventil
Type Voltage controller (potentiometer)
Power supply 12 V, DC signal control
Dimensions 80 x 80 x D. 60 mm
Weight 0.5 kg
Function Cut-off at full rotation of the speed dial

Which VMC fan box is this potentiometer suitable for?

This potentiometer is designed for self-regulating ventilation fan boxes, i.e. models where you don't want the motor running continuously at full power. The remote dial gives you immediate control over the extraction fan box: you adjust the speed according to the actual needs of the ductwork, helping improve the motor's energy efficiency. Please note: this potentiometer is neither a standard voltage controller for a double-inlet centrifugal fan, nor a 0-10V module for an EC motor. It is not compatible with a double-inlet centrifugal fan or equivalent.

Points to check before ordering

  • Check that your fan box is indeed a C4 self-regulating type, and not fitted with a standard double-inlet centrifugal fan motor: this potentiometer is not suitable for the latter.
  • Confirm that your installation accepts a 12 V DC signal control, rather than 0-10V or 230 V control.
  • Check the available space for the unit: 80 x 80 mm on the front face, with a depth of 60 mm.
  • If replacing an existing potentiometer, note the original wiring before disconnecting the old unit.

Pairs well with

This potentiometer is intended in particular for the Cairox EC Regulo 7 C4 700 m³/h fan box, Cairox EC Regulo 15 C4 1800 m³/h fan box and Cairox EC Regulo 25 C4 2800 m³/h fan box. You can also browse our full range of VMC speed controllers.

Product Details

Ouestventil
potentiovmc
Package weight
1 kg
Drive Type
Voltage Regulator
0657968363441

You might also like

5 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is this potentiometer suitable for a double-inlet centrifugal fan?

No. This VMC speed control potentiometer is designed exclusively for C4 self-regulating fan boxes. It is not compatible with a double-inlet centrifugal fan or any equivalent motor, which requires a standard voltage controller matched to its power and current rating.

Does this potentiometer allow the fan box to be switched off remotely?

Yes, the potentiometer includes a cut-off function at full rotation of the speed dial. By turning the dial fully to its end stop, you switch off the fan box without having to act directly on its electrical supply.

What is the difference between this potentiometer and a standard voltage controller?

This model operates on 12 V with DC signal control, specific to self-regulating fan boxes. A standard voltage controller acts directly on the motor's supply voltage, typically for use with a double-inlet centrifugal fan. The two technologies are not interchangeable.

What are the dimensions of this potentiometer?

The unit measures 80 x 80 mm on the front face, with a depth of 60 mm. Check this against the available space before installation, particularly if you are replacing an existing unit in an existing enclosure.
