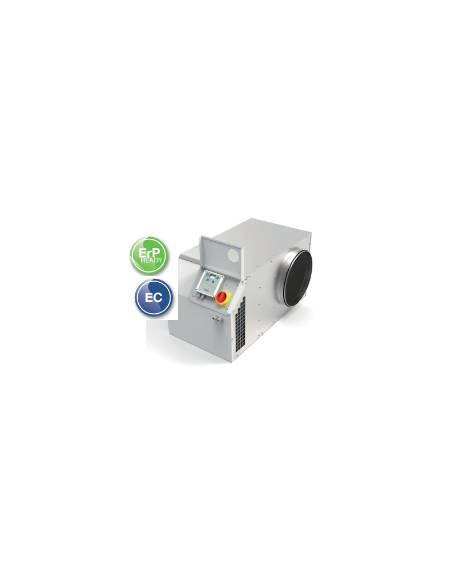

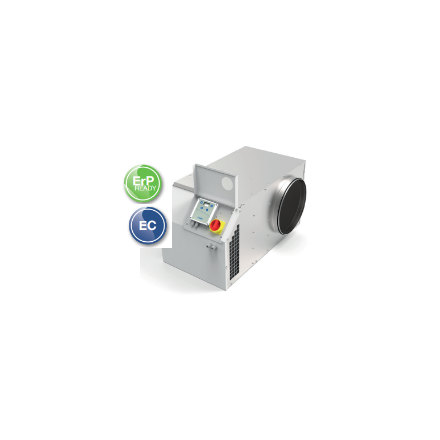

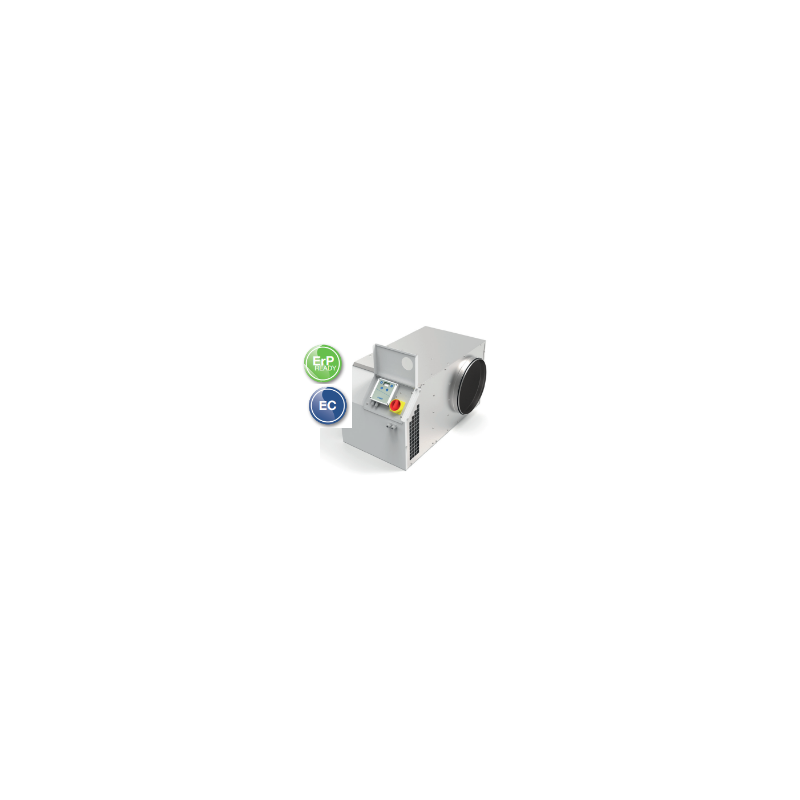

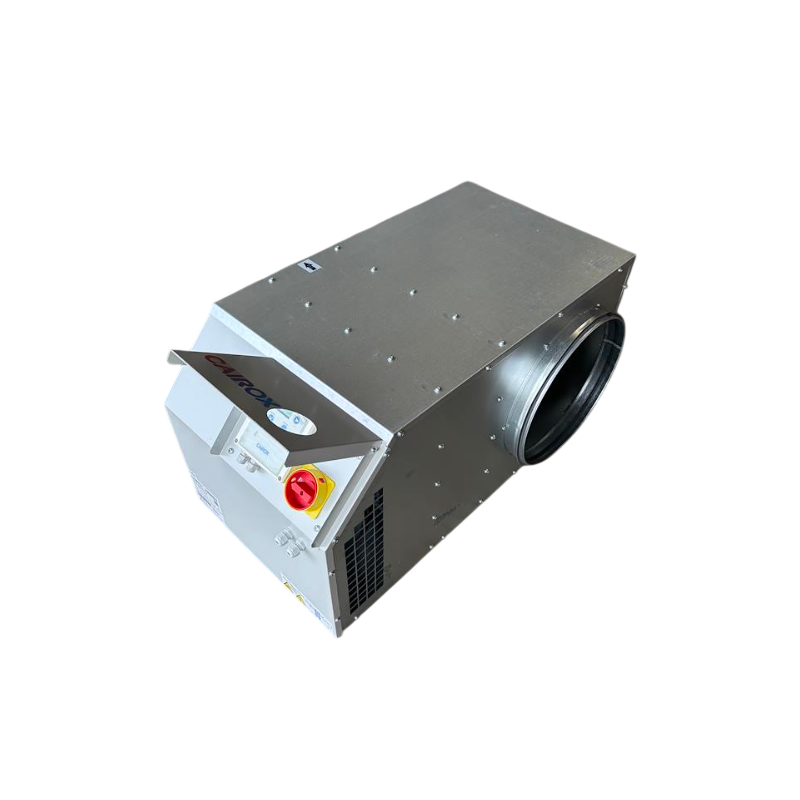

The Cairox EC Regulo 7 C4 Air Handling Unit is a motorised extraction fan unit rated at 700 m³/h, designed for residential and commercial mechanical ventilation systems, certified C4 for installations where fire safety of the ductwork is required. A functional equivalent to the VIM Ecowatt, France Air Simoun and Aldès Easyvec ranges, it installs equally well as a replacement unit or in new builds.
C4 extract fan unit 700 m3/h: an EC motor that runs smoothly

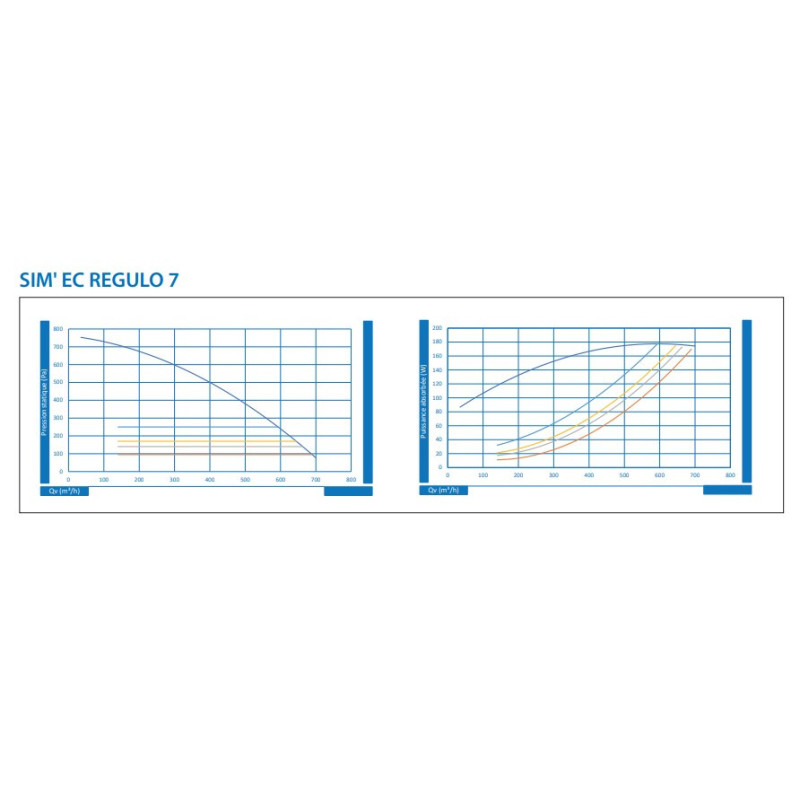

This fan unit operates with direct drive, using a DC motor with electronic commutation (EC motor): lower consumption than a conventional AC motor, suited to the continuous operation typical of mechanical ventilation. The backward-curved fan pushes air up to 700 m³/h at the top of the curve, with an optimal operating range of between 100 and 160 Pa. Constant pressure control automatically adjusts the speed to maintain the set airflow, limiting the extra consumption caused by variations in ductwork pressure.
Technical specifications
| Specification |
Value |
| Reference |
caisson7C4700 |
| Brand |
Cairox |
| Extraction airflow (top of curve) |
700 m³/h |
| Power supply |
230 V single phase |
| Power |
193 W |
| Current |
1.2 A |
| Protection rating |
IP44 |
| Smoke extraction standard |
C4 (400°C/30 min) and an F400/120 (400°C/120 min) reference on the original data sheet: both classifications appear in our records, please confirm which applies to your project |
| Optimal pressure range |
100 to 160 Pa |
| Recommended spigot diameter |
200 mm |
| Dimensions (excluding spigot) |
L 650 x W 300 x H 300 mm approx. |
| Weight |
14 kg |
Use and ventilation system compatibility
This C4 unit is suited to air extraction in mechanical ventilation installations for residential blocks, whether humidity-controlled or gas-interlocked ventilation, as well as commercial premises and public-access buildings. The airflow fault contact fitted to the unit operates outside gas-interlocked ventilation systems: check this point if your ductwork is connected to gas appliances. Communicating MODBUS RTU control allows remote monitoring and operation, with settings and display directly on the LCD screen on the front of the control box.

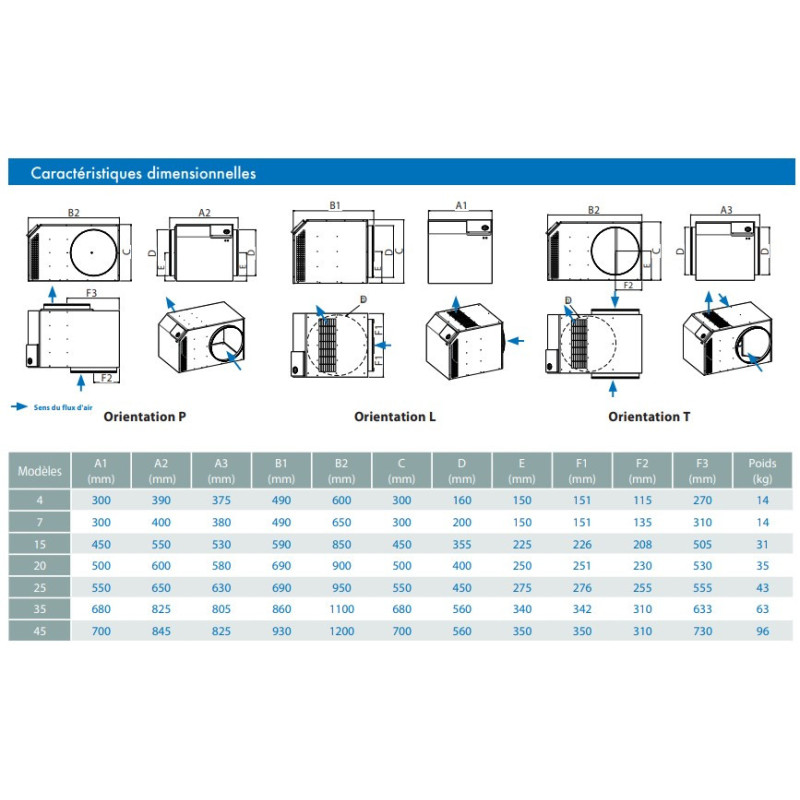

Three orientations are available to suit your ductwork layout: in-line inlet/outlet (version P), one inlet one outlet at 90° (version L), or two inlets one outlet at 90° (version T).
Construction and safety

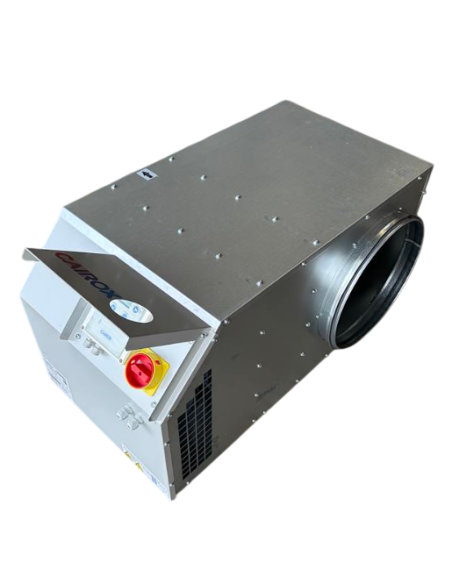

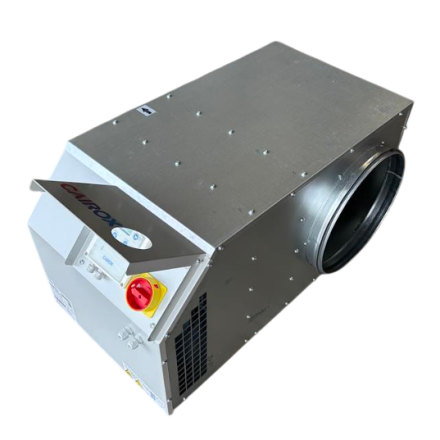

The unit is built from galvanised sheet steel panels, with a motor access hatch to make maintenance easier. The circular spigots are fitted with lip seals for airtightness, and an anti-vermin grille protects the discharge outlet from pests entering the ductwork. The motor includes thermal protection and a local isolator fitted and wired at the factory. This unit comes with a 1 year professional warranty.
Points to check before ordering
- Confirm that the 700 m³/h airflow matches the actual requirement of your installation, calculated according to the number of dwellings or the floor area served, rather than the unit's free-air rating alone.
- Check the 200 mm spigot diameter against your existing ductwork: a smaller diameter increases pressure losses and noise.
- Make sure your power supply is indeed 230 V single phase, with available current compatible with the motor's 1.2 A rating.
- Check the available space (L 650 x W 300 x H 300 mm excluding spigot) in the planned plant room or ceiling void.
- If your ductwork serves gas appliances, check that the airflow fault contact is compatible with your gas-interlocked ventilation configuration.
Part of our range of C4 motorised fan units, this 700 m³/h unit completes a range of sizes allowing the airflow to be matched to the building served. For a higher requirement, our 900 m³/h extraction fan unit takes over without changing the installation approach.
To be used with
Need a different airflow within the same Cairox EC Regulo C4 range? See the model 15 at 1800 m³/h or the model 20 at 2500 m³/h for larger installations.
