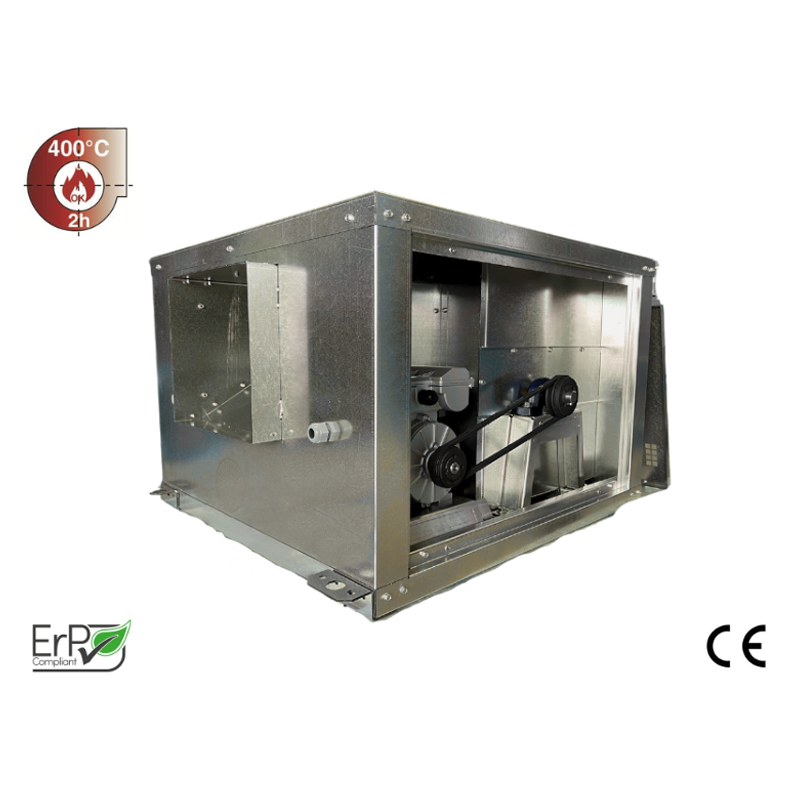

The compact turbine extraction fan box 10/10 delivers an airflow of 4,000 to 5,500 m³/h, suitable for a commercial kitchen hood in a restaurant or for ventilating an open kitchen with heavy cooking loads. Compact and powerful, it's the heart of your extraction system.

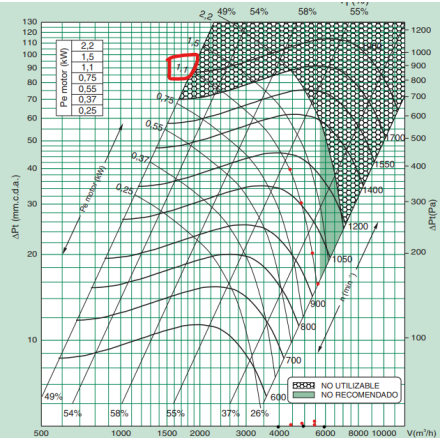

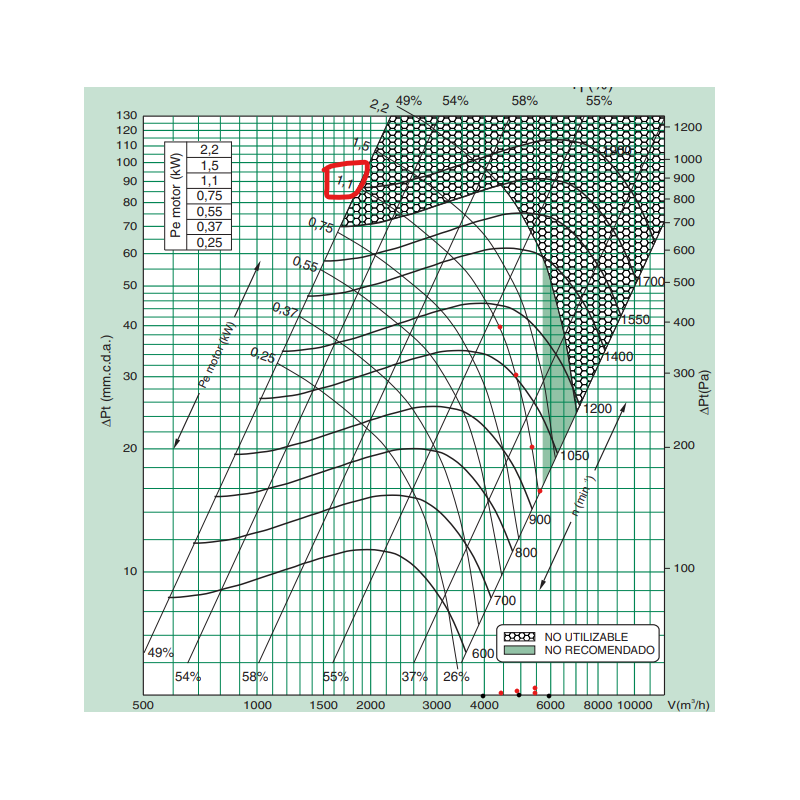

  • Airflow: max 5,500 m³/h at 200 Pa (mechanical ventilation), 4,000 m³/h at 350 Pa (hood)
  • Power: 1,100 W, 10/10 turbine
  • Supply: 230 V single-phase
  • Standard: C4 smoke extraction
  • Supplied with: 2 Ø400 spigots to fit at inlet and outlet
In stock
Quantity
1,470.00 Tax excluded
1764 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The compact turbine extraction fan box 10/10 is a motorised fan box designed for extracting air from a commercial kitchen hood in a restaurant or professional kitchen, with an airflow of up to 5,500 m³/h. It is fitted with a 10/10 turbine rated at 1,100 W in 230 V single-phase, built to run through full service without losing performance.

Motorised fan box for restaurant hoods and professional kitchens

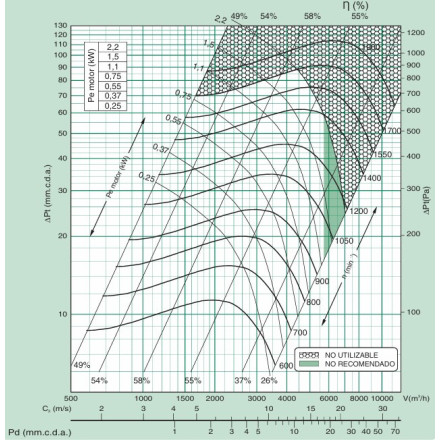

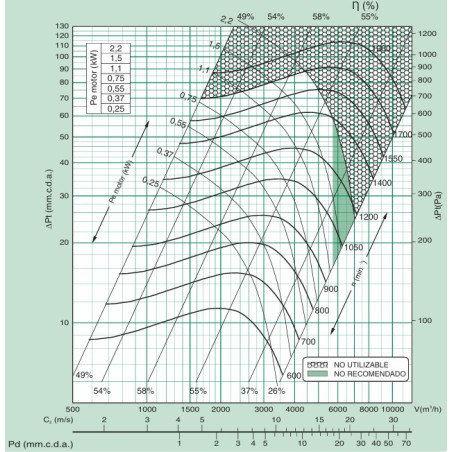

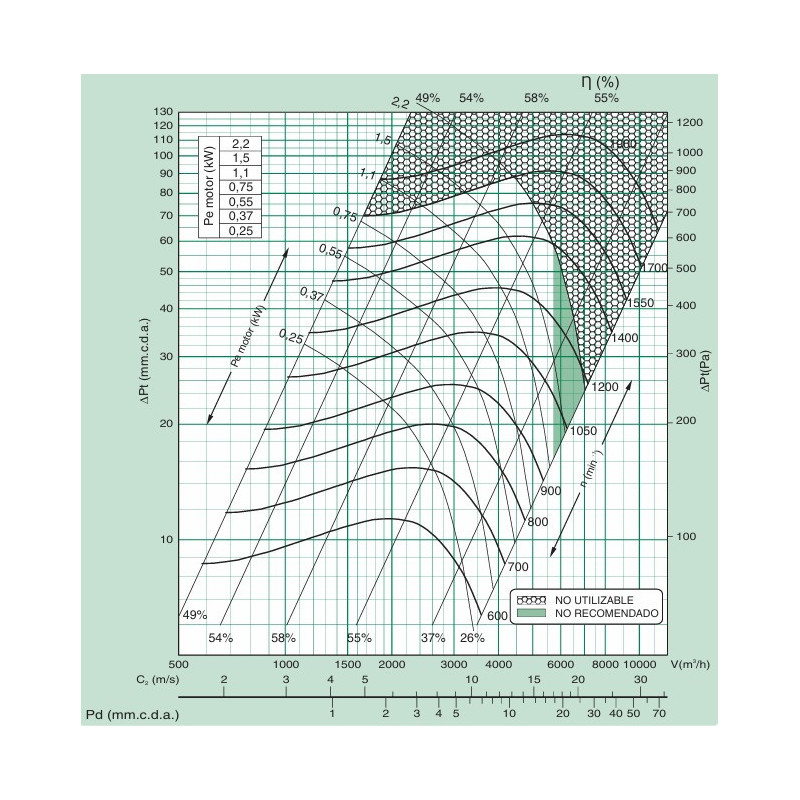

This extraction fan box is suited to a stainless steel restaurant hood measuring 2.5 to 4 metres, for an installation with up to 5 filters. The AT-type turbine, fitted on a 4-pole motor, delivers an airflow of 5,500 m³/h at 200 Pa in mechanical ventilation use and 4,000 m³/h at 350 Pa in hood use, the difference being explained by the higher pressure drop on the kitchen side (filters, ductwork, elbows). With a rotation speed of 1,440 rpm, it is sized for intensive cooking lines, without being oversized for a small snack bar.

Technical specifications

Specification Value
Reference Caisson1010400
Brand Tecnifan
Airflow 5,500 m³/h at 200 Pa (mechanical ventilation), 4,500 m³/h at 400 Pa (hood)
Power 1,100 W
Supply 230 V single-phase
Rotation speed 1,440 rpm
Turbine 10/10, AT type, 4-pole

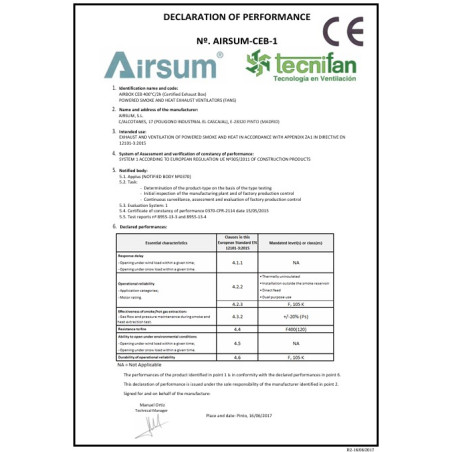

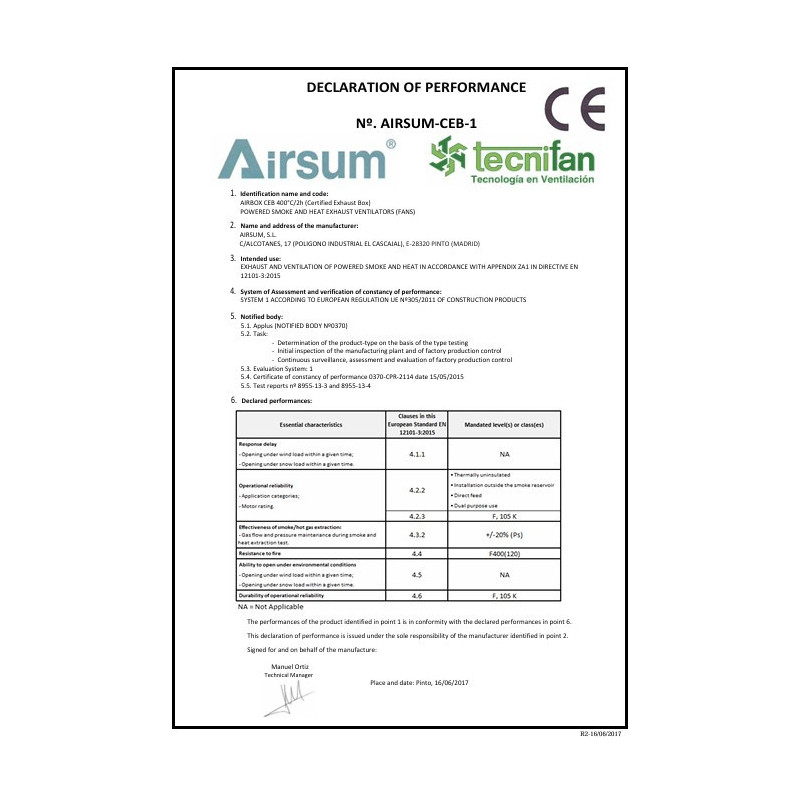

Standard C4 smoke extraction

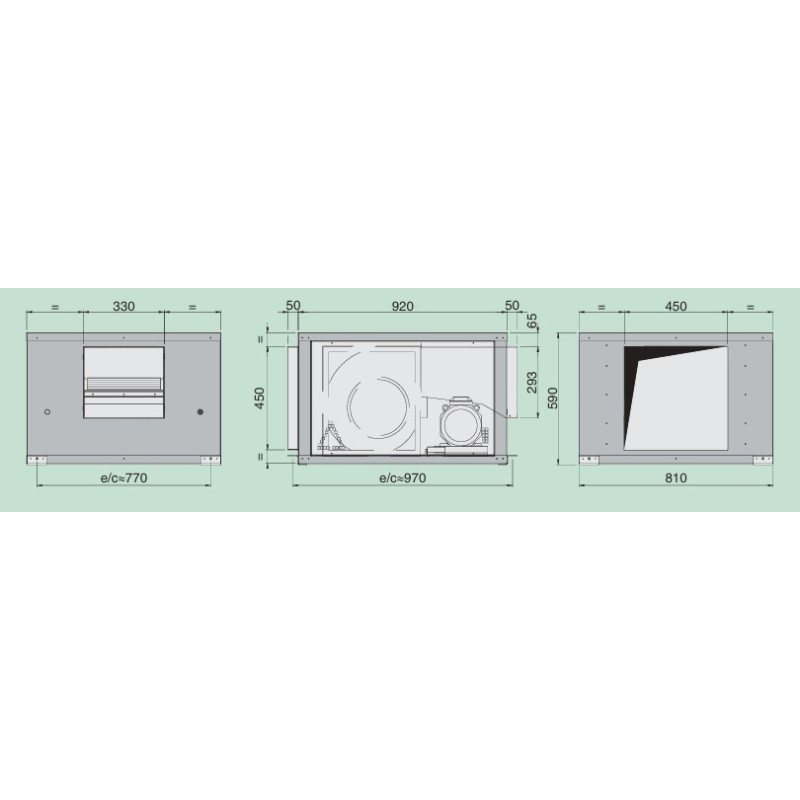

Dimensions L 920/970 x D 810 x H 590 mm
Inlet/outlet rectangular, supplied with 2 Ø450 mm spigots to fit
Weight 100 kg
Manufacturing Europe
Warranty 1 year

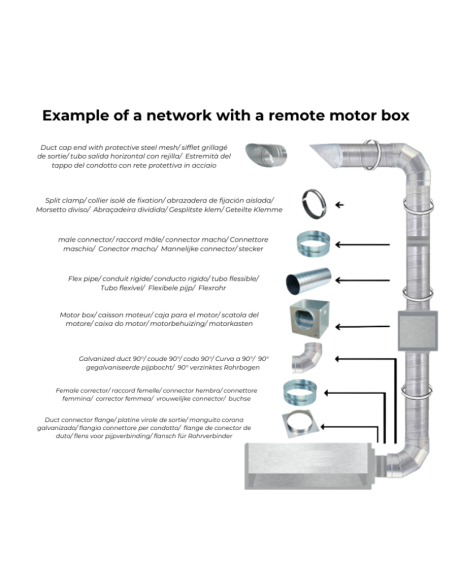

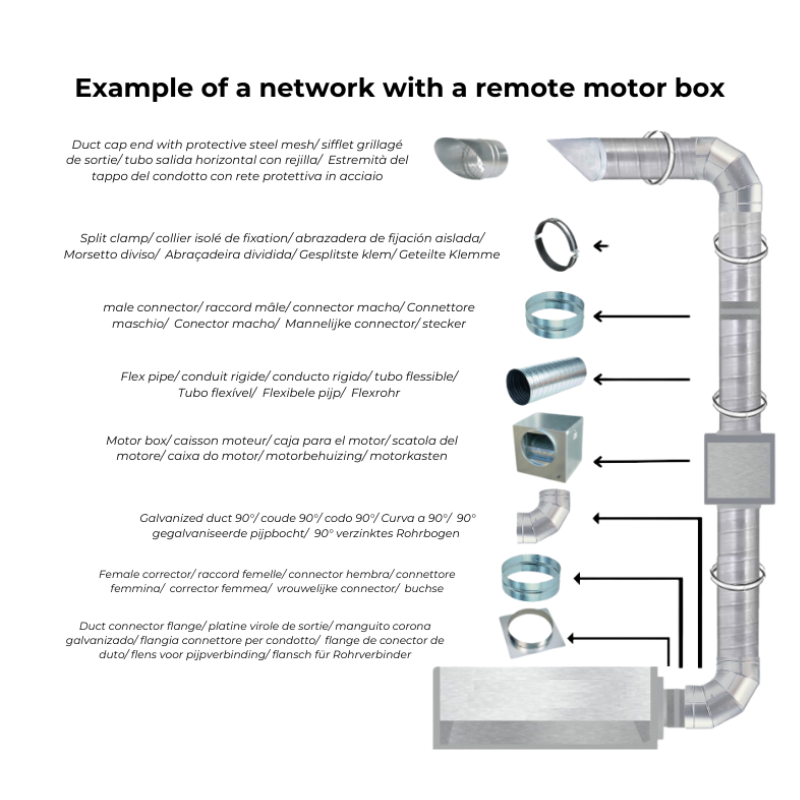

Installation and connection

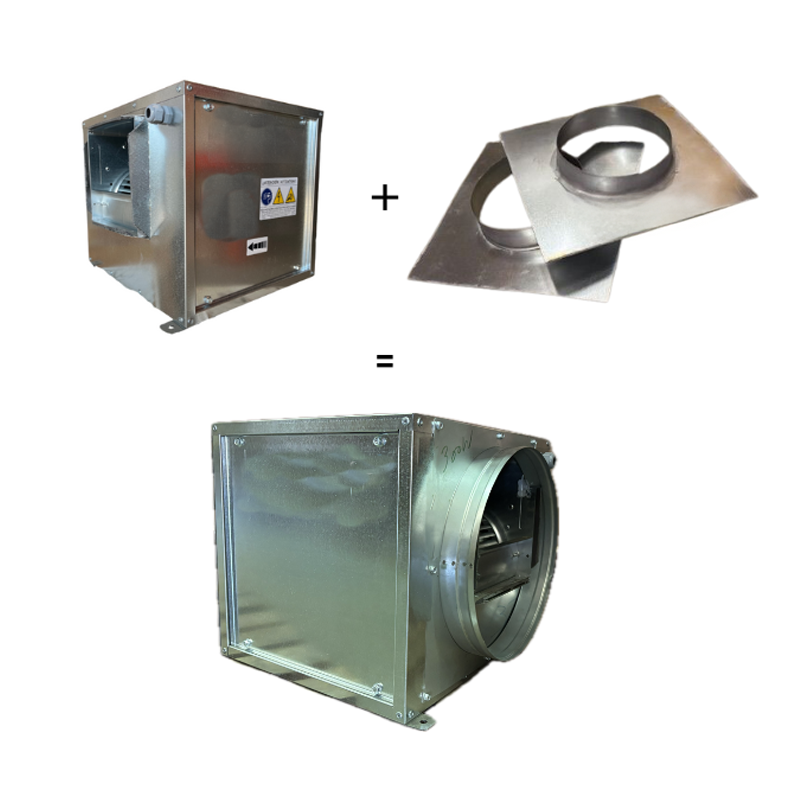

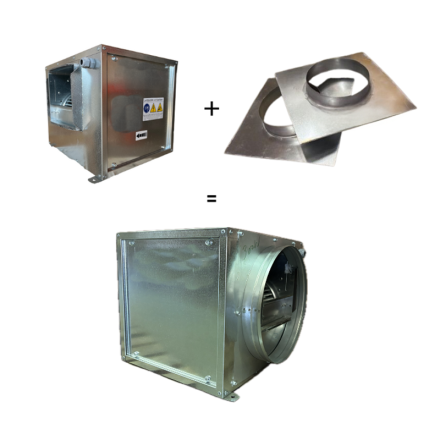

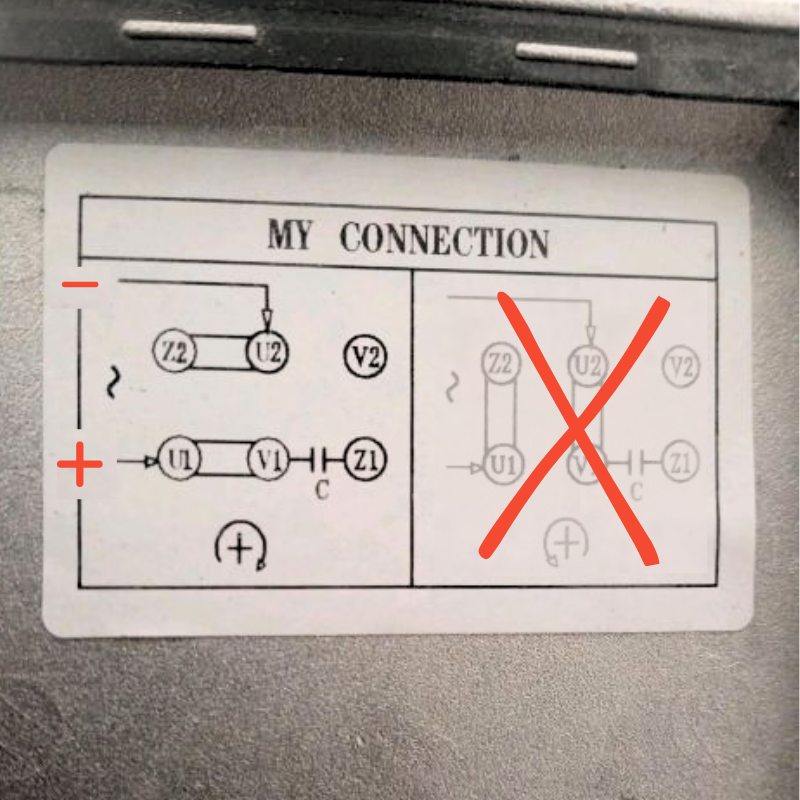

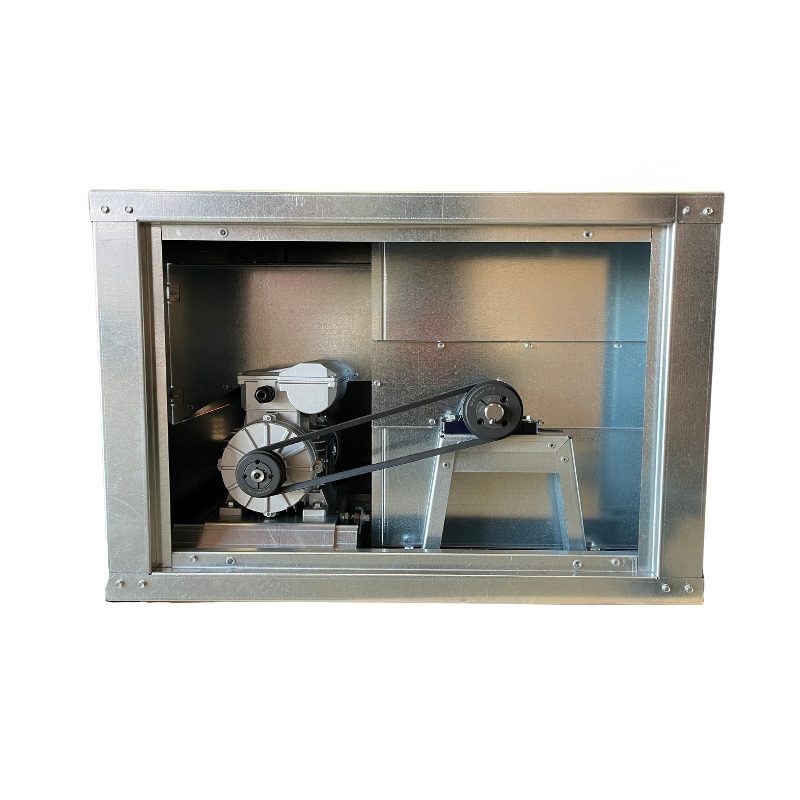

The fan box is accessed via its two removable panels, convenient for maintenance and for replacing the turbine without having to dismantle the whole unit. The inlet and outlet are rectangular, supplied with 2 Ø450 mm spigots to fit at inlet and outlet if your ductwork requires it: other spigot sizes are available on request, at no extra cost. Electrical connection must be carried out by a qualified professional, a condition required for the warranty to apply.

Points to check before ordering

  • Length of your hood and number of 500x400 stainless steel filters: as a guide, one filter handles around 800 m³/h, giving you a reference point for your actual airflow requirement.
  • Cooking output of your line (gas or electric) and kitchen layout (open or enclosed): the applicable smoke extraction standard depends on your local regulations and must be confirmed for your specific project.
  • Diameter and length of your ductwork, number of elbows: the longer the run and the more elbows it has, the more pressure drop reduces the actual available airflow.
  • Availability of adequate fresh air inlet: without suitable make-up air, actual airflow drops and noise or negative pressure increases.
  • Available space (L 920/970 x D 810 x H 590 mm) and weight of 100 kg: check the load capacity of the support or mounting surface before installation.

To pair with

Similar product without smoke extraction rating: 10/10 230V soundproofed fan box.

Product Details

Tecnifan
Caisson1010400
Manufacturing
Made in Spain
Warranty
1 year
Package weight
100 kg
Engine
Motorized cabinet
Standard
F400/120
Food
230V Mono
Engine power
4,000 to 6,000 m³/h
Cabinet Type
Enclosure with motor
0657968622548

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the actual airflow of this 10/10 extraction fan box?

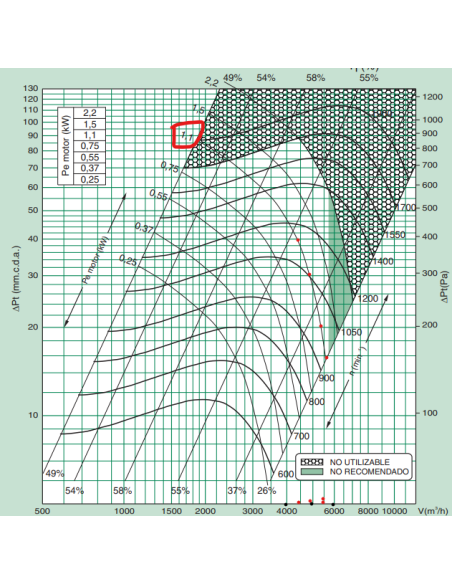

The fan box delivers a maximum airflow of 5,500 m³/h at 200 Pa in mechanical ventilation use, and 4,000 m³/h at 350 Pa in hood use. The difference is explained by the higher pressure drop on the kitchen side, linked to filters and ductwork. The final actual airflow also depends on the length of your ducts and the number of elbows.

What hood length is this fan box suited to?

This fan box is sized, as a guide, for a stainless steel restaurant hood of 2.5 to 4 metres, accommodating up to 4 filters. This reference point should be adjusted according to your cooking output, your ductwork and your actual fresh air requirement.

Can a speed controller be fitted to this fan box?

Yes, this fan box runs on 230 V single-phase, compatible with a speed controller sized according to its current rating. A speed controller with a 400° smoke extraction emergency stop button is available as a matching accessory for this type of installation.

Does this fan box need to be installed by a professional?

The electrical connection must be carried out by a qualified professional: this is a required condition for the 1 year warranty to apply. The mechanical installation of the fan box can be carried out by yourself, tutorials are available on our YouTube channel.

Which spigots are supplied with this fan box?

The fan box is supplied with 2 Ø450 mm spigots, to fit at inlet and outlet if your existing ductwork requires it, as the inlet and outlet of the fan box are rectangular in shape. Other spigot sizes remain available on request.
