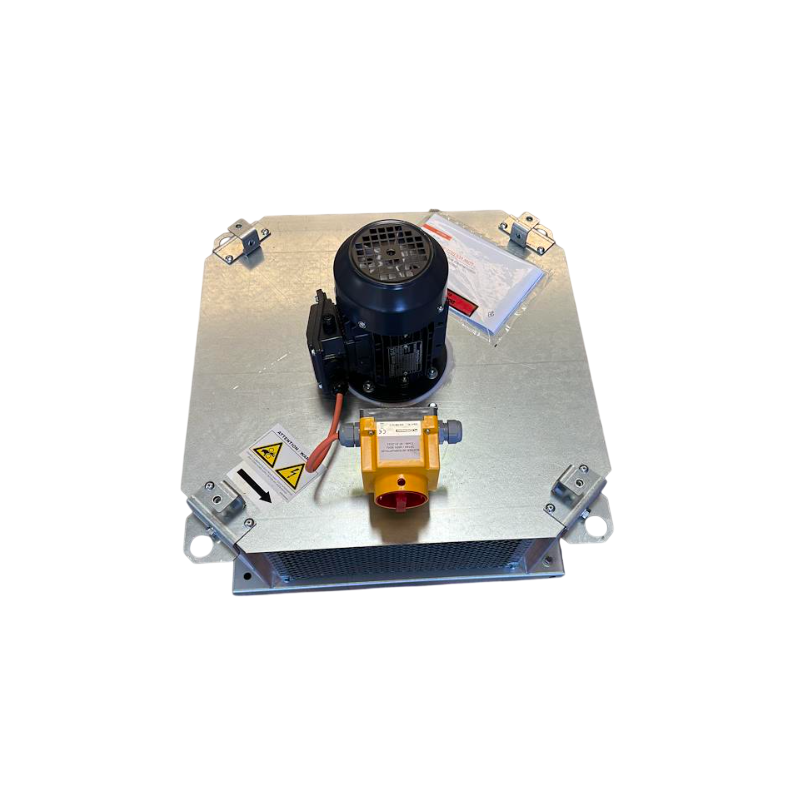

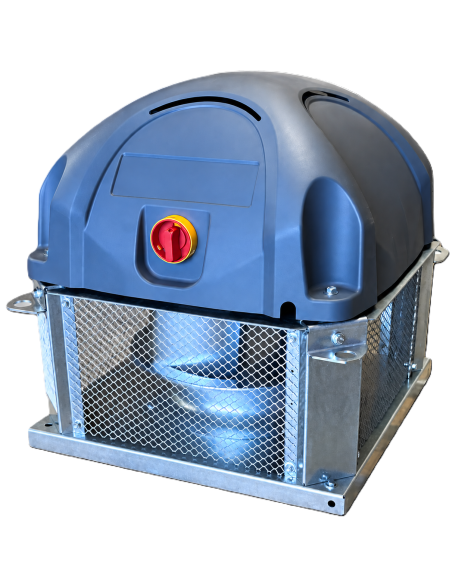

Roof fan T36 exhaust fan - 2,750 m³/h - TRI - 400°/2h

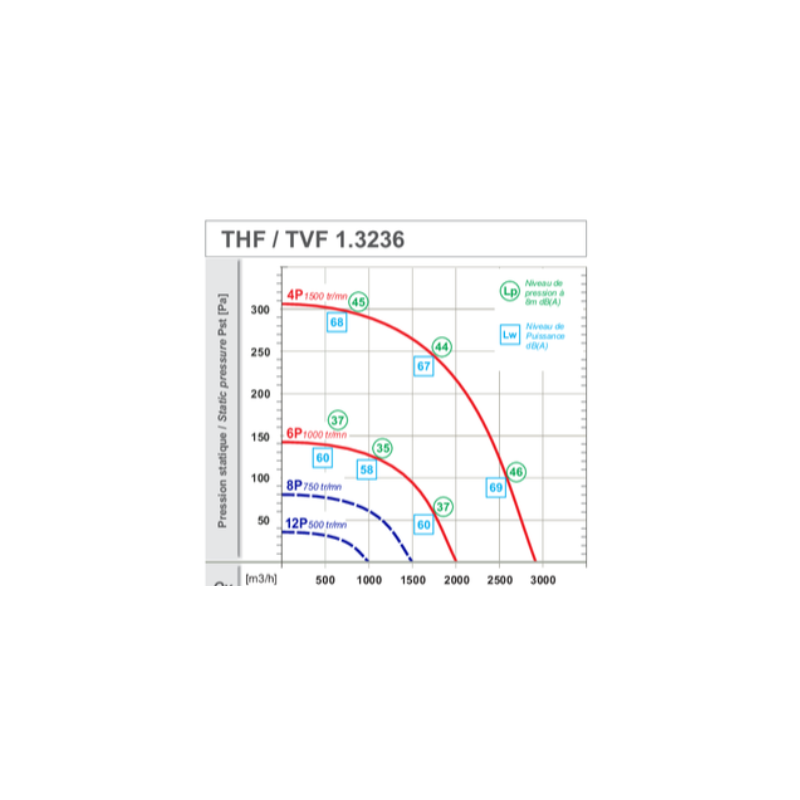

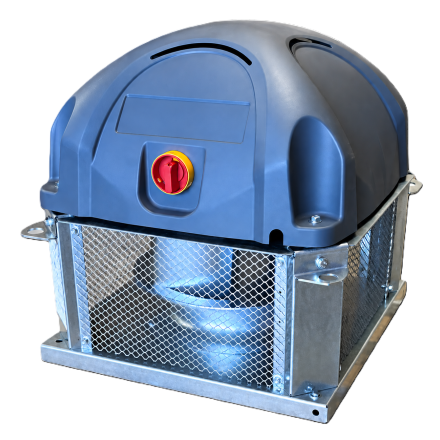

thf tvf 3236

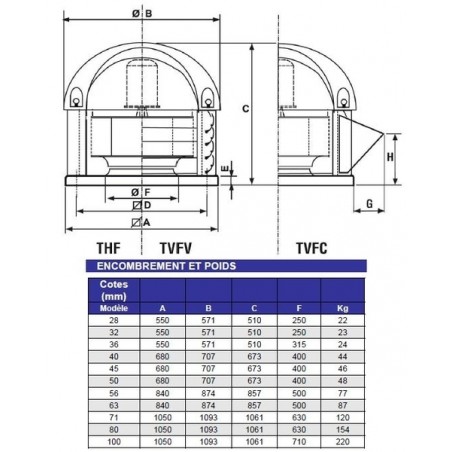

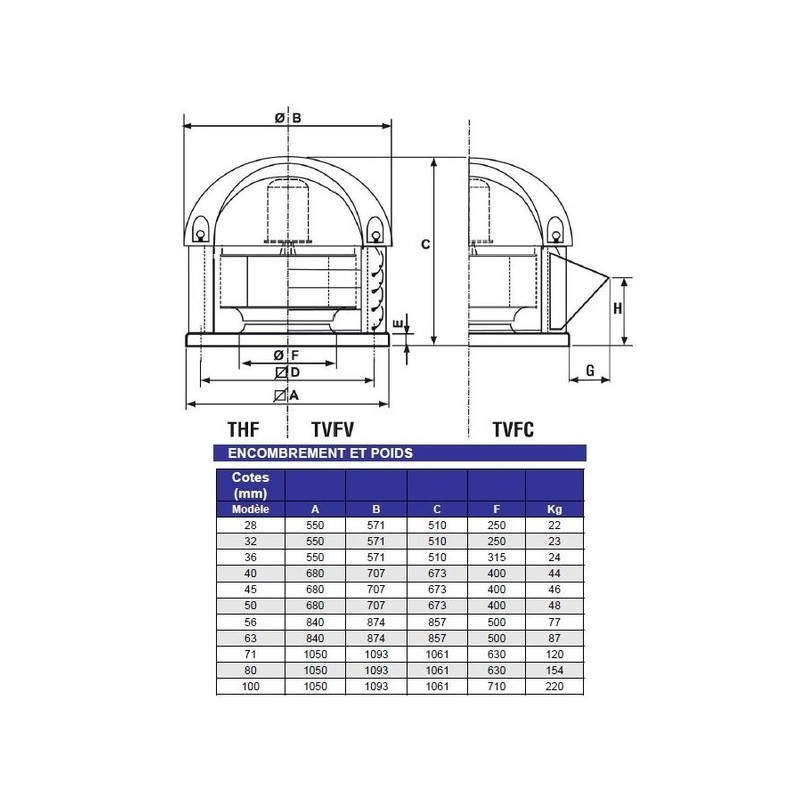

Saftair Turret Dimensions

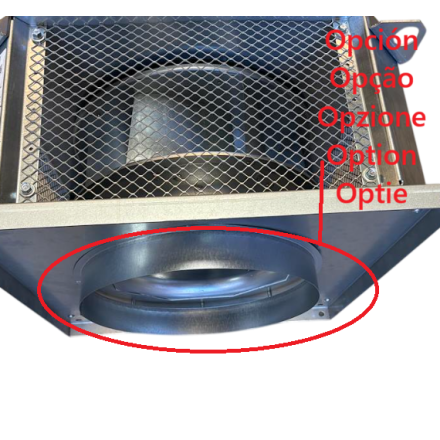

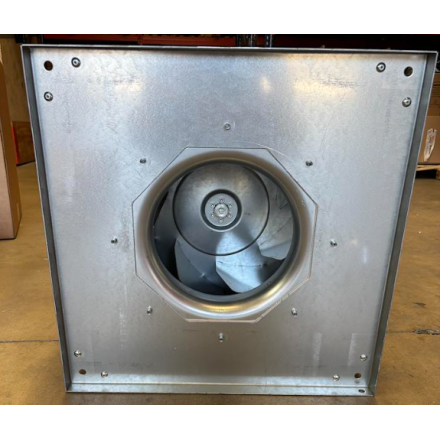

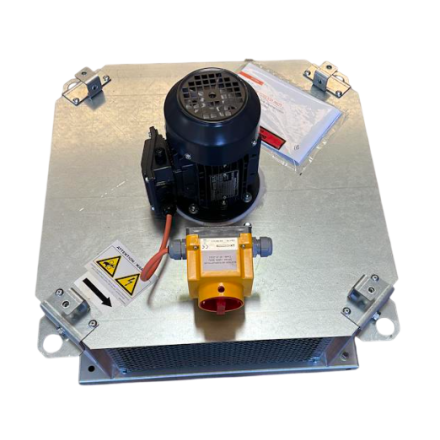

Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction

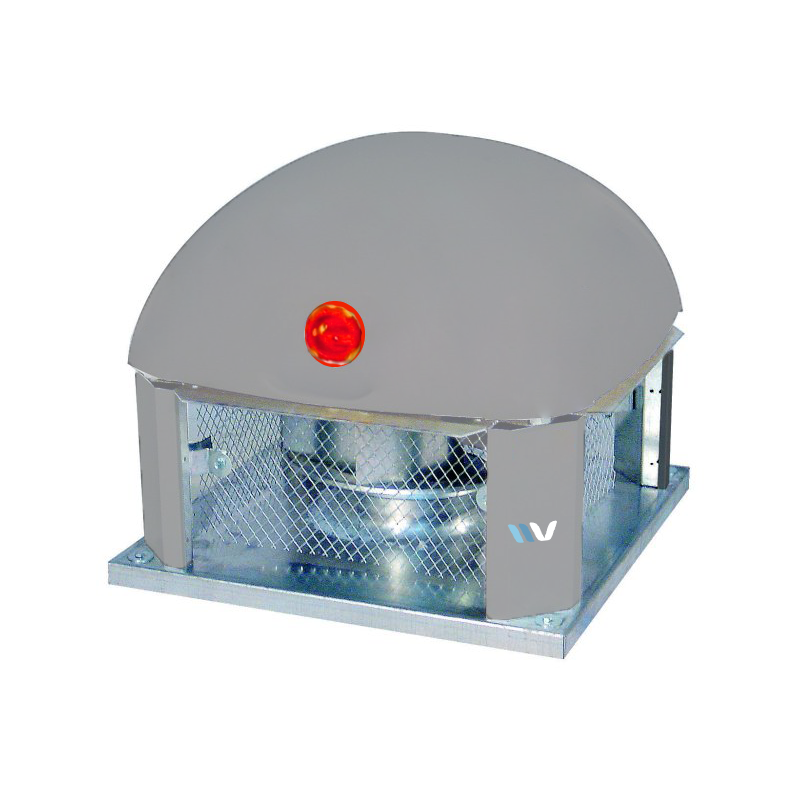

curved roof turret

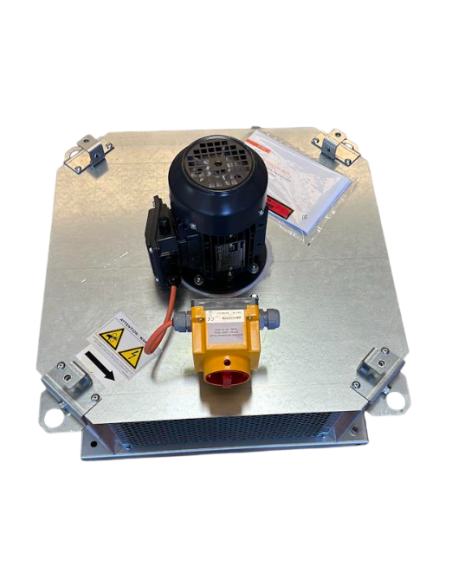

Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction

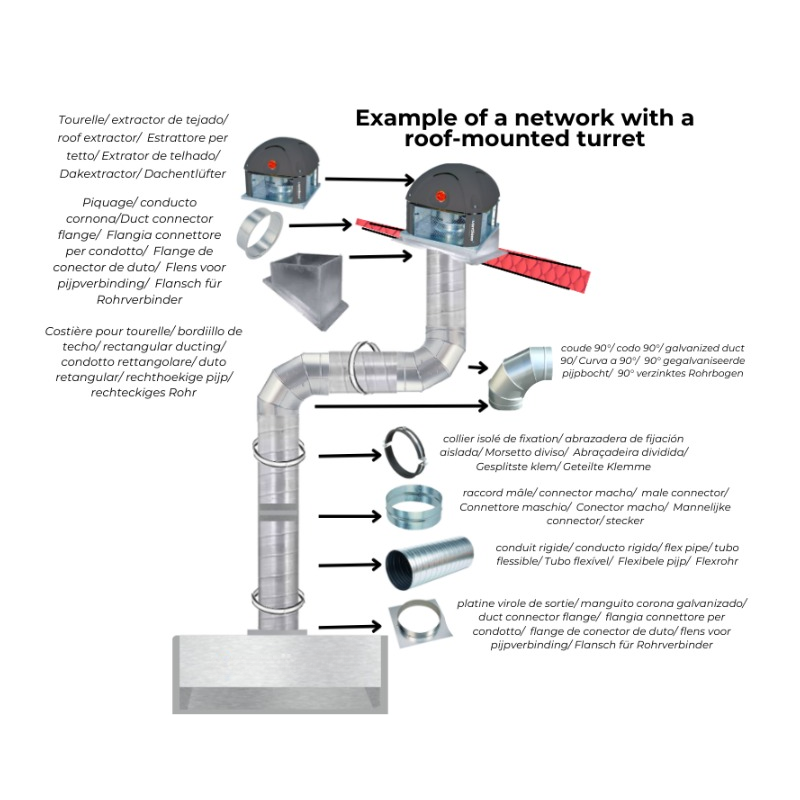

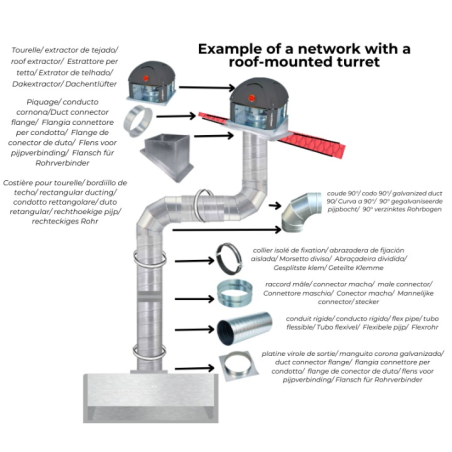

Ventilation system diagram with roof turret

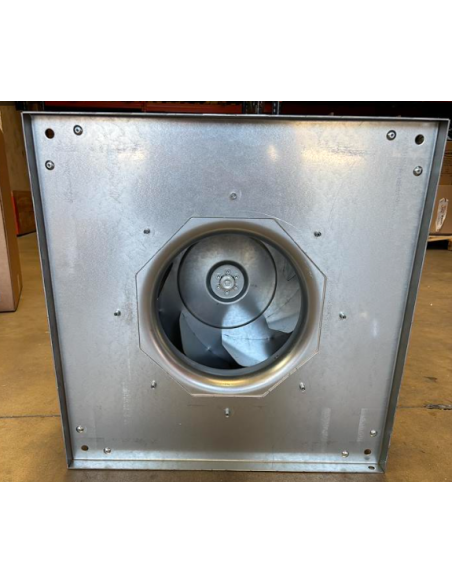

Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction
Roof fan T36 exhaust fan - 2,750 m³/h - TRI - 400°/2h

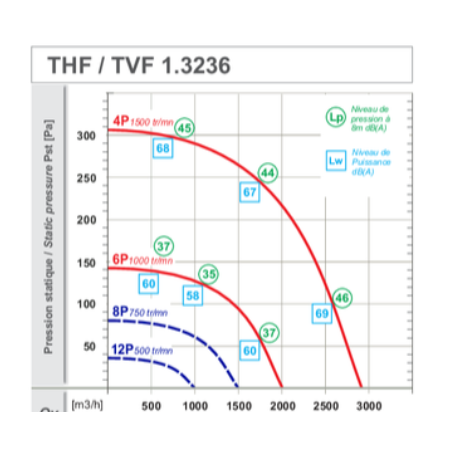

thf tvf 3236

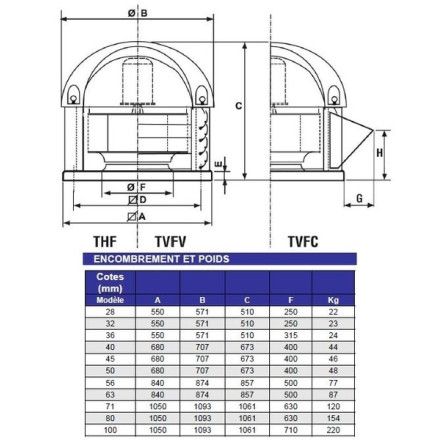

Saftair Turret Dimensions
Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction
curved roof turret
Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction
Ventilation system diagram with roof turret
Roof fan T36 extraction fan—400 V, 2,750 m³/h, 400°/2h, smoke extraction
Roof fan T36 exhaust fan - 2,750 m³/h - TRI - 400°/2h

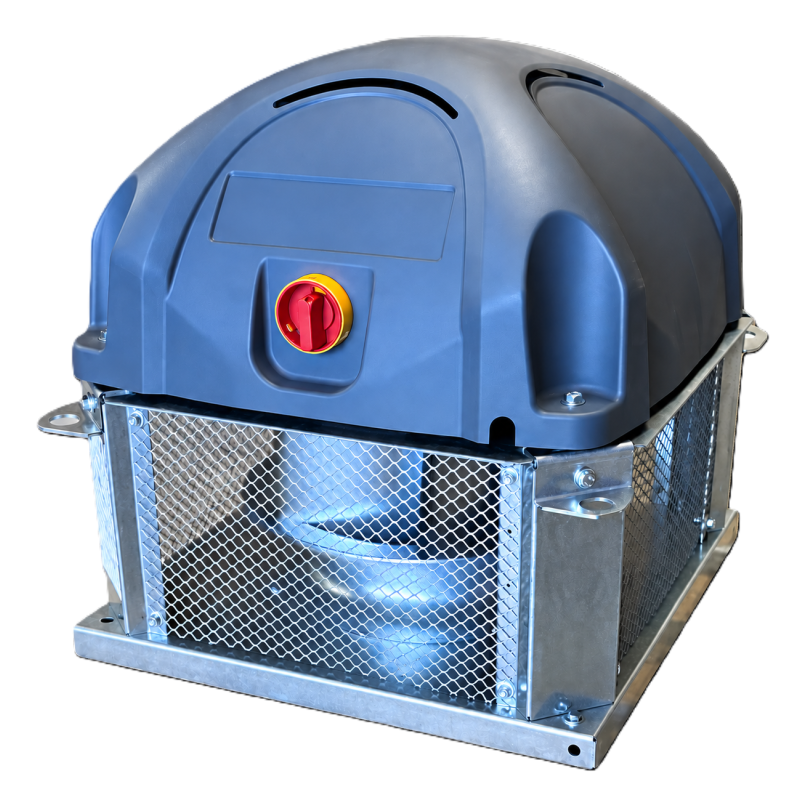

Roof fan Saftair horizontal discharge exhaust fan, max. airflow 2,750 m³/h - 4P

For hoods ranging from 2 to 3.5 m (3 to 5 filters), ducting in 315, 355, or 400.

- Frame dimensions: 550 × 550, height 566
- Capacity: 2,850 m³/h - 250 W - 0.68 A
- Power supply: Three-phase 380V
- Protective and bird-proof mesh
- Wired proximity switch
- F400/120 smoke extraction certification (open kitchens over 20 kW)
- Made in France
- It is mandatory to install thermal protection suitable for the equipment
- Compatible with a single-phase/three-phase or three-phase/three-phase variable frequency drive rated at 0.75 kW
- Equivalents: Alvène EMMOS or VELONE, Saftair TH, France air SIMOUN, Vim TE or TC, etc.
- Weight: 32 kg

1-year warranty, provided the unit is installed by a professional and a dedicated circuit with thermal protection is set up.

Find all related products at the bottom of the page!

In stock
Quantity
660.00 Tax excluded
792 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Roof fan T36 Professional Exhaust Fan Ventilsogood 2,750 m³/h Three-Phase - Roof Exhaust Fan with Horizontal Discharge

Discoverthe high-performancethree-phase roof exhaust fan for the efficient removal of smoke and odors in commercial kitchens. This three-phase ventilation turret combines power, reliability, and quiet operation for your restaurant.

Key benefits of the three-phase Ventilsogood T36 exhaust turret:

  • Optimal sizing: extraction tower perfectly suited for professional stainless steel hoods ranging from 2 to 3.5 linear meters
  • Energy efficiency: powerful 250-watt motor ensuring an extraction airflow of 2,750 m³/h
  • Made in France: high-quality ventilation unit ensuring durability and superior performance
  • Bird protection: roof-mounted exhaust fan equipped with an integrated protective screen
  • Smoke exhaust compliance: F400/120-certified roof vent (withstands 400°C for 2 hours) for fire safety in professional kitchens
  • Modularity: Three-phase roof vent compatible with single-phase/three-phase or three-phase/three-phase variable-speed drives for adjusting airflow

Application and Installation of the Roof Ventilation Unit

This horizontal-discharge roof vent is the ideal solution for extracting smoke and odors in all types of food service establishments: restaurants, fast-food outlets, kebab shops, snack bars, crêperies, and brasseries. Flexible installation on the roof or facade depending on your architectural constraints.

A quiet, robust, and reliable roof exhaust fan, specially designed for heavy-duty operation in demanding commercial environments.

Kitchen smoke extraction system and complementary accessories

Complete your installation with our professional ventilation accessories. Discover our wide range of kitchen smoke extraction products that comply with current standards. Find all the related products you need for a complete and safe installation.

Product Details

SAFTAIR
T36tri
Manufacturing
Made in France
Warranty
1 year
Package weight
35 kg
Engine
Roof fan roof
Standard
C4 Smoke Exhaust Standard
Food
380V Three-Phase
Engine power
2,000 to 4,000 m³/h
0657968733640
