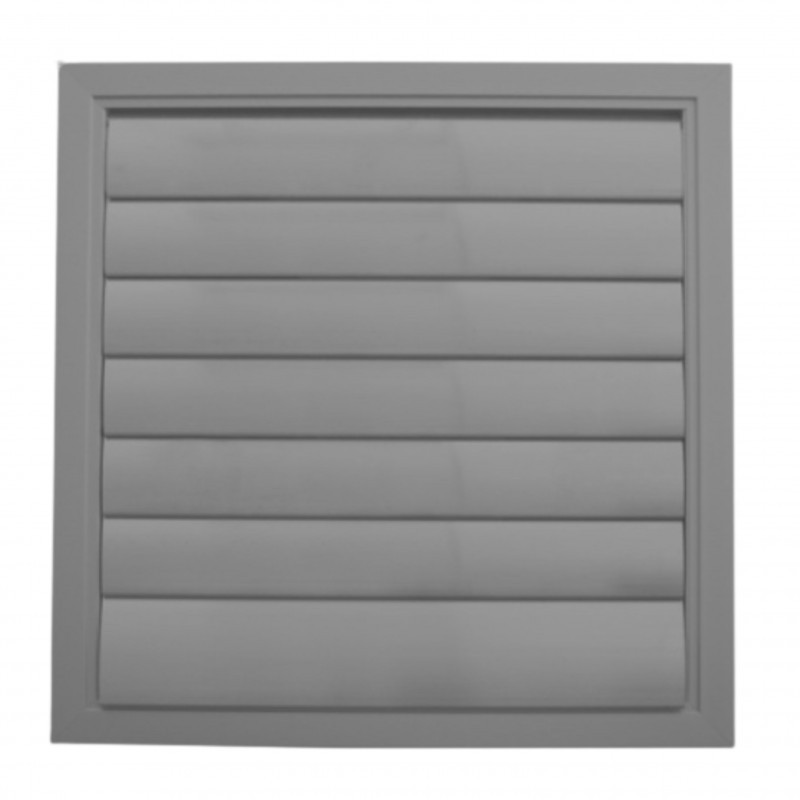

Ventilation Duct Outlet Shutter
Ventilation Duct Outlet Shutter: discreet, neat finish for wall or food truck mounting

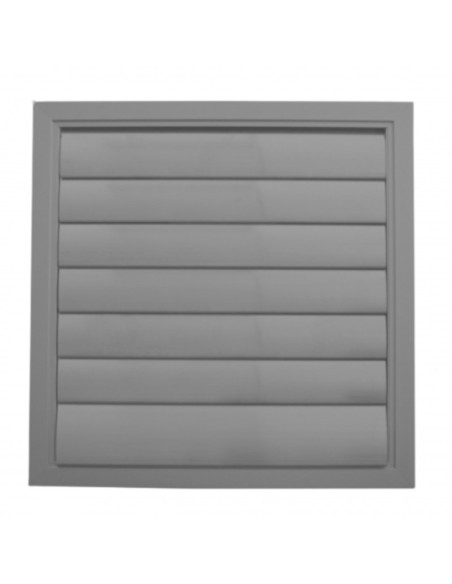

The wall outlet shutter protects your ventilation ductwork at the façade: its blades open when the fan starts and close when it stops, keeping out rain, wind and pests. Made in France from anthracite grey aluminium and PVC, 15 mm thick, it can also be repainted to match your façade.
- Manufactured in: France
- Diameters available: 160 to 630 mm
- Fixing: 4 fixing holes provided, screws onto wall, panel or food truck body
- Operation: pressure-operated shutter with automatic opening/closing
- Warranty: 1 year
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
The Ventilation Duct Outlet Shutter is a finishing component that closes off the external outlet of a professional ventilation duct or mechanical ventilation system, fitted to a wall or to the side panel of a food truck. Available in 10 diameters, from 160 to 630 mm, it fits most ventilation networks found in commercial kitchens, restaurants or fast-food units.
How this pressure-operated shutter works

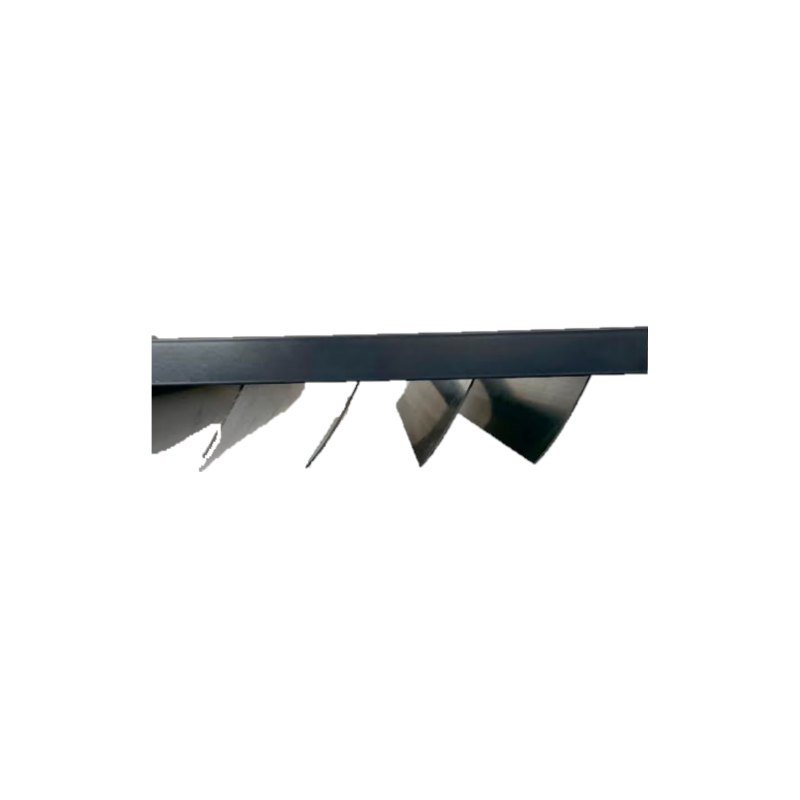

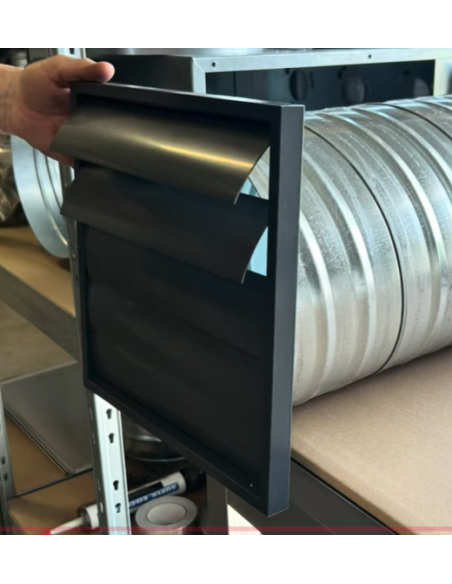

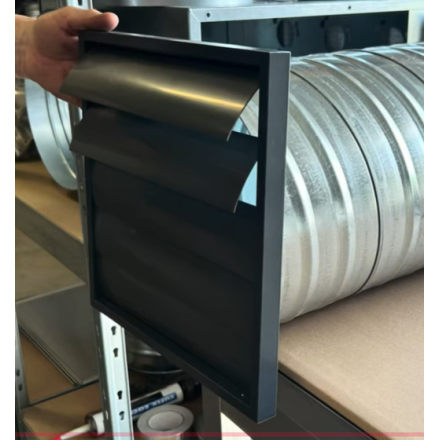

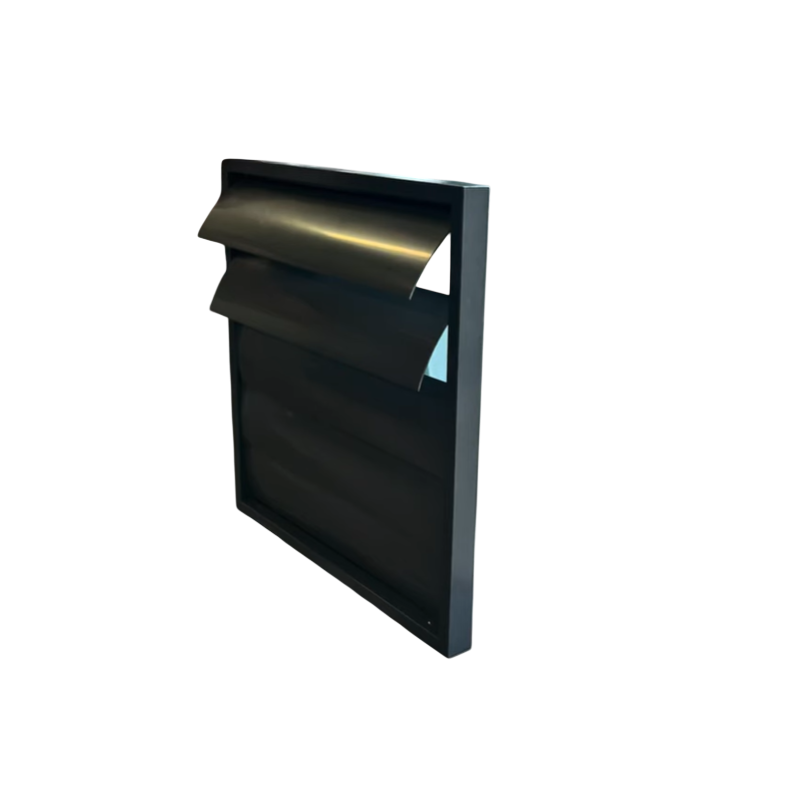

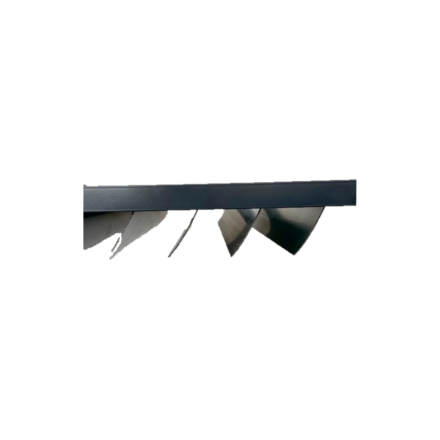

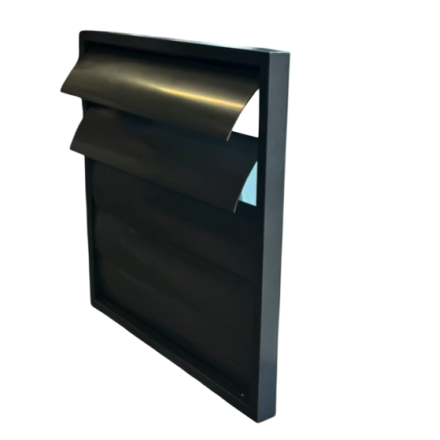

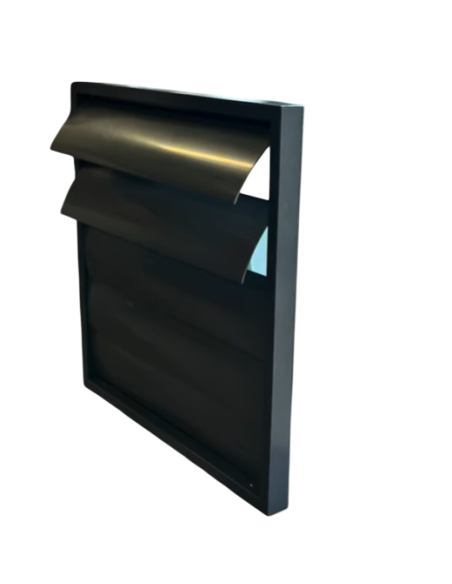

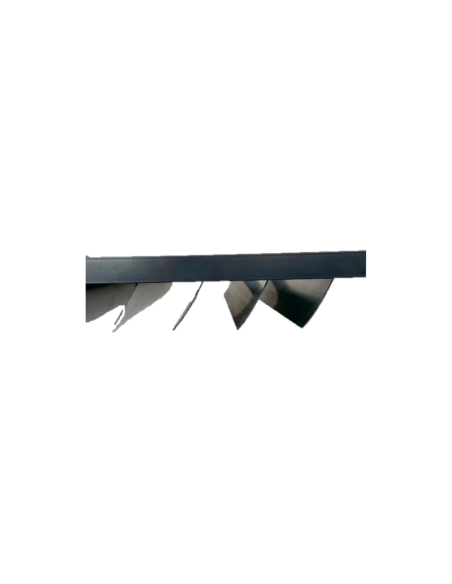

The outlet shutter works on a simple principle: the blades open under air pressure as soon as the ventilation fan starts running, and close automatically when it stops. This pressure-driven operation means no manual intervention is needed day to day. With the blades closed, it keeps out rain, snow, wind and pests (insects, birds, small animals) from entering the ductwork, which helps keep the duct clean and reduces heat loss when the system is switched off.
Technical specifications
| Specification | Value |
|---|---|
| Manufactured in | France |
| Material | Anthracite grey painted aluminium and PVC |
| Thickness | 15 mm |
| Diameters available | 160, 200, 250, 315, 355, 400, 450, 500, 560, 630 mm |

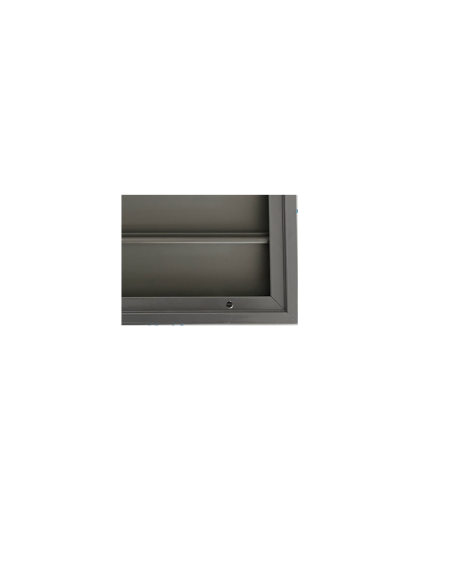

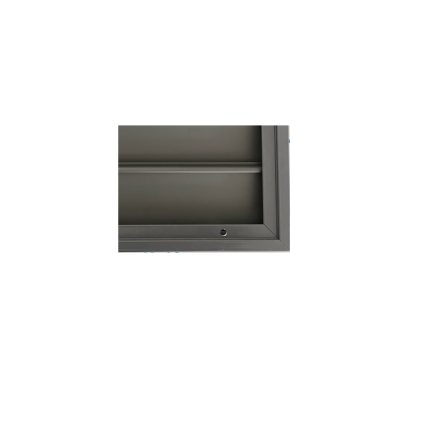

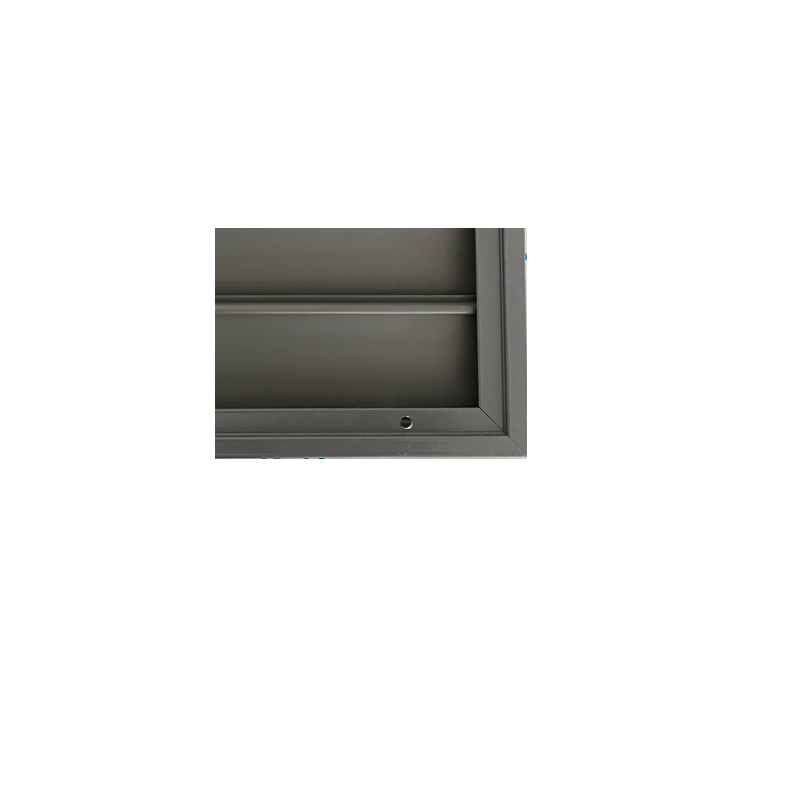

| Fixing | 4 fixing holes provided, additional holes can be drilled if needed |
| Weight | 3 kg |
| Warranty | 1 year |
Use and compatibility: wall, food truck, ventilation ductwork and mechanical ventilation systems

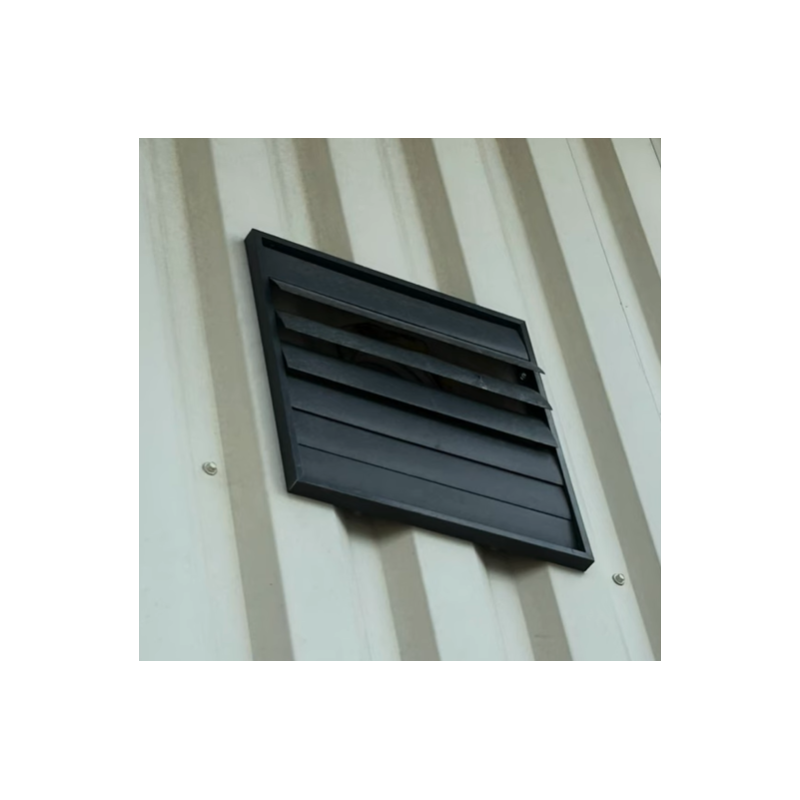

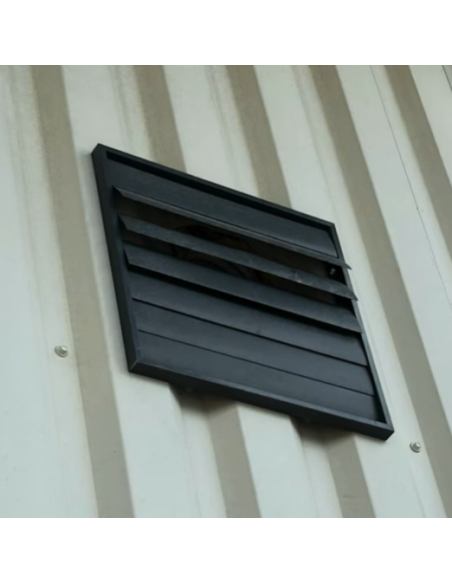

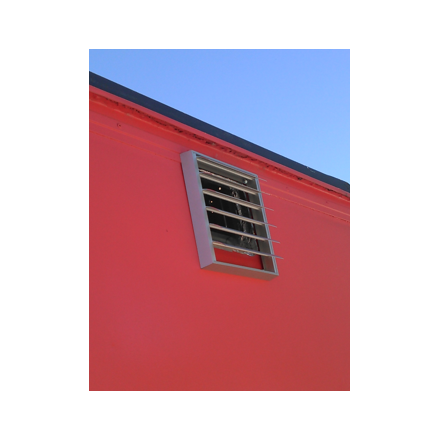

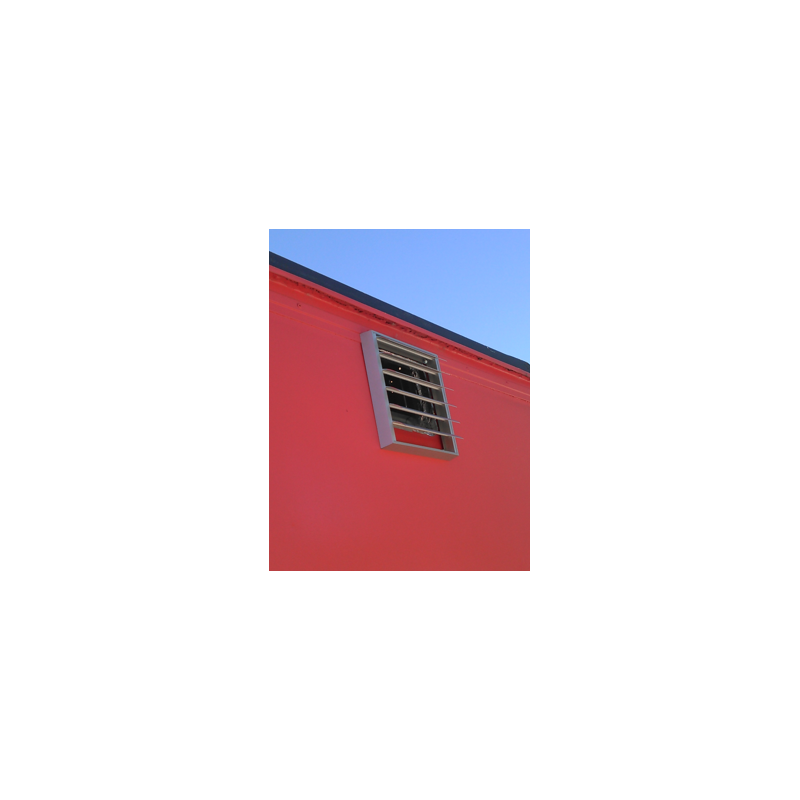

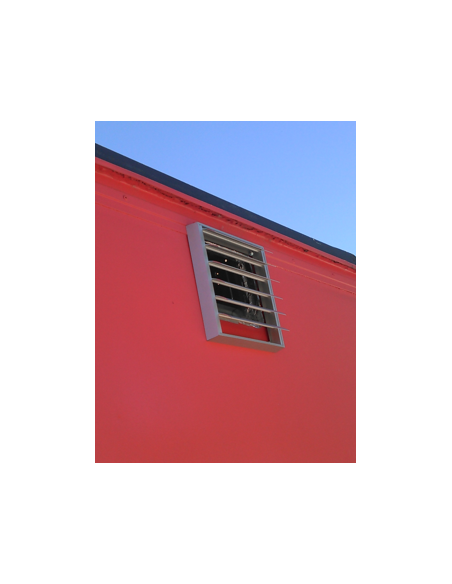

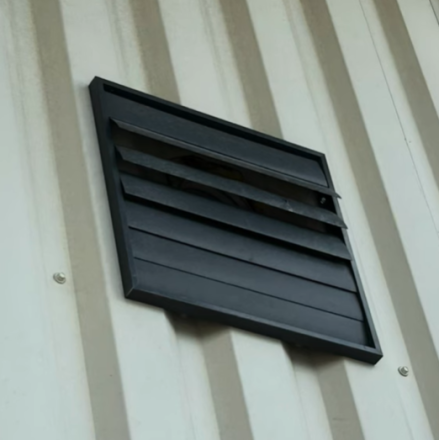

This outlet shutter can be screwed onto all types of surfaces: solid wall, panel, or food truck body. It suits the outlet of a galvanised steel duct from a commercial kitchen, restaurant, fast-food outlet, kebab shop, snack bar or pub kitchen, as well as the outlet of a mechanical ventilation network or commercial mechanical ventilation system. The shutter diameter is deliberately a little larger than the duct diameter, which helps cover any minor imperfections around the drilled opening and gives a clean fixing on the façade. Its original anthracite grey finish can be overpainted if you wish to match it to your façade.
Installation and connection

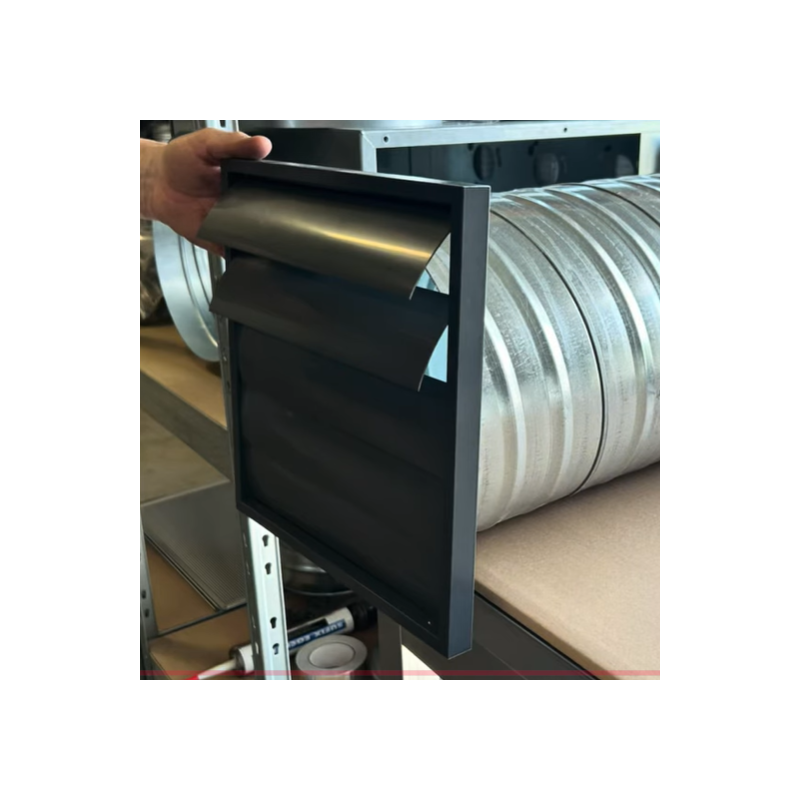

The shutter is fitted at the end of the ductwork, on the outside, in line with the duct. Choose the same diameter as your duct for a clean connection: the shutter itself, being slightly wider, covers the edge of the outlet opening. The 4 original fixing holes are generally sufficient, with the option to add more if the surface requires it. Electrical connections for the associated ventilation system should be carried out by a qualified professional.
Points to check before ordering
- The shutter diameter must match that of your duct or hood outlet; please check this before ordering.
- Check the type of surface (solid wall, panel, food truck sheet metal) to make sure the 4 fixing points will be sufficient.
- A pressure-operated shutter opens using the airflow generated by the fan: an undersized or overly restrictive network may limit full opening, so this should be checked against your installation.
- Pay attention to sealing at the connection between the duct and the shutter, particularly outdoors where it is exposed to the weather.
- Allow clear access for periodic cleaning of the blades and surrounding area.

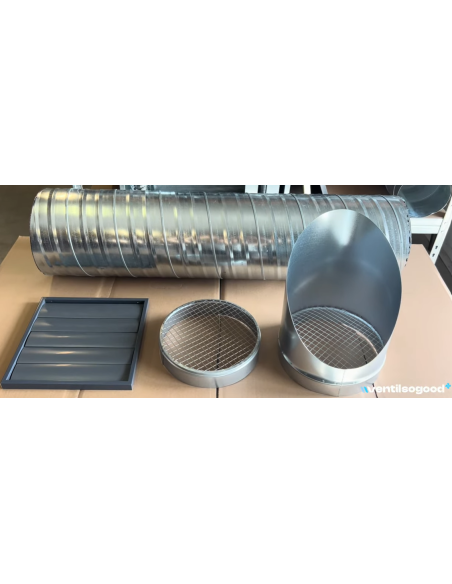

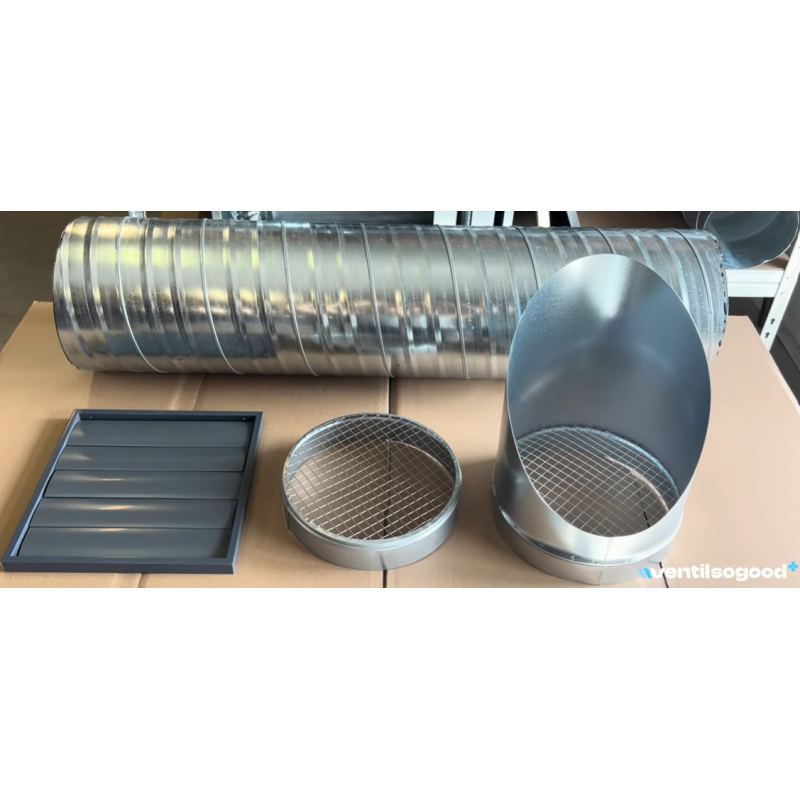

Frequently bought together
- 2-metre rigid galvanised steel duct, to connect the shutter to your ductwork
- Sealant cartridge for ductwork joints, for a well-sealed connection
- Ductwork fixing kit, 6 to 10 m, to complete your installation
Product Details
volfac
- Diameter
- Products
- Shutter
- Products
- Outdoor Outings
- Manufacturing
- Made in France
- Warranty
- 1 year
- Package weight
- 1 kg
0657968455948
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What's the difference between this outlet shutter and a backdraught damper?
The outlet shutter is fitted directly to the façade or wall, at the end of the duct, and its blades open only under the air pressure created by the running fan. It acts as a neat finishing piece and protects against weather and pests, unlike a backdraught damper fitted further upstream inside the ductwork.
Which shutter diameter should I choose for my ventilation duct?
Choose a shutter diameter equal to or larger than your duct or hood outlet. The shutter is deliberately a little larger than this nominal diameter so it cleanly covers the edge of the outlet opening. Available from 160 to 630 mm.
Can this shutter be fitted to the side of a food truck?
Yes, this outlet shutter can be screwed onto all types of surfaces (it can also be bonded), including a food truck body, using its 4 provided fixing holes. Just check the thickness and type of your surface before fitting.
How does the opening and closing system work?
It's a pressure-operated shutter: the blades open automatically under air pressure when the ventilation fan is running, and close as soon as it stops. This avoids any manual handling and limits the entry of dirt or pests when the system is switched off.
Can this outlet shutter be repainted?
Yes, the outlet shutter is made of anthracite grey painted aluminium, a finish that accepts a further coat of paint if you want to match it to the colour of your façade or food truck.
