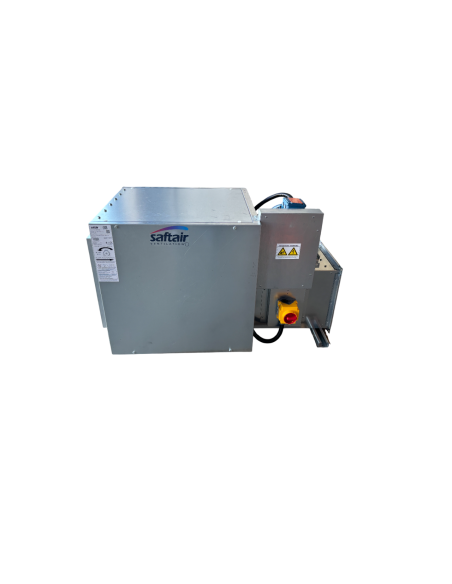

dof 300 saftair
dof250 dor250 saftair
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 3

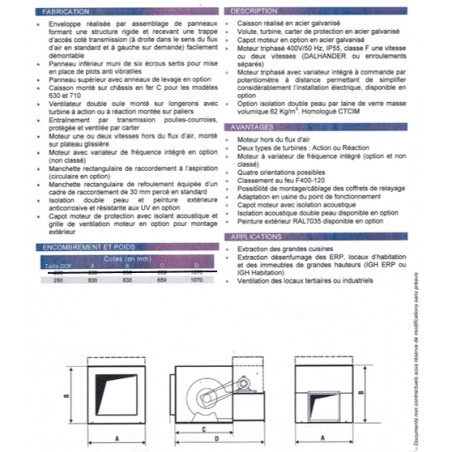

Saftair Instructions
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 5
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 6
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 7
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 8

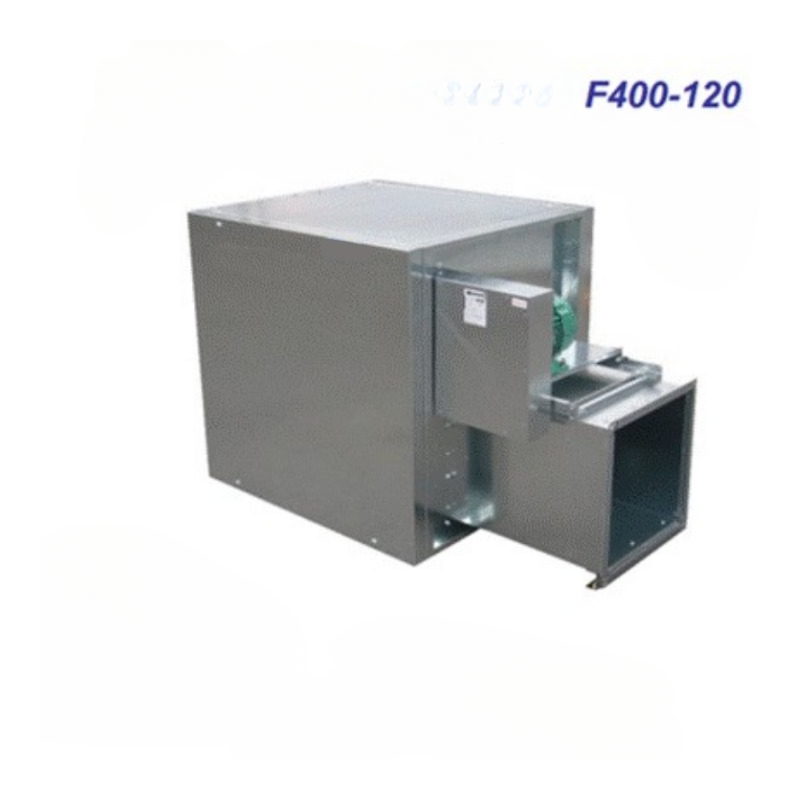

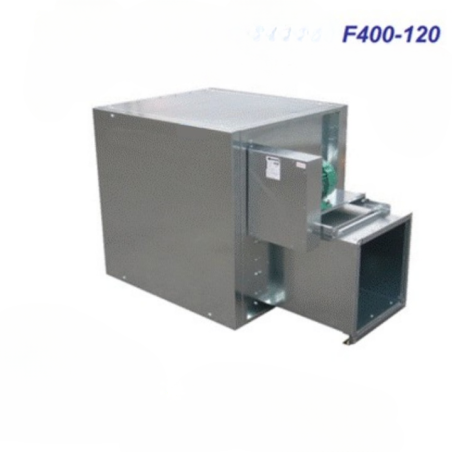

F400/120 Saftair France Air Exhaust Unit
dof 300 saftair
dof250 dor250 saftair
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 3
Saftair Instructions
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 5
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 6
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 7
2V Motor Housing, 3000/6000 m³/h, 400°, TRI, vue 8
F400/120 Saftair France Air Exhaust Unit

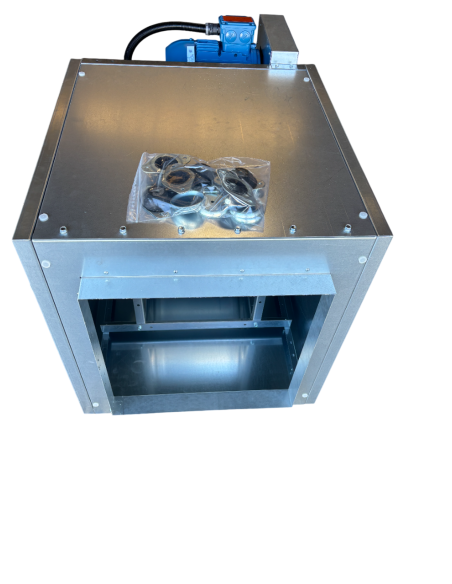

The SAFTAIR DOF250 motor housing extracts from 3000 to 6000 m³/h depending on your ductwork constraints, with a motor out of the airflow and a Dahlander two-speed design to switch from comfort mode to smoke extraction mode.

  • Airflow: 3000/6000 m³/h (2 speeds)
  • Power supply: Three-phase 380 V, 1.6/0.4 kW, 3.8/1.69 A
  • Standard: smoke extraction C4
  • Dimensions (in-line version): 630 x 630 x 1070 mm
  • Weight: 80 kg (package 180 kg)
Delivery time: 8 to 10 days
Quantity
2,350.00 Tax excluded
2820 € TTC
Delivery time: 8 to 10 days

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

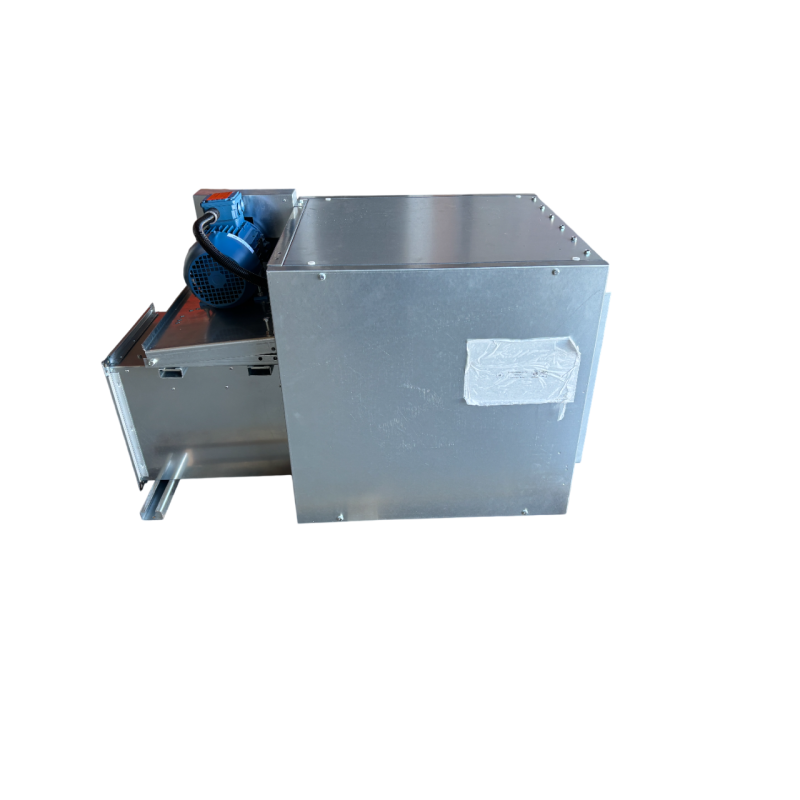

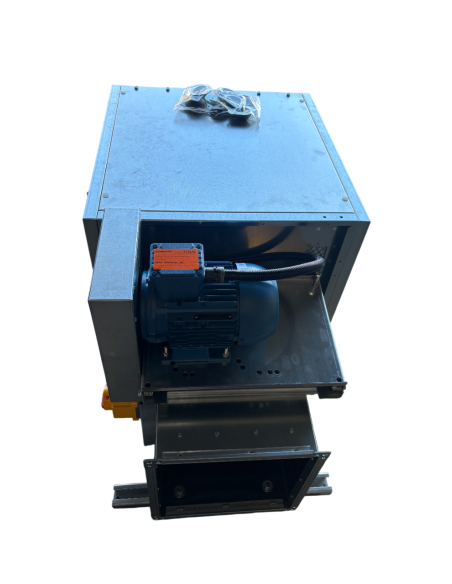

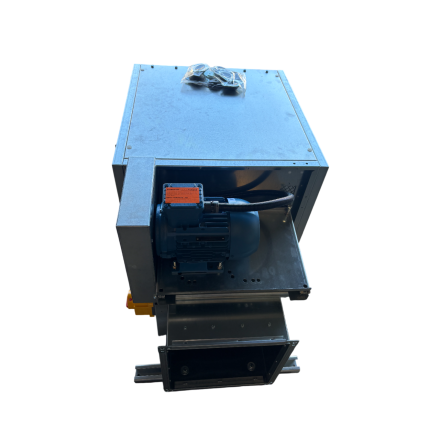

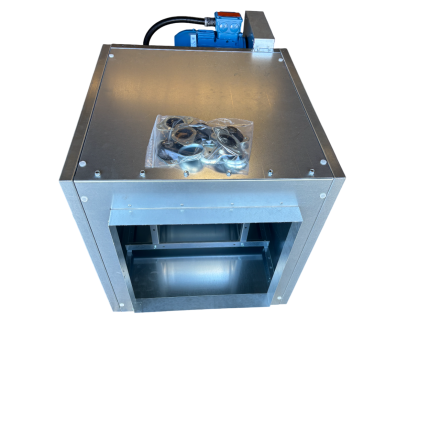

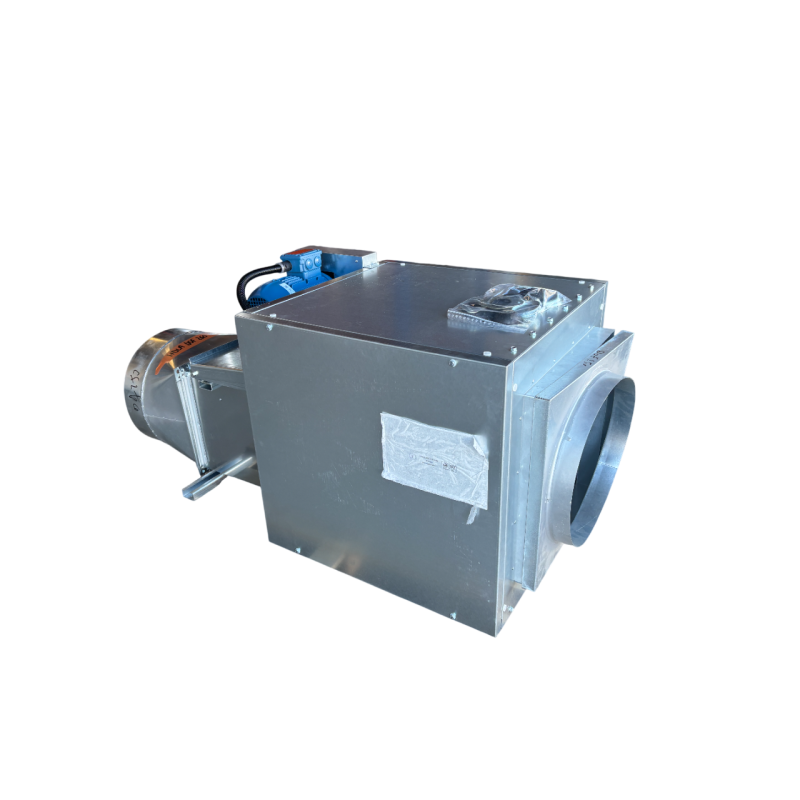

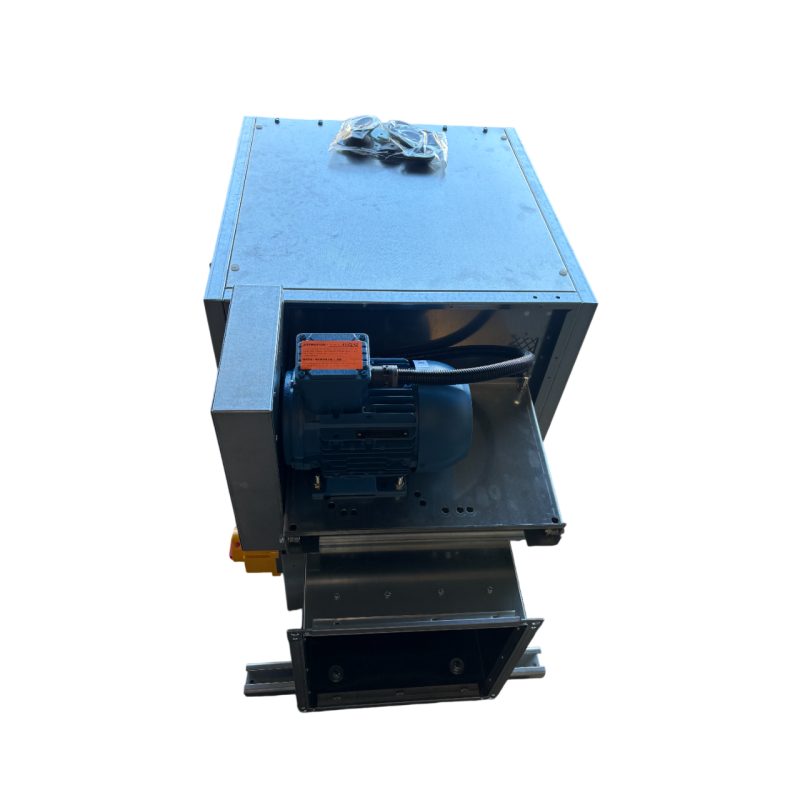

The SAFTAIR DOF250 motor housing is an extraction fan unit with a motor out of the airflow, designed for air extraction in a commercial kitchen hood, for smoke extraction, or for the mechanical ventilation system of a public-access building, with an airflow of 3000 to 6000 m³/h depending on your ductwork constraints.

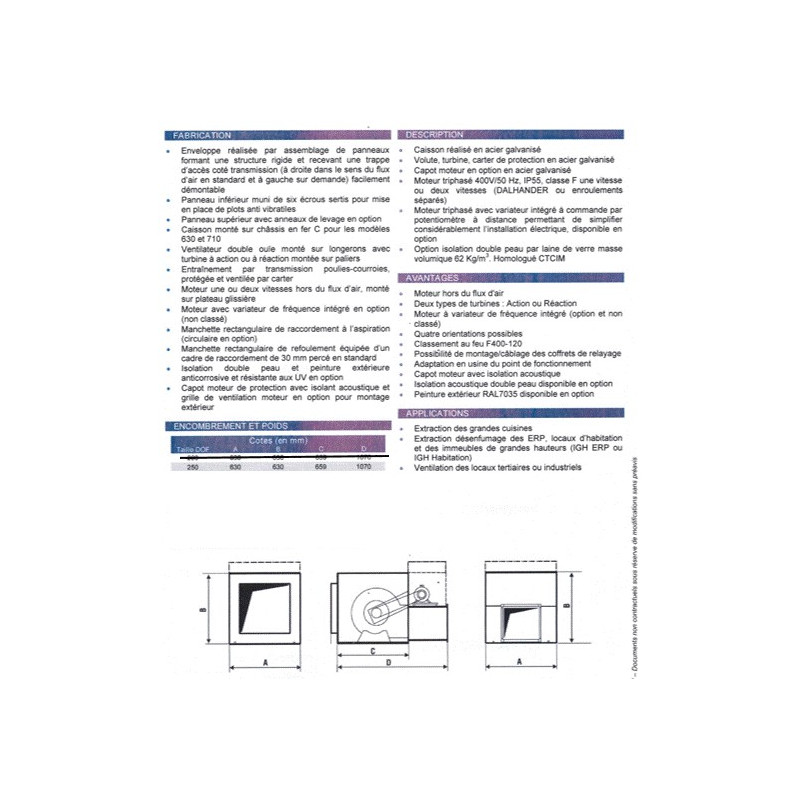

Technical specifications of the 400° TRI motor housing

Reference CMdof2502V36000
Brand SAFTAIR
Airflow ~3000/6000 m³/h depending on ductwork constraints (2 speeds)
Power supply Three-phase 380 V
Power / Current 1.6/0.4 kW, 3.8/1.69 A (high/low speed)
Motor type Dahlander 2-speed, out of the airflow
Standard Smoke extraction C4

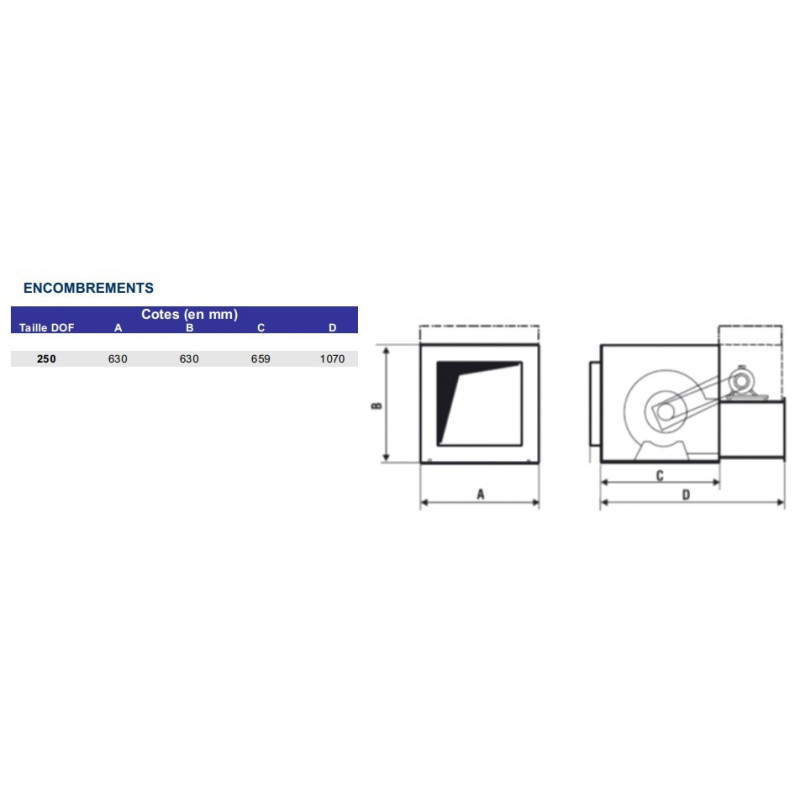

Dimensions (in-line version) Height 630 x Width 630 x Length 1070 mm

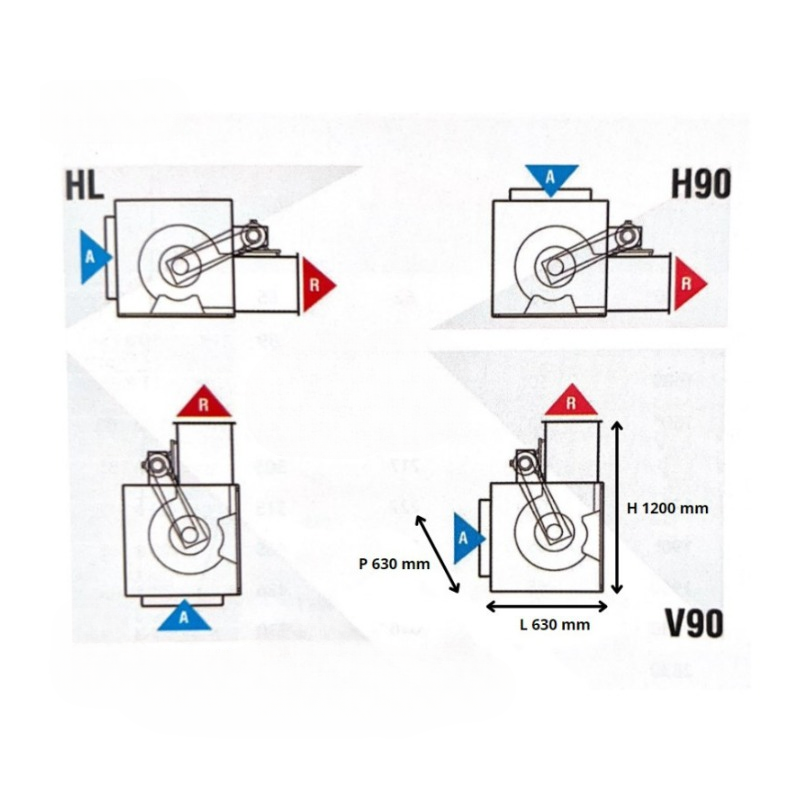

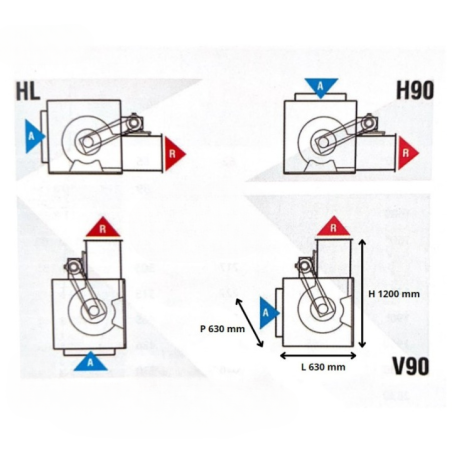

Possible configurations In-line or 90°, horizontal or vertical installation
Weight 80 kg (package 180 kg)
Warranty 1 year

A two-speed motor housing for the kitchen and smoke extraction

The Dahlander two-speed design of this motor housing makes all the difference day to day: at low speed, it provides the standard extraction for your restaurant kitchen hood without putting unnecessary strain on the motor. At high speed, it performs its smoke extraction function, rated C4, when triggered. The motor, positioned out of the extracted airflow, copes better with heat and grease than direct-drive models. This motor housing is suitable for extraction in a restaurant kitchen hood, for smoke extraction, or for the mechanical ventilation system of a public-access building.

Installation and connection

This motor housing is available in an in-line or 90° version and can be installed either horizontally or vertically, making it easier to fit into your plant room or roof configuration. Each unit is built to order: a technician will contact you after your order to configure the unit according to your ductwork and the equipment installed beneath your hood. The motor housing is sold without accessories and without the transition fittings for the inlet and outlet: plan for these parts separately according to your connection. Electrical connections must be carried out by a qualified professional for the warranty to remain valid.

Points to check before ordering

  • The actual airflow required for your hood and cooking equipment: the stated 3000 to 6000 m³/h airflow depends on your ductwork constraints (length, elbows, filters, fresh air intake).
  • The diameter and layout of your existing ductwork, to choose between the in-line or 90° version.
  • The smoke extraction standard required for your premises (C4 or other, depending on your local regulations): check with your building control body before ordering.
  • The power supply available on site: this motor housing runs on three-phase 380 V, check your electrical supply.
  • The space available: 630 x 630 x 1070 mm in the in-line version, and the 80 kg weight to be handled.

To go with this product

As this motor housing is sold without connection accessories, consider the inlet and outlet transition fittings for housings 2500 to 22000 to adapt the inlet and outlet to your existing ductwork.

Product Details

SAFTAIR
CMdof2502V36000
Warranty
1 year
Package weight
180 kg
Engine
Motorized cabinet
Standard
F400/120
Food
380V Three-Phase
Engine power
2,000 to 4,000 m³/h
Engine power
4,000 to 6,000 m³/h
Engine power
More than 6,000 m³/h
Cabinet Type
Enclosure with motor
0657968130241

You might also like

8 other products in the same category:

Frequently asked questions

What is the difference between the C4 standard and the F400/120 standard for a smoke extraction unit?

This motor housing is rated to the C4 standard according to our technical datasheet. C4 and F400/120 are two distinct ratings, not interchangeable: check with your building control body which standard is required for your premises before ordering.

What is the purpose of the two-speed (2V) function on this motor housing?

The Dahlander two-speed design allows the unit to run at low speed for everyday kitchen extraction, and at high speed for its smoke extraction function. The associated electrical values are 1.6/0.4 kW and 3.8/1.69 A depending on speed.

Is this motor housing supplied with connection accessories?

No, this motor housing is sold without accessories and without the transition fittings for the inlet and outlet. Plan for these parts separately according to the diameter and layout of your existing ductwork.

Can the unit be installed in the 90° version and vertically?

Yes, this motor housing is available in an in-line or 90-degree version, and can be installed either horizontally or vertically, depending on the configuration of your plant room or roof.

How does the configuration of this motor housing work after ordering?

Each unit is built to order: a technician will contact you after your order to configure the unit according to your ductwork and the equipment installed beneath your hood.
