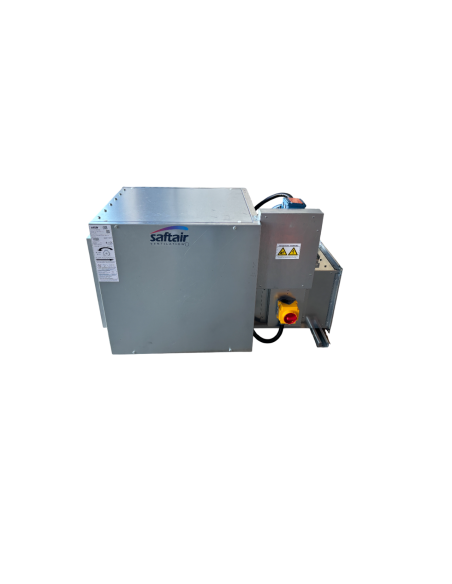

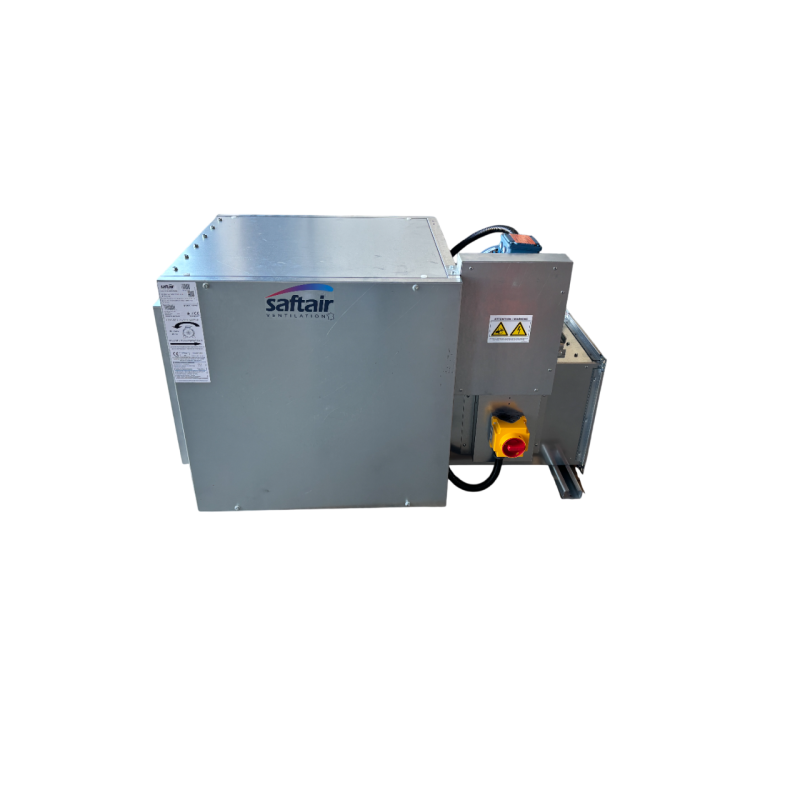

The DOF 450R extraction fan box 2-speed Saftair delivers up to 13,000 m³/h depending on ductwork constraints, with a motor kept out of the airflow for better temperature resistance. Designed for extraction in commercial and residential mechanical ventilation systems or for smoke extraction according to the standard applicable to your installation.

  • Airflow: up to 13,000 m³/h max depending on the ductwork
  • Power: 1.0/3.8 kW (2-speed)
  • Current: 2.75/8.26 A
  • Supply: three-phase 380 V
  • Standard: smoke extraction C4
Available in 5–10 working days - Contact Us
Quantity
3,750.00 Tax excluded
4500 € TTC
Available in 5–10 working days - Contact Us

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The DOF 450R extraction fan box is a 2-speed Saftair motor fan box, designed for high airflow rates in commercial and residential mechanical ventilation systems. It delivers up to 13,000 m³/h depending on ductwork constraints, with the motor positioned out of the extracted airflow.

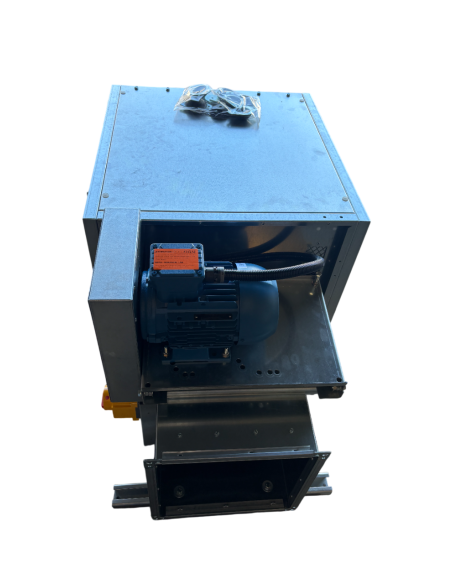

A motor out of the airflow for better longevity

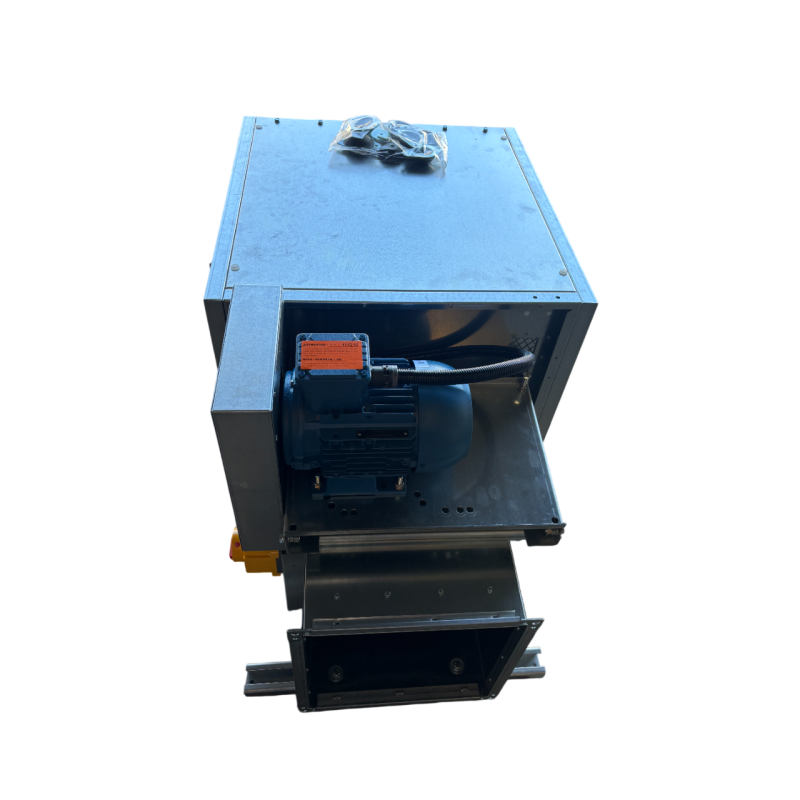

On this motorised fan box, the motor is positioned outside the airflow being extracted. Drive is via pulleys and belt rather than direct coupling, which protects the motor from the heat and grease carried by the extracted air. This is an advantage when the fan box runs continuously over long periods.

Technical specifications

Specification Value
Maximum airflow 13,000 m³/h, depending on ductwork constraints
Power 1.0/3.8 kW (2-speed)
Current 2.75/8.26 A
Supply Three-phase 380 V
Standard Smoke extraction C4
Motor type Motorised fan box, motor out of airflow

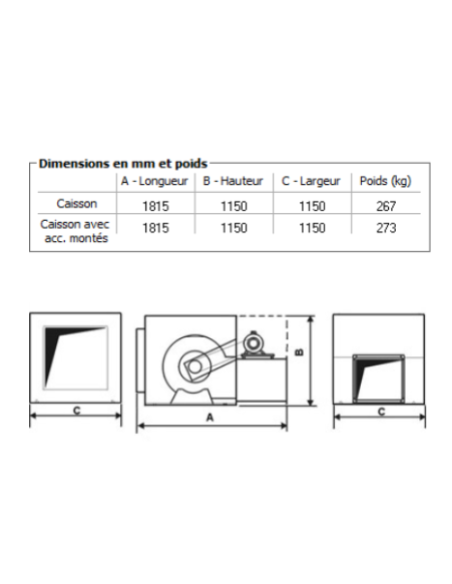

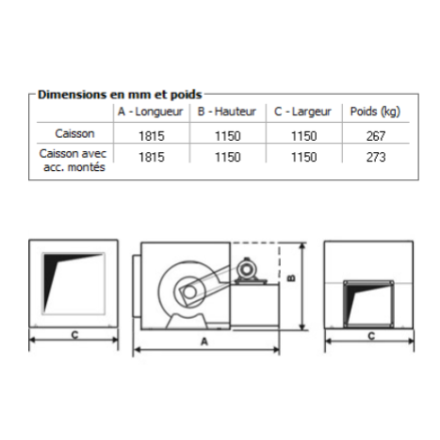

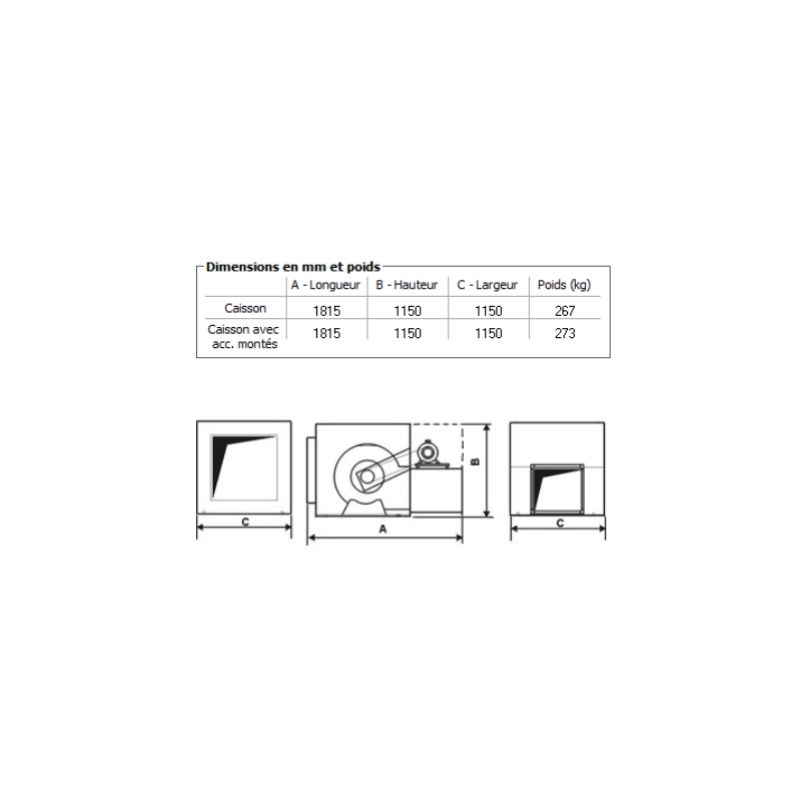

Dimensions (in-line version) Height 1150 x Width 1150 x Length 1815 mm
Weight 300 kg
Warranty 1 year

Two speeds to suit the application

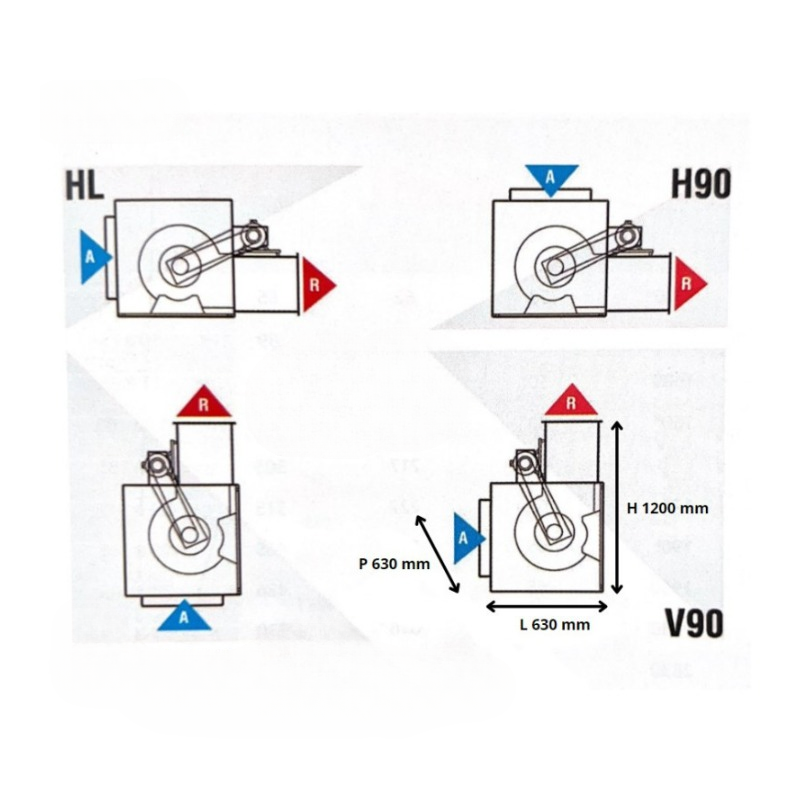

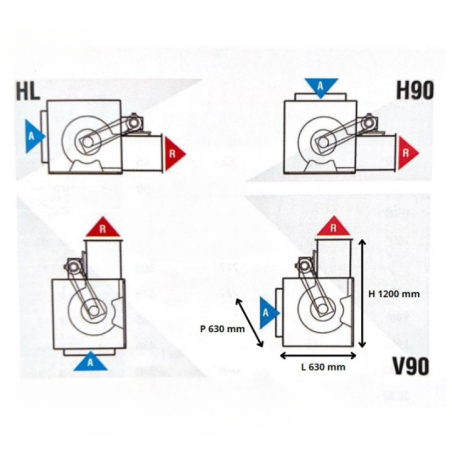

The DOF 450R operates on 2 speeds, a practical configuration when the installation needs to cover two distinct operating regimes (standard ventilation and peak airflow, depending on the ductwork and project specification). It is available in an in-line or 90-degree version, and can be installed horizontally or vertically, giving flexibility for plant room or roof installation.

Installation and connection

Each DOF 450R fan box is built to order: a technician will contact you after placing your order to configure the unit according to your ductwork. It is supplied without accessories and without the inlet and outlet transformation pieces, which must be sourced separately. Installation must be carried out by a qualified professional to benefit from the manufacturer's warranty.

Points to check before ordering

  • Check that your ductwork (diameter, length, elbows) is consistent with a target airflow close to 13,000 m³/h: pressure losses reduce the actual available airflow.
  • Confirm the power supply available on site: this fan box runs on three-phase 380 V, with a current of 2.75/8.26 A depending on the speed used.
  • Check the smoke extraction standard required for your project (C4 or other): do not rely on airflow alone, the fan box classification must match the regulations applicable to your premises.
  • Allow for the inlet and outlet transformation pieces, not supplied with the fan box.
  • Plan the installation site carefully: with its dimensions (1150 x 1150 x 1815 mm in the in-line version) and weight of 300 kg, access and the mounting support must be confirmed in advance.

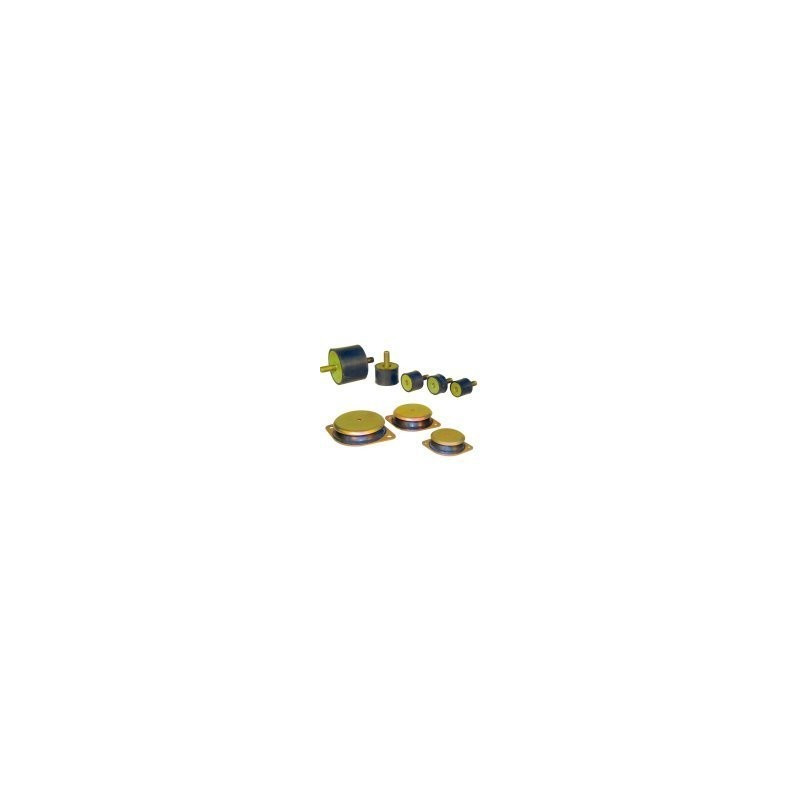

To be used with

Product Details

SAFTAIR
CMdof2V45048p13000
Warranty
1 year
Package weight
312 kg
Engine
Motorized cabinet
Standard
F400/120
Food
380V Three-Phase
Engine power
More than 6,000 m³/h
Cabinet Type
Enclosure with motor
0657968849990

You might also like

8 other products in the same category:

Frequently asked questions

What actual airflow can be expected from the DOF 450R fan box?

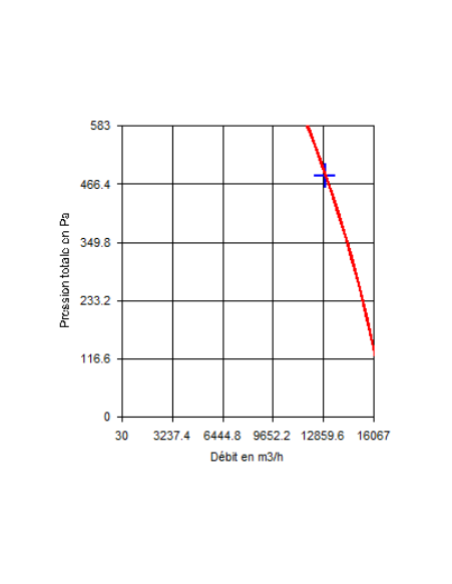

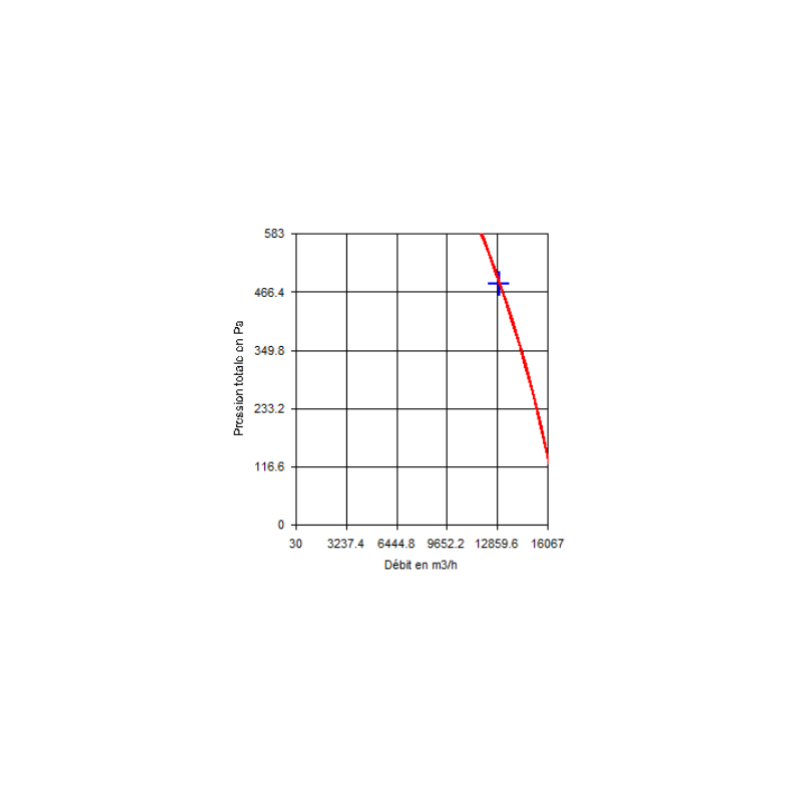

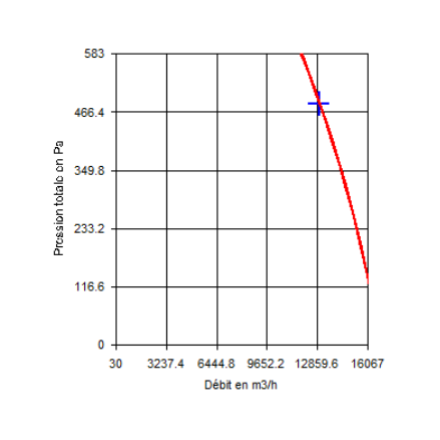

The DOF 450R is rated up to 13,000 m³/h, but this maximum airflow depends on your ductwork constraints: diameter, duct length, elbows and pressure losses reduce the actual airflow available. This is why each fan box is configured to order after reviewing your installation.

Why is the motor driven by pulleys and belt rather than directly?

On the DOF 450R, the motor is positioned out of the extracted airflow and driven by pulleys and belt. This design protects the motor from the heat and grease carried by the air, which is useful for prolonged operation.

Is the fan box supplied with connection accessories?

No, the DOF 450R is supplied without accessories and without the inlet and outlet transformation pieces. These components, along with flexible connection sleeves, must be ordered separately to connect the fan box to your ductwork.

Who configures the fan box after ordering?

Each DOF 450R fan box is built to order according to the ductwork and equipment installed. A technician will contact you after your order to define this configuration before manufacturing.

Can the DOF 450R fan box be installed vertically?

Yes, the DOF 450R is available in an in-line or 90-degree version and can be installed either horizontally or vertically, giving flexibility depending on the plant room or roof configuration.
