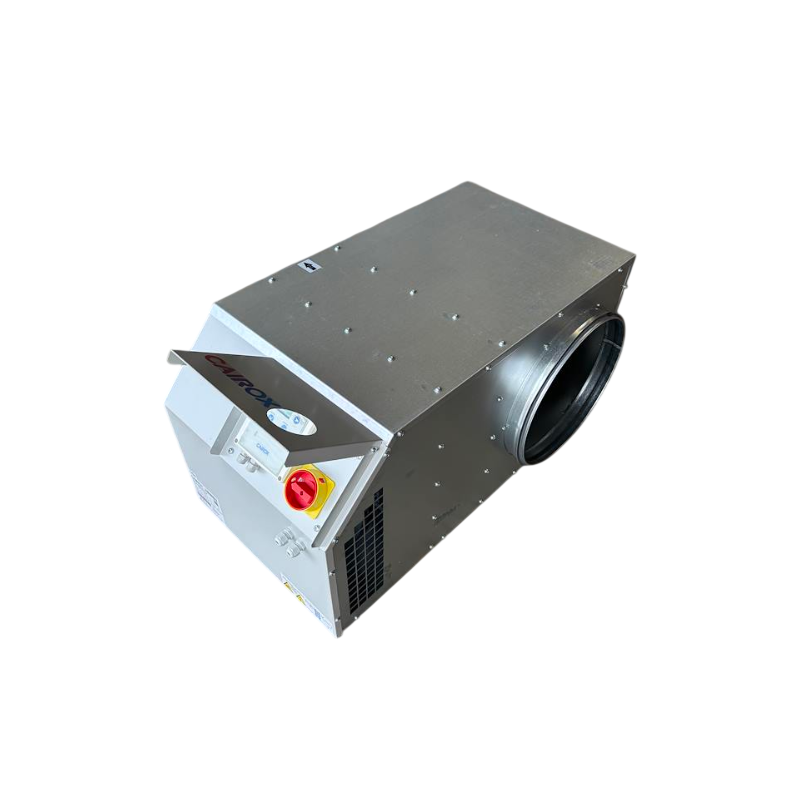

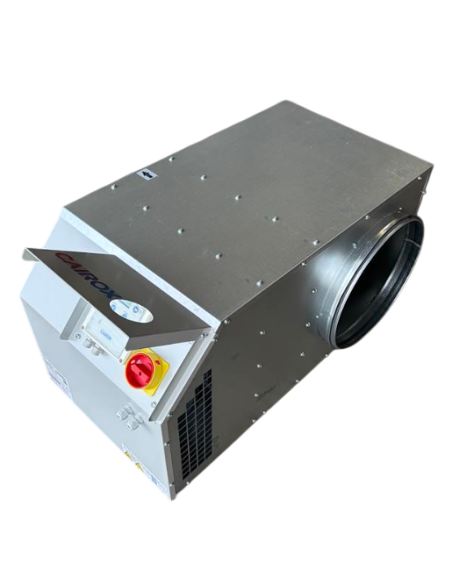

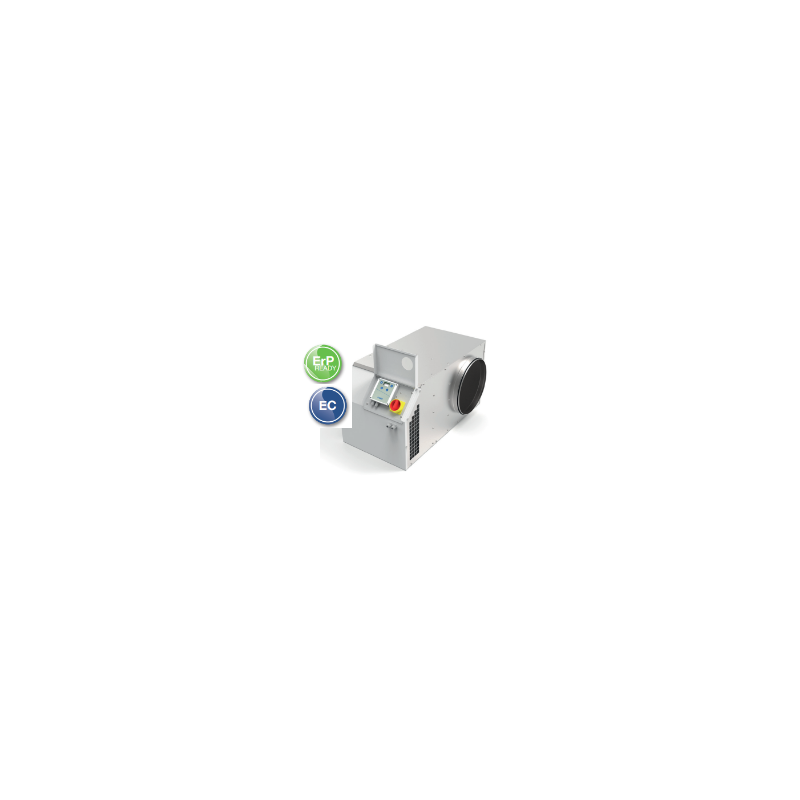

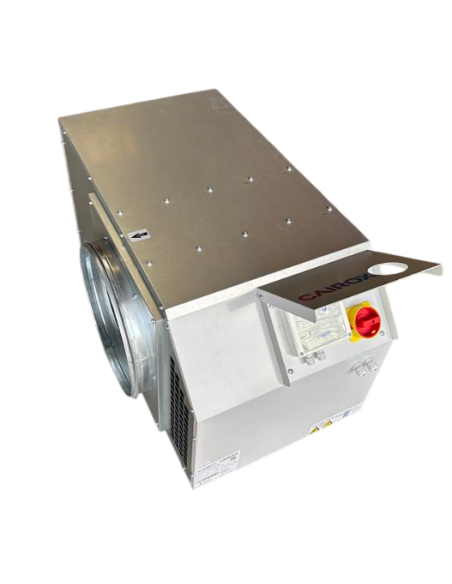

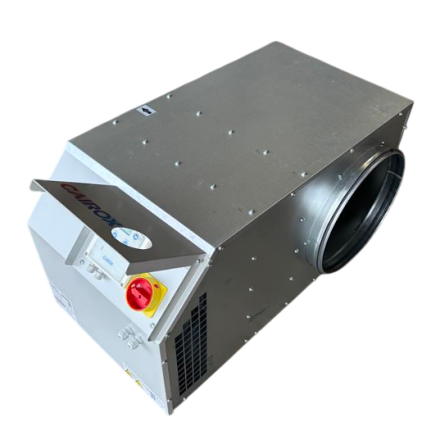

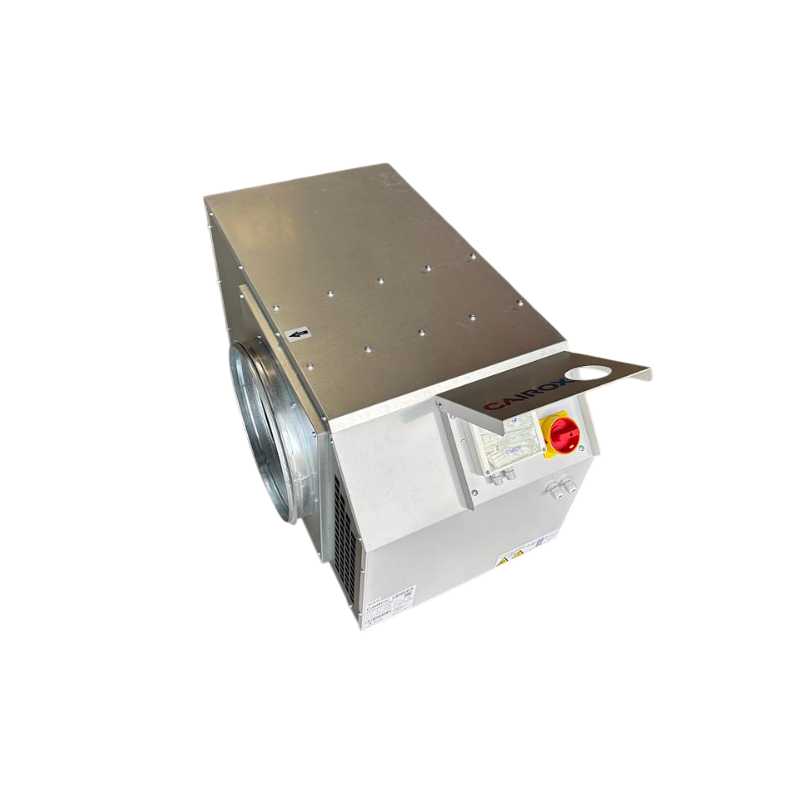

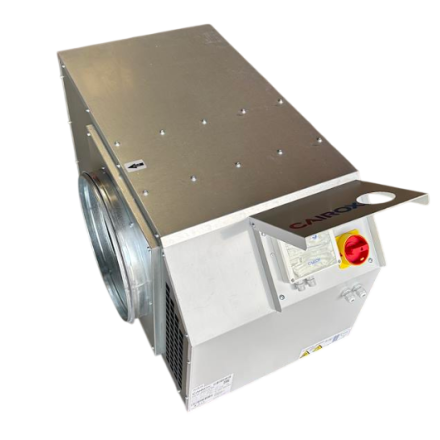

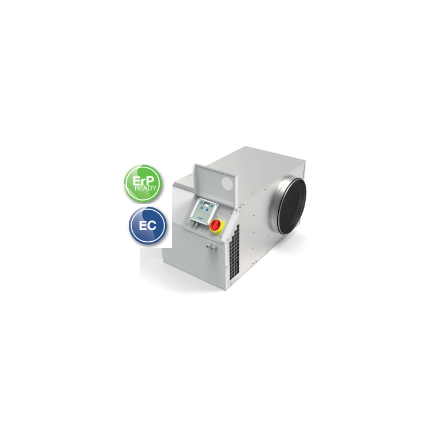

The Cairox EC Regulo 11 unit is a motorized exhaust unit for collective and commercial mechanical ventilation systems, designed for constant pressure, delivering a peak airflow rate of 1,300 m³/h, and certified to the C4 400°C/1/2h standard. Manufactured in France, it is installed in multi-family housing, in humidity-controlled systems (Type A or B), in gas-powered mechanical ventilation systems, or in commercial buildings, in both new construction and renovation projects.
Technical Specifications of the C4 1,300 m³ Unit/h
| Specification |
Value |

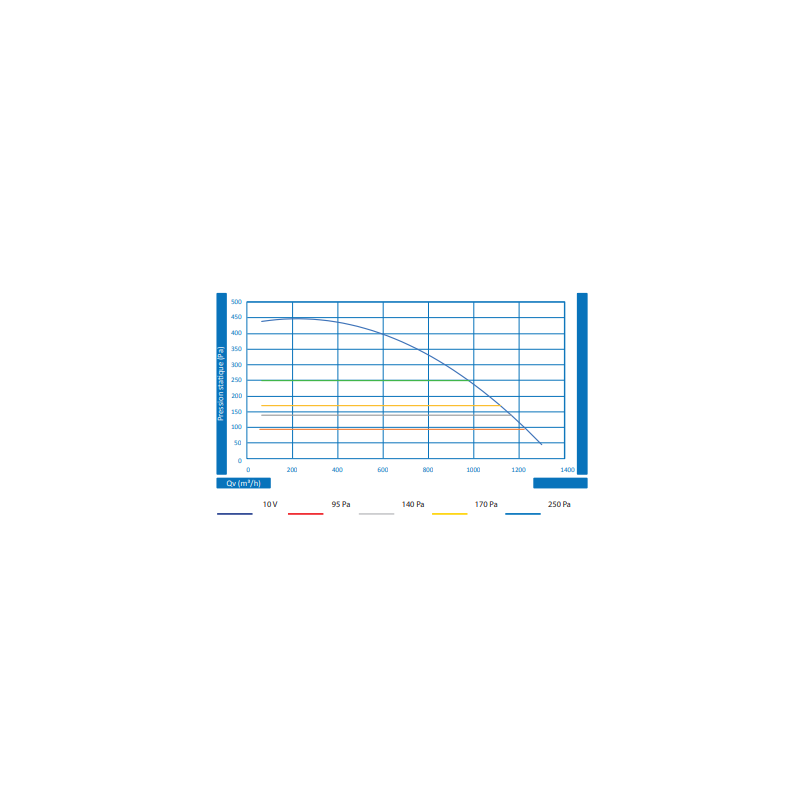

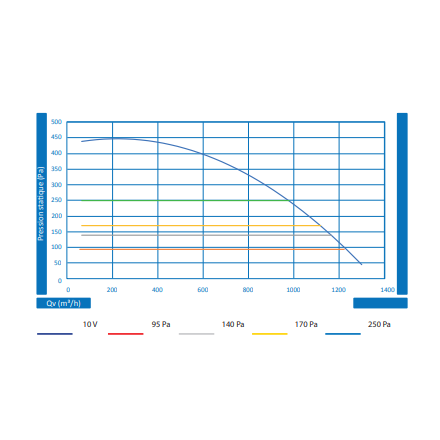

| Airflow at top of curve |
1,300 m³/h |
| Standard |
C4 Smoke Exhaust 400°C/1/2h |
| Power supply |
230 V single-phase, 142 W, 0.9 A, IP 54 |
| Dimensions (without flange) |
~ L 558 x W 403 x H 400 mm |

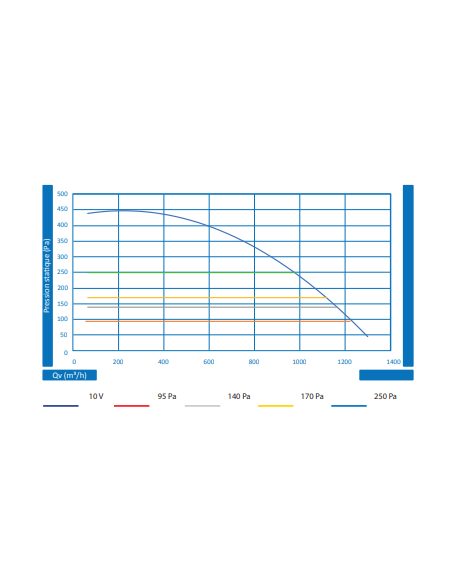

| Optimal operating range |
50 to 200 Pa |
| Recommended outlet diameter |
315 mm |
| Manufacturing |
France |
| Package weight |
14 kg |
| Warranty |
1 year |

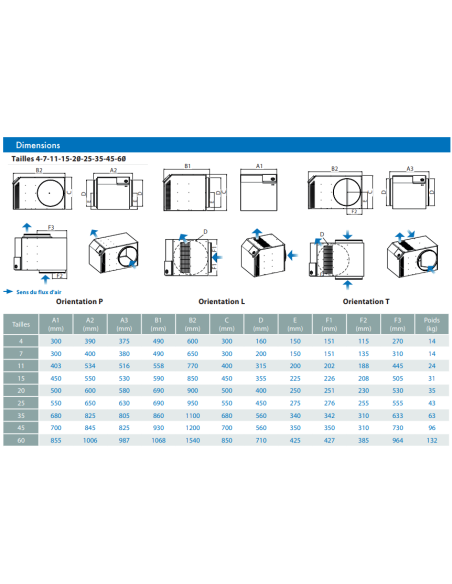

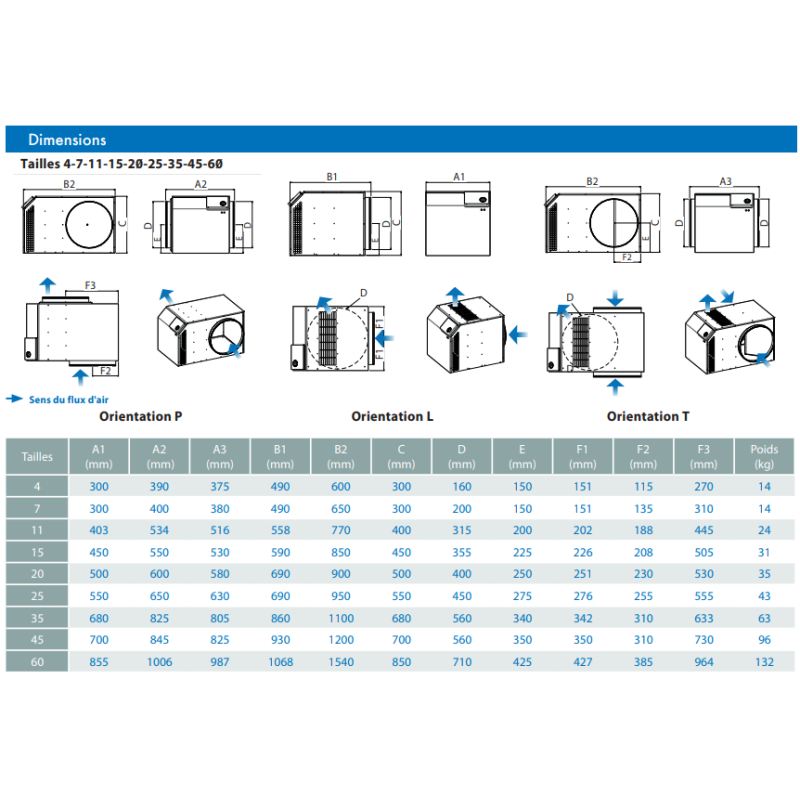

| Available orientations |
In-line inlet/outlet (P), 1 inlet and 1 outlet at 90° (L), 2 inlets and 1 outlet at 90° (T) |
A low-energy unit for ventilation in multi-family and commercial buildings
The Cairox EC Regulo 11 unit operates via direct drive with an electronically commutated DC EC motor, controlled by an integrated variable-speed drive. It is ideal for ventilation systems in multi-family housing—in humidity-controlled Class A or B systems, mechanical ventilation with gas extraction, or commercial settings—where the goal is to reduce electricity consumption without sacrificing airflow. Its constant-pressure control adjusts the motor’s operation according to fluctuations in the supply air, a real advantage when ducts age or filters become slightly clogged. The unit is part of a range of 12 sizes covering an airflow range of 50 to 12,000 m³/h, available in single-phase or three-phase configurations depending on the size—ensuring there’s a model suited to every building.

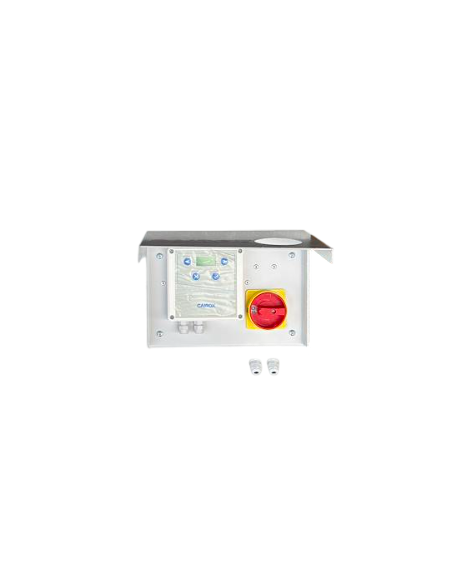

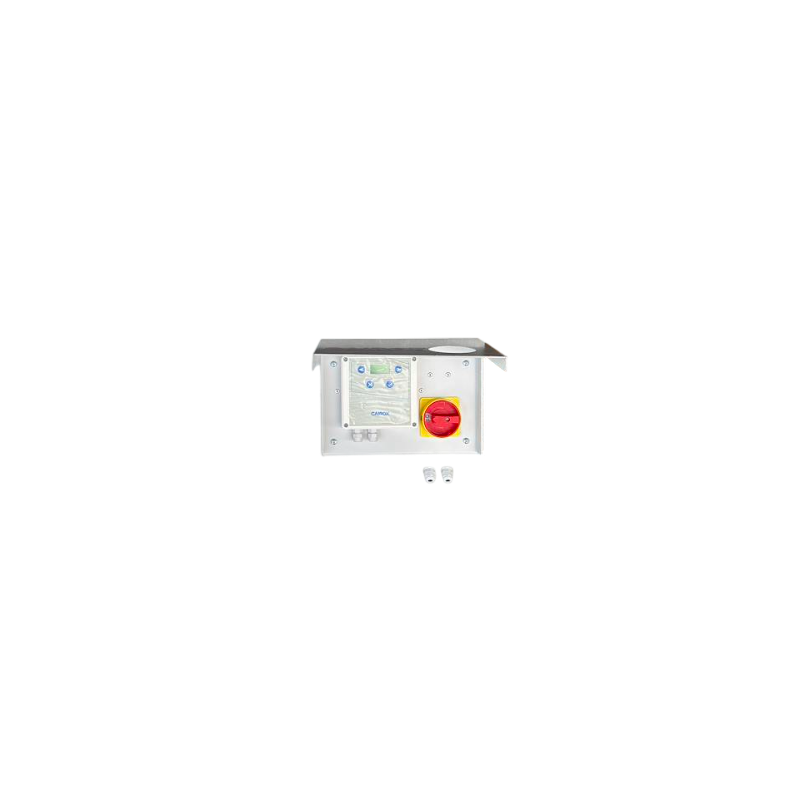

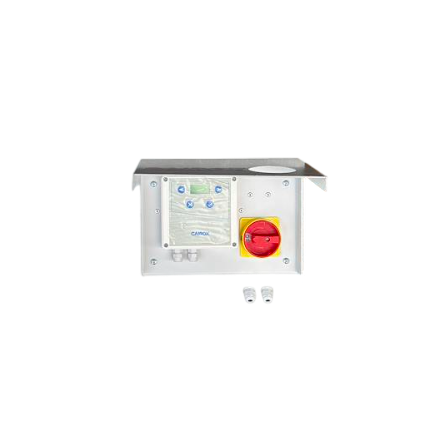

Controls are operated directly from the front panel of the enclosure, which features an LCD display, and the control system communicates via MODBUS RTU for monitored installations. A thermal protection device integrated into the motor and a mounted and wired proximity switch round out the package for worry-free daily operation. The units comply with the 2018 ErP Directive, and the housing has a fire classification certificate No. EFR-23-005209 as well as a technical approval No. 14.5/17-2272 for use in humidity-controlled systems (Classes A and B) and gas systems.
Installation and Connection
The housing is delivered in galvanized sheet metal panels, with a motor access hatch for maintenance, circular connections with lip seals, and a bird screen at the discharge outlet to prevent pests from entering the ducts. Three configurations are available (inline inlet/outlet, 1 inlet and 1 outlet at 90°, 2 inlets and 1 outlet at 90°) to accommodate the layout of your mechanical room. Installation is horizontal, both indoors and outdoors. The electrical connection must be performed by a professional; this is a condition of the warranty.
Points to check before ordering
- Confirm that the airflow rate required for your building corresponds to 1,300 m³/h t the top of the curve: an actual lower airflow rate should be expected depending on the length of the ductwork, the number of elbows, and the condition of the vents.
- Check compatibility with your type of mechanical ventilation system (self-regulating, humidity-controlled A/B, gas) with your engineering firm or installer.
- Choose the orientation that best suits your mechanical room from the three available models (in-line, 90° single-inlet, or 90° dual-inlet).
- Verify that the C4 400°C/1/2h standard meets the regulatory requirements for your project: it does not replace an F400/120 (400°C/2h) rating, as the two standards are not interchangeable.
- Ensure that the 230 V single-phase power supply is compatible with your existing electrical panel and that the horizontal installation—indoors or outdoors—is suitable for your utility room.
To be used with

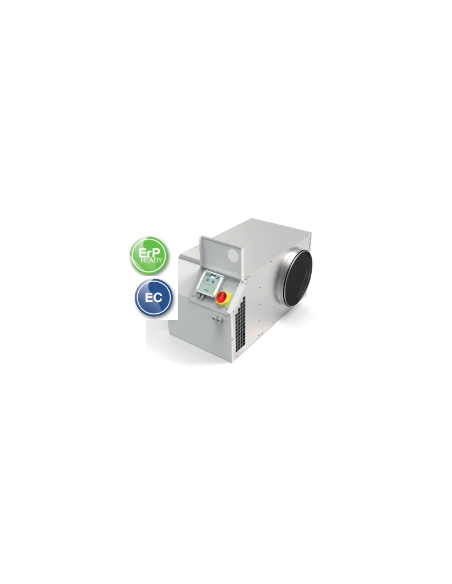

For different airflow rates within the same Cairox EC Regulo series, see the Model 15 (1,800 m³) at/h or the Model 7 (700 m³) at/h, depending on your building’s actual needs.
