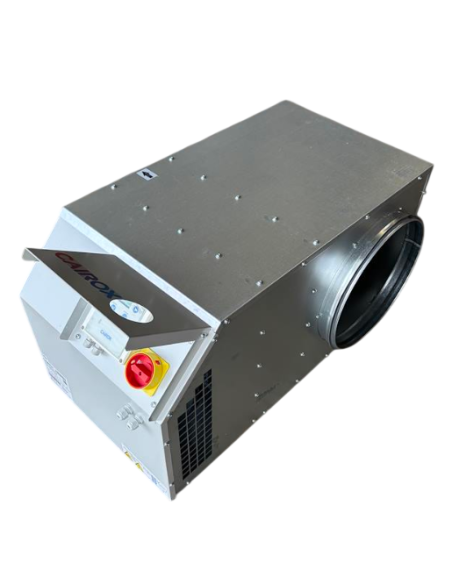

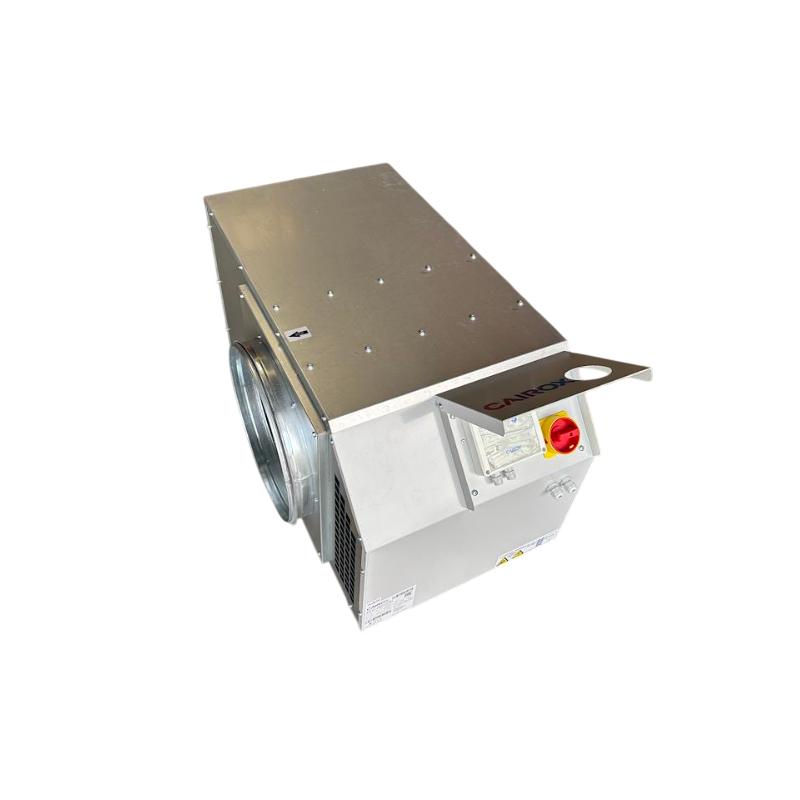

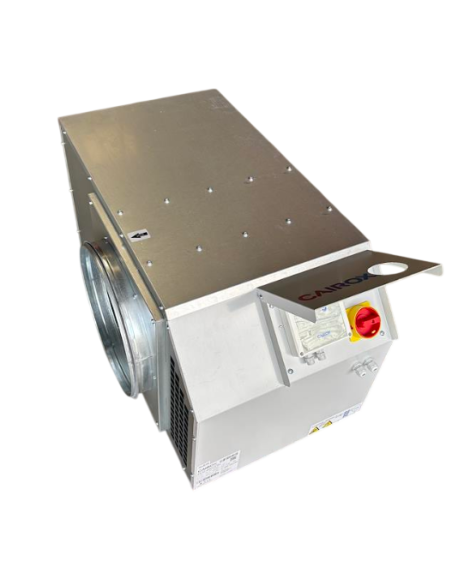

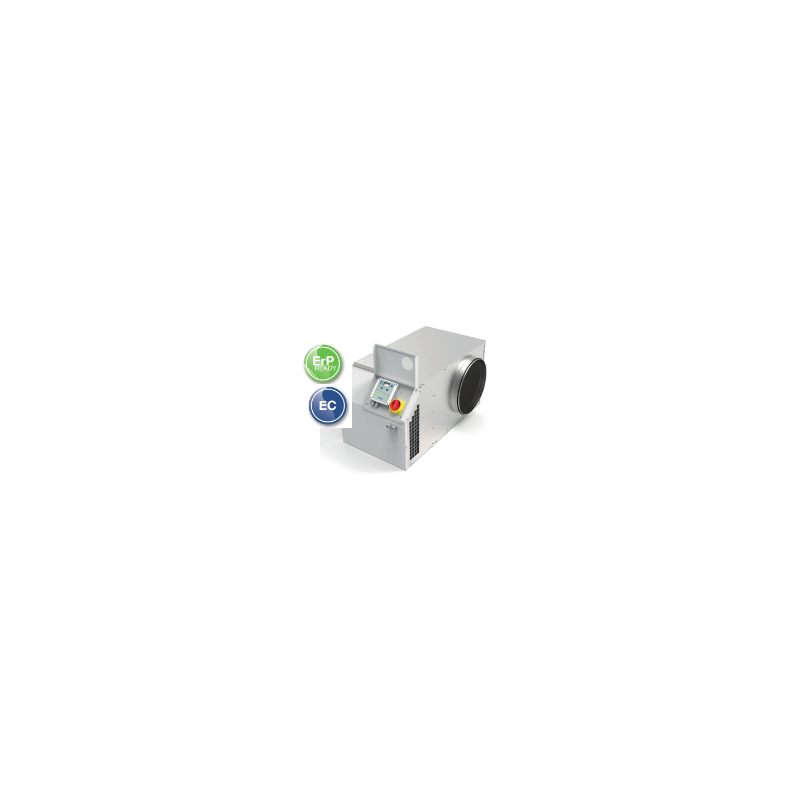

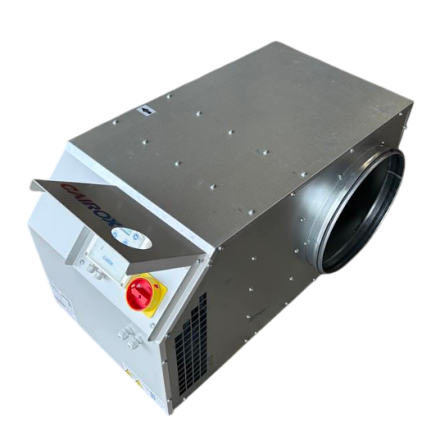

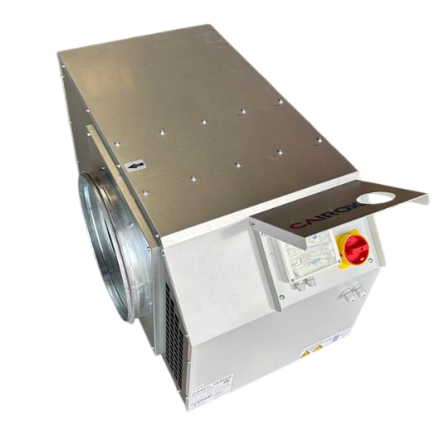

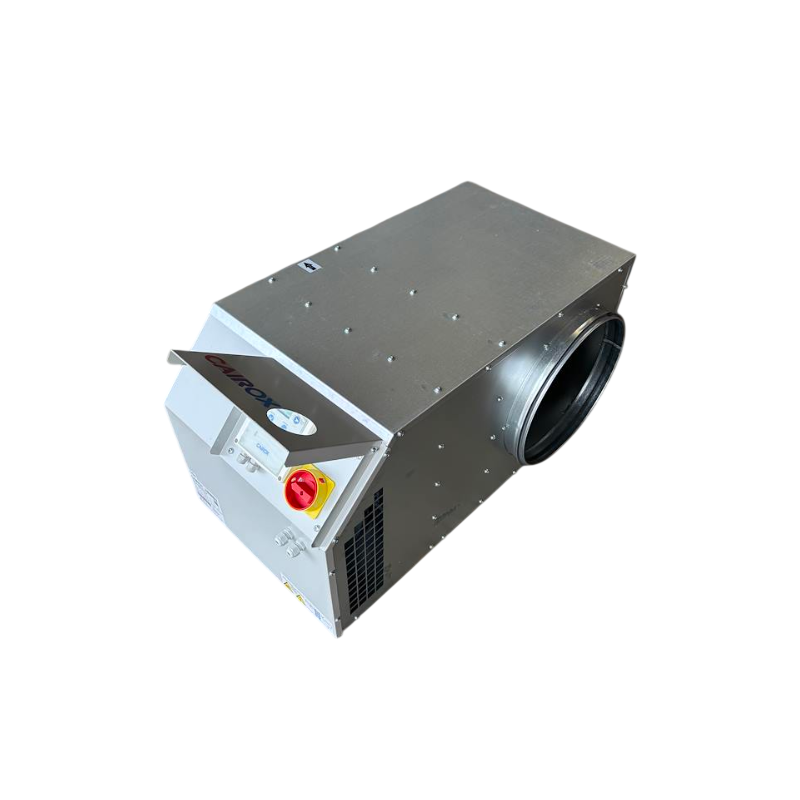

Cairox EC Regulo 25 C4 Air Handling Unit, 2,800 m³/h

Cairox EC Regulo 25 C4 Air Handling Unit, 2,800 m³/h

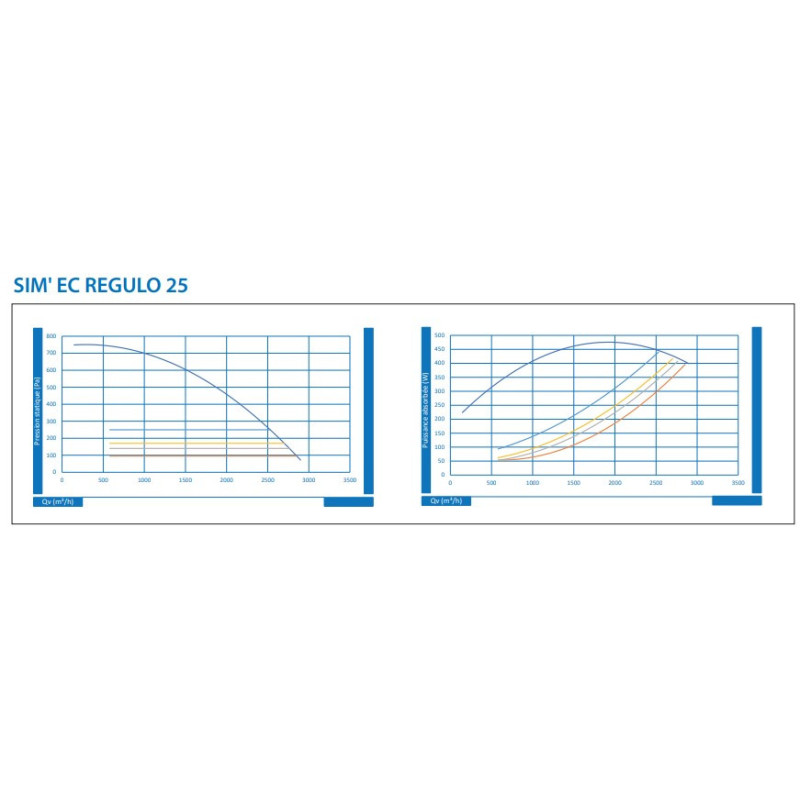

C4 Unit, 2,800 m³/h, for Exhaust or Supply Air—Performance Curve
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h, Cairox
Cairox EC Regulo 25 C4 Air Handling Unit, 2,800 m³/h
C4 Unit, 2,800 m³/h, for Exhaust or Supply Air—Performance Curve
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h
C4 400°/ 1/2H Enclosure, 2,800 m³/h, Cairox

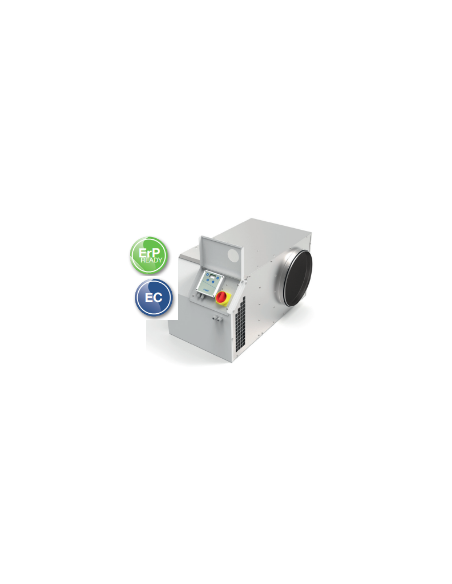

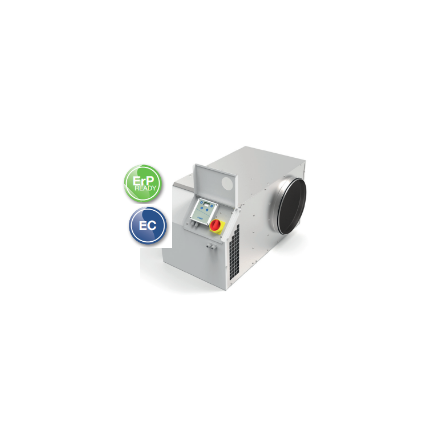

Cairox Sim 25 C4 ERP unit, equivalent to VIM Ecowatt, France air Simoun, Aldès Easyvec

- Low-energy, direct-drive ventilation unit
- C4 400°/1/2H certified
- Power supply: 230 V single-phase, 450 W, 3.2 A, IP54
- Maximum exhaust airflow: 2,800 m³/h

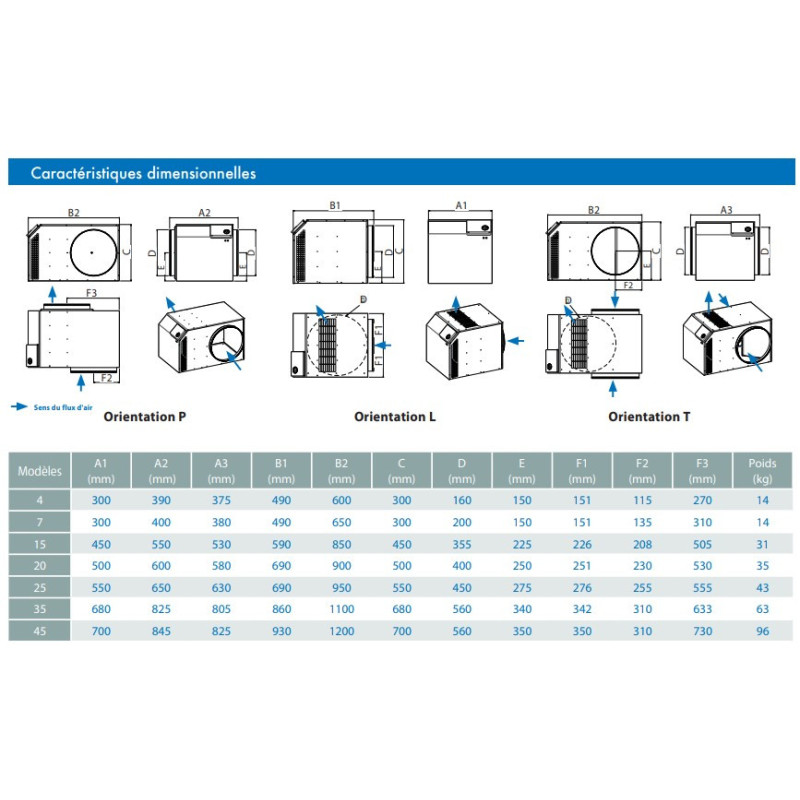

- Dimensions: ~ L 950 x W 550 x H 550 (without casing)
- Optimal operating range between 100 and 160 Pa
- Recommended outlet diameter: 450 mm (inlet 1 or 2 depending on model)

- Equipped with constant-pressure control
- Air extraction for ventilation systems in multi-family housing, humidity-controlled and gas-fired systems, or commercial buildings
- Galvanized steel panels
- Motor access hatch
- Circular connections with lip seals
- Bird screen at the discharge
- Direct-coupled motor-fan unit
- Reaction fan
- DC motor with electronic commutation, speed controller, and integrated thermal protection
- Mounted and wired proximity switch
- Airflow fault contact (excluding gas-powered mechanical ventilation systems)
- Constant-pressure operation (reduces energy consumption)

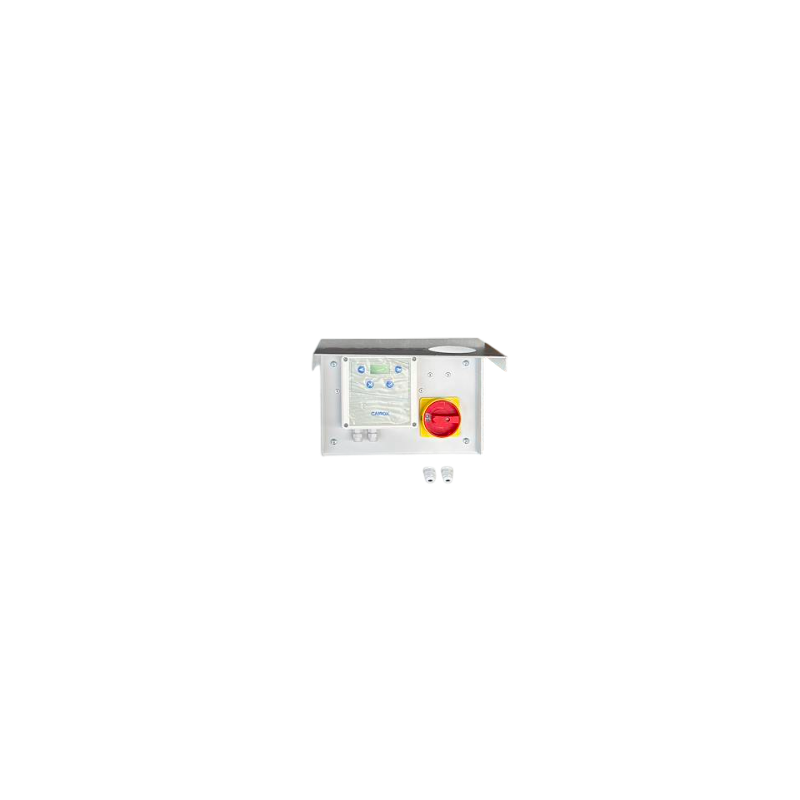

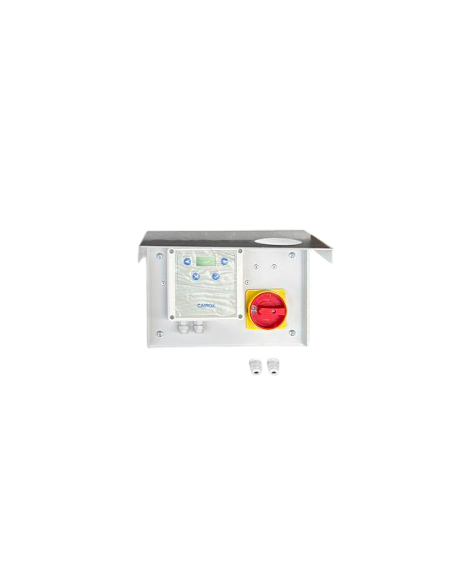

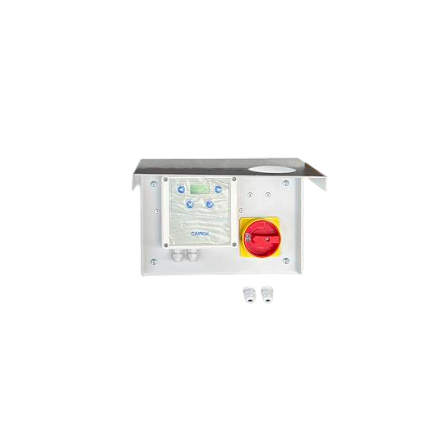

- Control and display on the control panel’s front panel, equipped with an LCD display
- MODBUS RTU communication protocol

Equivalent motorized VMC units: Cairox, Saftair, Vim, Atlantic, S&P, Ouest, France air, Alvene, Aldes cvec.

Guidance
In stock
Quantity
1,984.00 Tax excluded
2380,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


/h, 2800 m³ Motorized Exhaust Unit, C4 F400/30 Standard Unit for Mechanical Ventilation Systems

Key features ofthe C42800 m³motorized unit(/h ) for CMV systems:

  • • Powerful exhaust or supply air unit with an airflow capacity of 2,800 m³/h
  • • Low-energy, direct-drive ventilation unit
  • • Air extraction for ventilation systems in multi-family housing, humidity-controlled and gas-powered systems, or commercial buildings
  • • Unit equipped with a bird screen to prevent pests from entering the ventilation ducts
  • • Motorized unit operating at constant pressure, which reduces energy consumption
  • • DC motor unit with electronic control, variable-speed drive, and built-in thermal protection

For other exhaust needs, check outthe 900 m³ air extractor/h or the 800 m³ unit /h.

Product Details

CAIROX
caisson25C42800
Guidance
Manufacturing
Made in France
Warranty
1 year
Package weight
14 kg
Engine
Motorized cabinet
Standard
C4 Smoke Exhaust Standard
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
0657968057203
