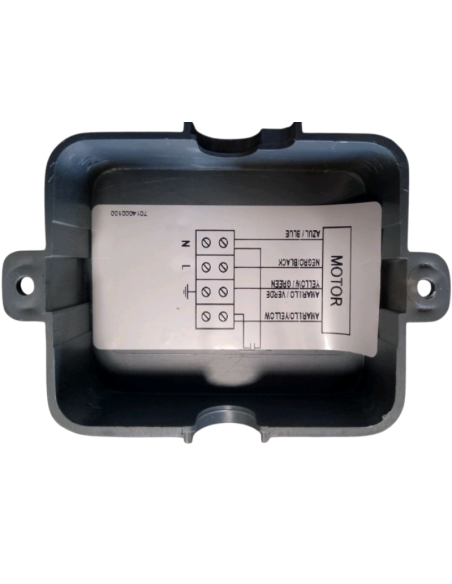

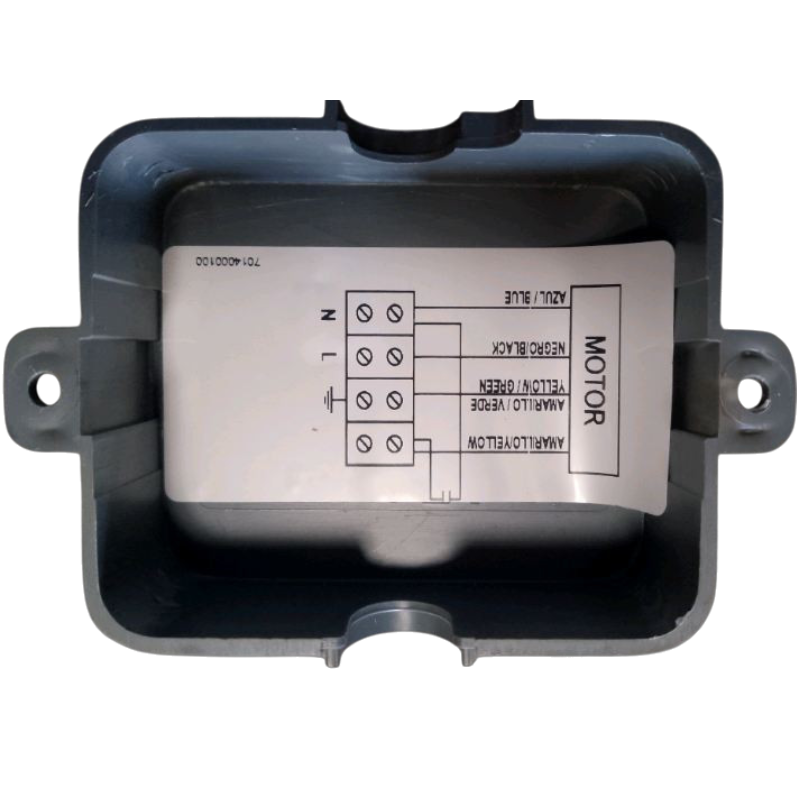

99 3V Electrical Wiring Diagram
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 2
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 3
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 4
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 5
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 6
DD9/9 Motor - 1,400/2,100/3,500 m³/h  3 Speeds, vue 8
99 3V Electrical Wiring Diagram

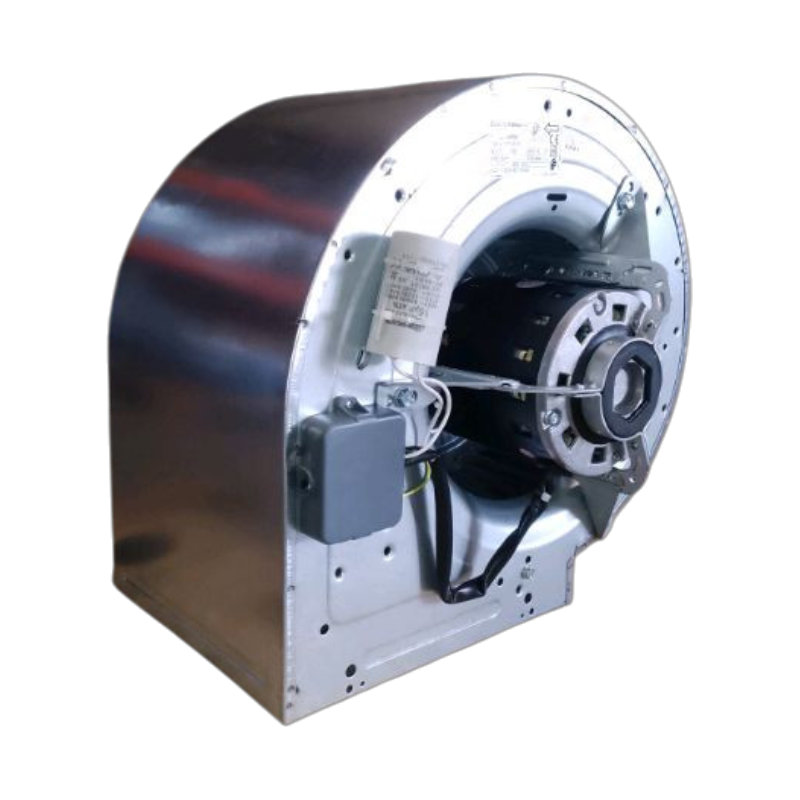

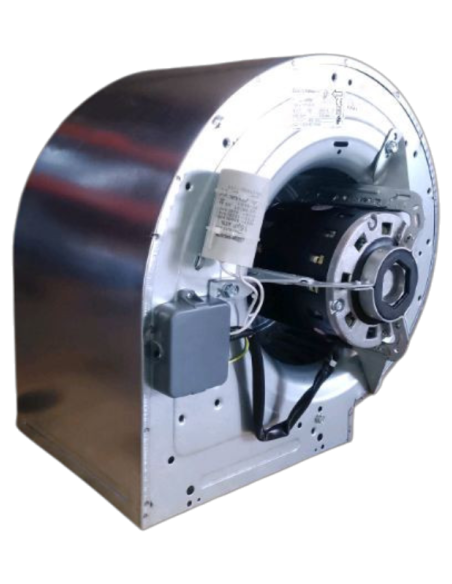

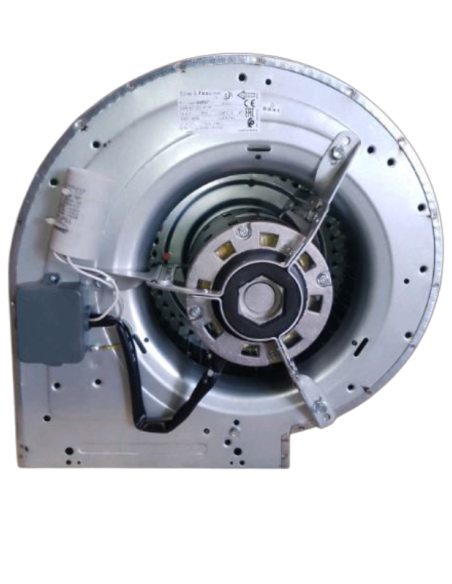

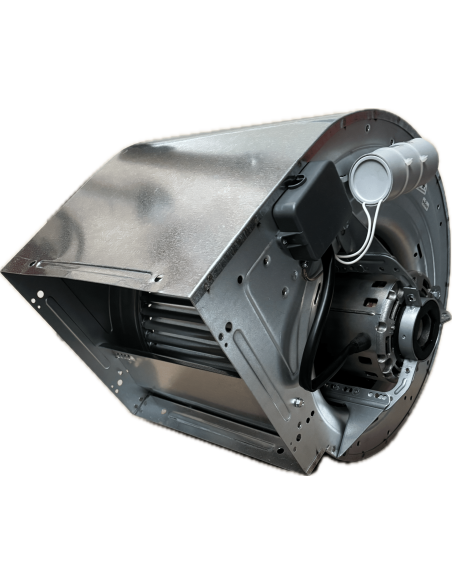

The DD9/9 double-inlet centrifugal fan motor from S&P easily replaces a faulty centrifugal motor in your communal mechanical ventilation system or plant room AHU, with adjustable airflow across 3 speeds (1,400 / 2,100 / 3,500 m³/h).

  • Airflow: 1,400 / 2,100 / 3,500 m³/h depending on speed
  • Power: 550 W
  • Supply: 230 V single phase
  • Protection rating: IP20 (without sealing enclosure)
  • Weight: 10 kg, mounting frame included
In stock
Quantity
249.00 299.00 Tax excluded
298,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The DD9/9 motor is a 3-speed double-inlet centrifugal fan motor (1,400, 2,100 or 3,500 m³/h), designed for communal and commercial mechanical ventilation systems and plant room AHU installations.

A double-inlet centrifugal fan motor built for replacement in communal ventilation systems

This double-inlet centrifugal motor is one of the most requested references for replacing a worn ventilation motor in an existing fan box. You select the speed matching the airflow actually required for the space: no need to run the motor at 3,500 m³/h if 1,400 m³/h is enough to ventilate the premises properly. The mounting frame is included for direct installation in your ventilation fan box, and can be removed if your configuration does not require it.

Technical specifications

Specification Value
Reference DD9/9 3 speed (type 9/7, 9/9)
Airflow 1,400 / 2,100 / 3,500 m³/h depending on speed
Power 550 W
Supply 230 V single phase
Protection rating IP20 (with capacitor, without sealing enclosure)
Motor type Double-inlet (centrifugal) fan motor
Weight 10 kg (13 kg packaged)

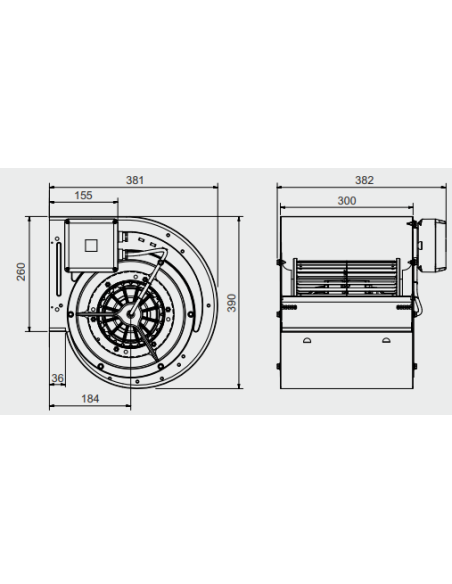

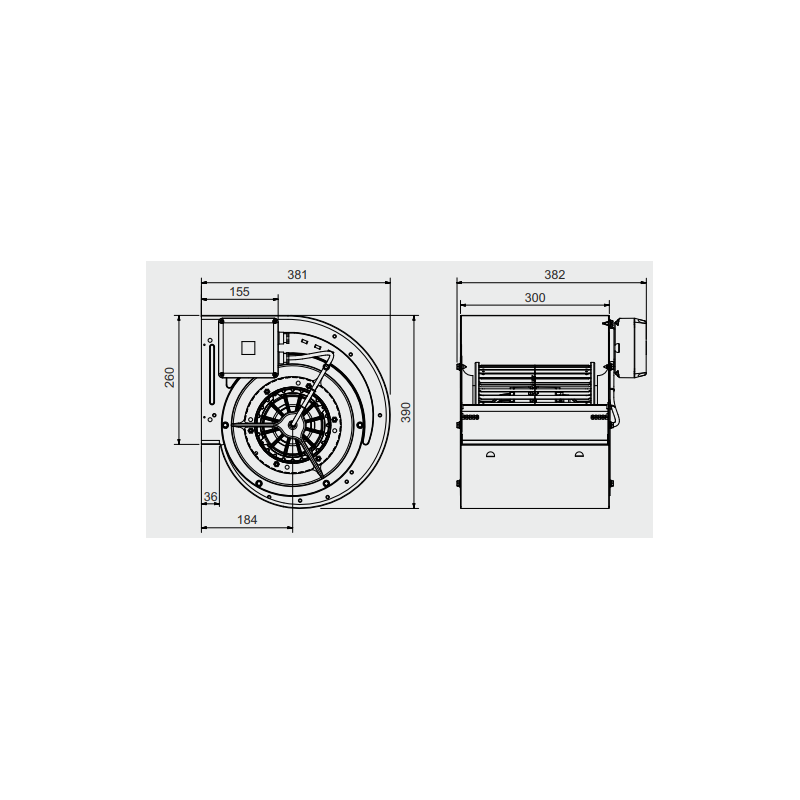

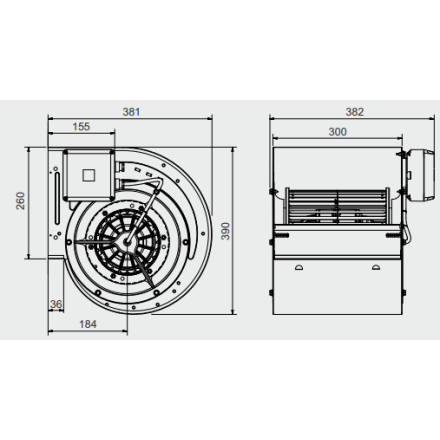

Dimensions 37 x 40 x 34 cm
Manufactured in Spain
Warranty 1 year

Use and compatibility

This DD9/9 motor is installed in communal and commercial mechanical ventilation fan boxes or plant room AHU units, for ventilating plant rooms, common areas or commercial buildings. It is not designed for a smoke extraction installation or a commercial kitchen hood: these applications require motors specifically certified for those requirements.

Can it be used on a single speed?

Yes. The 3 speeds are independent: you can wire the motor on just one of the three depending on the ventilation airflow actually required in your premises, with no obligation to use the full range.

Installation and wiring

The motor connects on a 230 V single-phase supply. The supplied mounting frame allows it to be positioned in the ventilation fan box. To control the 3 speeds, a dedicated controller or speed controller can be added depending on your installation. Electrical connection must be carried out by a qualified professional, a condition required for the warranty to apply.

Points to check before ordering

  • Check that the target airflow (between 1,400 and 3,500 m³/h depending on the ductwork and pressure losses) matches the actual requirement of your premises, for guidance only
  • Check the motor's dimensions (37 x 40 x 34 cm) against the space available in your existing fan box
  • Check the type of fan box and the position of the fixings to ensure compatibility with your current installation
  • Confirm this is indeed for a mechanical ventilation/plant room AHU application, and not a smoke extraction or commercial kitchen hood application, which is not covered by this model
  • Plan for a compatible 3-speed controller if you want to control the different speeds

Pairs well with

Browse our full range of motors for mechanical ventilation, AHU and plant rooms, including the DD9/7 1,400/1,900/2,200 m³/h motor for a slightly lower airflow requirement.

Product Details

S&P
Dd993Vvmc
Manufacturing
Made in Spain
Warranty
1 year
Package weight
13 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
0 to 2,000 m³/h
Engine power
2,000 to 4,000 m³/h
Engine Type
9/7, 9/9
0657968626522

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a double-inlet motor and a centrifugal fan?

A double-inlet motor is a type of centrifugal fan: air is drawn in by the centrifugal force created by the impeller's rotation, then discharged at a right angle, hence its snail-shell shape. This is the operating principle of the DD9/9 motor.

Is the DD9/9 motor compatible with my existing ventilation fan box?

The DD9/9 motor measures 37 x 40 x 34 cm and comes with a mounting frame included. Check the available space in your fan box and the position of the existing fixings before ordering, as fan boxes vary between manufacturers.

Can the 3-speed motor be used on a single speed?

Yes, the 3 speeds (1,400, 2,100 or 3,500 m³/h) are independent. You can wire the motor on a single speed depending on the ventilation airflow required in your premises, without needing to use all three.

Is this DD9/9 motor compatible with a smoke extraction system or a commercial kitchen hood?

No. This DD9/9 motor is designed for communal and commercial mechanical ventilation and plant room AHU systems, it is not intended for a smoke extraction installation or a professional commercial kitchen hood.

Do I need a separate controller to run the 3 speeds?

A dedicated 3-speed controller can be added to control the different speeds of the DD9/9 motor. Electrical connection must be carried out by a qualified professional.
