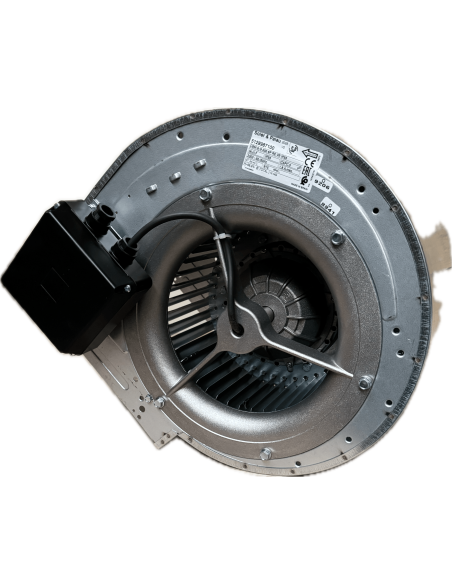

DDM9/9 241/241- 6P 200W Motor

99 6P S&P
DDM9/9 241/241- 6P 200W Motor, vue 2
DDM9/9 241/241- 6P 200W Motor, vue 3
DDM9/9 241/241- 6P 200W Motor, vue 4
DDM9/9 241/241- 6P 200W Motor, vue 5
99 6P S&P
DDM9/9 241/241- 6P 200W Motor, vue 2
DDM9/9 241/241- 6P 200W Motor, vue 3
DDM9/9 241/241- 6P 200W Motor, vue 4
DDM9/9 241/241- 6P 200W Motor, vue 5

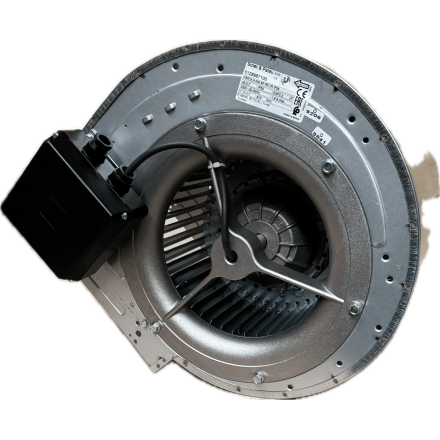

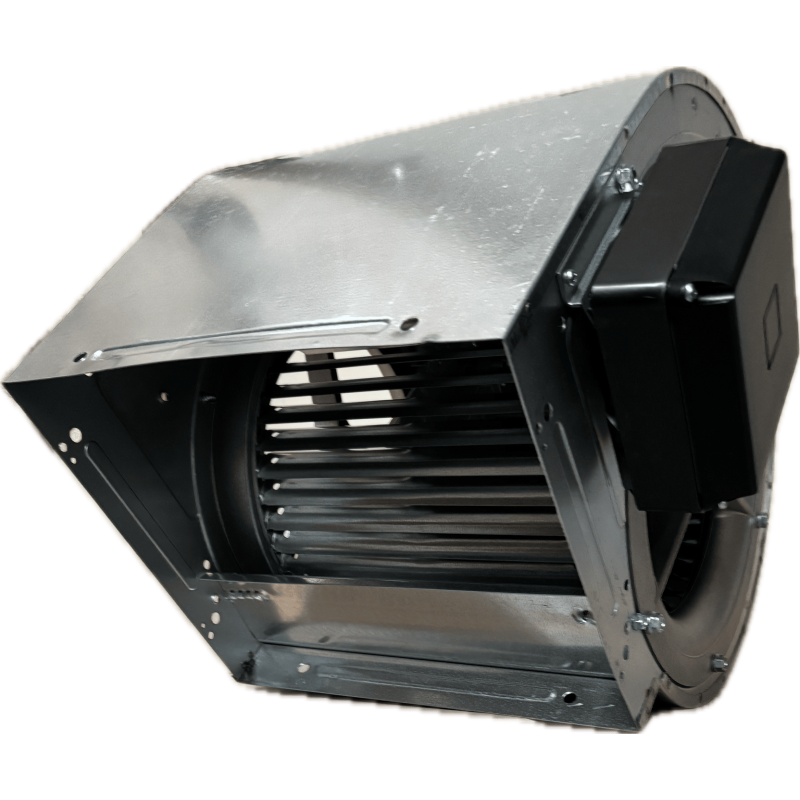

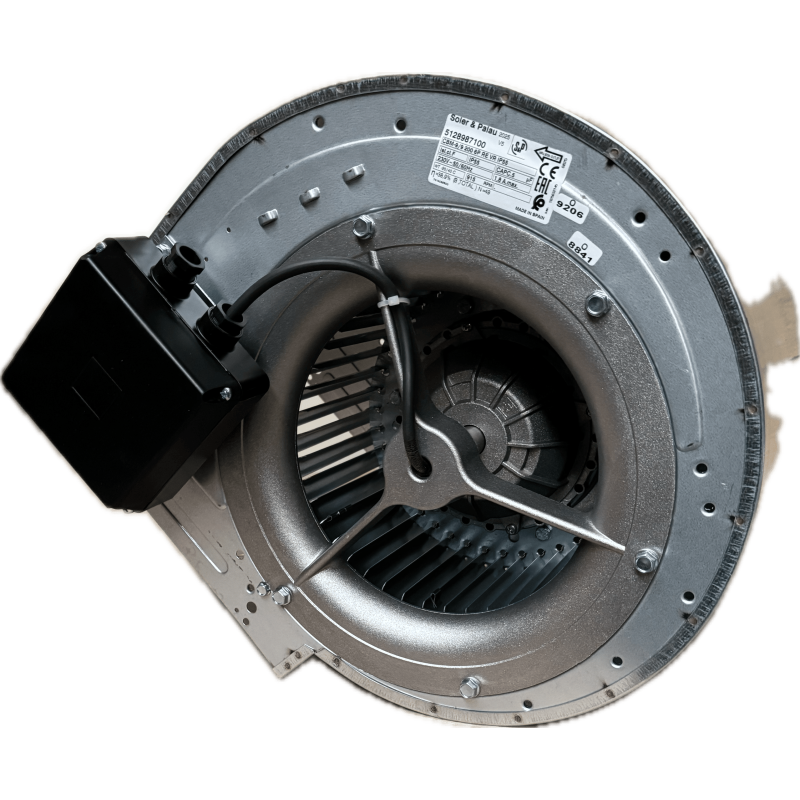

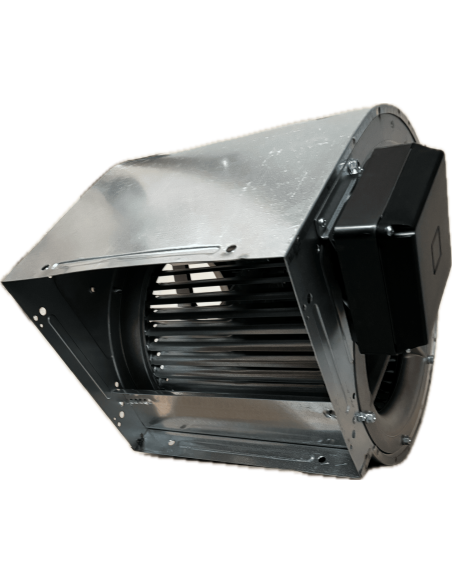

Double-inlet centrifugal fan motor for Air Handling Units (AHU), plant rooms or commercial mechanical ventilation systems

The DDM9/9 241/241 motor is a low power, low speed version (6 pole), designed to replace a worn motor in your commercial ventilation fan box or plant room unit, without having to change the whole assembly.

  • Airflow: up to 2650 m³/h
  • Power: 200 W
  • Supply: 230 V single phase
  • Protection: IP54 enclosure with built-in capacitor
  • Mounting frame: not included, dimensions L 300 x D 260 mm, 20 mm flanges
In stock
Quantity
314.00 Tax excluded
376,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The DDM9/9 241/241 6P 200W fan motor is a double-inlet centrifugal motor from S&P, designed to fit an Air Handling Unit (AHU), a plant room unit or a commercial/tertiary mechanical ventilation network, with a maximum airflow of 2650 m³/h.

A 6 pole motor for low speed use

Unlike the more powerful 4 pole versions (typically 350 to 550 W) found on commercial kitchen hoods, this 6 pole DDM9/9 runs more slowly and uses less power. It's the motor you'd specify for a tertiary installation that doesn't need high airflow: AHU, plant room, communal ventilation extract. Don't confuse it with a 4P model intended for a commercial kitchen, the two are not interchangeable despite a similar casing size.

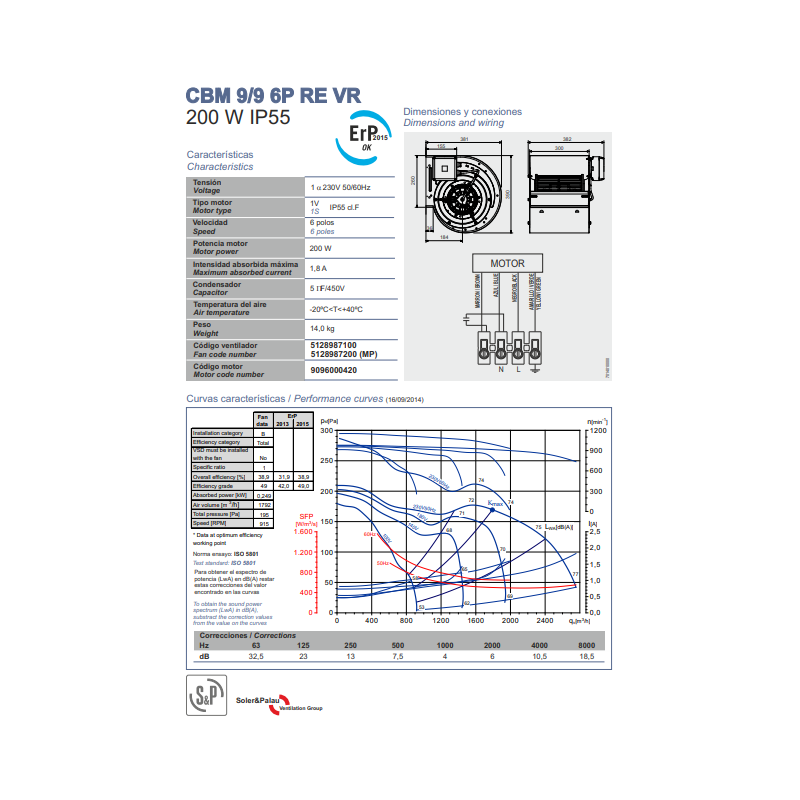

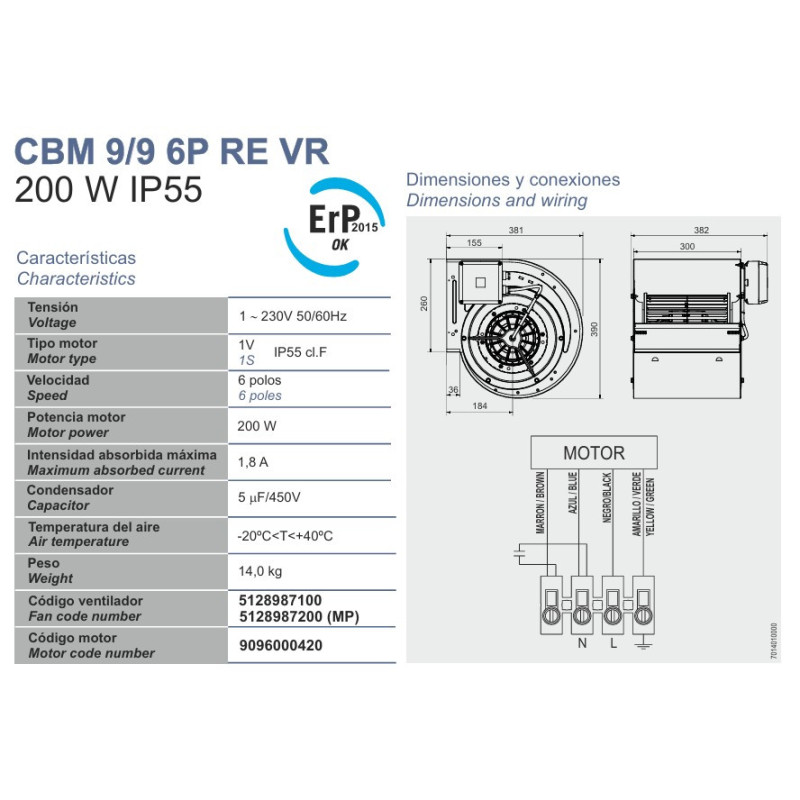

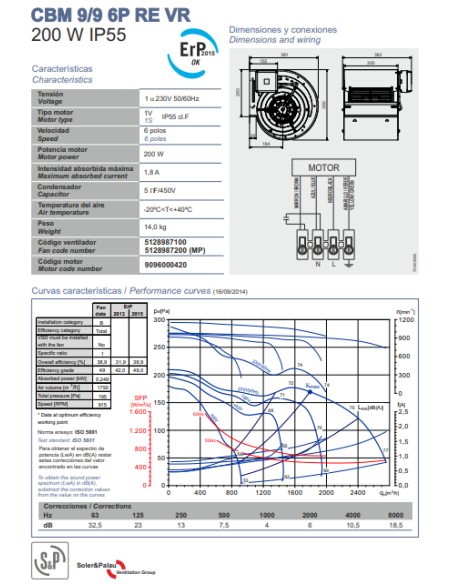

Technical specifications

Specification Value
Reference DDM9/9 241/241 6P 200W (DDM996Pvmc)
Brand S&P
Maximum airflow 2650 m³/h
Power 200 W
Supply 230 V single phase
Protection rating IP54, with built-in capacitor
Frame dimensions L 300 x D 260 mm, 20 mm flanges
Mounting frame Not included
Package weight 18 kg
Manufacture Made in Europe
Warranty 1 year

Compatibility and equivalents

This DDM9/9 241/241 motor is compatible with air handling units and fan boxes designed to accept a 9/9 format. It's sold under several similar names: CBD 2525, 241/241 Nicotra, Regal, Casal, Metro, Vim DD9/9, Sodeca CBD-2525, S&P CBM 9/9, CMC DAIN 9/9, Sisteven DTM-B-9/9, as well as at Atlantic, Vim, Cairox or Caladair. Before ordering, always check the dimensions of your current motor to confirm compatibility with your AHU: the 9/9 format covers several power and speed ratings which aren't necessarily interchangeable with one another.

Installation and wiring

The mounting frame is not supplied with this motor: arrange your own or order one separately if needed. Electrical wiring must be carried out by a qualified professional, this is in fact a condition for the warranty to apply. This motor is not rated for 400°/2h smoke extraction: for a regulatory smoke extraction application, you need a model specifically classified F400/120.

Points to check before ordering

  • Compare the dimensions of your old motor (casing, frame, mounting centres) with those of the DDM9/9 241/241 before placing an order.
  • Check the direction of rotation of your current motor: a double-inlet motor can exist in several configurations.
  • Check that your electrical supply matches the 230 V single phase rating of this motor.
  • If you're replacing an Aldes C.VEC1500 or VEC240 sub-assembly, check the exact dimensions of your fan box: this DDM9/9 is a similar format but a dimensional check remains essential before purchase.
  • Remember the capacitor: it's built into the IP54 enclosure of this motor, so there's no need to source an additional one.

Goes well with

Need a more powerful format for a commercial kitchen hood? Browse our full range of motors for ventilation systems, AHUs and plant rooms.

Product Details

S&P
DDM996Pvmc
Manufacturing
Made in Spain
Warranty
1 year
Package weight
18 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
Engine Type
9/7, 9/9
0657968458291

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is the DDM9/9 241/241 6P 200W motor compatible with an Aldes C.VEC1500 or VEC240 fan box?

This DDM9/9 motor is offered as a possible equivalent for this type of sub-assembly, but each fan box has its own fixing dimensions. Check the dimensions of your current motor (frame, mounting centres, casing) before ordering to confirm compatibility with your installation.

Is the mounting frame supplied with this motor?

No, the mounting frame is not included with the DDM9/9 241/241 6P 200W motor. The frame dimensions to allow for are 300 x 260 mm, with 20 mm flanges. Check your existing frame or order a suitable one separately.

What's the difference between this 6 pole motor and a 4 pole motor in the same 9/9 format?

A 6 pole motor such as this DDM9/9 200W runs more slowly and uses less power than a 4 pole motor of the same format, which typically reaches higher power ratings (350 to 550 W). The 6 pole version suits AHU, plant room or communal ventilation applications, not a high-airflow commercial kitchen hood.

Can this motor be used for smoke extraction?

No. This DDM9/9 241/241 6P 200W motor is not rated for 400°/2h smoke extraction. For a regulatory smoke extraction application, you need a motor specifically classified F400/120, which this reference is not.

What are the equivalent brands to this DDM9/9 motor?

This 241/241 motor format is found under several brands: Nicotra, Regal, Casal, Metro, Vim (DD9/9), Sodeca (CBD-2525), S&P (CBM 9/9), CMC (DAIN 9/9), Sisteven (DTM-B-9/9), as well as at Atlantic, Cairox or Caladair. Always check the exact dimensions before considering two references interchangeable.
