DD9/7 Motor - 1,400/1,900/2,200 m³/h, 3-Speed Mechanical Ventilation System

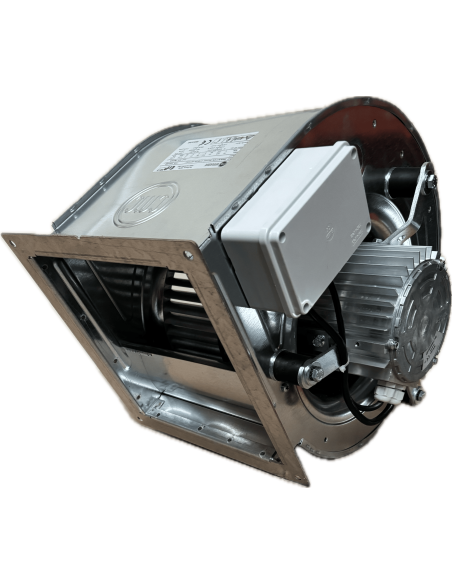

9/7 3V

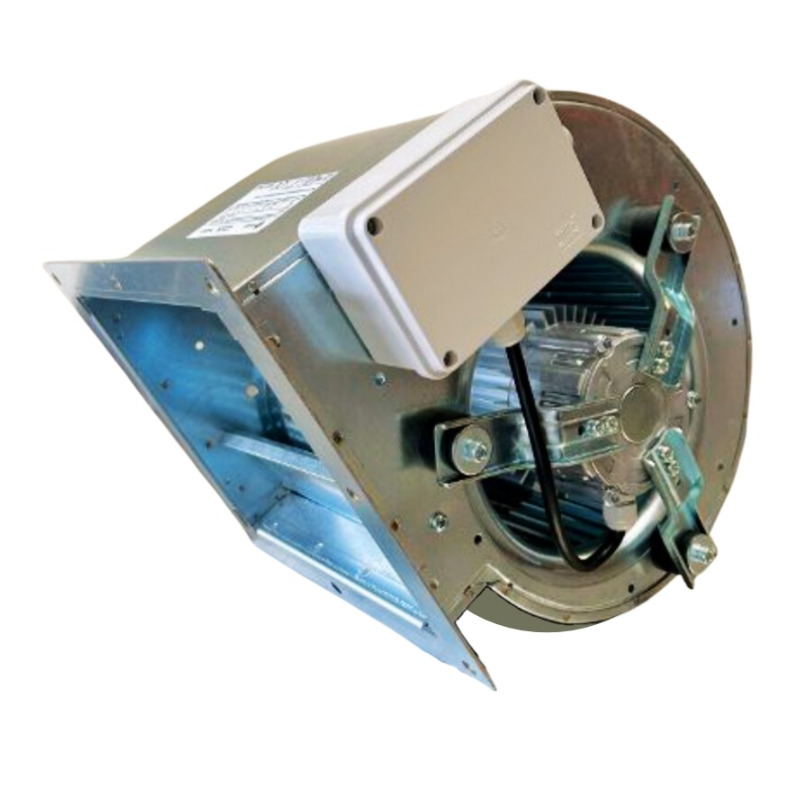

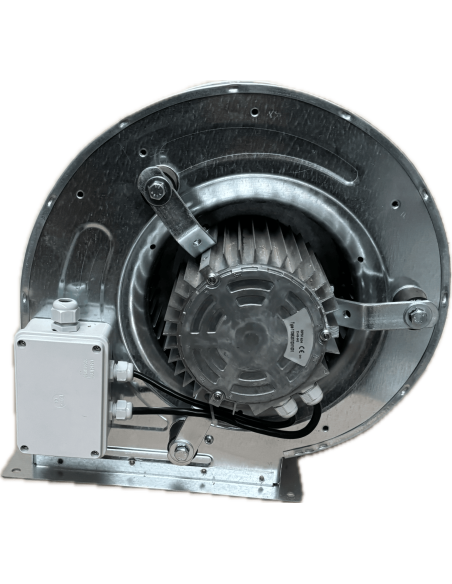

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

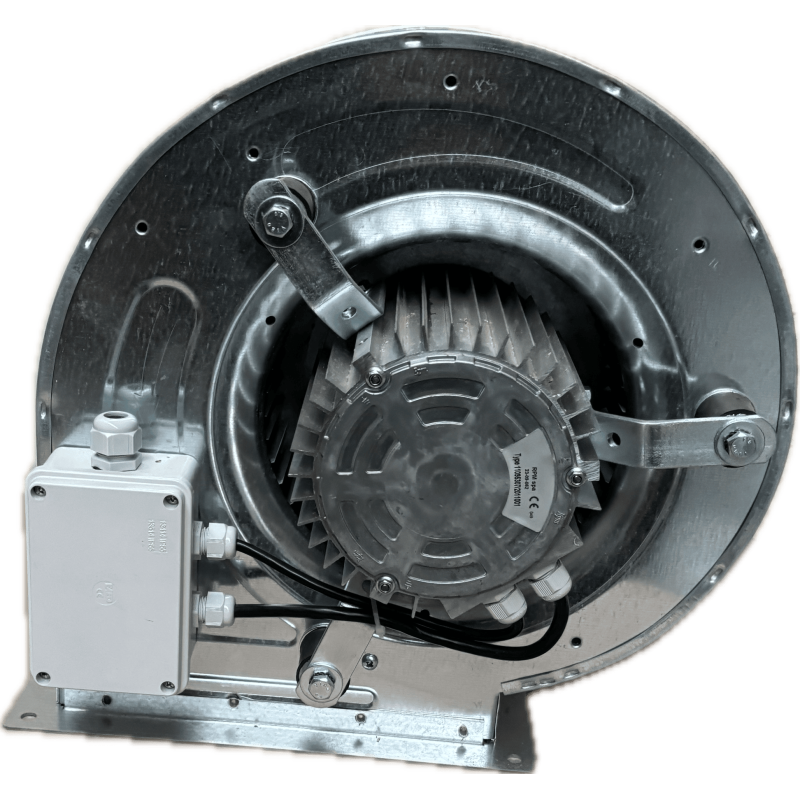

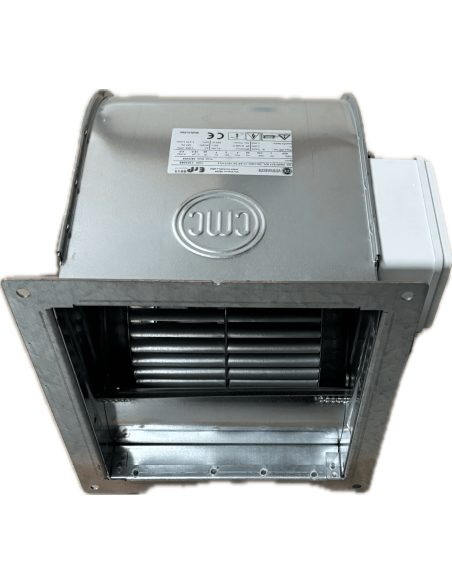

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

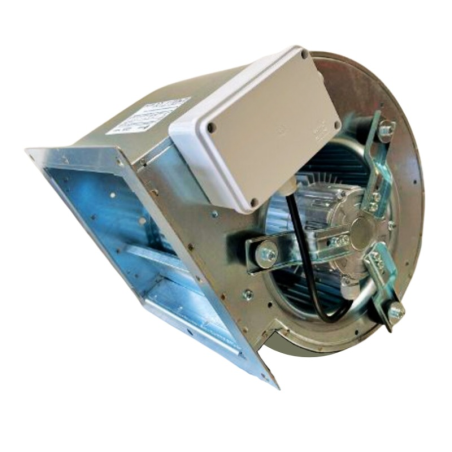

CTA motor, used motor

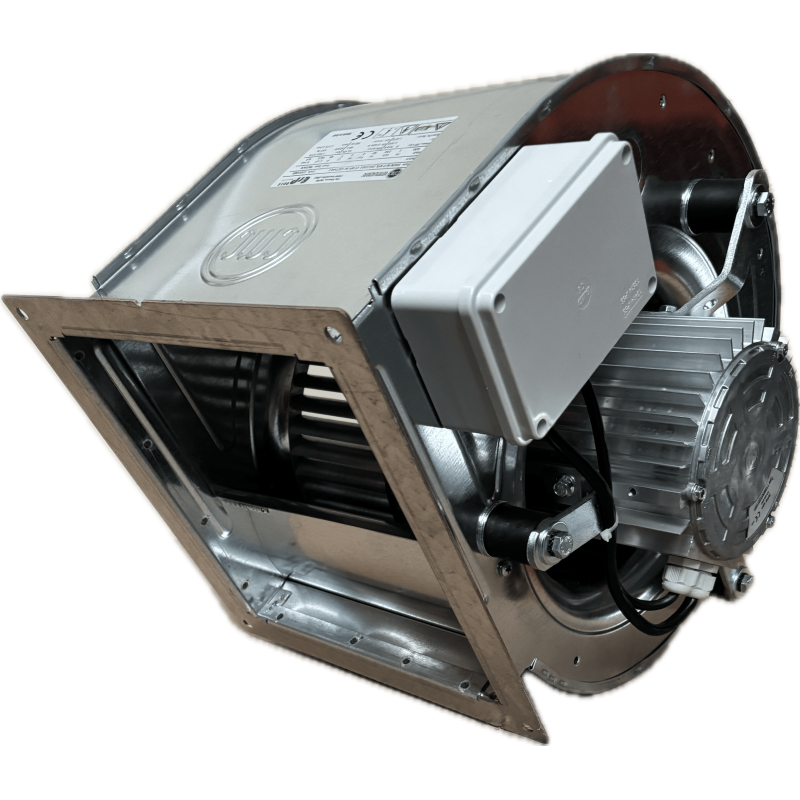

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

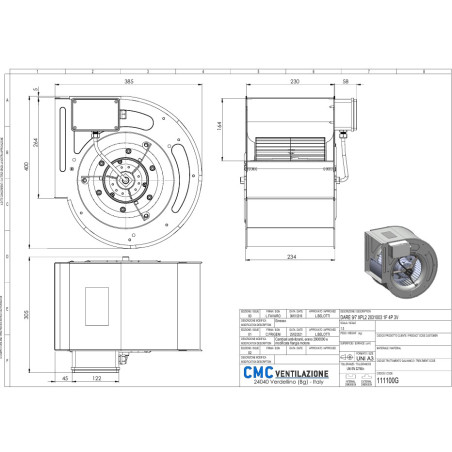

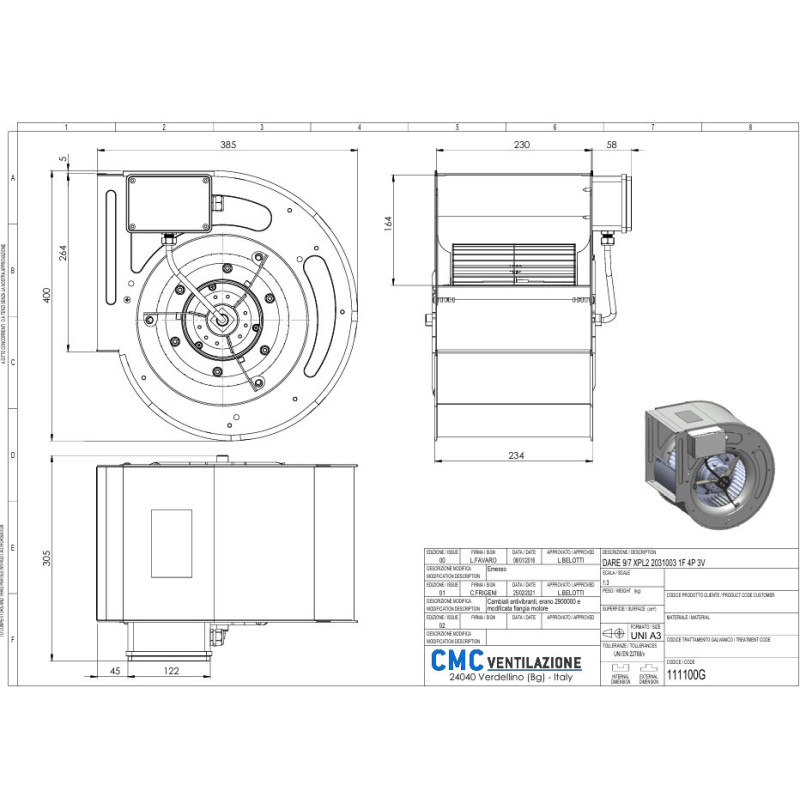

VMC 9/7 Engine Diagram

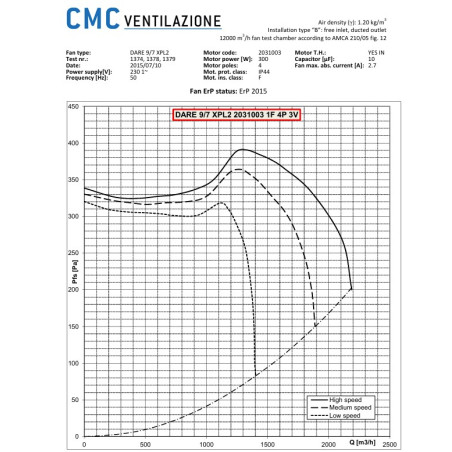

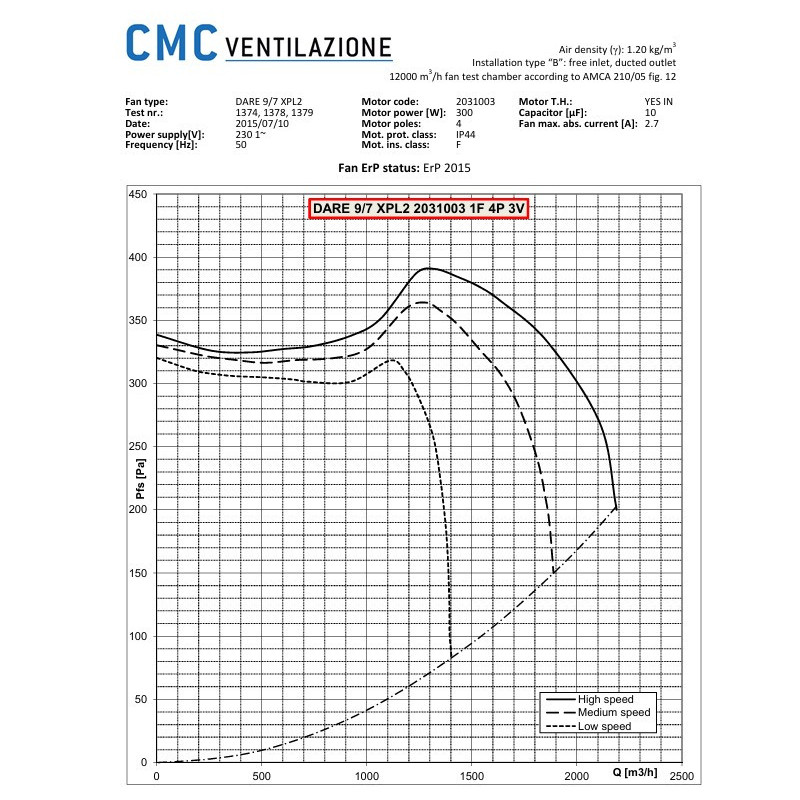

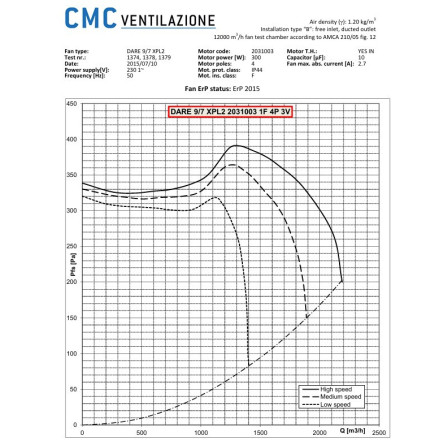

Extractor Group Curve 9/7

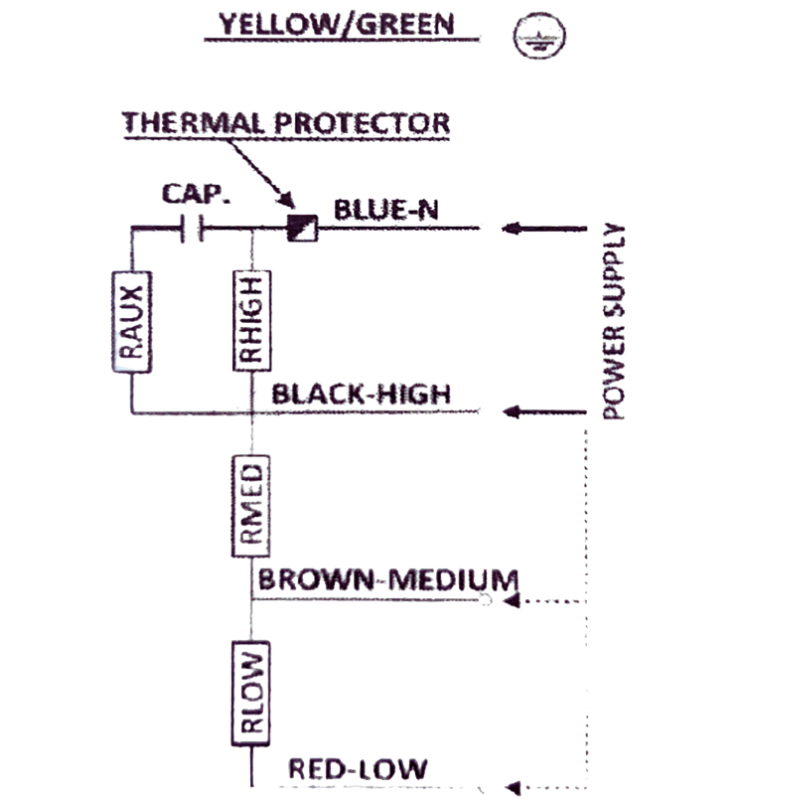

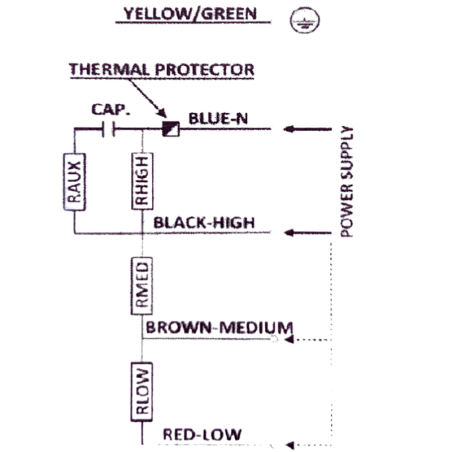

97 VMC Wiring Diagram

9/7 3V

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

CTA motor, used motor

Centrifugal Fan DD 9/7, 3-speed, for mechanical ventilation or heating

VMC 9/7 Engine Diagram

Extractor Group Curve 9/7

97 VMC Wiring Diagram

9/7 VMC motor or boiler room fan, snail-type with dual inlets, 3 speeds, max. 2,200 m³/h

- Model: DD9/7, 3 speeds (1,400 / 1,900 / 2,200 m³/h) - 420 W - 2.7 A - CE - 220 V
- Weight: 11 kg

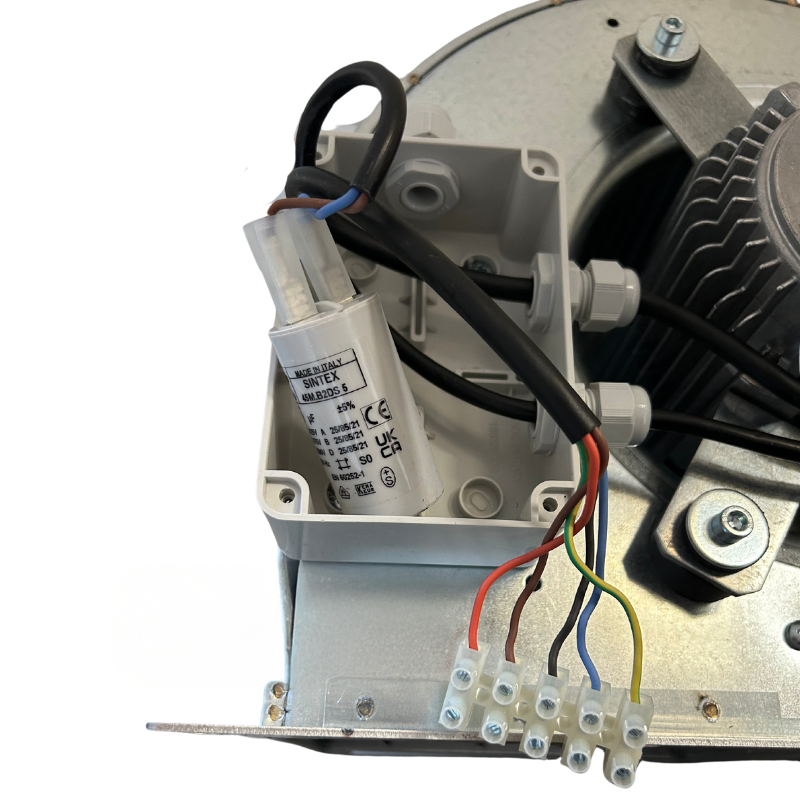

- IP54 housing with capacitor
- Mounting bracket included (to secure the motor in the enclosure)
- Not compatible with 400° smoke extraction/2h
- Equivalents: CBD 2519, 241/181, Nicotra Regal Casal Metro Vim Sodeca S&P CMC Sisteven Cairox Aldes Caladair Nather Technifan .

Quantity

245.00 Tax excluded

294 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

Centrifugal Fan DDM 9/7 3-speed dual-outlet centrifugal fan for mechanical ventilation systems

Benefits of the DAIN 9/7 3V worm gear motor for professional ventilation systems:

• Ideal for replacing an existing mechanical ventilation system motor
• This DAIN 9/7 DD worm gear motor can operate at 3 speeds or just one of the three, depending on the ventilation needs of the premises
• Mounting bracket included to secure the centrifugal motor inside the mechanical ventilation unit housing (can be removed if necessary)
• IP54-rated housing with capacitor
• High-quality fan motor manufactured by a leading Italian brand
• Quick and easy connection of the snail motor to your ventilation system
• Option to add a 220V single-phase 3-speed control

This DD 9/7 centrifugal snail motor provides efficient ventilation for rooms.

Find all related products at the bottom of the page!

Discover our wide range ofventilation motors, including ourcompactDD133/190 ventilation motorand our3-speed ventilation motor.

Product Details

Brand CMC

Reference Dd973Vvmc

Manufacturing: Made in Italy
Warranty: 1 year
Package weight: 11 kg
Engine: Centrifugal Fan
Food: 230V Mono
Engine power: 0 to 2,000 m³/h
Engine power: 2,000 to 4,000 m³/h
Engine Type: 9/7, 9/9

ean13 0657968407251
