Centrifugal Fan DD 9/9 - 230V

  • On sale!

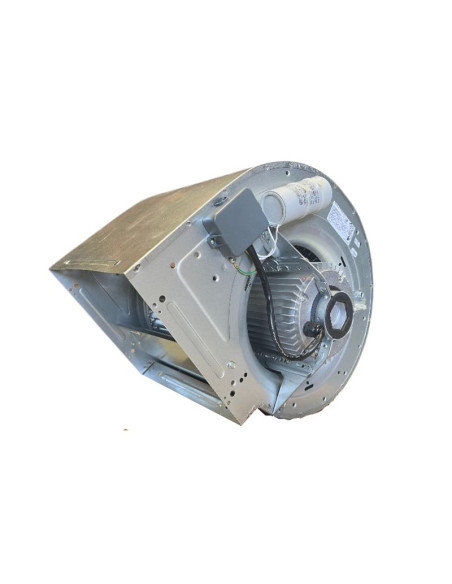

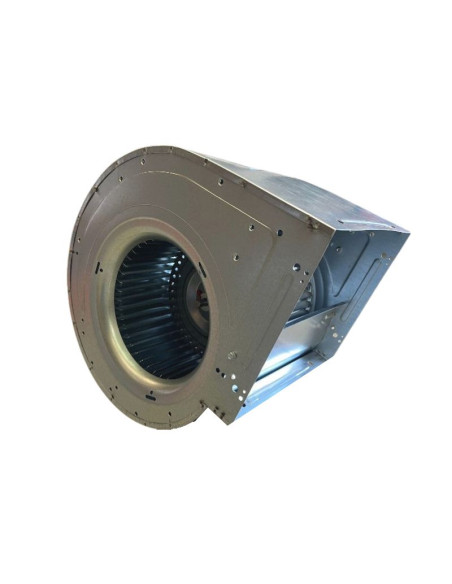

Centrifugal Fan 99 double vent for range hood / range cabinet

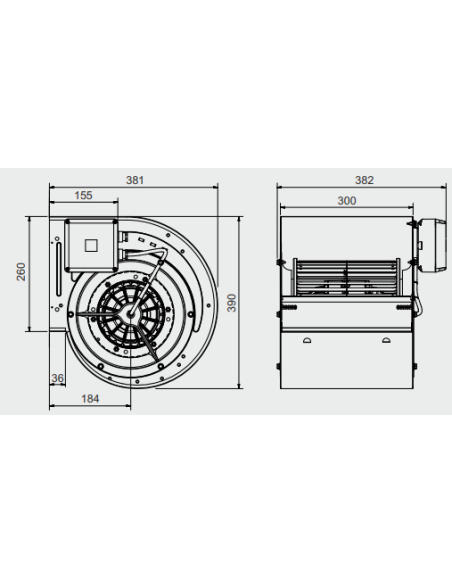

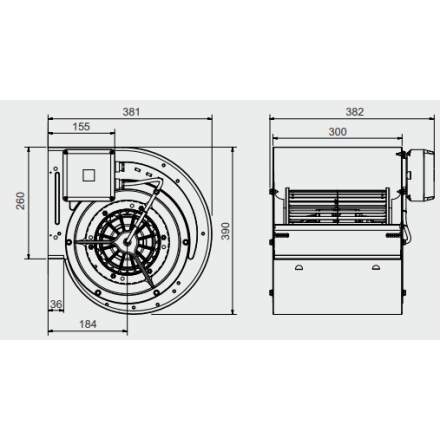

DD 9/9 Motor for Restaurant Range Hoods

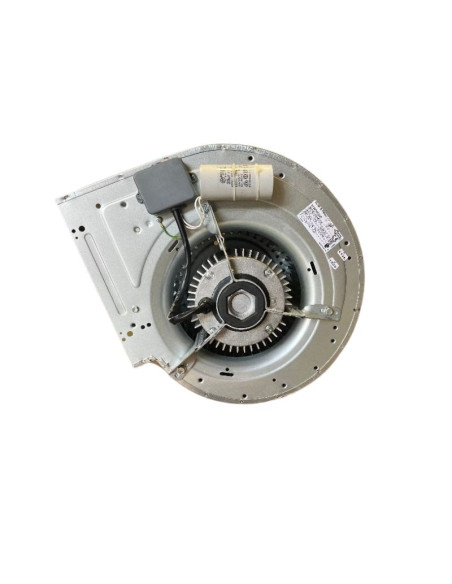

Centrifugal Fan 99 double vent for range hood / range cabinet

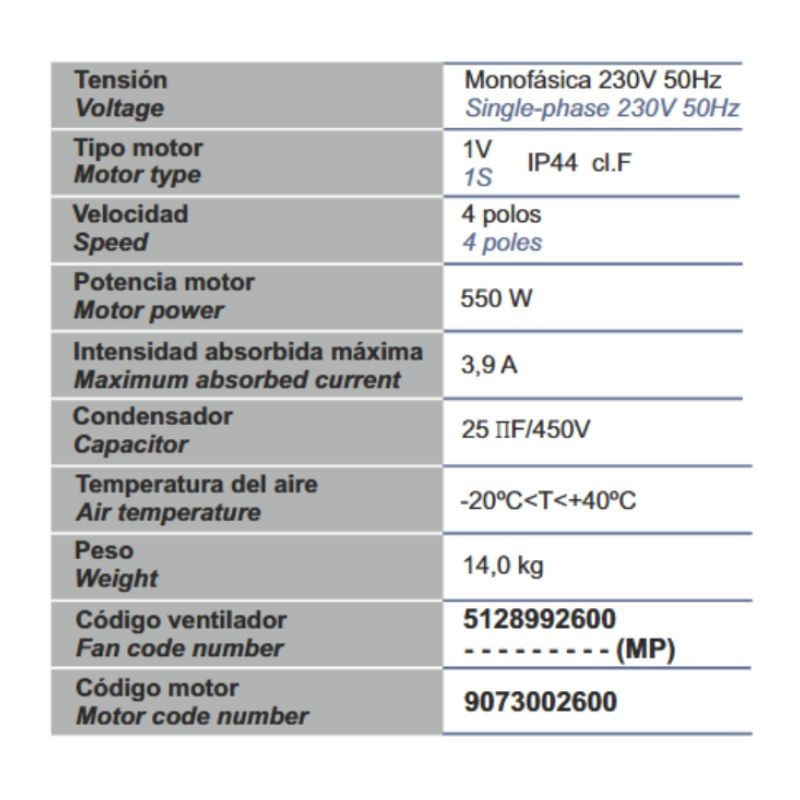

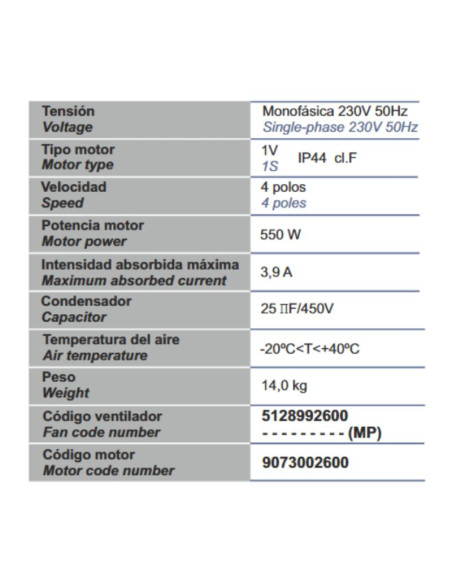

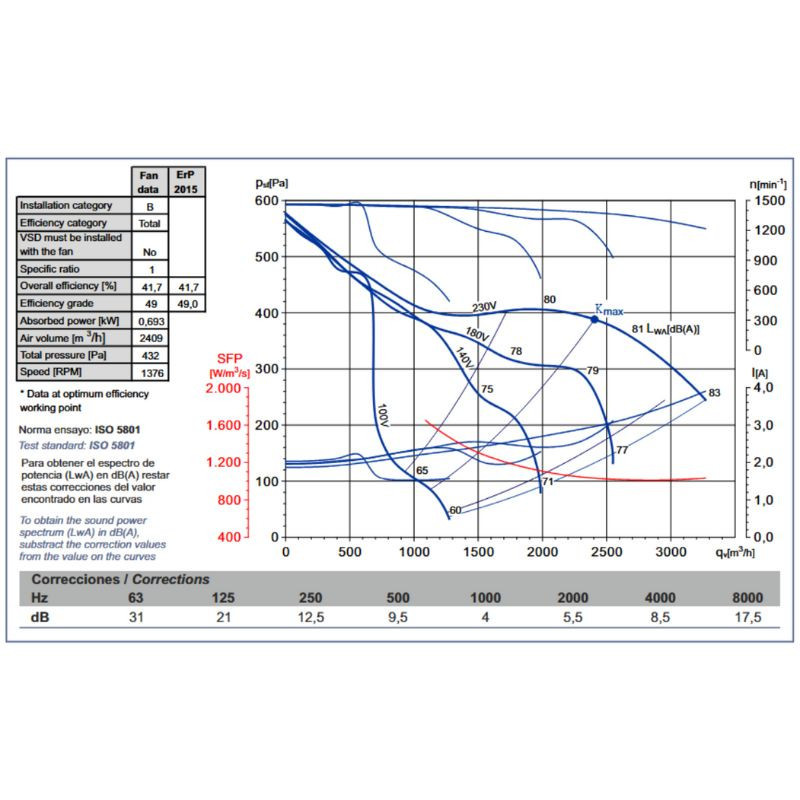

Technical Information Centrifugal Fan.99, dual-vent model for range hoods/cabinet-style range hoods
Centrifugal Fan 99 double vent for range hood / range cabinet
Centrifugal Fan 99 double vent for range hood / range cabinet

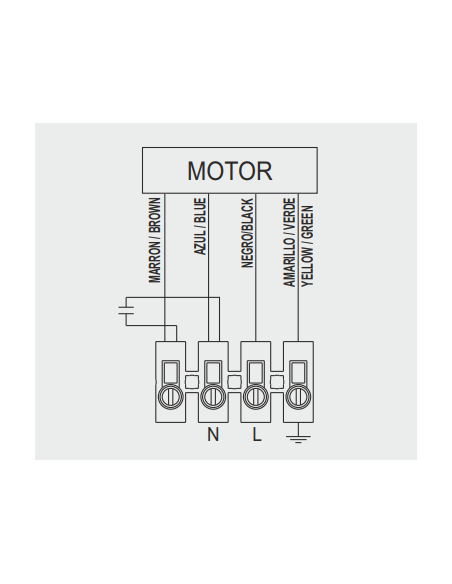

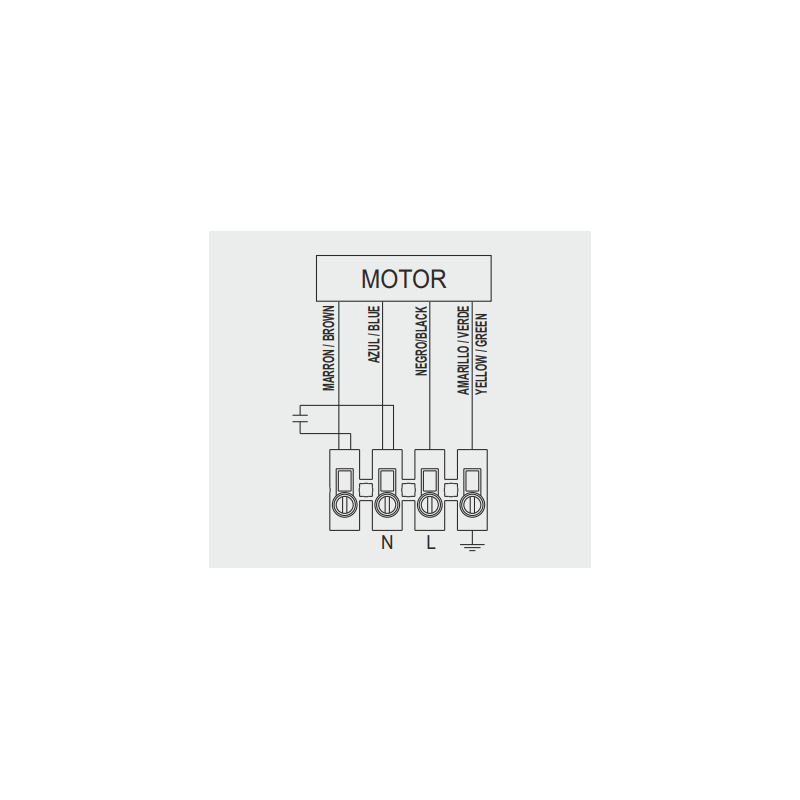

Diagram Centrifugal Fan 99, double vent for range hood / cabinet
Centrifugal Fan 99 double vent for range hood / range cabinet
DD 9/9 Motor for Restaurant Range Hoods
Centrifugal Fan 99 double vent for range hood / range cabinet
Technical Information Centrifugal Fan.99, dual-vent model for range hoods/cabinet-style range hoods
Centrifugal Fan 99 double vent for range hood / range cabinet
Centrifugal Fan 99 double vent for range hood / range cabinet
Diagram Centrifugal Fan 99, double vent for range hood / cabinet

Centrifugal Fan 99 double vent for range hood / cabinet

Does not fit in most professional range hoods (too large)

- Model: DD 9/9 ~> 3,300 m³/h
- Power: 550 W - 3.9 A
- Power supply: 230 V
- CE Standards
- IP44 housing with capacitor
- Optional mounting frame (to secure the motor inside the hood/casing)
- Frame dimensions: W 300 x D 260 x 20 mm flanges
- Not compatible with 400° smoke extraction systems/2h
- Check motor dimensions for compatibility with your range hood
- Model compatible with range hoods having an interior height greater than 500 mm (Ventileco, Saftair, France air, Sodeca, S&P, Alvène, Bertrand, VIM, etc.)
- Equivalent: CBD 2525, 241/241 Nicotra/Regal/Casal/Metro/Vim DD9/9, Sodeca CBD-2525, S&P CBM 9/9, CMC DAIN 9/9, Sisteven DTM-B-9/9.

Equivalent motor compatible with all range hoods:DDM 8/9 9/9R

Find all related products at the bottom of the page!

In stock
Quantity
249.00 302.00 Tax excluded
298,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Centrifugal Fan Dual centrifugal vent for restaurant range hood (professional stainless steel range hood)

Check the dimensions of your stainless steel hood to ensure compatibility with this snail fan

Benefits of the DD 9/9 snail motor for professional ventilation systems:

  • • Ideally sized for a 2- to 3-meter stainless steel restaurant range hood
  • • Powerful 550-watt motor with an extraction capacity of 3,300 m³/h
  • • Mounting bracket included to secure the centrifugal motor inside the stainless steel hood or motor housing
  • • High-quality fan motor manufactured by a leading Spanish brand
  • • Quick and easy installation of the snail motor in a professional restaurant ventilation system
  • This centrifugal motor efficiently extracts greasy fumes and smoke from the kitchen hood of your restaurant, fast-food joint, kebab shop, snack bar, crêperie, or brasserie.

Find all related products at the bottom of the page!

Product Details

Tecnifan
TecDD99
Manufacturing
Made in Spain
Warranty
1 year
Package weight
16 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
Engine Type
9/7, 9/9
0657968694545
