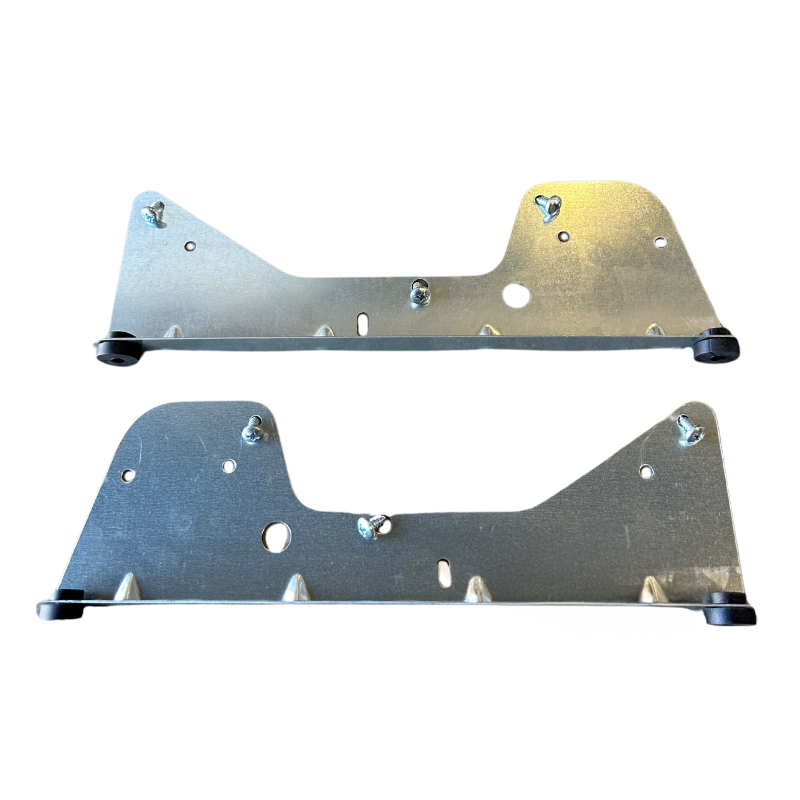

Support feet for worm gear motor with screws and silent blocks
Pair of support feet to fix a worm gear motor from 7/7 to 12/12 in a fan box, whether bare or as a replacement.
- Compatibility: motors 7/7, 7/9, 9/7, 9/9, 10/10, 12/12
- Composition: 2 galvanised support brackets
- Manufacturing: Europe
- Weight: 0.9 kg
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
The support feet for worm gear motor is a fixing kit that lets you securely install a double-inlet centrifugal motor in a fan box, whether the box is bare or you are replacing a worn out bracket. Sold as a pair, it covers motor sizes from 7/7 to 12/12.
In a commercial kitchen, the worm gear motor runs all day without stopping: fixing it properly prevents vibrations which, over time, loosen the bolts and make the box rattle. That is exactly the role of these two galvanised brackets, designed to take the weight of the motor. Depending on the model, screws and silent blocks are not always supplied with the support: it is advisable to fit silent blocks, rubber strips or rubber feet under the support to limit vibrations.
Technical specifications
| Specification | Value |
|---|---|
| Product | Fixing bracket for worm gear motor |
| Composition | 2 galvanised support brackets |
| Motor compatibility | 7/7, 7/9, 9/7, 9/9, 10/10, 12/12 |
| Manufacturing | Europe |
| Weight | 0.9 kg |
| Package weight | 1 kg |
Use and compatibility
This kit of fixing brackets is used to hold a worm gear motor inside an extraction fan box, whether supplied bare or when refitting a motor onto an existing box. The 6 available sizes cover the vast majority of worm gear motors on the market, from the small 7/7 up to the larger 12/12. Check the exact reference of your motor before ordering: a foot sized for a 7/7 cannot be fitted to a 12/12.
Installation and connection

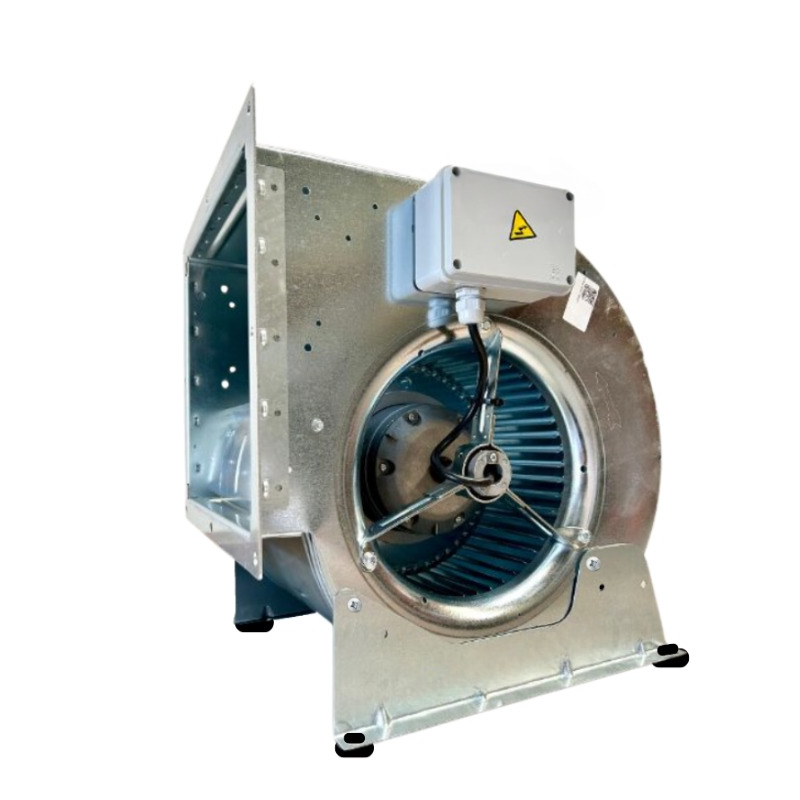

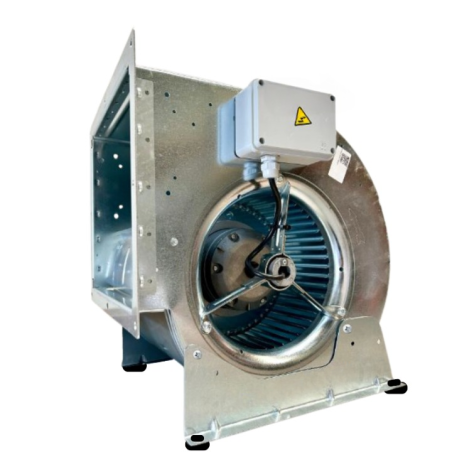

The brackets fix onto the motor, then sit between the motor and the fan box. Depending on the model, screws and silent blocks are not always included: be sure to check what is included with your reference and, if needed, add silent blocks or rubber strips and rubber feet under the support to properly absorb vibrations. The whole assembly must form a stable fixing that holds the weight of the motor without transmitting its vibrations to the structure. As with any equipment sold without installation by us, fitting remains the responsibility of a professional or technician familiar with this type of work.
Points to check before ordering
- Exact size of your worm gear motor (7/7, 7/9, 9/7, 9/9, 10/10 or 12/12): the wrong size will prevent fitting.
- Bare fan box or one already fitted with a fixing frame: these support feet are designed for a bare fan box, not as an addition to an existing frame.
- Check whether screws and silent blocks are supplied with your reference: if not, plan for suitable silent blocks or rubber feet.
- Check that the space available in the fan box allows for the movement of the silent blocks once the brackets are fitted.
- Remember to retighten the fixings periodically: a motor running all day puts ongoing strain on the silent blocks.
Goes well with
Product Details
piedsuppmotor
- Engine
- Products
- Fastening
- Manufacturing
- Made in Europe
- Package weight
- 1 kg
0657968703292
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
Are these support feet compatible with my worm gear motor?
The kit covers 6 worm gear motor sizes: 7/7, 7/9, 9/7, 9/9, 10/10 and 12/12. Check the exact reference of your motor before ordering, as each size corresponds to a specific bracket template: choosing the wrong size will prevent fitting.
What is included in the support feet kit for worm gear motor?

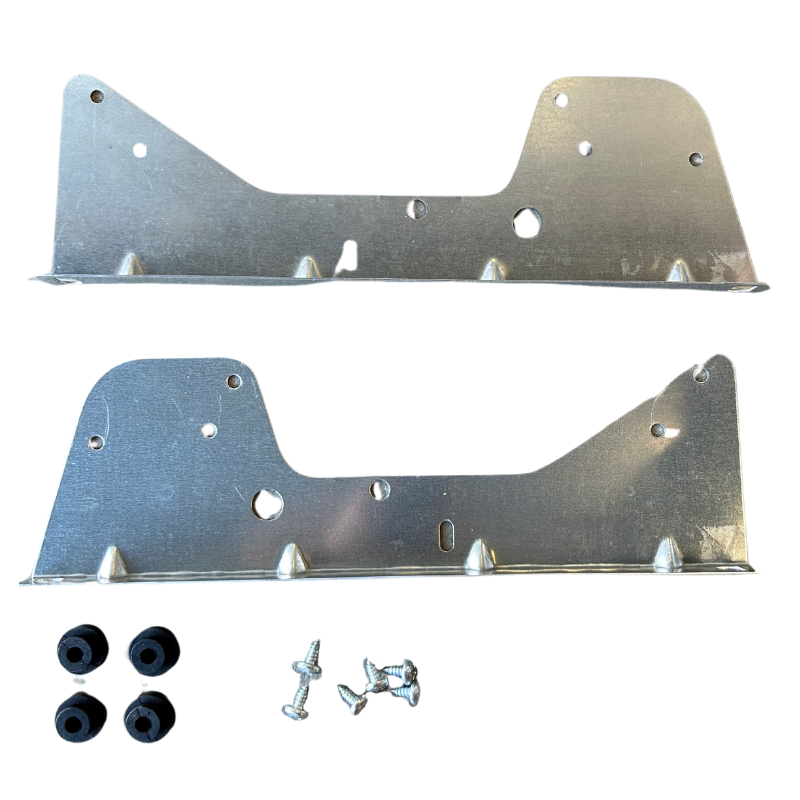

The kit includes a pair of 2 galvanised support brackets. Depending on the model, screws and silent blocks are not always supplied: check the composition of your reference and, if needed, plan for suitable silent blocks or rubber feet.
Do these feet need to be fitted in addition to a fixing frame?
These support feet fit directly onto a bare fan box, without an additional fixing frame. If your fan box already has a dedicated frame, you should instead look at our fixing frame for worm gear motor.
How can vibrations from the motor on these support feet be limited?
It is advisable to add silent blocks or rubber strips and rubber feet under the support to absorb vibrations from the worm gear motor during operation. Periodic checking of tightness is also recommended on a motor that runs for long periods.
