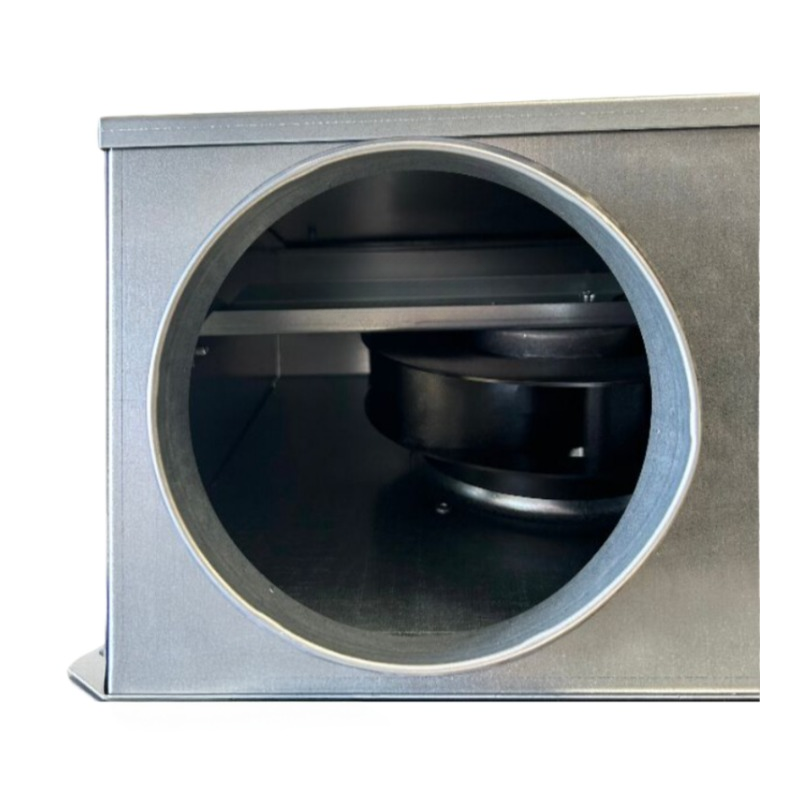

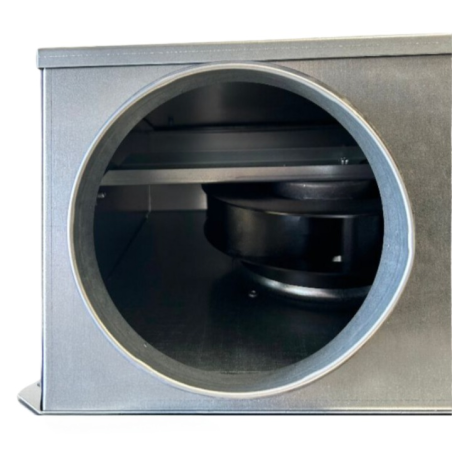

Extra-flat VMC unit, 700 m³/h, D200 mm

  • On sale!
Extra-flat cabinet for air injection, transfer, or extraction. Equivalent to Vim, Ouestisol, Cairox, S&P, France air, and Atlant
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 2
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 3

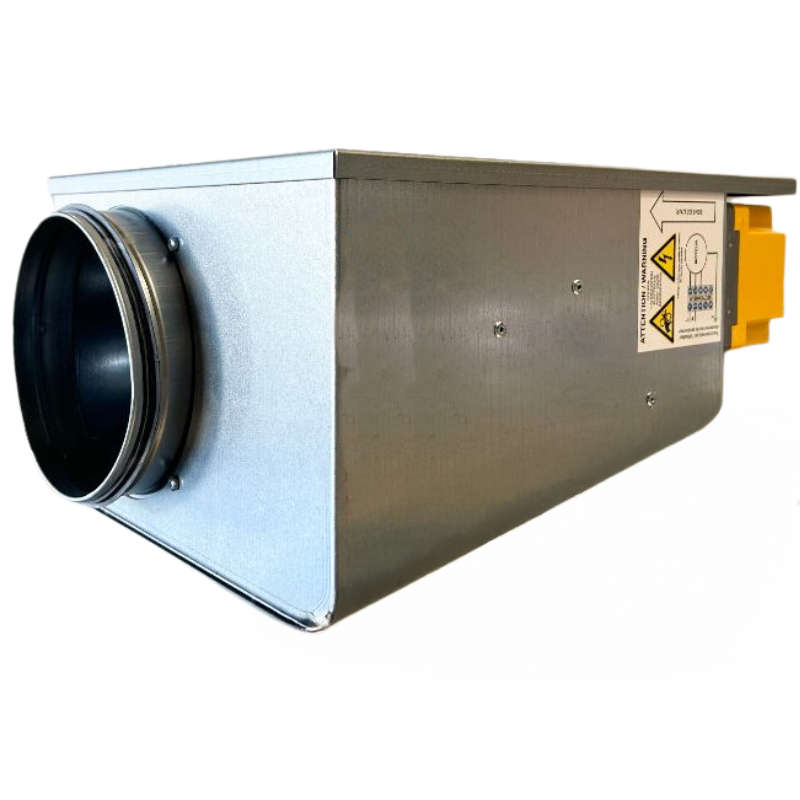

Extra-thin cabinet, high performance
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 5
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 6
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 7

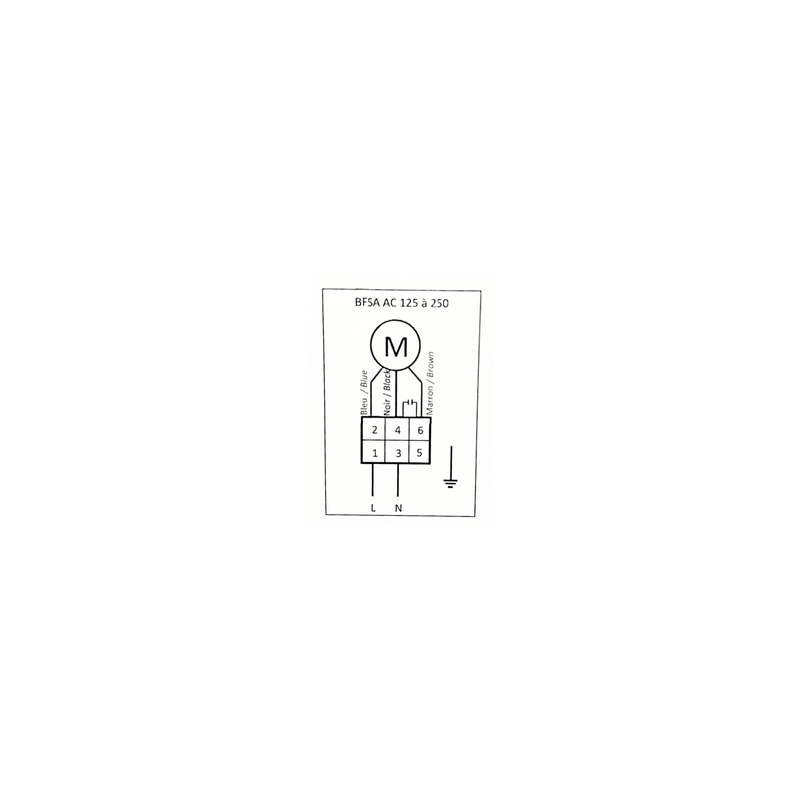

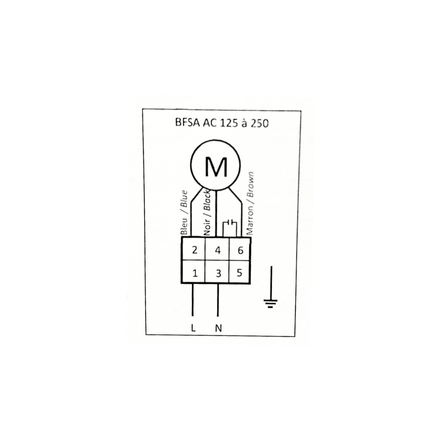

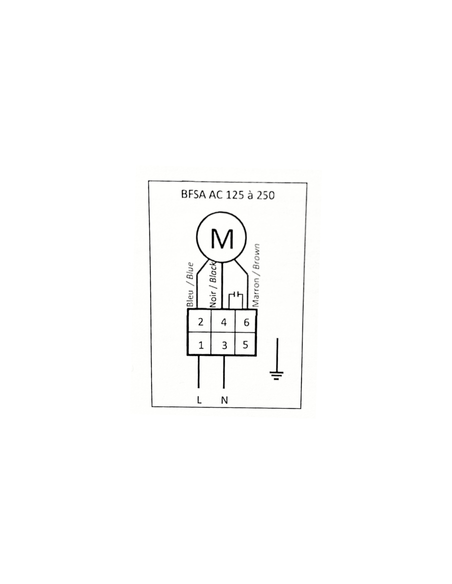

Extraction Chamber Diagram
Video
Extra-flat cabinet for air injection, transfer, or extraction. Equivalent to Vim, Ouestisol, Cairox, S&P, France air, and Atlant
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 2
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 3
Extra-thin cabinet, high performance
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 5
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 6
Extra-flat VMC unit, 700 m³/h, D200 mm, vue 7
Extraction Chamber Diagram

The extra-flat MVHR unit, 700 m³/h, D200 mm fits into shallow false ceilings and low lofts to provide extract, supply or transfer ventilation without taking up valuable headroom. Made in France, it runs on a 65 W motor with built-in thermal protection, delivering an airflow of around 750 m³/h.

  • Airflow: 750 m³/h approx.
  • Spigot diameter: D200 mm
  • Power supply: 230 V single-phase + earth, 0.4 A
  • Dimensions: L460 x D460 x H300 mm
  • Warranty: 1 year
In stock
Quantity
325.00 355.00 Tax excluded
390 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The extra-flat MVHR unit, 700 m³/h, D200 mm is a motorised extract fan box designed for ventilation systems with limited headroom: false ceilings, low lofts or narrow plant rooms. Made in France, it can be installed for extract, supply or transfer applications alike.

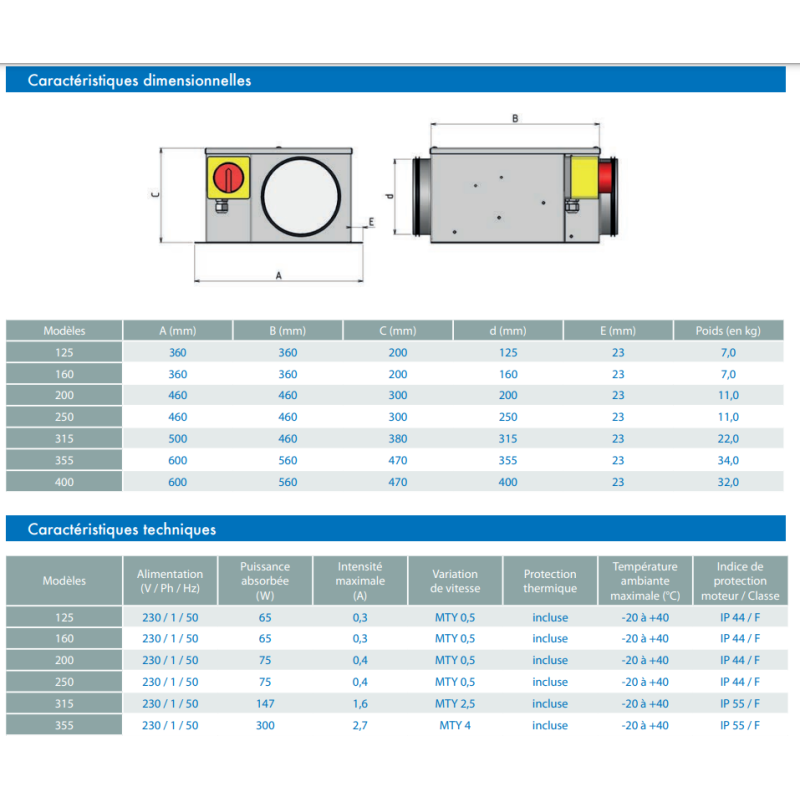

Technical specifications

Specification Value
Airflow ≃ 750 m³/h
Inlet/outlet diameter D 200 mm
Dimensions L 460 x D 460 x H 300 mm
Power supply 230 V, single-phase + earth, 50 Hz, 0.4 A
Motor power 65 W
Drive type Motorised fan box, direct-drive fan unit
Motor protection Built-in thermal protection
Material Galvanised steel sheet panels
Manufacturing Made in France
Warranty 1 year
Weight 10 kg

Use and compatibility

This extraction fan box for mechanical ventilation systems is designed for commercial and residential block installations where headroom is tight: its extra-flat design makes it particularly suited to false ceilings and lofts with limited clear height, where a standard fan box simply wouldn't fit. It works equally well in extract mode (removing stale air), supply mode (introducing fresh air) or transfer mode between two rooms. Its circular spigots fitted with lip seals, combined with horizontal mounting, make it easy to connect to an existing ductwork system. This model is generally cited as a suitable replacement for fan boxes from brands such as Vim kmdt, Aldes vec, Atlantic critair or Franceair sirius, though this should be checked against the exact model installed.

Installation and connection

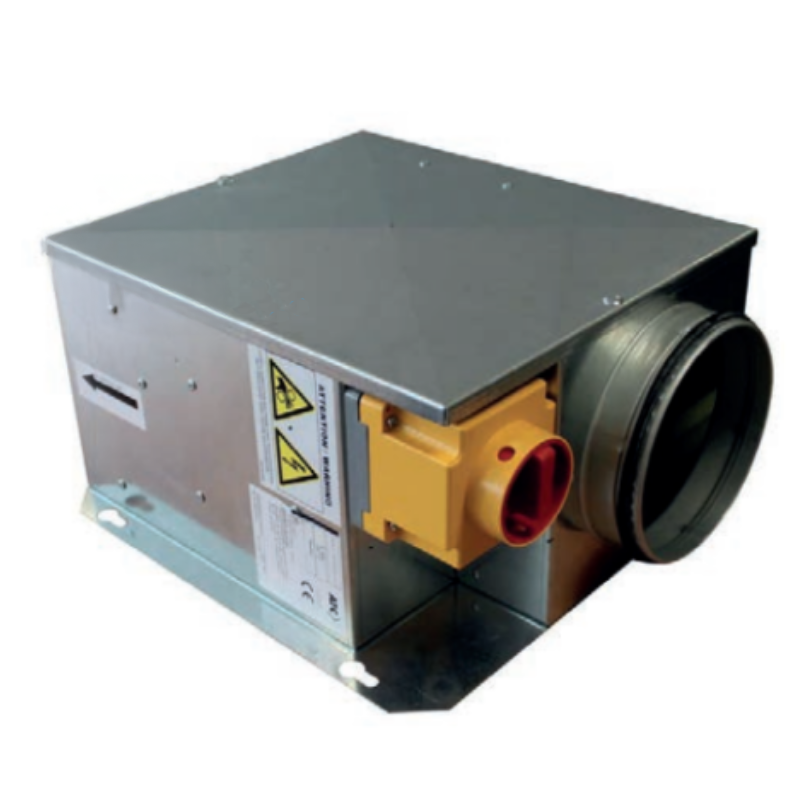

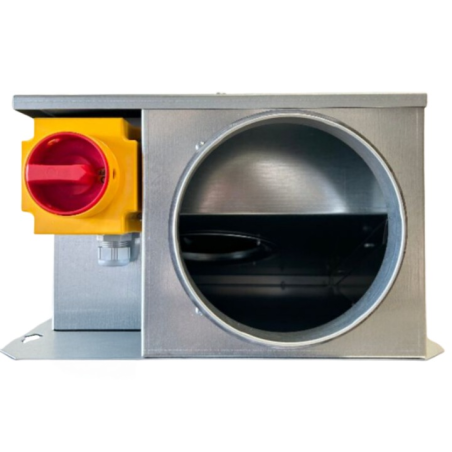

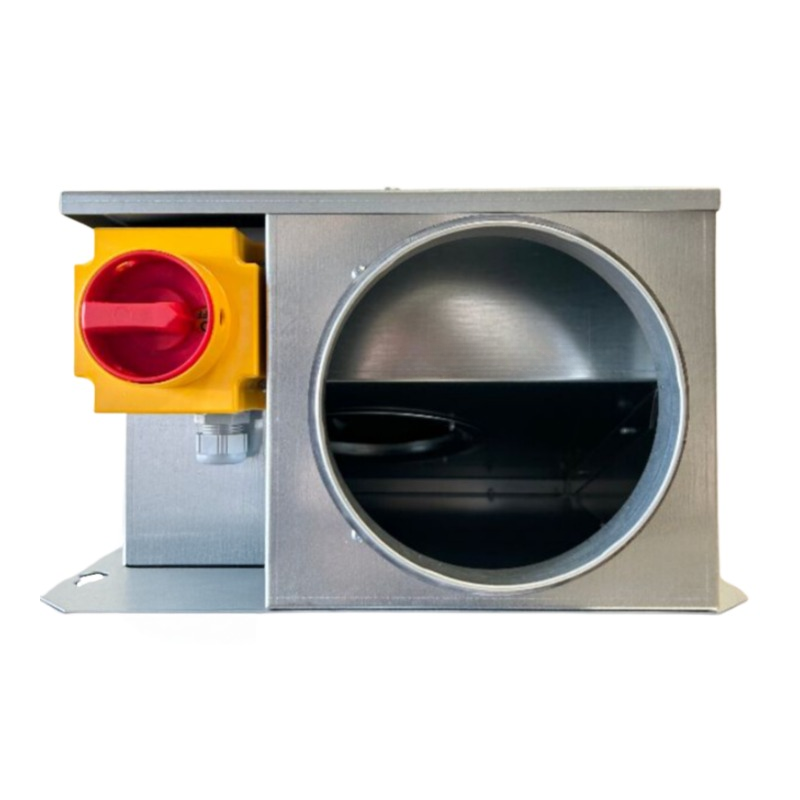

The fan box is designed for horizontal mounting, indoors or outdoors. It is supplied with a local isolator switch pre-fitted and wired, along with a cable gland for the 230 V single-phase + earth power supply. The removable cover, held in place with screws, allows easy access to the fan unit for maintenance. The feet have dedicated mounting points for fixing. Electrical connection must be carried out by a qualified electrician: this is a condition for the warranty to apply.

Points to check before ordering

  • Connection diameter: this model is designed for a D200 mm duct system, check that your ductwork matches.

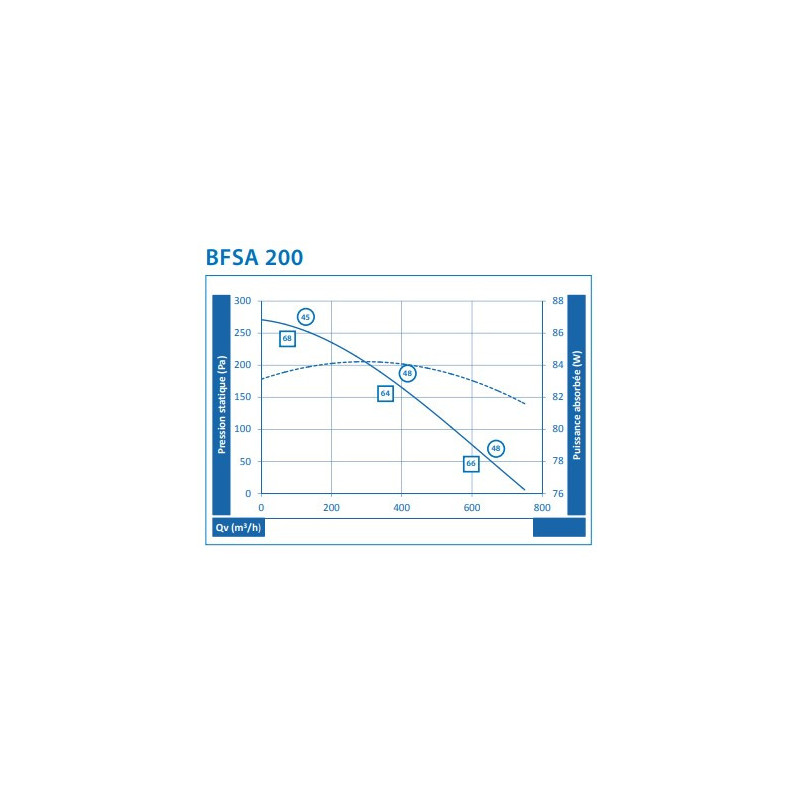

  • Airflow required for your premises: allow a margin against the theoretical airflow of 750 m³/h, as pressure losses in the ductwork (length, elbows, filters) reduce the actual airflow.
  • Available headroom in the false ceiling or loft: the fan box height (300 mm) must be compatible with your plenum space.
  • Power supply: check that you have a 230 V single-phase supply with earth available nearby.
  • Model being replaced: if you're replacing an existing fan box (Vim, Aldes, Atlantic, Franceair...), compare the spigot diameter and overall dimensions before ordering.

Recommended with

Need a higher airflow? See our extra-flat MVHR unit, 800 m³/h, D250 mm, or for quieter operation, our sound-attenuated version, 700 m³/h, D200 mm.

Product Details

Ventilsogood
caissonextraplat200
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968782235

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What's the difference between this extra-flat unit and a sound-attenuated version?

This extra-flat MVHR unit, 700 m³/h, D200 mm, is a bare unit made of galvanised steel sheet, designed for compactness. If noise level is an important factor for your installation (close to a living space, or a noise-sensitive room), VentilSoGood also offers a sound-attenuated version, 700 m³/h, D200 mm, in the same range.

Can this fan box replace my old Vim, Aldes or Atlantic unit?

This D200 mm, 700 m³/h fan box is generally compatible as a replacement for fan boxes from brands such as Vim kmdt, Aldes vec, Atlantic critair or Franceair sirius. However, check the spigot diameter and overall dimensions of your current model before ordering, to avoid any surprises when connecting.

Can this fan box be used for supply air, or only extract?

This motorised fan box is versatile: it works in extract mode (removing stale air), supply mode (introducing fresh air) or transfer mode between two rooms. The direction of use simply depends on the wiring and how it's fitted into your ductwork system.

Can this fan box be installed outdoors?

Yes, this extra-flat MVHR unit is designed for horizontal mounting both indoors and outdoors. It comes with a local isolator switch pre-fitted and wired, plus a cable gland for the 230 V power supply, making electrical connection easier wherever it's installed.

Do I need a speed controller with this fan box?

A speed controller isn't essential, but it allows you to adjust the fan box's airflow to match the actual needs of your ductwork, particularly if you find the airflow too high or the unit too noisy. VentilSoGood offers a speed controller compatible with this type of small single-phase motor.
