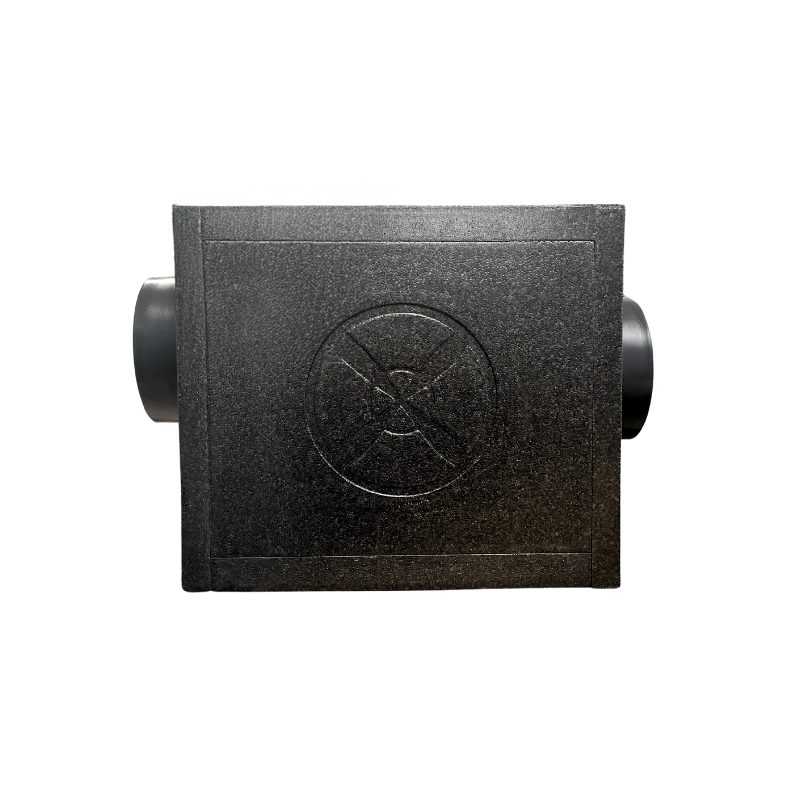

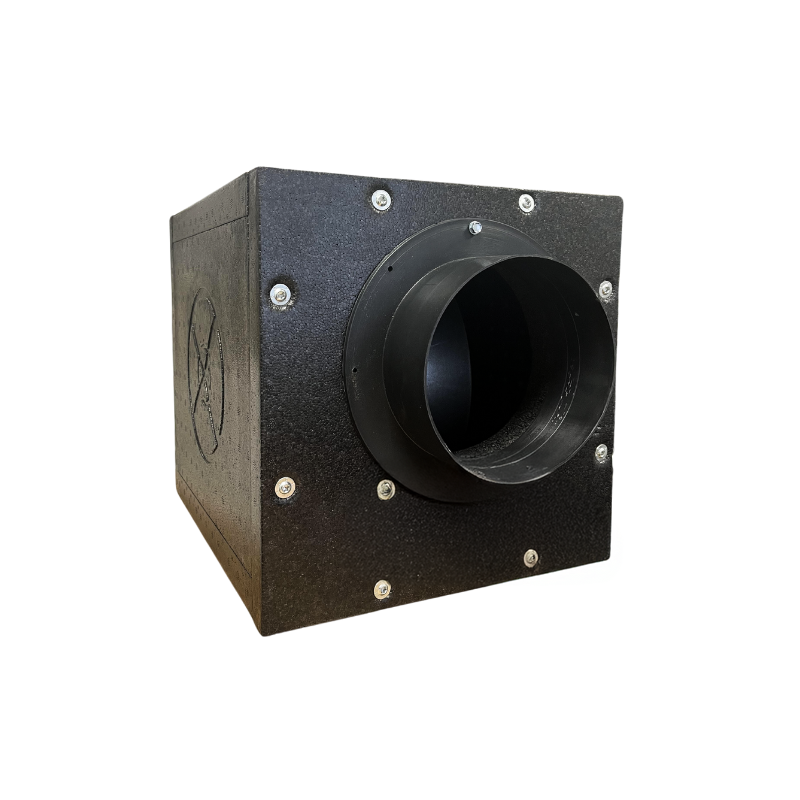

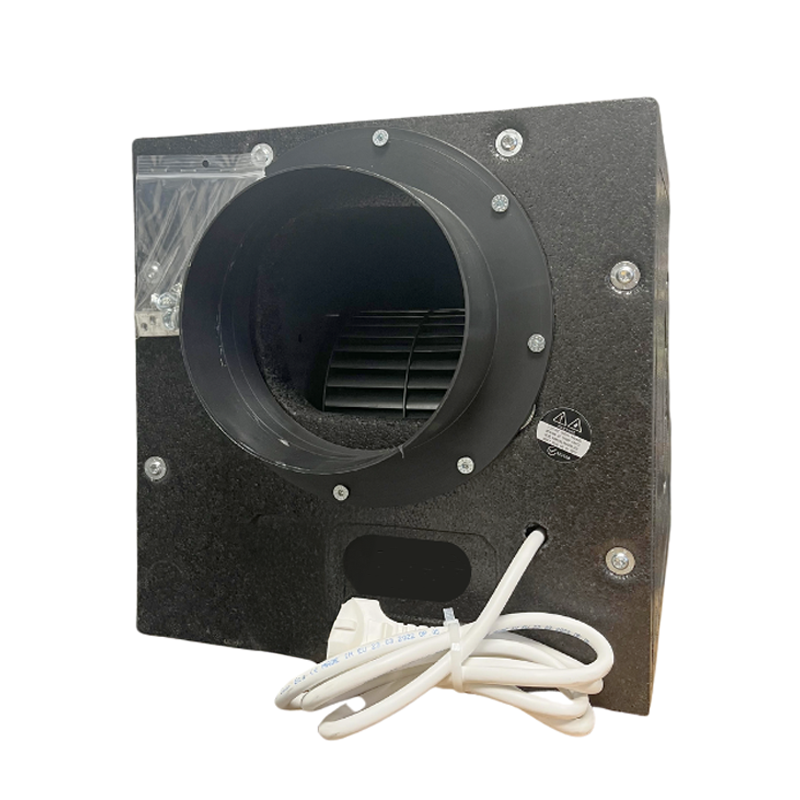

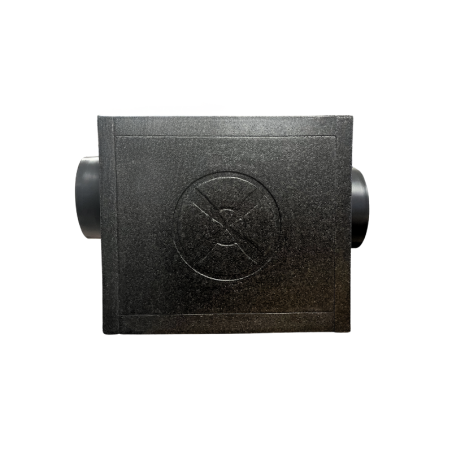

VMC Unit 750 m³/h - Compact - Lightweight - Affordable - Quiet

  • On sale!
750 m³/h mechanical ventilation unit
750 m³/h 230 V VMC Unit
Habitat 750 VMC Unit
750 Commercial VMC Unit
750 m³/h mechanical ventilation unit
750 m³/h 230 V VMC Unit
Habitat 750 VMC Unit
750 Commercial VMC Unit

750 m³/h ventilation unit, ideal for replacing a (non-C4) unit such as the VIM kmdt, ALDES Easyvec, etc.

- Inlet/outlet dimensions: D 200 mm
- L 320 x W 370 x H 320 mm
- 230V - 1.2A - 330W - 760 m³/h (at 0 pa)
- Quiet at 31 dB and lightweight at 5 kg
- Horizontal mounting, indoor installation.
- Thick polypropylene panels and galvanized steel motor housing
- Removable opening secured with screws
- Galvanized circular duct connectors included (200, PVC).
- Direct-drive fan unit
- Not compatible with a range hood or a public access building (C4 F400-compliant unit)

For more power and indoor/outdoor installation:VMC HOUSING 800 M3H

Last items in stock
Quantity
208.00 218.00 Tax excluded
249,6 € TTC
Last items in stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Extra-flat Motorized Exhaust Unit for VMC 700

Benefits of the ultra-slim motorized unit (max 760 m³/h) for VMC:

  • • Exhaust unit with a maximum airflow rate of 760 m³/h
  • • Versatile motorized unit that can be used for exhaust (suction), supply (blowing), or transfer
  • • Ventilation unit with an extra-flat design allowing installation in tight spaces, ideal for drop ceilings or attics with low ceilings
  • • Easy-to-install unit for integration into controlled mechanical ventilation (CMV) systems, without requiring major construction work
  • • Motor unit designed to consume less energy while ensuring efficient ventilation of indoor spaces
  • • Helps renew indoor air, reducing CO₂ levels and pollutants for a healthier environment
  • • Constructed from durable yet ultra-lightweight materials

Product Details

Ventilsogood
caissonpoly750
Manufacturing
Made in Europe
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968988842
