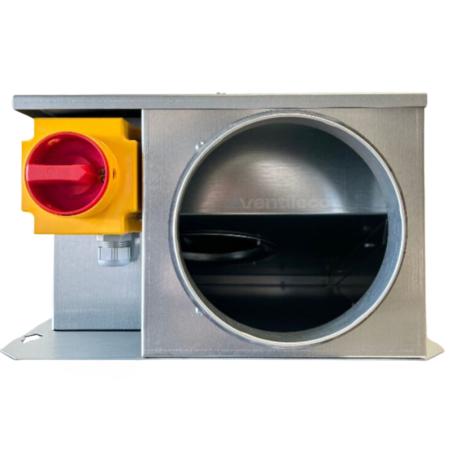

Ventilation unit for all rooms, mechanical ventilation system, 500 m³/h
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 3
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 4
Extra-thin cabinet, high performance
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 6
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 7

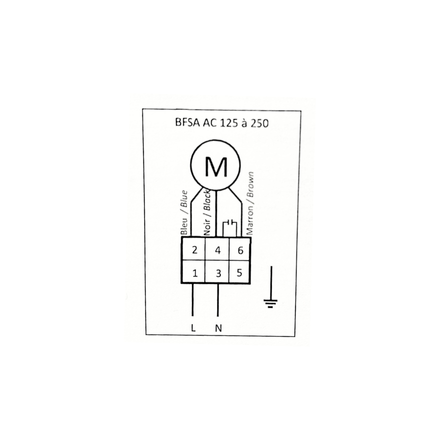

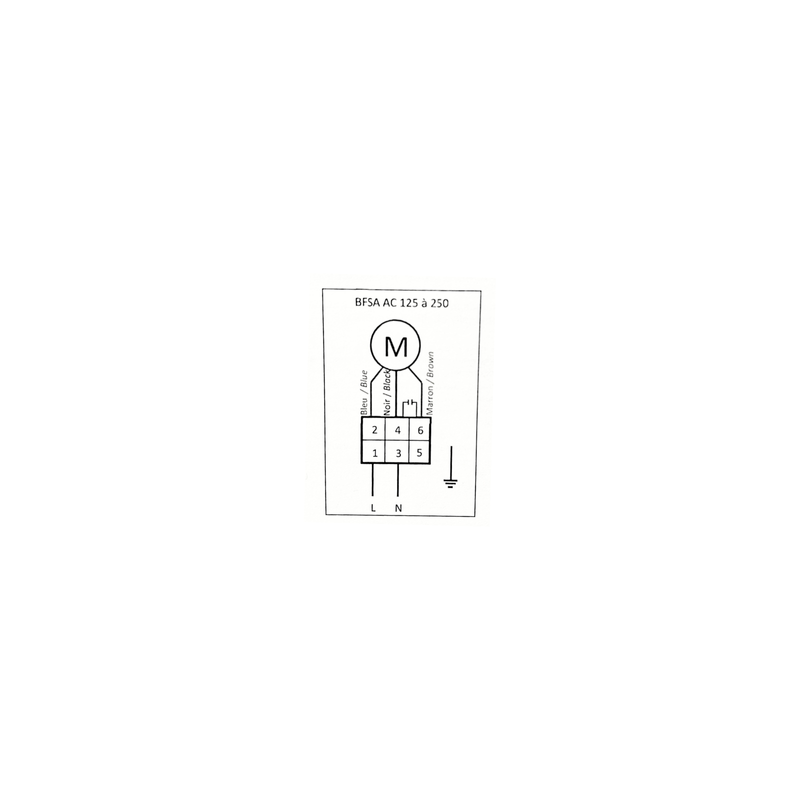

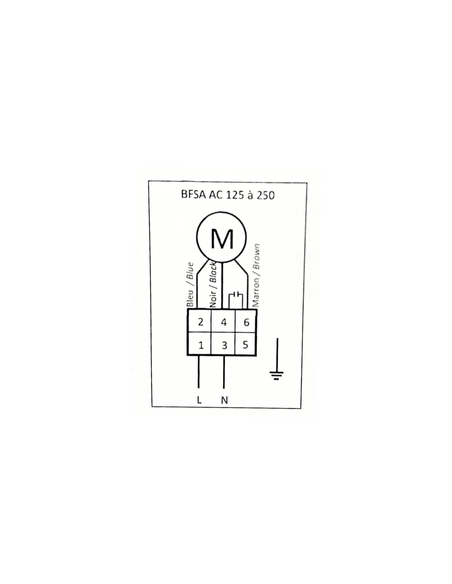

Extraction Chamber Diagram
Video
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm
Ventilation unit for all rooms, mechanical ventilation system, 500 m³/h
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 3
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 4
Extra-thin cabinet, high performance
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 6
Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm, vue 7
Extraction Chamber Diagram

The Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm (BFSA) slots into the tightest false ceilings and runs in extract, supply or transfer mode, with a 3 to 5 dB noise reduction over the standard version. Made in France, 1 year warranty.

  • Airflow: up to 700 m³/h
  • Spigot diameter: 200 mm
  • Power supply: 230 V single phase + earth
  • Power rating: 65 W (0.4 A)
  • Mounting: horizontal, indoor or outdoor
In stock
Quantity
405.00 435.00 Tax excluded
486 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

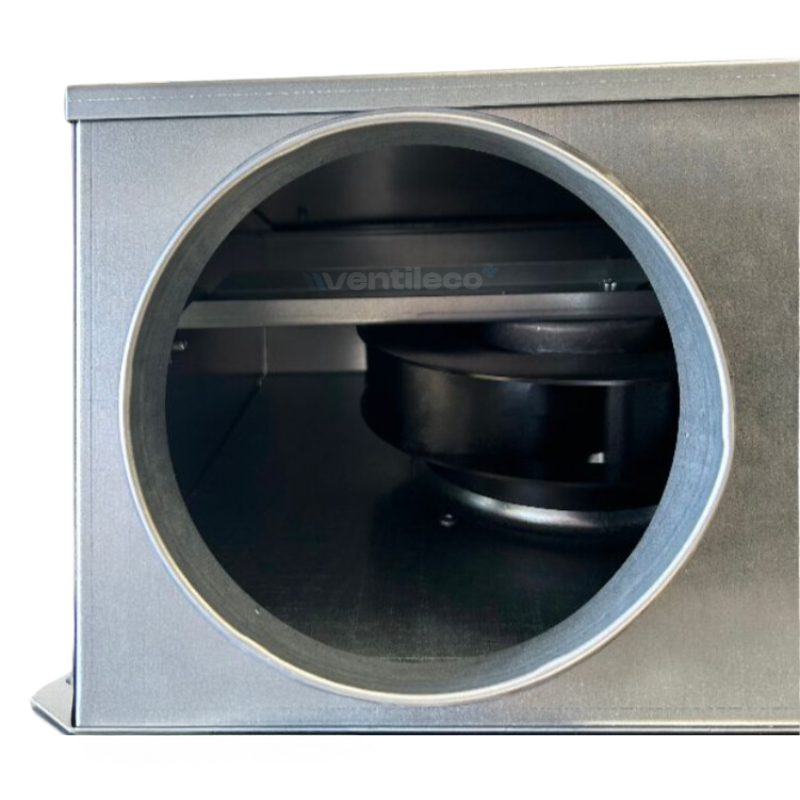

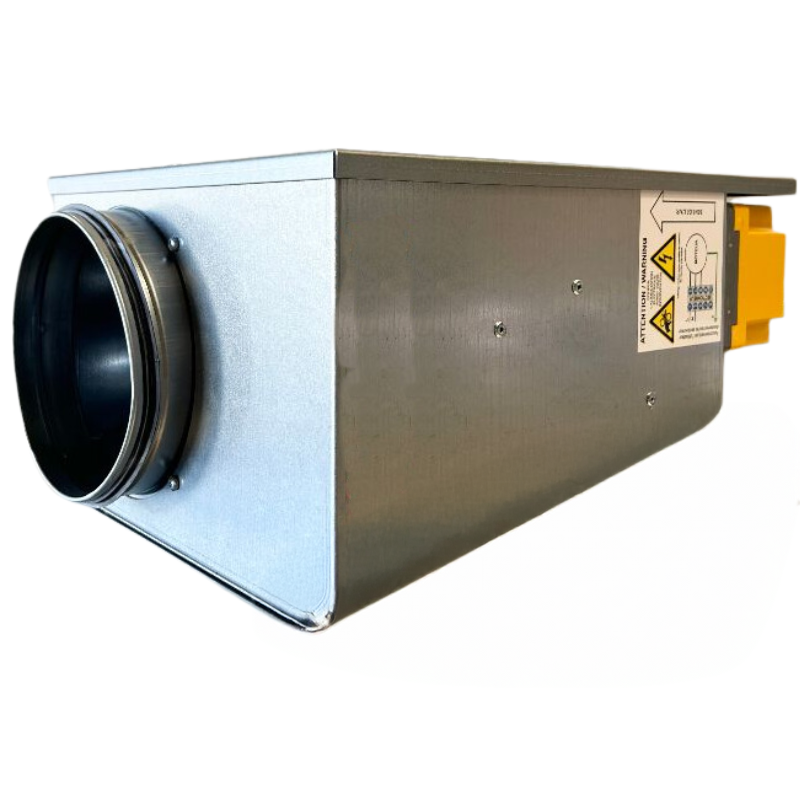

The Extra-flat, Soundproofed VMC Unit, 700 m³/h, D200 mm (BFSA) is a motorised extraction fan box designed for mechanical ventilation systems where available ceiling void height is limited. With its internal acoustic lining and galvanised steel panels, it runs quietly in a false ceiling or low loft space, whether used for extract, supply or transfer air.

Technical specifications of the extra-flat D200 fan box

Specification Value

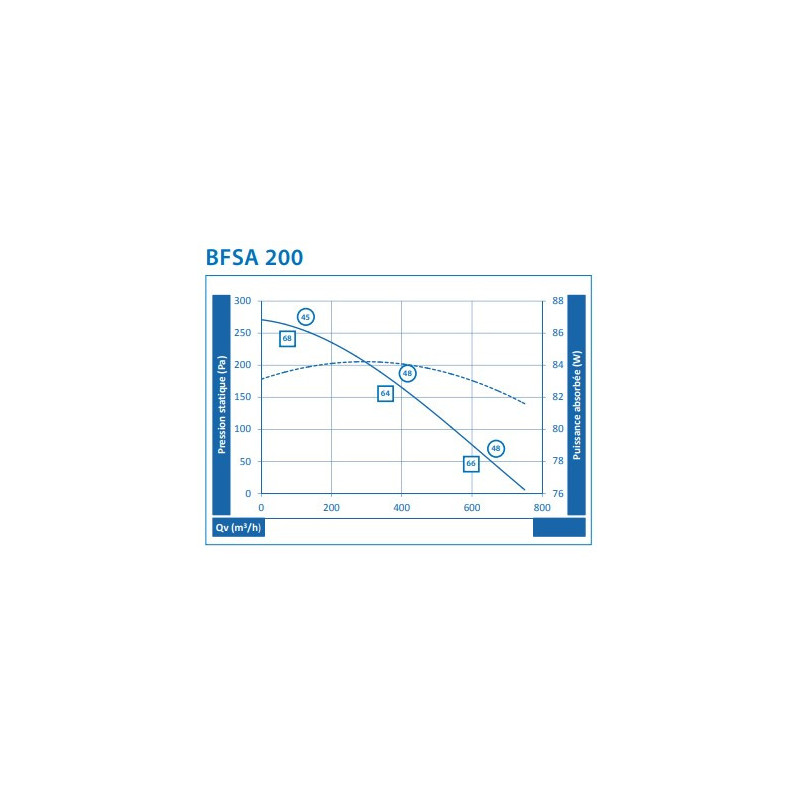

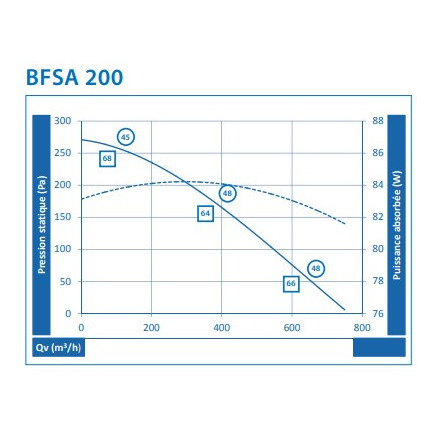

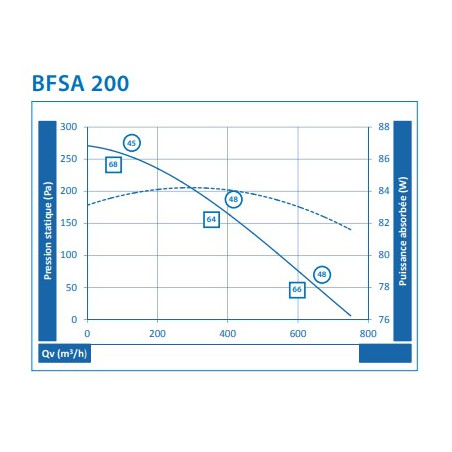

Airflow up to 700 m³/h (0.4 A, 65 W ≃ 750 m³/h)
Spigot diameter 200 mm

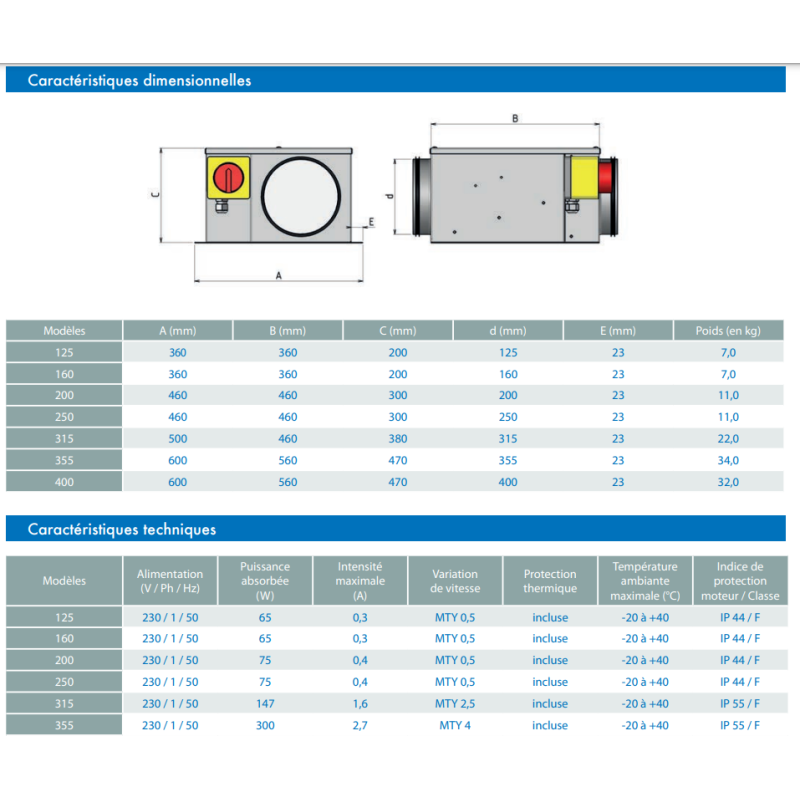

Dimensions (L x D x H) 460 x 460 x 300 mm
Power supply 230 V, single phase + earth, 50 Hz
Power / current 65 W, 0.4 A

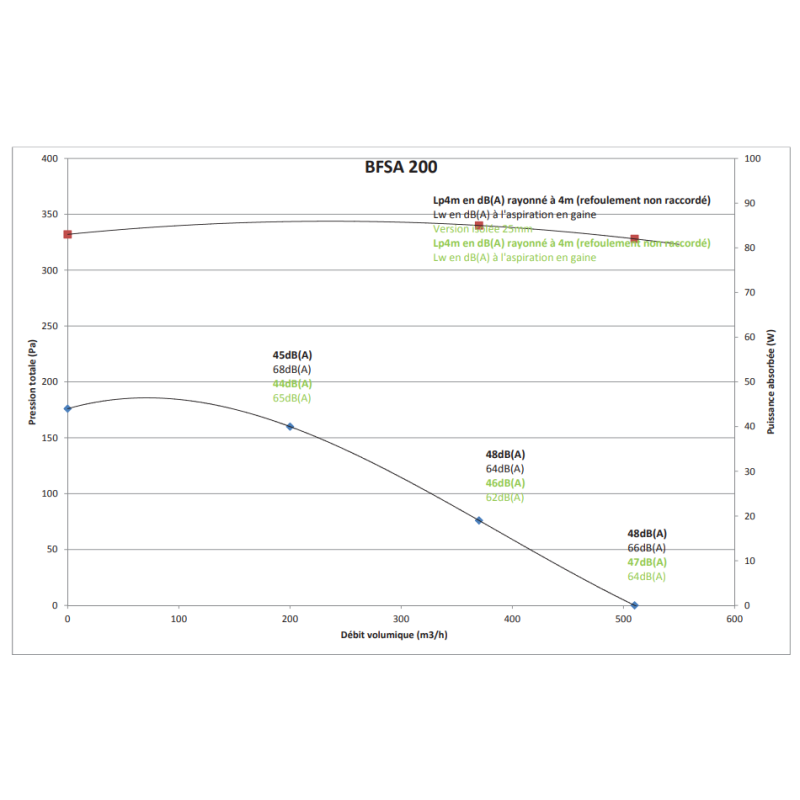

Soundproofing 3 to 5 dB reduction compared with the standard version, depending on installation and ductwork
Motor direct-drive fan motor unit, built-in thermal protection
Construction galvanised steel panels, internal acoustic lining, removable cover
Manufacture Made in France
Warranty 1 year

A versatile unit for your mechanical ventilation systems

This BFSA extraction fan box operates in three modes: extract, supply or transfer. This makes it a practical choice for offices, communal toilets or commercial premises, where the same unit can be used whichever way it is connected. The circular spigots are fitted with lip seals for a clean connection to your existing ductwork, and the unit remains compatible with common mechanical ventilation systems such as Vim KMDT, Aldes Easyvec, Atlantic Critair or France Air Sirius.

Soundproofing that also reduces vibration

Compared with the standard version of the same unit, this soundproofed version provides a 3 to 5 dB reduction, varying according to installation and ductwork. The internal lining noticeably reduces vibration transmitted to the building structure, a benefit when the unit is installed directly above an office or occupied room. To further limit noise transmission to the ductwork, we recommend isolating the unit from the ducting with a flexible connector.

Installation and connection

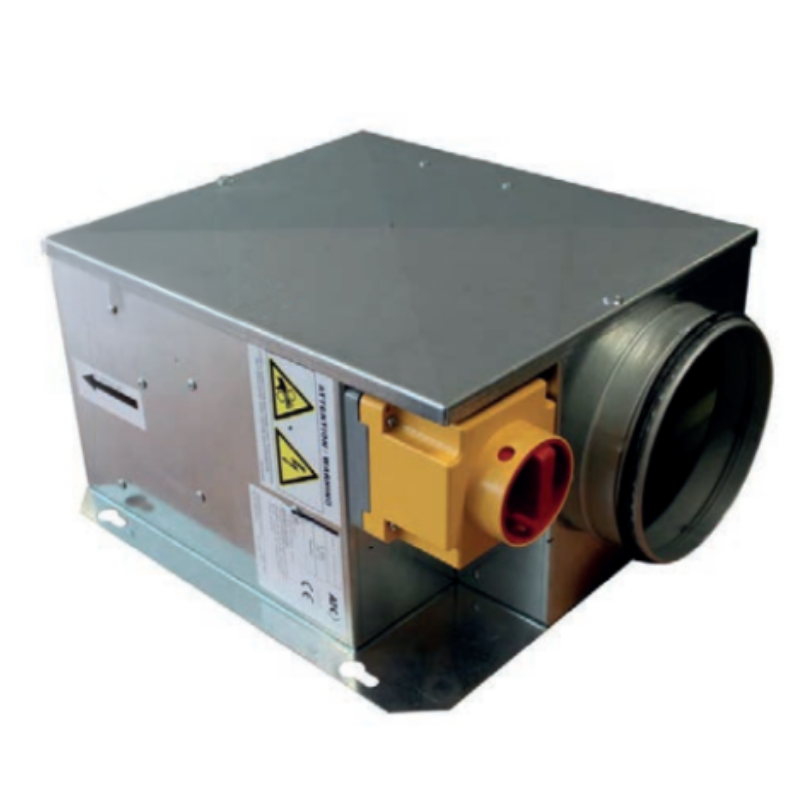

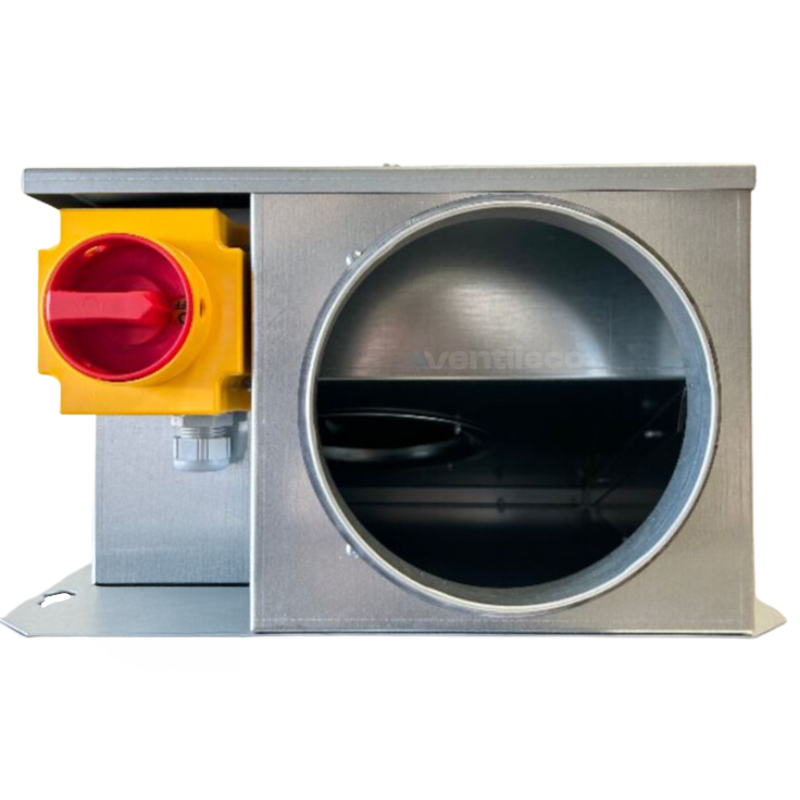

The unit is designed for horizontal mounting, indoors or outdoors. It is supplied with a local isolator switch pre-fitted and wired, along with a cable gland to simplify the electrical connection. The feet with fixing points stabilise the unit when installed in a false ceiling. The removable cover, held by screws, gives easy access to the motor for maintenance. Electrical connection must be carried out by a qualified electrician: this is a condition of the warranty.

Points to check before ordering

  • Connection diameter: this model is designed for 200 mm ductwork, so check against your existing ducting.
  • Airflow required for your space: for a bathroom or office, 700 m³/h is often a useful reference figure, but actual airflow depends on the ductwork (length, bends, pressure losses).
  • Available ceiling void or loft height: check the unit's dimensions (300 mm height) before installation.
  • Available power supply: this unit runs on 230 V single phase, so check your electrical installation before ordering.
  • Required operating mode (extract, supply or transfer) to connect the ductwork the right way round.

Often bought together

Need a higher airflow? See the Extra-flat, Soundproofed VMC Unit, 800 m³/h, D250 mm, or for a lower airflow requirement, the Extra-flat, Soundproofed VMC Unit, 450 m³/h, D125 mm.

Product Details

Ventilsogood
caissonextraplat200inso
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968603608

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Can the unit run in supply, extract or transfer mode?

Yes, this extra-flat VMC unit is versatile: it can run in extract, supply or transfer mode, depending on how the ductwork is connected during installation.

What is the difference between the standard and soundproofed versions?

The soundproofed version of this BFSA unit provides a 3 to 5 dB reduction compared with the standard version, depending on installation and ductwork. It also noticeably reduces vibration transmitted to the structure, which is useful when the unit is installed above an occupied room.

What diameter and airflow do I need for my premises?

This model connects to 200 mm ductwork for airflow up to 700 m3/h, a common reference figure for communal toilets or offices. Actual airflow always depends on the ductwork: duct length, bends and pressure losses all affect the final result.

Is the unit compatible with my existing VMC system, such as Vim KMDT or Aldes Easyvec?

Yes, this unit is compatible with common mechanical ventilation systems such as Vim KMDT, Aldes Easyvec, Atlantic Critair or France Air Sirius, thanks to its circular spigots fitted with lip seals.

Who should carry out the electrical connection?

The unit is supplied with a local isolator switch pre-fitted and wired, along with a cable gland, but the electrical connection must be carried out by a qualified electrician: this is a condition for the 1 year warranty to apply.
