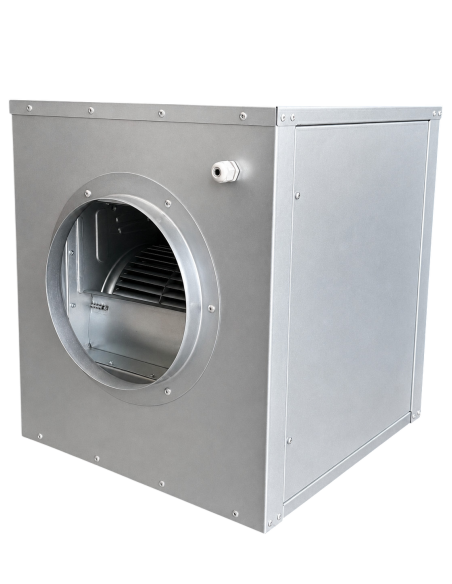

Soundproofed Motor Enclosure REFERENCE: 2100 m³/h, 220 V

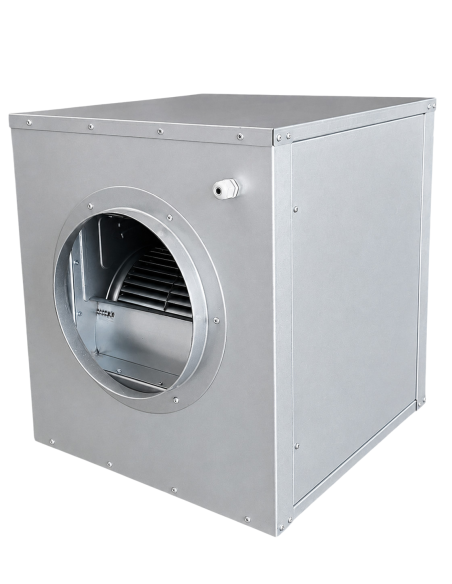

Combisteel Extraction Box

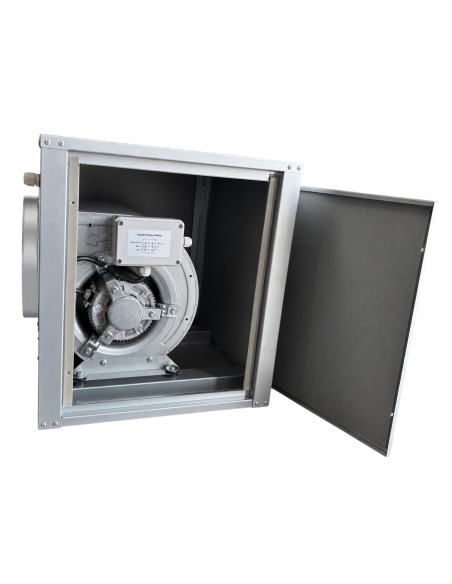

Combisteel engine housing
Soundproofed Motor Enclosure REFERENCE: 2100 m³/h, 220 V, vue 3
Soundproofed Motor Enclosure REFERENCE: 2100 m³/h, 220 V, vue 4
Combisteel Extraction Box
Combisteel engine housing
Soundproofed Motor Enclosure REFERENCE: 2100 m³/h, 220 V, vue 3
Soundproofed Motor Enclosure REFERENCE: 2100 m³/h, 220 V, vue 4

The Soundproofed Motor Enclosure REFERENCE: 2100 m³/h efficiently extracts steam, smoke and odours from a stainless steel hood of 1 to 2 metres or from a mechanical ventilation system serving commercial premises. Soundproofed internally, it runs throughout service without losing performance.

  • Max airflow: 2100 m³/h
  • Power: 250 W / 3.3 A
  • Supply: 230 V single phase
  • Outlet spigot: Ø 250 mm
  • Protection rating: IP54
In stock
Quantity
288.00 Tax excluded
345,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

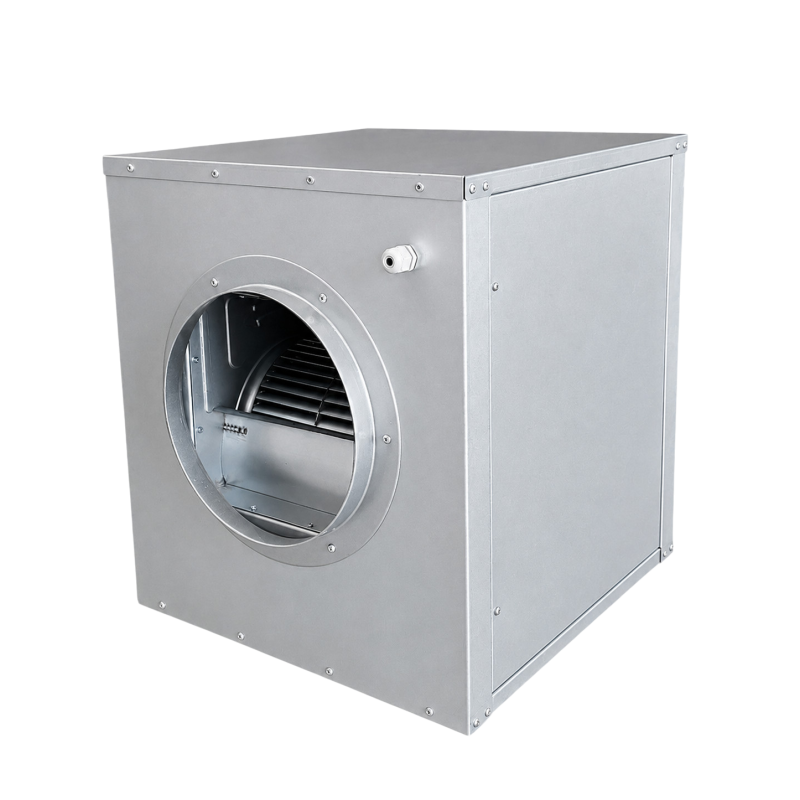

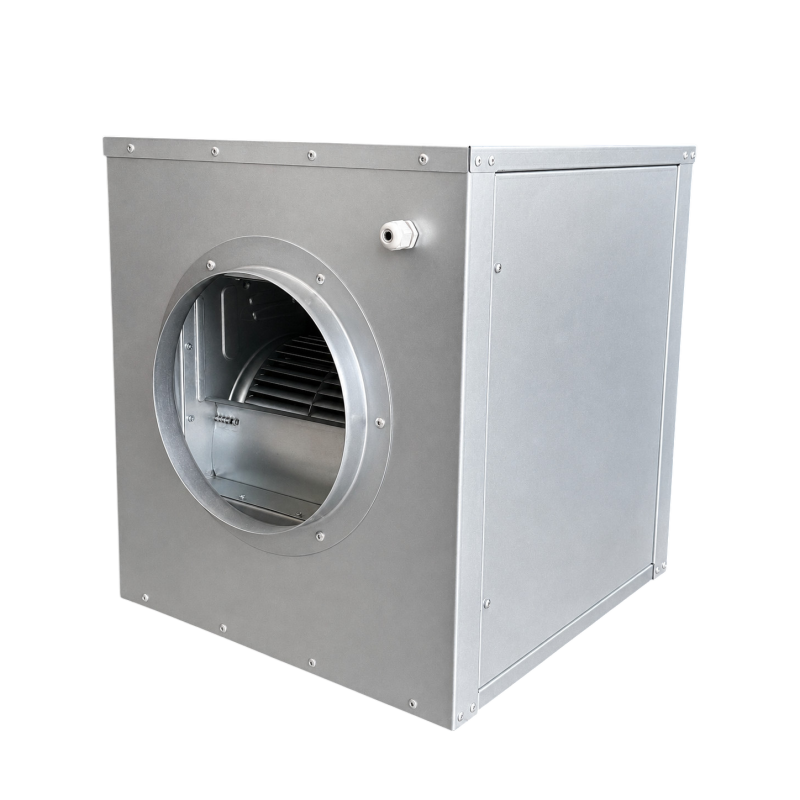

The Soundproofed Motor Enclosure REFERENCE: 2100 m³/h is a motorised extraction fan box fitted with a double-inlet centrifugal fan 7/7, designed to extract greasy steam, smoke and cooking odours from a stainless steel commercial extraction hood, or to ventilate premises via a professional mechanical ventilation system.

Technical specifications of the 2100 m³/h motor enclosure

Specification Value
Maximum airflow 2100 m³/h
Power 250 W
Current 3.3 A
Supply 230 V single phase
Protection rating IP54
Outlet spigot Ø 250 mm (already fitted)
Dimensions L 460 x D 460 x H 500 mm
Weight 18 kg (package 15 kg)
Manufacturing Europe
Warranty 1 year

Use and compatibility: restaurant hood or mechanical ventilation for premises

This motor enclosure is ideally sized for a commercial extraction hood of 1 to 2 metres in a restaurant, fast-food outlet, kebab shop, snack bar, food truck, crêperie or brasserie. It is also suitable for mechanical ventilation of premises with 15 to 30 extract points, or for extraction in a shisha bar.

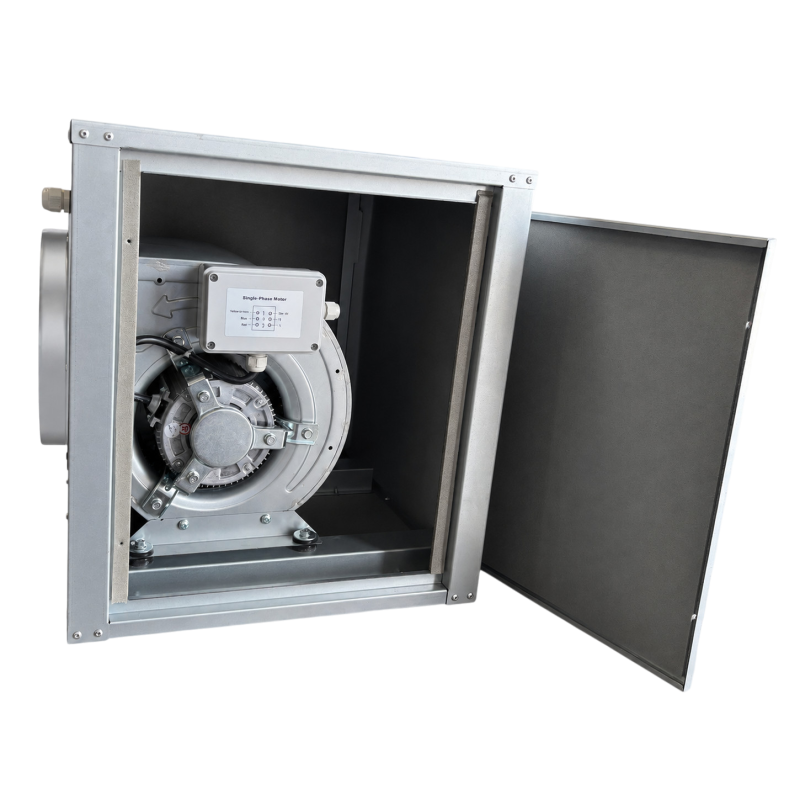

The galvanised enclosure is insulated internally to limit noise transmitted by the motor, a real advantage when the extraction is relocated to the loft or a plant room rather than leaving the motor in the kitchen. It operates in extraction as well as supply mode depending on the installation chosen.

This enclosure does not meet F400/120 smoke extraction requirements (400°C / 120 min): it is a standard centrifugal motor, to be used only on installations that do not require this classification.

Installation and connection

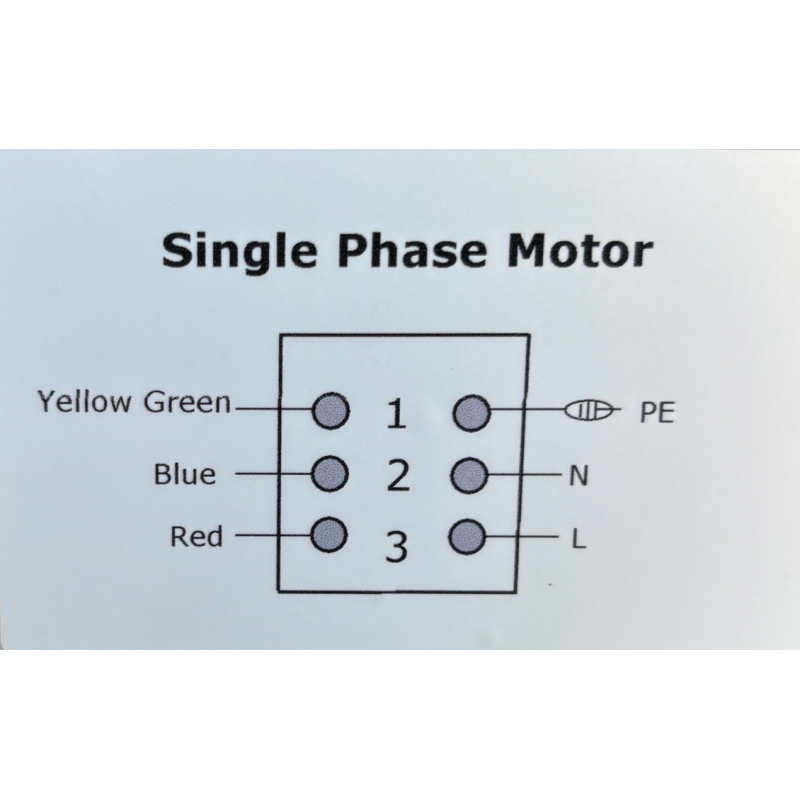

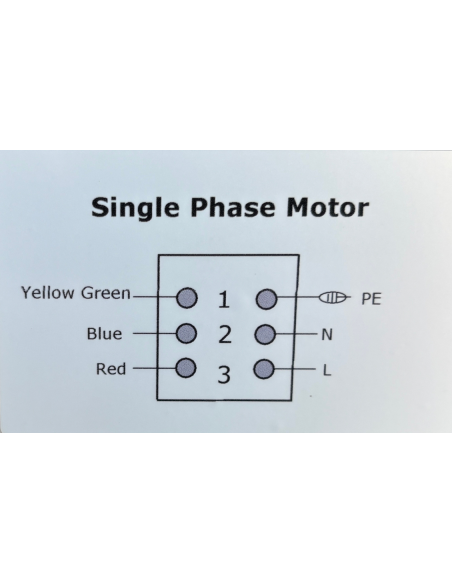

The Ø 250 mm outlet spigot is already fitted on the enclosure. The air inlet still needs to be created by the installer, on one of the faces of the enclosure, in line or at 90° depending on the ductwork configuration. The enclosure includes an electrical junction box.

Electrical connections must be carried out by a qualified professional: this is a condition of the 1 year warranty.

Points to check before ordering

  • Length of the hood to be served: this enclosure is intended for hoods of 1 to 2 metres, to be adjusted according to the cooking load and equipment power.
  • Number of extract points for mechanical ventilation of premises: guideline of 15 to 30 extract points, to be recalculated based on the ductwork.
  • Duct diameter and length, number of elbows: significant pressure losses reduce the actual airflow compared to the maximum airflow of 2100 m³/h.
  • Sufficient fresh air inlet to complement extraction, to avoid negative pressure and additional noise.
  • Need for F400/120 smoke extraction: this enclosure is not suitable for this use, a dedicated F400/120 roof fan should be considered instead.

To combine with

Need a different airflow within the same range? Browse all motorised extraction fan boxes in this category.

Product Details

Ventilsogood
box77250inso
Manufacturing
Made in Europe
Warranty
1 year
Package weight
15 kg
Engine
Motorized cabinet
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
Cabinet Type
Enclosure with motor
0657968959552

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is this 2100 m³/h motor enclosure compatible with an F400/120 smoke extraction installation?

No. This enclosure is fitted with a standard centrifugal motor and does not meet F400/120 smoke extraction requirements (400°C / 120 min). For an installation requiring this classification, a dedicated F400/120 roof fan or enclosure is needed, to be checked against the regulations applicable to your project.

What size of hood is suitable for this 2100 m³/h motor enclosure?

This enclosure is sized, as a guideline, for a stainless steel commercial extraction hood of 1 to 2 metres. The actual airflow required also depends on the cooking power, the duct diameter and length, the number of elbows, and the fresh air inlet available.

What is the difference between this 2100 m³/h enclosure and the neighbouring 1850 or 2600 m³/h references?

These enclosures in the REFERENCE range are distinguished by their maximum airflow: the higher the airflow, the larger the hood size or the greater the number of extract points that can be served in a mechanical ventilation system. The choice depends on the actual need calculated for your ductwork, not solely on the stated airflow.

Which speed controller should be used to adjust this motor enclosure?

The enclosure runs on 230 V single phase, compatible with a fan speed controller sized to the motor current, such as the Base 4.5 A controller designed for 7/7, 7/9 and 8/9 double-inlet centrifugal fans.

Is this enclosure suitable for mechanical ventilation of premises rather than a kitchen hood?

Yes, this motor enclosure is also suitable for a professional mechanical ventilation system serving, as a guideline, 15 to 30 extract points depending on the ductwork. It can also be used for extraction in a shisha bar.
