Motorized Ventilation Unit, 720 m³/h, 220 V, VMC Commercial Rang Hood

/h 720 m³ Motorized Ventilation Unit for Air Extraction or Supply

This 720 m³ motorized ventilation unit/h is a compact and modular solution that makes it easy to set up anair extraction or supply system.

It can be used, for example, to ventilate a room, for a mechanical ventilation system, for air renewal, or to extract air from a small range hood, provided that the required airflow is compatible with the motor’s performance.

The unit is delivered as a kit to be assembled. This design allows you to freely choose the position of the connections and thus adapt the unit to the configuration of your ventilation system.

S&P, 720 m³ Motor/h

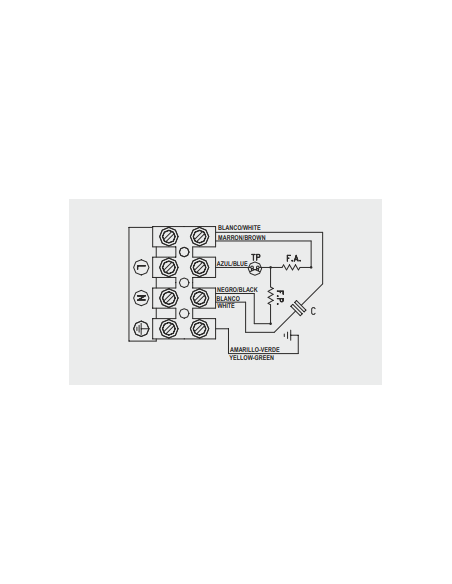

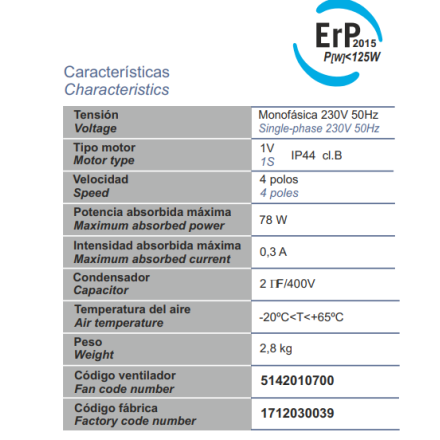

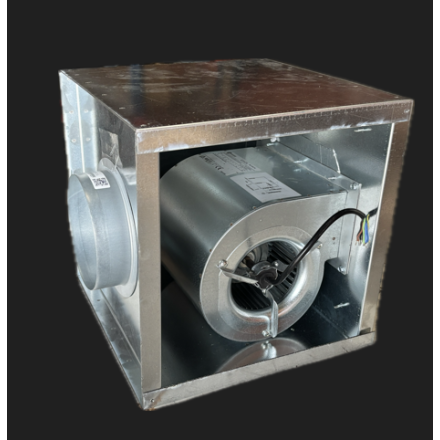

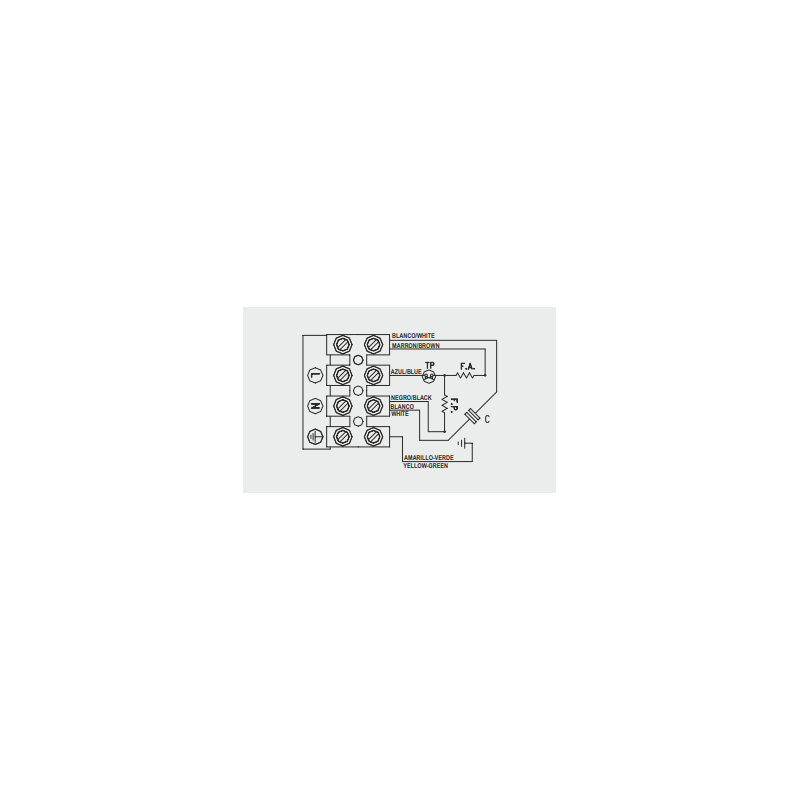

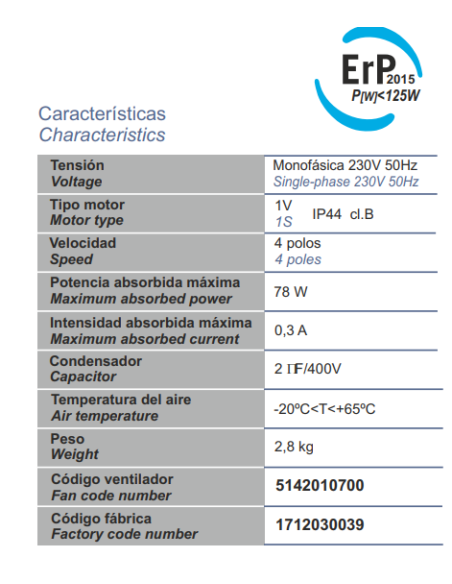

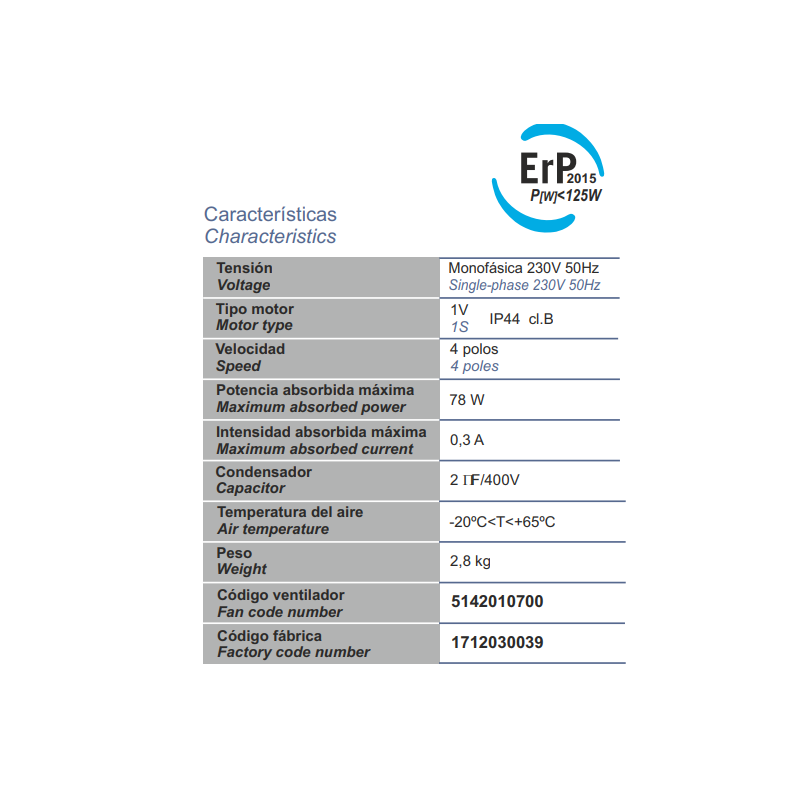

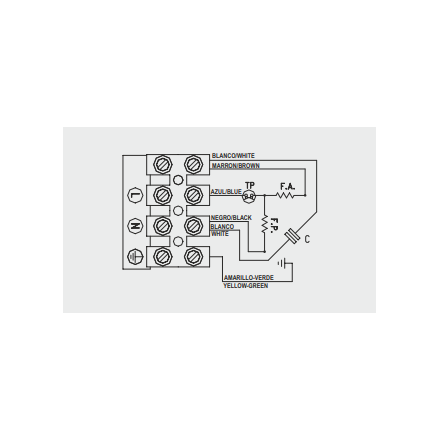

The kit is equipped with a S&P 133/190 motor operating on 230 V single-phase power.

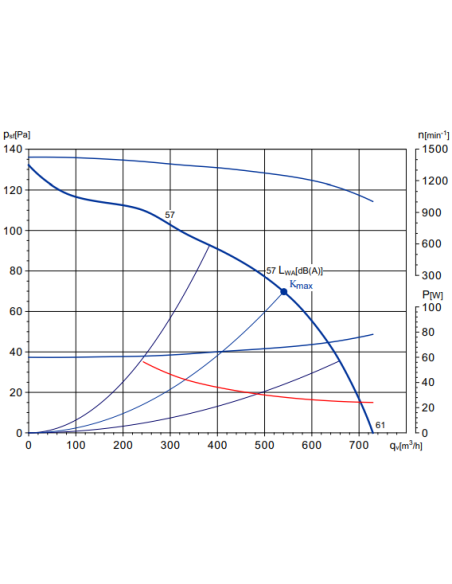

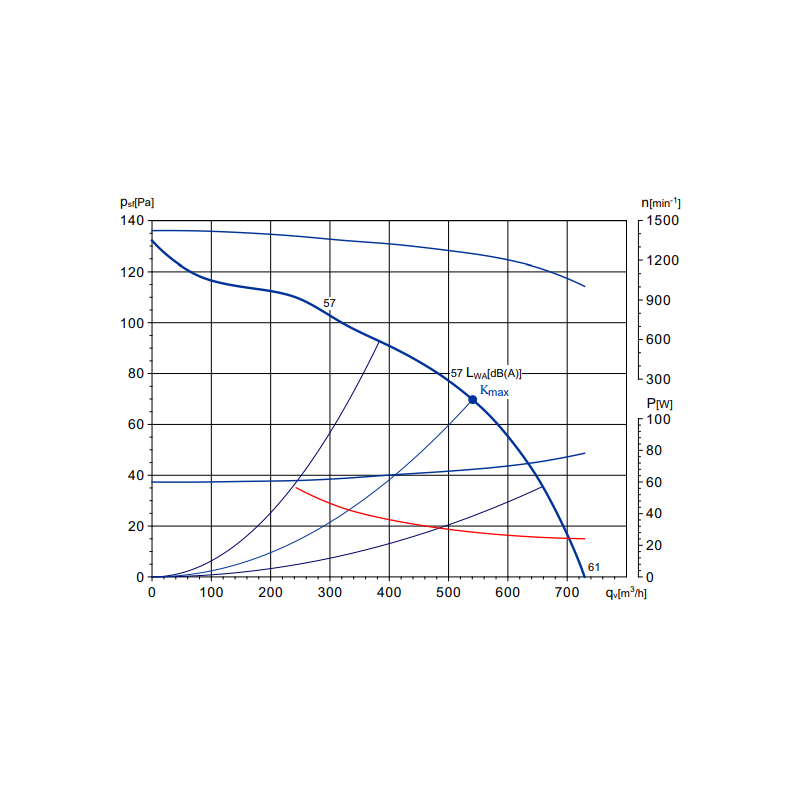

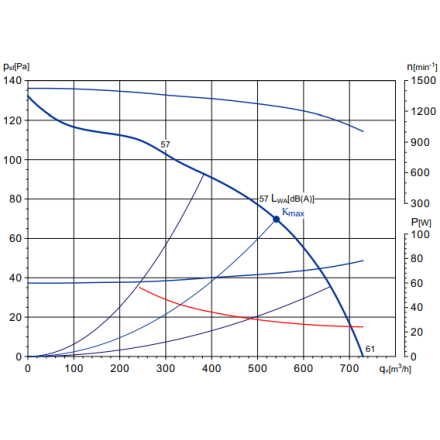

• Maximum airflow: 720 m³/h
• Power supply: 230 V single-phase
• Power: 90 W
• Current: 0.3 A
• Brand: S&P

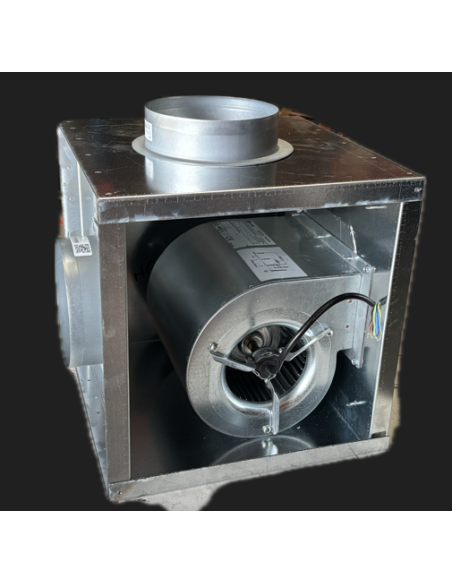

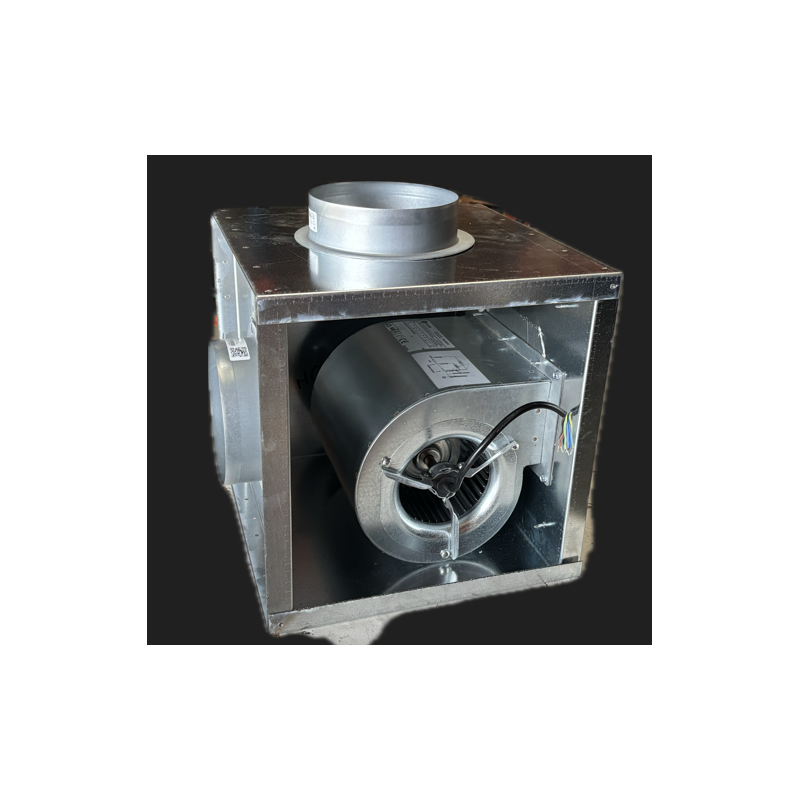

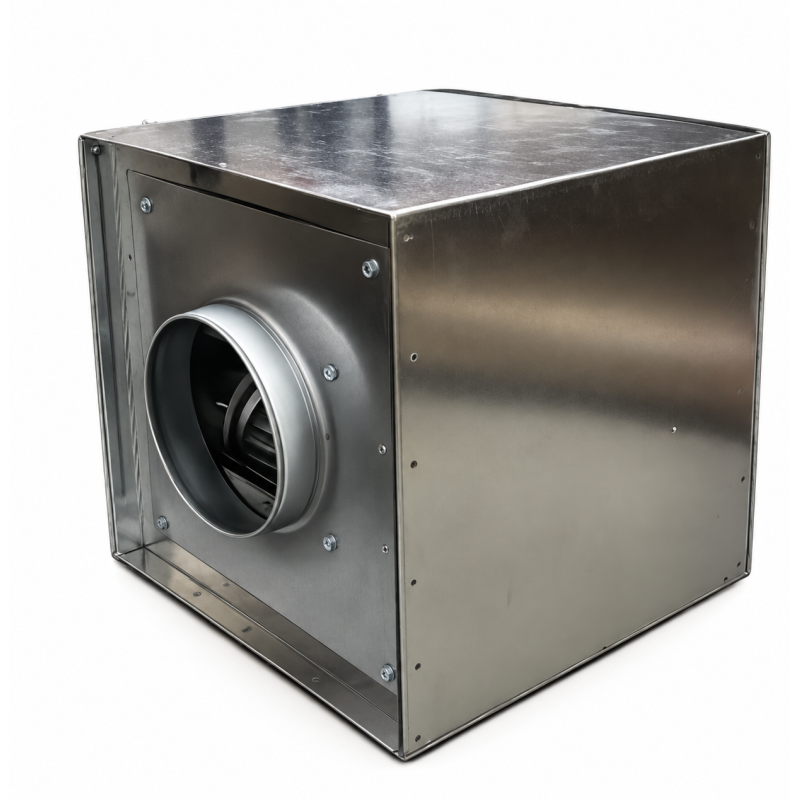

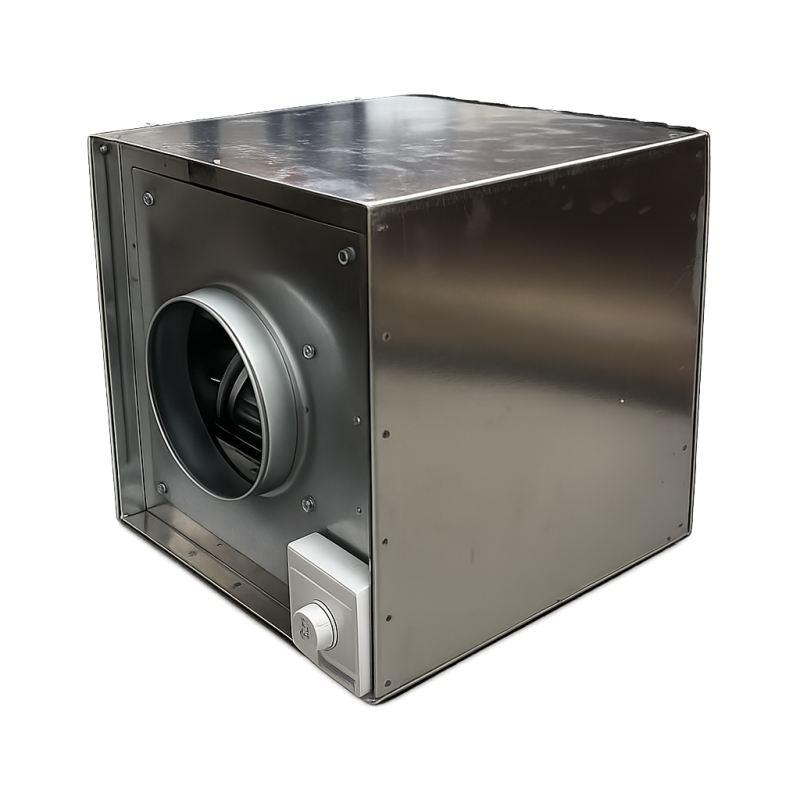

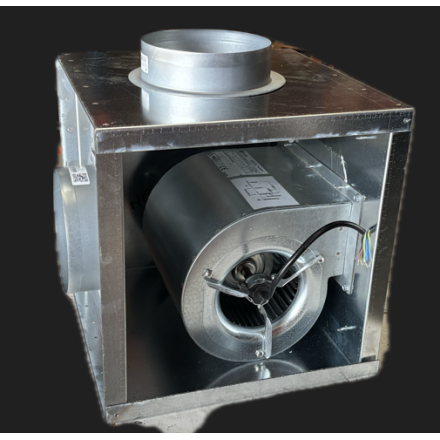

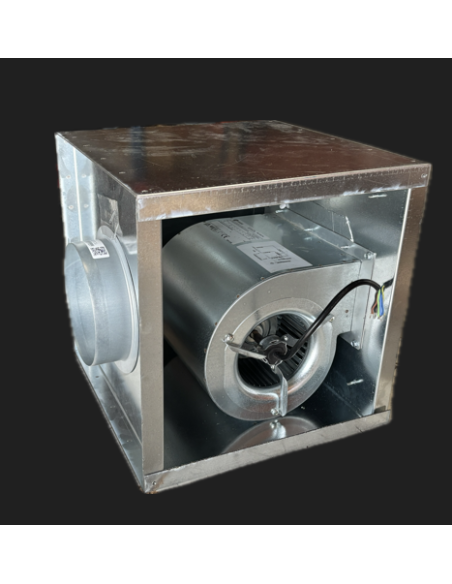

Compact galvanized steel housing

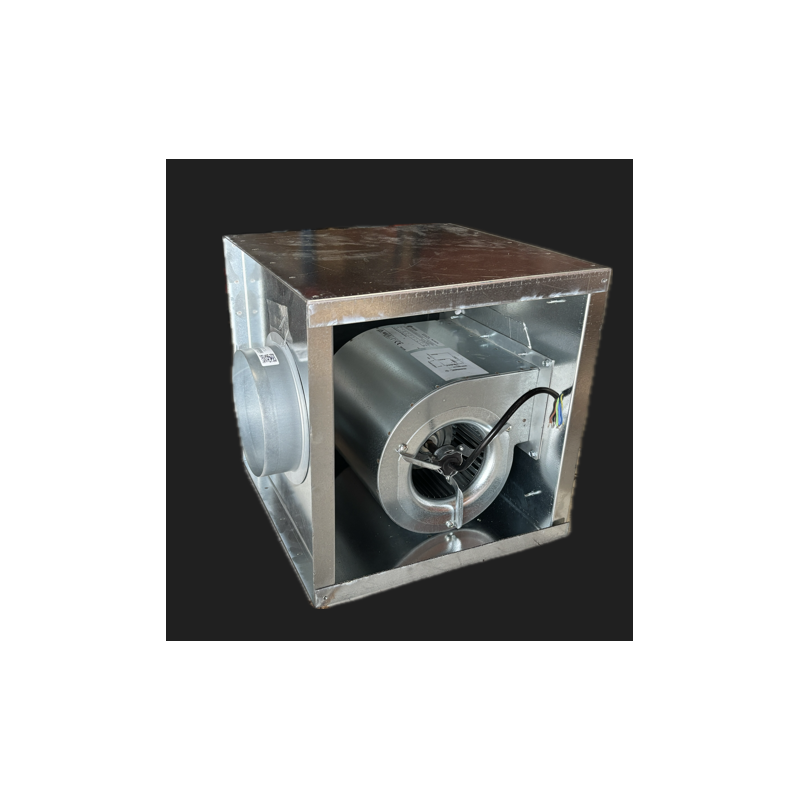

The motor is housed in a galvanized steel enclosure measuring approximately 350 x 350 x 350 mm.

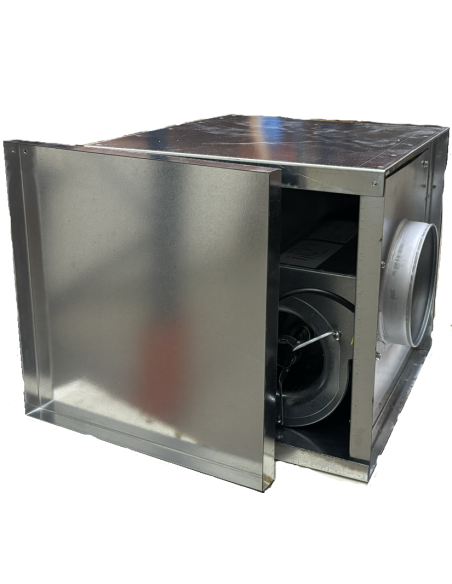

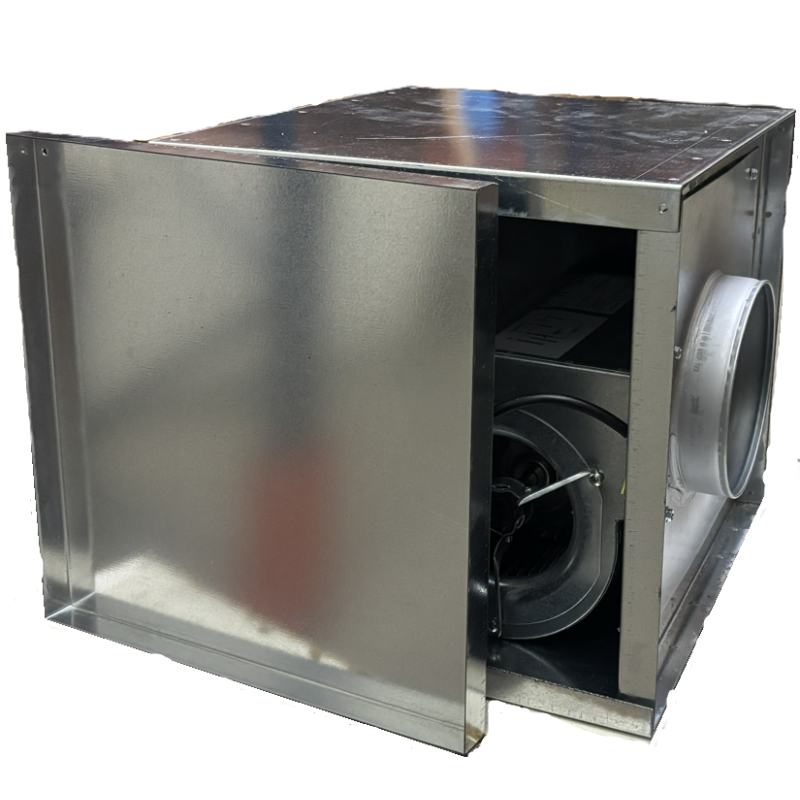

An access door provides easy access to the interior of the housing and the motor for installation, connection, and maintenance.

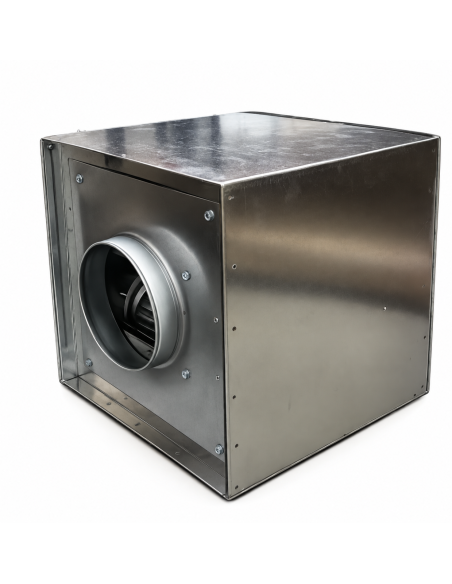

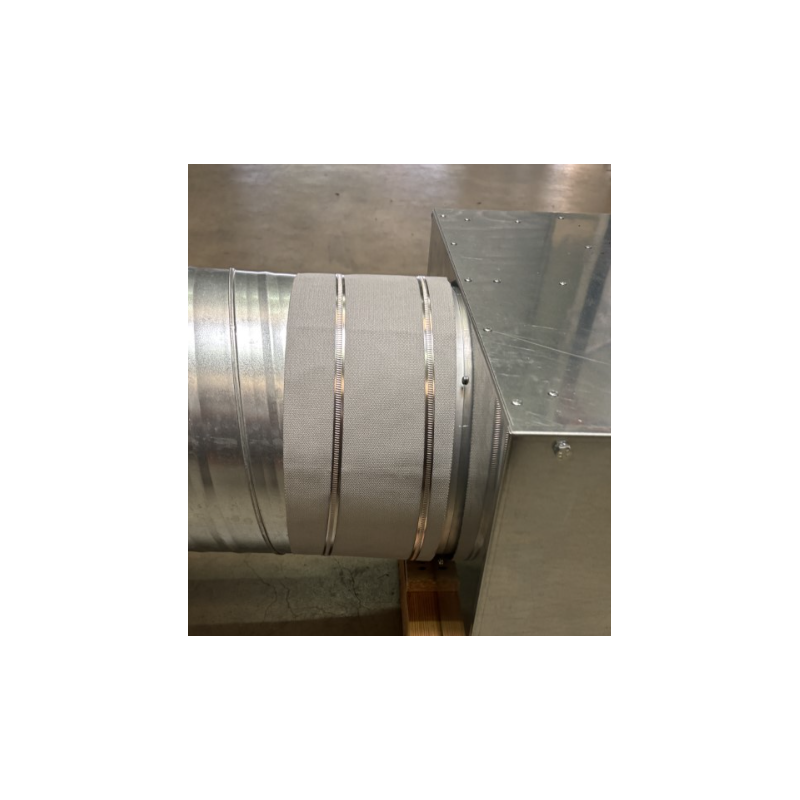

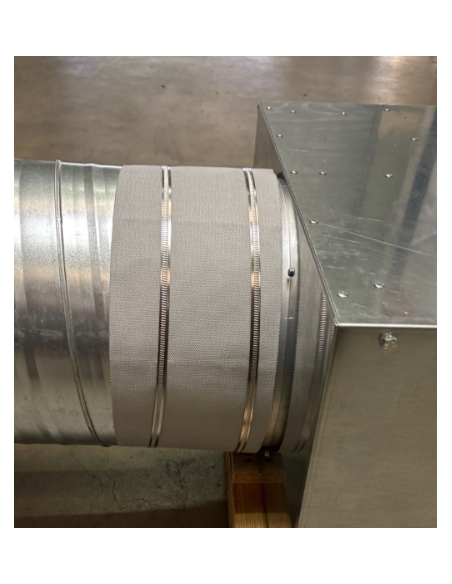

2 connection ports included – Ø125 to Ø250 mm

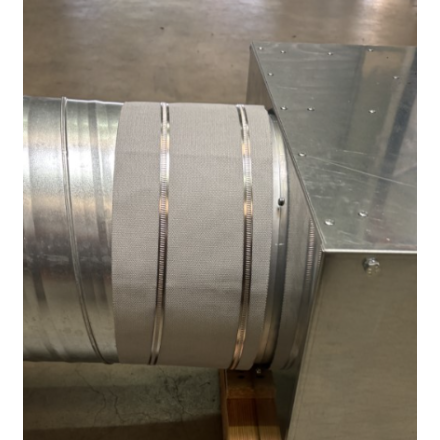

The kit includes 2 flat connection ports for connecting the housing to your ductwork or ventilation ducts.

Select the diameter when ordering from the following sizes:

• Ø125 mm
• Ø160 mm
• Ø200 mm
• Ø250 mm

Several air inlet and outlet configurations are available

One of the main advantages of this kit-style duct box is the ability to position the connections to suit your installation.

This allows for various configurations: in-line air inlets and outlets, 90° connections, dual inlets, triple inlets, or any other layout compatible with the unit and your ductwork system.

This modularity makes it easy to integrate the unit into a suspended ceiling, a utility room, a kitchen, or any other space where the ductwork configuration requires specific duct placement.

Air Extraction or Supply

Depending on the installation orientation and the configuration of your system, this unit can be used to extract air from a room or, conversely, to supply fresh air.

It is particularly suitable for:

• ventilation and air renewal in a room;
• a mechanical ventilation system;
• removing stale air;
• supplying fresh air;
• ventilating a kitchen or utility room;
• extraction from a small range hood when the required airflow is compatible with the maximum 720 m³/h.

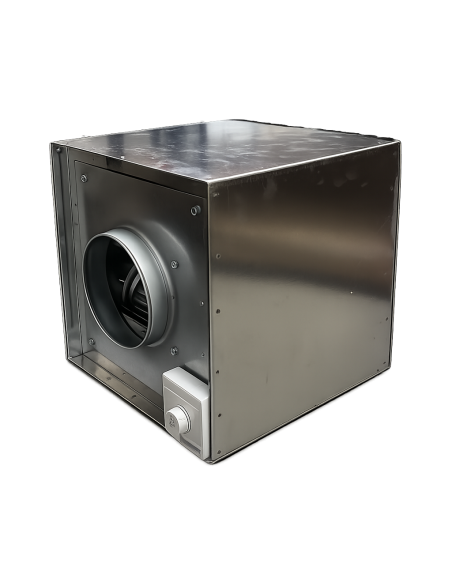

Electronic variable speed drive Available as an option

A compatible variable-speed drive can be added to gradually adjust the motor speed and adapt the airflow to the system’s needs.

This solution makes it possible, in particular, to reduce the airflow when maximum ventilation is not required.

Optional sound insulation

To improve the system’s acoustic comfort, self-adhesive sound insulation can also be added to the housing.

The sound insulation and the variable-speed drive are available separately among the related products at the bottom of the page.

Kit contents

• 1 motor S&P 133/190 – 720 m³/h
• 1 galvanized steel housing with access door
• 2 flat outlets in the selected diameter
• 15 self-tapping screws for assembly

IMPORTANT: This product is delivered as a KIT TO BE ASSEMBLED. The various components must be assembled and the connectors positioned during installation.

Find the variable-speed drive, sound insulation, and all compatible accessories in the “Related Products” section at the bottom of the page.
