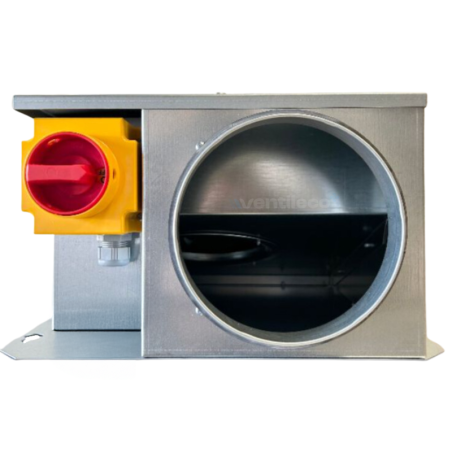

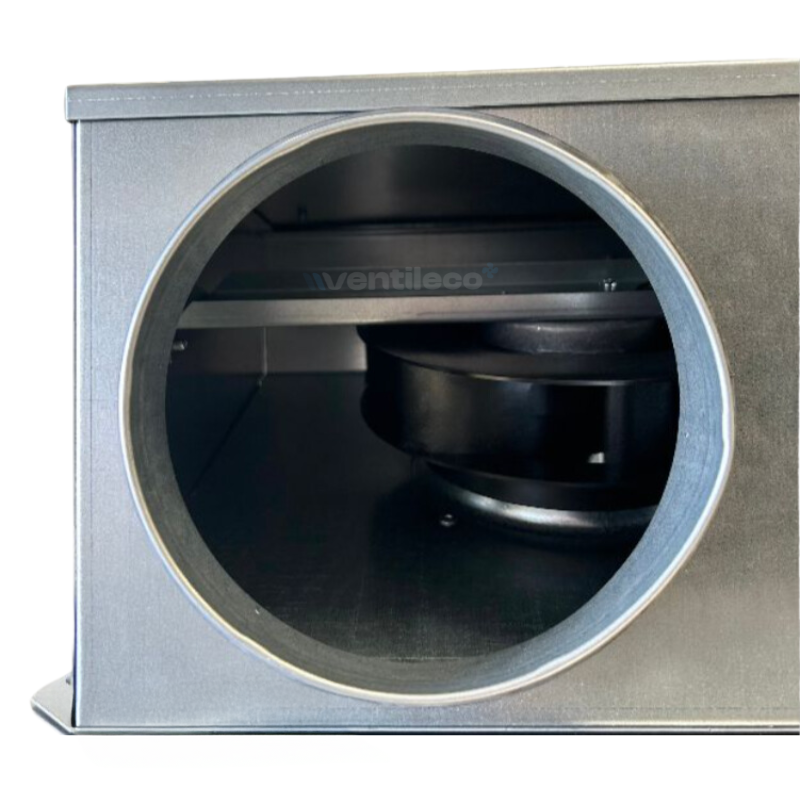

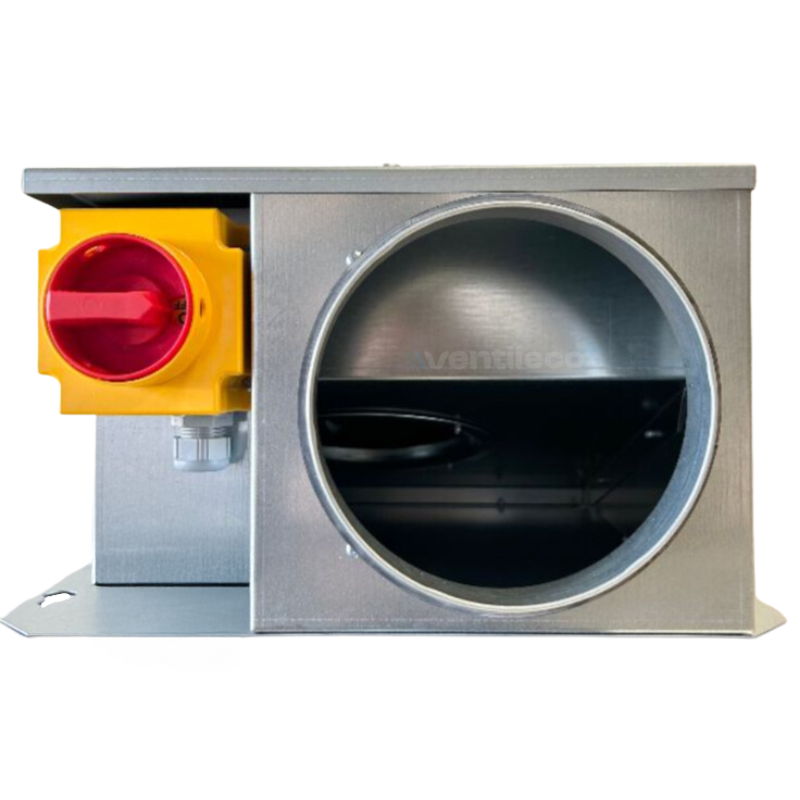

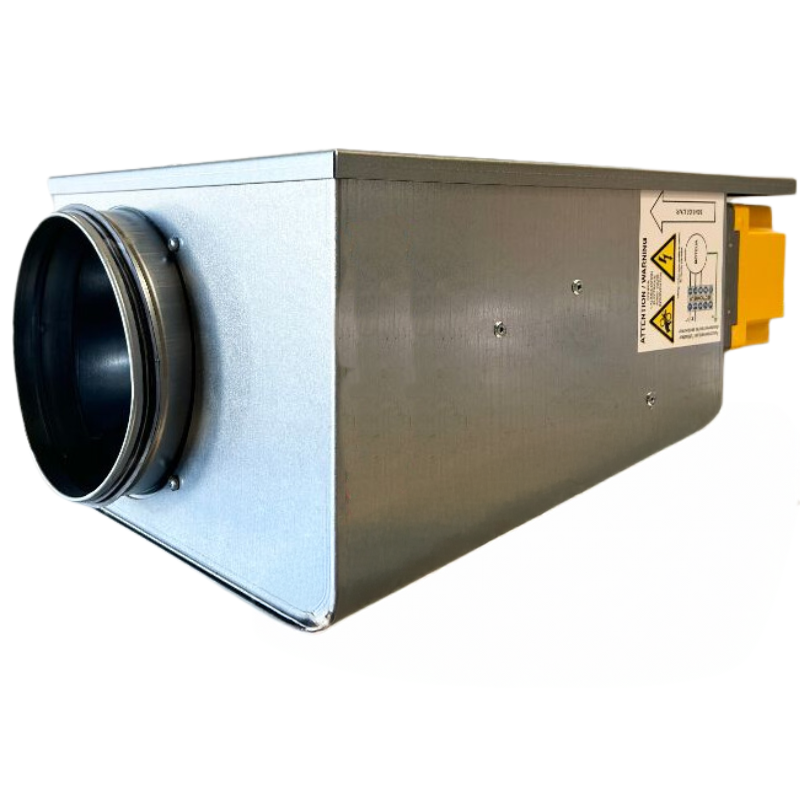

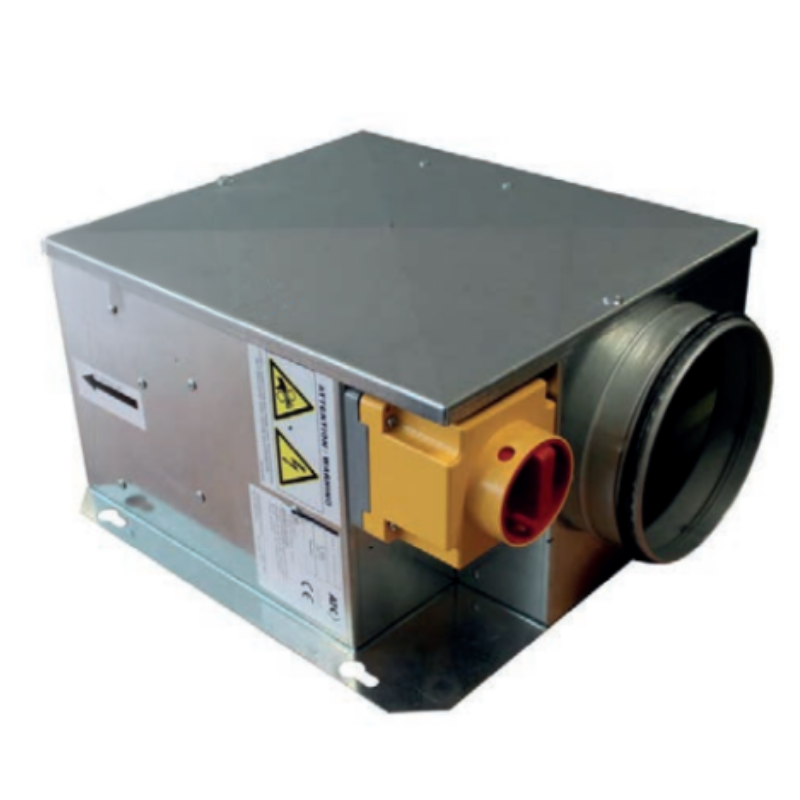

The extra-flat VMC exhaust unit, 450 m³/h, D125 mm, sound-proofed is a compact extraction fan box designed for ductwork where the available height is limited: it fits into a suspended ceiling, loft space or small plant room, while remaining quiet in use.
Technical specifications of the 450 m³/h D125 fan box
| Specification |
Value |
| Reference |
caissonextraplat125ISO |
| Brand |
Cairox |
| Airflow |
450 m³/h |
| Connection diameter |
D125 mm |

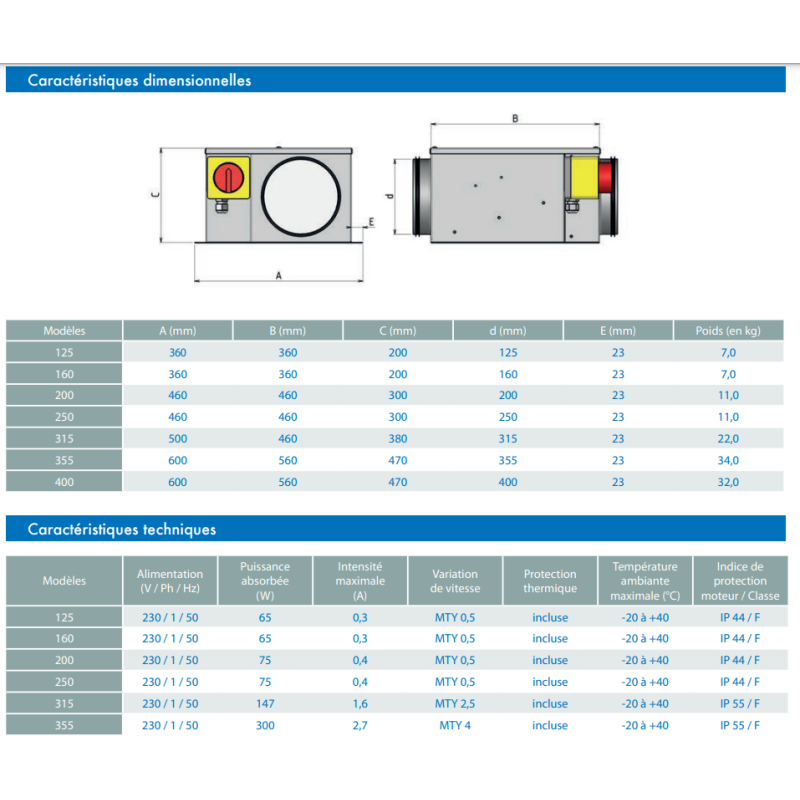

| Dimensions |
L 360 × D 360 × H 200 mm |
| Power supply |
230 V single-phase |
| Drive |
Motorised unit |
| Manufacture |
France |
| Warranty |
1 year |
| Weight |
8 kg |
Use and installation of the extra-flat unit
This extraction fan box is designed for the mechanical ventilation of residential or commercial premises: bathrooms/WCs, offices, corridors, small commercial spaces. It operates in extract mode, but can also be used for supply or transfer air depending on the mounting direction chosen on the ductwork. It is installed horizontally, indoors or outdoors, giving flexibility depending on the building layout. With its L 360 × D 360 × H 200 mm footprint, it fits easily into a standard suspended ceiling or a small loft space.
Installation and connection

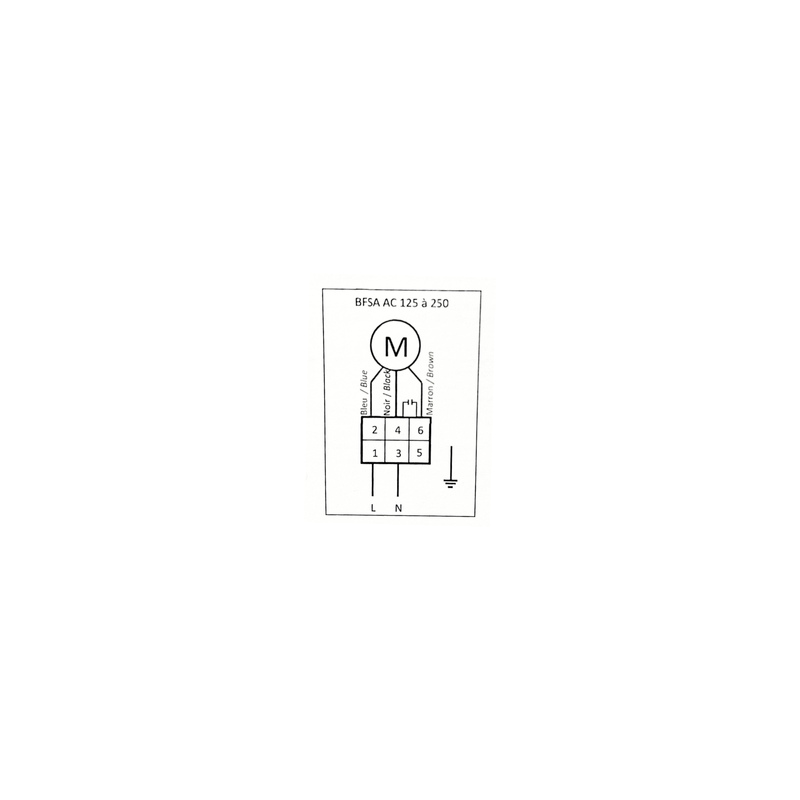

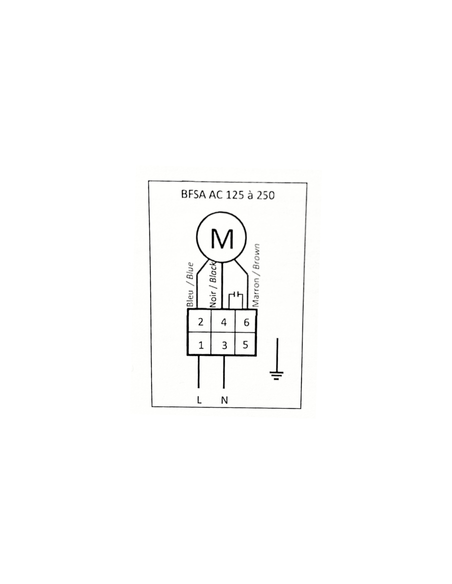

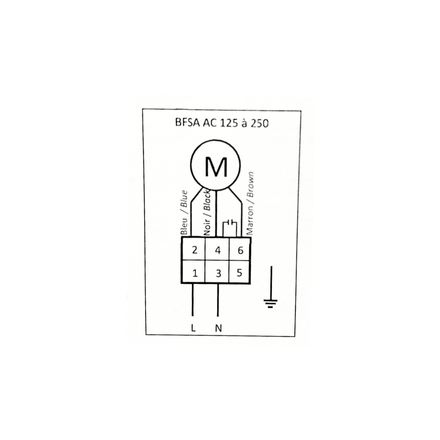

Connection is made in D125 mm to an existing circular duct or pipe. Allow sufficient clearance around the unit for maintenance access, even though its extra-flat design already keeps the footprint to a minimum. The electrical connection must be carried out by a qualified electrician: this is a condition for the warranty to remain valid.
Points to check before ordering
- The D125 mm diameter matches your existing ductwork or the pipe planned for installation.
- The airflow required for your premises is consistent with this unit's 450 m³/h: as a guide, a D125 diameter suits more modest airflows than a D160 or D200, depending on duct length and number of elbows.
- The space available in the suspended ceiling or loft allows for horizontal mounting of the unit, which measures L 360 × D 360 × H 200 mm.
- The 230 V single-phase power supply matches your electrical installation.
- An adequate air inlet is provided on the system: without one, actual airflow can drop and noise can increase.
Recommended with
Need a higher airflow for larger premises? The extra-flat VMC exhaust unit, 800 m³/h, D250 mm, sound-proofed takes over on more heavily loaded systems.
