Commercial Rang Hood Rectangular Pro (without motor), 1–6 m, 1.2 m projection

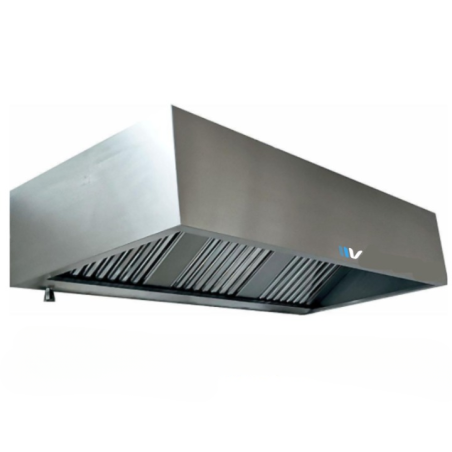

stainless steel kitchen hood, restaurant hood, rectangular central hood, central hood

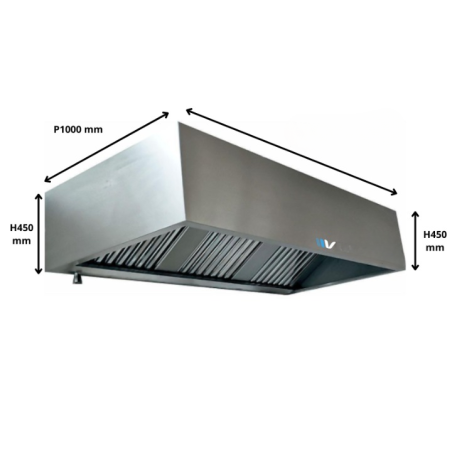

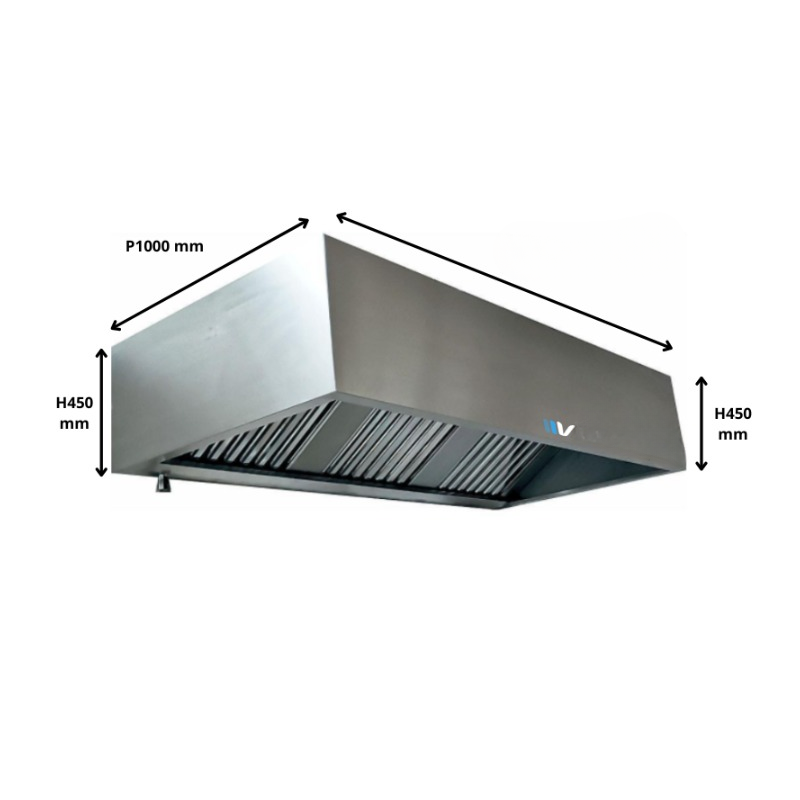

stainless steel kitchen hood for restaurants, rectangular central hood, central hood dimensions
Video
stainless steel kitchen hood, restaurant hood, rectangular central hood, central hood
stainless steel kitchen hood for restaurants, rectangular central hood, central hood dimensions

The rectangular canopy hood without motor with a large 1.2 m projection effectively captures smoke, grease and steam over a large containment volume, in wall-mounted or island versions.

  • Projection (depth): 1.2 m
  • Height: 450 mm, front valance 450 mm
  • Available lengths: from 1 m to 6 m
  • Stainless steel baffle filters and grease tray with drain plug included
  • Made in France, 1 year warranty
Selected length
In stock
Quantity
686.00 Tax excluded
823,2 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The rectangular canopy hood without motor with a large 1.2 m projection is a static commercial stainless steel hood, supplied without a fan, designed to contain smoke, grease and steam above a cooking line, in wall-mounted or island installation. Its generous depth makes it a popular choice for kitchens that generate a lot of smoke.

A large containment volume for effective capture

With a projection of 1.2 m and a front valance of 450 mm, this commercial kitchen hood creates a genuine containment zone above the cooking line. Even during intense or prolonged cooking, steam and fumes stay channelled under the hood rather than spreading into the kitchen: a real benefit for staff comfort and for the air quality of the room.

Technical specifications

Specification Value
Projection (depth) 1.2 m
Height 450 mm
Front valance 450 mm
Available lengths 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 4.5 m, 5 m, 5.5 m, 6 m
Filter material Stainless steel, baffle filters + blanking plates, stainless steel spacers
Grease tray With drain plug
Weight 45 kg (package 90 kg)
Manufacturing France
Warranty 1 year

Number of filters and outlet according to length

The number of stainless steel baffle filters increases with the length of the hood, and the diameter of the outlet hole to be cut varies accordingly:

  • L 1000 mm: 1 baffle filter + 1/2, outlet to be made in Ø 200 or Ø 250 mm
  • L 1500 and L 2000 mm: 2 baffle filters + blanking plates, outlet in Ø 250 or Ø 315 mm
  • L 2500 mm: 3 baffle filters + blanking plates, outlet in Ø 315 or Ø 355 mm
  • L 3000, 3500, 4000 mm: 4 baffle filters + blanking plates, please contact us regarding the ductwork
  • L 4500 mm: 5 baffle filters + blanking plates, please contact us regarding the ductwork
  • L 5000 mm: 6 baffle filters + blanking plates, please contact us regarding the ductwork
  • L 5500 mm: 7 baffle filters + blanking plates, please contact us regarding the ductwork
  • L 6000 mm: 8 baffle filters + blanking plates, please contact us regarding the ductwork

The outlet hole is not cut at the factory: it can be made on top, at the back or on one of the sides of the hood, depending on the type of fan chosen. If the fan is installed directly in the hood, it is best positioned centrally, with the outlet in the same location.

Installation and connection

This hood without motor is supplied flat-packed, ready to assemble, with an assembly guide available for download here. It then connects to a double-inlet centrifugal fan, a remote extraction fan box or a roof extract fan, depending on your kitchen configuration. The electrical connection of the fan must be carried out by a qualified professional.

Points to check before ordering

  • Hood length suited to the width of your cooking line, allowing an overhang on each side of the equipment (depending on the ductwork and your appliances)
  • Location and diameter of the outlet hole to be cut according to the fan chosen (from Ø 200 to Ø 355 mm depending on length)
  • Fan or remote fan box compatible with the airflow actually required for your cooking: this airflow depends on the ductwork, elbows, duct length and capture performance
  • Available ceiling height for installation, taking into account the 450 mm height of the hood and the clearance above the cooking line
  • For lengths from 3 m upwards, please contact us to validate the ductwork sizing

Pairs well with

You can also find our range of hoods without motor, including the make-up air hood, the oven hood and the condensation hood for wash-up areas.

Product Details

Ventilsogood
hotte rect 1.2m
Selected length
Available Length
1 meter
Available Length
1.5 meters
Available Length
2 meters
Available Length
2.5 meters
Available Length
3 meters
Manufacturing
Made in France
Warranty
1 year
Package weight
90 kg
0657968903425

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is this rectangular hood supplied with a motor?

No, this rectangular hood is sold without a motor. It connects to a double-inlet centrifugal fan, a remote extraction fan box or a roof extract fan, to be chosen separately according to your installation and the airflow required for your kitchen.

What outlet diameter should be planned for the connection?

The outlet hole is not cut at the factory. Depending on the length of the hood, it is generally made in Ø 200 to Ø 250 mm for a 1 m hood, up to Ø 315 or Ø 355 mm for a 2.5 m hood. For lengths over 3 m, please contact us for the ductwork sizing.

Is the hood supplied with the filters and grease tray?

Yes, the rectangular hood is supplied with its stainless steel baffle filters, blanking plates and stainless steel spacers, as well as a grease tray fitted with a drain plug to make cleaning easier.

What is the difference between this 1.2 m projection hood and a 1 m projection hood?

The 1.2 m projection offers a larger containment volume than the 1 m version, which improves capture in a kitchen generating more smoke or steam. The choice depends on the depth of your cooking line and the type of cooking carried out.

How is this hood delivered and can it be assembled on site?

The hood is supplied flat-packed, ready to assemble, with a downloadable assembly guide. Cutting the outlet hole and assembly can be carried out on site, but the electrical connection of the associated fan must be entrusted to a qualified professional.
