The condensation hood for laundry captures and condenses the water vapour produced by your dishwashers, sinks and intensive washing areas, for a drier, healthier laundry room. In stock from 1 to 6 metres long (other sizes, please contact us).

  • Length: from 1000 mm to 6000 mm, in 500 mm increments
  • Height: 450 mm, with a 450 mm drop
  • Structure: stainless steel, stainless steel condensation filters
  • Package weight: 90 kg
  • Sold without motor: fan to be selected separately
Selected length
In stock
Quantity
629.00 Tax excluded
754,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Condensation hood for commercial laundry rooms

The condensation hood for laundry is a professional hood without motor, designed to deal with the steam and humidity produced by dishwashers, sinks and intensive washing areas. Available from 1 to 6 metres, it suits a small laundry room as well as a full dishwashing line.

How it works

Unlike a standard cooking hood, this condensation hood does more than simply capture warm air: it condenses the water vapour using stainless steel condensation filters that cool and separate the moisture. The collected water drains away with the air flow, which limits steam spreading in the room. A grease tray with drain plug makes cleaning the whole unit easier.

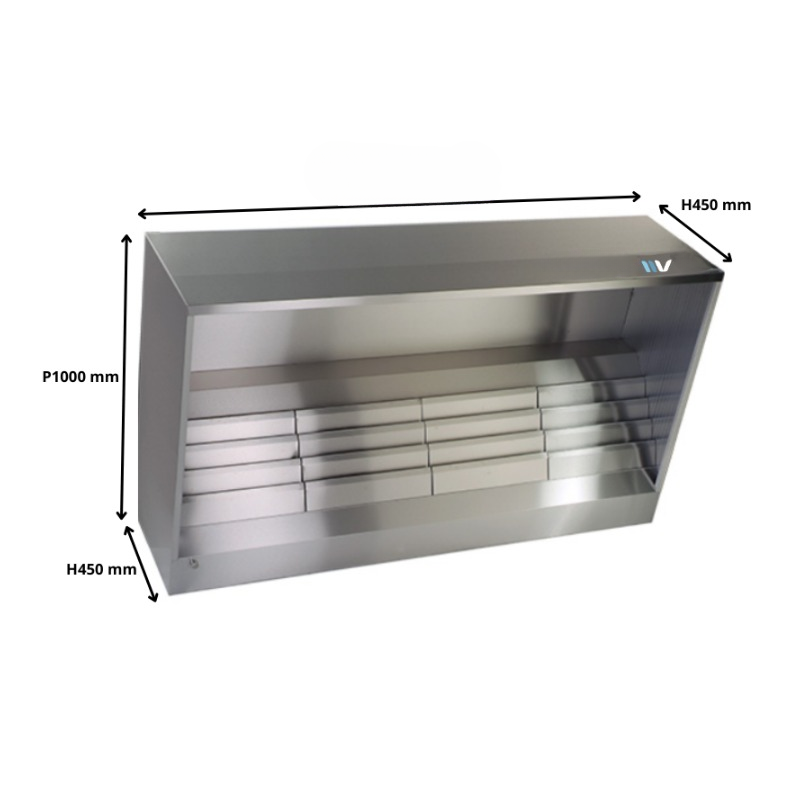

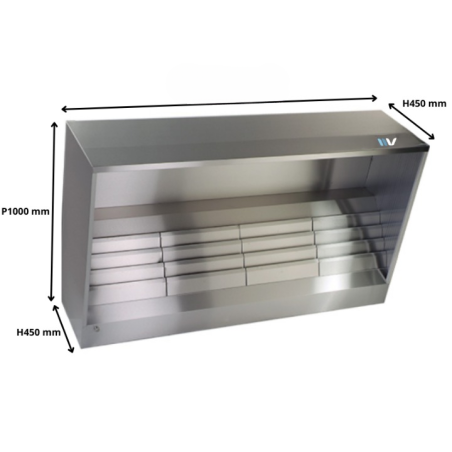

Technical specifications

Specification Value
Available length from 1000 mm to 6000 mm (500 mm increments)
Depth 1000 mm
Height 450 mm
Drop 450 mm
Package weight 90 kg
Material stainless steel, stainless steel condensation filters
Warranty 1 year

Number of filters and outlet hole size according to length

The diameter of the outlet hole (not pre-cut, to be made above, behind or on one side of the hood depending on the type of motor used) and the number of filters vary with the length of the hood:

  • L 1000 mm: 1 filter + 2 x 1/2 blanking plate, D 250 mm outlet
  • L 1500, L 2000 mm: 2 filters + blanking plates, D 315 or D 355 mm outlet
  • L 2500 mm: 3 filters + 2 blanking plates, D 315 or D 355 mm outlet
  • L 3000 mm: 4 filters + 2 blanking plates, D 355 or D 400 mm outlet
  • L 3500 mm: 2 modules of L 2500 + L 1000 mm, or L 2000 + L 1500 depending on stock
  • L 4000 mm: 2 modules of L 2000 + L 2000 mm
  • L 4500 mm: 2 modules of L 2500 + L 2000 mm, or L 3000 + L 1500 depending on stock
  • L 5000 mm: 2 modules of L 2500 + L 2500 mm, or L 3000 + L 2000 depending on stock
  • L 5500 mm: 2 modules of L 2500 + L 3000 mm
  • L 6000 mm: 2 modules of L 3000 + L 3000 mm

If the motor is built into the hood (only possible up to 3 m), its position and that of the outlet should ideally be at the centre of the hood.

Delivery and assembly

The condensation hood for laundry is delivered flat-packed, ready to assemble. Beyond 2.5 or 3 m, it arrives as 2 independent modules to be assembled on site. Additional condensation filters can be added as an option.

Installation instructions

 à télécharger ici

Points to check before ordering

  • The hood length suited to your washing machine, sink or washing line: it is generally chosen slightly wider than the equipment to be covered.
  • The outlet diameter required according to the chosen length (from D 250 mm for 1 m up to D 400 mm for 3 m): an undersized diameter increases pressure losses and noise.
  • The position of the outlet hole (top, rear or side) depending on the type of motor planned, bearing in mind that a built-in motor is only possible up to 3 m.
  • The fan is not included: to be sourced separately according to the airflow required for your installation.
  • The space and access needed for assembling the modules beyond 2.5 to 3 m.

To go with it

Also discover our range of hoods without motor, including our central hood, our make-up air hood and our stainless steel rectangular hood, designed to meet all commercial extraction needs.

Recommended complementary product: for cooking areas, see our oven hood with extra-large canopy, designed for maximum extraction.

Product Details

Ventilsogood
hotte rect laverie
Selected length
Available Length
6 meters
Available Length
1 meter
Available Length
1.5 meters
Available Length
2 meters
Available Length
2.5 meters
Available Length
3 meters
Available Length
3.5 meters
Available Length
4 meters
Available Length
4.5 meters
Available Length
5 meters
Available Length
5.5 meters
Manufacturing
Made in France
Warranty
1 year
Package weight
90 kg
0657968973008

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a condensation hood and a standard cooking hood?

The condensation hood for laundry deals with the water vapour and humidity produced by dishwashers and sinks, using stainless steel condensation filters that cool and separate the water from the air flow. A standard cooking hood mainly captures grease and cooking fumes, with filters suited to that type of load.

Does the condensation hood for laundry come with a motor?

No, this hood is sold without a motor. The fan is chosen separately according to the airflow required for your installation. If the motor is built into the hood (only possible up to 3 m), it should ideally be placed at the centre of the hood.

How are the modules assembled for a hood over 3 m long?

Beyond 2.5 or 3 m, the hood is delivered as 2 independent modules, for example 2 x 3000 mm for a 6000 mm hood. Each module is delivered flat-packed, ready to assemble, to be put together on site following the supplied installation instructions.

What outlet diameter should be planned for according to the hood length?

The diameter varies with the length: D 250 mm for a 1000 mm hood, D 315 or D 355 mm for 1500 to 2500 mm, D 355 or D 400 mm for 3000 mm. The hole is not pre-cut and is made above, behind or on one side depending on the type of motor chosen.

Is this hood suitable for a hood-type dishwasher or a commercial sink?

Yes, the condensation hood for laundry is designed for intensive washing areas such as hood-type dishwashers, conveyor dishwashers and sinks. The length is chosen according to the size of the equipment to be covered, from 1 to 6 m available.
