Padlockable On/Off Switch

Padlockable On/Off Switch

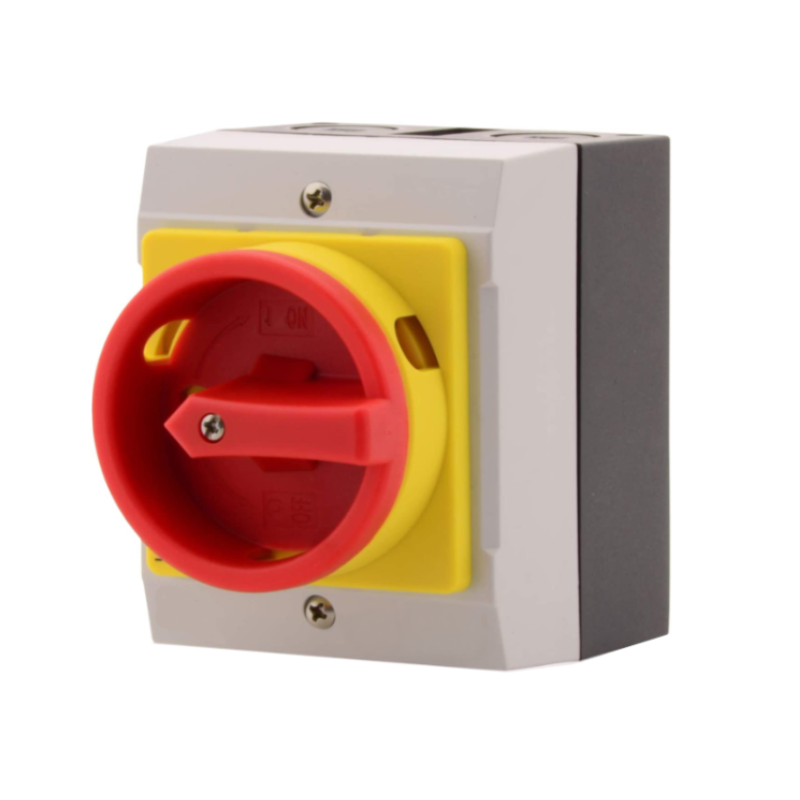

Padlockable switch for a professional kitchen ventilation system
Padlockable On/Off Switch
Padlockable switch for a professional kitchen ventilation system

The Padlockable On/Off Switch safely cuts power to your ventilation motor and can be locked off with a padlock to prevent accidental restart during maintenance work.

  • Function: motor power isolation, padlockable
  • Auxiliary contacts: 1 NO + 1 NC (position feedback)
  • Motor compatibility: single speed, 4 to 8 poles, single-phase 220V or three-phase 380V
  • Enclosure: ABS IP65, surface mounting
  • Weight: 3 kg
In stock
Quantity
65.00 Tax excluded
78 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Padlockable On/Off Switch is a power isolation device that safely stops a ventilation motor, roof extract fan or extraction fan box, and allows this shutdown to be locked off with a padlock for the duration of an intervention.

A switch designed for safety on the ventilation system

On a ventilation system, switching off a motor isn't always enough: you also need to be sure no one will switch it back on while you have your hands inside the fan box. That's the whole point of this padlockable local isolator switch: once locked off with a padlock, only the key holder can re-energise the equipment. Handy for maintenance work or a lock-off procedure, and considerably more reassuring than a simple on/off button.

Technical specifications

Specification Value
Function Motor power isolation, padlockable
Auxiliary contacts 1 NO + 1 NC (position feedback)
Motor compatibility Single speed, 4 to 8 poles, single-phase 220V or three-phase 380V

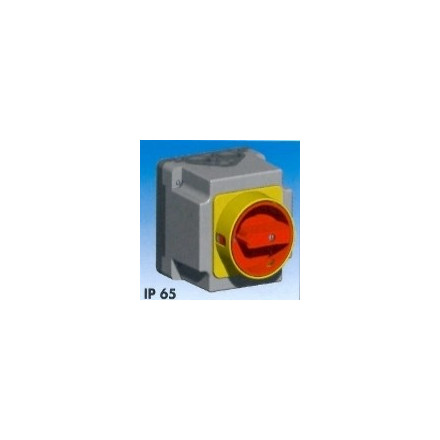

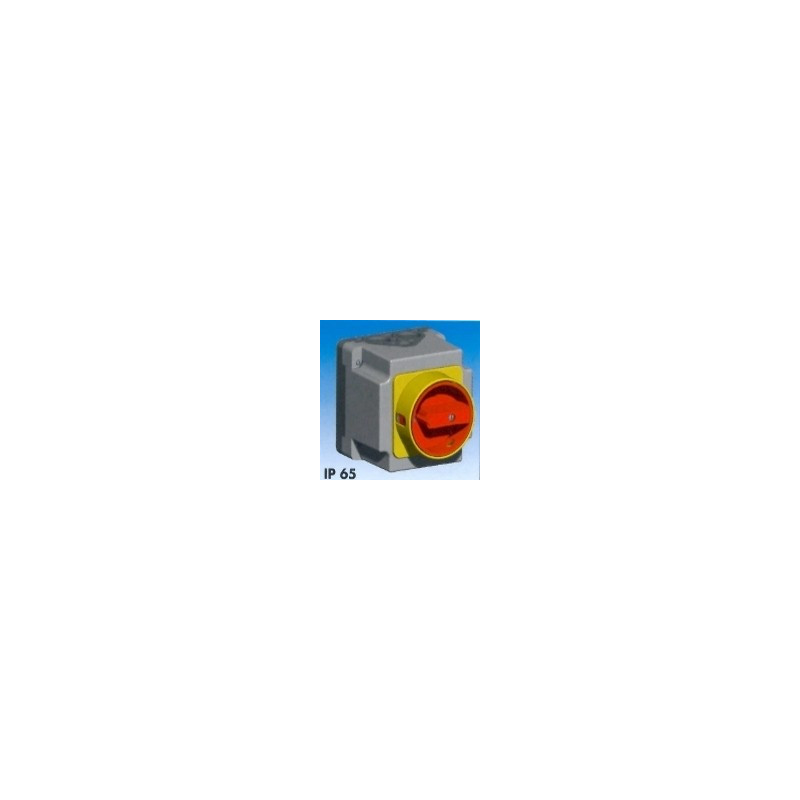

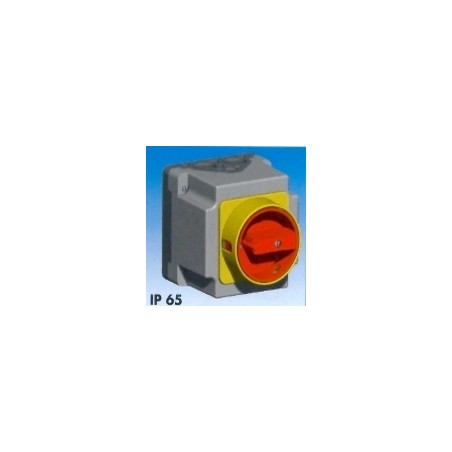

Enclosure ABS, IP65 rated
Mounting Surface mounted
Weight 3 kg
Warranty 1 year

Use and compatibility

This padlockable on/off switch is fitted as a replacement on a roof extract fan or in a kitchen, as close as possible to the ventilation motor it protects. Its ABS IP65 enclosure handles moisture and splashing, making it suitable for installation in a commercial kitchen as well as outdoors, for example on a roof. The 1 NO + 1 NC auxiliary contacts allow the switch position to be fed back to a relay panel or control cabinet, so you can check remotely whether the motor is off.

Installation and wiring

Electrical connection must be carried out by a qualified professional, which is also a condition for the warranty to remain valid. The switch is fitted as a replacement for an existing enclosure or as a new installation on the motor supply, ahead of the fan box or roof extract fan.

Points to check before ordering

  • Check that your motor is single-phase 220V or three-phase 380V, and that it runs at a single speed between 4 and 8 poles: this is the compatibility range of this switch.
  • Check that the surface mounting location is accessible for a quick operation in the event of an emergency or maintenance.
  • Check whether your installation requires position feedback: the 1 NO + 1 NC contacts allow it to be wired to a relay panel.
  • Confirm the enclosure's exposure (damp kitchen, outdoors, rooftop) to make sure IP65 suits your environment.
  • Provide your own padlock if you wish to lock the switch, as one is not always supplied.

Goes well with

Product Details

Ventilsogood
A180
Products
Button / Switch
Warranty
1 year
Package weight
3 kg
0657968585140

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Does the Padlockable On/Off Switch replace an emergency stop button?

No. This switch cuts power to the motor and allows this shutdown to be locked off with a padlock, particularly for maintenance work. It does not replace a dedicated regulatory emergency stop, which has a different function and standard.

Is this switch compatible with a three-phase 380V motor?

Yes, according to the product data it is compatible with a single-speed motor with 4 to 8 poles, in single-phase 220V as well as three-phase 380V. Still check the voltage and number of poles of your motor before ordering.

Is a padlock supplied with the switch?

The product data does not specify whether a padlock is supplied with the Padlockable On/Off Switch. Provide your own padlock if needed to secure the lock-off.

What are the NO/NC auxiliary contacts on this switch for?

The 1 NO (normally open) and 1 NC (normally closed) auxiliary contacts allow the switch position to be fed back, for example to a relay panel, so you can check remotely whether the ventilation motor is running or stopped.

What protection rating is needed for installation in a kitchen or outdoors?

The switch comes in an ABS IP65 enclosure, making it suitable for surface mounting in a damp commercial kitchen as well as outdoors, for example near a roof extract fan.
