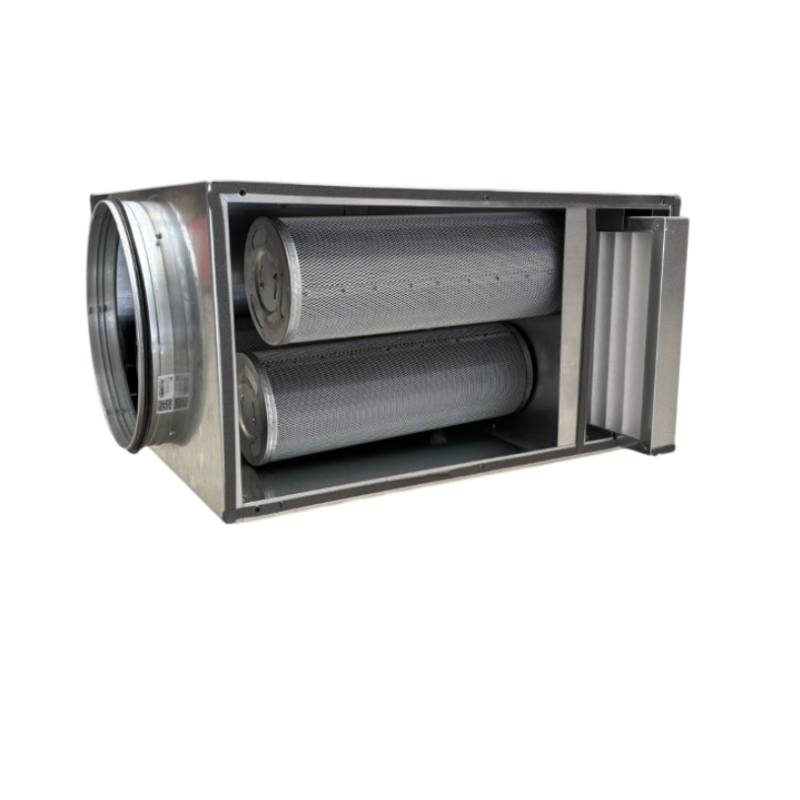

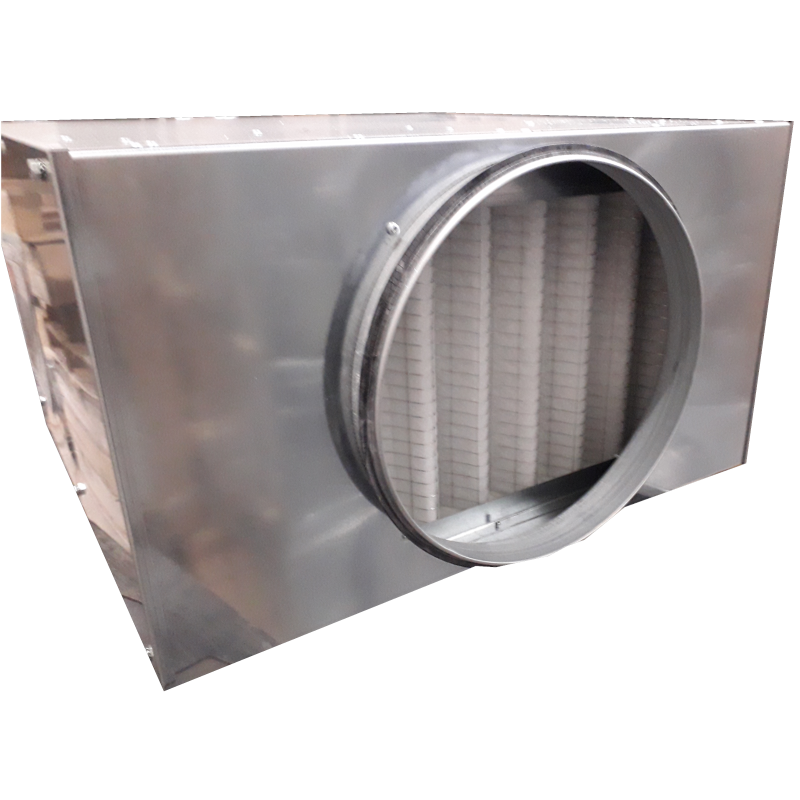

5-cartridge charcoal filter housing
Base Unit with 5 Odor-Control Carbon Cartridges, vue 2
Base Unit with 5 Odor-Control Carbon Cartridges, vue 3

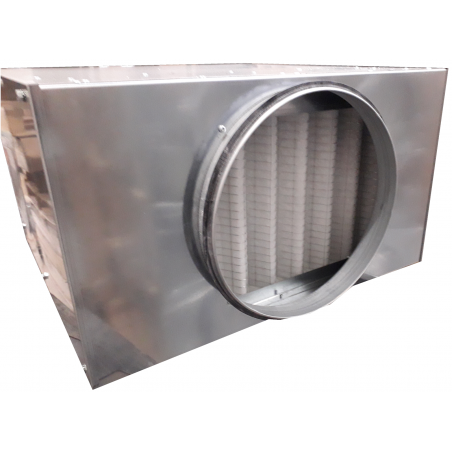

Odor-control unit with 5 activated carbon cartridges for a range hood
Odor-control unit with 5 activated carbon cartridges for a range hood
Base Unit with 5 Odor-Control Carbon Cartridges, vue 6

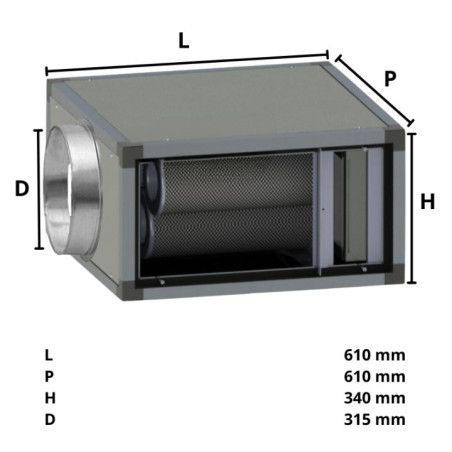

Dimensions of the odor-control charcoal filter housing (5 cartridges) for a professional kitchen ventilation system
Odor-control charcoal filter box with 5 cartridges for a professional kitchen ventilation system
Base Unit with 5 Odor-Control Carbon Cartridges, vue 9
Charcoal grill without exhaust system for professional restaurant kitchens
Odor-control unit with 5 activated carbon cartridges for a range hood
Odor-control unit with 5 activated carbon cartridges for a range hood
Video
Video
5-cartridge charcoal filter housing
Base Unit with 5 Odor-Control Carbon Cartridges, vue 2
Base Unit with 5 Odor-Control Carbon Cartridges, vue 3
Odor-control unit with 5 activated carbon cartridges for a range hood
Odor-control unit with 5 activated carbon cartridges for a range hood
Base Unit with 5 Odor-Control Carbon Cartridges, vue 6

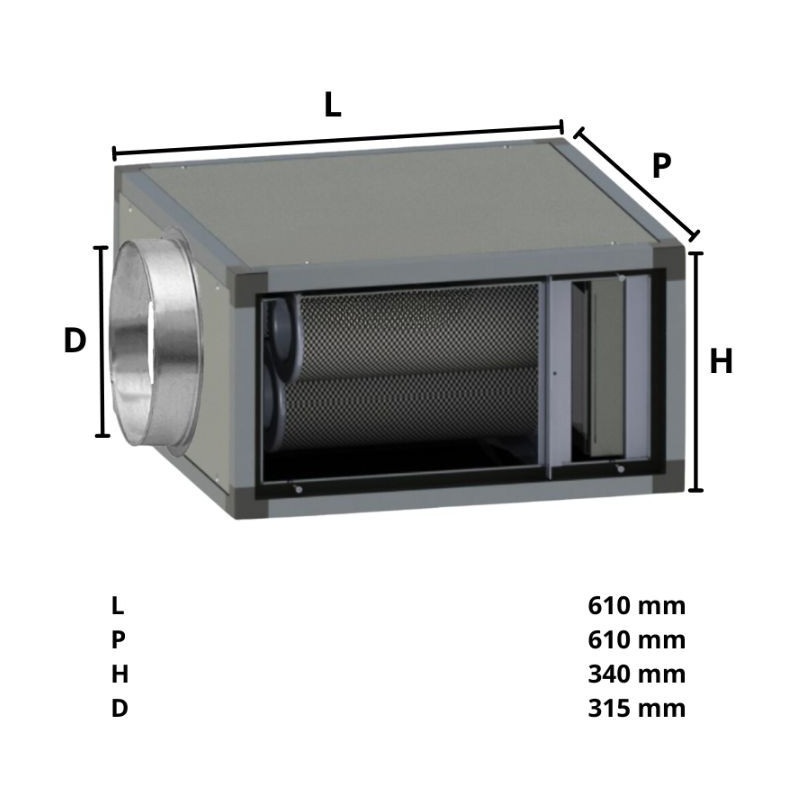

Dimensions of the odor-control charcoal filter housing (5 cartridges) for a professional kitchen ventilation system

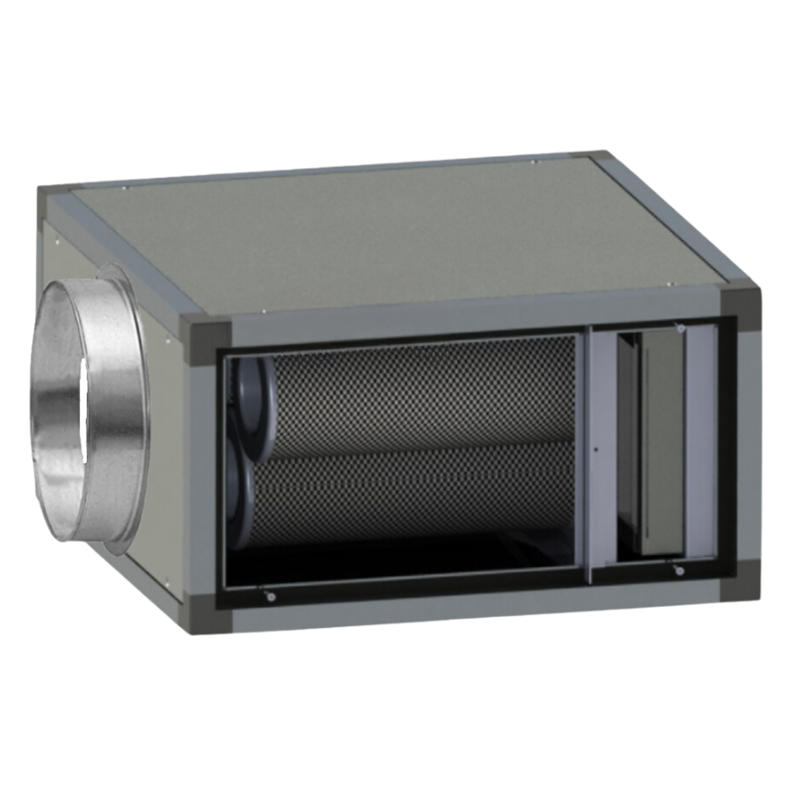

Odor-control charcoal filter box with 5 cartridges for a professional kitchen ventilation system
Base Unit with 5 Odor-Control Carbon Cartridges, vue 9
Charcoal grill without exhaust system for professional restaurant kitchens
Odor-control unit with 5 activated carbon cartridges for a range hood
Odor-control unit with 5 activated carbon cartridges for a range hood

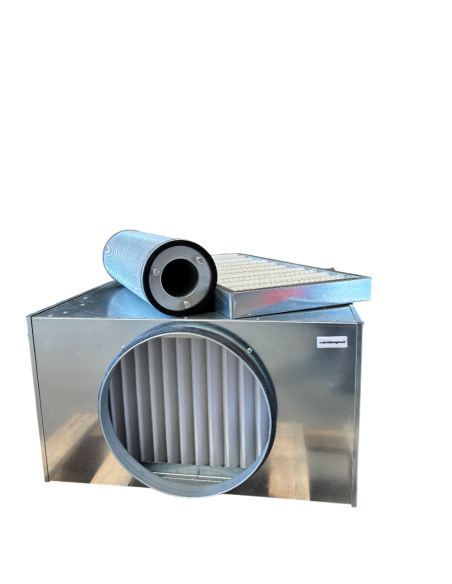

The Base Unit with 5 Odor-Control Carbon Cartridges filters grease and odours from a commercial kitchen thanks to its dual G4 + activated carbon filtration, suited to extraction hoods of 1 m to 1.5 m. Available now with express delivery.

  • Reference: CAISSON-BASE-5
  • Composition: 1 x G4 filter + 5 granulated activated carbon cartridges

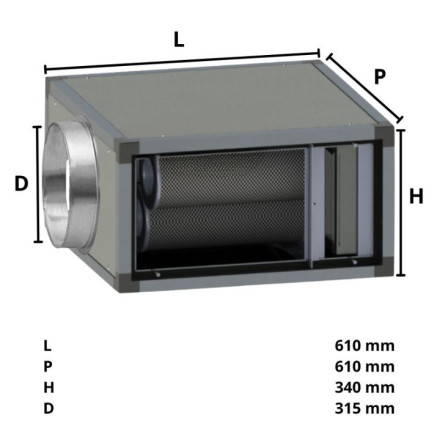

  • Dimensions: W 610 × D 610 × H 340 mm
  • Product weight: 28 kg (package 45 kg)
  • Suitable for hoods fitted with a maximum of 2 filters
  • Carbon to be replaced every 6 months to 2 years depending on use, 1 year on average
In stock
Quantity
596.00 626.00 Tax excluded
715,2 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

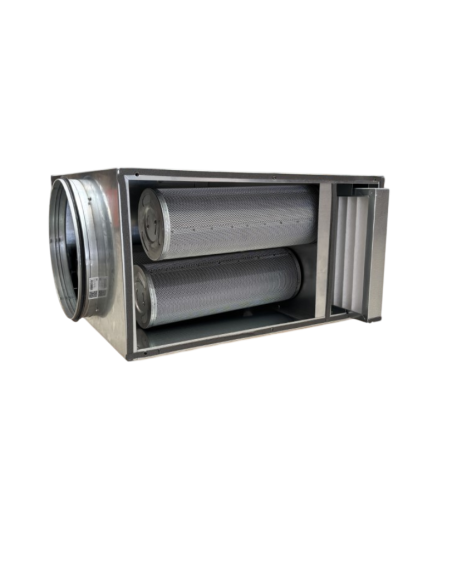

The Base Unit with 5 Odor-Control Carbon Cartridges (reference CAISSON-BASE-5, EAN XXX) is a static filtration unit that traps grease and neutralises cooking odours downstream of a commercial kitchen hood, suited to catering premises fitted with a hood of 1 m to 1.5 m.

Technical specifications of the 5-cartridge activated carbon filter box

Specification Value
Reference CAISSON-BASE-5
Composition 1 x G4 filter + 5 granulated activated carbon cartridges
Dimensions W 610 × D 610 × H 340 mm
Product weight 28 kg
Package weight 45 kg
Unit type Carbon-only filter box

Use and compatibility with your hood

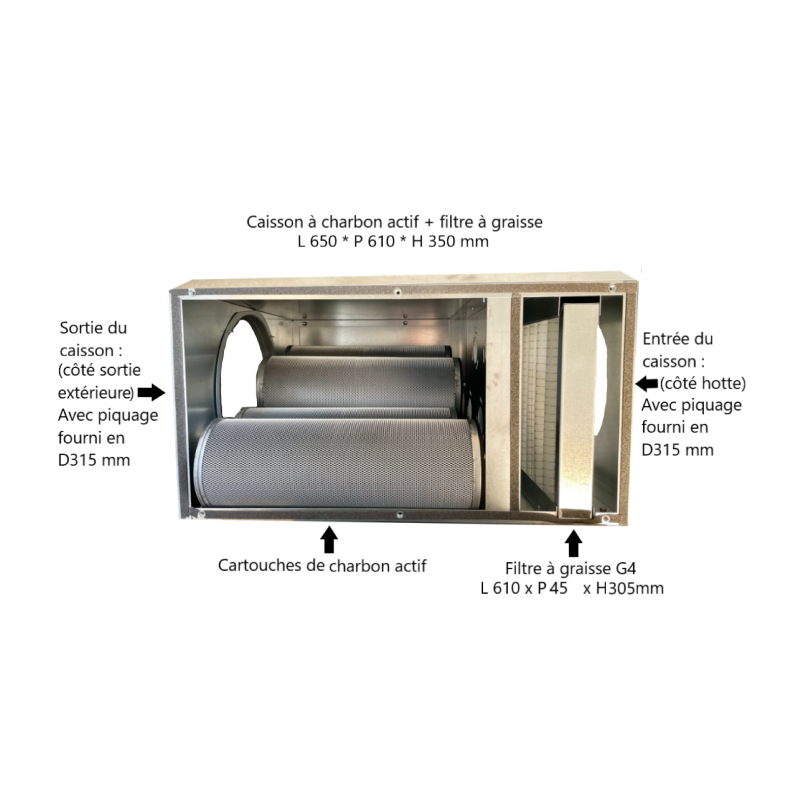

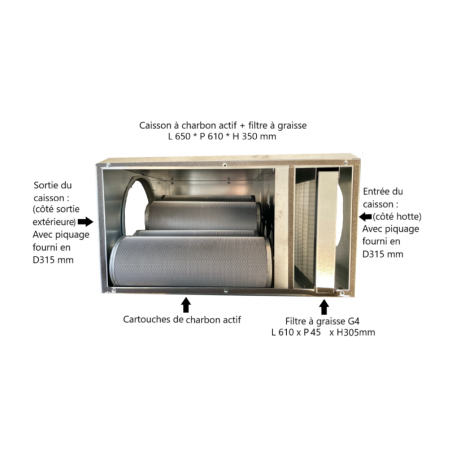

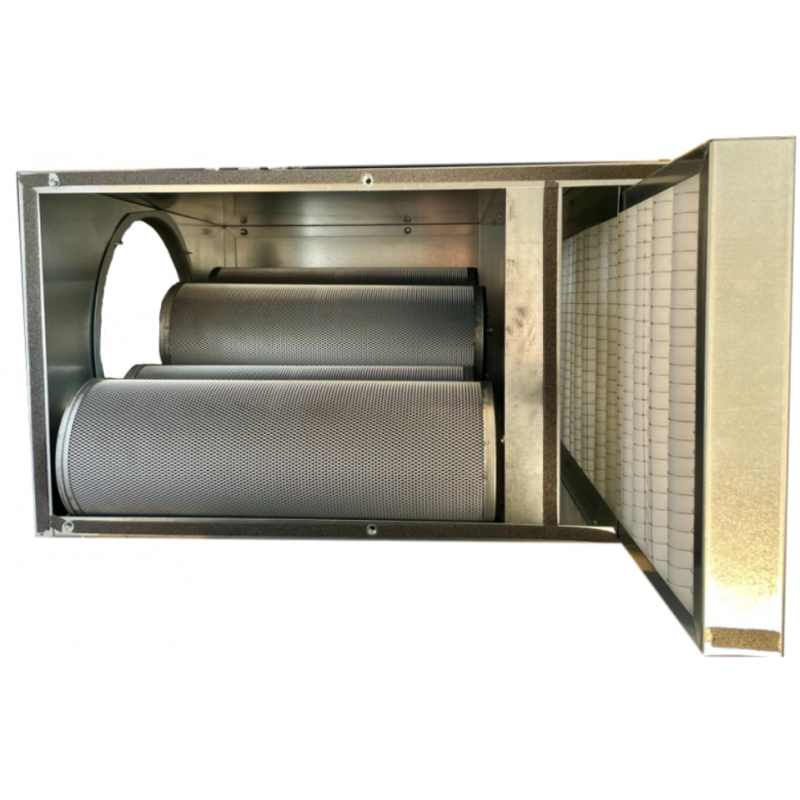

This unit is sized to work with a professional stainless steel hood of 1 m to 1.5 m, fitted with a maximum of 2 filters. The inlet and outlet spigots are already fixed to the unit, ready to receive your ductwork. Air first passes through the G4 filter, which traps grease, then through the 5 activated carbon cartridges, which absorb cooking, frying, grilling or organic odours and reduce the presence of VOCs (volatile organic compounds).

Activated carbon effectively neutralises odours but does not treat (it only significantly reduces) white smoke produced by certain types of cooking: bear this in mind if your activity generates a lot of it.

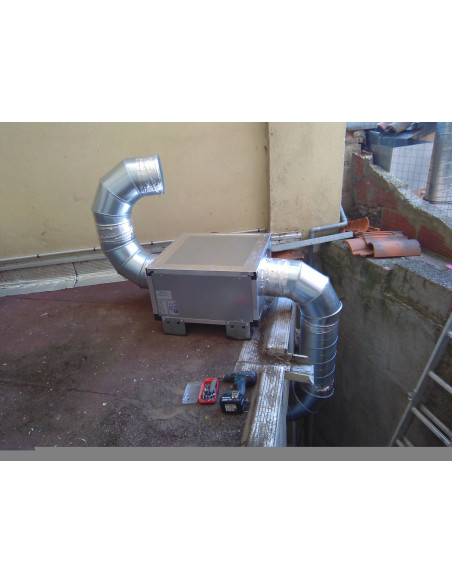

Installation and connection

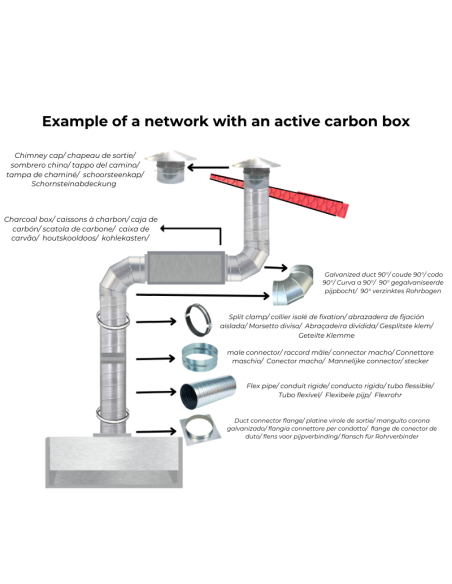

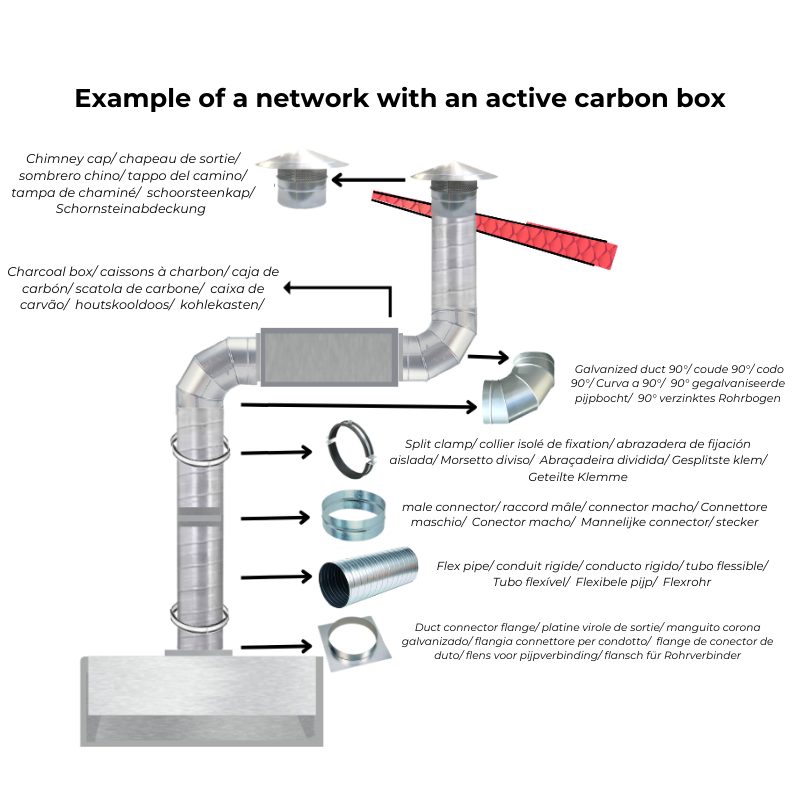

The inlet and outlet spigots are supplied and already fixed to the unit. Ductwork and connection accessories are not supplied with this product: see the "Pairs well with" section below. Filtration efficiency depends on the configuration of your ventilation system. The customer remains responsible for the compliance and maintenance of their extraction system.

Points to check before ordering

  • Length of your hood: this unit is suitable up to 1.5 m and a maximum of 2 filters; beyond that, choose a version with more cartridges
  • Diameter and length of your existing ductwork, to select the right connection accessories
  • Expected cleaning frequency: the G4 filter is washable with hot water and degreaser, so plan for regular maintenance
  • Type of cooking carried out: frying and grilling are well handled, white smoke less effectively so
  • Cartridge replacement frequency to anticipate, between 6 months and 2 years depending on intensity of use

Pairs well with

Need greater filtration capacity?

For a longer hood or heavier cooking loads, take a look at our Performance Unit, 6 activated carbon cartridges. This unit is covered by a 1-year professional warranty.

Product Details

Ventilsogood
CH5
Manufacturing
Made in France
Warranty
1 year
Package weight
45 kg
Cabinet Type
Coal Bin (Standalone)
0657968404779

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Does the Base Unit with 5 cartridges suit any hood length?

No. This unit is sized for a commercial hood of 1 m to 1.5 m, fitted with a maximum of 2 filters. For a longer hood or heavier cooking loads, the Performance Unit with 6 cartridges, or a reference with more cartridges, will be better suited.

Do I need a separate G4 filter alongside the carbon unit?

No, the G4 filter is already built into the Base Unit with 5 Cartridges, along with the carbon. It traps grease before the air passes through the activated carbon cartridges, which protects the carbon and extends its lifespan.

How often should the activated carbon cartridges be replaced?

Cartridge lifespan ranges from 6 months to 2 years depending on how intensively your kitchen is used. Heavy activity (frying, daily grilling) wears out the carbon faster than moderate use, such as in a crêperie.

Does this unit treat white cooking smoke?

Activated carbon effectively neutralises cooking, frying, grilling and organic odours, but it does not fully treat white smoke (that is not its purpose). If your activity generates a lot of it, this point should be considered before ordering.

Are the connection ducts supplied with the unit?

The inlet and outlet spigots are supplied and already fixed to the unit. Ductwork and connection accessories, however, are not included: you will find these in the accessories section of this page.
