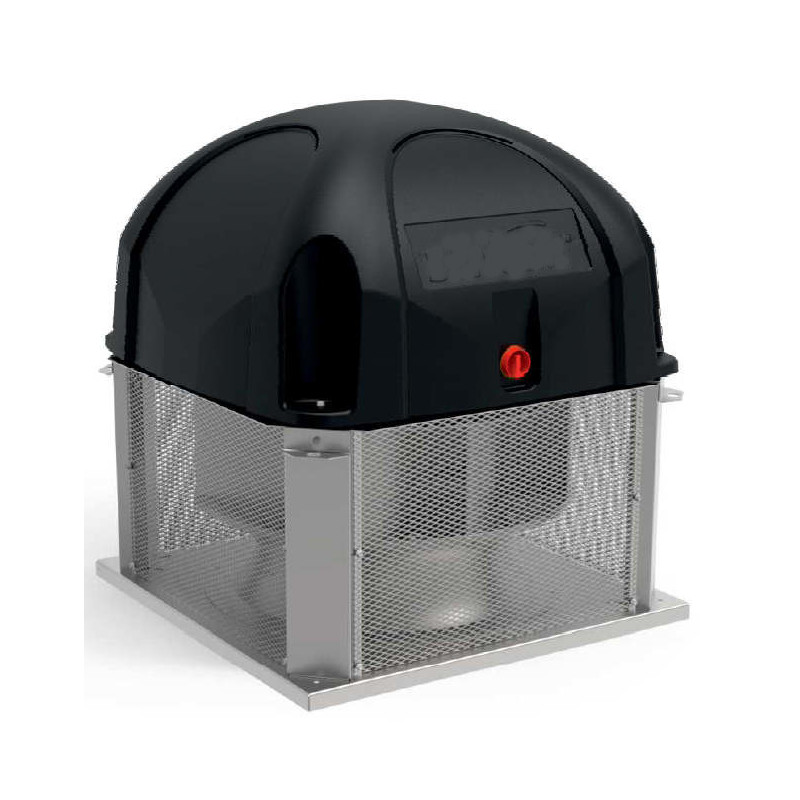

Roof fan Exhaust fan T5648-TRI, 2-speed, 4,600–11,000 m³/h

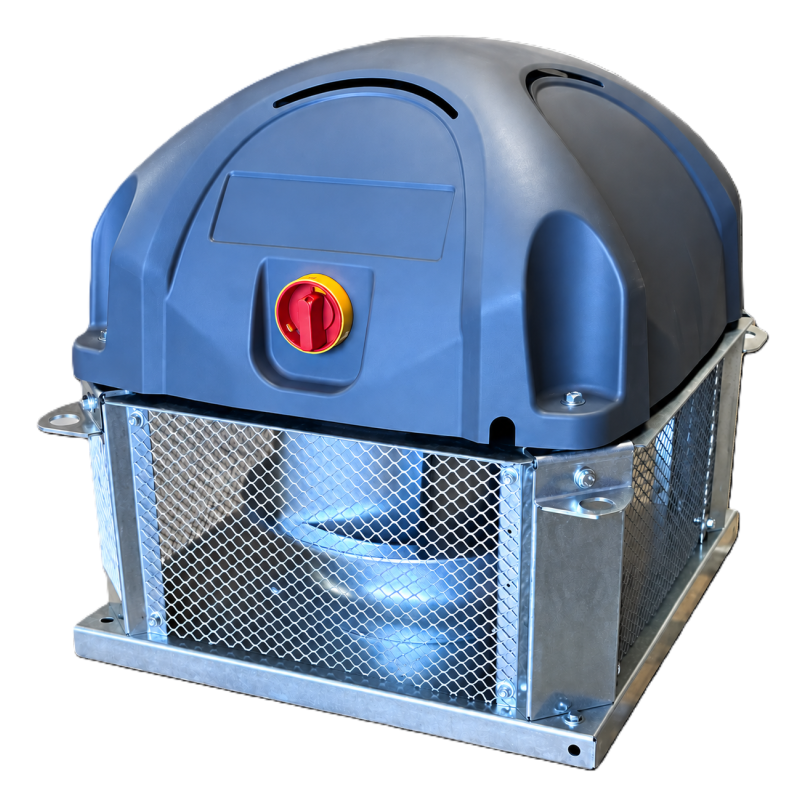

THf 5056 extraction turret Saftair equivalent: France Air, Simoun, Alvene, Emmos, Vim.

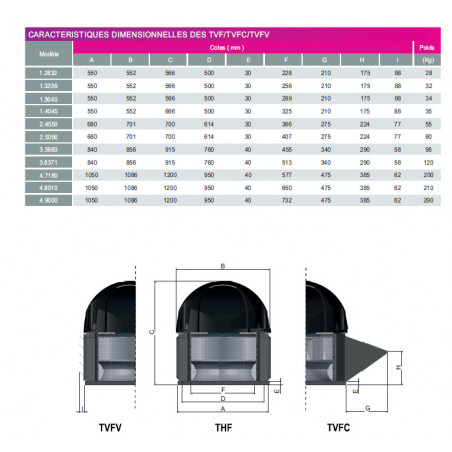

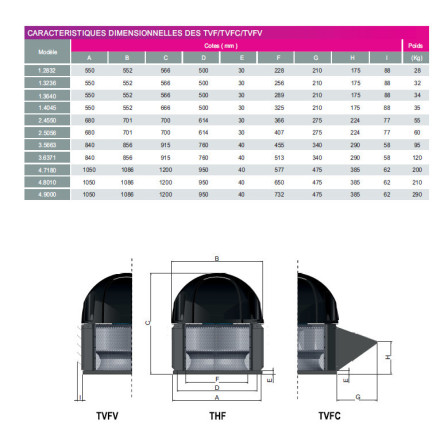

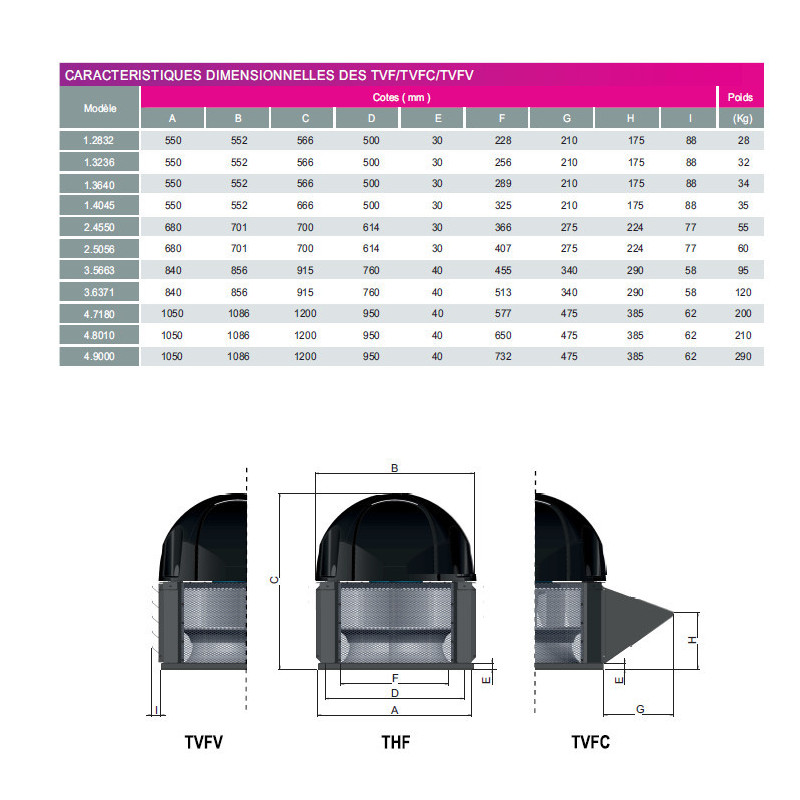

Roof turret dimensions

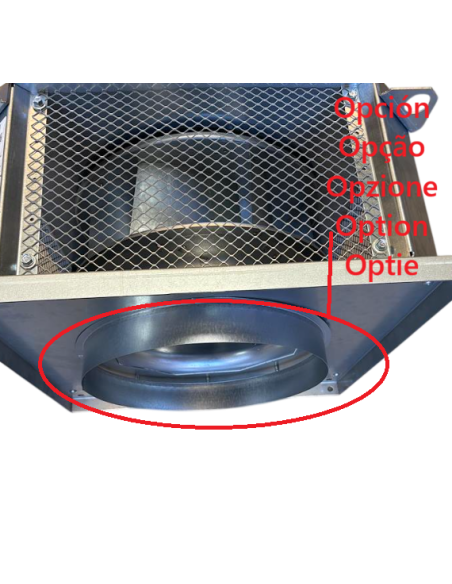

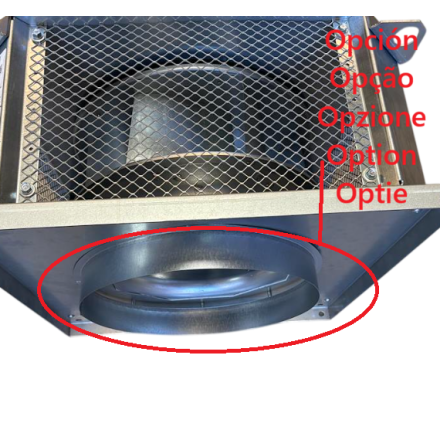

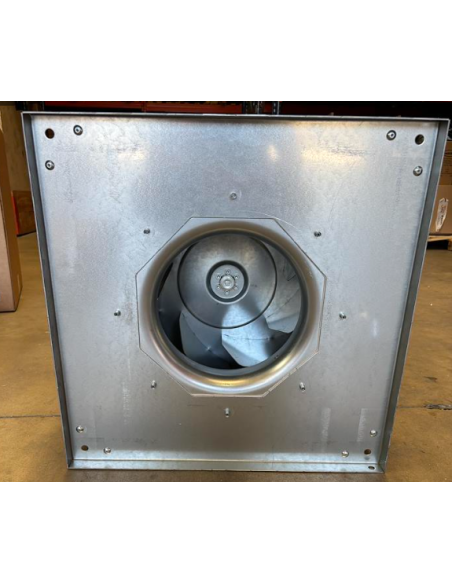

Roof fan T56-TRI 2-speed

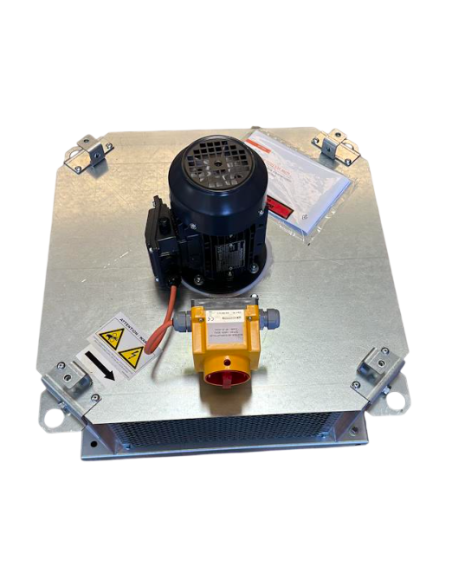

Roof fan T56-TRI 2-speed

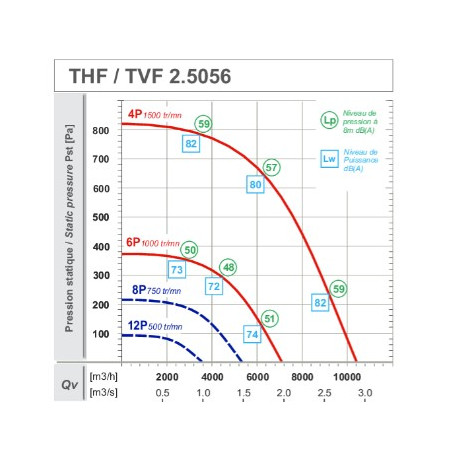

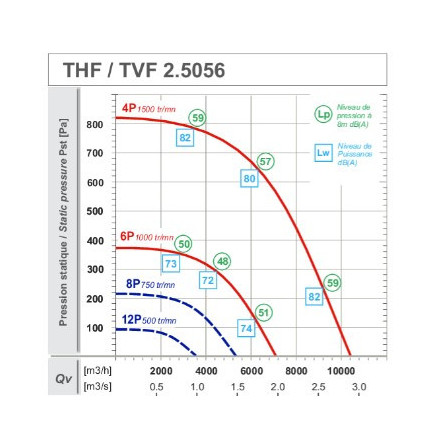

Ventilsogood T5648 Roof Turret Motor Performance Curves

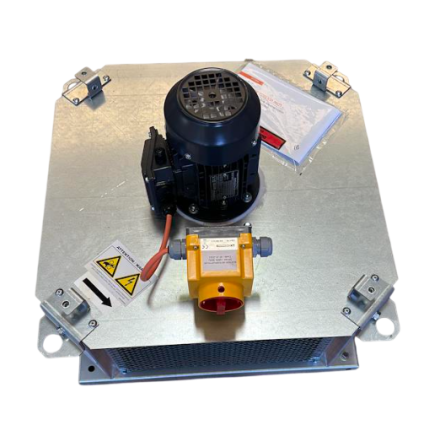

Roof fan T56-TRI 2-speed

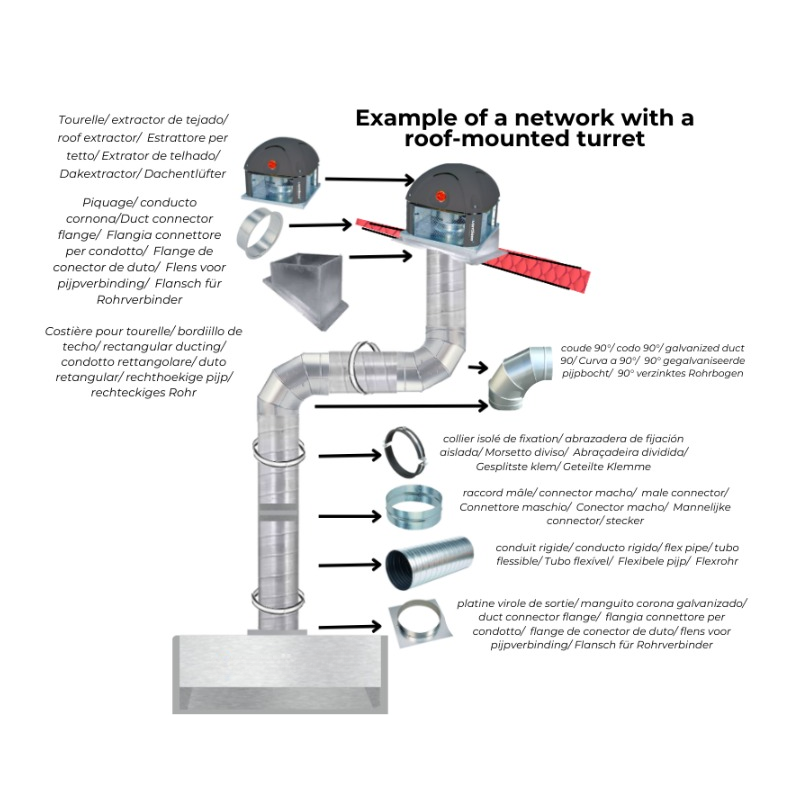

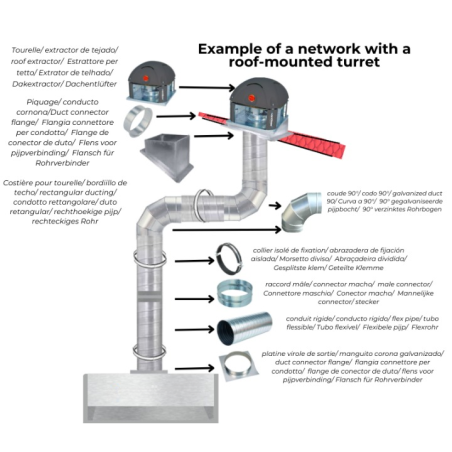

Explanation of the extraction turret. Equivalent: TH Saftair, France Air, Simoun, Alvene, Emmos, Vim.
Extraction turret Equivalent: TH Saftair, France, Air Simoun, Alvene, Emmos, Vim.

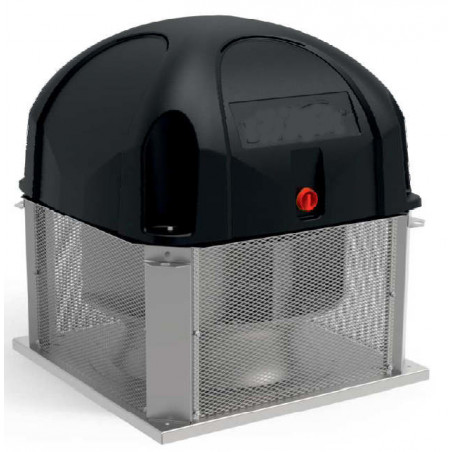

Theft protection on the Ventilsogood T5648 roof turret

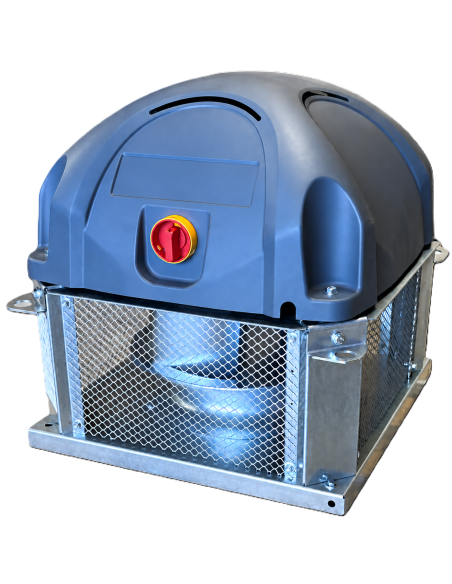

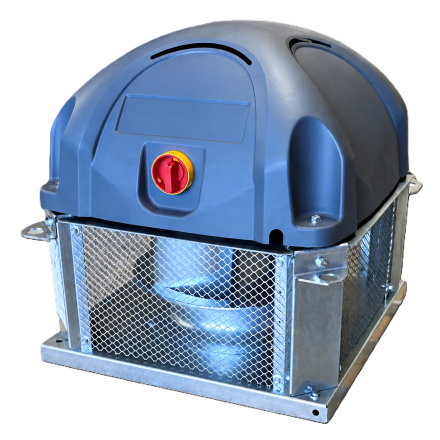

THf 5056 extraction turret Saftair equivalent: France Air, Simoun, Alvene, Emmos, Vim.
Roof turret dimensions

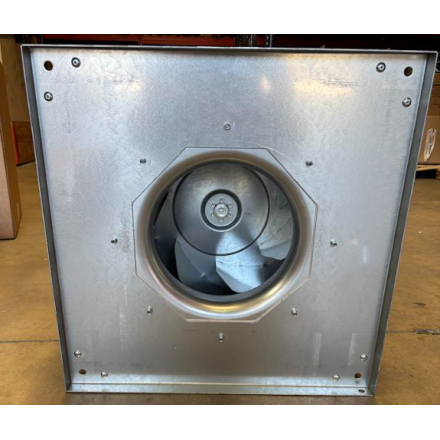

Roof fan T56-TRI 2-speed
Roof fan T56-TRI 2-speed

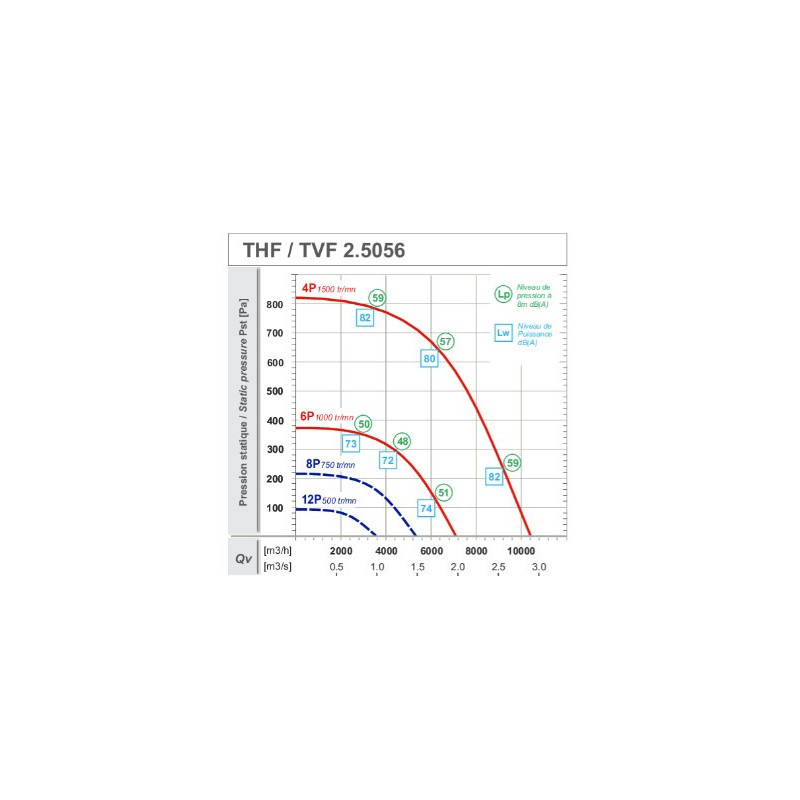

Ventilsogood T5648 Roof Turret Motor Performance Curves

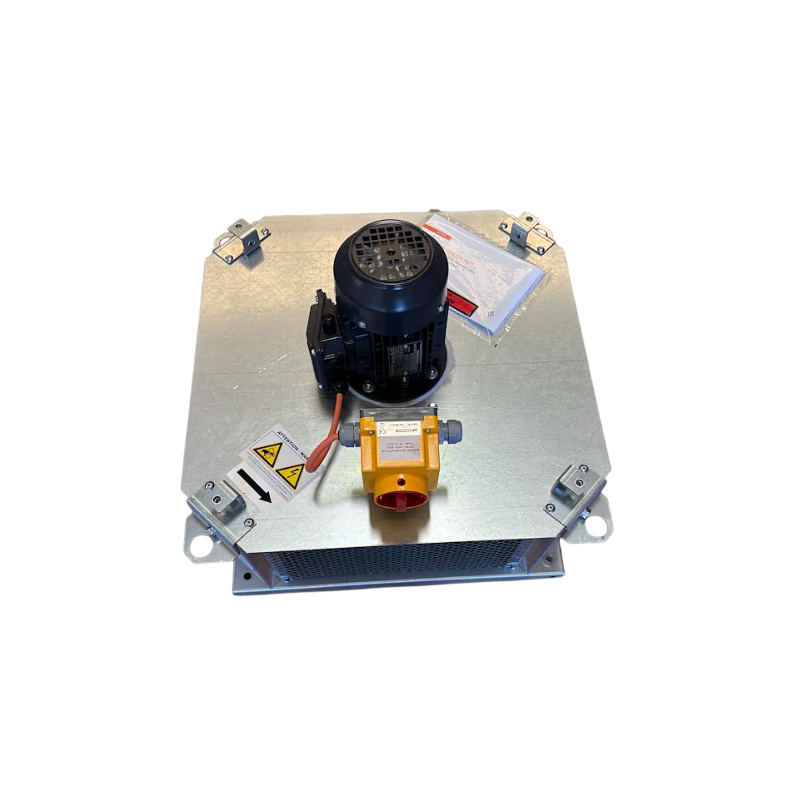

Roof fan T56-TRI 2-speed
Explanation of the extraction turret. Equivalent: TH Saftair, France Air, Simoun, Alvene, Emmos, Vim.
Extraction turret Equivalent: TH Saftair, France, Air Simoun, Alvene, Emmos, Vim.
Theft protection on the Ventilsogood T5648 roof turret

 Roof fan Horizontal discharge extraction system Saftair 4,600–11,000 m³/h

- Dimensions: L 680 x W 680 x H 700 mm
- Roof fan 400°/2h Fire and smoke exhaust standards
- Hard-wired proximity switch
- Recommended duct diameter: D 450 to 600 mm
- Weight: 50 kg
- Made in France - CE
- 4–8-pole DAHLANDER
- Protective and bird-proof mesh

Speed 1:
- Power: 400 W - 4,600 m³/h - 1.69 A
- Power supply: 230/380 V
- RPM: 750

Speed 2:
- Power: 1,660 W - 11,000 m³/h - 3.8 A
- Voltage: 230/380 V
- RPM: 1,500

Production/delivery time: 1 to 2 weeks.

This product must be installed by a professional to be covered by the manufacturer’s warranty

1-year warranty if installed by a professional. Made in France.

In stock
Quantity
1,478.00 Tax excluded
1773,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Roof fan Ventilsogood T5648 exhaust fan – 4,600 to 11,000 m³ Three-phase/h

Roof fan Roof-mounted unit with horizontal discharge for industrial ventilation and smoke extraction systems.

A high-performance, reliable ventilation unit

The Ventilsogood T5648 exhaust turret is designed for commercial installations requiring high airflow rates, ranging from 4,600 to 11,000 m³/h. Its 2-speed three-phase motor offers power and flexibility, allowing the airflow to be adjusted according to the ventilation needs of the premises. This roof-mounted unit combines performance, durability, and high-quality French manufacturing.

Benefits of the Ventilsogood T5648 Roof Exhaust Unit

  • Powerful 2-speed motor for optimal adjustment of airflow.
  • Made in France: a guarantee of robustness and reliability.
  • Bird-proof screen integrated into the design.
  • F400/120 certification (400°C for 2 hours)—ideal for smoke extraction in commercial spaces.

Applications of the Ventilsogood T5648 Roof Vent

Ideal for air extraction in commercial kitchens, workshops, warehouses, or industrial buildings, this ventilation turret ensures efficient and safe air renewal. Its high-end design makes it the benchmark roof exhaust fan for demanding environments.

Product reference: Ventilsogood T5648 – Professional roof-mounted extractionRoof fan

Discover our full range of 2-speed roof vents in our online store.

Product Details

SAFTAIR
T56tri2V48
Manufacturing
Made in France
Warranty
1 year
Package weight
60 kg
Engine
Roof fan roof
Standard
C4 Smoke Exhaust Standard
Food
380V Three-Phase
Engine power
4,000 to 6,000 m³/h
Engine power
More than 6,000 m³/h
