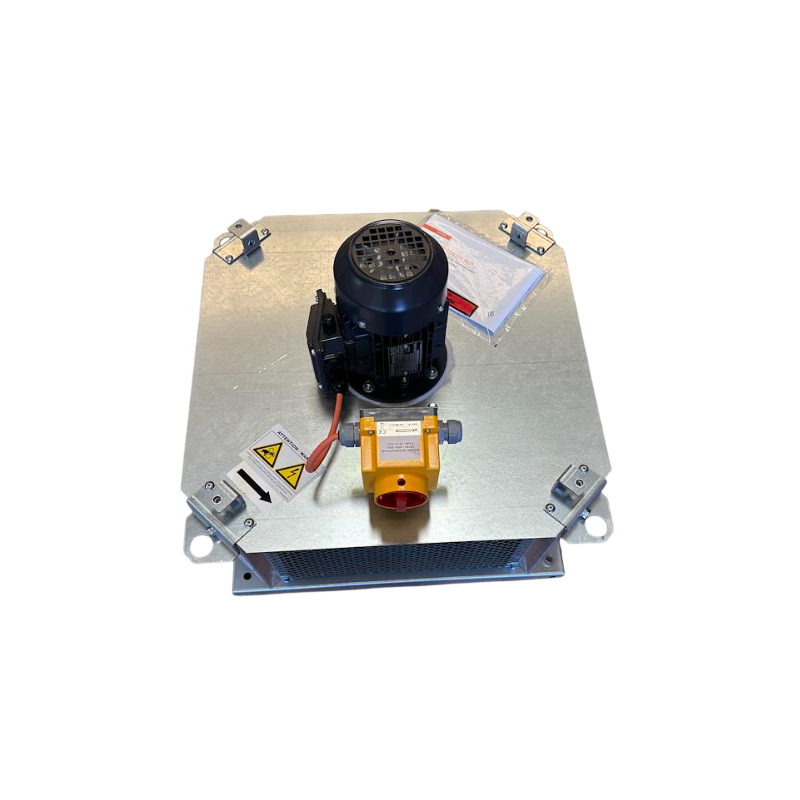

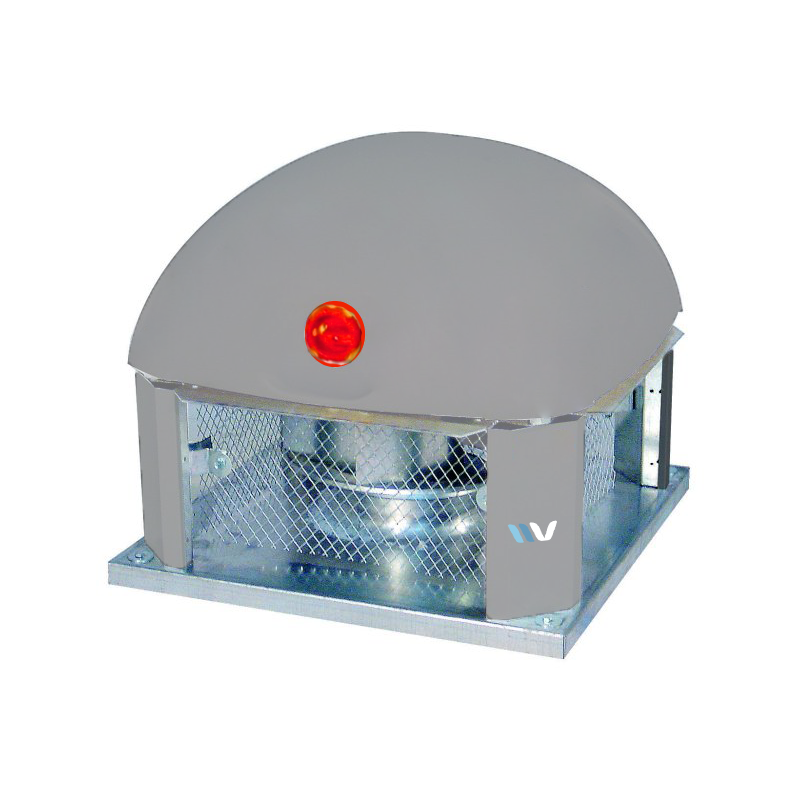

Roof fan T7148 Exhaust Fan - 2-Speed TRI 1,100/21,000 m³/h 400°/2h

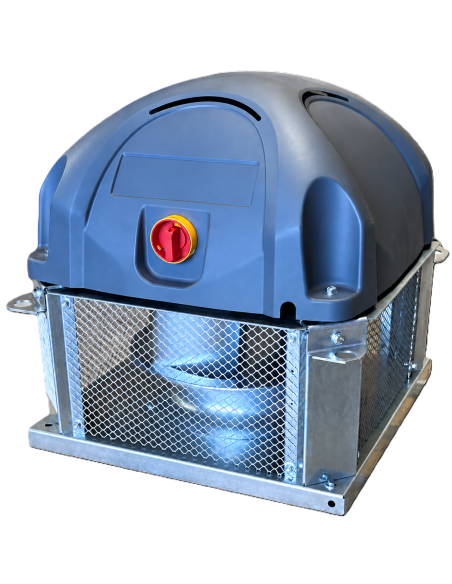

THF 6371 Extraction Turret Saftair 2 speeds

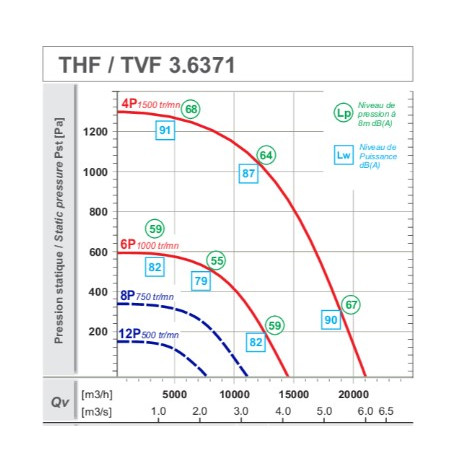

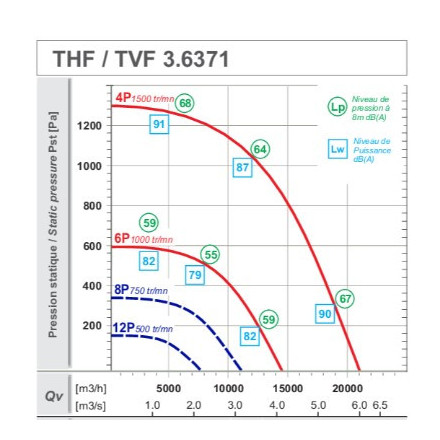

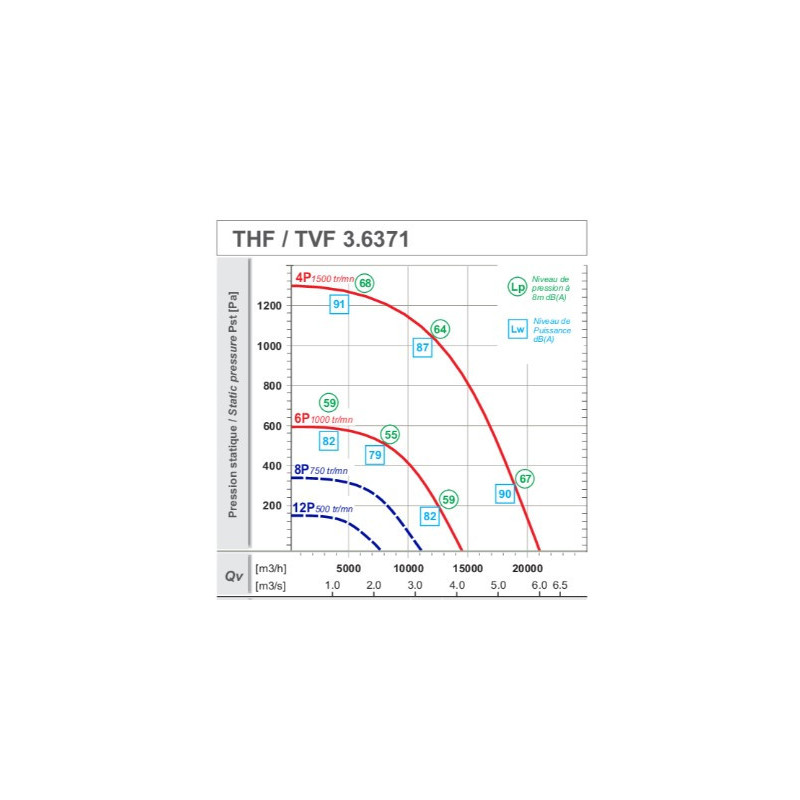

Turret Engine Power Curves

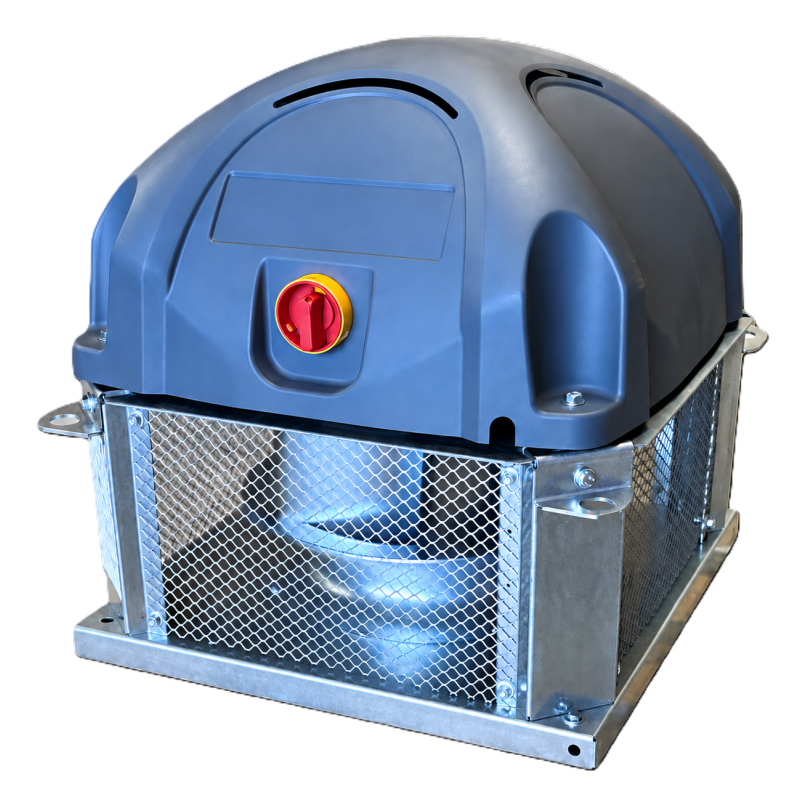

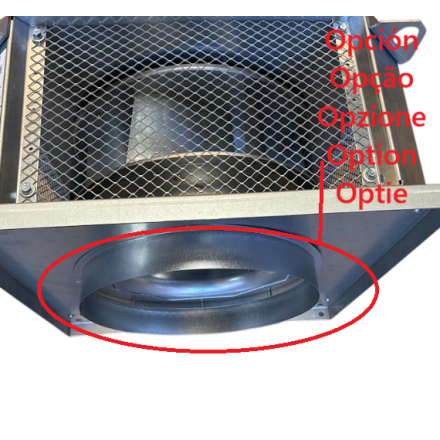

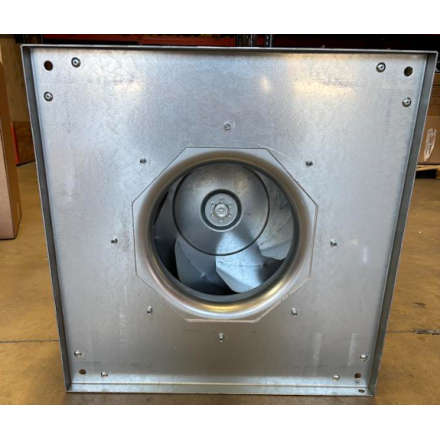

Roof fan TH71 4/8 sort

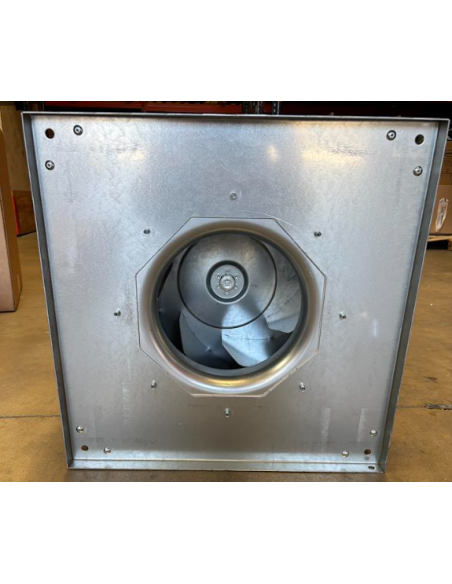

Roof fan TH71 4/8 sort

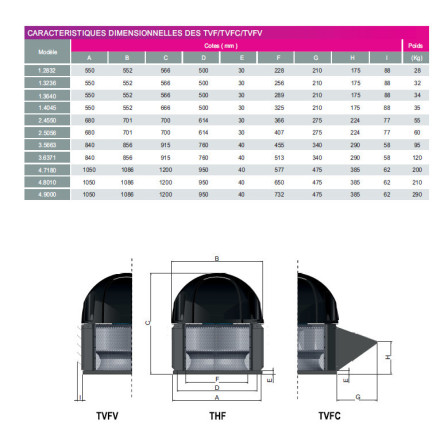

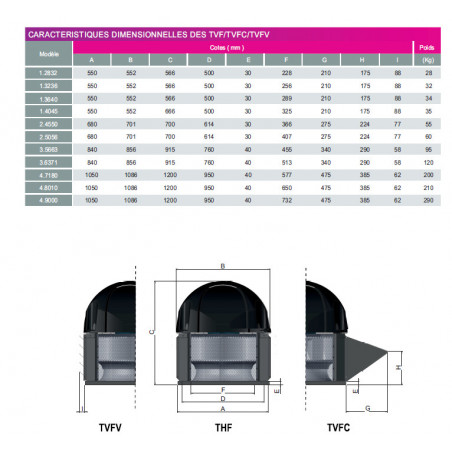

Roof turret dimensions

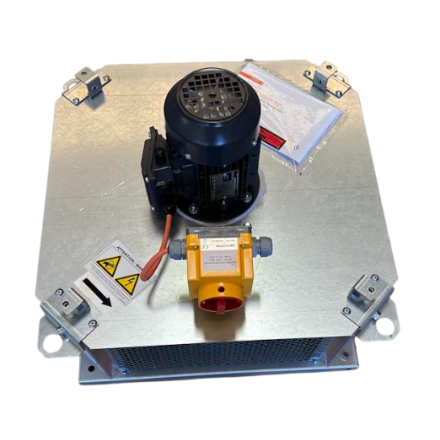

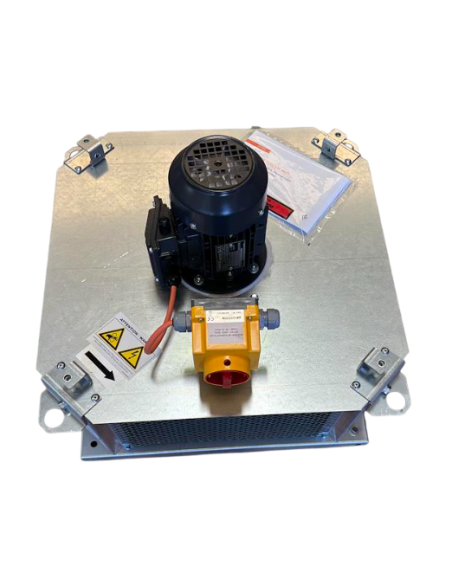

Roof fan TH71 4/8 sort

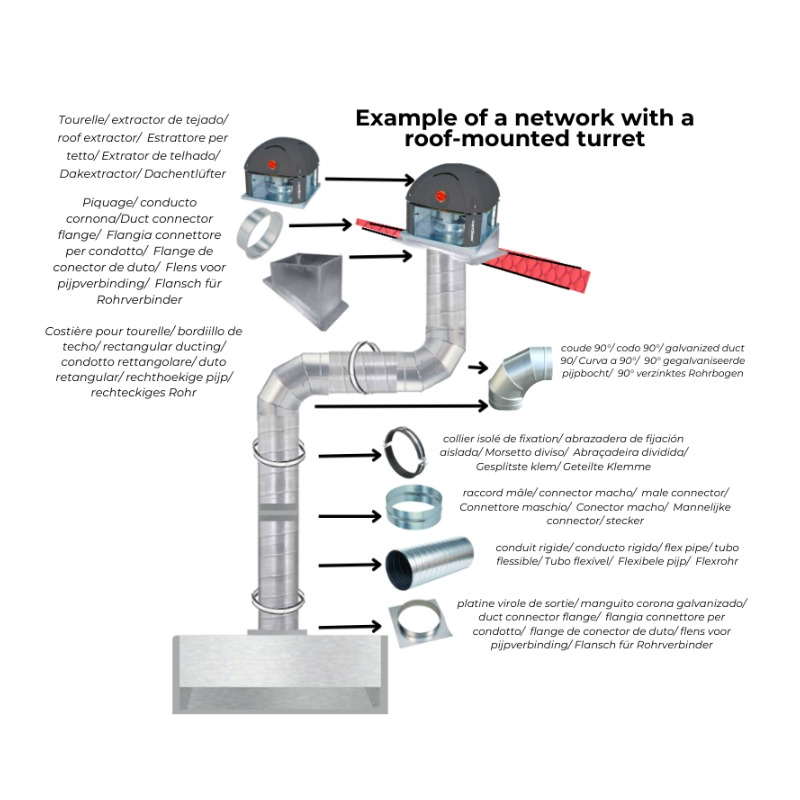

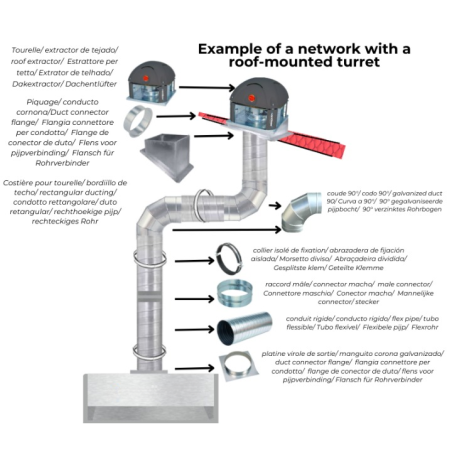

ventilation system turret assembly diagram Equivalent: TH Saftair, France Air Simoun, Alvene, Emmos, Vim.
Exhaust turret (front or roof-mounted) with off-center motor. Equivalent: TH Saftair, France Air, Simoun, Alvene, Emmos, Vim.

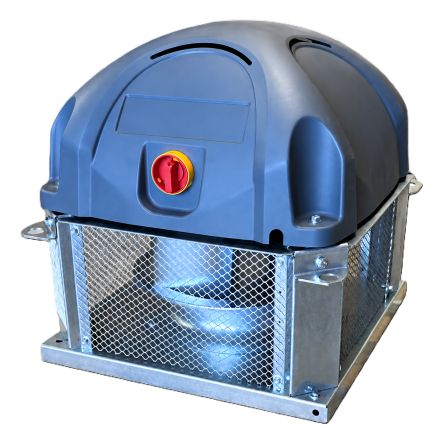

THF 6371 Extraction Turret Saftair 2 speeds
Turret Engine Power Curves
Roof fan TH71 4/8 sort
Roof fan TH71 4/8 sort

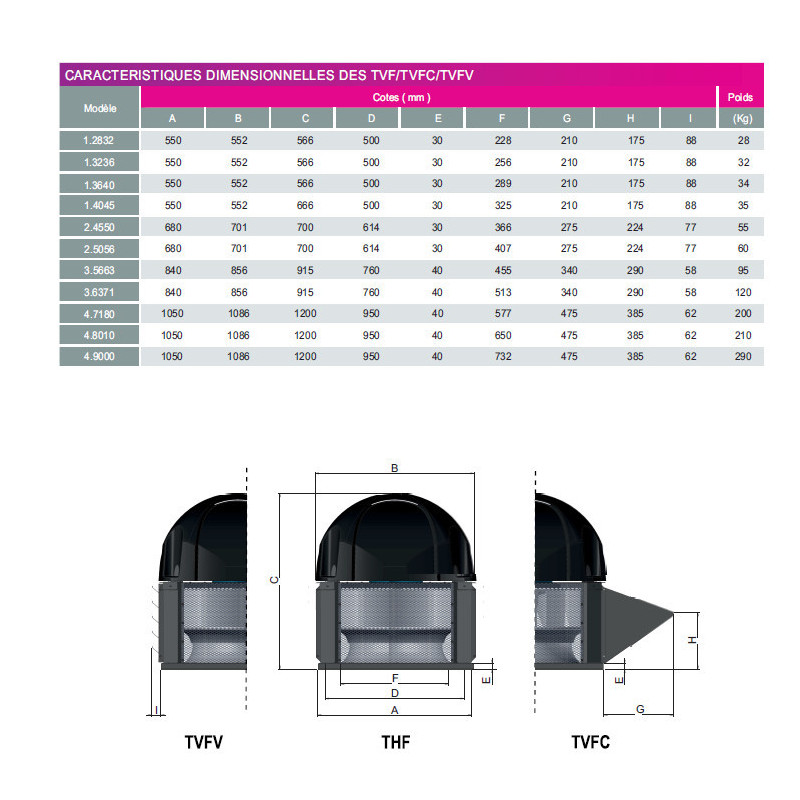

Roof turret dimensions
Roof fan TH71 4/8 sort
ventilation system turret assembly diagram Equivalent: TH Saftair, France Air Simoun, Alvene, Emmos, Vim.
Exhaust turret (front or roof-mounted) with off-center motor. Equivalent: TH Saftair, France Air, Simoun, Alvene, Emmos, Vim.

 Roof fan Horizontal discharge extraction unit Saftair 11,000–21,000 m³/h

- Dimensions: L 840 x W 856 x H 915 mm
- Roof fan 400°/2h Fire Safety/Smoke Exhaust Standards
- Hardwired proximity switch
- Weight: 120 kg
- Made in France - CE
- 4-8-pole Dahlander
- Protective and bird-proof grille

Speed 1:
- Power: 1300 W - 11,000 m³/h - 3.5 A
- Power supply: 3-phase 230/380 V
- RPM: 750

Speed 2:
- Power: 5,000 W - 21,000 m³/h - 10.4A
- Power supply: 3-phase 230/380 V
- RPM: 1,500

Manufacturing/delivery time: 1 to 2 weeks.

This product must be installed by a professional to be covered by the manufacturer’s warranties

1-year warranty if installed by a professional. Made in France.

Lower power rating: Roof fan T5648 three-phase, 2-speed

In stock
Quantity
2,435.00 Tax excluded
2922 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Roof fan Ventilsogood T71612 Professional Exhaust Fan - 7,500/14,500 m³ Three-Phase/h

Roof fan High-Performance Industrial Ventilation for Smoke Exhaust

The Ventilsogood T71612 extraction tower represents the pinnacle of French manufacturing excellence in professional ventilation. This roof-mounted extractor with horizontal discharge offers two-speed airflow rates of 7,500 and 14,500 m³/h, ideal for demanding industrial and commercial applications.

Technical Specifications of the Roof fan T71612 Ventilation Unit

  • 2-speed three-phase motor: Power adjustable according to ventilation needs, ensuring energy efficiency and optimal performance
  • Premium French manufacturing: Ventilation fan ( Roof fan ) designed and manufactured in France with high-quality materials for exceptional durability
  • Built-in bird protection: Protective mesh included on the roof vent to prevent birds from entering and ensure proper operation
  • F400/120 smoke exhaust certification: Ventilation Roof fan certified as fire-resistant (400°C for 2 hours), compliant with smoke exhaust standards for public-access facilities (ERP)

Applications of the Roof fan Professional Exhaust System

This horizontal-discharge roof turret is ideally suited for professional environments requiring high-performance air extraction:

  • Commercial and industrial kitchens
  • Production facilities and industrial sites
  • Warehouses and storage areas
  • Utility rooms and machine rooms
  • Smoke exhaust systems compliant with fire safety standards

Why Choose the Ventilsogood T71612 Roof Exhaust Fan?

The Ventilsogood ventilation fan combines performance, safety, and reliability. Its 2-speed motor allows for precise adjustment to ventilation needs, while its F400/120 certification makes it a compliant solution for regulatory smoke exhaust systems.

French manufacturing quality guarantees a robust and durable exhaust tower, reducing maintenance costs and ensuring effective ventilation over the long term.

Roof fan Professional exhaust fan | Three-phase roof exhaust fan | Certified industrial ventilation

Find all our 2-speed roof exhaust fans in our online store.

Product Details

SAFTAIR
T71tri2v48
Manufacturing
Made in France
Package weight
135 kg
Engine
Roof fan roof
Standard
F400/120
Food
380V Three-Phase
Engine power
More than 6,000 m³/h
