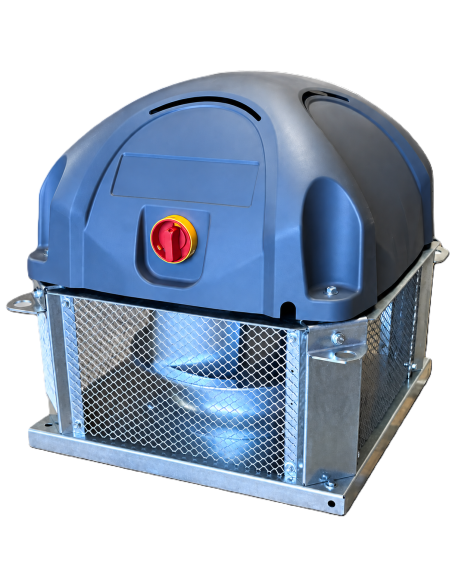

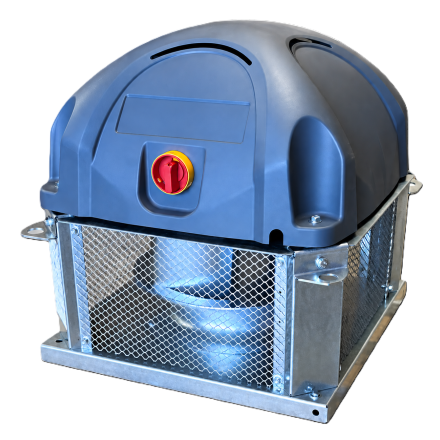

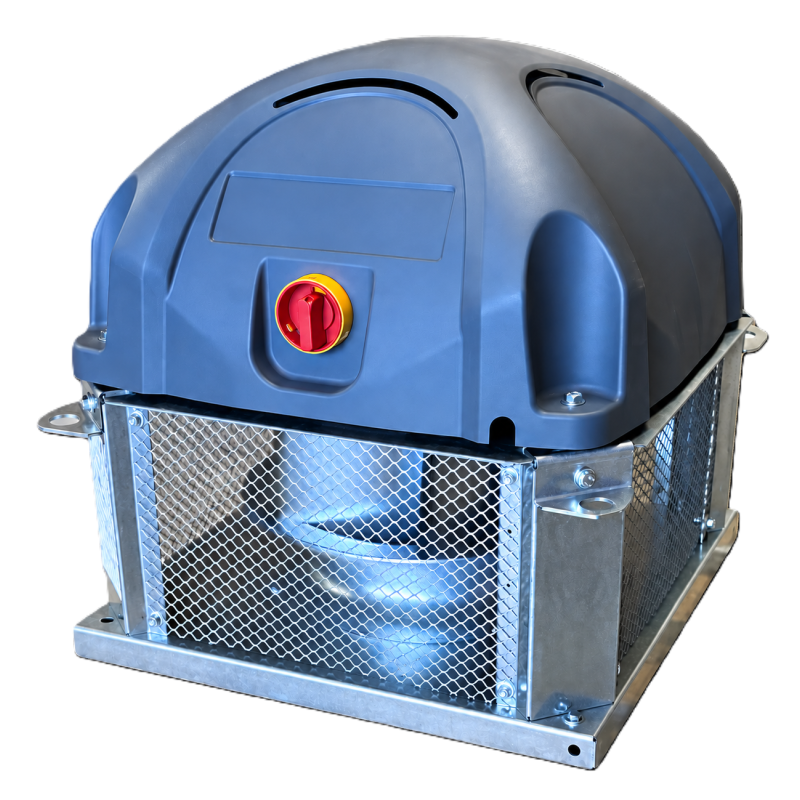

The Roof fan T4048-TRI Exhaust Fan (SAFTAIR TH) is a horizontal-discharge roof extract fan, designed for the ventilation of commercial premises and kitchens. Its 2-speed technology allows the airflow to be varied from 2000 to 4200 m³/h depending on the extraction needs at any given time.
Technical specifications of the T4048 2-speed roof fan
| Specification |
Value |
| Airflow |
2000 to 4200 m³/h |
| Power supply |
380V three-phase |
| Motor |
Roof fan, 4-8 pole Dahlander |
| Discharge |
Horizontal |

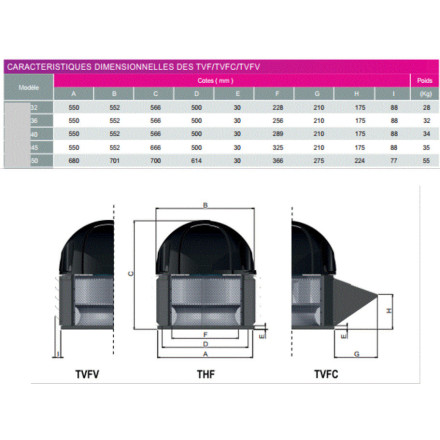

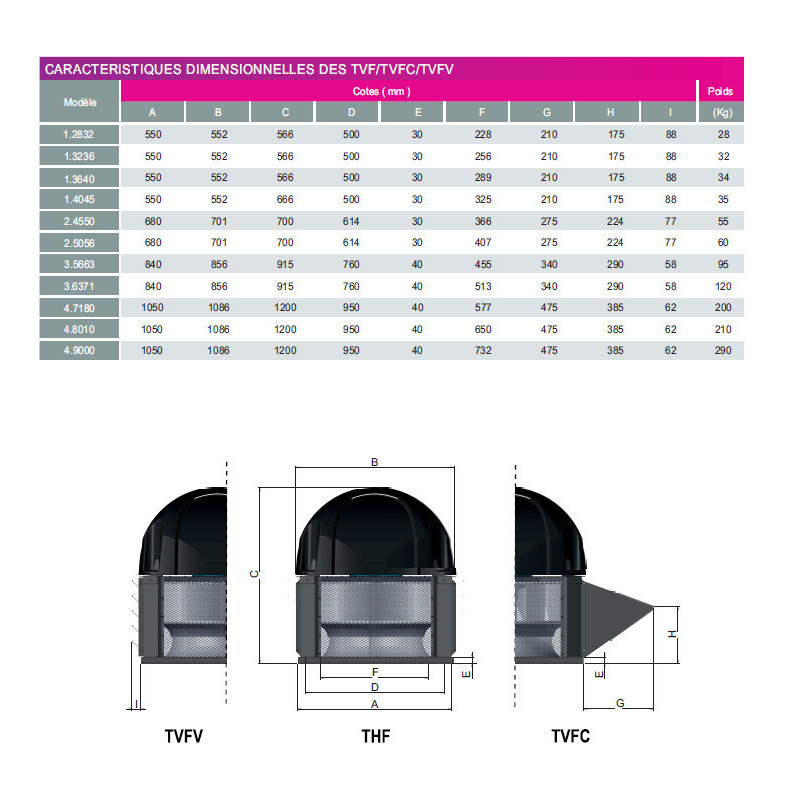

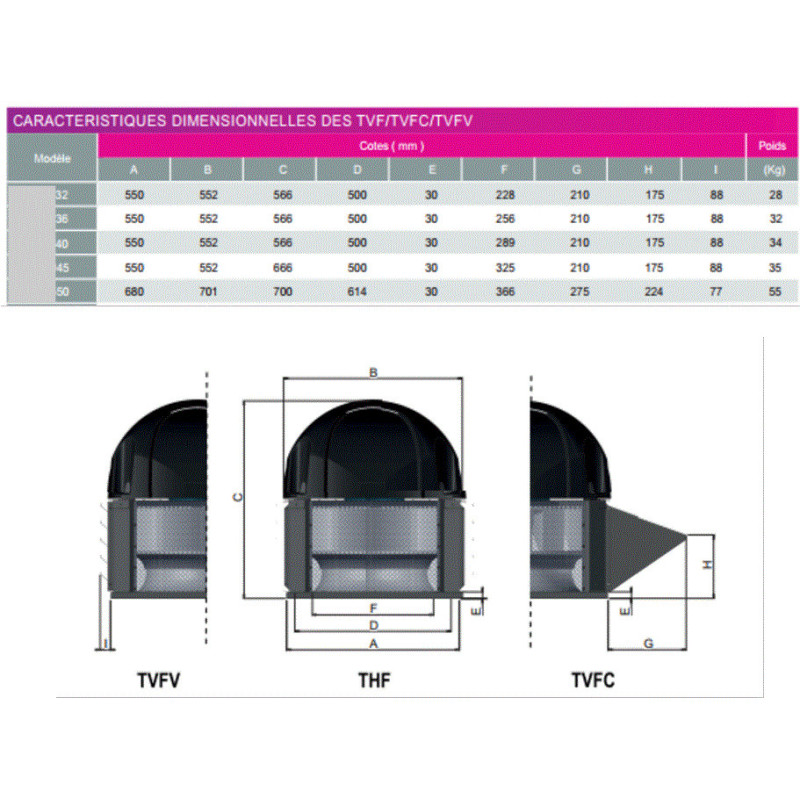

| Dimensions |

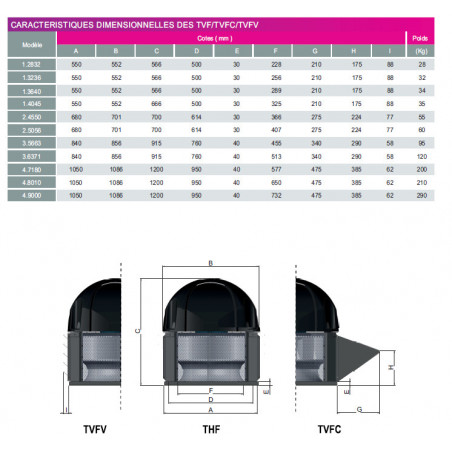

L 550 x W 550 x H 566 mm |
| Weight |
45 kg |
| Manufacture |
France |
| Reference |
T3640tri2V48 |
Use and 2-speed operation

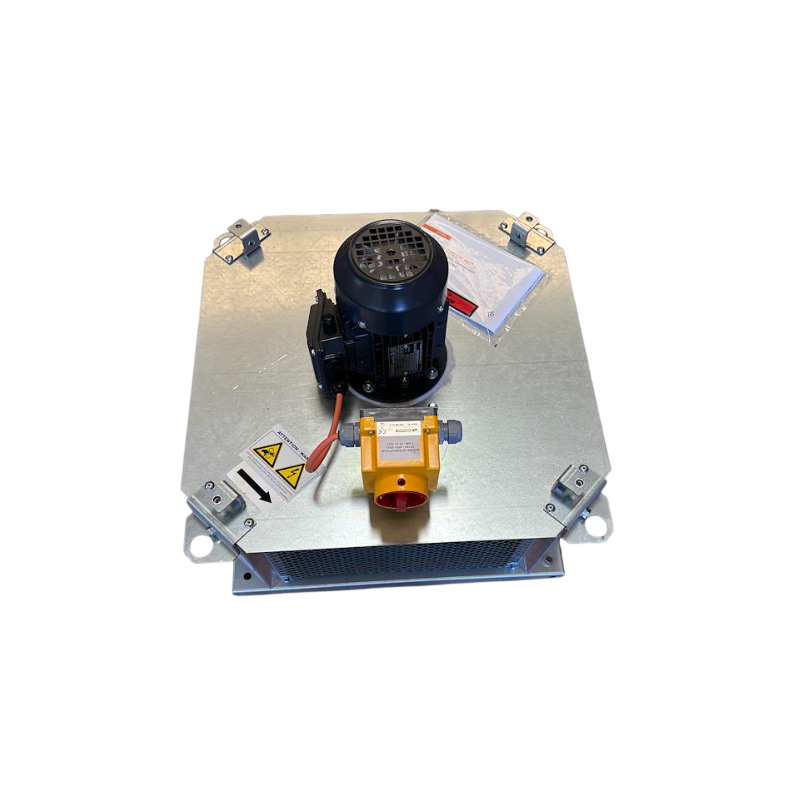

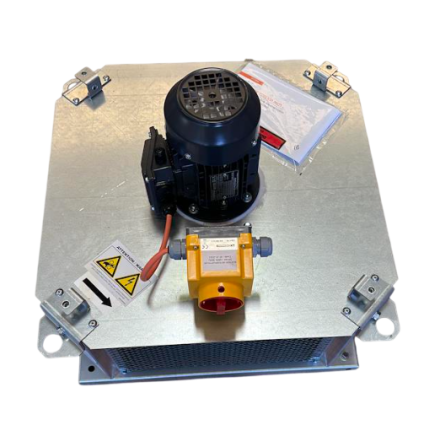

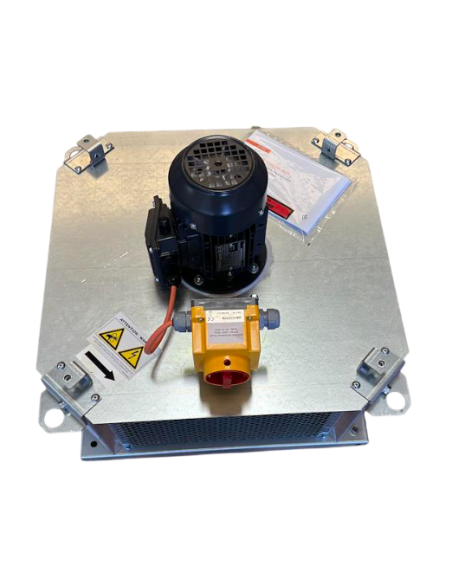

This roof fan is fitted to extraction systems serving commercial kitchens and plant rooms that require a variable airflow. Switching between speeds relies on pole-changing (Dahlander motor), which reduces power consumption during periods of low activity while retaining full airflow capacity when cooking or activity levels require it. The roof fan comes with a factory-fitted and wired proximity switch, as well as a bird mesh guard on the discharge grille.
Installation and connection

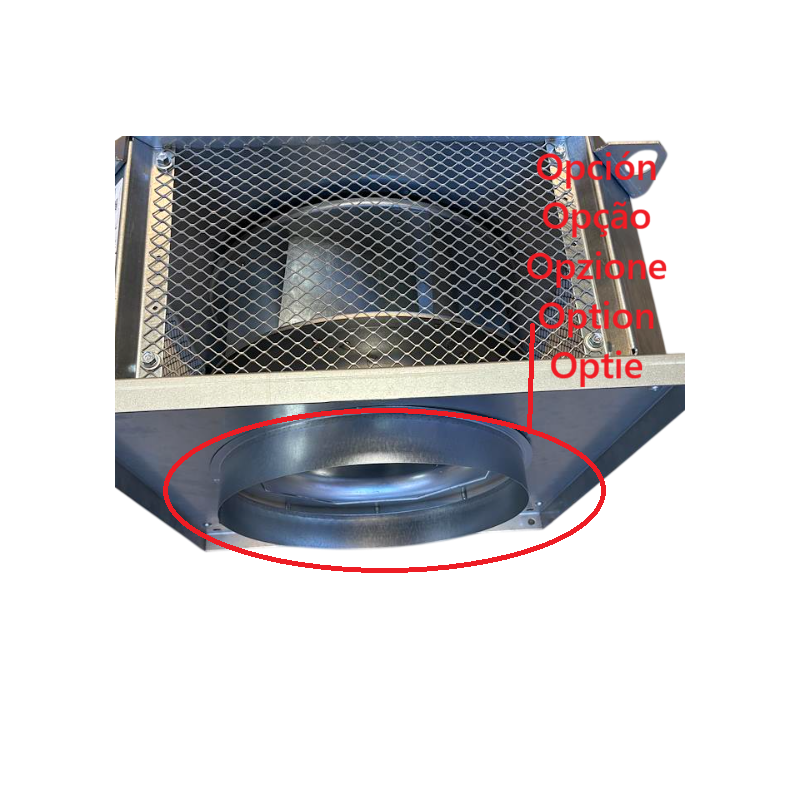

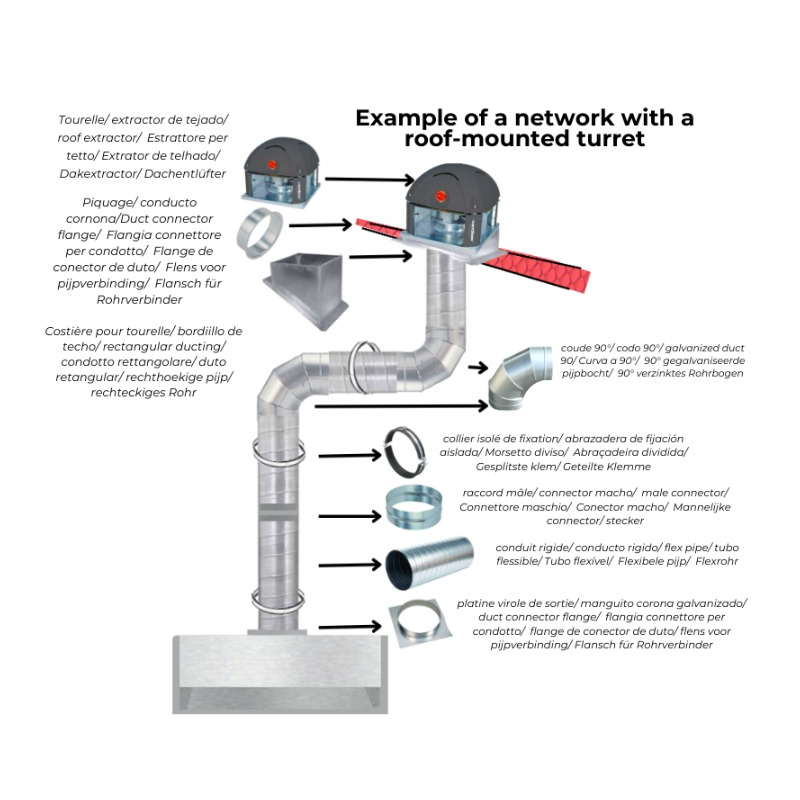

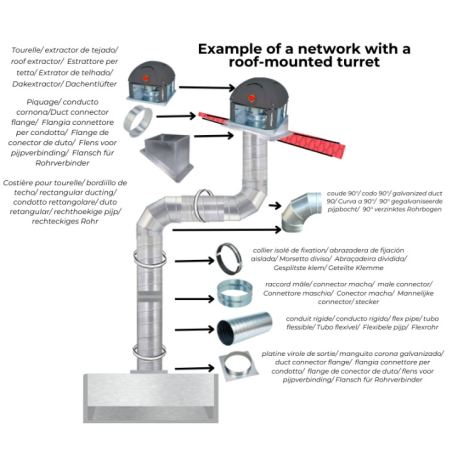

The roof fan connects to a ductwork system; duct diameter and speed selection depend on the installed network (length, elbows, filters, air inlet). Switching between the two speeds can be controlled by a dedicated starter or a 2-speed switch. This product must be installed by a qualified professional for the manufacturer's warranty to apply. VentilSoGood supplies this equipment but does not carry out installation.
Points to check before ordering
- Confirm that the available power supply is indeed 380V three-phase and not single-phase.

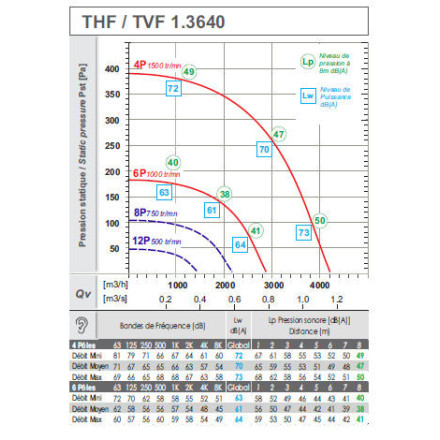

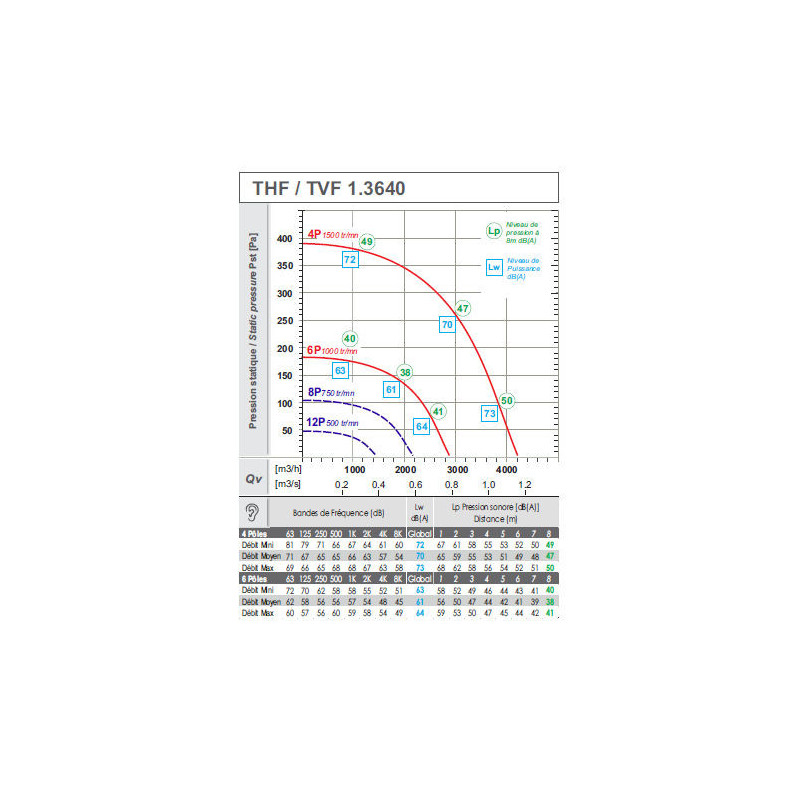

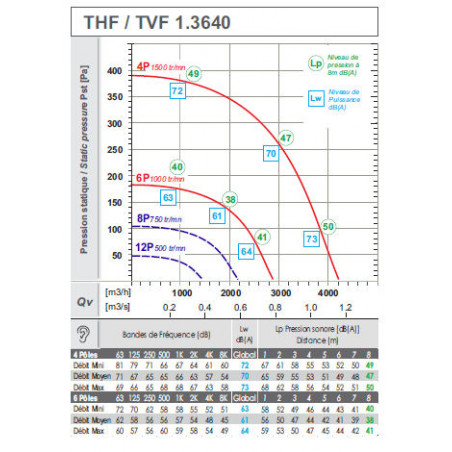

- Check the airflow actually required for the installation: the maximum airflow of 4200 m³/h is a capacity reference, the actual airflow depends on the ductwork (duct length, elbows, filters, air inlet).
- Check the roof space available (550 x 550 x H 566 mm) and compatibility with the existing roof upstand.
- Check the required control method (simple 2-speed switch or starter with smoke extraction button) before ordering control accessories.

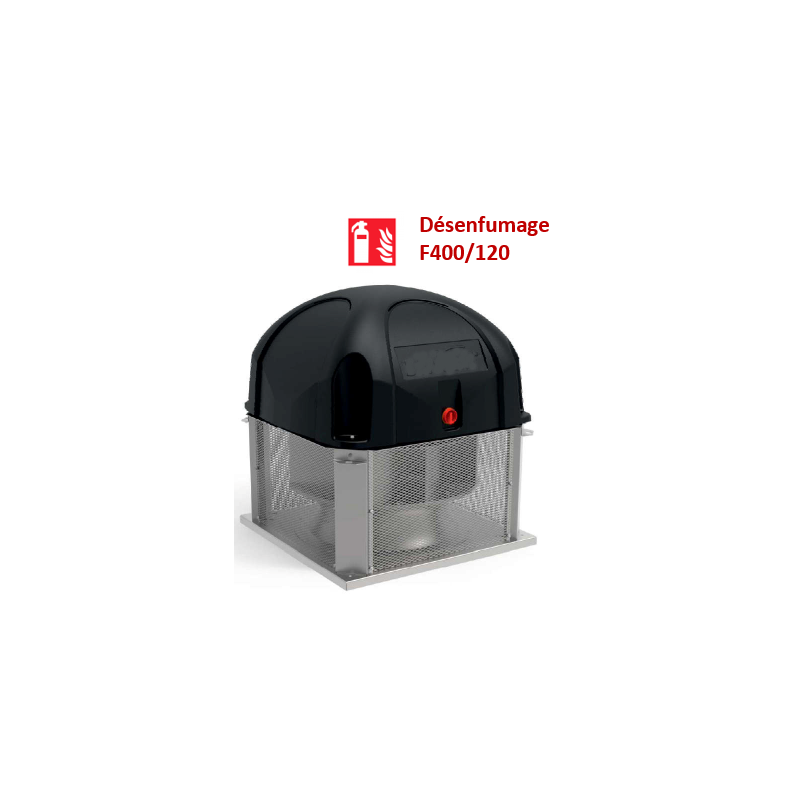

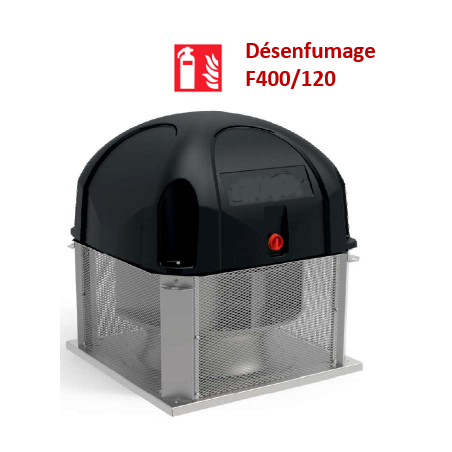

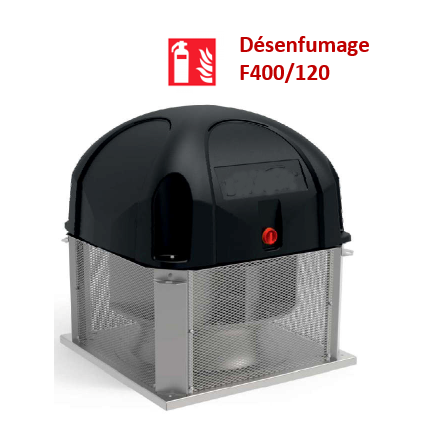

- Make sure the exact fire rating required by the project matches the one stated in the manufacturer's documentation for this product: C4 and F400/120 ratings are not equivalent.
Recommended with
For a higher airflow, see also the T50612 2-speed roof fan (2500 to 5000 m³/h) or the T4548 roof fan (2600 to 5200 m³/h).
