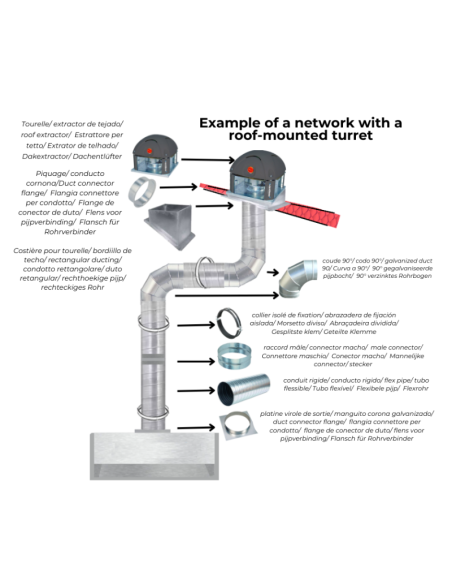

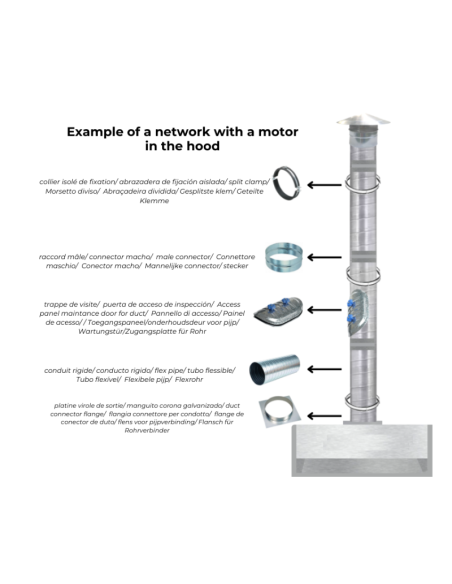

Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust

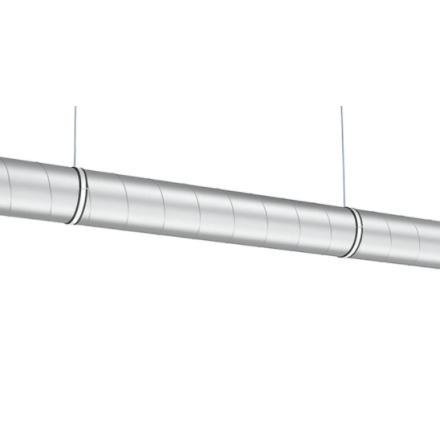

Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral pipe  1 meter 560, vue 4
Galvanized rigid spiral pipe  1 meter 560, vue 5
Galvanized rigid spiral pipe  1 meter 560, vue 6
Galvanized rigid spiral pipe  1 meter 560, vue 7
Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust
Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral pipe  1 meter 560, vue 4
Galvanized rigid spiral pipe  1 meter 560, vue 5
Galvanized rigid spiral pipe  1 meter 560, vue 6
Galvanized rigid spiral pipe  1 meter 560, vue 7

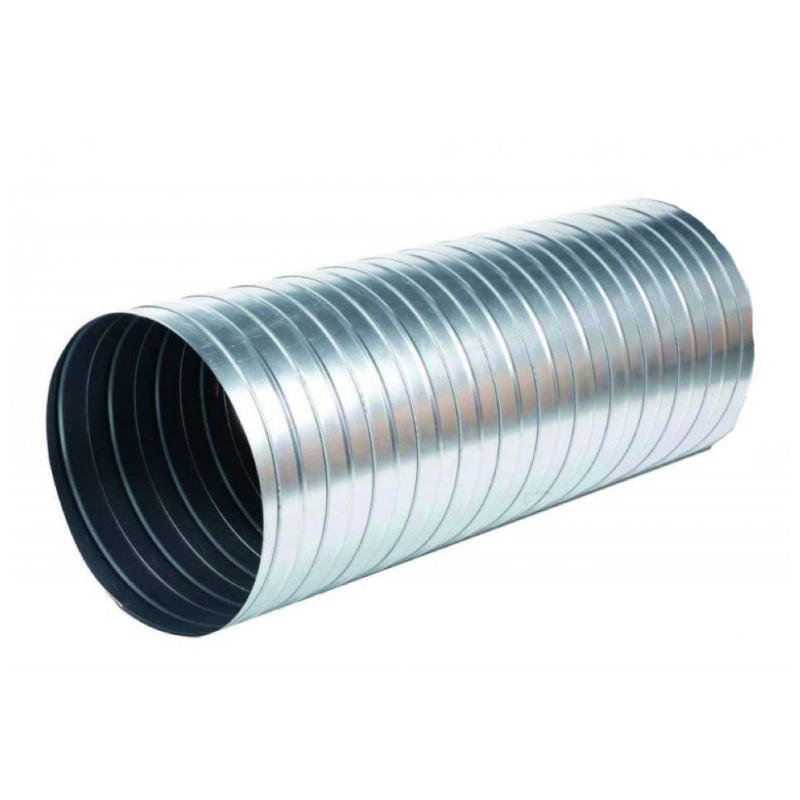

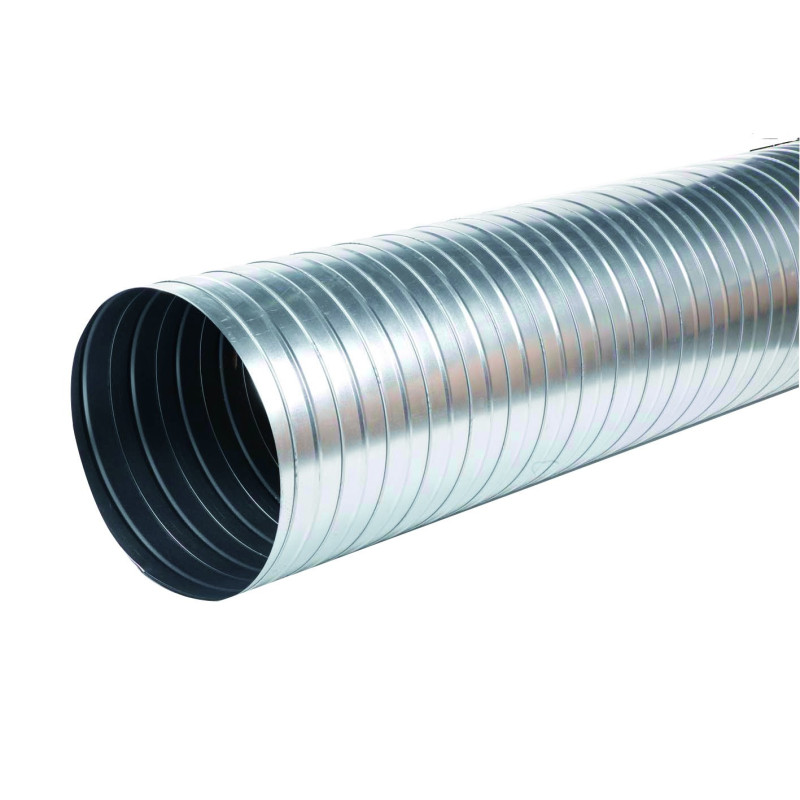

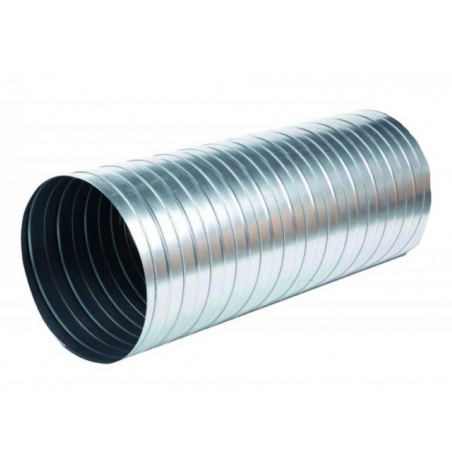

The galvanized rigid spiral duct in 560 mm diameter and 1 metre length is designed for extraction systems on mechanical ventilation and commercial kitchen hoods, with a temperature resistance of -30°C to +250°C.

  • Diameter: 560 mm
  • Length: 1000 mm
  • Fitting: female
  • Operating temperature: -30°C to +250°C
  • Fire rating: A1
  • Weight: 30 kg
In stock
Quantity
40.00 85.00 Tax excluded
48 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The galvanized rigid spiral duct in 560 mm diameter is a galvanized steel pipe designed for extraction systems on commercial kitchen hoods or mechanical ventilation systems. Supplied in a 1 metre length, it withstands temperatures of -30°C to +250°C with an A1 fire rating.

Technical specifications of the 560 galvanized duct

Specification Value
Diameter 560 mm
Length 1000 mm
Connection type Female fitting
Operating temperature -30°C to +250°C
Fire rating A1
Weight 30 kg

Use on mechanical ventilation and hood extraction systems

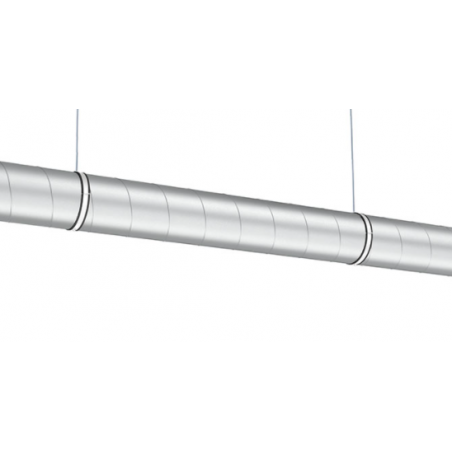

This galvanized spiral duct is suitable for a commercial kitchen extraction system as well as for a mechanical ventilation installation in commercial premises. Its galvanized steel sheet, shaped by spiral winding, gives it good rigidity for running through a suspended ceiling, a service duct, or along a wall when surface mounted. The 1 metre format is particularly practical for adjusting an existing network, making a custom cut section, or working in a tight technical area where a 2 or 3 metre pipe would not fit.

Installation and connection

This fitting is supplied as a female section: it connects onto the male end of the following duct or onto a dedicated connector. To ensure the network remains airtight, always use a fixing and sealing kit suited to the 560 mm diameter (clip/clamp, gasket, tape). Any associated electrical installation (motor, roof extract fan) must be carried out by a qualified professional, a condition required to maintain the warranty.

Important note on delivery

Ducts are delivered as single-piece sections of 1 to 3 m depending on the quantity ordered. Transport of galvanized steel items can sometimes cause slight deformation of the sheet metal, particularly at the ends: it is almost impossible to receive a length in perfectly pristine condition. Where any dents are minor, there is no need to reject the product: the ends reshape easily and a minor dent does not create pressure loss in the ductwork. Only a length that is fully crushed or folded over itself will be considered non-conforming.

Points to check before ordering

  • Confirm that the 560 mm diameter matches your existing ductwork or the sizing specified by your installer, based on the required airflow rate and the pressure losses in the network.
  • Check that the female connection is compatible with your existing elbows, couplers or tees.
  • Allow for the weight of the piece, 30 kg for 1 metre, when handling and fixing it.
  • Plan for a sealing kit suited to this diameter at each joint in the network.
  • Check the available clearance (ceiling height, duct routing) before choosing the 1 metre length rather than a longer format.

To pair with

You will also find other diameters of galvanized rigid spiral duct in 1 metre lengths (500, 630, 710, 800 mm) as well as the galvanized rigid steel duct 1 metre in our ductwork category.

Product Details

Ventilsogood
conduit1ml560
Products
Sheath/Conduit
0657968162723

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between this rigid spiral duct and a flexible duct?

The galvanized rigid spiral duct keeps its cylindrical shape and offers better mechanical strength and a smoother internal surface than a flexible duct. A flexible duct can bend around obstacles but generates greater pressure losses. The choice depends on the ductwork layout and the space available.

Why choose this duct in a 1 metre length rather than a longer format?

The 1 metre format makes handling easier and allows you to precisely adjust an existing network, make a custom cut section, or work in a tight technical area. It is particularly suited to one off adjustments rather than a long straight run.

How do I connect this 560 mm duct to my existing network?

This duct is supplied as a female fitting: it connects onto the male end of another duct or connector of the same diameter. Use a fixing and sealing kit suited to the 560 mm diameter to ensure an airtight joint, with a clamp and gasket.

The duct shows slight deformation on delivery, is this normal?

Yes, transport of galvanized steel items can sometimes cause slight deformation of the sheet metal, particularly at the ends. As long as the length is not fully crushed or folded over itself, the product remains conforming: the ends reshape easily and a minor dent does not create pressure loss in the network.

Is this duct suitable for commercial mechanical ventilation or only for commercial kitchen hoods?

The 560 mm galvanized rigid spiral duct can be used both on a commercial kitchen hood extraction system and on a commercial mechanical ventilation installation, thanks to its temperature resistance of -30°C to +250°C and its A1 fire rating.
