Galvanized rigid spiral conduit, 1 meter 710
- On sale!
Galvanized rigid spiral duct, 1 metre long and 710 mm in diameter, for connecting or extending a commercial kitchen hood or professional mechanical ventilation system.
- Diameter: 710 mm
- Length: 1000 mm
- Female end
- Operating temperature: -30°C to +250°C
- Fire rating: A1
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

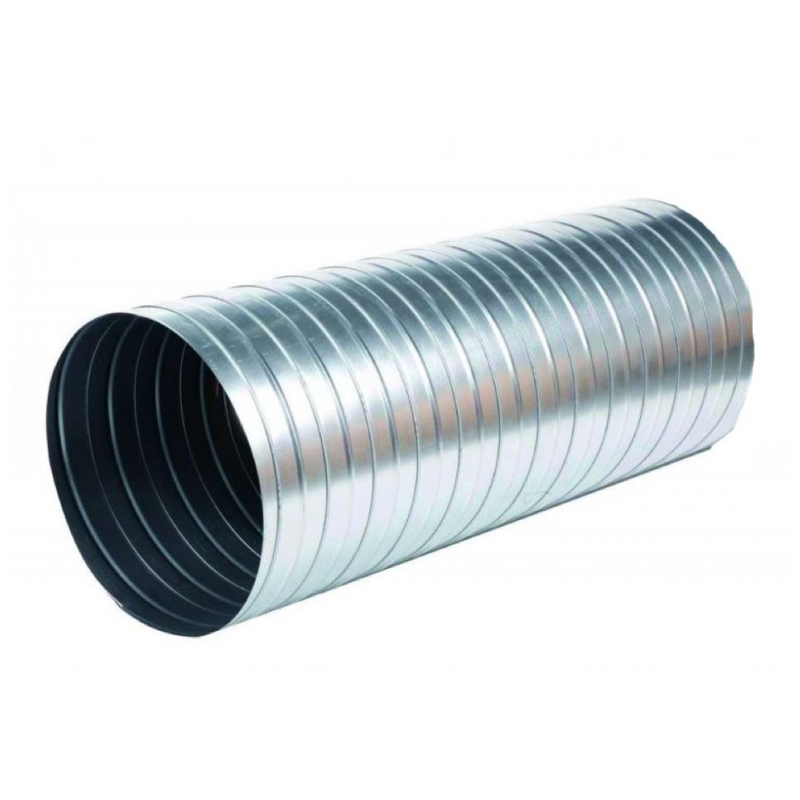

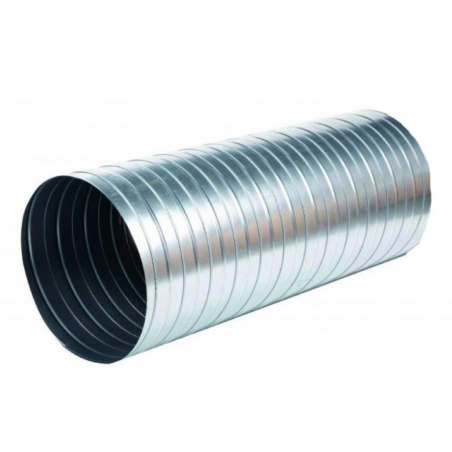

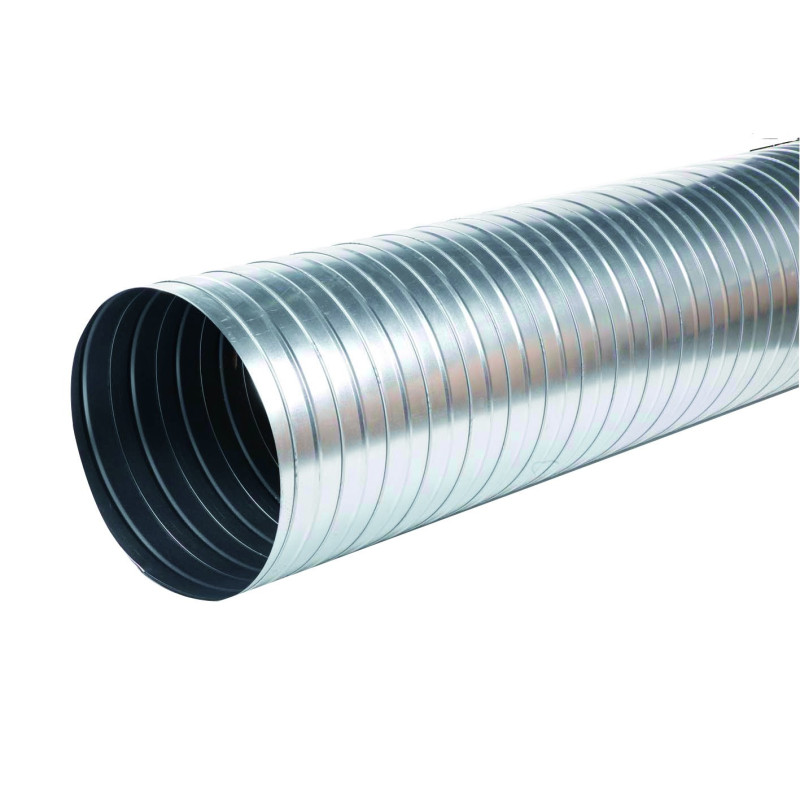

The galvanized rigid spiral duct Ø710 is a 1 metre length of galvanized steel ducting, designed for commercial kitchen extraction networks and professional mechanical ventilation systems. Its large 710 mm diameter makes it the ideal section for high airflow networks or length adjustments on an existing system.
Technical specifications of the galvanized 710 duct
This rigid duct has the following specifications:
| Specification | Value |
|---|---|
| Diameter | 710 mm |
| Length | 1000 mm |
| Connection | Female end |
| Operating temperature | -30°C to +250°C |
| Fire rating | A1 |
| Weight | 30 kg |
Use and compatibility

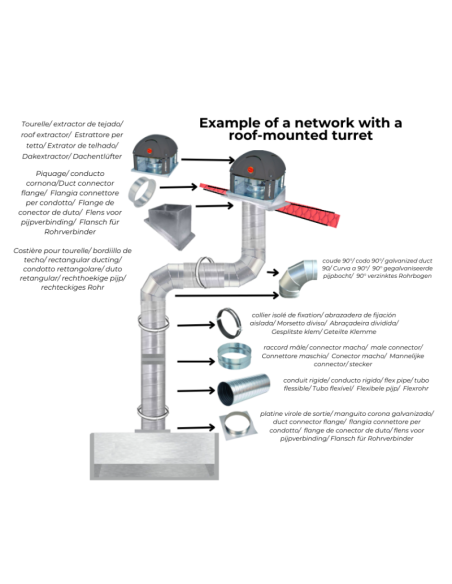

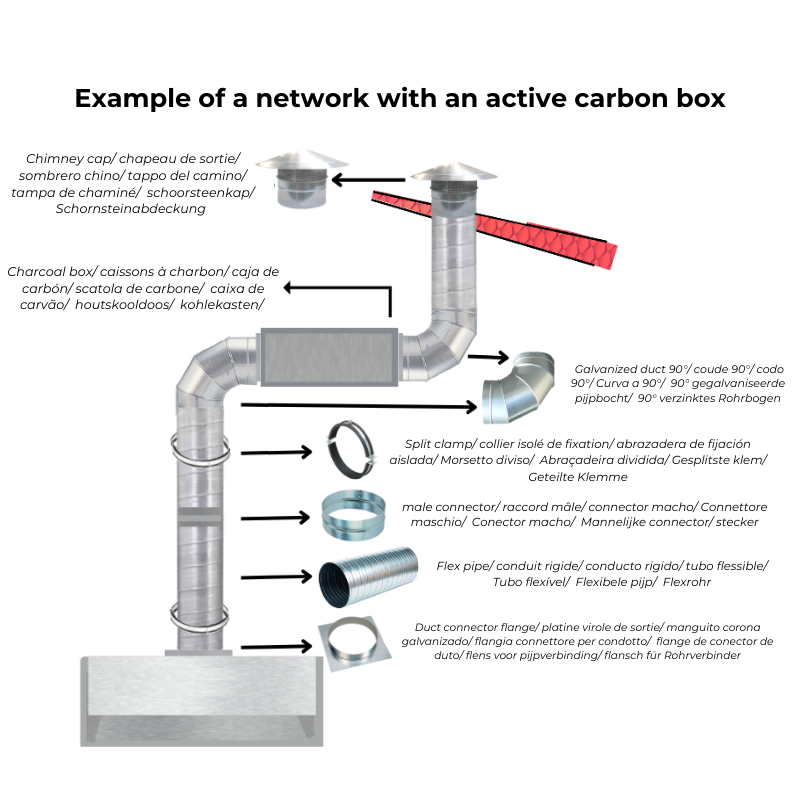

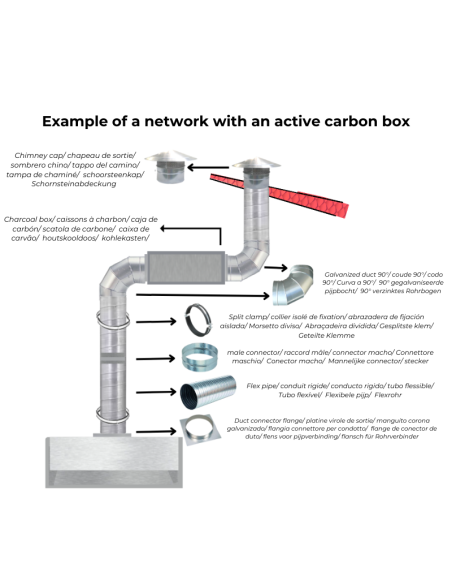

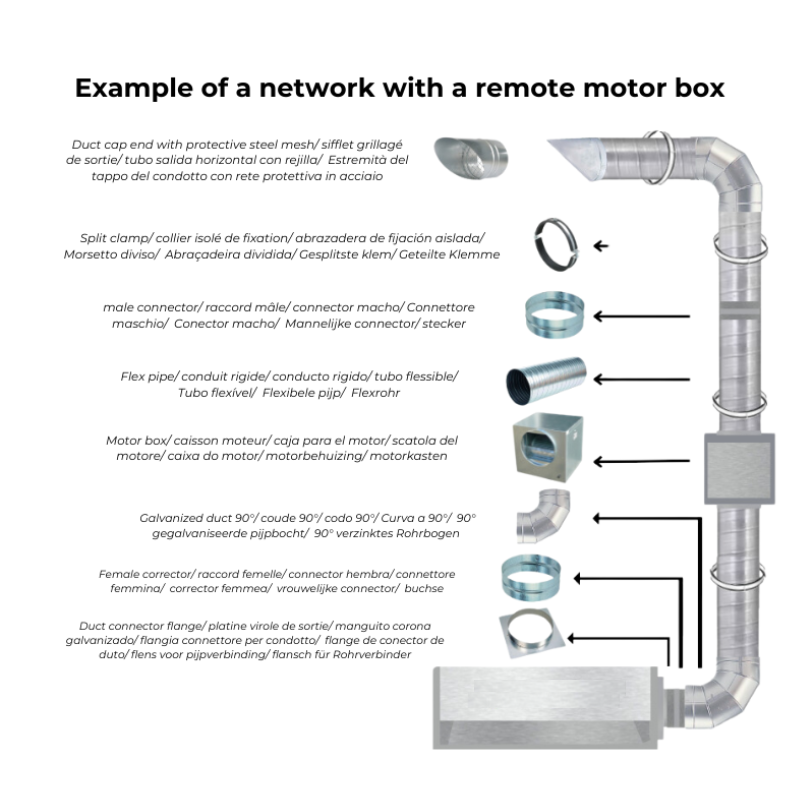

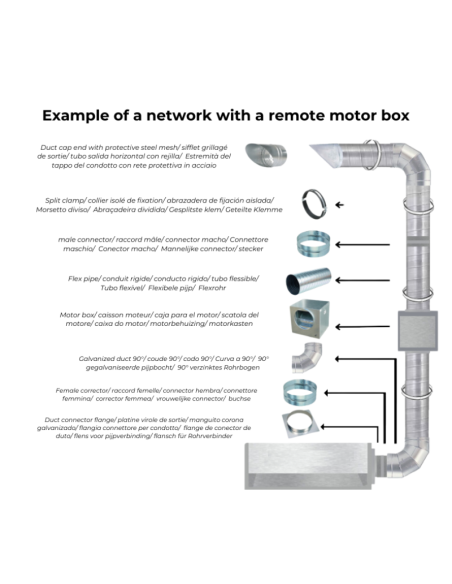

This Ø710 section is used to build, extend or adjust a large diameter ventilation network, typically at the outlet of an extraction fan box or a high-power double-inlet centrifugal fan, in commercial kitchens as well as in ventilation systems for commercial premises. Its spiral form gives it good mechanical strength while remaining lighter than an equivalent rectangular duct. Its female end allows direct fitting with a male Ø710 connector or another section of the same diameter.
Installation and connection

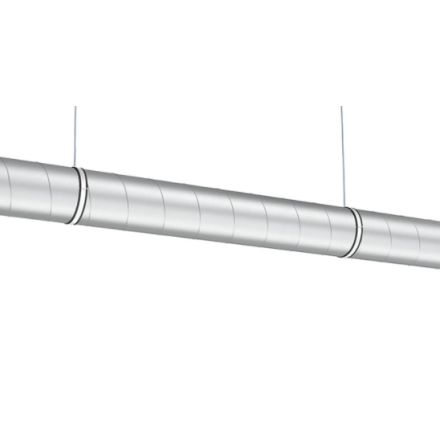

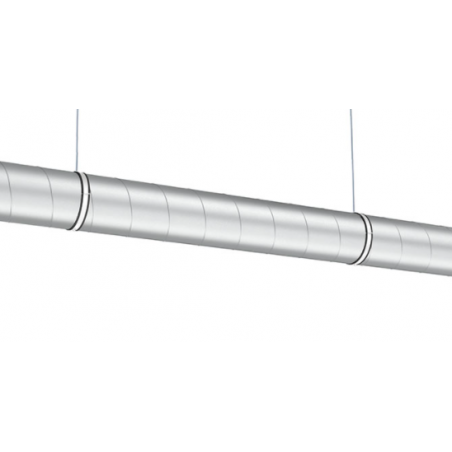

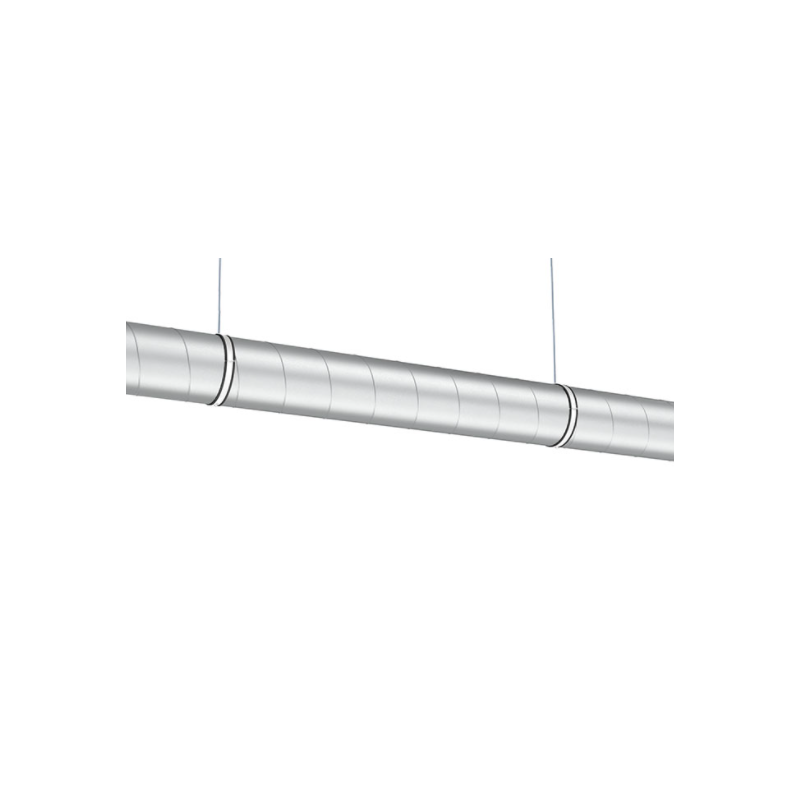

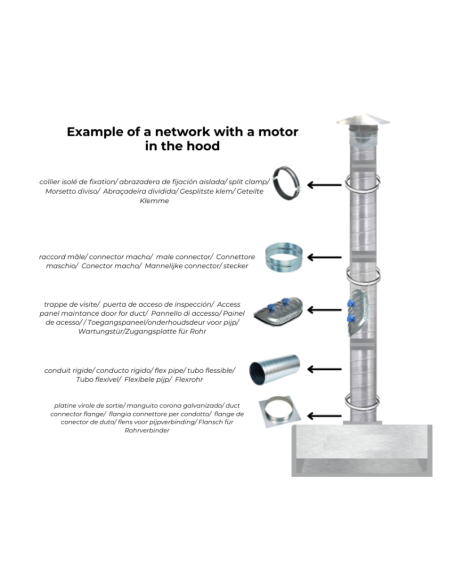

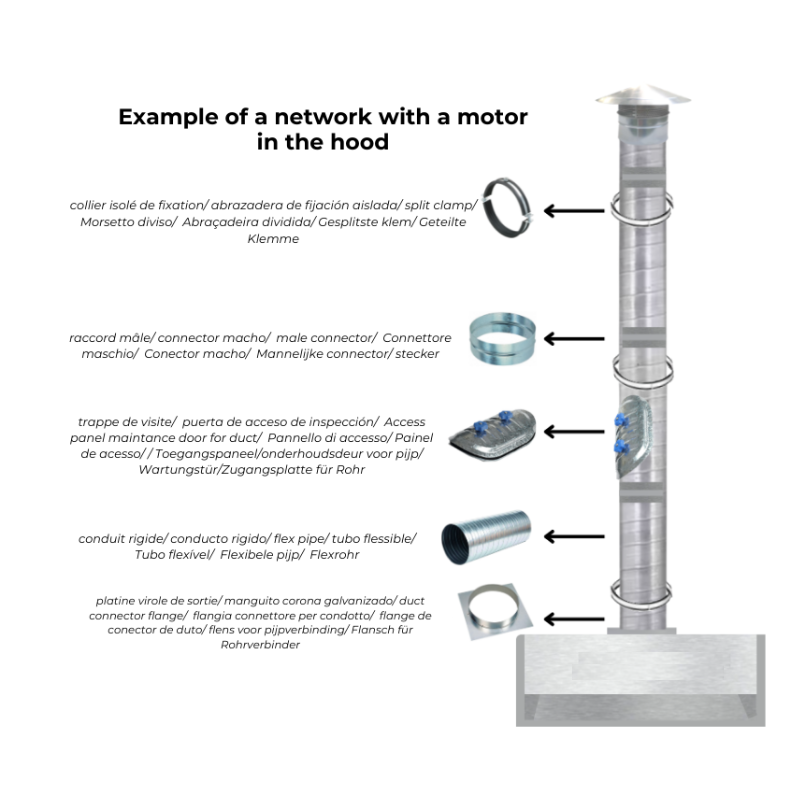

To ensure the network is airtight, use a suitable fixing and sealing kit when connecting two sections. An insulated fixing clamp holds the duct in place along its run, and a sealant cartridge secures the joints. Aluminium tape can be used in addition to reinforce the connections.
Important note: this duct is supplied in single-piece lengths of 1 to 3 m depending on the quantity ordered. Transport of galvanized ducts can sometimes cause dents in the sheet metal, particularly at the ends: it is almost impossible to receive a length in perfect condition. Where dents are moderate, there is no reason to reject the product, as the ends reshape easily and a small dent does not create pressure loss in the network. Only a length that is completely crushed or folded over itself will be considered non-compliant.
Points to check before ordering
- Check that the 710 mm diameter matches your existing network or the outlet of your extraction fan box: an incorrect diameter requires reducers, which create pressure losses.
- Allow for a suitable fixing and sealing kit for each connection, not supplied with this duct alone.
- Plan for handling: this section weighs 30 kg, so allow for two people when installing at height.
- Check the available space in the suspended ceiling or plant room, as a Ø710 duct requires a substantial clearance.
- On a long network with several elbows, bear in mind that pressure losses increase: final sizing depends on the whole network, not on the duct diameter alone.
To use alongside
- Galvanized male connector between 2 ducts
- Insulated fixing clamp
- Aluminium tape
- Sealant cartridge for ductwork
Find the other available diameters in the Galvanized Duct category, including the Ø630, Ø560 and Ø800 mm versions.
You might also like
8 other products in the same category:
Frequently asked questions
Which duct diameter should I choose for my extraction network?
The diameter must match the outlet of your extraction fan box or hood. This Ø710 duct is suitable for existing large diameter networks. For a different network, check the other diameters available in our Galvanized Duct category before ordering.
How do I ensure an airtight seal between two duct sections?
Use a suitable fixing and sealing kit when connecting, for example a sealant cartridge for ductwork, supplemented if needed with aluminium tape on the joints.
Can the duct arrive dented on delivery?
Transport of galvanized ducts can cause dents in the sheet metal, particularly at the ends. Moderate dents reshape easily and do not create pressure loss: only a length that is completely crushed or folded over itself is considered non-compliant.
Is this duct suitable for high temperature use?
Yes, this galvanized rigid spiral duct has an operating temperature range of -30°C to +250°C, with an A1 fire rating, suitable for use on a commercial kitchen extraction network.
Do I need an accessory to fix this duct in place?
Yes, use an insulated fixing clamp to support it along its run. This duct weighs 30 kg and needs suitable support, to be ordered separately.
