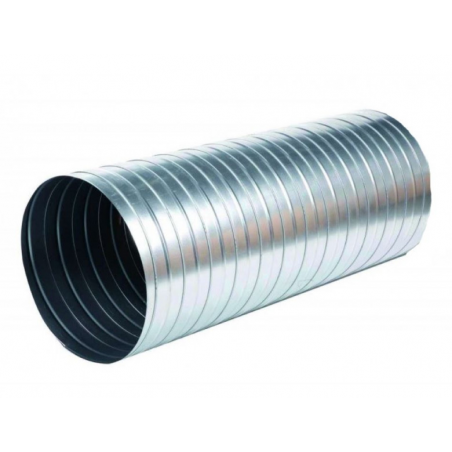

Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust

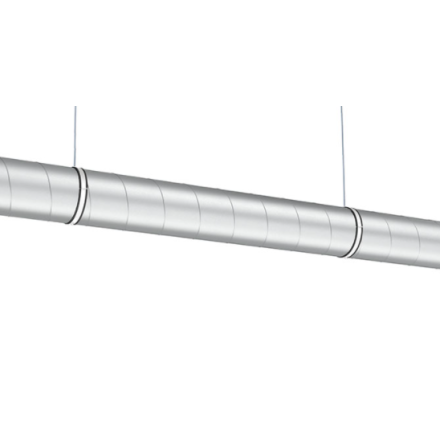

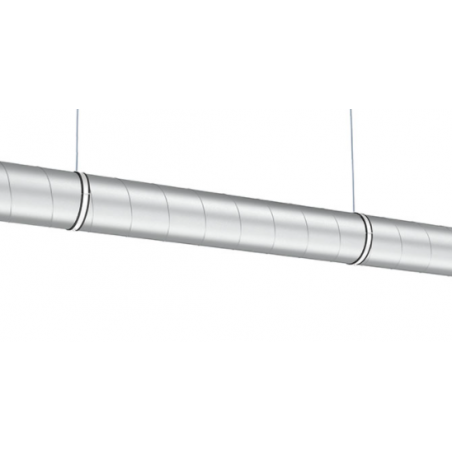

Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral pipe, 1 meter 800, vue 4
Galvanized rigid spiral pipe, 1 meter 800, vue 5
Galvanized rigid spiral pipe, 1 meter 800, vue 6
Galvanized rigid spiral pipe, 1 meter 800, vue 7
Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust
Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral pipe, 1 meter 800, vue 4
Galvanized rigid spiral pipe, 1 meter 800, vue 5
Galvanized rigid spiral pipe, 1 meter 800, vue 6
Galvanized rigid spiral pipe, 1 meter 800, vue 7

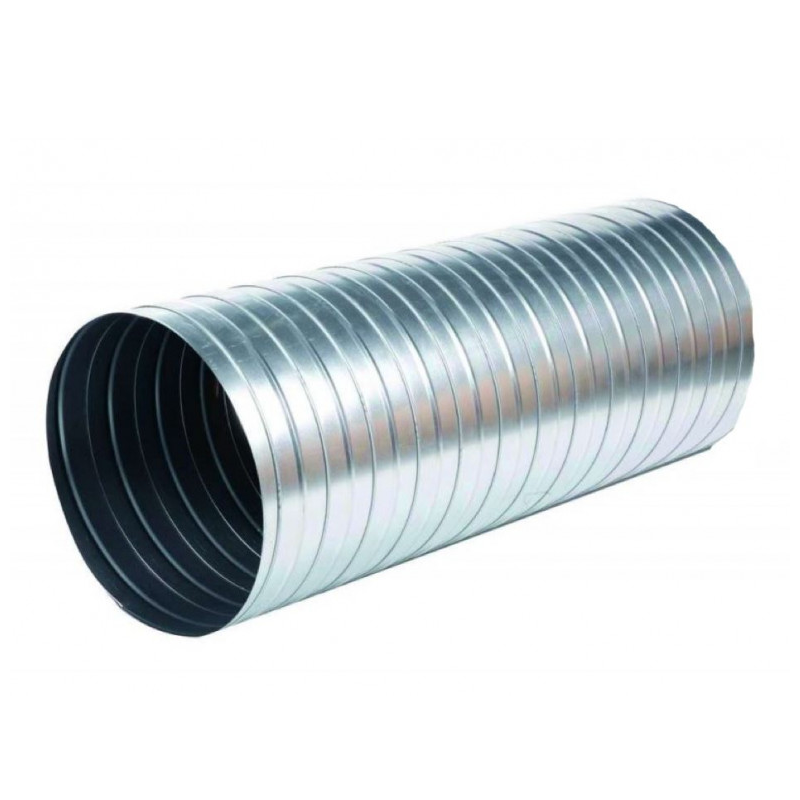

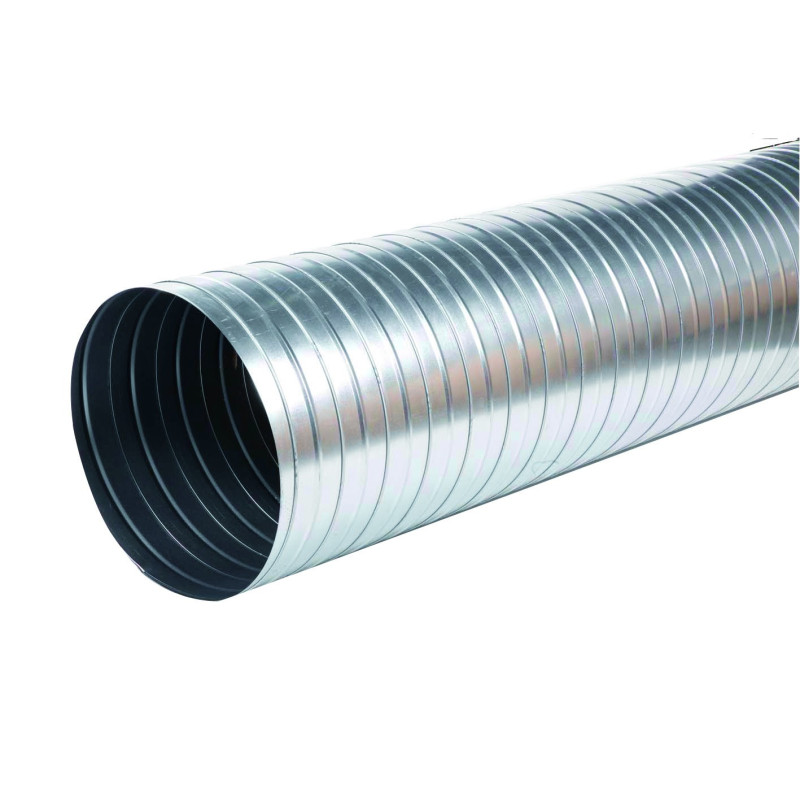

Galvanized rigid spiral pipe, 800 mm diameter, for connecting your commercial kitchen hood extraction system or mechanical ventilation system to a large section duct. Supplied as a single length section.

  • Diameter: 800 mm
  • Length: 1000 mm
  • Fitting: female
  • Fire rating: A1
  • Weight: 30 kg
In stock
Quantity
50.00 120.00 Tax excluded
60 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Galvanized rigid spiral pipe 800 mm: the ducting built for high airflow rates

The galvanized rigid spiral pipe 800 mm is a circular galvanized steel duct designed for large section extraction systems, whether on a commercial kitchen hood or a mechanical ventilation system. With its large 800 mm diameter, it's the part you choose when the airflow to be extracted becomes significant and standard diameters are no longer sufficient.

Technical specifications

Specification Value
Diameter 800 mm
Length 1000 mm (1 m)
Connection type Female fitting
Fire rating A1
Weight 30 kg
Reference conduit1ml800

Use and compatibility

This galvanized duct is suited to high airflow commercial kitchen extraction systems (long hoods, multiple cooking stations) as well as mechanical ventilation or plant room ventilation installations requiring a large cross-section. The female fitting connects to another section or accessory of the same diameter using a fixing and sealing kit, which should be ordered separately.

Installation and connection

The female fitting slots onto the following section or accessory: always allow for a fixing and sealing kit to ensure an airtight ductwork system. Installation can be carried out by a site professional or a competent installer; only the electrical connections of your ventilation installation, where applicable, should be entrusted to a qualified electrician.

Points to check before ordering

  • Diameter of the existing system: check that your installation is indeed 800 mm before ordering, as this section does not include any reducer.
  • Required airflow: as a guide, an 800 mm diameter corresponds to a benchmark of around 6000 m³/h depending on the system; this figure should be adjusted according to your pressure losses, elbows and duct length.
  • Size and handling: given the large diameter and a weight of 30 kg for this 1 metre section, ensure sufficient access and, if needed, assistance for handling.
  • Sealing accessories: a fixing kit and a sealing gasket are required for each connection; they are not included with the duct as standard.
  • Quantity ordered: delivery may be made as single length sections of 1 to 3 m depending on the total quantity ordered, so plan accordingly for receipt of goods.

Pairs well with

Need a different diameter? The range also includes rigid ducts in 710 mm, 630 mm, 560 mm and 500 mm.

IMPORTANT NOTE: supplied as single length sections of 1 to 3 m depending on the quantity ordered. Transport of galvanized ducts sometimes causes deformation of the sheet metal, particularly at the ends: it is almost impossible to receive a length in perfect condition. Where the dents are minor, there is no need to reject the product, as the ends can easily be reshaped without affecting pressure loss in the system. Unless the length is completely crushed or folded over itself, the goods are considered compliant.

Product Details

Ventilsogood
conduit1ml800
Products
Sheath/Conduit
0657968939660

You might also like

8 other products in the same category:

Frequently asked questions

Which duct diameter should I choose based on the airflow to be extracted?

The choice depends on the actual airflow of your installation and the system's pressure losses (length, elbows, filters). As a guide, an 800 mm diameter corresponds to a benchmark of around 6000 m³/h, but this figure must be adjusted according to your system. For reliable sizing, let us know your airflow, duct length and number of elbows.

Is the 800 mm galvanized duct compatible with elbows or reducers from other brands?

The product sheet does not specify compatibility with accessories from other brands. To ensure airtightness and system integrity, we recommend using the connection accessories and sealing kits designed for this 800 mm diameter.

How much does a 1 metre section of 800 mm galvanized duct weigh?

This 1 metre section with an 800 mm diameter weighs 30 kg. Make sure there is sufficient access on site and, depending on the setup, arrange assistance for handling during unloading and installation.

Is the duct supplied as a single 1 metre piece?

Delivery is made as single length sections of 1 to 3 m depending on the total quantity ordered. A section may therefore arrive joined with other lengths: check your order quantity to plan for receipt of goods.

What should I do if the duct arrives slightly deformed?

Transport of galvanized ducts sometimes causes deformation of the sheet metal, especially at the ends. If the dents are minor, they can easily be reshaped and do not cause pressure loss: the goods are then considered compliant, unless the length is completely crushed or folded over itself.
