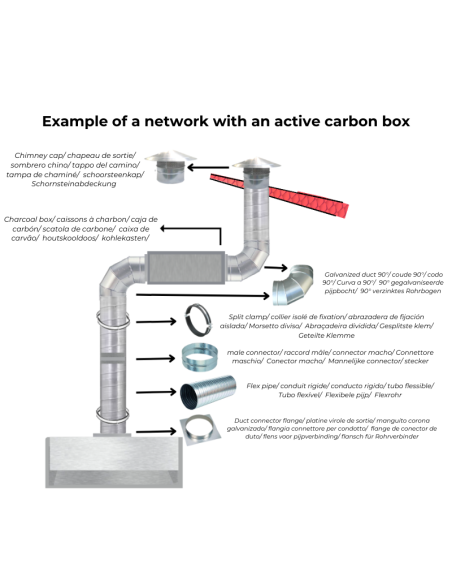

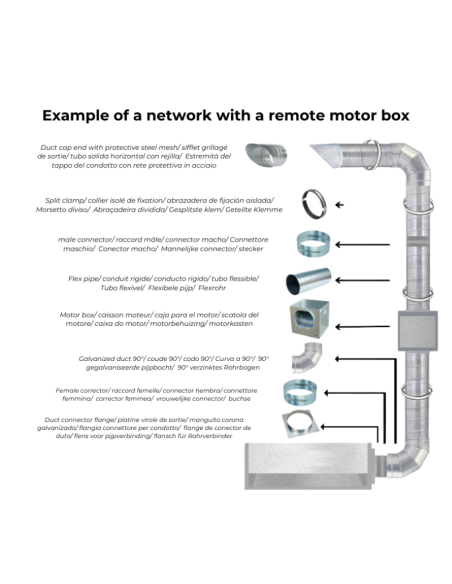

Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust

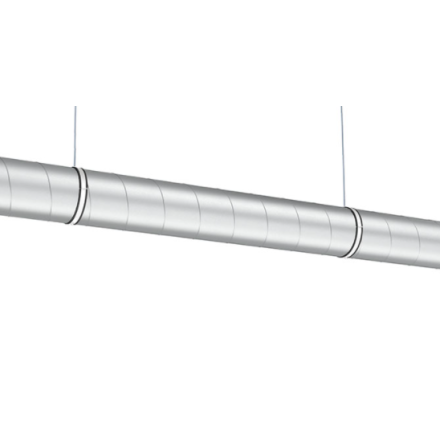

Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral duct  1 meter 630, vue 4
Galvanized rigid spiral duct  1 meter 630, vue 5
Galvanized rigid spiral duct  1 meter 630, vue 6
Galvanized rigid spiral duct  1 meter 630, vue 7

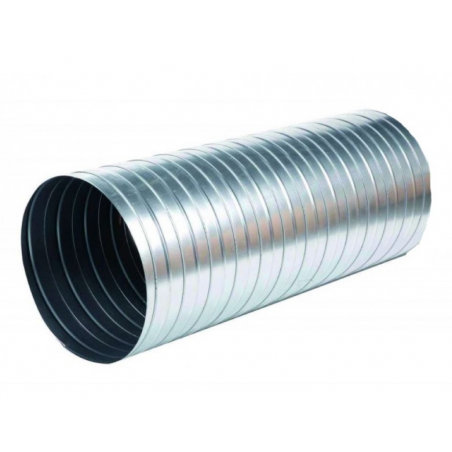

Galvanized duct for a ventilation system
Rigid, spiral-wound galvanized steel duct for ventilation and exhaust

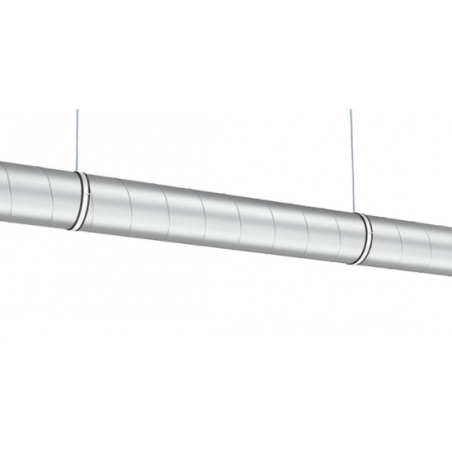

Rigid Ducting for Mechanical Ventilation Systems in Professional Food Service Establishments
Galvanized rigid spiral duct  1 meter 630, vue 4
Galvanized rigid spiral duct  1 meter 630, vue 5
Galvanized rigid spiral duct  1 meter 630, vue 6
Galvanized rigid spiral duct  1 meter 630, vue 7

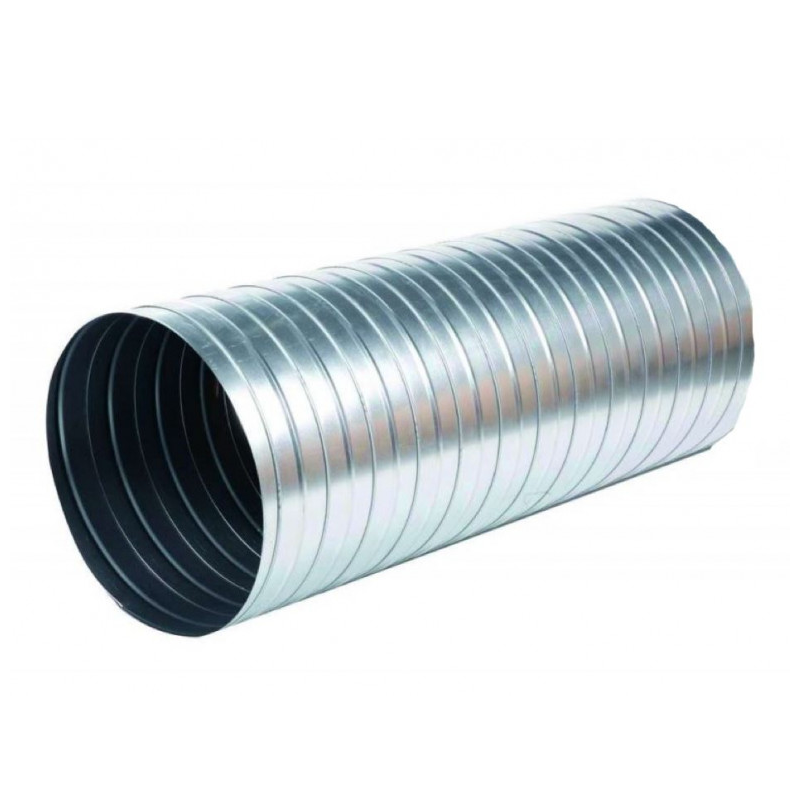

Galvanized rigid spiral duct, diameter 630 mm and length 1 metre, female end for quick connection to your extraction ductwork or commercial kitchen hood system.

  • Diameter: 630 mm
  • Length: 1000 mm
  • Connection: female end
  • Operating temperature: -30°C to +250°C
  • Fire rating: A1
  • Weight: 30 kg
In stock
Quantity
35.00 95.00 Tax excluded
42 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Galvanized rigid spiral duct 1 meter 630 is a section of galvanized steel ductwork, 1 metre long and 630 mm in diameter, designed for professional mechanical ventilation systems or commercial kitchen hood extraction. With a female end, it completes or adjusts an existing run without needing a full-length duct.

Technical specifications of the 630 galvanized spiral duct

Specification Value
Diameter 630 mm
Length 1000 mm
Connection Female end
Operating temperature -30°C to +250°C
Fire rating A1
Weight 30 kg

Use and compatibility

This galvanized duct is suited to a professional mechanical ventilation system or kitchen extraction run, where a short length is more practical than a multi-metre duct: a short connection between two fittings, an adjustment at the end of a line, or a site where working space is limited. Its female end connects to the male end of another duct section or fitting of the same diameter, with a suitable fixing and sealing kit to keep the run secure.

Installation and connection

Connection is made by fitting the female end onto the male end of the next duct section, then securing the joint with a clamp and sealing it with gasket sealant or aluminium tape. With a diameter of 630 mm, handling requires at least two people given the weight (30 kg) and the size of the piece.

Points to check before ordering

  • Check that the 630 mm diameter matches your existing ductwork or hood before stacking fittings together.
  • Identify the male/female orientation of your fittings so the joints line up correctly along the whole run.
  • Allow for a fixing kit (clamp) and sealing kit (gasket sealant or aluminium tape) for each joint; this duct does not include them.
  • Allow for the weight (30 kg) when taking delivery and handling on site.
  • If your run requires several metres, compare with the 2 metre ducts available in the range to reduce the number of joints.

IMPORTANT NOTE: supplied as single-piece ducts of 1 to 3 m depending on the quantity ordered. Transport of galvanized ducts can cause dents in the sheet metal, particularly at the ends: it is almost impossible to receive a duct in perfect condition. Where the dents are minor, there is no need to reject the product; the ends reshape easily and a dent does not cause pressure loss in the ductwork. Unless the length is completely crushed or folded on itself, the goods are considered compliant.

To use with

Product Details

Ventilsogood
conduit1ml630
Products
Sheath/Conduit
0657968126107

You might also like

8 other products in the same category:

Frequently asked questions

What is the difference between this 1 metre duct and a 2 metre duct in 630 diameter?

The 1 metre length suits a short adjustment on a run or a site with limited working space, while the 2 metre duct reduces the number of joints over a longer straight run. The 630 mm diameter and the connection type (female end) are identical between the two lengths.

Does the 630 galvanized duct withstand the heat from a kitchen hood extraction?

This duct is rated for use from -30°C to +250°C, which covers the temperatures found on a commercial kitchen hood extraction run. However, check the actual temperature of your installation before ordering.

Do I need an extra fitting to connect this duct?

Yes. This duct is supplied as a female end only: it connects to a male end (another duct or fitting) using a fixing kit (clamp) and a sealing kit (gasket sealant or aluminium tape), not included with this item.

How much does this 630 mm duct weigh for handling?

This duct weighs 30 kg for a 1 metre length. Given its diameter and weight, plan for two people to handle it on delivery and when fitting it to the ductwork.
