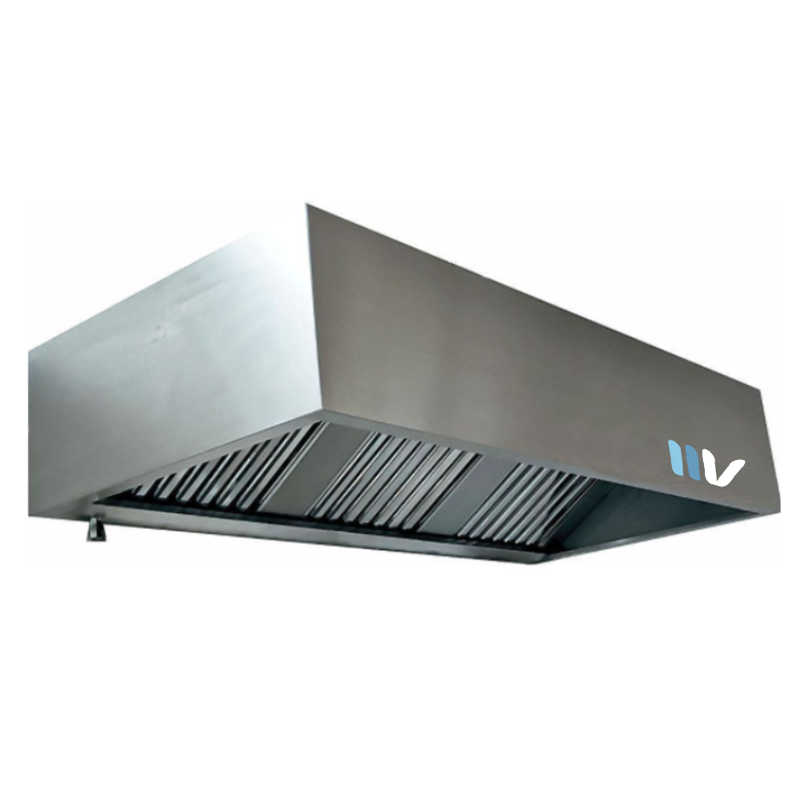

Commercial Rang Hood Rectangular professional-grade range hood for kitchens requiring a large smoke containment area or a central installation

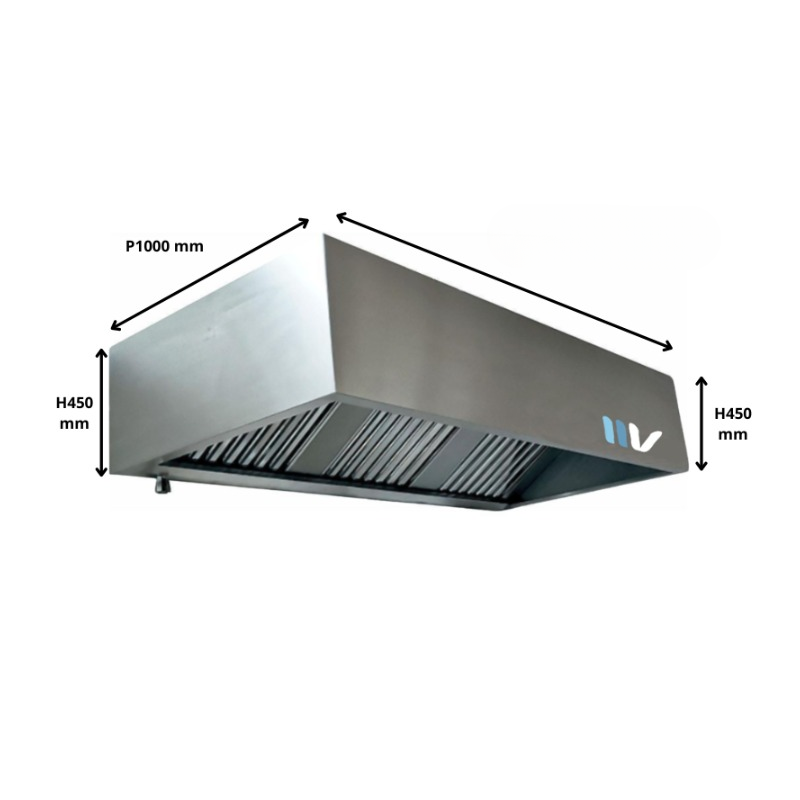

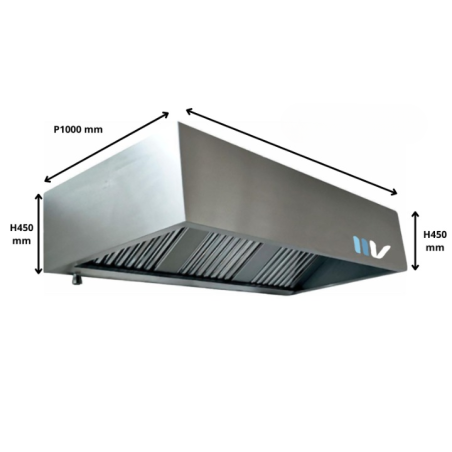

- Dimensions of the professional stainless steel range hood: W 1000, W 1500, W 2000, W 2500, W 3000, W 3500, L 4000, L 4500, L 5000, L 5500, L 6000 mm x D 1000 x H 450 with a 450 mm drop.
- Stainless steel baffle filters + shutters, stainless steel spacers.
- Grease tray with drain plug for easy hood cleaning
- Rectangular hoods are shipped flat-packed in a cardboard box, ready to assemble, in 1 or 2 modules.
- The exhaust vent is not pre-drilled; it can be cut above, behind, or on either side of the range hood (depending on the motor type)
- If the motor is inside the range hood (max. 3 m!), the motor and exhaust outlet should ideally be positioned in the center of the range hood.
Commercial Rang Hood L 1000 mm:1 baffle filter + 1/2, outlet hole to be drilled at D 200 or D 250 mm
Commercial Rang Hood L 1500, L 2000 mm: 2 baffle filters + shutters, outlet opening to be made in D 250 or D 315 mm
Commercial Rang Hood L 2500 mm: 3 baffle filters + shutters, outlet opening to be made in D 315 or D 355 mm
Commercial Rang Hood L 3000 mm: 4 baffle filters + shutters, outlet opening to be made in D 355 or D 400 mm
Commercial Rang Hood L 3500 mm: 2 modules of L 2500 + L 1000 mm, subject to availability (connection opening to be created between the two hoods)
Commercial Rang Hood L 4000 mm: 2 modules of L 2000 + L 2000 mm, subject to availability (a connection hole must be created between the two hoods)
Commercial Rang Hood L 4500 mm: 2 modules of L 2500 + L 2000 mm, subject to stock availability (a connection hole must be created between the two hoods)
Commercial Rang Hood L 5000 mm: 2 modules of 2,500 mm × 2,500 mm, subject to stock availability (a connecting opening must be created between the two range hoods)
Commercial Rang Hood 5,500 mm: 2 modules of 2,500 mm × 3,000 mm, subject to stock availability (a connection hole must be created between the two range hoods)
Commercial Rang Hood L 6000 mm: 2 modules of L 3000 + L 3000 mm, subject to stock availability (a connection hole must be created between the two range hoods)
Downloadthe installation instructionshere
