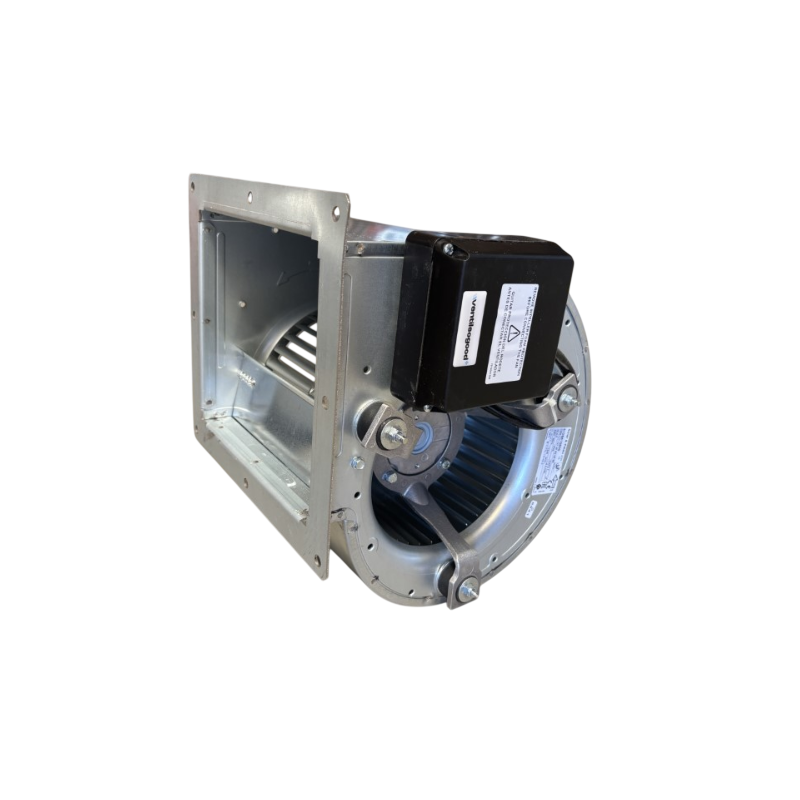

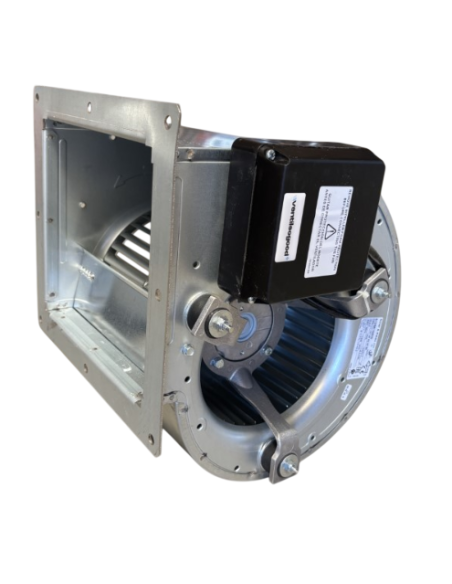

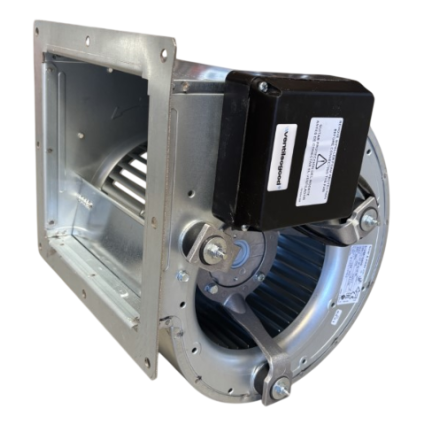

The Centrifugal Fan DD7/7 is a double-inlet centrifugal fan that extracts smoke, steam and grease from a stainless steel commercial kitchen hood or a mechanical ventilation system, with an airflow of 1,500 m³/h for a power consumption of 147 W. WEB EXCLUSIVE model.
Double-inlet Centrifugal Fan DD7/7 for commercial kitchen hoods or mechanical ventilation
Compact and reliable, this DD7/7 fan fits stainless steel commercial hoods from 1 m to 2.5 m in length, as a direct replacement on most existing extraction fan boxes. Its IP54 housing with built-in capacitor copes with daily kitchen conditions without issue: service rush, ambient heat, prolonged use. It's the kind of component you forget about once fitted, and that's exactly what's expected of it.

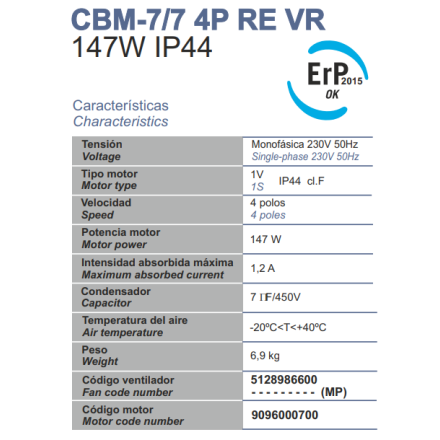

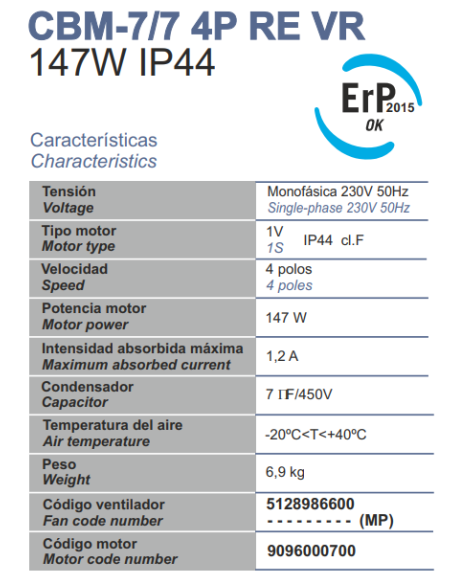

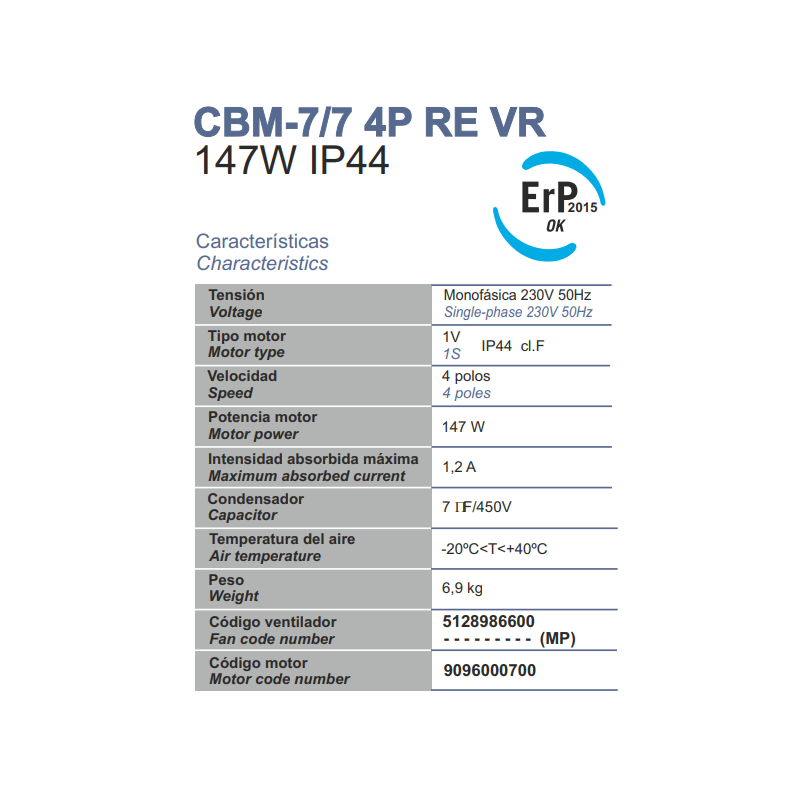

Technical specifications
| Specification |
Value |
| Reference |
DD7/7, ref. CBD 19/19 S&P |
| Airflow |

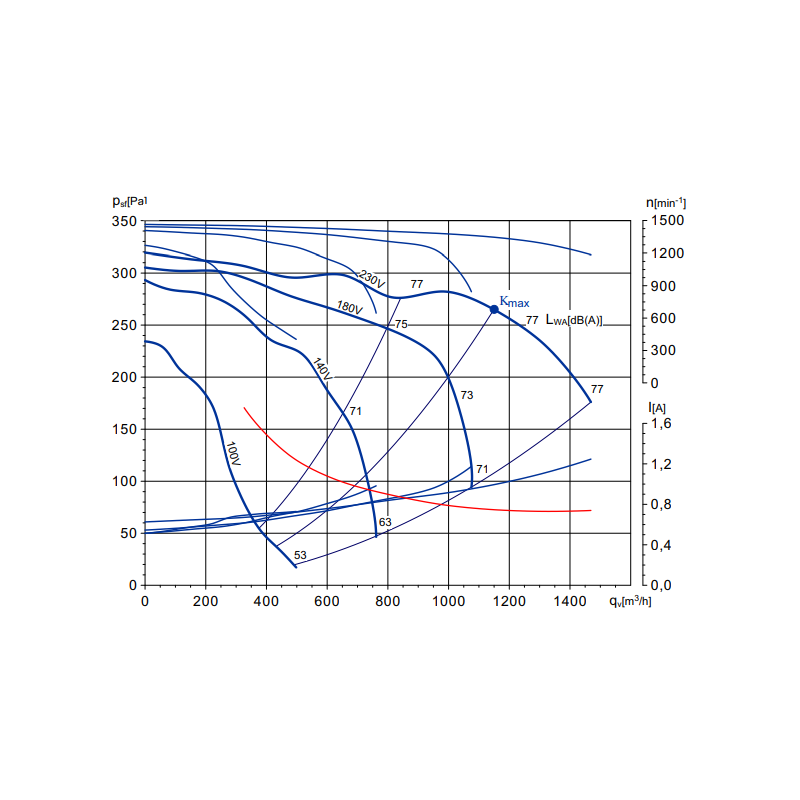

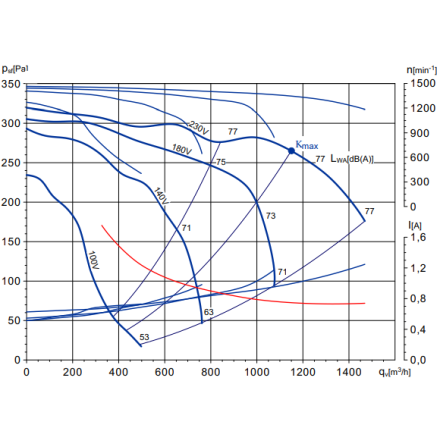

1,500 m³/h |
| Power |
147 W |
| Current |
1.4 A |
| Supply |
230 V single phase (220 V) |
| Protection rating |
IP54, with capacitor |
| Weight |
7 kg (fan), 9 kg (package) |

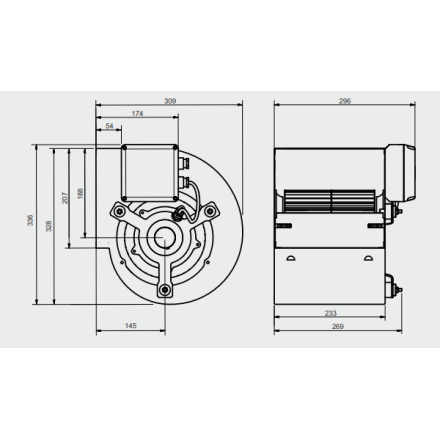

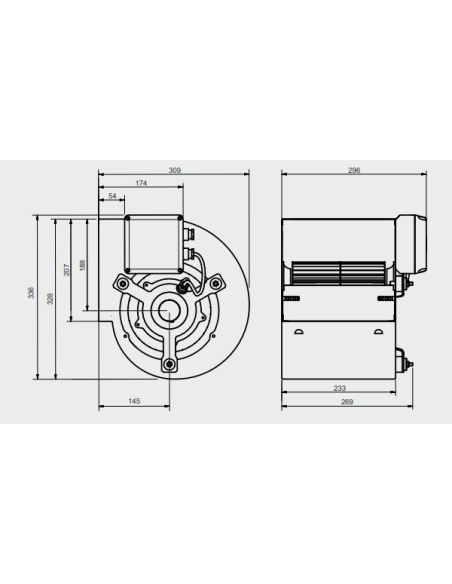

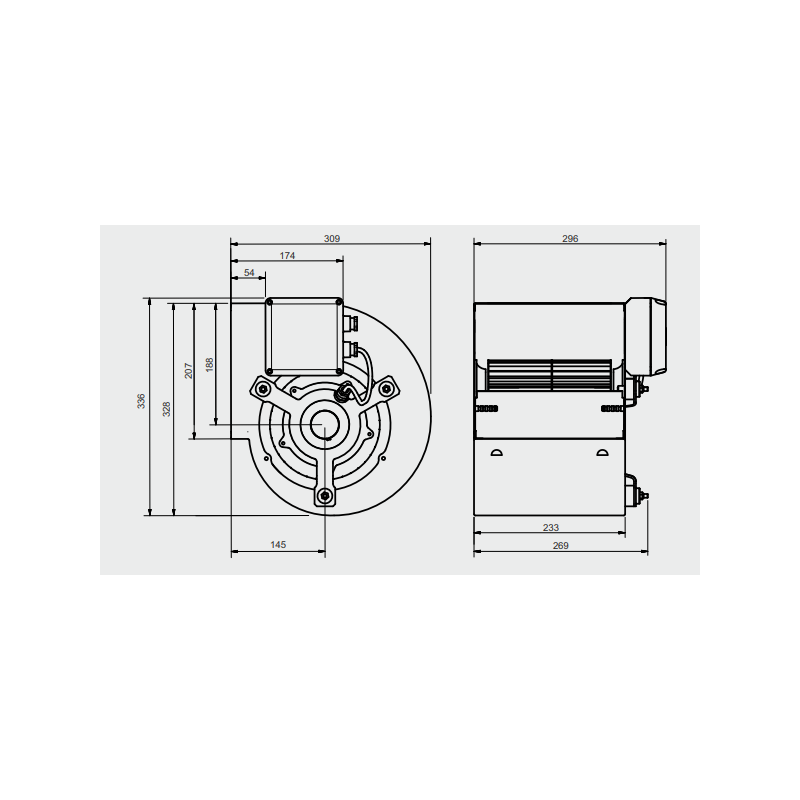

| Frame dimensions |
L 290 x D 260 mm, 20 mm edges |
| Product dimensions |
W 37 x D 40 x H 34 cm |
| Smoke extraction |
Not rated for 400°C/2h smoke extraction |
| Warranty |
1 year |
Compatibility with your hood
This 7/7 centrifugal fan is compatible with all standard range hoods from 450 mm in height upwards: Ventileco, Saftair, France Air, Sodeca, S&P, Alvène, Bertrand, VIM, and many others. It is a direct equivalent for references 19/19, 181/181, Nicotra/Regal/Casal/Metro/VIM DD7/7 or DDM 7/7, Sodeca CBD-1919, S&P CBM 7/7, CMC DAIN 7/7, Sisteven DTM-B-7/7. A mounting frame is included to position it in the hood or extraction fan box.
Points to check before ordering
- Minimum height of your hood or extraction fan box: 450 mm required.
- Dimensions of your existing mounting frame: L 290 x D 260 mm with 20 mm edges.
- Available power supply: 230 V single phase.
- Airflow required for your kitchen: 1,500 m³/h may be marginal depending on hood size and cooking type; compare with the 7/9 or 8/9 versions if you need more.
- Specific smoke extraction requirements: this model is not rated for 400°C/2h.
For a more powerful fan click here:
Advantages of the DD7/7 fan for your commercial kitchen hood
- Ideal size: suited to stainless steel hoods from 1 m to 2 m and compatible with standard models (450 mm internal height).

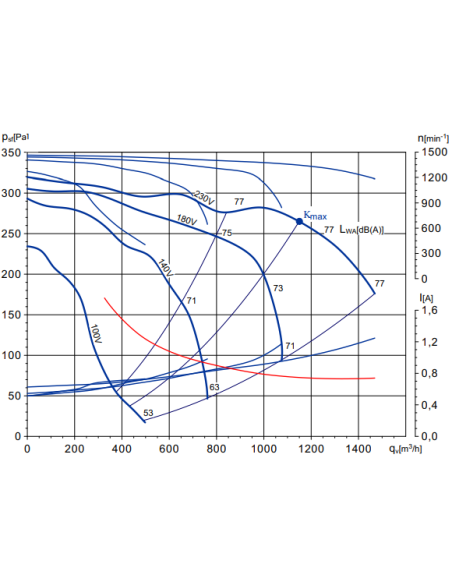

- Extraction performance: 147 W motor delivering an airflow of 1,500 m³/h, a good balance between power and noise level.
- Double-inlet centrifugal structure: robust design ensuring an even airflow and efficient extraction across the entire cooking surface.
- Easy installation: supplied with a mounting frame (3 side fixing points) for quick fitting in the hood or motor box.

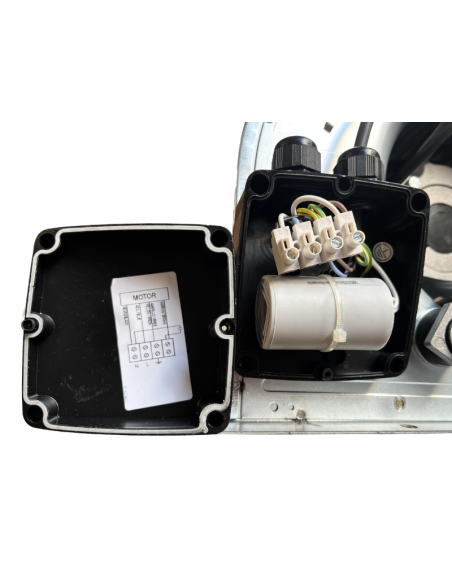

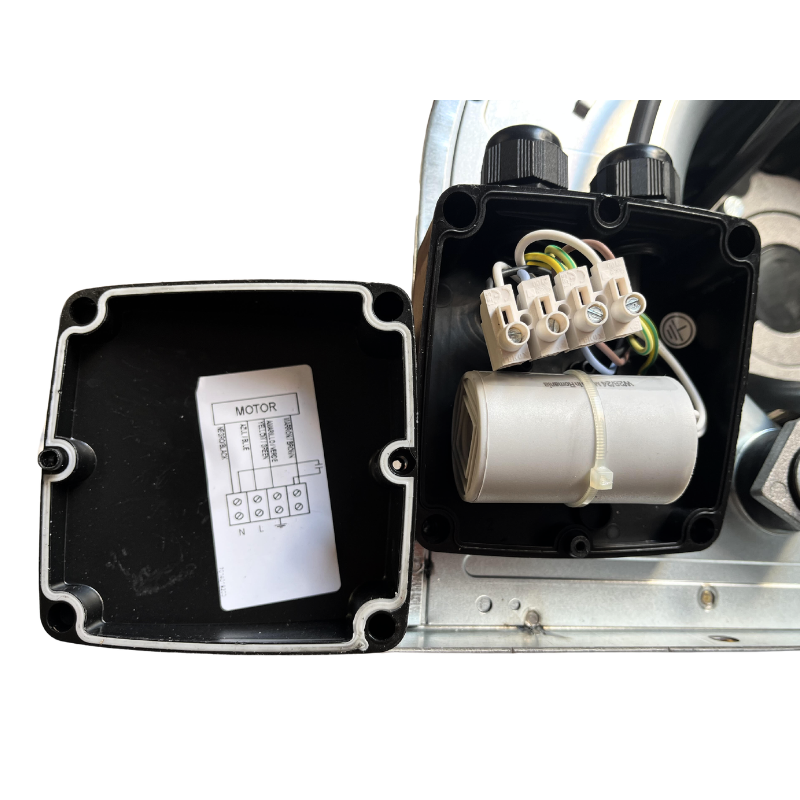

- Protection and reliability: IP54 housing with built-in capacitor for optimal safety in the kitchen.
- Professional quality: fan motor manufactured in Italy, known for its durability and low noise level.

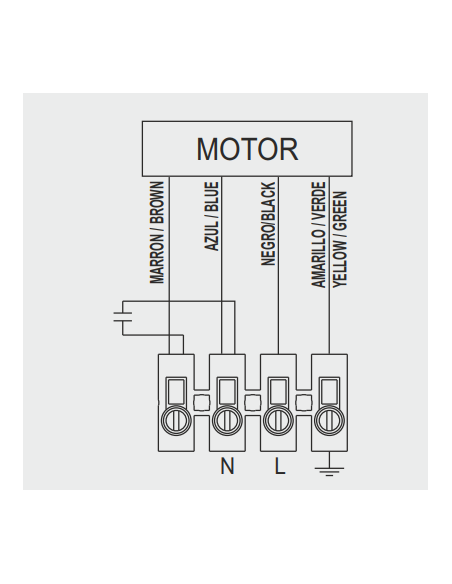

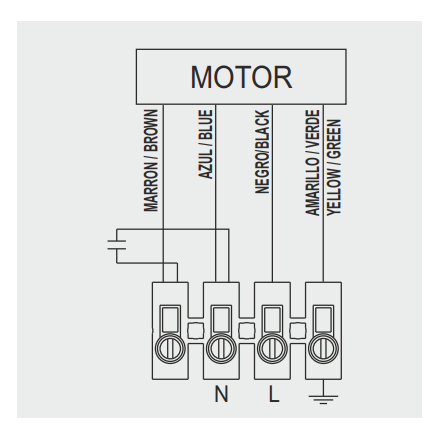

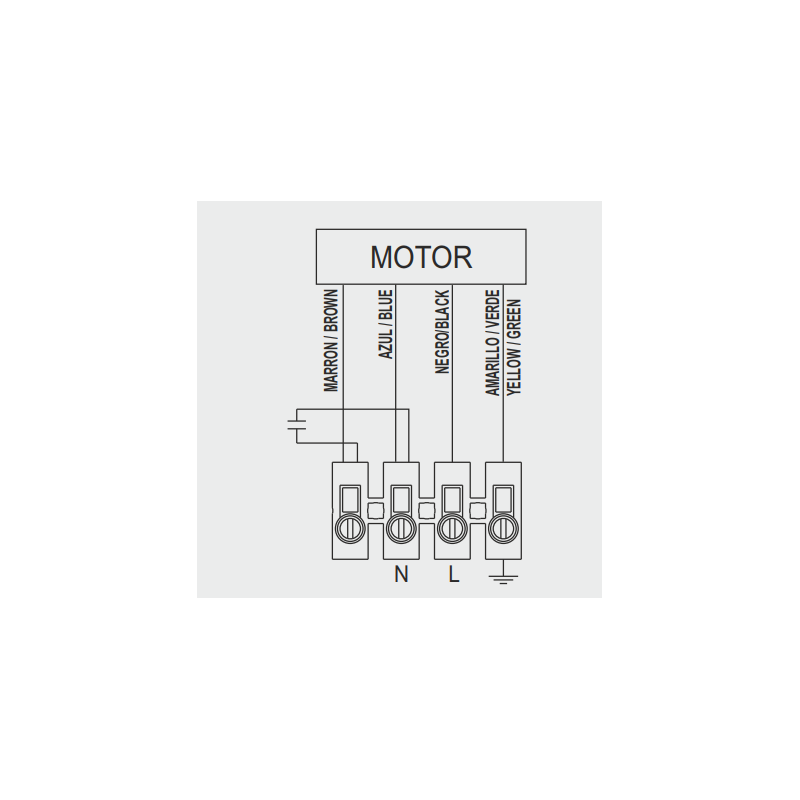

- Simple connection: quick connection to the mains supply, with an optional single-phase 220 V speed controller to adjust extraction speed.
Efficient ventilation for demanding kitchens
This centrifugal DD7/7 fan extracts smoke and greasy vapours in all types of commercial kitchens: restaurants, kebab shops, snack bars, crêperies, brasseries or fast-food outlets. It combines decent output with low energy consumption for regular use.
To be used with
For installation, consider the fan fitting kit (gasket and fixings). If you are installing this fan outside the hood, the bare extraction fan box for 7/7, 7/9, 8/9 motors will do the job. To control the speed to suit your needs, our Base 4.5 A speed controller is sized for this range of fans.
For more power, also discover our DDM 7/7 fan, 2,000 m³/h, or our DD 9/9 Premium fan, 3,600 m³/h for larger commercial hoods.
Pair it with our rectangular stainless steel commercial hood for a complete extraction system.
