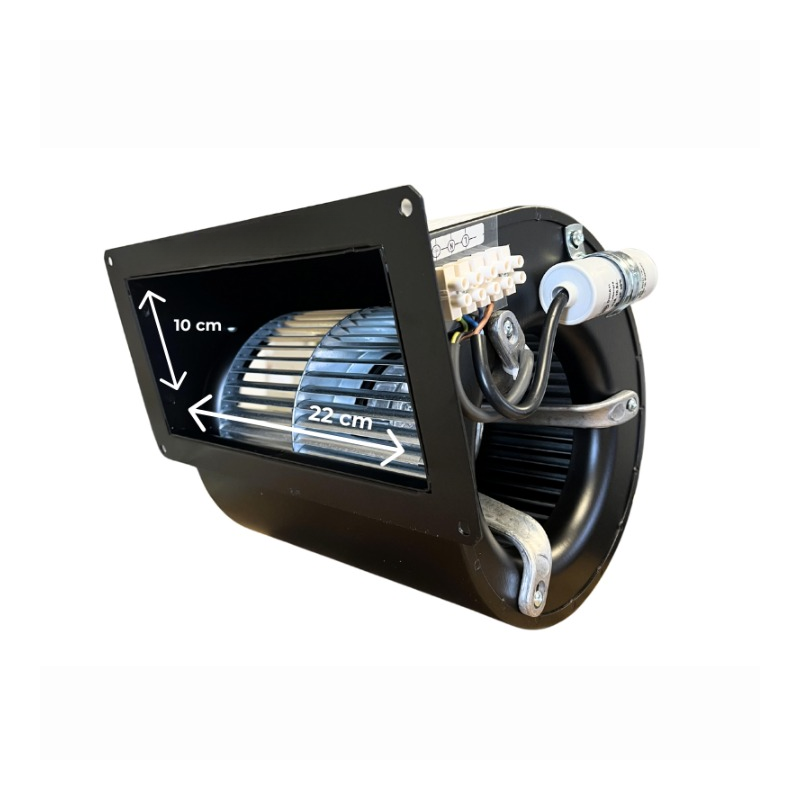

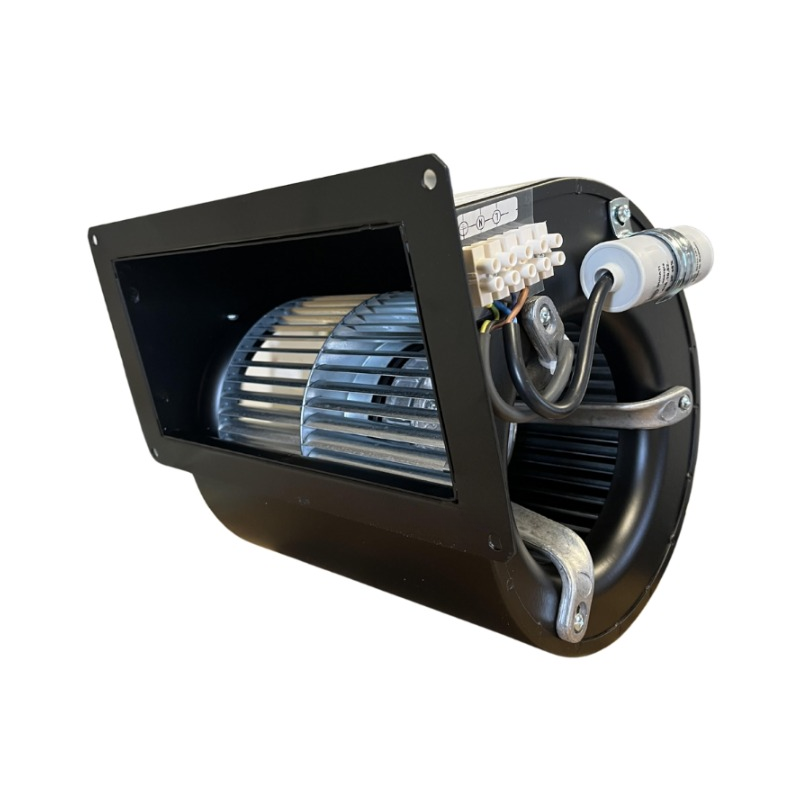

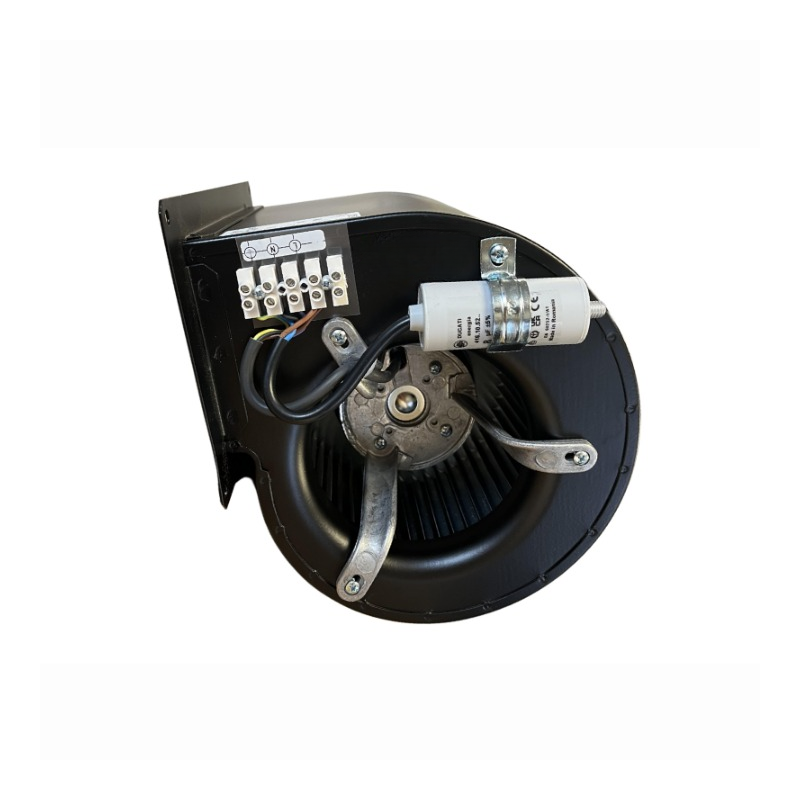

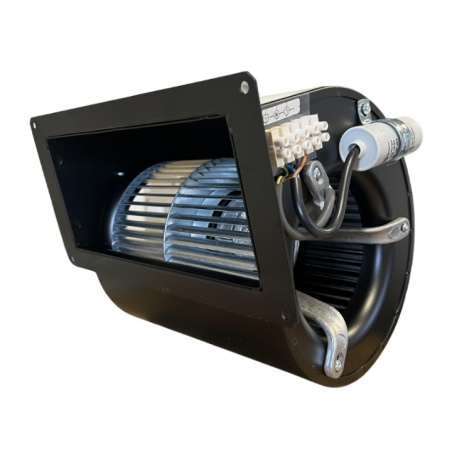

DD 1400 m³/h Professional Range Hood Motor—Front View

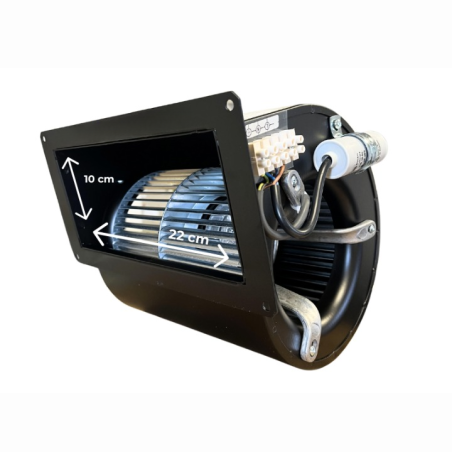

DD146/180 engine
146/180

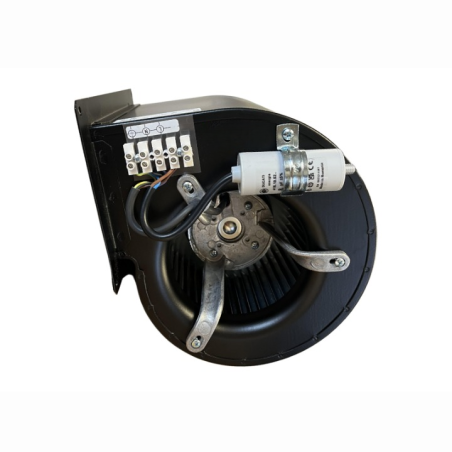

Professional DD 1400 m³/h DD146/180 Range Hood Motor Installation

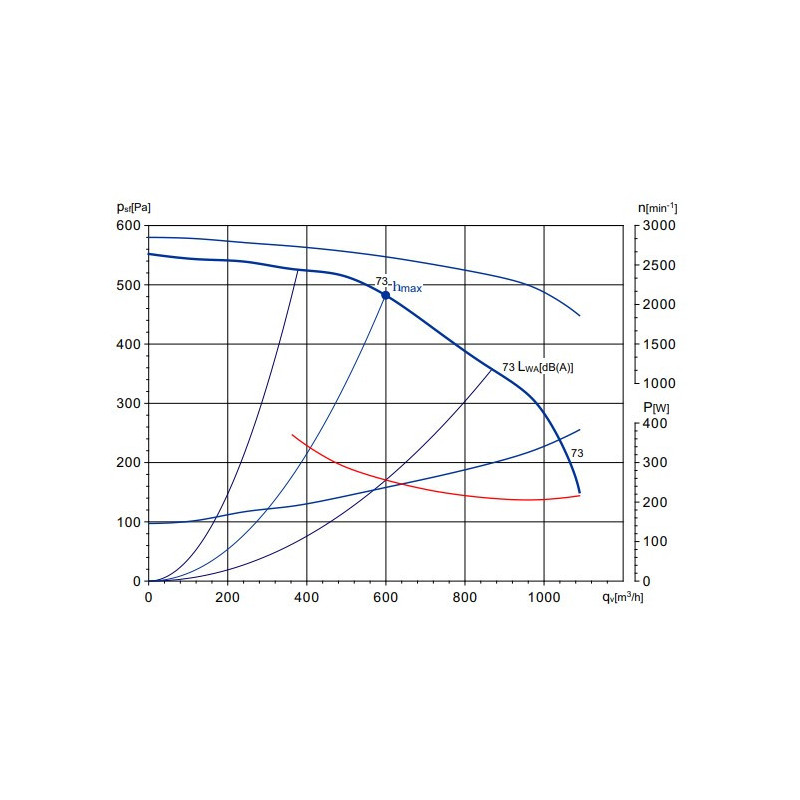

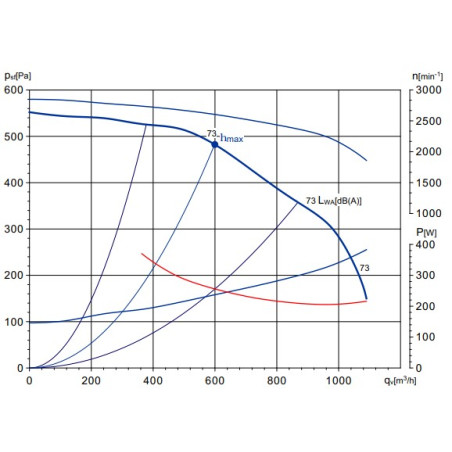

Performance Curve for the 1,400 m³/h Screw Pump

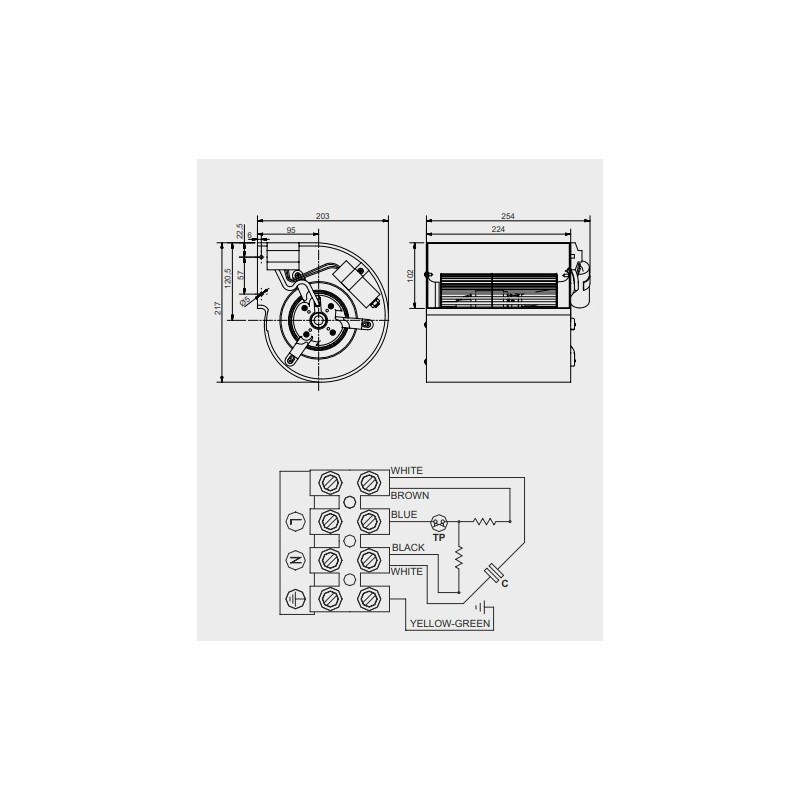

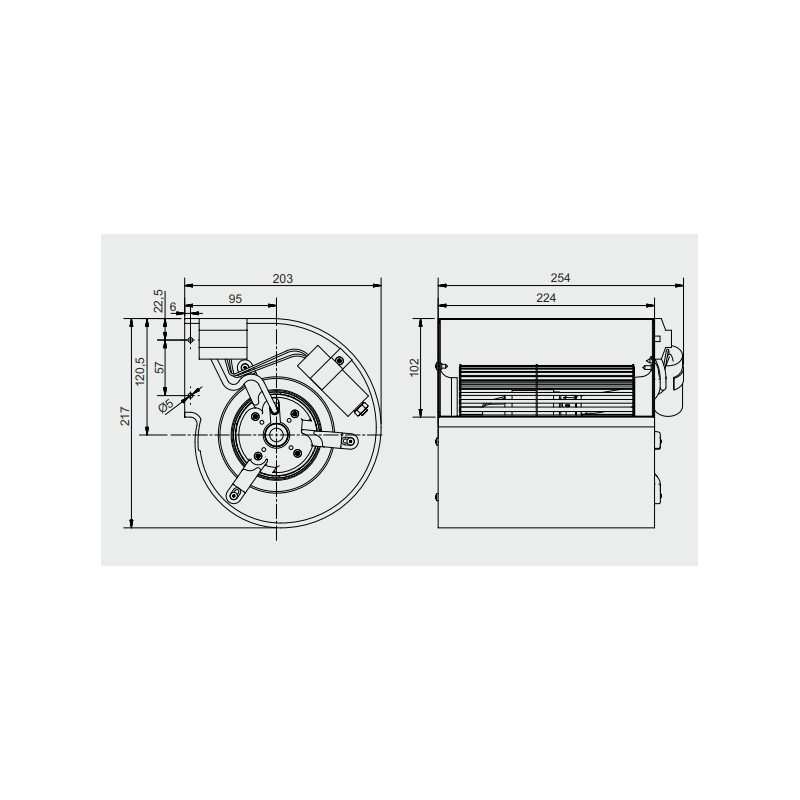

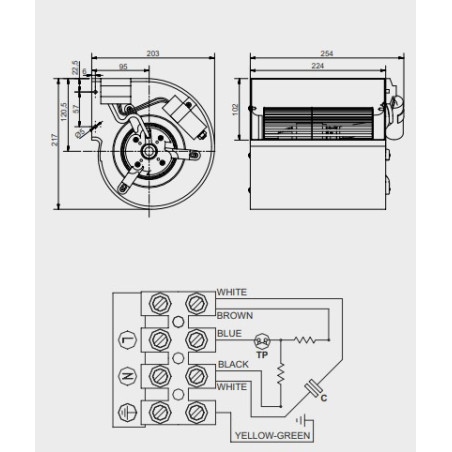

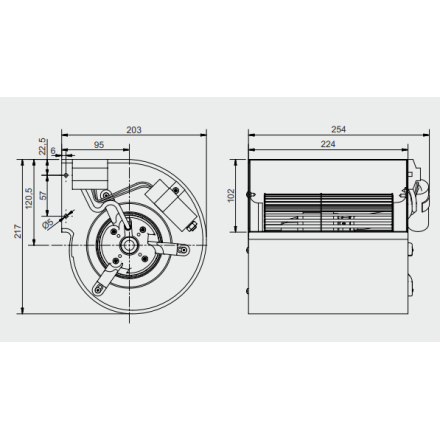

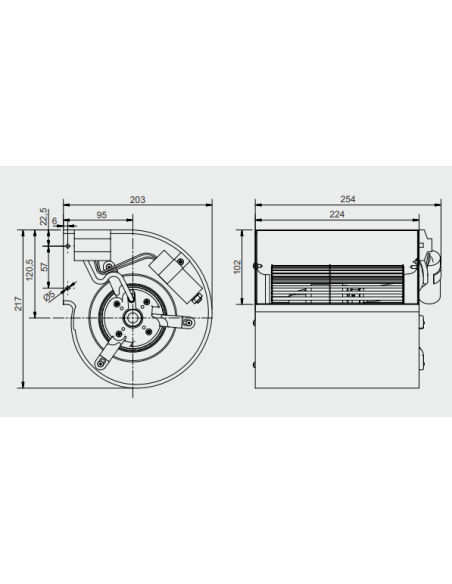

Dimensions of the DD146 180 motor for a commercial range hood

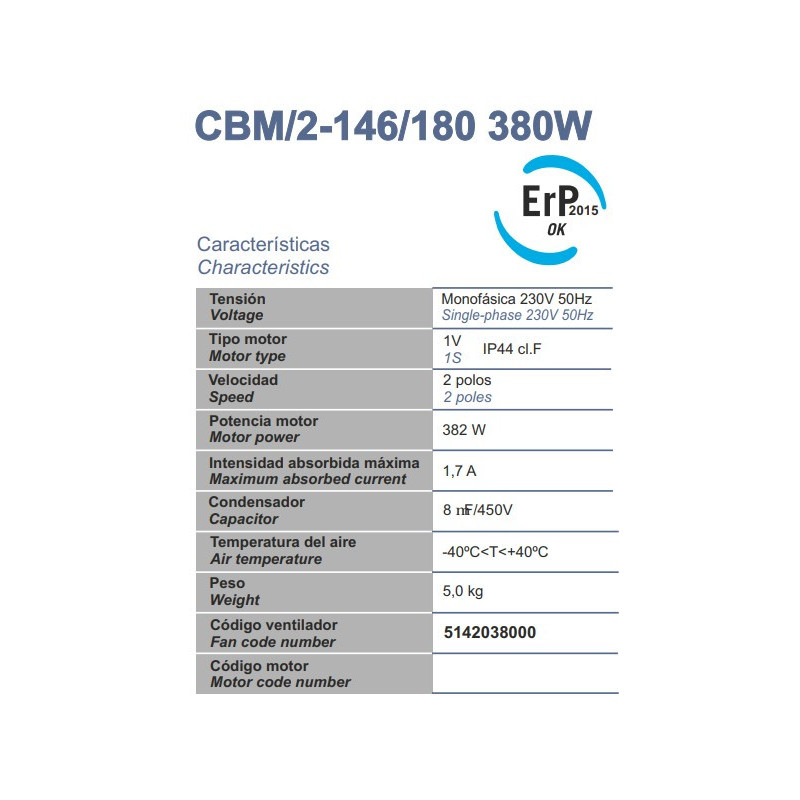

DD146/180 Motor Electrical Specifications
DD 1400 m³/h Professional Range Hood Motor—Front View
DD146/180 engine
146/180
Professional DD 1400 m³/h DD146/180 Range Hood Motor Installation
Performance Curve for the 1,400 m³/h Screw Pump
Dimensions of the DD146 180 motor for a commercial range hood
DD146/180 Motor Electrical Specifications

Ultra-compact commercial range hood motor ( 230 mm diameter), up to 1,400 m³/h, 230 V single-phase: perfect for replacing a range hood motor in a tight space, such as a restaurant, snack bar, or food truck.

  • Max. airflow: 1,400 m³/h
  • Power: 380 W
  • Current: 1.7 A
  • Model: DD 146/180, brand S&P
  • Protection: IP44 (IP55 with optional waterproof enclosure)
  • Weight: 7 kg
In stock
Quantity
98.00 157.00 Tax excluded
117,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


/h 1400 m³ Professional Range Hood Motor: Compact and Robust

The DD 146/180 professional range hood motor is a double-suction centrifugal snail fan that delivers up to 1,400 m³/h at 230 V single-phase, for extracting air from a range hood in a restaurant, snack bar, food truck, or professional kitchen.

Its compact size is its main advantage: with a diameter of just 230 mm, it fits into all professional range hoods and most semi-professional range hoods, including models not originally designed to accommodate a motor, such as range hoods with an interior height of only 350 to 400 mm. Where a larger motor simply wouldn’t fit.

A compact design, ideal for tight spaces

The DD 146/180 is smaller than a 7/7 motor, the most common size found in professional range hoods. It offers a good balance between airflow, space requirements, and cost when space is limited under the hood or inside the housing. It’s worth noting a practical limitation: if you need higher airflow, you’ll need to look for a more powerful model—though not necessarily a larger one.

Technical Specifications

Specification Value
Part Number CBM146180hot
Type Centrifugal Fan DD 146/180
Brand S&P (Soler & Palau)
Diameter 230 mm
Maximum flow rate 1,400 m³/h
Power supply 230 V single-phase
Power 380 W
Current 1.7 A
Protection rating IP44 (with capacitor and terminal block)
IP55 possible with the addition of a waterproof electrical enclosure (such as a junction box)
Mounting frame Included
Weight 7 kg
Package weight 8 kg
Compliance CE

Need a more standard or more powerful motor?

The DD 146/180 model doesn’t cover all needs. Here are two alternatives in our lineup depending on your range hood and cooking style:

For restaurant range hoods and commercial ventilation

This centrifugal motor is suitable for range hoods in restaurants, snack bars, pizzerias, food trucks, and commercial kitchens. It can also be installed in a bare ventilation unit to ventilate or extract air from a bakery, retail space, workshop, or commercial premises, outside of kitchen hood applications.

S&P Motor, 1-Year Warranty

This S&P motor (Soler & Palau) is a professional-grade motor that is CE-marked and comes with a 1-year warranty. Electrical installation must be performed by a professional; this is a requirement for maintaining the warranty.

Points to check before ordering

  • Dimensions of the motor compartment in your current range hood or cabinet: with a diameter of 230 mm, this motor is also suitable for range hoods with low interior heights (350 to 400 mm), where a standard-size motor would not fit.
  • Required airflow based on the size of your range hood and your cooking method: a deep fryer, griddle, or grill often requires more than 1,400 m³/h, —for reference only and depending on the ductwork.
  • Duct length and bends: the longer or more convoluted the ductwork, the more pressure losses reduce the actual available airflow.
  • Power supply: This motor operates on 230 V single-phase at 1.7 A; check your electrical panel accordingly.
  • Required protection rating: IP44 as standard; IP55 if a weatherproof enclosure is required based on the installation environment.

How do you choose a motor for a commercial range hood?

What airflow rate is needed for a restaurant range hood?

The airflow depends on the size of the hood, the cooking appliances, and the exhaust system. Light cooking does not require the same airflow as a deep fryer, a griddle, or a grill.

Is a 1,400 m³/h motor sufficient?

For a small hood and a simple installation, a 1,400 m³/h motor may be sufficient. A larger hood, intensive cooking, or a long duct may require a more powerful motor, such as the DD 7/7 at 1,500 m³/h or the DDM 8/9 at 3,000 m³/h.

How does this differ from a 7/7 motor?

The DD 146/180 is more compact than a 7/7 motor, with a diameter of only 230 mm. The 7/7 is a larger size and is very common in commercial range hoods. When replacing a motor, always check the dimensions before ordering, especially if your range hood has a low interior height.

Can this motor be used to ventilate a room?

Yes. When installed in a suitable ventilation enclosure, it can be used to extract air from a retail space, bakery, workshop, or other commercial space.

Pair with

Not sure about the power rating?

Send us the dimensions of your range hood, your cooking appliances, and the duct specifications. We’ll help you choose the right range hood motor.
