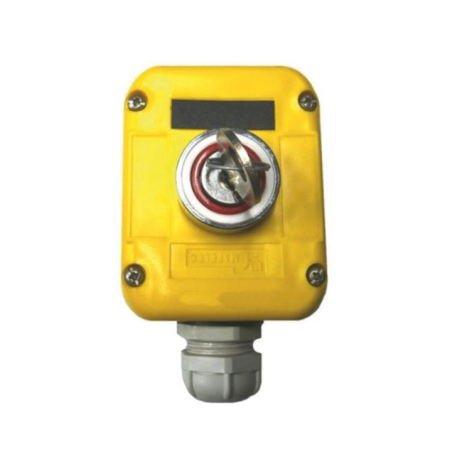

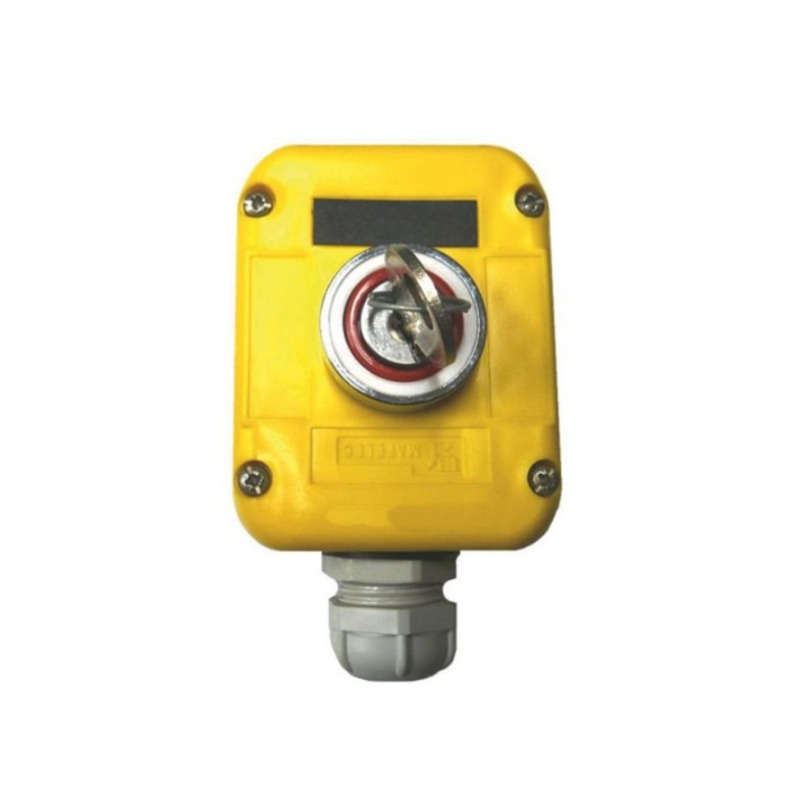

The CAIROX reset box is a key switch that resets a relay panel and reinitialises smoke extraction motors after activation, allowing the installation to be safely put back into service.

  • Function: resetting of the relay panel and smoke extraction motors
  • Contacts: 2 NO-NC contacts
  • Protection rating: IP65
  • Standard: C4 smoke extraction
  • Brand: CAIROX
In stock
Quantity
72.00 Tax excluded
86,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The reset box is a key switch used to reset a relay panel and reinitialise smoke extraction motors after they have been triggered, returning the fire safety system to standby position.

Technical specifications of the reset box

Specification Value
Type Key reset switch
Function Resetting of the relay panel, reinitialisation of smoke extraction motors
Contacts 2 NO-NC contacts
Protection rating IP 65
Standard C4 smoke extraction
Brand CAIROX
General standards CE
Weight 0.5 kg

What is this box used for in a smoke extraction installation?

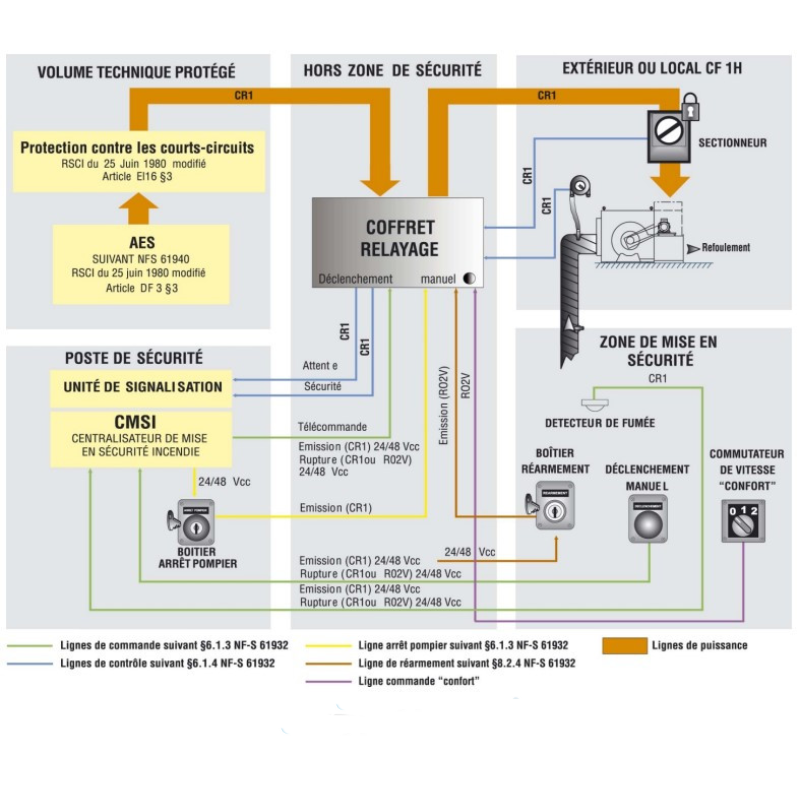

In a smoke extraction chain, the relay panel controls the extraction motor(s). Once the system has been activated (alarm, manual trigger or via the fire safety control panel), a means must be provided to return the installation to standby once the alert has been cleared: this is the role of the reset box. Thanks to its key, only authorised personnel can carry out this action, which prevents accidental or unauthorised resets. It acts on the relay panel and associated motors, not on the triggering function itself.

Reset box or fire brigade shut off box: what is the difference?

Both of these boxes connect to a relay panel, but their functions are opposite. The fire brigade shut off box allows fire services to cut off extraction if needed during an intervention. The reset box, on the other hand, is used to return the system to normal operation after an activation. Both are often used together on the same smoke extraction installation.

Points to check before ordering

  • Check that your relay panel has a compatible input for this reset box (2 NO-NC contacts).
  • Confirm that your installation falls under the C4 smoke extraction standard: this box is not intended for an F400/120 requirement, which corresponds to a different specification.
  • Identify the planned installation location within your safety zone, in line with the rest of the fire safety system.
  • Check whether your installation also requires a fire brigade shut off box in addition, or a separate trigger box.

To be used with

Product Details

CAIROX
Boitierearmement
Products
Button / Switch
Package weight
1 kg
Standard
F400/120
0657968067172

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a fire brigade shut off box and a reset box?

The fire brigade shut off box allows fire services to cut off extraction during an intervention. The reset box is used to put the relay panel and smoke extraction motors back into service after an activation, once the alert has been cleared. Both functions are complementary on the same installation.

Which standard does this reset box comply with?

This CAIROX reset box complies with the C4 smoke extraction standard. It also meets CE standards. It should not be confused with an F400/120 requirement, which corresponds to a different specification (400°C for 120 minutes) and is not covered by this product.

How does the reset function work after a smoke extraction activation?

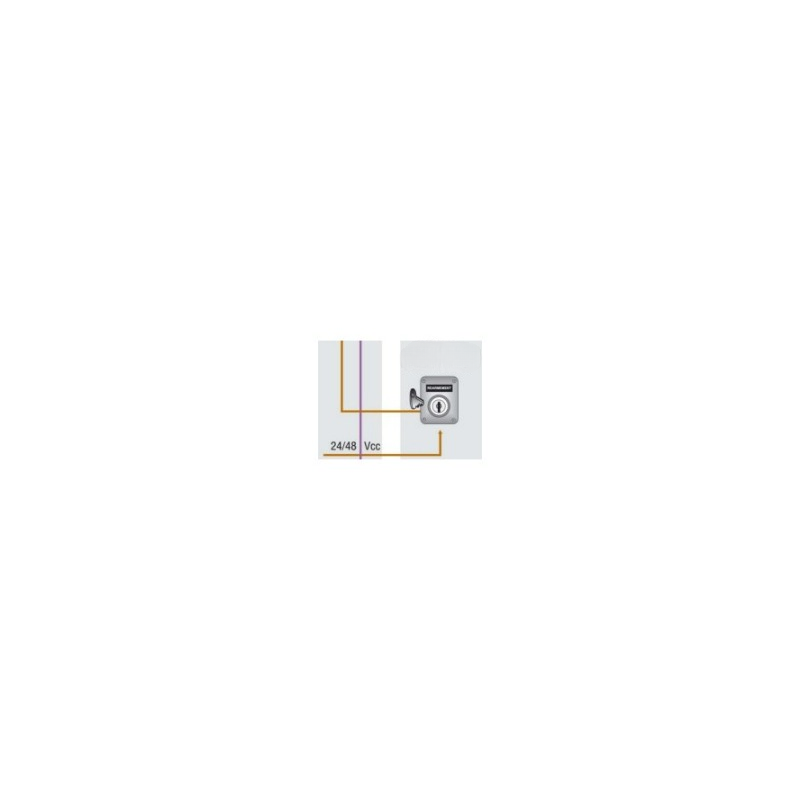

Once the alert has been cleared, an authorised user operates the key on the reset box. This sends a signal to the relay panel via its 2 NO-NC contacts, which reinitialises the smoke extraction motors and returns the installation to normal standby position.

Where should the reset box be installed?

The reset box should be installed within the safety zone of your installation, close to the relay panel it controls, in a location accessible only to authorised personnel thanks to its key. Its IP65 protection rating allows installation in environments exposed to dust and water splashes.
