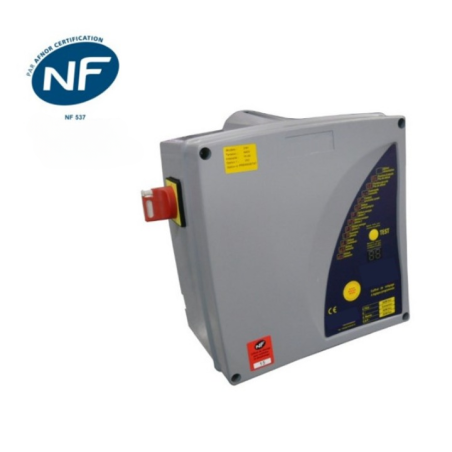

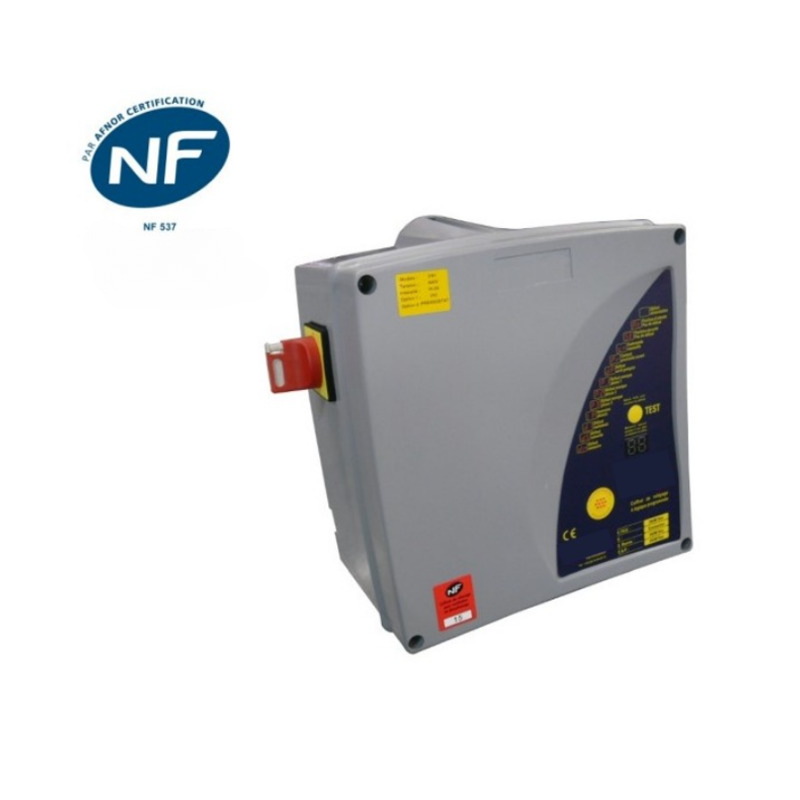

The Basic Smoke Exhaust Relay Box, 1-Speed, 12A provides power control for a three-phase smoke extraction fan, ensuring reliable, compliant smoke clearance in public-access buildings.

  • Rating: 12 A, three-phase 380/400 V
  • Speed: 1-speed
  • Standard: compliant for smoke extraction (DAS safety actuated device)
  • Protection rating: IP55, no thermal protection

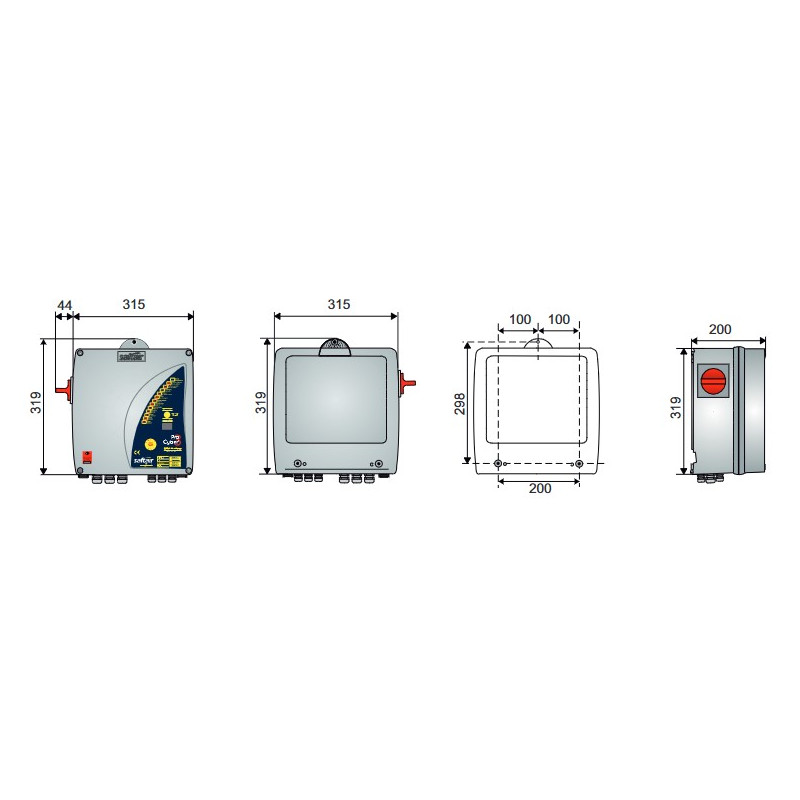

  • Dimensions: L 315 x D 200 x H 319 mm
Available in 5 to 10 business days; please contact us
Quantity
685.00 Tax excluded
822 € TTC
Available in 5 to 10 business days; please contact us

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Basic Smoke Exhaust Relay Box, 1-Speed, 12A is a safety actuated device (DAS) that provides power control for a three-phase smoke extraction fan up to 12 A, helping to secure smoke clearance in public-access buildings.

What does a relay box do?

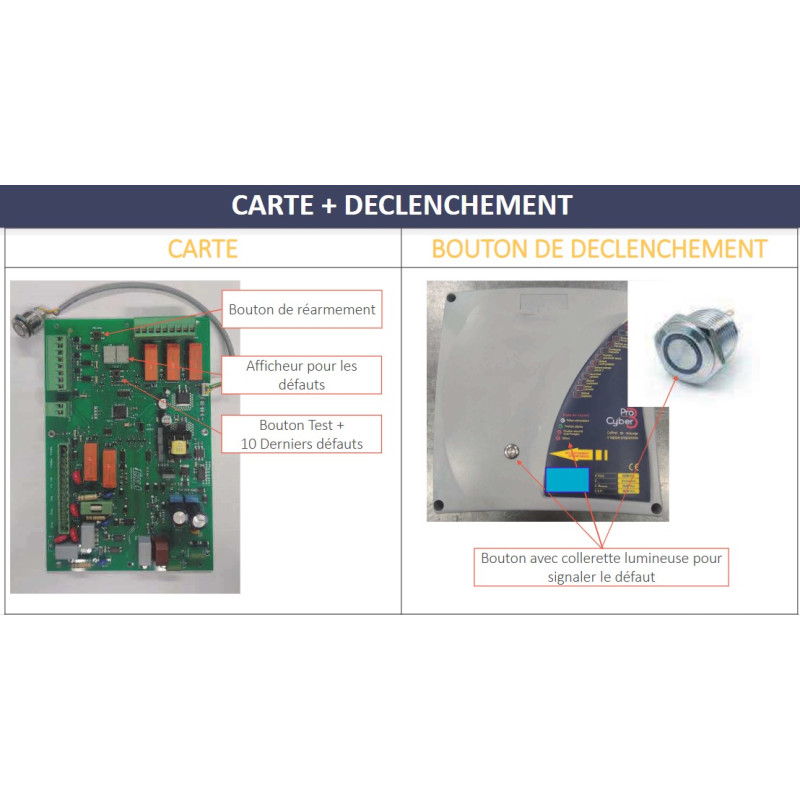

In a smoke extraction system, the fan never receives the start command directly from the fire safety control panel: that is the role of the relay box. This Basic model controls only one fan at a time. It monitors fan operation and reports the status of the fan and the whole power unit back to the control panel. It is a component directly involved in protecting people within the building.

Technical specifications

Specification Value
Reference CRD DS-E 12A
Power supply 380 V three-phase
Rating 12 A
Speed 1-speed
Protection rating IP55
Thermal protection not integrated
Dimensions L 315 x D 200 x H 319 mm
Weight 10 kg
Warranty 1 year

Use and compatibility

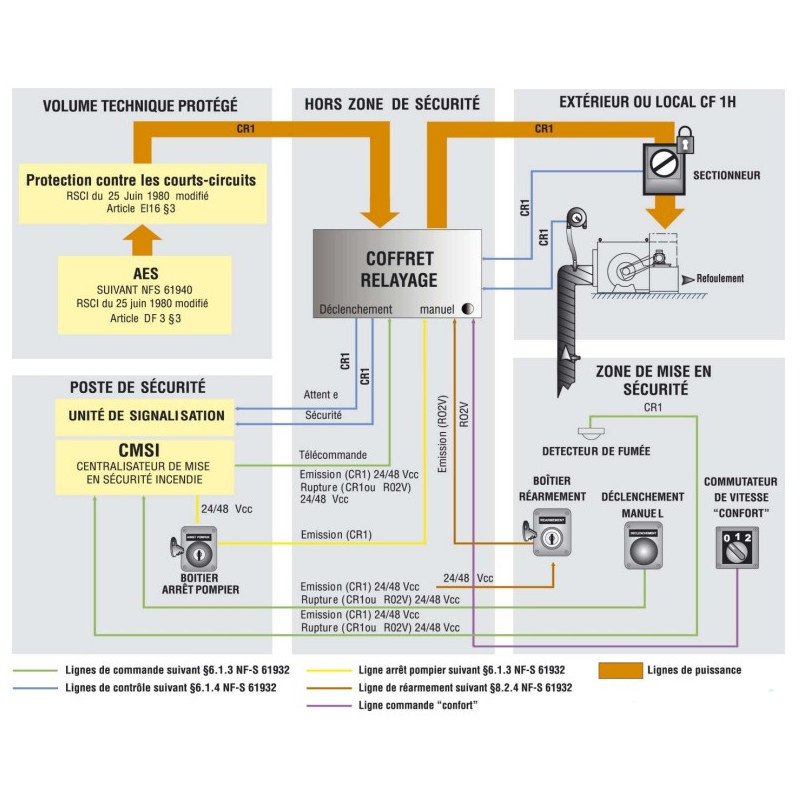

This relay box is designed for a three-phase roof extract fan or fan box used for smoke extraction, with a current rating not exceeding 12 A. It is wired upstream of the motor and controls its start up on command from the fire safety system. One fan per relay box: if your installation includes several smoke extraction fans to be controlled independently, you will need one relay box per unit.

The IP55 enclosure allows for the optional connection of a fireman's emergency stop unit, a fireman's reset unit, or an isolator (according to the wiring diagram supplied with the product). It is supplied with the cable glands required for connection.

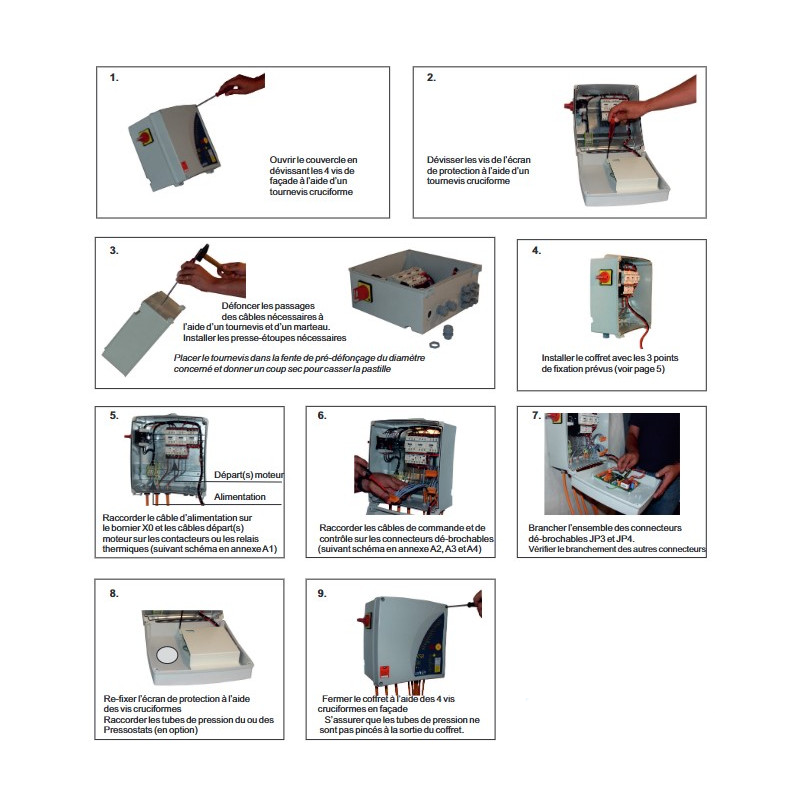

Installation and wiring

The relay box does not include integrated thermal protection: motor protection must be provided elsewhere in the installation, in line with the project's electrical schematic. Electrical connection must be carried out by a qualified professional, which is also a condition for the warranty to apply.

Points to check before ordering

  • Actual current draw of the smoke extraction motor: it must remain equal to or below 12 A, otherwise choose a higher-rated unit.
  • Fan power supply: this Basic relay box is designed for three-phase 380/400 V, not single-phase.
  • Whether a second comfort speed is required: this Basic model only controls a single speed.
  • Number of fans to control: one relay box manages a single fan at a time.
  • Any required options (fireman's emergency stop unit, reset unit, isolator) to be ordered separately according to your installation schematic.

Often bought with

To complete your smoke extraction installation, you may wish to add:

Need a second comfort speed in addition to smoke extraction? See our Comfort 2-speed Dahlander relay box.
