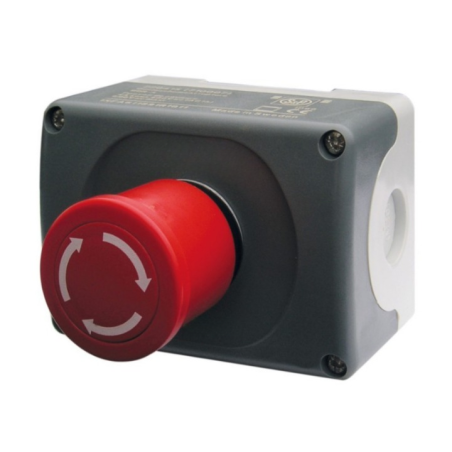

Trigger unit

manual activation

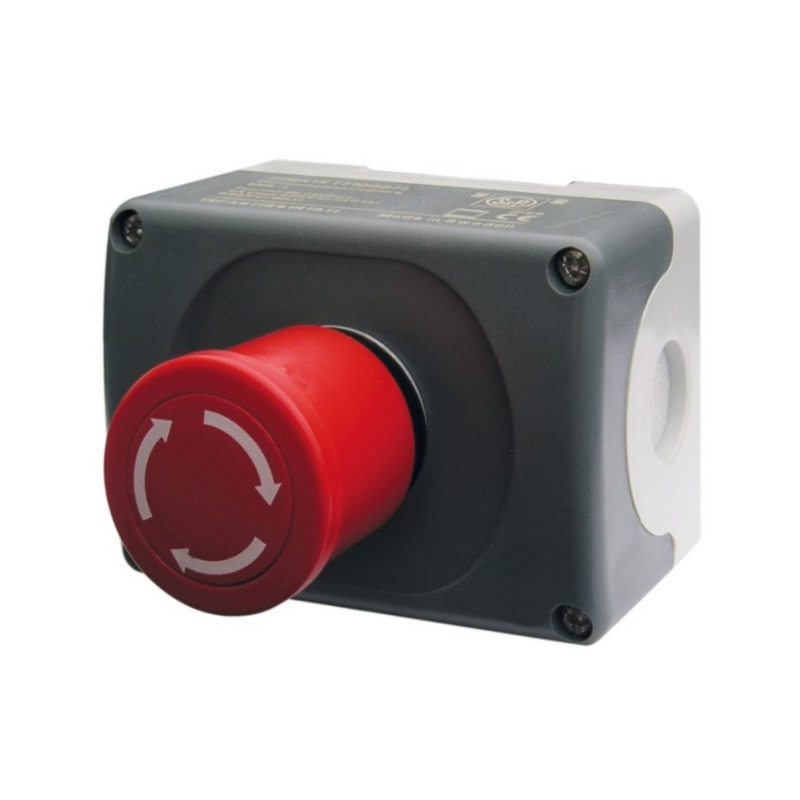

Trigger unit, vue 2
manual activation
Trigger unit, vue 2

The CAIROX trigger unit is used to manually operate a smoke extraction relay panel, with 2 NO-NC contacts and an IP65 protection rating for reliable installation in a plant room or commercial kitchen.

  • Function: manual trigger button
  • Contacts: 2 NO-NC
  • Protection rating: IP65
  • Standard: CE, C4 smoke extraction standard
  • Brand: CAIROX
In stock
Quantity
65.00 Tax excluded
78 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The trigger unit is a manual control button designed to operate a smoke extraction relay panel. Made by CAIROX, it features 2 NO-NC contacts with an IP65 rating, for reliable triggering even in damp or dusty environments.

Technical specifications of the trigger unit

Specification Value
Function Manual trigger button/switch
Contacts 2 NO-NC contacts
Protection rating IP65
Standards CE, C4 smoke extraction standard
Brand CAIROX
Weight 0.5 kg (1 kg packaged)

Use and operation

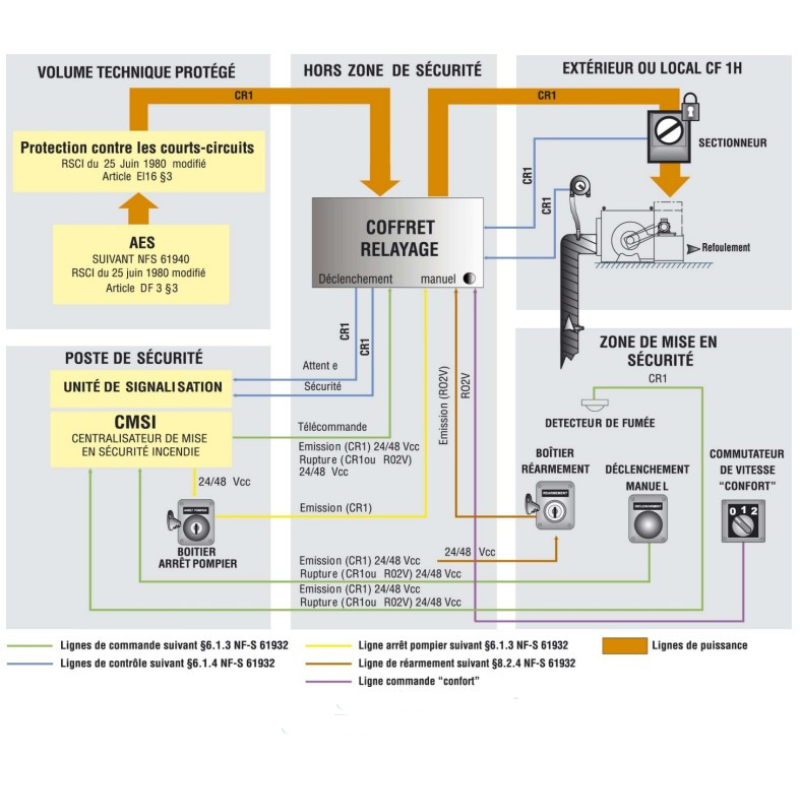

This unit connects to a smoke extraction relay panel to allow manual triggering of the fan, as a complement or backup to automatic control. Its 2 NO-NC contacts (normally open / normally closed) are wired into the relay panel according to the installation's wiring diagram. The IP65 rating makes it dust-tight and resistant to water jets, which is useful when the unit is fitted in a plant room, a sheltered outdoor area or near a cleaning zone.

Please note: this accessory unit should not be confused with a standardised manual call point used in a fire safety system, or with a kitchen smoke extraction forced-run break-glass unit. These are different functions governed by different standards. If you are unsure which device your installation requires, check with your building control officer or installer.

Installation and wiring

The trigger unit is wired to the smoke extraction relay panel via its 2 NO-NC contacts, following the wiring diagram supplied with the panel. Electrical connection must be carried out by a qualified professional, a condition required to maintain the warranty.

Points to check before ordering

  • Check the exact reference of your CAIROX smoke extraction relay panel (single-speed, two-speed) before pairing it with this unit.
  • Make sure the IP65 rating is suitable for the intended installation location (plant room, sheltered outdoor area, damp zone).
  • Confirm your actual requirement: manual trigger unit, reset unit and fire brigade stop unit each serve a distinct purpose.
  • Have the electrical connection carried out by a qualified professional, in line with the warranty conditions.

Goes well with

Product Details

CAIROX
boitierdeclenchement
Products
Button / Switch
Package weight
1 kg
Standard
F400/120
0657968983052

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is this trigger unit used for?

The trigger unit is used to manually operate a smoke extraction relay panel. It connects via its 2 NO-NC contacts and has an IP65 rating, allowing the smoke extraction fan to be triggered independently of automatic control.

Is this unit the same as a manual call point for a fire safety system?

No. This CAIROX trigger unit is a control accessory for a smoke extraction relay panel, distinct from a standardised manual call point used in a fire safety system. The two serve different functions under different standards: check the precise requirement for your installation.

Do I also need a reset unit or a fire brigade stop unit?

This depends on your installation. The trigger unit, the reset unit and the fire brigade stop unit are three separate accessories for the smoke extraction relay panel, each with its own function. They can be combined according to the needs of your site.

Is the unit weatherproof?

Yes, the trigger unit has an IP65 protection rating, making it resistant to dust and water jets. It is therefore suitable for installation in a plant room or in a damp environment.

Who should carry out the electrical connection of the unit?

Connecting the trigger unit to the relay panel must be carried out by a qualified professional. This is required to maintain the product warranty.
