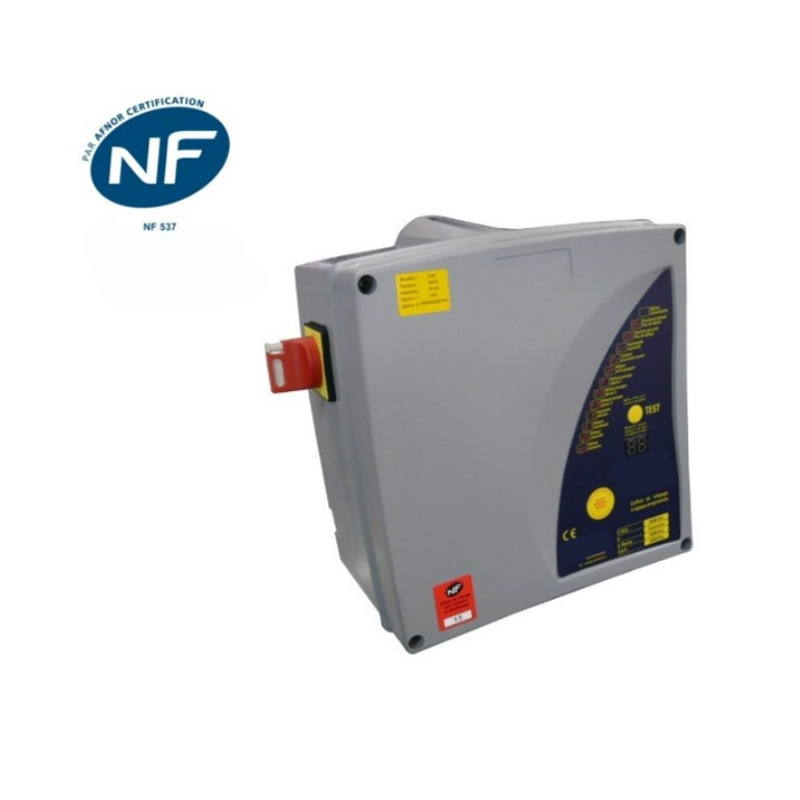

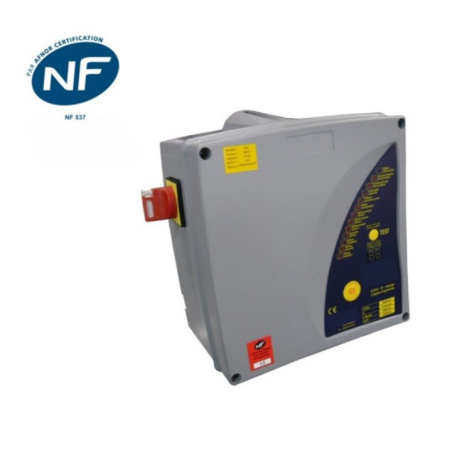

The SAFTAIR 2-Speed Smoke Exhaust Relay Control Box with Comfort Winding drives a 3-phase 380/400 V dual-winding smoke extraction fan, with a manual switch between low and high speed for everyday comfort ventilation.

  • Power supply: 380 V three-phase
  • Motor compatibility: 2-speed (low/high) dual winding, less than 6 A
  • Protection rating: IP55
  • Standard: smoke extraction C4

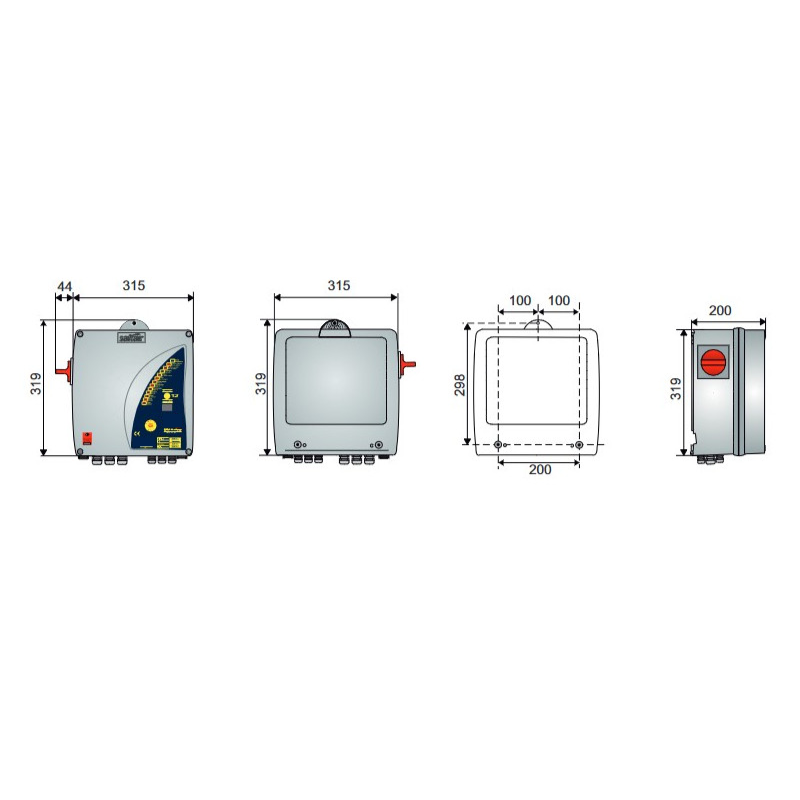

  • Dimensions: W 315 x D 200 x H 319 mm
In stock
Quantity
1,195.00 Tax excluded
1434 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The 2-Speed Smoke Exhaust Relay Control Box with Comfort Winding is a Safety Actuated Device (DAS) that controls the power supply of a 3-phase 380/400 V dual-winding smoke extraction fan, while also allowing manual use at low or high speed for everyday ventilation.

How the comfort smoke extraction relay control box works

In line with current regulations, this relay control box handles the power control of a smoke extraction fan. Each control box can only drive one fan at a time. It monitors and reports back to the fire safety control panel its own status as well as that of the fan and the overall power circuit. This is the comfort model in the range: in addition to its smoke extraction function, it allows the fan to be run on demand in comfort mode, for example in a kitchen, workshop or warehouse, to clear the air after a busy service or during a working day.

Technical specifications

Characteristic Value
Power supply 380 V three-phase
Motor compatibility 2-speed (low/high) dual-winding fan, less than 6 A, 3-phase 380/400 V
Smoke extraction standard C4
Protection rating IP55
Dimensions W 315 x D 200 x H 319 mm
Package weight 6 kg
Warranty 1 year

Use and compatibility

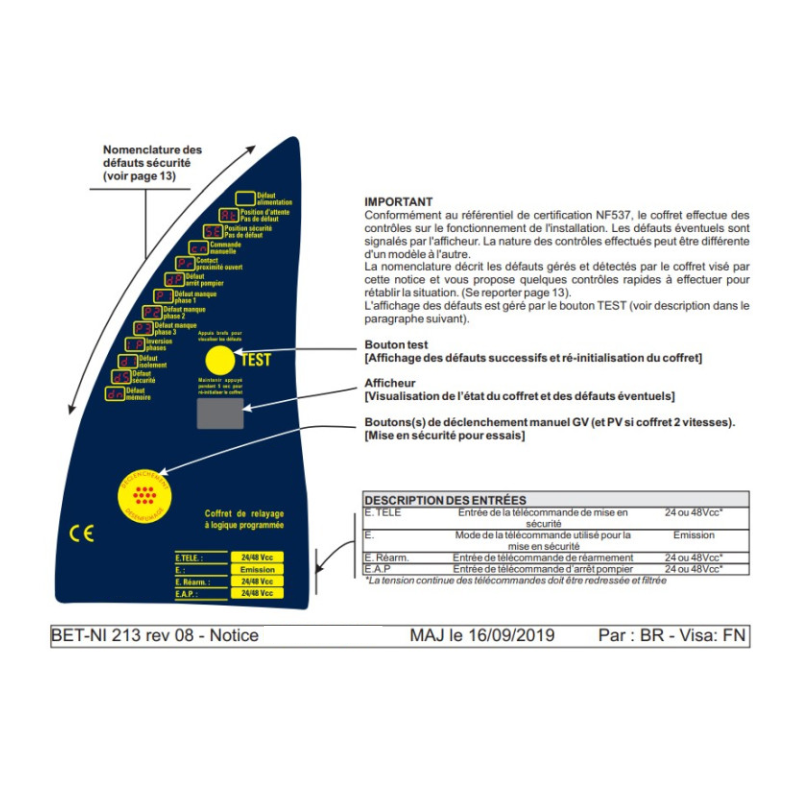

This control box is installed upstream of a roof extract fan or a three-phase 2-speed, dual-winding smoke extraction fan box, provided the motor current stays below 6 A in 3-phase 380/400 V. It meets the requirements of standard NF S 61-937-1 (December 2003) and NF S 61-937-9 (January 2011) "Fire Safety Systems (SSI), Safety Actuated Devices (DAS)" and the NF537 certification scheme "NF, Relay control box for smoke extraction fans". On the front panel, the fault display, test button and low/high speed button allow quick checks without having to open the enclosure.

Installation and wiring

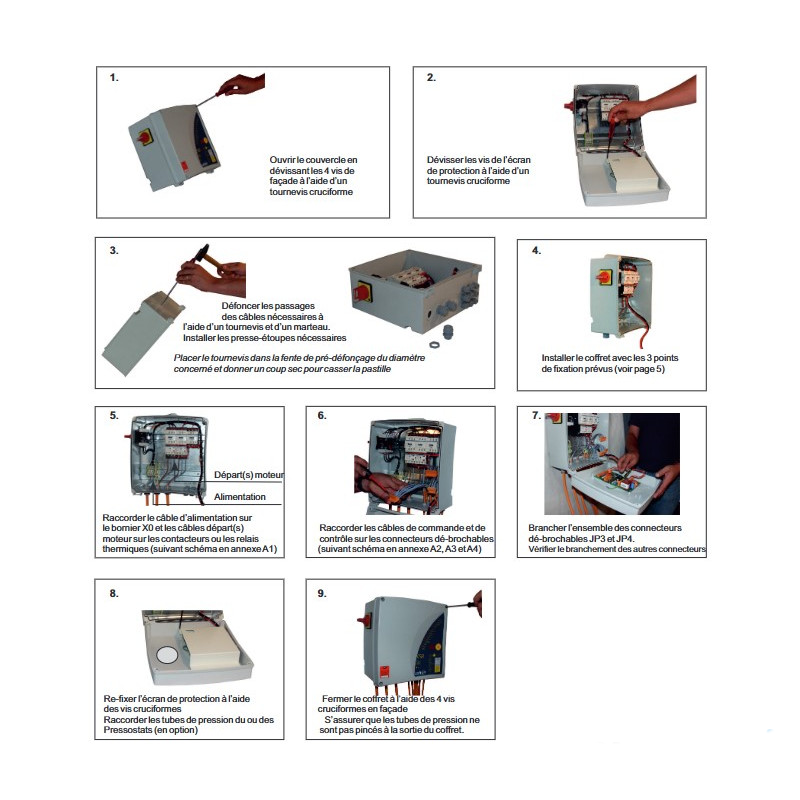

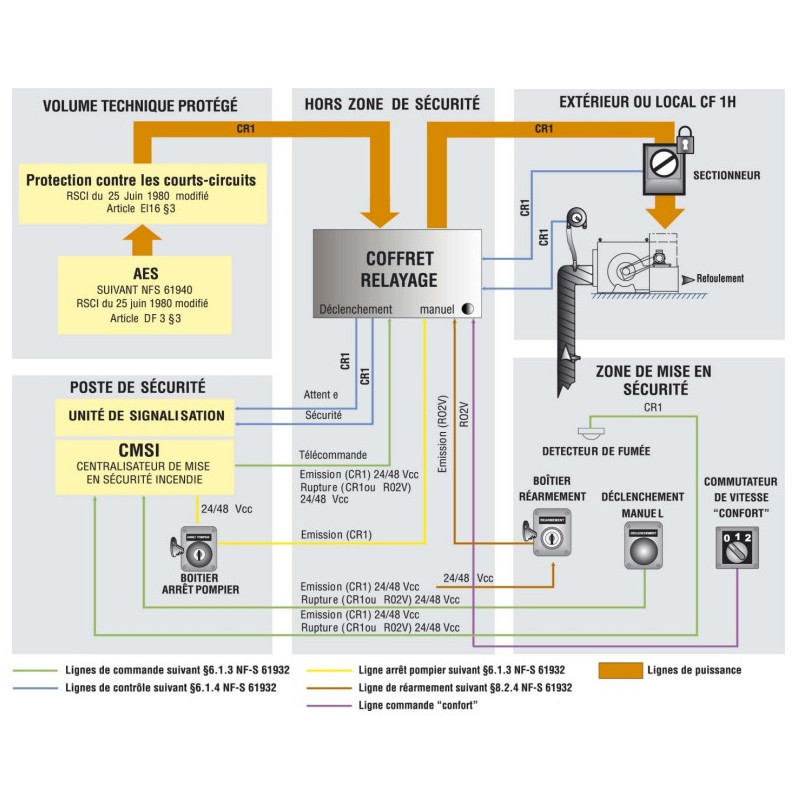

The IP55 enclosure includes thermal protection and a stop button, with cable glands supplied for wiring. An optional fireman's stop box, fireman's reset box or isolator switch can also be connected (see the enclosed wiring diagram). As with any DAS, the electrical connection must be carried out by a qualified professional: this is a condition for the warranty to apply.

Points to check before ordering

  • Check that your fan is indeed three-phase, 2-speed with dual winding, and not Dahlander winding: this control box is not interchangeable between the two technologies.
  • Check that your motor's current at high speed stays below 6 A, otherwise this rating is not suitable.
  • Confirm that your installation is indeed 380/400 V three-phase.
  • If you need a fireman's stop box, reset box or isolator switch, plan their wiring in at the time of ordering.
  • Check the regulations applicable to your premises before confirming the required smoke extraction classification.

Frequently bought together

For a single-speed fan, see our Base 1-Speed Smoke Exhaust Relay Control Box 12A. For a 2-speed motor with Dahlander winding, see the 2-Speed Dahlander Smoke Exhaust Relay Control Box with Comfort Winding.

Product Details

Ventilsogood
CRD ADC2B6A
Warranty
1 year
Package weight
6 kg
Standard
F400/120
Food
380V Three-Phase
0657968931244

You might also like

8 other products in the same category:

Frequently asked questions

What is the difference between this comfort control box and a base 1-speed smoke extraction control box?

The 2-speed comfort control box lets you run the fan at low or high speed for everyday ventilation (kitchen, workshop, warehouse) in addition to its high-speed smoke extraction function. The base 1-speed control box only manages a single speed, dedicated to smoke extraction, with no everyday comfort function.

Is this control box suitable for a motor with Dahlander winding?

No. This model is designed for a 2-speed fan with dual winding (separate windings for low and high speed). For a motor with Dahlander winding, our 2-Speed Dahlander Smoke Exhaust Relay Control Box with Comfort Winding is the suitable reference.

How can I check that my motor is compatible with this control box?

Check that your motor is three-phase 380/400 V, 2-speed with dual winding, and that its current at high speed stays below 6 A. Beyond this rating or with a different winding technology, this control box is not suitable: contact us with your motor's specifications to confirm.

Can the low and high speed be switched on manually?

Yes, that is the whole point of the comfort model: a low/high speed button on the front panel allows you to manually run the fan at low or high speed for on-demand ventilation, in addition to the automatic smoke extraction function in the event of an alarm.

What do I need to prepare for wiring this control box?

The IP55 enclosure is supplied with the cable glands needed for wiring. You can also optionally connect a fireman's stop box, a fireman's reset box or an isolator switch. The electrical connection must be carried out by a qualified professional, a condition required for the warranty.
