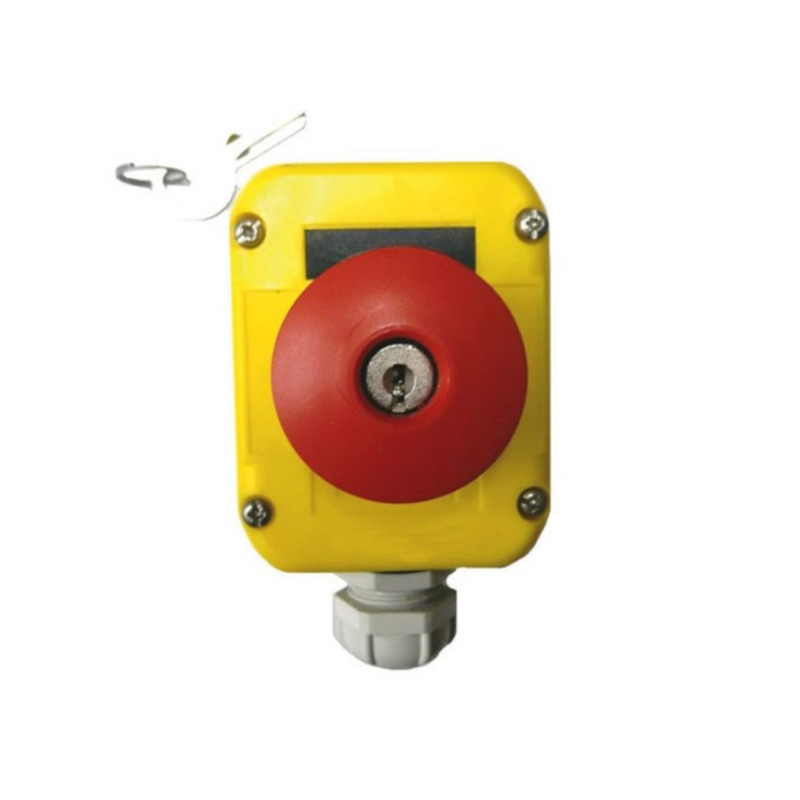

Firefighter Shut-Off Box

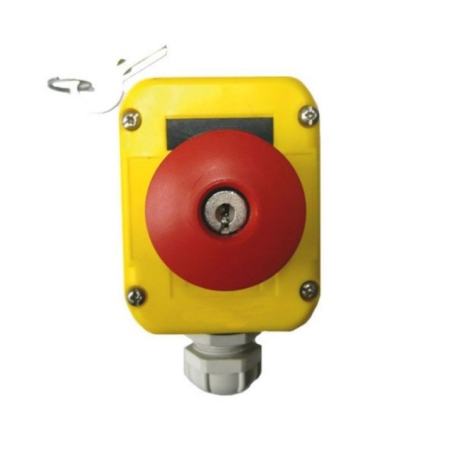

fire station
Firefighter Shut-Off Box, vue 2
Firefighter Shut-Off Box, vue 3
fire station
Firefighter Shut-Off Box, vue 2
Firefighter Shut-Off Box, vue 3

The Firefighter Shut-Off Box with key allows fire services to cut off smoke extraction during an intervention, with 2 NO-NC contacts and an IP65 protection rating.

  • Function: smoke extraction shut-off by fire services
  • Contacts: 2 NO-NC
  • Protection rating: IP65
  • Standard: CE compliance
  • Brand: CAIROX
In stock
Quantity
75.00 Tax excluded
90 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Firefighter Shut-Off Box is a key-operated device that allows fire services to interrupt a building's smoke extraction system during an intervention. Compact and robust, it is fitted to mechanical ventilation and smoke extraction installations alongside a relay control panel.

What is a Firefighter Shut-Off Box used for?

In the event of a fire, firefighters sometimes need to quickly stop the smoke extraction system, for example to limit smoke spreading into an area they are entering. The Firefighter Shut-Off Box with key gives them direct access to do this, without having to go through the main electrical panel. It's a simple safety measure, designed to be operated quickly, even in an emergency situation.

Technical specifications

Characteristic Value
Function Smoke extraction shut-off by firefighters during a fire
Contacts 2 NO-NC contacts
Protection rating IP65
Standards CE standards
Brand CAIROX
Product weight 0.5 kg

Firefighter Shut-Off Box or reset box: what's the difference?

These two boxes look similar but serve different purposes. The Firefighter Shut-Off Box is used to cut off smoke extraction while fire services are intervening. The reset box, on the other hand, is used to bring the installation back into service once the alert has been lifted. These two functions are complementary and are often found side by side on a smoke extraction installation.

Points to check before ordering

  • Check that your relay control panel has a dedicated input for a firefighter shut-off contact: not all panels are wired the same way.

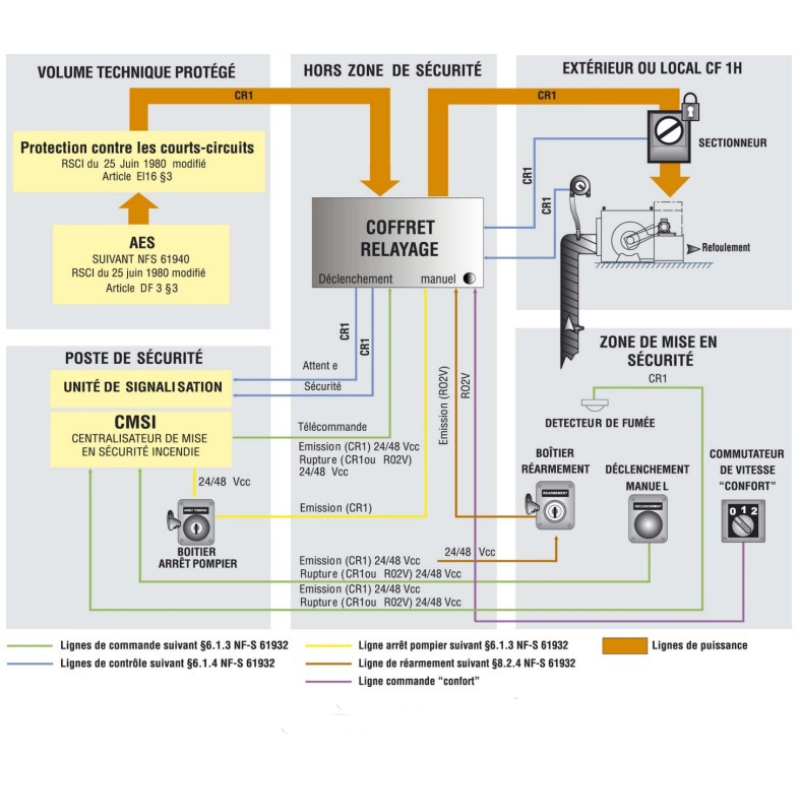

  • Check the number of NO-NC contacts required according to your installation's wiring diagram.
  • An IP65 rating is suitable for standard indoor installation: for outdoor or damp environments, seek advice before confirming your choice.
  • The C4 smoke extraction standard relates to the fire resistance of the connected fan, not the box itself: for any precise regulatory requirement regarding the firefighter shut-off function (public-access premises, high-rise buildings, car parks), have your file checked by your design office or installer.

Installation and wiring

The electrical connection of the Firefighter Shut-Off Box must be carried out by a qualified professional, a condition required to maintain the warranty. The location of the box within the building is governed by fire safety rules specific to each premises: it is up to your installer or design office to determine the exact position.

To be used with

Product Details

CAIROX
boitierarretpompier
Products
Button / Switch
Package weight
1 kg
Standard
F400/120
0657968109131

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What's the difference between a Firefighter Shut-Off Box and a reset box?

The Firefighter Shut-Off Box allows firefighters to cut off smoke extraction during their intervention. The reset box is used to bring the installation back into service once the incident is over. These are two distinct, complementary functions, often installed together on the same smoke extraction system.

Is the Firefighter Shut-Off Box compatible with all relay control panels?

The CAIROX Firefighter Shut-Off Box has 2 NO-NC contacts, a common format on smoke extraction installations. However, check that your relay control panel has a dedicated input for this type of contact before ordering, as wiring can vary between models.

Which protection rating should I choose for a Firefighter Shut-Off Box?

This CAIROX Firefighter Shut-Off Box is rated IP65, suitable for standard indoor installation, including dusty environments. For outdoor or very damp installations, have compatibility checked by a professional before confirming your choice.

How many contacts does this Firefighter Shut-Off Box have?

The CAIROX Firefighter Shut-Off Box has 2 NO-NC contacts (normally open and normally closed), making it easy to integrate into the wiring diagram of a smoke extraction relay control panel.
