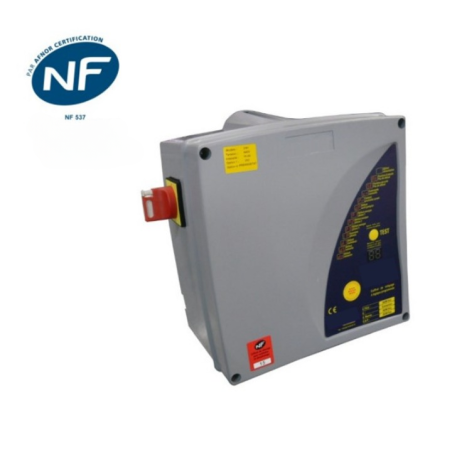

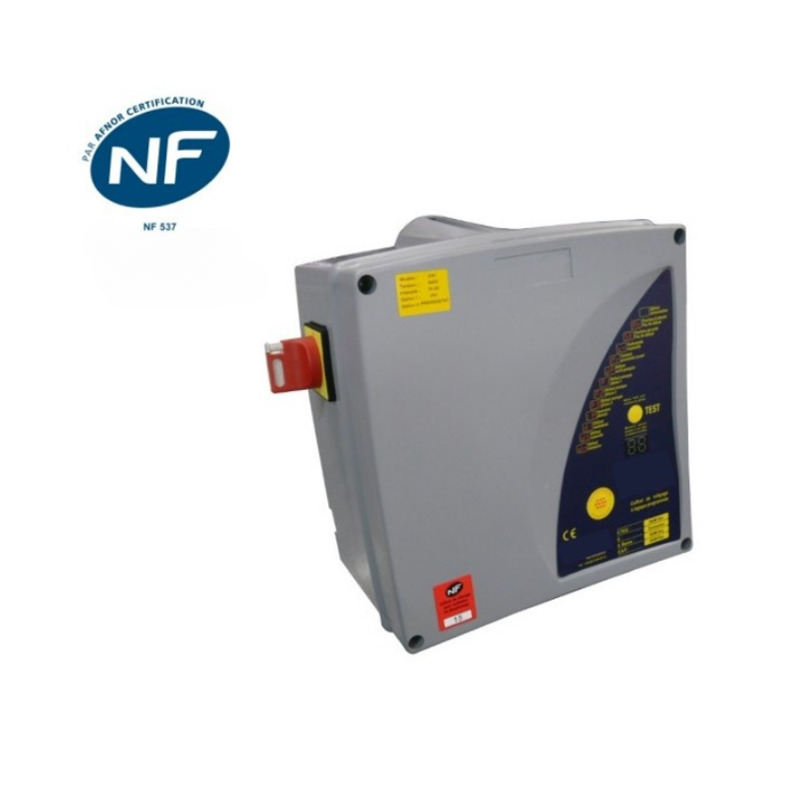

Dahlander Comfort 2-Speed Smoke Exhaust Relay Box
The Dahlander Comfort 2-Speed Smoke Exhaust Relay Box safely controls your three-phase smoke extract fan, with daily low-speed use possible for everyday ventilation.
- Reference: CRD ADC2D6A Brand Saftair
- Power supply: 380 V three-phase
- Speeds: 2 speeds, Dahlander type (low speed/high speed)
- Protection rating: IP55
- Standard: C4 smoke extraction
- Warranty: 1 year
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
Dahlander Comfort 2-Speed Smoke Exhaust Relay Box: function and use

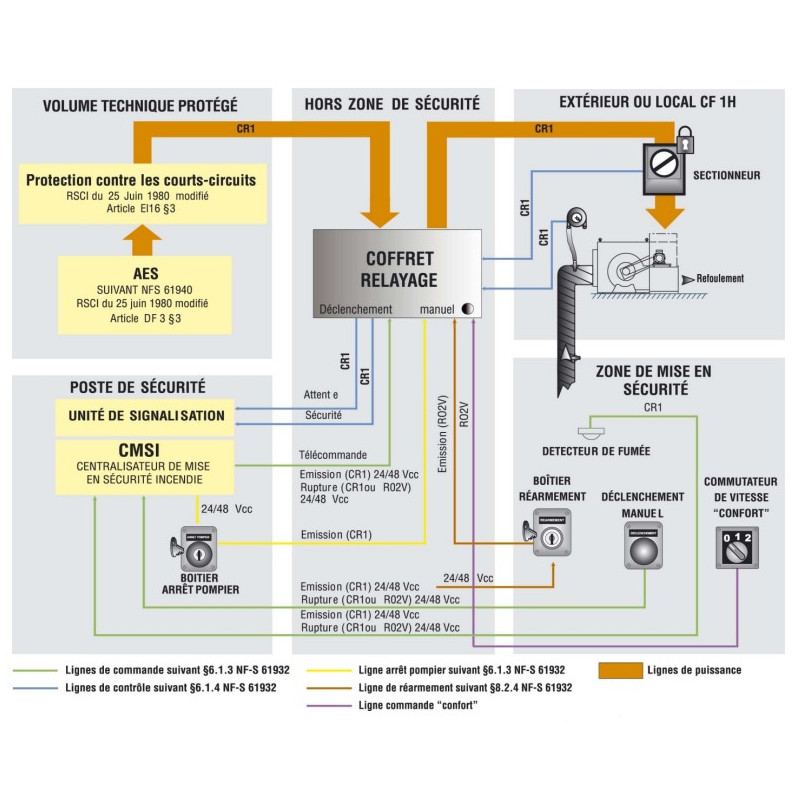

The Dahlander 2-speed smoke exhaust relay box is a Safety Actuated Device (DAS) that provides power control for a smoke extract fan fitted with a single Dahlander-type winding, while still giving you control over everyday ventilation. Compliant with standards NF S 61-937-1 (December 2003) and NF S 61-937-9 (January 2011) relating to Fire Safety Systems, as well as the NF537 certification scheme for smoke exhaust fan relay boxes, it is installed alongside a fire safety control panel (CMSI).
Each relay box controls only one fan at a time. In the event of a fire alarm, it automatically switches the fan to high speed and reports the status of the power device back to the CMSI. The rest of the time, it allows manual use at low speed for everyday ventilation needs: kitchen, workshop, warehouse. This is the key benefit of the Comfort version over a base relay box: you retain everyday use of the fan without losing the smoke extraction function.
Dahlander or independent winding: what's the difference?
A Dahlander motor runs on a single three-phase winding whose internal connection can be switched to produce two speeds at a fixed ratio. An independent-winding motor, on the other hand, has two separate windings, each dedicated to one speed. This relay box is designed specifically for Dahlander motors: if your roof fan or smoke extraction fan box runs on an independent-winding motor, you should instead look at the 2-speed independent winding Comfort relay box.
Technical specifications
| Specification | Value |
|---|---|
| Reference | CRD ADC2D6A |
| Power supply | 380 V three-phase |
| Number of speeds | 2 speeds, Dahlander type (low speed/high speed) |
| Standard | C4 smoke extraction |
| Weight | 10 kg |
| Warranty | 1 year |

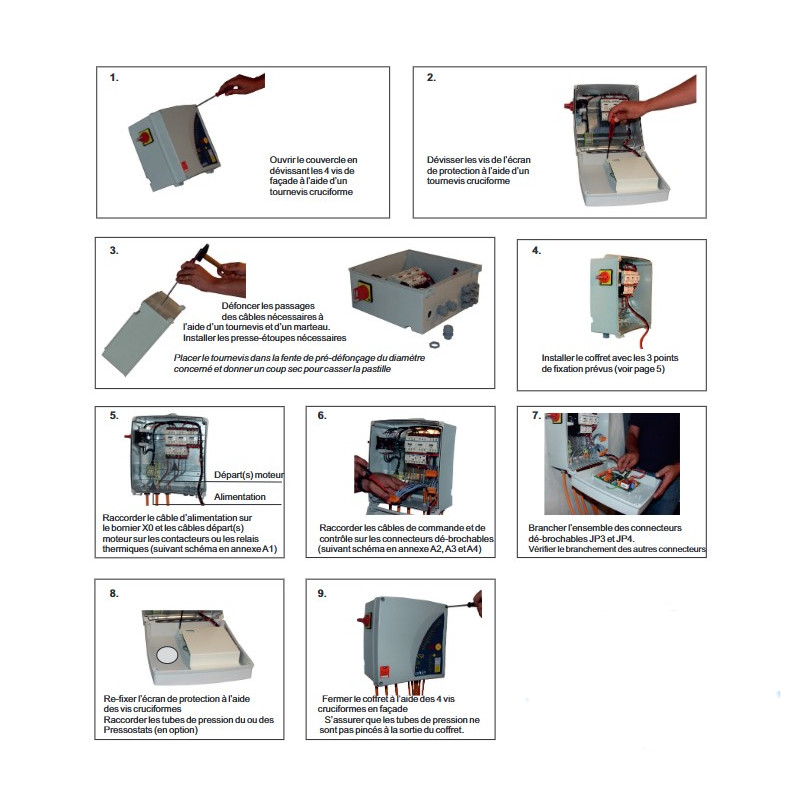

Installation and wiring

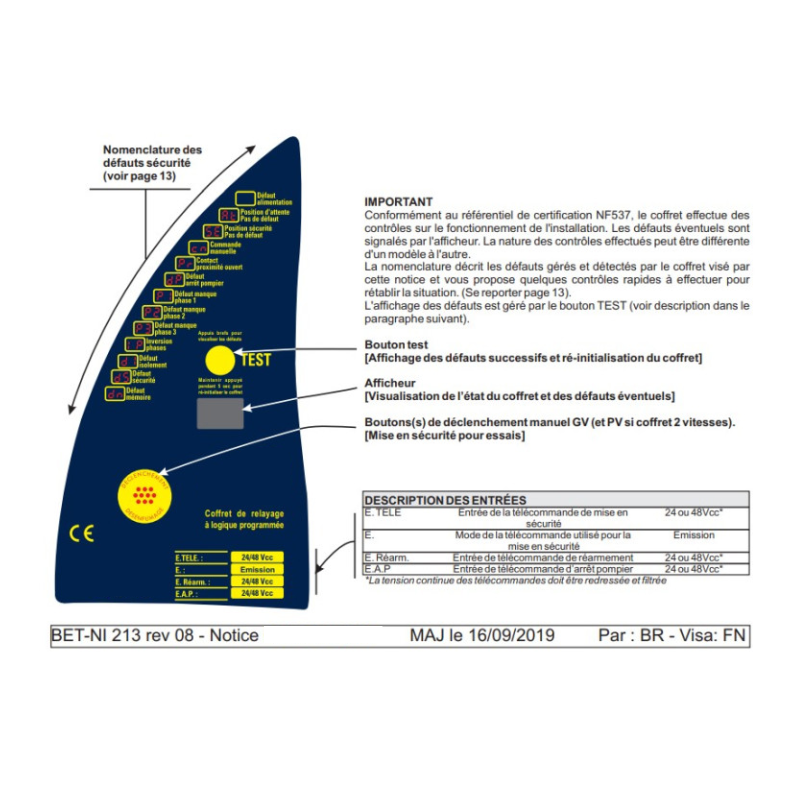

The relay box is housed in an IP55 enclosure with thermal protection and a stop button, supplied with the cable glands needed for wiring. On the front panel, you'll find fault indication, a test button and the low speed/high speed switch button. The relay box can optionally accept the connection of a fireman's stop switch, a fireman's reset switch or an isolator switch. Electrical wiring of this type of relay box must be carried out by a qualified professional; this is also a condition of the warranty.
Points to check before ordering
- Check that your smoke extract fan runs on a Dahlander motor and not an independent-winding motor.
- Confirm the power supply available on site: this relay box is designed for 380 V three-phase.
- One fan per relay box: if your installation includes several smoke extract fans, plan for one relay box per unit.
- Check the compatibility of this relay box with your existing fire safety control panel (CMSI) before ordering.
- If you need any options (fireman's stop switch, reset switch, isolator), arrange to add them when ordering or afterwards.
Frequently bought together
Also check out the Base relay box if you don't need the everyday ventilation function, and the full range on our smoke exhaust relay boxes page.
Product Details
- Warranty
- 1 year
- Package weight
- 6 kg
- Standard
- F400/120
- Food
- 380V Three-Phase
You might also like
8 other products in the same category:
Frequently asked questions
What's the difference between a Dahlander relay box and an independent-winding relay box?
A Dahlander motor has a single three-phase winding whose internal connection switches to produce two speeds. An independent-winding motor has two separate windings, one per speed. This relay box is designed only for Dahlander motors: check your motor type before ordering, otherwise choose the independent-winding relay box instead.
What's the difference between a base relay box and a Comfort relay box?
The base relay box only provides the smoke extraction function in the event of an alarm. The Comfort relay box, like this model, adds the option of running the fan manually at low or high speed for everyday ventilation or kitchen use, in addition to its fire safety function.
Can one relay box control several fans?
No. Each Dahlander 2-speed smoke exhaust relay box can only control one fan at a time. If your installation includes several smoke extract fans, you'll need a dedicated relay box for each one.
Does this relay box comply with fire safety system standards?
Yes, this relay box complies with standards NF S 61-937-1 (December 2003) and NF S 61-937-9 (January 2011) relating to Fire Safety Systems and Safety Actuated Devices, as well as the NF537 certification scheme for smoke exhaust fan relay boxes.
Does this relay box need to be installed by a professional?
Yes. Electrical wiring of this smoke exhaust relay box must be carried out by a qualified professional; this is a condition of the warranty. The relay box is supplied with the cable glands needed to make this easier.
