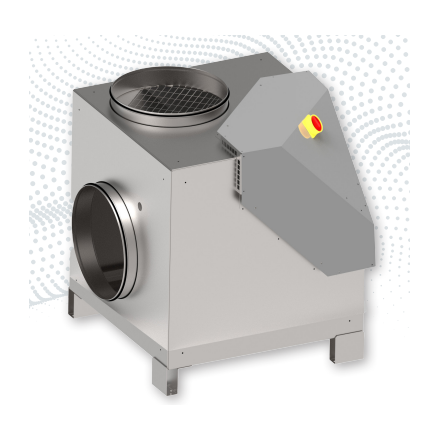

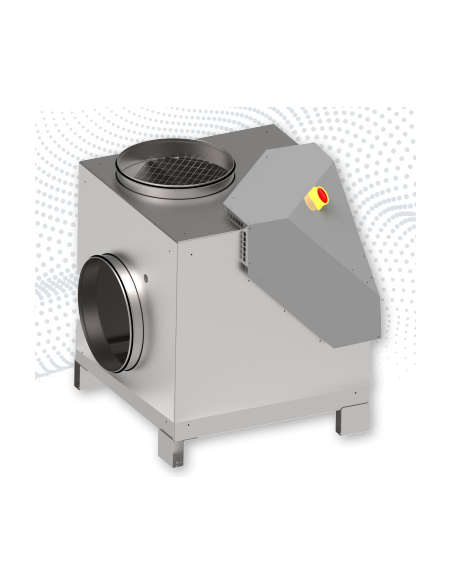

RC50 Insulated Exhaust Cabinet, 2 Speeds, Max. 7,500 m³/h, 400°/2h, Sorting

R'chef Saftair
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
R'chef Saftair
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting
Perforated Enclosure, 7,500 m³/h, 400°/2h, sorting

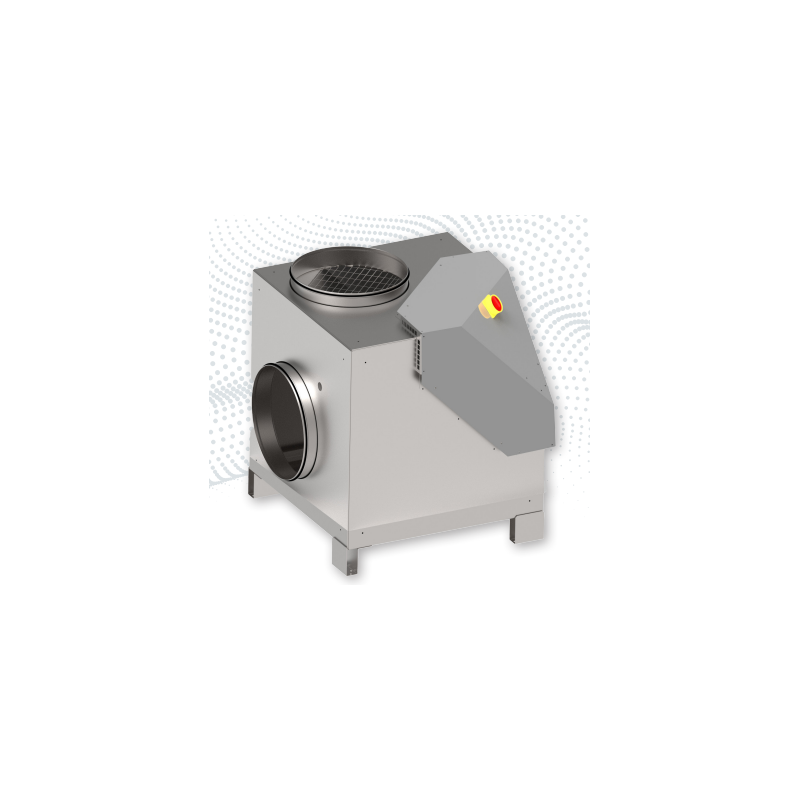

Direct-drive "turret-type" exhaust and smoke extraction unit — F400° 2-hour rated.

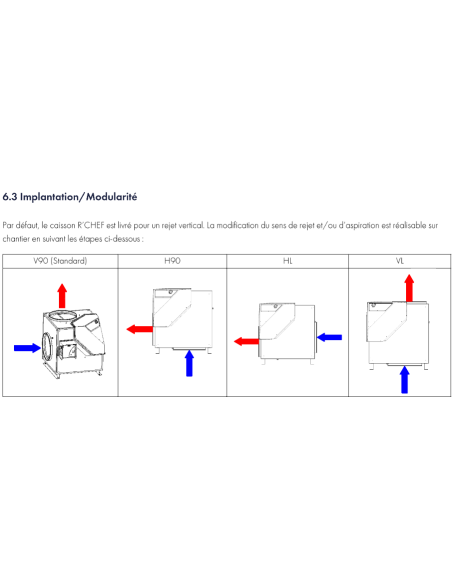

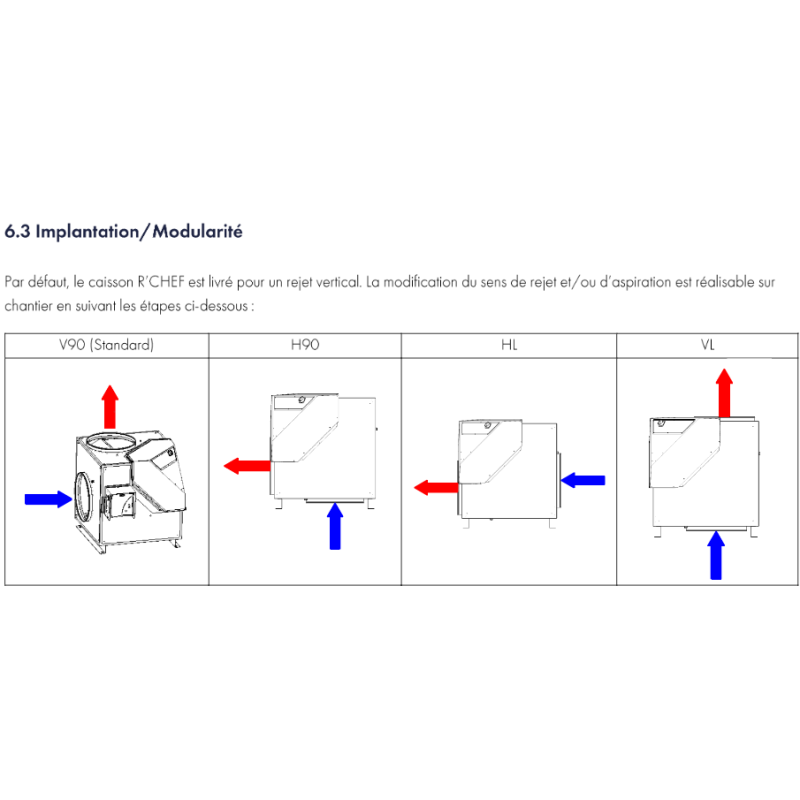

Insulated, double-walled galvanized housing (25 mm) — motor located outside the airflow — intake/exhaust in-line or at 90°, drain plug.

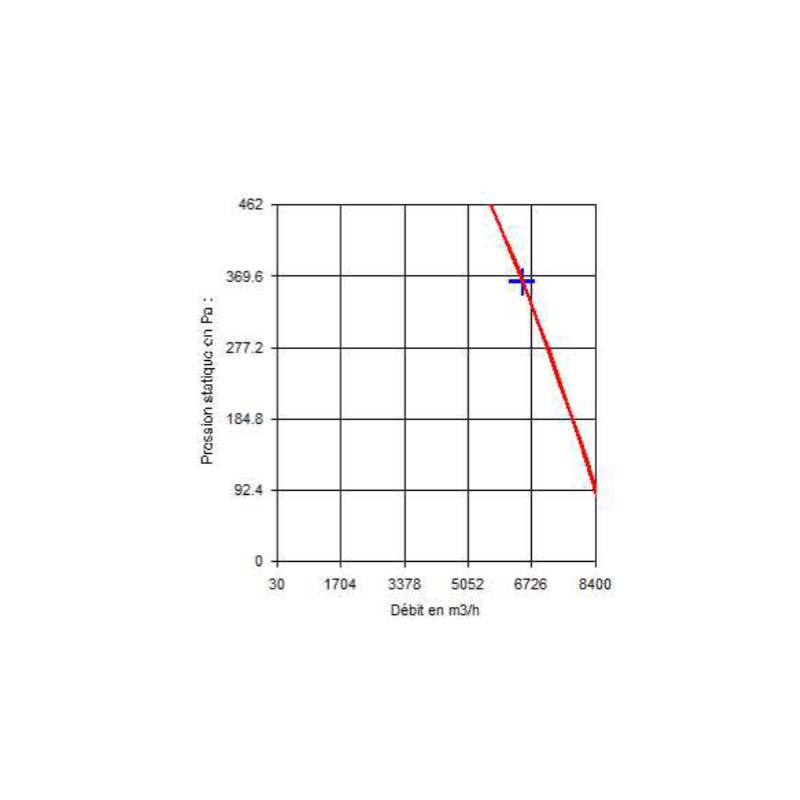

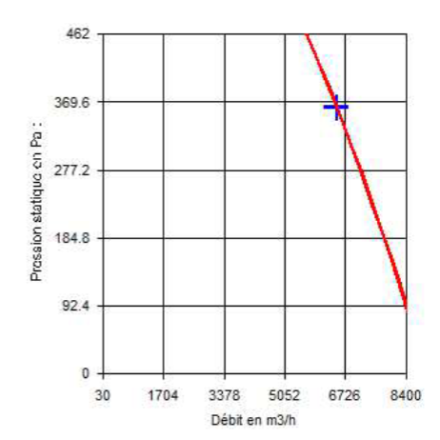

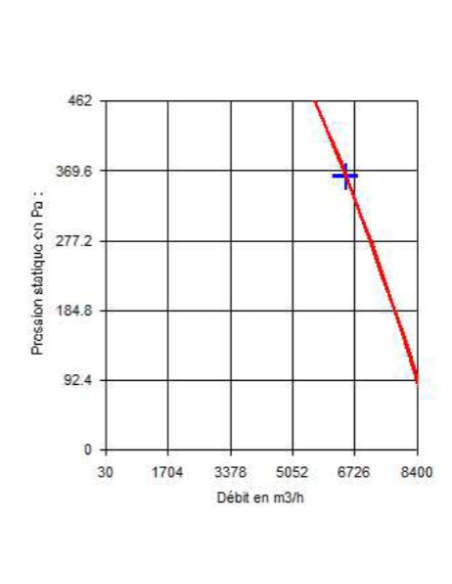

TRI, 0.37/1.5 kW, 1.62/3.65 A, 4-6 poles, 1000/1500 rpm—Max 6000 m³/h at approximately 200 Pa (see curve in photo).

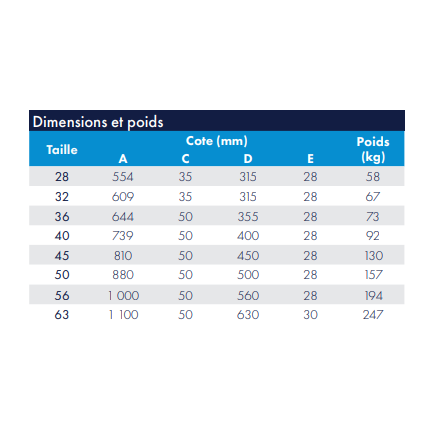

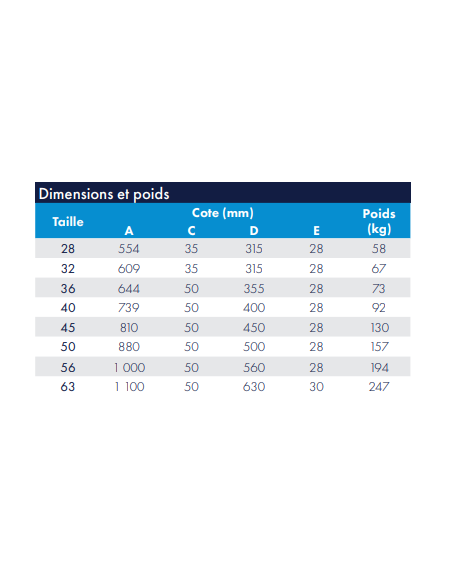

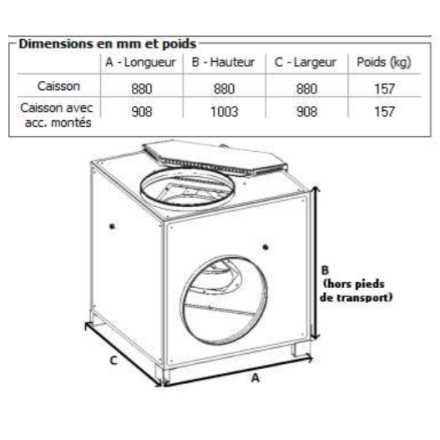

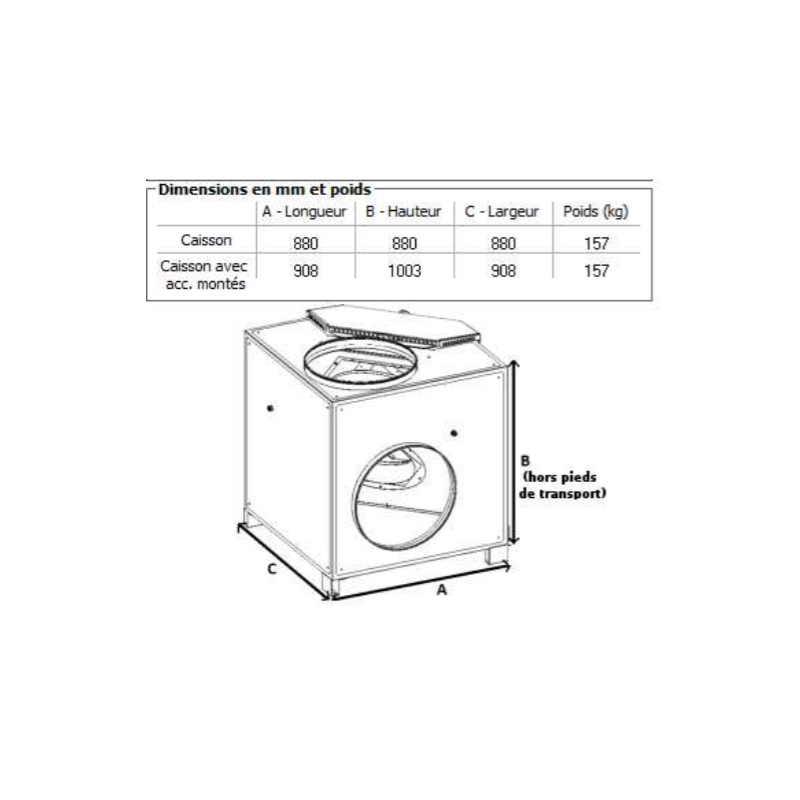

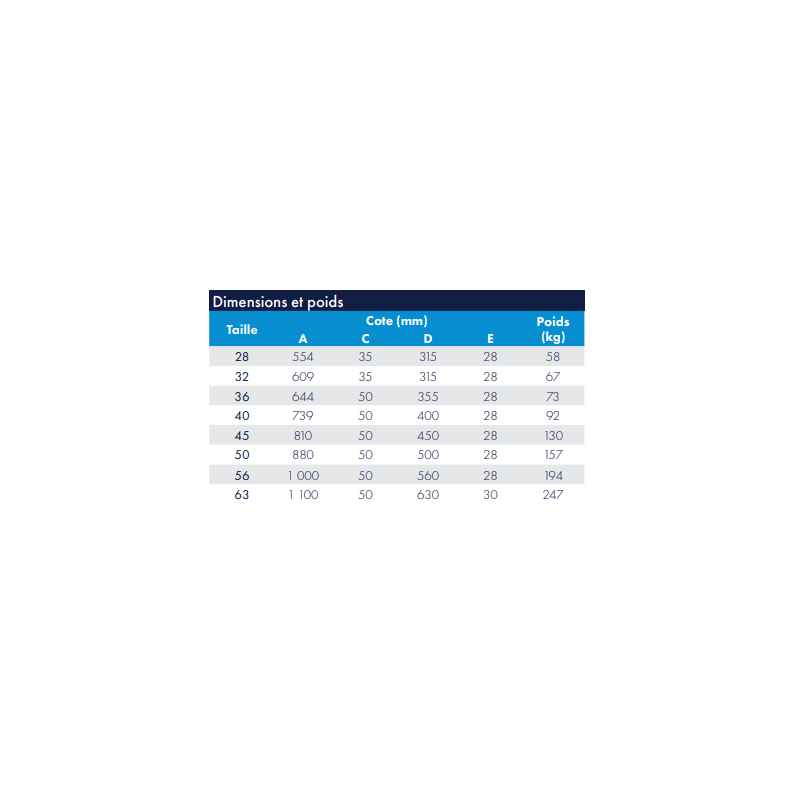

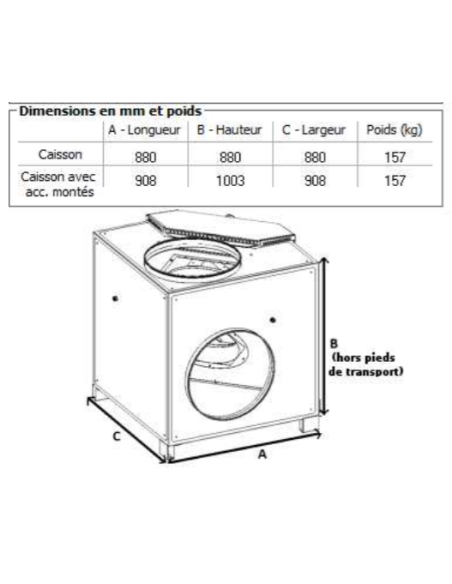

Dimensions: ~900 × 900 × 900 (excluding connection port and base).

Weight: 157 kg

For indoor or outdoor use.

CE certified—1-year warranty. Manufactured in Normandy (France).

Equipped to withstand 400° for 2 hours to enable smoke extraction in the event of a fire.

This product must be installed by a professional (electrician) to be covered by the manufacturer’s warranty.

Available in 5–10 working days - Contact Us
Quantity
2,750.00 Tax excluded
3300 € TTC
Available in 5–10 working days - Contact Us

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Product Details

Ventilsogood
CMrchef502v46p
Manufacturing
Made in France
Warranty
1 year
Package weight
100 kg
