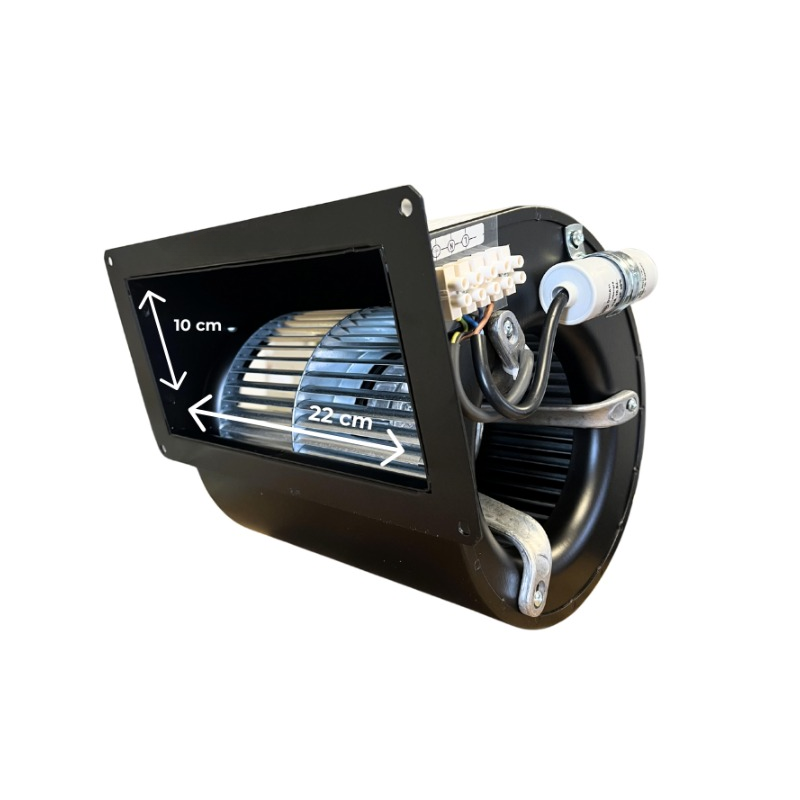

DD 146/180 Motor - 1400 m³/h

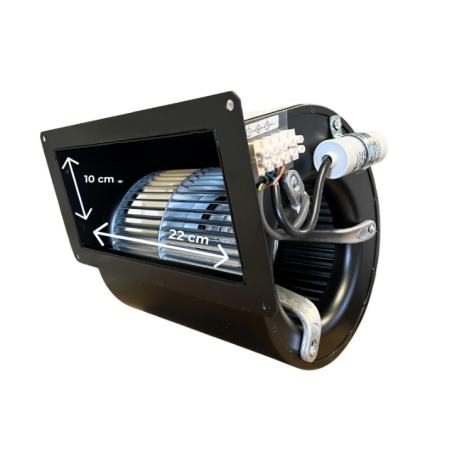

DD146/180 engine
DD 146/180 Motor - 1,400 m³/h, vue 2

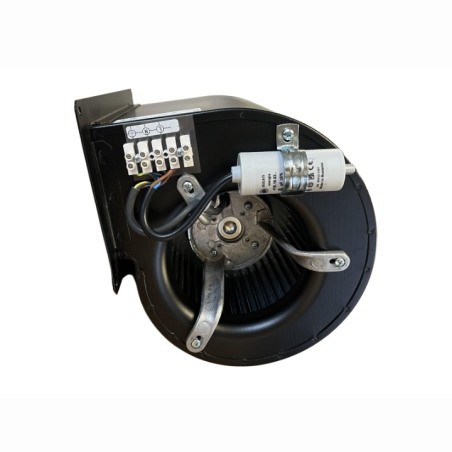

DD146/180

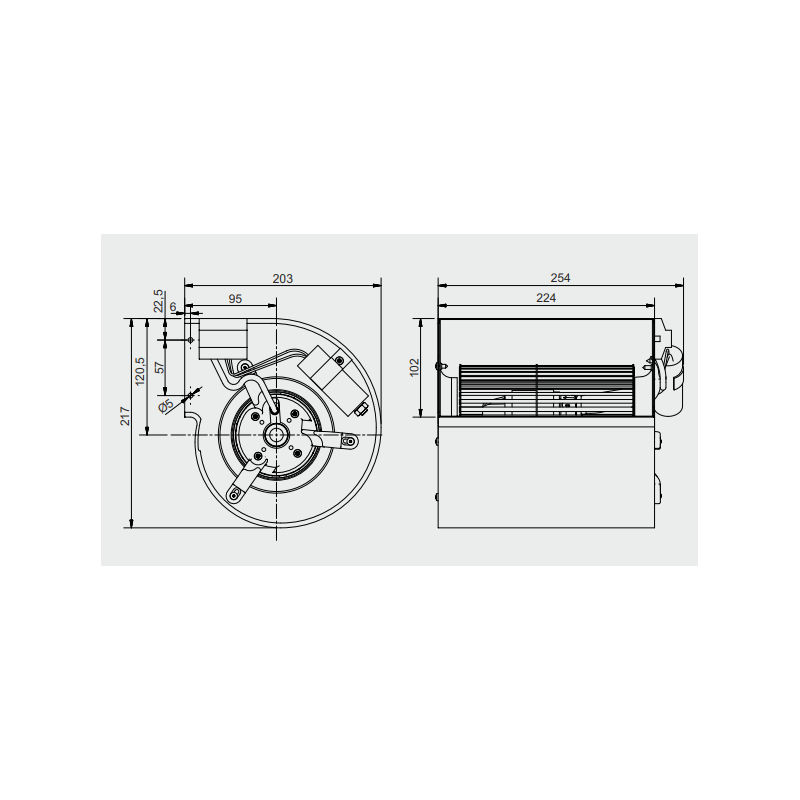

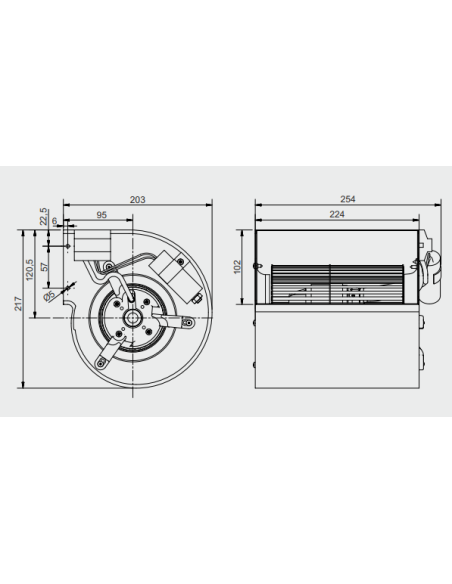

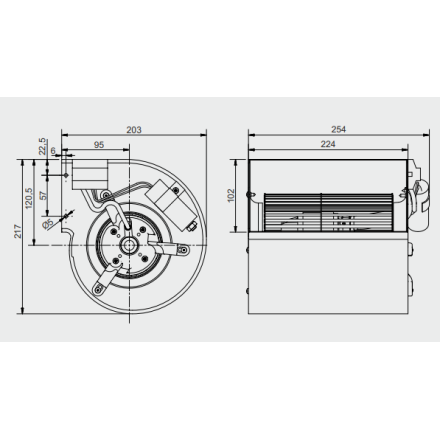

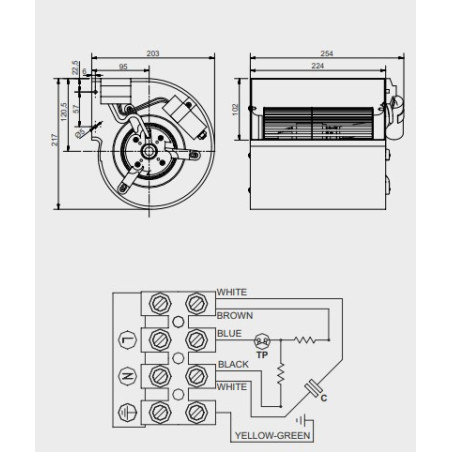

DD146/180 motor dimensions

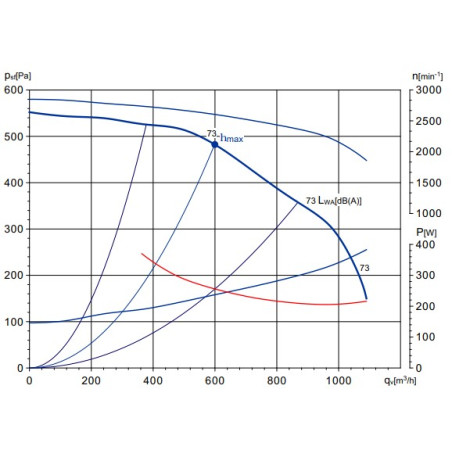

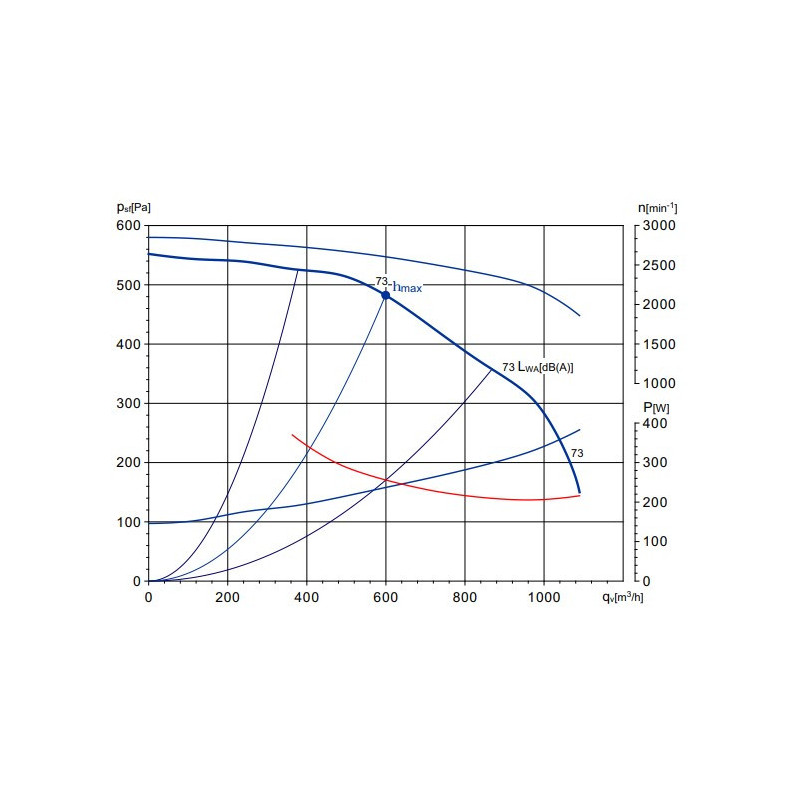

DD146/180 Engine Performance Curve

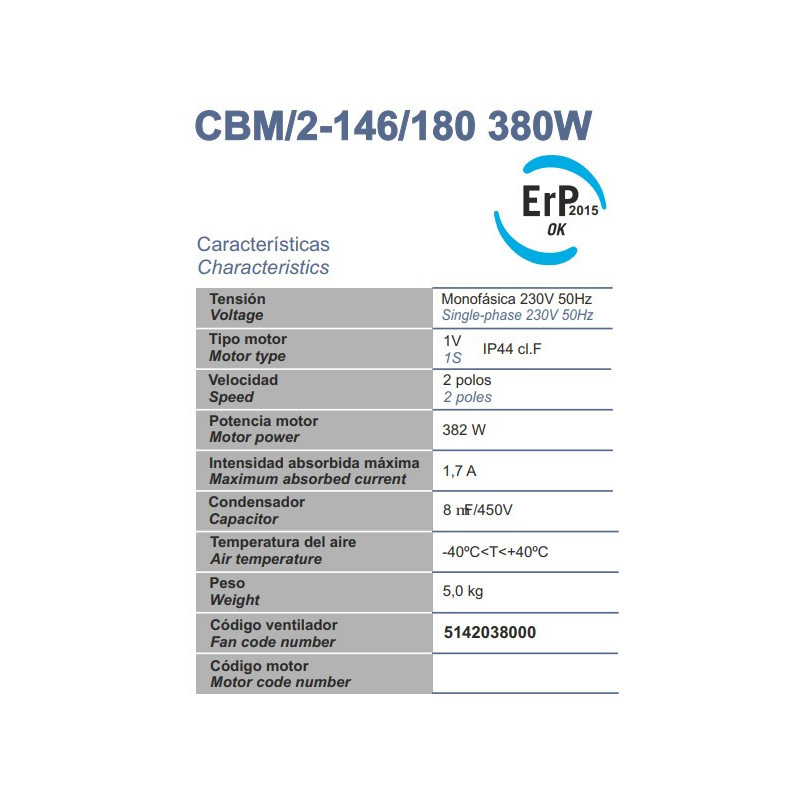

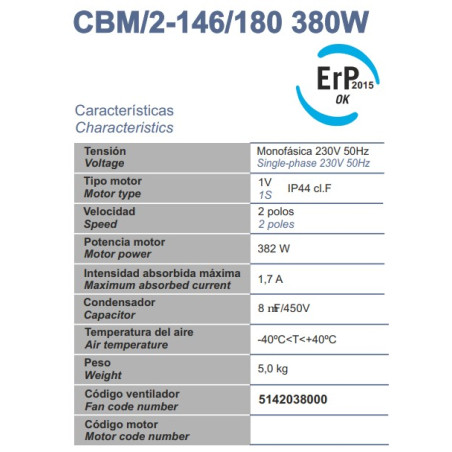

DD146/180 Motor Electrical Specifications
DD146/180 engine
DD 146/180 Motor - 1,400 m³/h, vue 2
DD146/180
DD146/180 motor dimensions
DD146/180 Engine Performance Curve
DD146/180 Motor Electrical Specifications

The DD 146/180 Motor - 1,400 m³/h from S&P is a reliable replacement for a mechanical ventilation unit motor, a small commercial kitchen hood motor, or a plant room fan motor (air curtain, unit heater). Airflow up to 1,400 m³/h, ready to fit with mounting frame included.

  • Airflow: up to 1,400 m³/h
  • Power: 380 W
  • Supply: 230V single phase
  • Current: 1.7 A
  • Protection rating: IP44 (IP55 with additional waterproof enclosure)
  • Indicative duct diameter: 200 to 250 mm
In stock
Quantity
165.00 Tax excluded
198 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The DD 146/180 Motor - 1,400 m³/h is a double-inlet centrifugal motor from S&P, designed to replace a mechanical ventilation unit motor, a small commercial kitchen hood motor, or a plant room fan motor (air curtain, unit heater), with airflow up to 1,400 m³/h under optimal conditions.

Technical specifications

Specification Value
Reference CBM146180
Brand S&P
Maximum airflow 1,400 m³/h
Power 380 W
Current 1.7 A
Supply 230V single phase
Protection rating IP44 (IP55 with waterproof enclosure such as a junction box)
Motor type Double-inlet centrifugal motor
Manufactured in Spain
Warranty 1 year
Package weight 5 kg

Use and compatibility

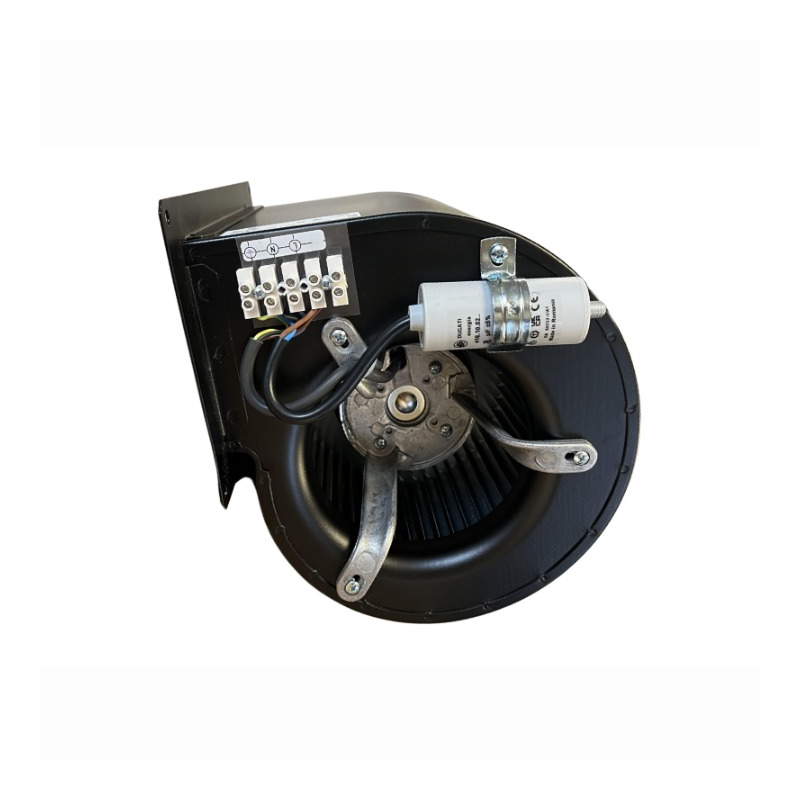

This DD 146/180 motor fits a mechanical ventilation unit, a small commercial kitchen hood or a plant room fan such as an air curtain or unit heater. It is supplied with capacitor, connection terminal block and mounting frame included, ready to replace a faulty motor without complex adaptation. It is compatible with units from all brands, including Caladair, Vim, Atlantic or ebm D3G146-LV13-30. Before ordering, check the dimensions of your current motor against the attached technical datasheet to confirm the exact compatibility of the frame and discharge direction.

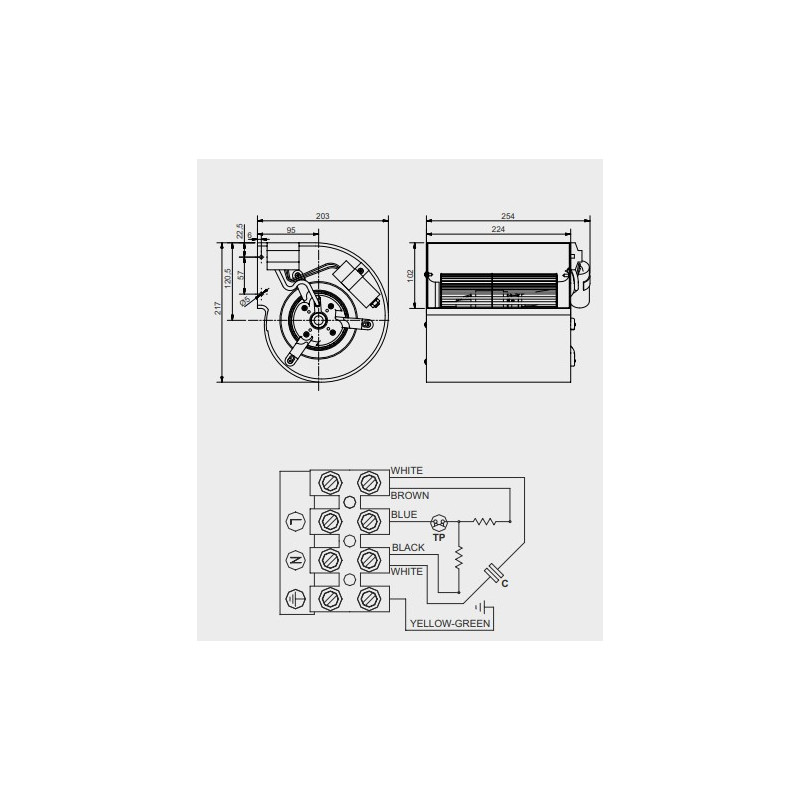

Installation and wiring

The motor connects on a 230V single phase supply via its already fitted connection terminal block and capacitor. The IP44 protection rating is suitable for standard installation in a ventilation unit or plant room; for a more humid environment, adding a waterproof enclosure such as a junction box allows the rating to reach IP55. Electrical connection must be carried out by a qualified professional, which is also a condition of the warranty.

Points to check before ordering

  • Compare the dimensions of your old motor with the attached technical datasheet (mounting hole centres, outlet diameter, overall height) before confirming compatibility.
  • Check that your duct diameter falls within the indicative range of 200 to 250 mm, depending on your system configuration.
  • Confirm that the available supply is indeed 230V single phase.
  • Estimate the airflow actually required for your room or hood: the maximum airflow of 1,400 m³/h corresponds to optimal conditions, actual airflow depends on elbows, duct length and installed filters.
  • If your unit requires a different mounting frame, remember to add the appropriate fitting kit to your order.

Pair with

Product Details

S&P
CBM146180
Manufacturing
Made in Spain
Warranty
1 year
Package weight
5 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
0 to 2,000 m³/h
Engine Type
Other
0657968301535

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a double-inlet centrifugal motor and a remote extraction fan box motor?

The DD 146/180 Motor fits directly inside the unit or hood, as close as possible to the extraction point. A motor fitted in a remote extraction fan box, further from the work area, generally produces less perceived noise. The choice depends on your layout and the distance available between the extraction point and the discharge point.

Is this motor compatible with my Caladair, Atlantic or Vim hood or unit?

The DD 146/180 Motor is compatible with units from all brands, including Caladair, Vim and Atlantic, as well as the ebm D3G146-LV13-30 reference. Check the dimensions and discharge direction of your current motor on the attached technical datasheet before ordering, to ensure a straightforward replacement.

Can a speed controller be fitted to this motor?

The DD 146/180 Motor runs on a 230V single phase supply, compatible with fan speed controllers sized according to its current rating. Choose a controller whose capacity matches the motor's current (1.7 A) for reliable operation under moderate use.

What duct diameter is compatible with the DD 146/180 motor?

As a guide, this motor suits ducts from 200 to 250 mm in diameter. This figure depends on the length of your ductwork, the number of elbows and overall pressure losses: a long run or several elbows can reduce the airflow actually available.

Is the motor supplied on its own or with the complete impeller assembly?

The DD 146/180 Motor is supplied with its mounting frame, capacitor and connection terminal block already fitted, rated IP44 (IP55 with the addition of a waterproof enclosure). Check the attached technical datasheet to see whether your replacement requires the motor alone or the complete impeller and scroll housing assembly, depending on the condition of your current installation.
