Mini Activated Carbon Odor-Control Unit + Dual G3 Filter (Ø200 to Ø315)

Mini Odor-Control Filter Unit with Activated Carbon and Dual G3 Filters

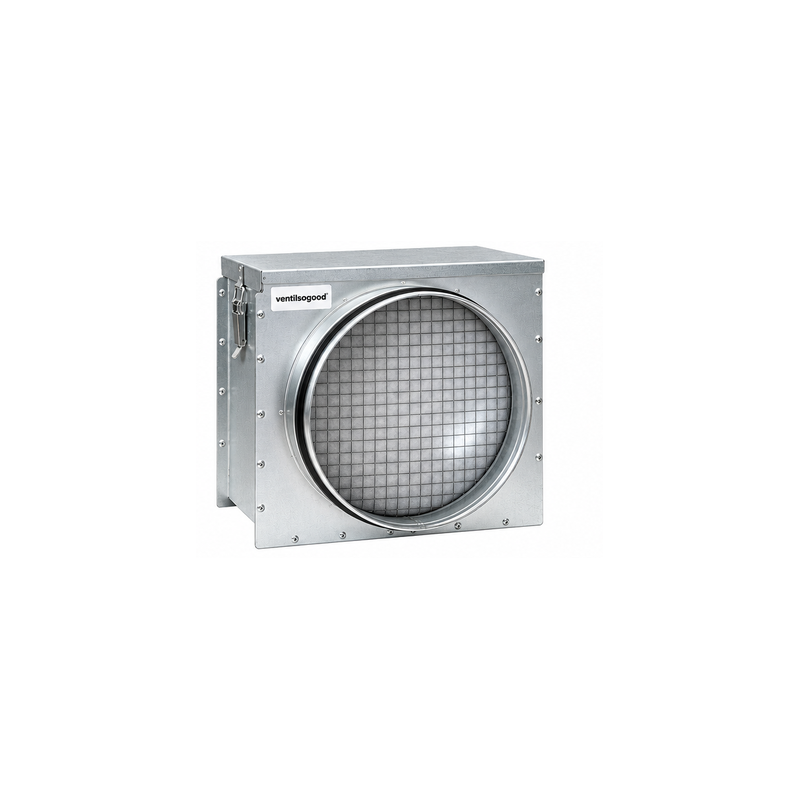

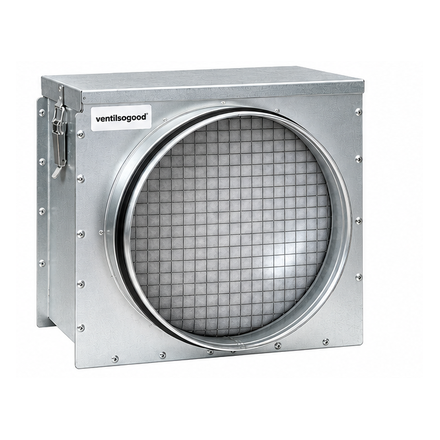

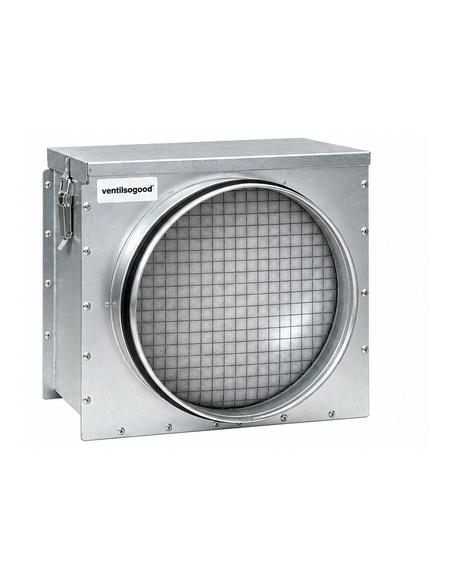

A compact and cost-effective solution for filtering air and reducing odors in your ventilation system. This mini filter unit installs directly between two circular ventilation ducts or pipes. It is available with connections in Ø200, Ø250, or Ø315 mm.

Thanks to its combination of activated carbon and two G3 filters, it traps some dust, grease, and particles while helping to reduce odors.

Two possible applications: supply or exhaust

• For supply air: the unit filters incoming air before it is distributed into the room.

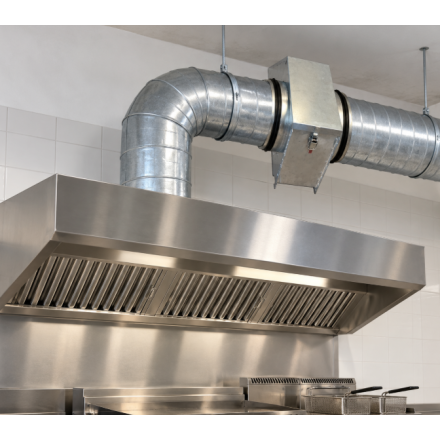

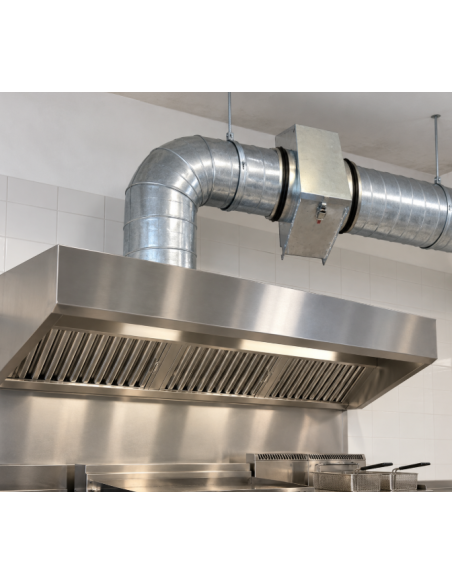

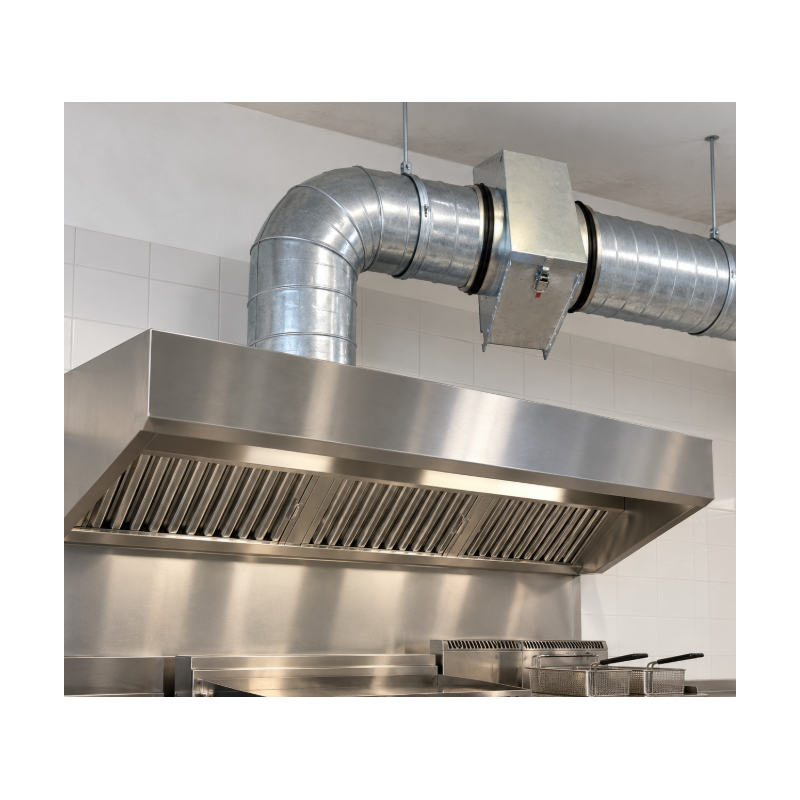

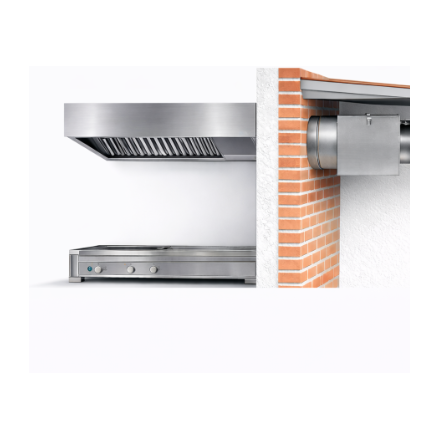

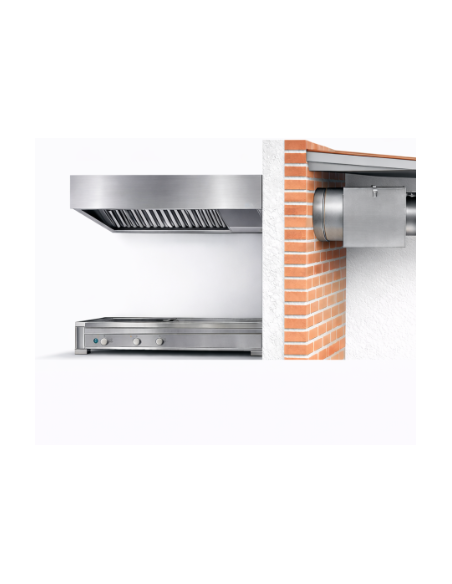

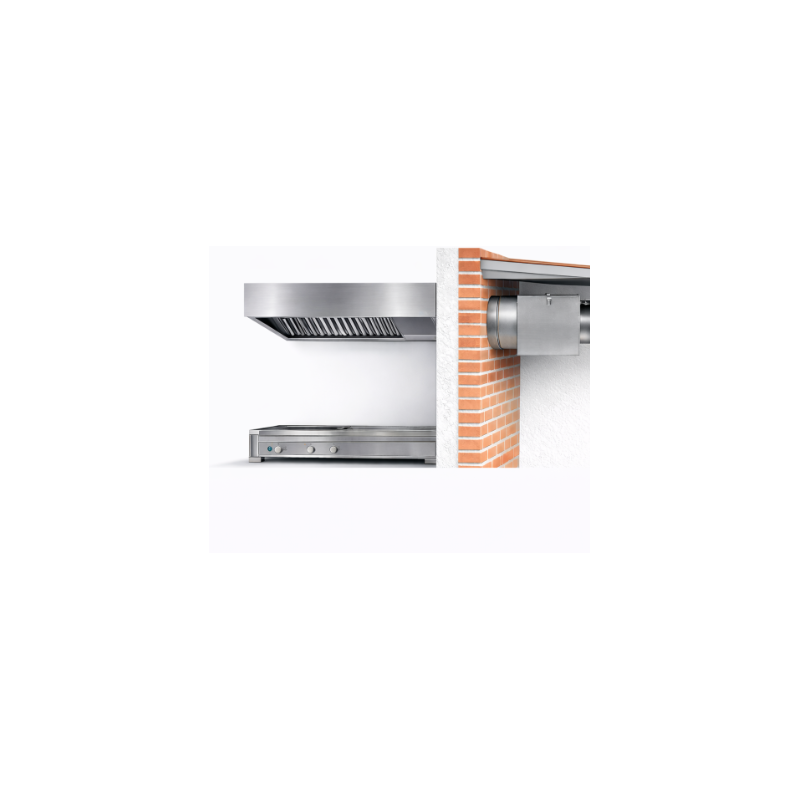

• For exhaust mode: It can be installed on an exhaust system to filter the exhaust air and limit odors coming from a room or a range hood.

Note: This compact model is not intended for use with equipment that generates very large amounts of grease and odors, such as deep fryers, griddles, or woks. For a professional kitchen with intensive cooking, opt for a charcoal filter unit with a higher capacity.

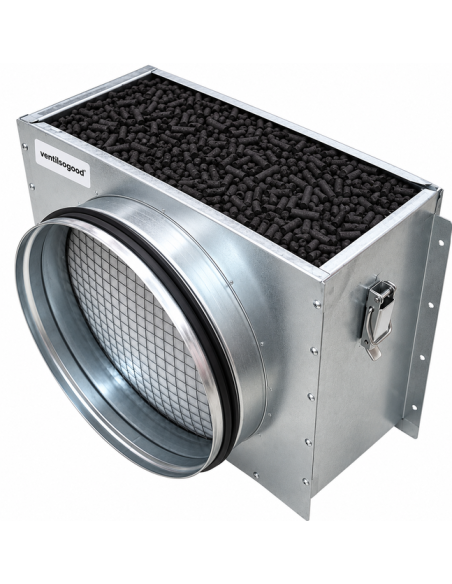

Dual filtration: G3 + activated carbon

The unit combines two levels of filtration:

• 2 G3 filters to trap dust, particles, and some grease;

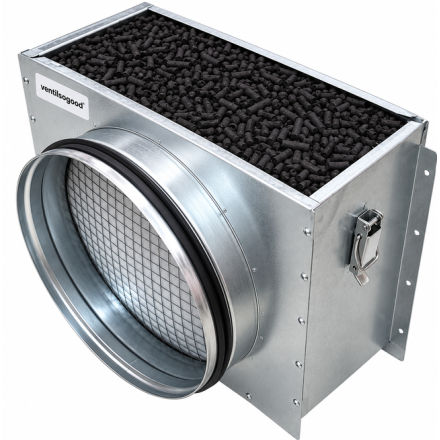

• 5 to 7 kg of activated carbon, depending on the model, to help eliminate odors;

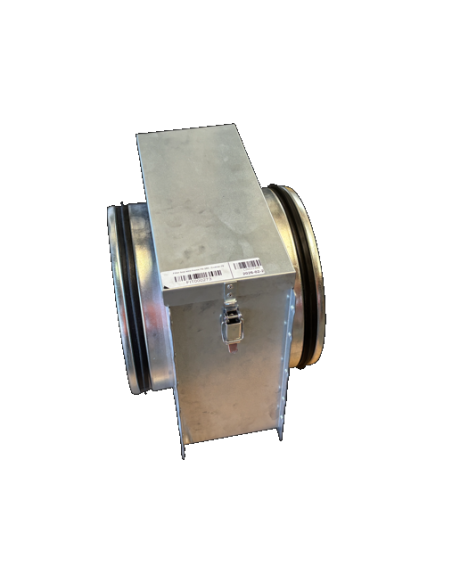

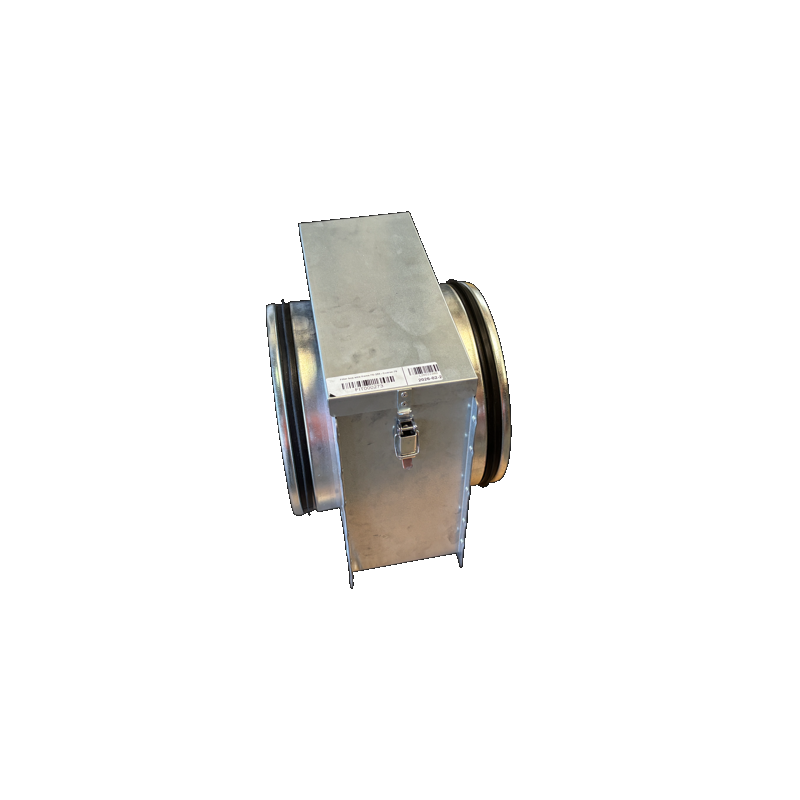

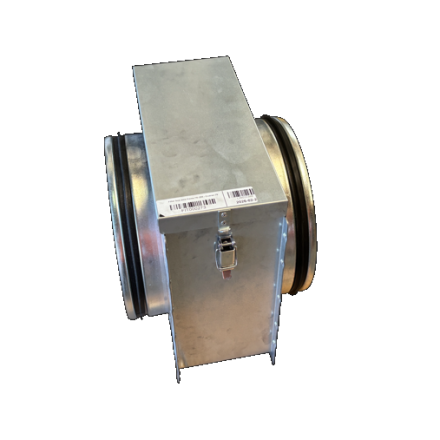

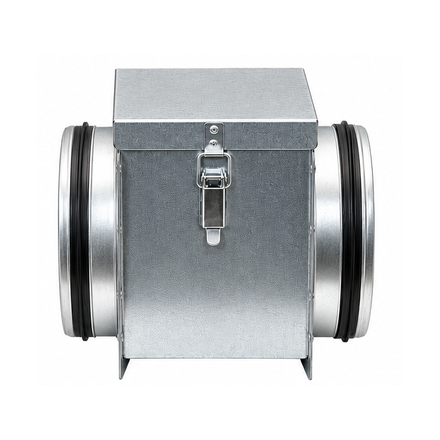

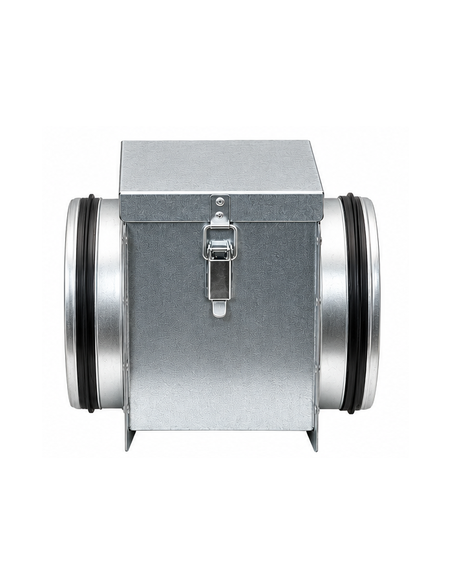

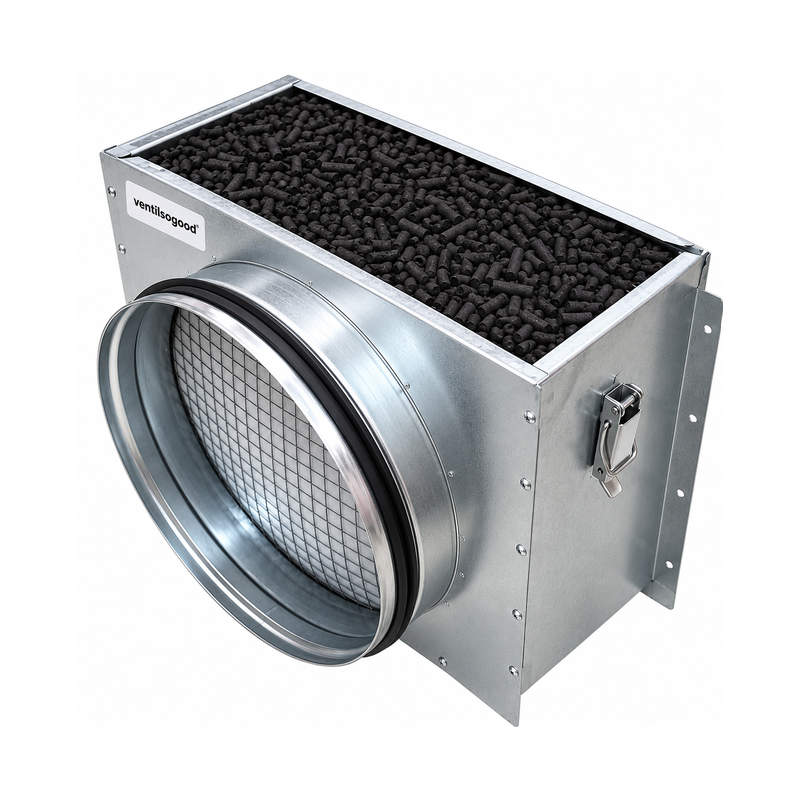

• A hinged housing that allows access to the filters and replacement of the activated carbon.

The G3 filters are washable with hot water and a degreasing agent. Regular maintenance helps maintain good filtration performance and extends the lifespan of the activated carbon.

Simple installation directly onto your ventilation system

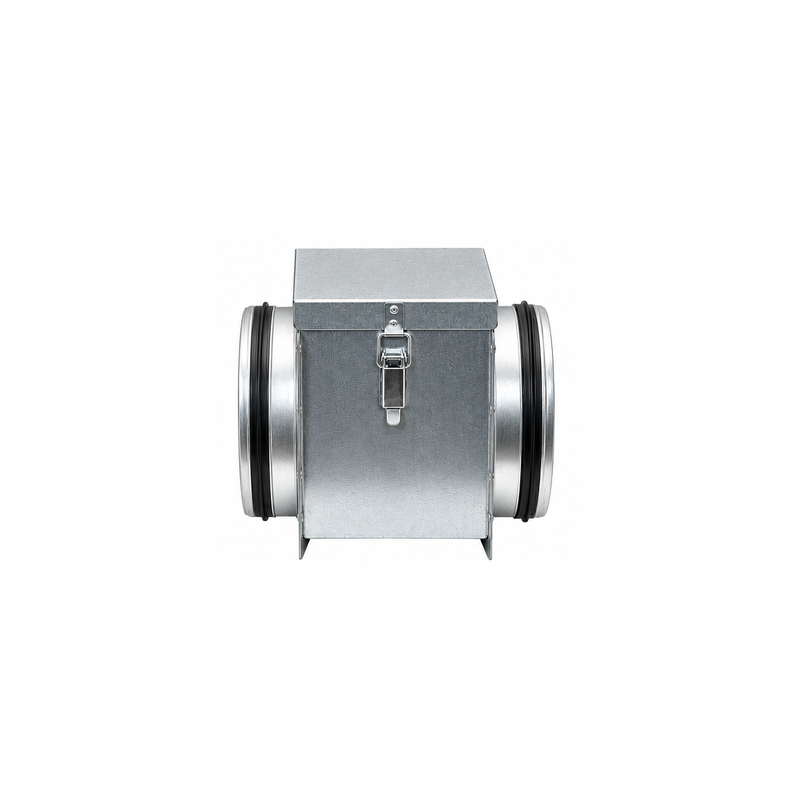

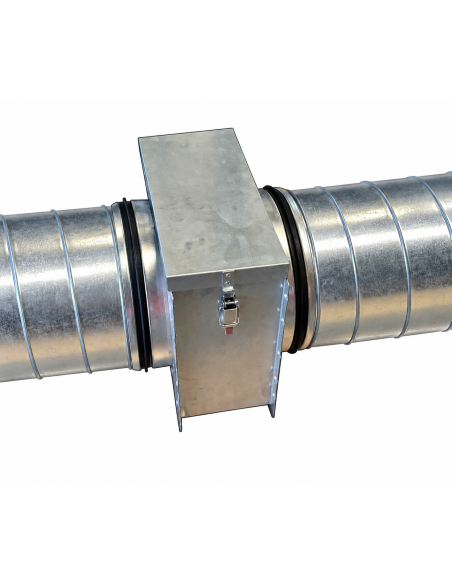

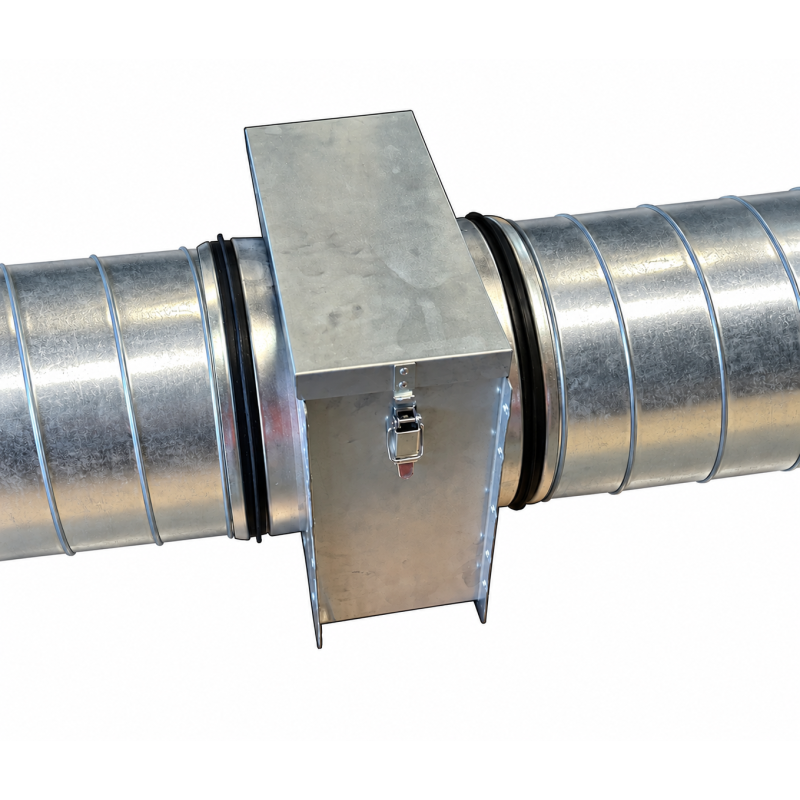

The unit is designed to be installed in-line between two ventilation ducts. The inlet and outlet connections are provided and already attached to the unit.

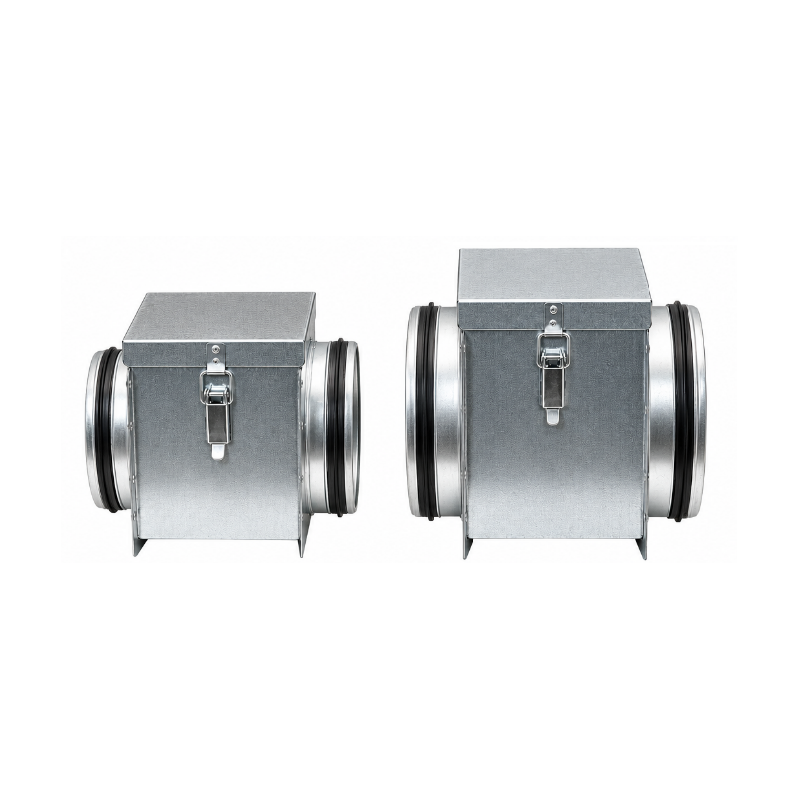

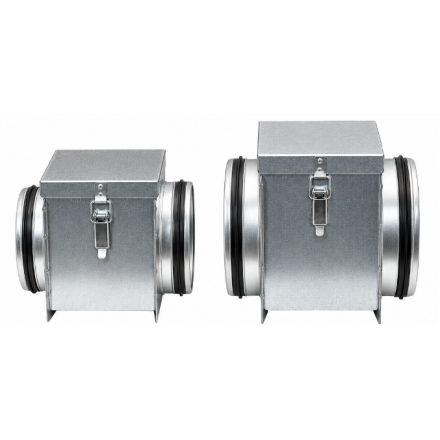

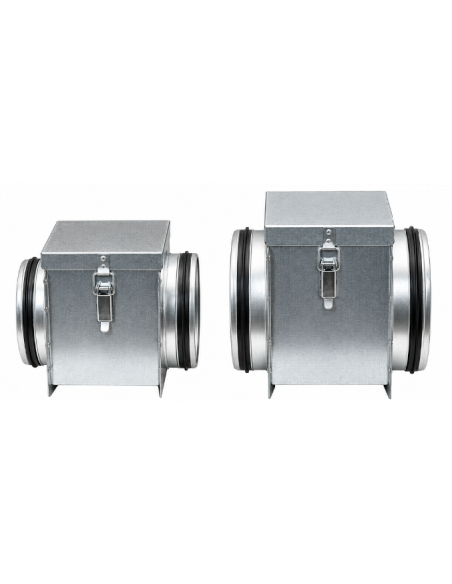

• Available connections: Ø200, Ø250, or Ø315 mm
• Unit length: 100 to 200 mm
• Height / Width: 250 to 400 mm
• Activated carbon load: 5 to 7 kg depending on the model
• Filtration: 2 G3 filters + activated carbon
• Washable G3 filters
• Replaceable activated carbon
• Access door for easy maintenance
• Inlet and outlet connections provided and installed

Indoor or outdoor installation

The unit can be installed indoors or outdoors. For outdoor installation, it is recommended to provide a duct or pipe for the exhaust and to properly protect the unit from the elements.

For grease-laden exhaust

In a kitchen installation, adding a suitable pre-filter helps minimize clogging of the activated carbon and extends its service life.

See our G3 filter housing for circular ducts

Need enhanced filtration for a restaurant?

For professional kitchens that produce more smoke, grease, and odors, VentilSoGood also offers higher-capacity filtration solutions with activated carbon cartridges.

Discover the Performance Filter Unit – 6 activated carbon cartridges

The effectiveness of odor treatment depends, among other factors, on the airflow rate, the nature of the pollutants, the air temperature, the degree of filter clogging, the amount of activated carbon, and the overall configuration of the ventilation system. The sizing, compliance, and maintenance of the system remain the responsibility of the customer and their installer.
