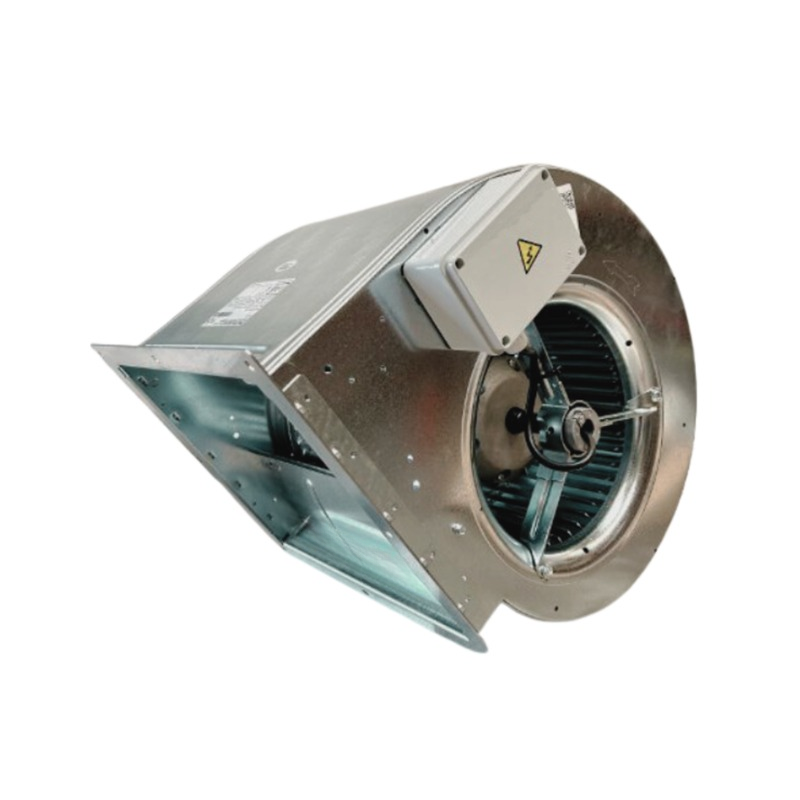

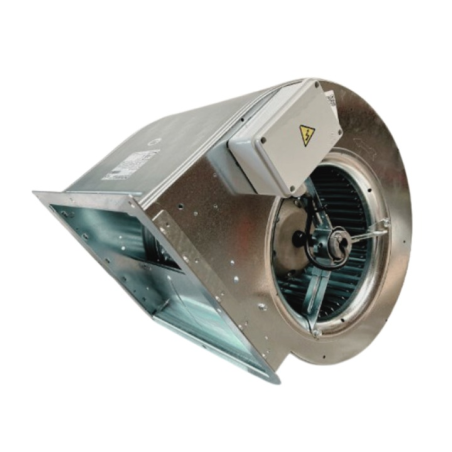

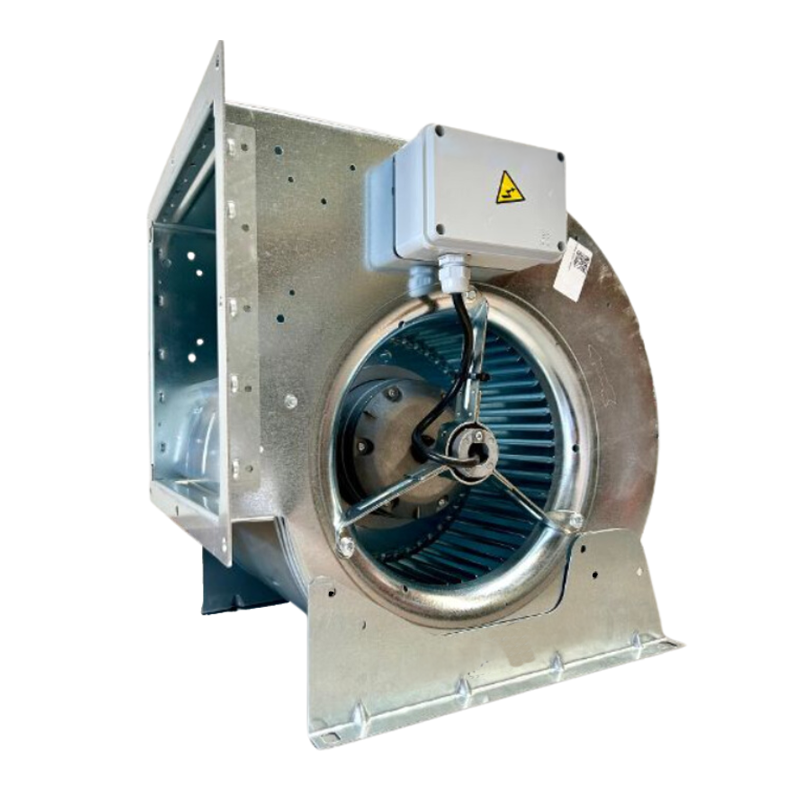

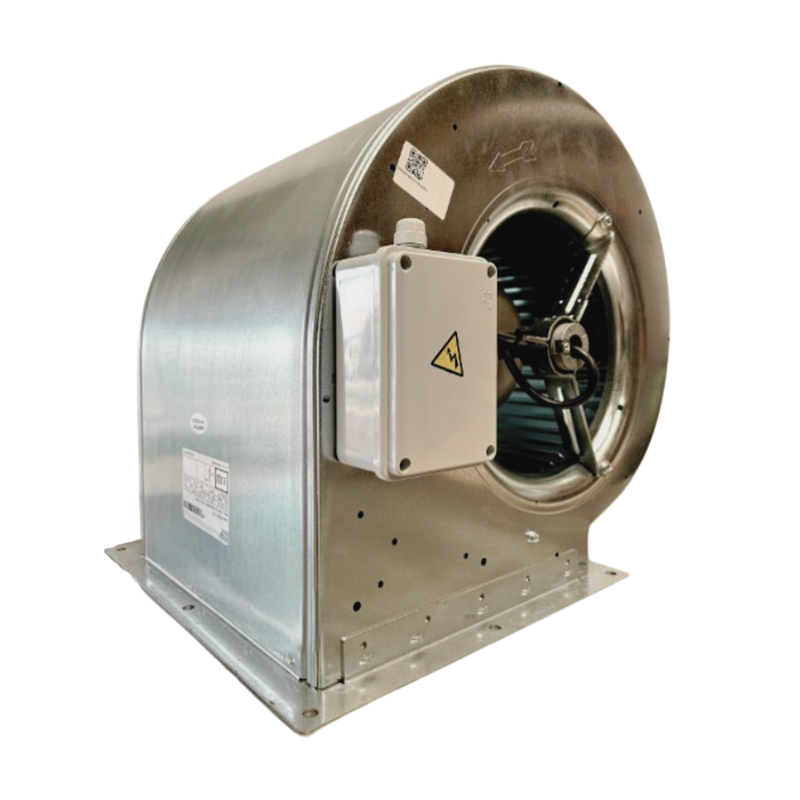

Centrifugal Fan DDM10/10 PREMIUM - 4,000 m³/h - 550 W - 230 V for cabinet

Centrifugal Fan DDM10/10 Premium – 4,000 m³/h s for extraction hoods (230 V)

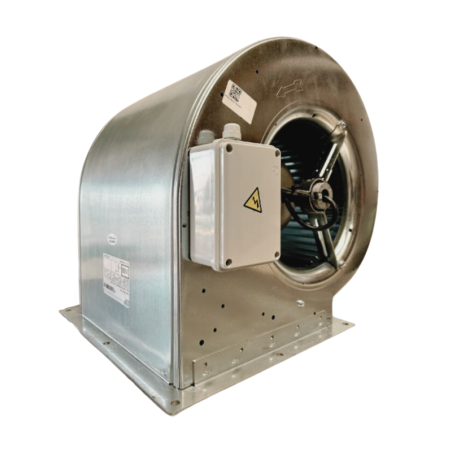

The DDM10/10 Premium worm gear motor is a powerful and reliable motor designed for industrial and professional extraction hoods. With an airflow rate of 4,000 m³/h and a power output of 550 W at 230 V, it offers an excellent balance of performance, durability, and quiet operation. Ideal for remote ventilation systems located away from the range hood.

Features and benefits:

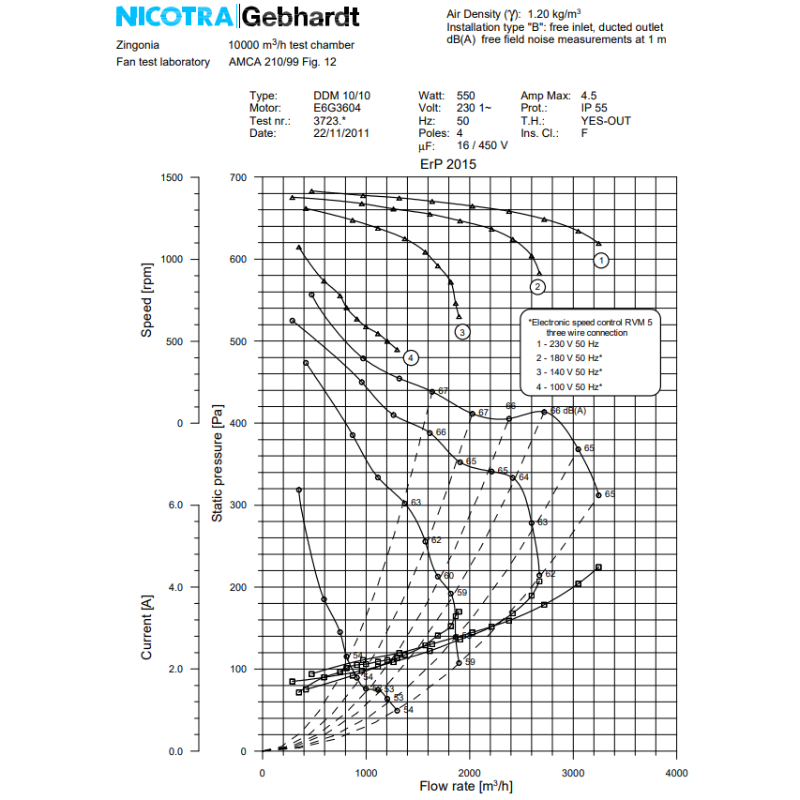

• Airflow: 4,000 m³/h —suitable for medium to large-sized units.
• Power: 550 W, 230 V single-phase.
• Dual centrifugal inlets: balanced suction for a steady airflow.

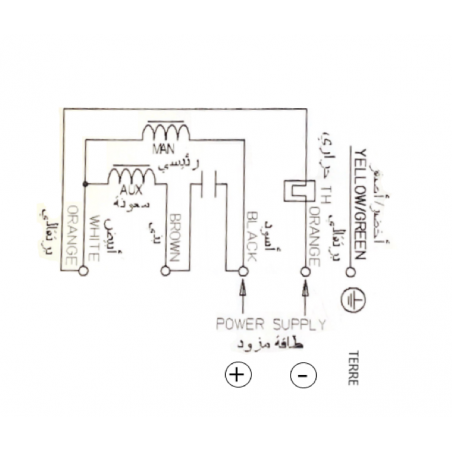

• IP54-rated housing with built-in capacitor for protection against dust and grease.
• Mounting frame included for installation in an enclosure.

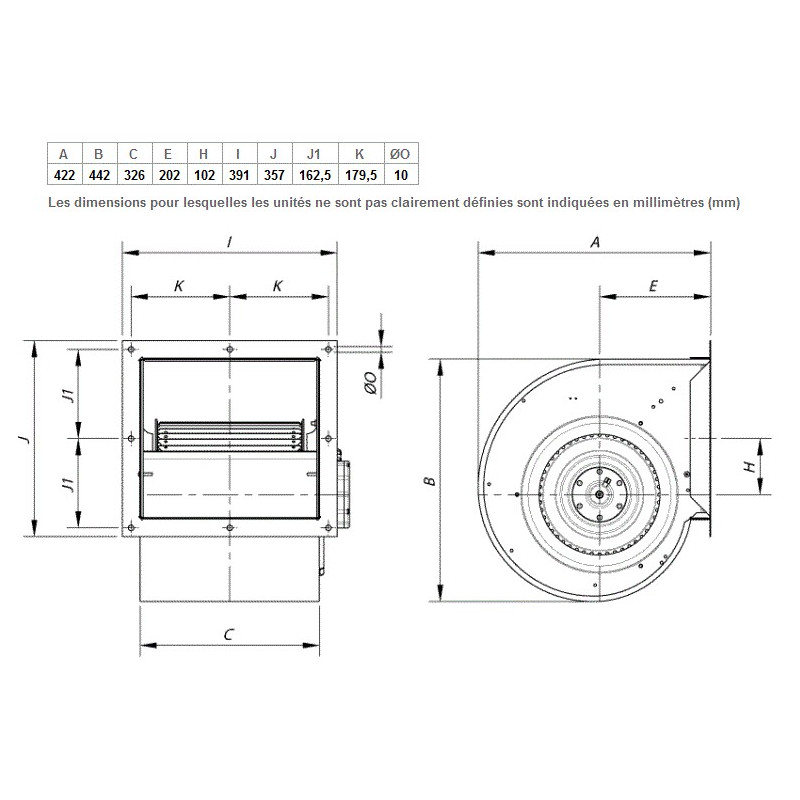

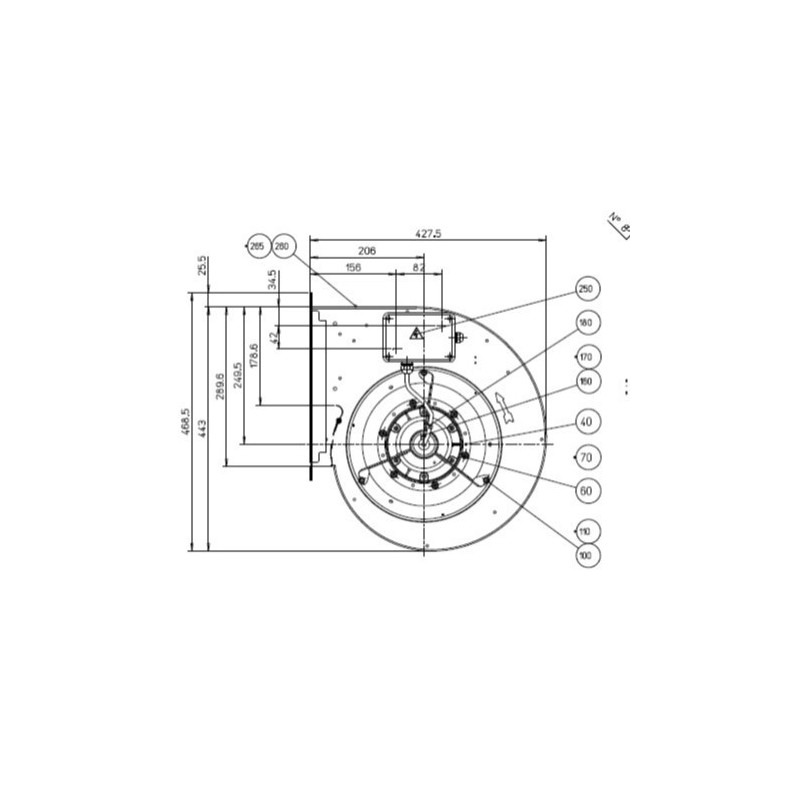

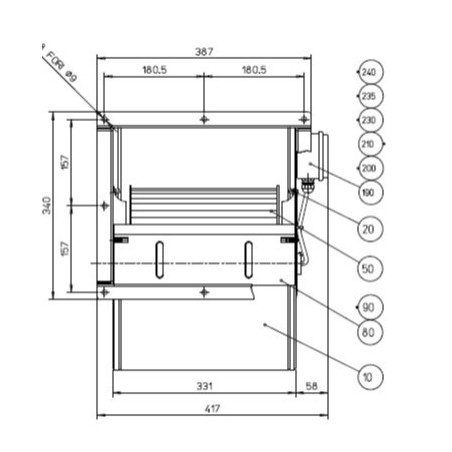

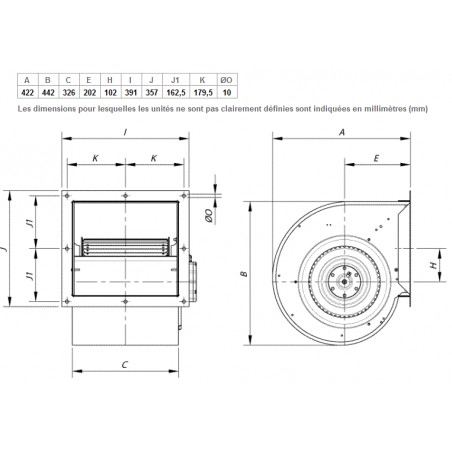

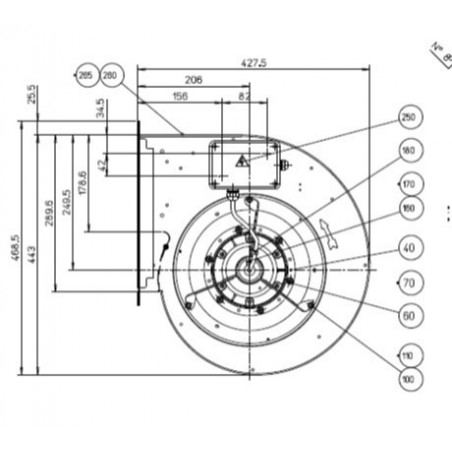

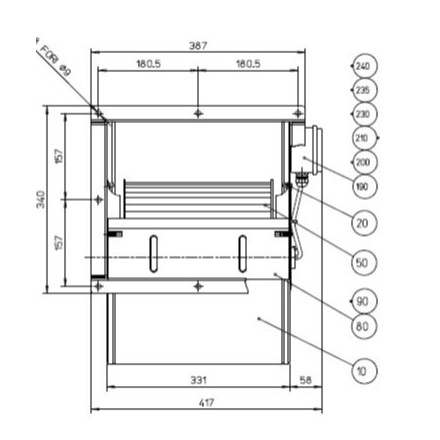

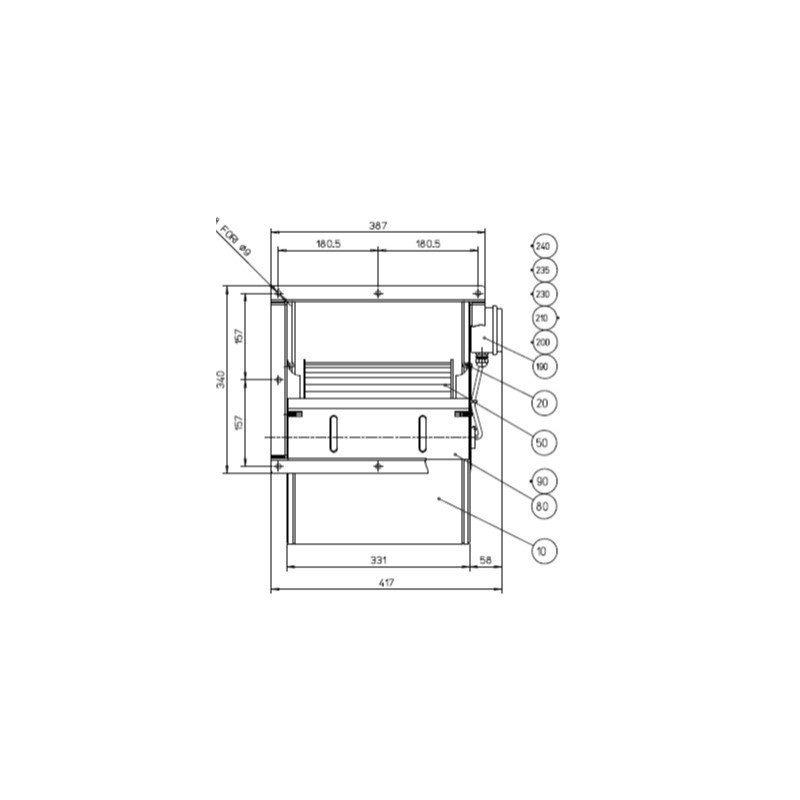

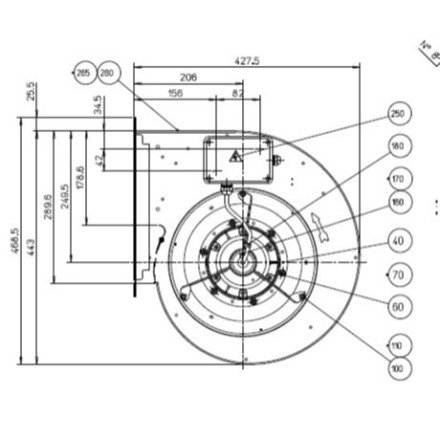

• Motor outlet: dimensions 330 × 290 mm.
• Not compatible with 400°/2h smoke exhaust systems (for use outside of direct hood applications).
• Easy replacement: designed for direct replacement of standard motors.

This centrifugal motor is ideal for efficiently extracting smoke, vapors, and grease in commercial ventilation systems (restaurants, central kitchens, utility rooms). Rugged, high-performance, and designed for heavy-duty use, it is available immediately from stock.

 Also check out our DDM 7/7 and DDM 9/9 Premium motors.
